2AWL2-JR-ZS295Magnetic Wireless Car Charge Holder

FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

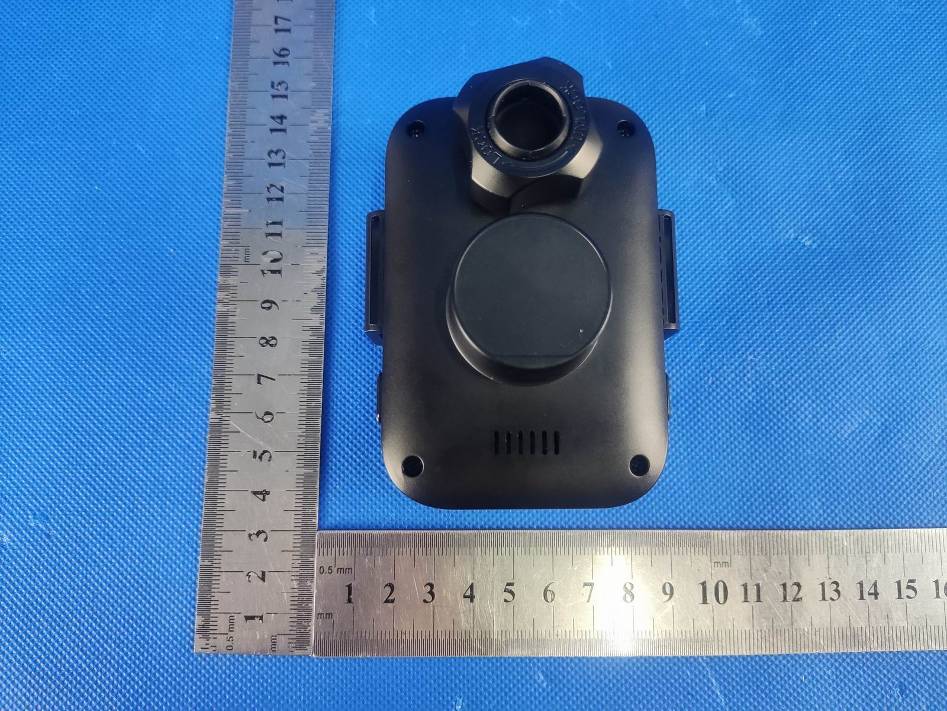

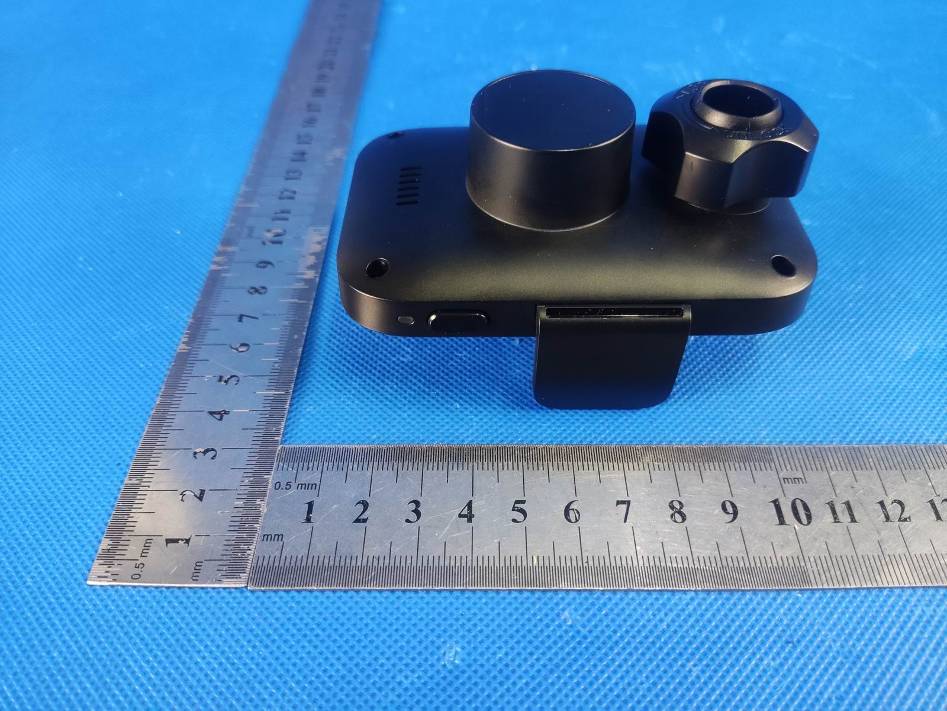

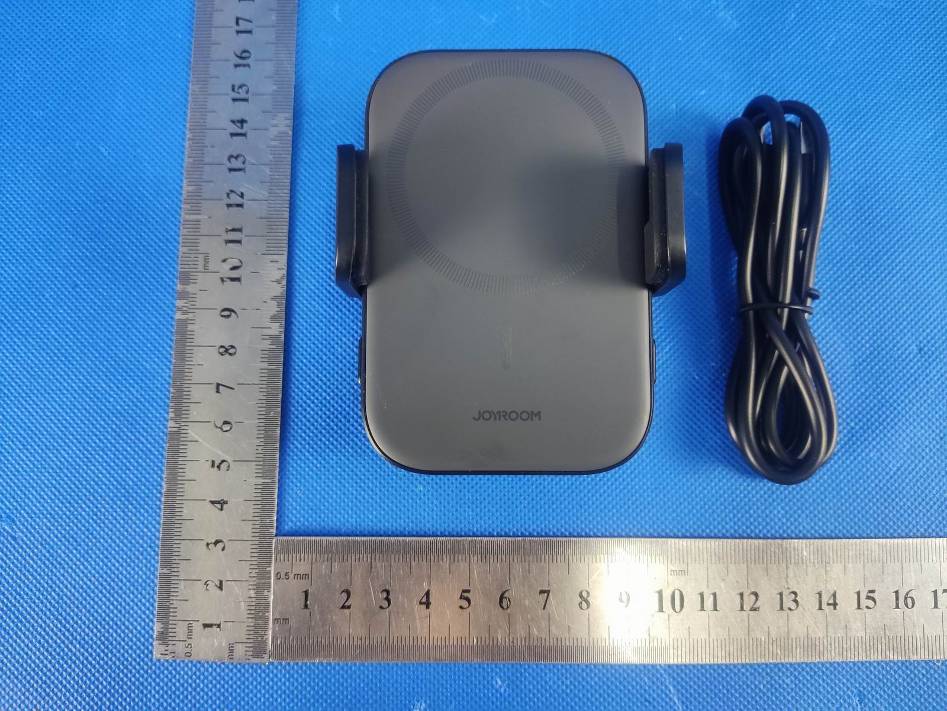

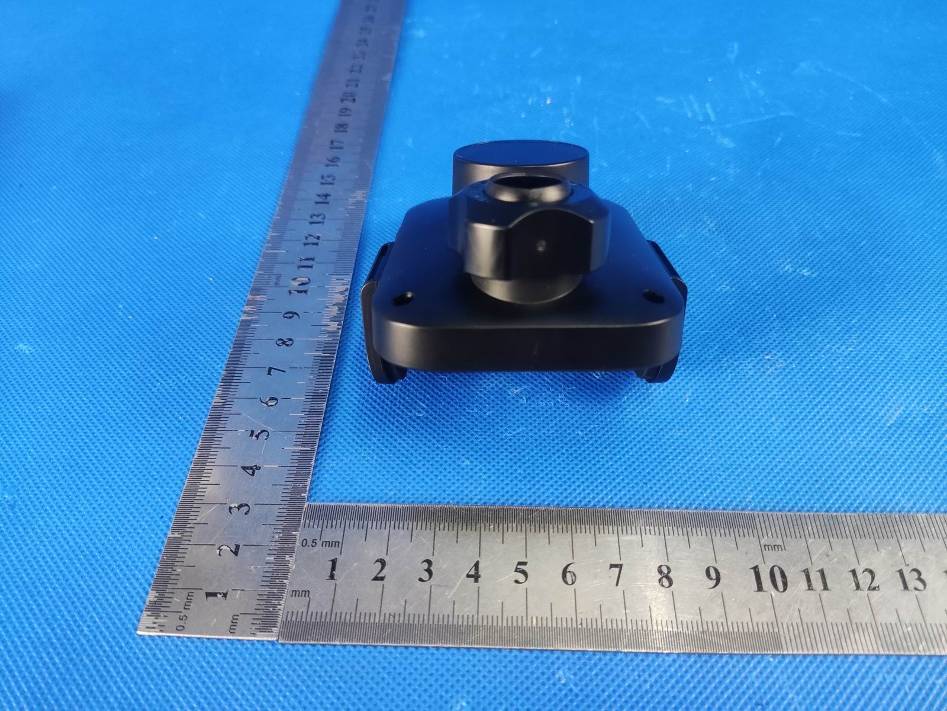

Page 1 of 4 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 ------End------

Label &Label location FCC ID: 2AWL2-JR-ZS295

Page 1 of 2 FCC ID : 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 2 FCC ID : 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 ------End------ Antenna

Page 1 of 4 FCC ID: 2AWL2-JR-ZS295 RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 4 FCC ID: 2AWL2-JR-ZS295 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Mobile phone (15W) Record Mode 2 AC Adapter + EUT + Mobile phone (10W) Pre-tested Mode 3 AC Adapter + EUT + Mobile phone (7.5W) Pre-tested Mode 4 AC Adapter + EUT + Mobile phone(5W) Pre-tested Mode 5 Test the EUT in idle mode. Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 3 of 4 FCC ID: 2AWL2-JR-ZS295 6 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 M-0155/M-017 0 2021.08.30 2022.08.29 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 2021.08.30 2022.08.29 7 Test Result Charging Mode: E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Unit Charging Battery Level Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) V/m 1% 0.135 91.12 93.30 92.95 62.84 91.14 307.0 614.0 V/m 50% 0.135 74.87 75.54 90.76 50.60 74.49 307.0 614.0 V/m 99% 0.135 71.83 102.7778.35 42.87 90.87 307.0 614.0 Note: V/m= A/m *377 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Unit Charging Battery Level Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) uT 1% 0.135 0.302 0.309 0.308 0.208 0.302 -- -- A/m 0.242 0.247 0.247 0.167 0.242 0.8151.63 uT 50% 0.135 0.248 0.250 0.301 0.168 0.247 -- -- A/m 0.199 0.200 0.241 0.134 0.198 0.8151.63 uT 99% 0.135 0.238 0.341 0.260 0.142 0.301 -- -- A/m 0.191 0.273 0.208 0.114 0.241 0.8151.63 Note:A/m=uT/1.25 H-Filed Strength at 20 cm from the top of the EUT (A/m) Unit Charging Battery Level Frequency Range (MHz) Test Position E 50% Limits (A/m) Limits (A/m) uT 1% 0.135 0.283 -- -- A/m 0.226 0.815 1.63 uT 50% 0.135 0.170 -- -- A/m 0.136 0.815 1.63 uT 99% 0.135 0.097 -- -- A/m 0.077 0.815 1.63 Note:A/m=uT/1.25 Page 4 of 4 FCC ID: 2AWL2-JR-ZS295 8 Test Set-up Photo **End of report**

Page 1 of 23 Report No.: AIT22051904W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD. Applicant add.: 201, No.8 Building, JinfanghuaElectricity Industrial park, Bantian St., Longgang Dist., Shenzhen, China Manufacturer: Xiaozhi (Dongguan) Technology Co., Ltd Manufacturer add.: RM 502, No. 4 Building, No. 302 TanglongXi Road, Tangxia Town, Dongguan, Guangdong Product Information: Product Name: Magnetic Wireless Car Charge Holder Model No.: JR-ZS295,JR-ZS331,JR-ZS332 Brand Name: JOYROOM FCC ID: 2AWL2-JR-ZS295 Applicable standards : FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: May 19, 2022 Date of Test: May 19~ May 25, 2022 Date of Issue: May 26, 2022 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 23 Report No.: AIT22051904W1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ...........................................................................................................................................................2 2 TEST SUMMARY ..................................................................................................................................................5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY.............................................................................................5 2.2 MEASUREMENT UNCERTAINTY............................................................................................................................5 3 TEST FACILITY.....................................................................................................................................................6 3.1 DEVIATION FROM STANDARD...............................................................................................................................6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................6 3.3 TEST LOCATION.................................................................................................................................................6 4 GENERAL INFORMATION ...................................................................................................................................7 4.1 EUT TEST MODE...............................................................................................................................................8 4.2 DESCRIPTION OF TEST SETUP.............................................................................................................................8 4.3 PERIPHERAL LIST...............................................................................................................................................9 4.4 EUT PERIPHERAL LIST.......................................................................................................................................9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS .....................................................................................................10 6 CONDUCTED EMISSION TEST .........................................................................................................................11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................11 6.2 POWER LINE CONDUCTED EMISSION LIMITS...........................................................................................11 6.3 TEST PROCEDURE......................................................................................................................................11 6.4 DEVIATION FROM TEST STANDARD .........................................................................................................11 6.5 TEST SETUP.................................................................................................................................................12 6.6 EUT OPERATING CONDITIONS ..................................................................................................................12 6.7 TEST RESULT..................................................................................................................................................13 7 RADIATED EMISSION MEASUREMENT ..........................................................................................................15 7.1 RADIATED EMISSION LIMITS..............................................................................................................................15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM.....................................................................................................16 7.3 TEST PROCEDURE...........................................................................................................................................16 7.4 DEVIATION FROM TEST STANDARD ......................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2AWL2-JR-ZS295 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
