2AWL2-JROE2Open-Ear True Wireless Headphones

JR-OE2 开放式TWS蓝牙运动耳机 Open-Ear True Wireless Headphones User Manual I. Product picture 一、封面 II. Product diagram 二、产品图示 ①耳机多功能按键 ②耳机指示灯 ③耳机麦克风 ④耳机充电触点 ⑤耳机出音孔 ① Headphone multifunctional button ② Headphone indicator ③ Microphone ④ Headphone charging contact ⑤ Audio out ⑥充电盒充电触点 ⑦充电盒指示灯 ⑧充电盒多功能按键 ⑨充电盒Type-C充电接口 ⑥ Case charging pin ⑦ Case indicator ⑧ Case multifunctional button ⑨ Case Type-C charging port III. Packing list 1. JR-OE2 耳机 2. 充电配线 3. 消毒棉签 4. 说明书&保修卡 1. JR-OE2 headphones 2. Charging cable 3. Disinfection cotton swab 4. User Manual & Warranty Card IV. Basic parameters 产品名称：开放式TWS蓝牙运动耳机 型号：JR-OE2 蓝牙版本：V5.3 音频解码：AAC、SBC 支持协议：HFP、A2DP、AVRCP 工作频率：2402MHz-2480MHz 通讯距离：10m（无障碍空旷环境） 频响范围：20Hz-20KHz 驱动单元： φ16.2mm 音乐时长：约10小时（70%音量） 通话时长：约7小时（70%音量） 连接待机时长：约120小时 耳机电池容量：120mAh 充电盒电池容量：600mAh 耳机充电时长：约1.5小时 充电盒充电时长：约1.5小时 充电盒可给双耳充电次数：约2次 充电盒充电接口：Type-C 充电盒电源输入：5V⎓500mA 产品材质：ABS+硅胶 产品净重：单耳 12 g 充电盒 60 g 三、包装清单 四、基本参数 Name: Open-Ear True Wireless Headphones Model: JR-OE2 BT version: V5.3 Audio decoding: AAC, SBC Supported protocols: HFP, A2DP, AVRCP Working frequency: 2402MHz-2480MHz BT range: 10m (barrier-free open environment) Frequency response range: 20Hz-20KHz Speaker: φ16.2mm Music time: about 10h (70% volume) Calling time: about 7h (70% volume) Standby time (connected): about 120h Headphone battery capacity: 120mAh Case battery capacity: 600mAh Headphone charging time: about 1.5h Case charging time: about 1.5h Cycle counts: about 2 charging cycles Case charging port: Type-C Case charging input: 5V⎓500mA Material: ABS+silicone Net weight: single headphone-12g, charging case-60g V. Pairing operation 1. 打开充电盒上盖，耳机自动开机； 2. 当主耳机橙白灯交替闪烁，副耳机白灯每5秒闪1次时，即耳机处于待配对 状态； 3.此时开启手机蓝牙，搜索蓝牙设备“Joyroom Openfree OE2”点击连接。 1. Open the lid of the charging case, the headphones will turn on automatically. 2. When the main headphone indicator flashes orange and white alternatively, and the auxiliary headphone indicator flashes white every 5s, it means the headphones are ready for pairing. 3. Turn the phone’s BT function on and search for the BT device " Joyroom Openfree OE2", connect with it. VI. Operation instructions 开/关机 On/off 开机 Turn on ① 打开充电盒上盖，耳机自动开机，或长按多功能按键3 秒 ① Open the lid of the charging case, the headphones will turn on automatically; or press and hold the multifunctional button for 3s 关机 Turn off ①耳机放回充电盒关盖自动关机，或长按多功能按键5秒； ②无连接状态下，5分钟自动关机； ① Put the headphones back into the charging case and close the lid, they will turn off automatically; or press and hold the multifunctional button for 5s ② The headphones will turn off automatically if not connected for 5min 音乐状态功能 Music function 播放/暂停 Play/Pause 单击耳机多功能按键 Click the multifunctional button of the headphone 音量+ Volume up 长按右耳多功能按键1秒 Press and hold the multifunctional button of the right headphone for 1s 音量- Volume down 长按左耳多功能按键1秒 Press and hold the multifunctional button of the left headphone for 1s 上一曲 Previous track 双击左耳多功能按键 Double-click the multifunctional button of the left headphone 下一曲 Next track 双击右耳多功能按键 Double-click the multifunctional button of the right headphone 五、配对操作(做图描述) 六、常用操作说明(做图描述) 通话状态功能 Call function 接听/挂断电话 Answer/end call 单击耳机多功能按键 Click the multifunctional button of the headphone 拒接来电 Reject call 长按耳机多功能按键2秒 Press and hold the multifunctional button of the headphone for 2s 语音助手功能 Voice assistant 唤醒语音助手 Activate voice assistant 三击耳机多功能按键 Triple-click the multifunctional button of the headphone 充电盒多功能按键功能说明 Case multifunctional button 显示充电盒当前 电量 Display case battery level 单击充电盒多功能按键 Click the multifunctional button of the charging case 耳机强制进入待 配对状态 Enter “ready for pairing” status 长按充电盒多功能按键2秒 Press and hold the multifunctional button of the charging case for 2s 耳机恢复出厂设 置 Restore factory settings 长按充电盒多功能按键7秒 Press and hold the multifunctional button of the charging case for 7s 指示灯说明 Indicator light 开机 Turn on 耳机白灯长亮2秒 Constant white headphone indicator for 2s 关机 Turn off 耳机橙灯长亮2秒 Constant orange headphone indicator for 2s 配对状态 Ready for pairing 主耳机橙白灯交替闪烁，副耳机白灯每5秒闪一次 The main headphone indicator flashes orange and white alternatively, and the auxiliary headphone indicator flashes white every 5s 耳机充电 Charging the headphones 耳机橙灯长亮 Constant orange headphone indicator 充电仓给耳机充 电 Charging the headphones via the charging case 充电盒白灯闪烁5秒后熄灭 Case indicator flashes white for 5s then goes out 给充电仓充电 Recharging the case 充电盒橙灯闪烁，充满电橙灯长亮 Case indicator flashes orange. When fully charged, it will be constant orange. VII. FAQ 友情提示1：请每周为充电盒充电一次，避免充电盒过度放电； 友情提示2：使用一段时间后，由于充电触点存在脏污或氧化，导致耳机无法 充电甚至无法开机，您可以使用消毒棉签蘸取酒精擦拭耳机充电触点和充电盒充 电触点来解决此问题； Friendly reminder 1: Please recharge the charging case once a week to avoid over-discharge. Friendly reminder 2: After using for a period of time, the charging contacts may get dirty or oxidized, thus the headphones cannot be charged or turned on. You can use a disinfection cotton swab dipped with alcohol to clean the charging contacts of the headphones and the charging pins of the charging case to solve this problem. Q： 耳机连接不上如何解决？ A： ①有可能是耳机低电，请将两只耳机都放入充电盒充电，30分钟后取出尝 试重新搜索连接； ②若您是IOS系统，有可能是耳机没有及时回连您的手机，您可检查手机蓝 牙列表中是否已存在设备名“Joyroom Openfree OE2”，请直接点击设备名连接； ③请检查耳机是否已经连接上了其他设备，请在其他设备上断开连接后再尝 试重新搜索连接； ④若以上操作无效，您可以对耳机进行恢复出厂设置。 Q: Why can’t the headphones be connected? A: ① The headphones may be out of power. Please charge them for 30 minutes in the charging case before turning them on, and then search them for connection. ② If your phone uses iOS system, it may be that the headphones did not reconnect to your phone in time. You can check whether the device name "Joyroom Openfree OE2" is in the phone’s BT list. If so, please directly click the device name for connection. ③ Check whether the headphones are connected to another device. If so, please disconnect with it and make a reconnection again. ④ If above operations failed, you can restore them to factory settings. 充电盒电量显示 （充电盒多功能 按键按下时） Displaying case battery level (when the multifunctional button of the case is pressed down) 1.电量31%-100%：白灯长亮5秒 2.电量11%-30%：橙灯…

Text truncated - open the document above for the full version.

(SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD.) (2023.04.12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AWL2-JROE2) [SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Harry Wang (SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD.) (2023.04.12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AWL2-JROE2) [SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Harry Wang

SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD. 2023.4.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Open-Ear True Wireless Headphones Trademark: N/A MODEL : JR-OE2 FCC ID:2AWL2-JROE2 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Harry Wang/Manager Contact information / address: 201, No. 8 Building, No. 49 WuheNan Rd., Jinfanghua Electricity industrial Park, Bantian St., Longgang District, Shenzhen China

SHENZHEN NITO POWER SOURCE TECHNOLOGY CO.,LTD. 2023.4.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Harry Wang/Manager Contact information / address: 201, No. 8 Building, No. 49 WuheNan Rd., Jinfanghua Electricity industrial Park, Bantian St., Longgang District, Shenzhen China

Label & label location 10mm*5mm FCC ID:2AWL2-JROE2

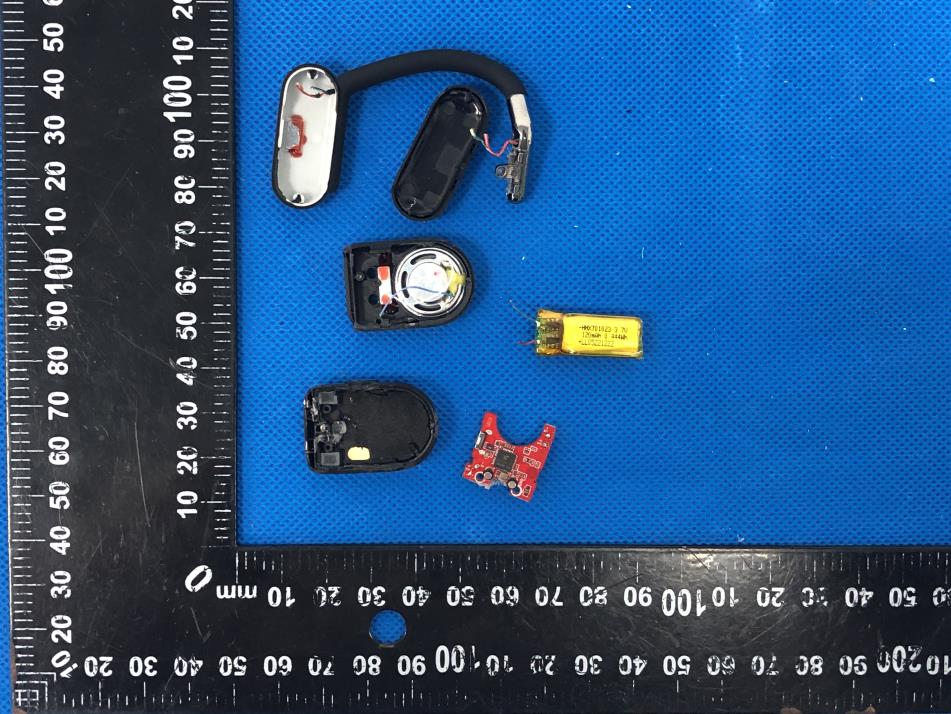

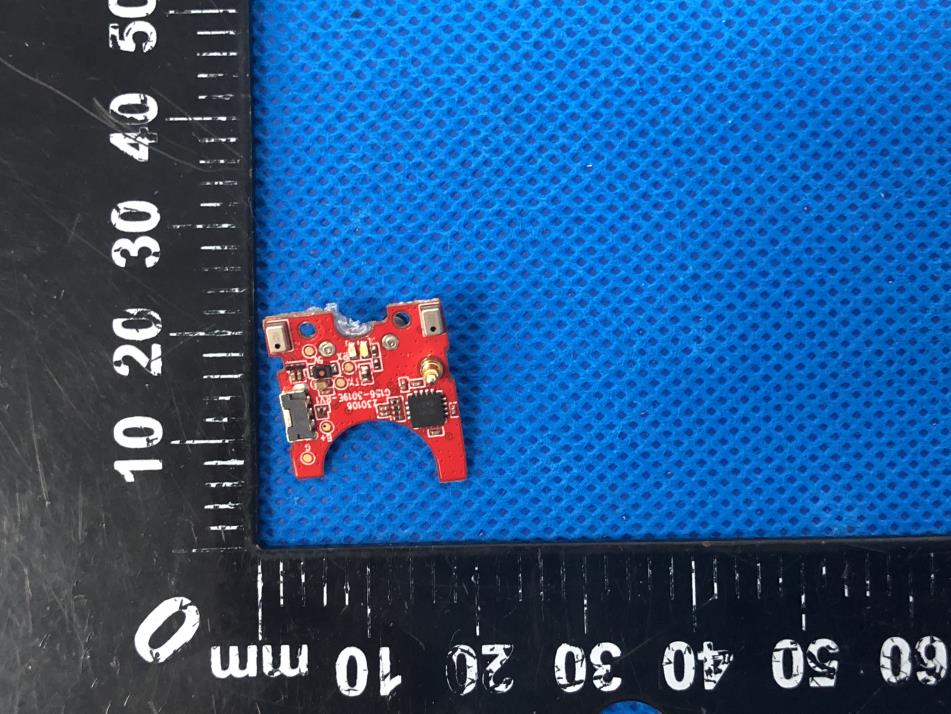

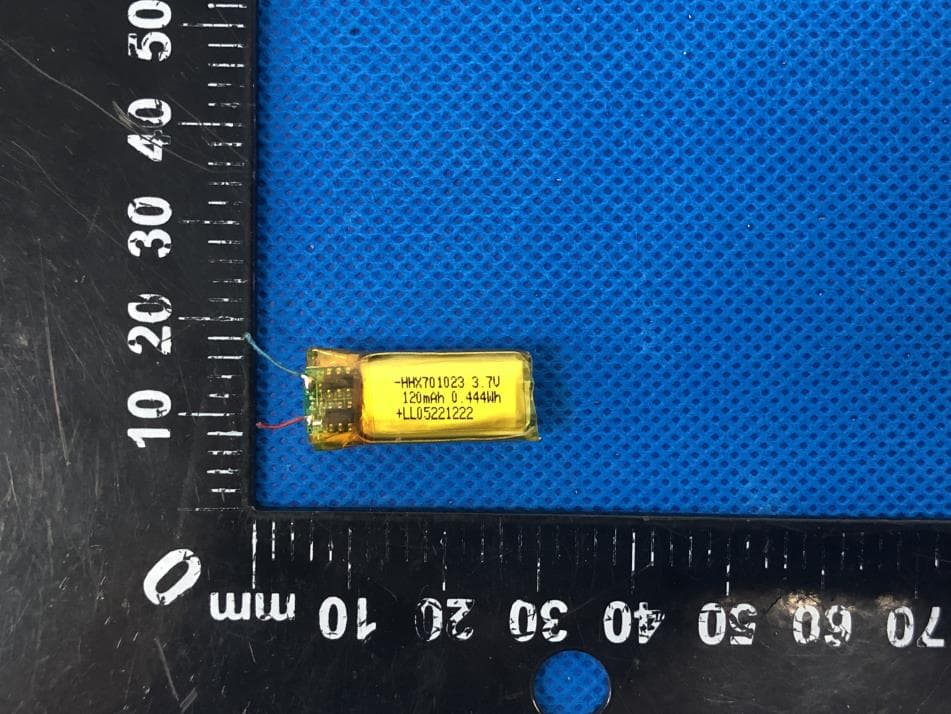

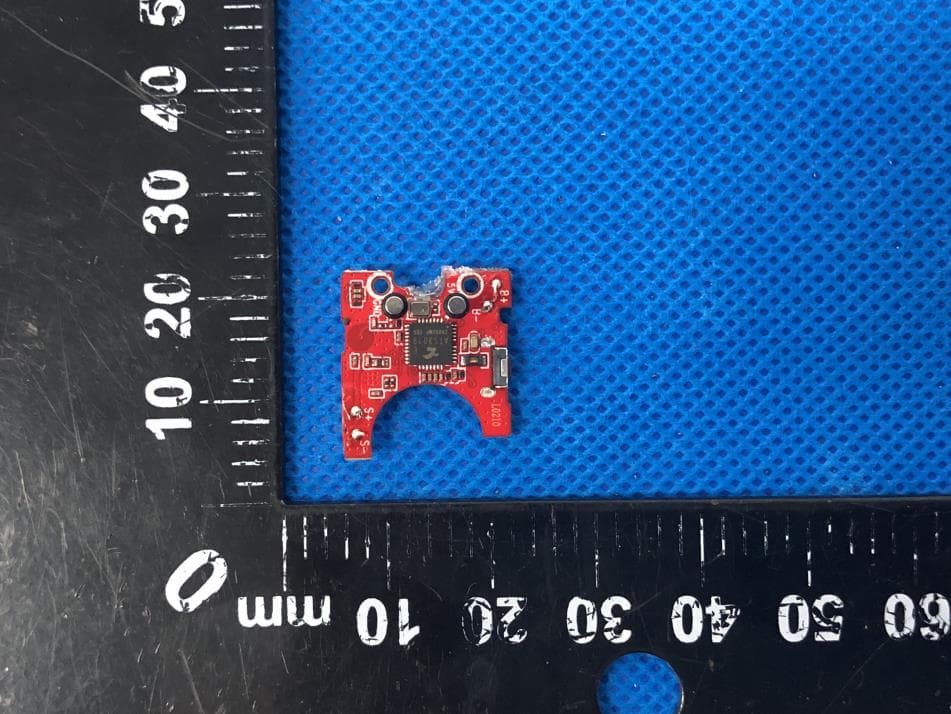

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AWL2-JROE2 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT GFSK 2402 -0.62 21 GFSK 2441 -0.65 21 GFSK 2480 0.47 21 π/ 4 DQPSK 2402 -0.71 21 π/ 4 DQPSK 2441 -0.76 21 π/ 4 DQPSK 2480 0.33 21 8DPSK 2402 -0.60 21 8DPSK 2441 -0.69 21 8DPSK 2480 0.49 21 max possible output power (PK,conducted)：1±1dBm 2.46dBi logarithmic terms convert to numeric result is nearly 1.762 2dBm=1.58mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.402=0.49≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.441=0.50≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.48=0.50≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 1 Version：1.0 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. 承 认 书 SPECIFICATION FOR APPROVL 客 户： CUSTOMER： 三德大康 客 户 编 号： CUSTOMER P/N： G156-ATS3019 本 厂 编 号： OUR MODEL NO： ATN1375 规 格： SPECIFICATIONS： 2.4G 蓝牙天线 样 品 数： Q’TY： 1 PCS 日 期： DATE： 2023.02.17 深圳市艾特诺通讯设备有限公司 A T N 客户 CUSTOMER 结构 Structure 射频 RF 核准 Approver 结构 Structure 电子 Electronics 核准 Approver 地址：深圳市宝安区新安街道留仙二路美生创谷科技园夏谷 504-505 室 Address: 504-505,XiaGu,Wonderful life creative valley,Xinan,Baoan,ShenZhen. Tel（电话）：0755-29308863 Fax（传真）：0755-29308861 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 2 Version：1.0 目录 Contents 封面 Cover ...... 1 目录 contents ...... 2 一、测试设备 Test Equipment&Conditions ...... 3 二、产品规格 Product Specification ...... 4 三、匹配电路 Matching circuit ...... 4 四、测试数据报告 Test Data Report ...... 5 五、装配要求 Assembly requirements ...... 7 六、工程图纸 Product Chart ...... 8 七、样品尺寸检测报告 Size test report ...... 9 八、盐雾测试报告 Salt spray test report ...... 10 九、包装信息 Packaging Information ...... 11 变更记录 发行/变更日期 变更原因 变更内容 版本 备注 2023.02.17 新版发行 新版发行 V1.0 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 3 Version：1.0 一、测试设备 Test Equipment&Conditions 1.1 网络分析仪（Network Analyzers） Agilent Technologies E5071B 1.2 综合测试仪 （Communications Test Set） CMW500 1.3 3D 暗室测试系统 （3D Chanber Test System） 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 4 Version：1.0 二、产品规格 Product Specification 2.1、Material&Mechanical Characteristics 材质 Material FPC 尺寸 Dimension mm 2.2、储存和使用温度 Environmental 使用温度Operation Temperature -20°C~+80°C 储存温度Storage Temperature -20°C~+80°C 三、匹配电路 Matching circuit 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 5 Version：1.0 四 、测试数据报告 Test Data Report 4.1 S11 Parameter 4.2 增益和效率 Gain & Efficiency 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 6 Version：1.0 4.3 方向图 Radiation pattern 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 7 Version：1.0 4.3 OTA 测试数据 OTA Test Data 4.4 实测数据 Measured data 五、装配要求Assembly requirements 1 无 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 8 Version：1.0 六、工程图纸 Product Drawing 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 9 Version：1.0 七、样品尺寸检测报告 Size test report 尺寸检验报告 Dimension test report 项目 project：G156 品名 Product Name： BT天线 类别 category：FPC 数量 Quantity：5 个 日期Date：2023.02.17 检验依据标准：Inspection basis and standard ■工程图纸Engineering drawings □标准样板Standard template □其它Other 检验项目 Inspection items 样品测验值 test value 判定结果 determine 1 2 3 4 5 外观检验 Appearance inspectio 1.油污划痕、压伤 等 Oil stain, scratch, crush, etc √ √ √ √ √ OK √ √ √ √ √ OK 2、其它Other 尺寸检验 Dimensiona l inspection 1 16.4±0.15 16.46 16.44 16.46 16.48 16.46 OK 2 19.95±0.15 20.02 20.0 19.98 20.04 20.0 OK 3 / / 4 5 6 7 8 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 10 Version：1.0 八、盐雾测试报告 Salt spray test report 项目 project G156 规格 SPECIFICATIONS 2.4G BT 试验情况 Test information 试验数量 Number of tests：5 PCS 基材 base material：单面/一对半/电解铜 沉金层 Gold plating：沉金≥1U" 试验条件 T e s t c o n d i t i o n s 盐溶液：5% PH:7.0 箱内温度 Box temperature：35°C 相对湿度 relative humidity：5% 喷雾方式： ■ 连续 □ 间歇 压缩空气压力：1kg/cm² 盐雾沉降率： 雾液收集 Mist collection： PH7.0nac 试验周期：__1__个循环 喷雾时间 Spray time： 24 h 试验结果 test result 试验后的外观：外观完整无损，无明显变化。 Appearance after test: the appearance is intact without obvious change 镀层：无剥落、无锈蚀 Coating: no peeling and corrosion 表面喷涂、丝印：无脱落、无气泡。 Surface spraying and silk screen printing: no falling off and bubble 试验判定 Test judgment OK 说明： 1、盐雾试验作业标准依照中华人民共和国国家标准 GB/T2423.17-2008 执行 1. The operation standard of salt spray test shall be in accordance with the national 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION TECHNOLOGY CO.,LTD. Page 11 Version：1.0 standard of the people's Republic of China GB / t2423 17-2008 implementation 2、试件结果判定标准依照中华人民共和国国家标准 GB/T6461-02 执行 2. The judgment standard of test piece results shall be in accordance with the national standard of the people's Republic of China GB / t6461-02 九、包装信息 Manner of packing 深圳市艾特诺通讯设备有限公司 SHENZHEN ATN COMMUNICATION EQUIPMENT CO.LTD 产品包装Product packaging 版本 edition：：V1.0 页码 Page：1/1 1. 离型纸隔层摆放保护天线 Barrier paper protection products 2. 密封袋封装效果 Sealing bag packaging effect 3.纸箱封箱效果（贴出货标签和 ROHS 标签）Carton sealing effect

No.：BCTC/RF-EMC-007 Page: 1 of 80 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2304456971E Applicant: Shenzhen Nito Power Source Technology Co.,Ltd. Product Name: Open-Ear True Wireless Headphones Model/Type reference: JR-OE2 Tested Date: 2023-02-28 to 2023-04-06 Issued Date: 2023-04-06 Report No.:BCTC2304456971E No.：BCTC/RF-EMC-007 Page: 2 of 80 Edition：A.5 FCC ID:2AWL2-JROE2 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Open-Ear True Wireless Headphones Trademark: N/A Model/Type Reference: JR-OE2 Prepared For: Shenzhen Nito Power Source Technology Co.,Ltd. Address: 201, No. 8 Building, No. 49 WuheNan Rd., Jinfanghua Electricity industrial Park, Bantian St., Longgang District, Shenzhen China Manufacturer: Joyroom Electronic(Dongguan) Technology Co., Ltd. Address: 4~6/F, Assembly Building, 2 longbu Rd., Longbeiling, Tangxia Town, Dongguan Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-02-28 Sample tested Date: 2023-02-28 to 2023-04-06 Issue Date: 2023-04-06 Report No.: BCTC2304456971E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.:BCTC2304456971E No.：BCTC/RF-EMC-007 Page: 3 of 80 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Spurious RF Conducted Emissions ..................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 Test Result .....…
