2AWMDA711PRFID Smart Reader

α711P RFID UHF Reader User Guide Ver. 0.1 2 | 27 RFID at your service Copyright 2020. Aplusetechnology Co.,Ltd. All rights reserved. Apulsetech is the manufacturer of Apulsetech RFID handheld computers. This document and related software in this device are protected by international copyright laws. Any part of this document may not be reproduced, removed or used in any form by any means, without permission in writing from Apulsetech. The contents in this manual is subject to change without prior notice. Apulsetech and α711P are registered trademarks of Apulsetechnology Co.,Ltd., all other trademarks and copyrights are property of their respective owners. The software is provided for user understanding how to use the device and application development. All software, including firmware, is on a licensed basis. No right to copy a licensed program in whole or in part is granted, to other device except as permitted under copyright law. Apulsetech C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do, Republic of Korea Copyright 3 | 27 RFID at your service http://www.apulsetech.com Change Date Description Ver.0.1 2020/03/31 Draft Revision History 4 | 27 RFID at your service Table of Contents Copyright Revision History 1. About this guide ................................................................................................. 8 1.1 Introduction ........................................................................................................................... 8 1.2 Configuration ......................................................................................................................... 8 1.3 Related document and Software ........................................................................................... 8 1.4 Service information ............................................................................................................... 8 1.5 Safety information ................................................................................................................. 9 2. Brief Description of α711P ................................................................................ 11 2.1 Packing Contents ........................................... 오류! 책갈피가 정의되어 있지 않습니다. 2.2 α711P Overview ................................................................................................................... 11 2.2.1 Top view ....................................................................................................................... 11 2.2.2 Bottom view ................................................................................................................. 11 2.2.3 Front view ..................................................................................................................... 12 2.2.4 Back view ..................................................................................................................... 13 2.3 α711P Accessories .......................................... 오류! 책갈피가 정의되어 있지 않습니다. 3. Getting Started ................................................................................................ 14 3.1 Installing and Replacing the Battery ................................................................................... 14 3.2 Charging the Battery ............................................................................................................ 15 3.3 Battery Management ........................................................................................................... 15 3.3.1 When charging a711 and Smart at the same time with DC Adapter오류! 책갈피가 정의되어 있지 않습니다. 3.3.2 When charging through Docking Cradle오류! 책갈피가 정의되어 있지 않습니다. 3.3.3 Spare Battery charging .......................... 오류! 책갈피가 정의되어 있지 않습니다. 3.4 Switching α711P on and off ................................................................................................. 15 3.5 Reset ..................................................................................................................................... 16 5 | 27 RFID at your service 4. Android Connections ........................................................................................ 17 4.1 Compatible Product Models ................................................................................................ 17 4.2 Demo Apps ........................................................................................................................... 17 4.3 BT Connection ................................................ 오류! 책갈피가 정의되어 있지 않습니다. 4.3.1 Setup ...................................................... 오류! 책갈피가 정의되어 있지 않습니다. 4.3.2 Make a Connection ................................ 오류! 책갈피가 정의되어 있지 않습니다. 4.4 Bluetooth Connection .......................................................................................................... 17 4.4.1 Setup ............................................................................................................................ 17 4.4.2 Make a Connection ...................................................................................................... 17 4.5 Wi-Fi Connection .................................................................................................................. 19 4.5.1 Setup ............................................................................................................................ 19 4.5.2 Make a Connection ...................................................................................................... 19 5. Windows Connections ............................ 오류! 책갈피가 정의되어 있지 않습니다. 5.1 Compatible Product Models .......................... 오류! 책갈피가 정의되어 있지 않습니다. 5.2 BT Connection ................................................ 오류! 책갈피가 정의되어 있지 않습니다. 5.2.1 Setup ...................................................... 오류! 책갈피가 정의되어 있지 않습니다. 5.2.2 Make a Connection ................................ 오류! 책갈피가 정의되어 있지 않습니다. 5.3 Bluetooth Connection ............................…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name ApulsetechnoIogy CO.,LTD. Address C-1211, Gwangmyeongtechnopark, 60, haan-ro, Gwangmyeong-si, Gyeonggi-do 14322, Republic of Korea Grantee Code 2AWMD FCC ID A711P Authorized Contact Name Robin Jang Contact Email [email protected] Contact Phone +82-70-4222-5691 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020.07.15 Print Name: Robin Jang Title: CEO *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

FCC Confidentiality Request Letter July 15, 2020 Federal Communications Commission Apulsetechnology CO.,LTD. Authorization and Evaluation Division R&D 7435 Oakland Mills Road, Add: C-1211, Gwangmyeongtechnopark, Columbia, MD 21046 60, Haan-ro, Gwangmyeong-si, , Gyeonggi-do 14322, Republic of Korea RE : Request of Confidentiality for FCC ID : 2AWMDA711P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Apulsetechnology CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Apulsetechnology CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune-up Procedure Short-Term 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual FCC Confidentiality Request Letter The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Name/Title : CEO / Robin Jang Company Name : Apulsetechnology CO.,LTD.

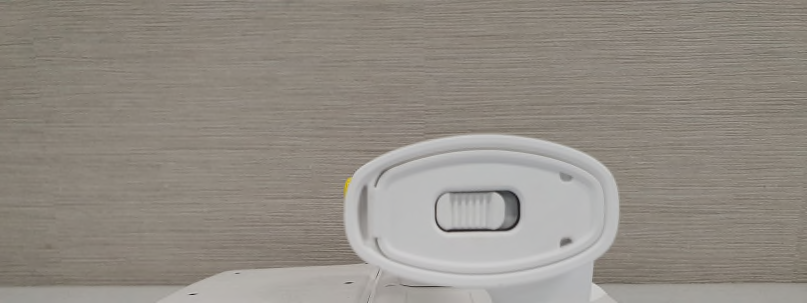

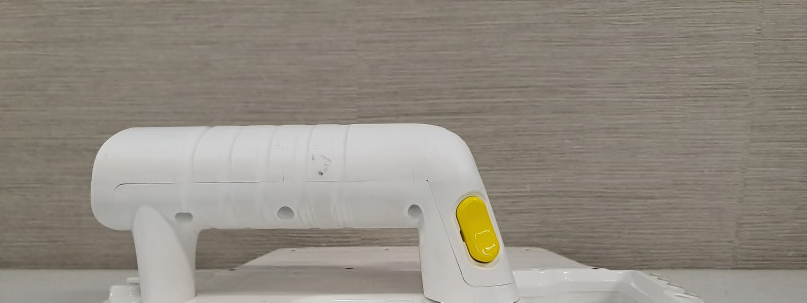

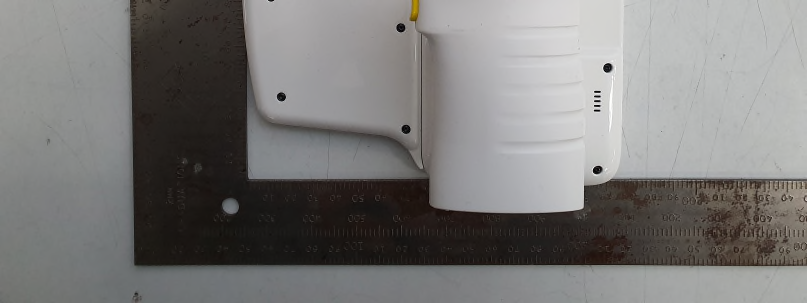

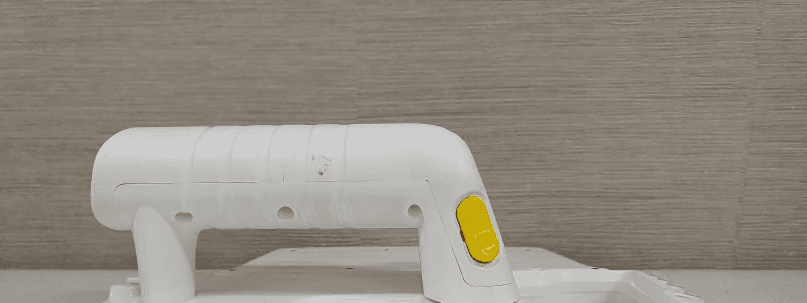

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

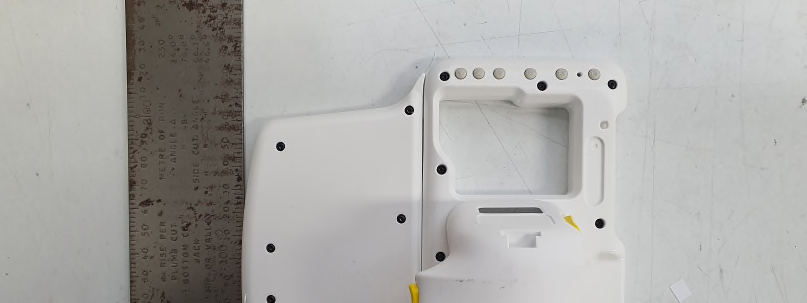

<Bottom viewofEUT> Label 1 Label 2 Label Information Model : a711P <Label 1> <Label 2>

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 View of Bluetooth, WLAN Antenna & Module PIFA Antenna Bluetooth, WLAN Module View of RFID Antenna & Module RFID Module Linear Polarized Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si Gyeonggi-do, Korea 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 2 / 65 Report File No : F690501-RF-SAR000081 Date of Issue : 2020-08-26 (All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx.) RTT5041-76(2019.04.25) (4) A4 (210mm x 297mm) Revision history Revision Date of issue Revisions Revised By - August 26, 2020 Initial issue. - SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si Gyeonggi-do, Korea 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 3 / 65 Report File No : F690501-RF-SAR000081 Date of Issue : 2020-08-26 (All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx.) RTT5041-76(2019.04.25) (4) A4 (210mm x 297mm) Contents 1 Testing Laboratory 4 2 Details of Manufacturer 4 3 Description of EUT(s) 4 4 The Highest Reported SAR Values 4 5 Test Methodology 5 6 Test Environment 5 7 Specific Absorption Rate (SAR) 6 7.1 Introduction 6 7.2 SAR Definition 6 7.3 Test Standards and Limits 6 8 The SAR Measurement System 8 9 System Components 9 9.1 Probe 9 9.2 ELI Phantom 9 9.3 Device Holder 10 10 SAR Measurement Procedures 11 10.1 Normal SAR Measurement Procedure 11 11 SAR System Verification 13 12 Tissue Simulant Fluid for the Frequency Band 14 13 Instruments List 15 14 FCC Power Measurement Procedures 16 15 Measured and Reported SAR 16 16 Maximum Output Power Specifications 16 16.1 WLAN Maximum Output Power Specifications 16 16.2 Bluetooth Maximum Output Power Specifications 16 16.3 RFID Maximum Output Power Specifications 16 17 RF Conducted Power Measurement 17 17.1 Conducted Power 17 18 Transmit Antenna Separation Distances 19 19 19.1 SAR Test Exclusion Applied Vacuum Cleaner Device Type 20 20 20 SAR Data Summary 21 20.1 SAR Measurement 21 Appendixes List 22 Appendixes A.1 23 Appendixes A.2 24 Appendixes B.1 31 Appendixes C.1 32 Appendixes C.2 55 Appendixes C.3 60 THE END 65 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si Gyeonggi-do, Korea 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 4 / 65 Report File No : F690501-RF-SAR000081 Date of Issue : 2020-08-26 (All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx.) RTT5041-76(2019.04.25) (4) A4 (210mm x 297mm) 1 Testing Laboratory Company Name SGS Korea Co., Ltd. Address 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 15807 Republic of Korea 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 15807 Republic of Korea Telephone +82 +31 - 428 - 5700 FAX +82 +31 - 427 - 2371 2 Details of Manufacturer Applicant Apulse Technology Co., Ltd Address C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do, South Korea, 14322 Email [email protected] Phone No. +82-10-5526-0605 3 Description of EUT(s) EUT Type RFID Smart Reader Model Name A711P Serial Number #1 Mode of Operation RFID, WLAN, Bluetooth Crest Factor 2.024 (RFID) Body worn Accessory None Tx Frequency Range 902.75 ~ 927.25 (RFID) 2412 ~ 2462 (WLAN) 2402 ~ 2480 (Bluetooth) Additional Information Mode RFID WLAN Bluetooth Type Linear Polarized antenna PIFA antenna Antenna Gain (dBi)3.06 0.07 4 The Highest Reported SAR Values Equipment Class Band Highest Reported SAR 10g (W/kg) DSS RFID 1.890 Simultaneous SAR per KDB 690783 D01v01r03 N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si Gyeonggi-do, Korea 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 5 / 65 Report File No : F690501-RF-SAR000081 Date of Issue : 2020-08-26 (All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx.) RTT5041-76(2019.04.25) (4) A4 (210mm x 297mm) 5 Test Methodology ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. It specifies the maximum exposure limit of 4 W/kg as averaged over any 10 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. Test tests documented in this report were performed in accordance with IEEE Standard 1528-2013 and the following published KDB procedures. In additions; KDB 865664 D01v01r04 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01v06 RF Exposure Procedures and Equipment Authorization Policies For Mobile And Portable Devices KDB 447498 D02v02r01 SAR Measurement Procedures for USB Dongle Transmitters KDB 248227 D01v02r02 SAR Guidance For IEEE 802.11 (Wi-Fi) Transmitters KDB 615223 D01v01r01 802.16e/WiMax SAR Measurement Guidance KDB 616217 D04v01r02 SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 643646 D01v01r03 SAR Test Reduction Considerations for Occupational PTT Radios KDB 648474 D03v01r04 Evaluation and Approval Considerations for Handsets with Specific Wireless Charging Battery Covers KDB 648474 D04v01r03 SAR Evaluation Considerations for Wireless Handsets KDB 680106 D01v03 RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications KDB 941225 D01v03r01 3G SAR Measurement Procedures KDB 941225 D05v02r05 SAR Evaluation Considerations for LTE Devices KDB 941225 D06v02r01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 941225 D07v01r02 SAR Evaluation Procedures for UMPC Mini-Tablet Devices 6 Testing Environment Ambient temperature : 18°C ~ 25°C Relative humidity : 30% ~ 70% Liquid temperature of during the test : < 2°C Ambient noise & Reflection : < 0.012 W/kg SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si Gyeonggi-do, Korea 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr …

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000827 Page:1of54 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) TEST REPORT of FCC Part 15 Subpart C §15.247 FCC ID: 2AWMDA711P 1. Equipment Under Test:RFID Smart Reader 2. Model Name:a711p 3. Variant Model Name(s):- 4. Applicant:Apulse Technology Co., Ltd 5. Manufacturer:Apulse Technology Co., Ltd 6. Date of Receipt:2020.01.17 7. Date of Test(s):2020.04.01 ~ 2020.08.20 8. Date of Issue:2020.08.20 In the configuration tested, the EUT complied with the standards specified above. This test report does not assure KOLAS accreditation. 1) The results of this test report are effective only to the items tested. 2) The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. Tested by: Technical Manager: Nancy Park SGS Korea Co., Ltd. Gunpo Laboratory SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000827 Page:2of54 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of Contents 1. General Information --------------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------9 3. 6㏈Bandwidth -------------------------------------------------------------------------------------------37 4. Maximum Peak Conducted Output Power ---------------------------------------------------------42 5. Power Spectral Density ---------------------------------------------------------------------------------45 6. AC Power Line Conducted Emission ----------------------------------------------------------------50 7. Antenna Requirement -----------------------------------------------------------------------------------54 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000827 Page:3of54 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Apulse Technology Co., Ltd Address:C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do, South Korea, 14322 Contact Person:Jang, Robin Phone No.:+82 10 5526 0605 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product RFID Smart Reader Model Name a711p Power Supply DC 3.7 V Frequency Range 2 412㎒~ 2 462㎒(11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type PIFA antenna Antenna Gain 0.07㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000827 Page:4of54 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A255834Jun. 03, 2020AnnualJun. 03, 2021 Signal GeneratorAgilentE8257DMY51501169Nov. 21, 2019AnnualNov. 21, 2020 Spectrum AnalyzerR&SFSV30103210Dec. 05, 2019AnnualDec. 05, 2020 Spectrum AnalyzerAgilentN9020A MY53421758 Sep. 11, 2019AnnualSep. 11, 2020 AttenuatorAEROFLEX / INMET40AH2W-1040G-3Jun. 16, 2020AnnualJun. 16, 2021 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 18, 2020AnnualMay 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 05, 2020AnnualJun. 05, 2021 Low Pass FilterMini-CircuitsNLP-1200+V9500401023-2Jun. 01, 2020AnnualJun. 01, 2021 Power SensorR&SNRP-Z81100253Mar. 10, 2020AnnualMar. 10, 2021 DC Power SupplyAgilentU8002AMY50060028Mar. 03, 2020AnnualMar. 03, 2021 PreamplifierH.P.8447F2944A03909Aug. 06, 2020AnnualAug. 06, 2021 Signal Conditioning Unit R&SSCU-1810117Jun. 10, 2020AnnualJun. 10, 2021 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 08, 2020AnnualMay 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Test ReceiverR&SESCI 7100911Feb. 19, 2020AnnualFeb. 19, 2021 Two-Line V-NetworkR&SENV216100190May 08, 2020AnnualMay 08, 2021 Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableRFONESFX086-NMNM-5M (5m)20200323001Aug. 10, 2020 Semi- annual Feb. 10, 2021 Coaxial CableRFONE PL520-NMNM-10M (10 m) 20200324001Aug. 10, 2020 Semi- annual Feb. 10, 2021 Coaxial CableRosenbergerLA1-C006-1500131014 07/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000827 Page:5of54 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the follow…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000826 Page:2of35 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of contents 1. General Information --------------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------8 3. 6㏈Bandwidth -------------------------------------------------------------------------------------------22 4. Maximum Peak Conducted Output Power ---------------------------------------------------------25 5. Power Spectral Density ---------------------------------------------------------------------------------28 6. AC Power Line Conducted Emission ----------------------------------------------------------------31 7. Antenna Requirement -----------------------------------------------------------------------------------35 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000826 Page:3of35 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+82 31 688 0901 Fax No.:+82 31 688 0921 1.2. Details of Applicant Applicant:Apulse Technology Co., Ltd Address:C-1211, 60, Haan-ro, Gwangmyeong-si, Gyeonggi-do, South Korea, 14322 Contact Person:Jang, Robin Phone No.:+82 10 5526 0605 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant 1.4. Description of EUT Kind of Product RFID Smart Reader Model Name a711p Power Supply DC 3.7 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth Low Energy) Modulation Technique GFSK Number of Channels 40 channels (Bluetooth Low Energy) Antenna Type PIFA antenna Antenna Gain 0.07㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000826 Page:4of35 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A255834Jun. 03, 2020AnnualJun. 03, 2021 Signal GeneratorAgilentE8257DMY51501169Nov. 21, 2019AnnualNov. 21, 2020 Spectrum AnalyzerR&SFSV30103210Dec. 05, 2019AnnualDec. 05, 2020 Spectrum AnalyzerAgilentN9020A MY53421758 Sep. 11, 2019AnnualSep. 11, 2020 AttenuatorAEROFLEX / INMET40AH2W-1040G-3Jun. 20, 2019AnnualJun. 20, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 18, 2020AnnualMay 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 05, 2020AnnualJun. 05, 2021 Low Pass FilterMini-CircuitsNLP-1200+V9500401023-2Jun. 01, 2020AnnualJun. 01, 2021 Power SensorR&SNRP-Z81100253Mar. 10, 2020AnnualMar. 10, 2021 DC Power SupplyAgilentU8002AMY50060028Mar. 03, 2020AnnualMar. 03, 2021 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 08, 2020AnnualMay 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Test ReceiverR&SESCI 7100911Feb. 19, 2020AnnualFeb. 19, 2021 Two-Line V-NetworkR&SENV216100190May 08, 2020AnnualMay 08, 2021 Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 01/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000826 Page:5of35 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C Section Test Item(s)Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) 6㏈Bandwidth Complied 15.247(b)(3)Maximum Peak Conducted Output PowerComplied 15.247(e)Power Spectral DensityComplied 15.207AC Power Line Conducted EmissionComplied 1.7. Test Procedure(s) The measurement procedures described in the American National Standard of Procedure for Compliance Testing of unlicensed Wireless Devices (ANSI C63.10-2013) and the guidance provided in KDB 558074 D01 15.247 Meas Guidance v05r02 were used in the measurement of the DUT. 1.8.Sample Calculation Where relevant, the following sample calculation is provided: 1.8.1. Conducted Test Offset value (㏈) = Attenuator (㏈) + Cable loss (㏈) 1.8.2. Radiation Test Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) - Amplifier gain (㏈) + Duty Factor (㏈) SGS Korea Co., Ltd. 4, LS-r…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photos of AC Power line emission test

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 15807 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.s…
