2AWNF216222Speaker Mirror

20-May-21 7/9 Williams-Sonoma Inc. Pottery Barn – Pottery Barn Teen – Pottery Barn Kids – Williams Sonoma Home – West Elm – Rejuvenation – Mark and Graham Assembly Instructions & Bluetooth User Manual Instructions d’assemblage & Manuel de l'utilisateur Bluetooth Instrucciones de Ensamblaje & Manual de usuario de Bluetooth CHARGING: This device has built-in rechargeable battery, before the first use, the battery shall be fully charged to ensure optimal performance and battery life. Connect the charging cable to any powered USB port (output 5V 500mA). Make sure it is plugged in fully. Charge the device for about 3 hours. The red charging indicator light will be “on” while it is charging, it turns off when fully charged. Note: Do not use or turn on the device while charging. TURNING ON AND OFF: Press and hold the button for about 3 seconds to turn on the device (same way to turn off the device). The blue color indication light will flash alternatively showing it is in Bluetooth pairing mode. *If the device does not connect to Bluetooth after power on, it will turn off automatically after 3 minutes BLUETOOTH PAIRING WITH DEVICE: *Your device must be paired to a Bluetooth device before it can be used. It is only necessary to pair your device once with each device. *  Turn on your Bluetooth menu on the music player device you wish to pair (i.e. iPod/iPhone, mobile phone or compatible device). Some device requires you to select “Search for Devices” or “Add New Device” in order to create a Bluetooth pairing.  Wait until you see “PBT Speaker Shelf” on your device screen.  Select “PBT Speaker Shelf” on your device. Once pairing is complete and a connection is established, the blue LED light will flash every 2 seconds  Now you can play music from your Bluetooth device to this Bluetooth device, and press the button shortly to play/pause the music. Light – Red on - Charging Off - Fully Charged USB Port *Hold on 3 seconds – On/ Off Press Shortly – Play/ Pause 20-May-218/9 Williams-Sonoma Inc. Pottery Barn – Pottery Barn Teen – Pottery Barn Kids – Williams Sonoma Home – West Elm – Rejuvenation – Mark and Graham Assembly Instructions & Bluetooth User Manual Instructions d’assemblage & Manuel de l'utilisateur Bluetooth Instrucciones de Ensamblaje & Manual de usuario de Bluetooth Once the Bluetooth is turned on, it will automatically connect with the last paired Bluetooth device that is on and within range. SPECIFICATIONS: Bluetooth Version 5.0 Bluetooth Profiles Supported A2DP, AVRCP Driver 52mm dynamic driver Frequency Response 20Hz to 20kHz Operation Range 10M (30ft) SAFETY AND CARE When not in use, turn the speaker off and store in a cool, dry place. Battery performance will be severely decreased when stored in extreme temperatures, including direct sunlight. Clean with a soft, dry or slightly damp cloth. Never use chemical cleaners. This product has no user-serviceable parts. Do not attempt to repair to avoid permanent damage. Do not place on any wet surface. Do not use this device near water. Do not drop the product on hard surface. Doing that may result damage of the product. Press function button gently, press too hard might shorten life time of function. Do not cover the unit with any table-clothes, curtains, etc. Place the unit where there is good air circulation. Do not place unit near TV, speakers, wireless speakers and other objects that generate strong magnetic fields. Do not expose the speakers to liquids. If the device comes in contact with liquids, quickly wipe away. If submerged in water, do not turn the device on. Do not use around flammable gasses as fire or explosion may occur. WARNING Using speakers at high to moderate volumes for extended periods of time will result in permanent hearing damage. It is advised you keep volume levels moderate to low at all time for your safety. It is advised to turn the volume on your device all the way down before connecting your speakers, then gradually increase the volume until you reach a comfortable listening level. Status Light Device ON BLUE light flashing alternating Connect Mode Blue light flash Connection Success BLUE light flash every 2 seconds Low voltage RED light flash Charge Mold RED light ON while charging, RED light off when charging is completed 20-May-21 9/9 Williams-Sonoma Inc. Pottery Barn – Pottery Barn Teen – Pottery Barn Kids – Williams Sonoma Home – West Elm – Rejuvenation – Mark and Graham Assembly Instructions & Bluetooth User Manual Instructions d’assemblage & Manuel de l'utilisateur Bluetooth Instrucciones de Ensamblaje & Manual de usuario de Bluetooth TROUBLESHOOTING: Q: Cannot pair successfully. A: Check the speaker is on and within searchable distance. A: Check whether there are too many Bluetooth receivers around, turn unnecessary device off to avoid disturbance and pair again. Q: The sound is too low or distorted. A: Check volume setting on music device and adjust to a suitable sound level. A: Battery might be low, please charge speaker. Q: Cannot play music properly. A: Check whether the distance between speaker and music device is too far from working distance, or whether there are some obstacles blocking the communication between speaker and device. FCC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: unauthorized use of the product may cause damage or injury. “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may caus…

Text truncated - open the document above for the full version.

SHENZHENVITALTRADINGCOLTD 2021-05-20 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:Speaker Mirror/Model:216222/FCCID:2AWNF216222) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe( BlockDiagram,OperationalDescription,Schematics ) requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Sincerely, AceChen Manager SHENZHENVITALTRADINGCOLTD RM2705BLOCKAOFHARBINMANSION,NO.7045BEIHUANRD,LIANHUA STREET,FUTIANDISTRICT,SHENZHEN

SHENZHENVITALTRADINGCOLTD 2021-05-20 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeDongGuanAnciElectronicTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Sincerely, AceChen Manager SHENZHENVITALTRADINGCOLTD RM2705BLOCKAOFHARBINMANSION,NO.7045BEIHUANRD,LIANHUA STREET,FUTIANDISTRICT,SHENZHEN

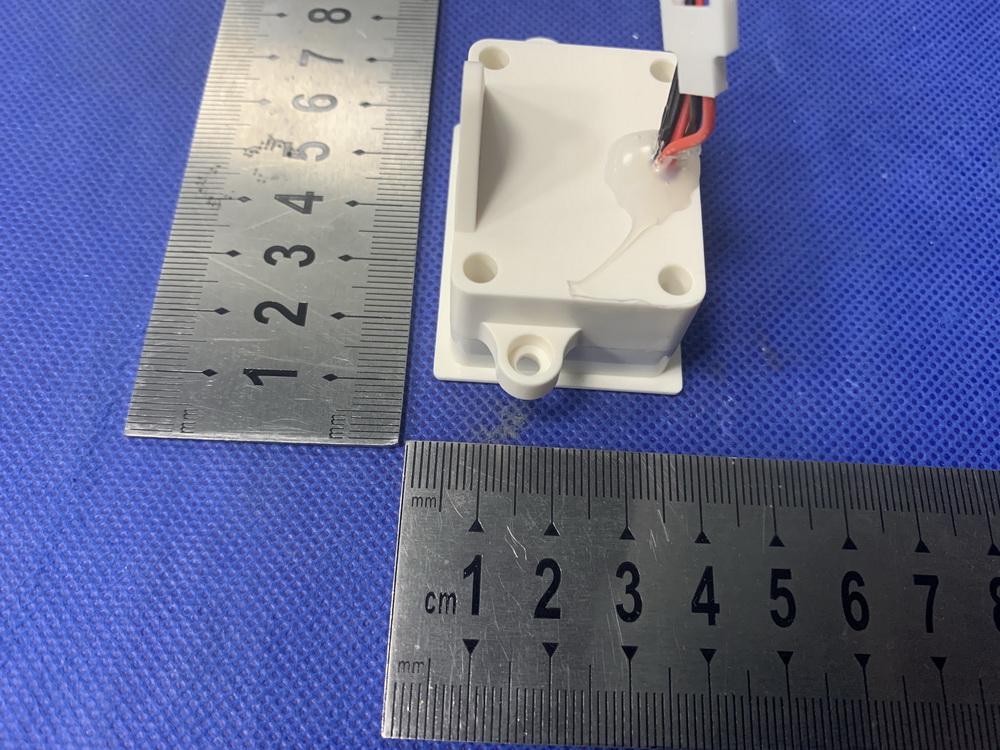

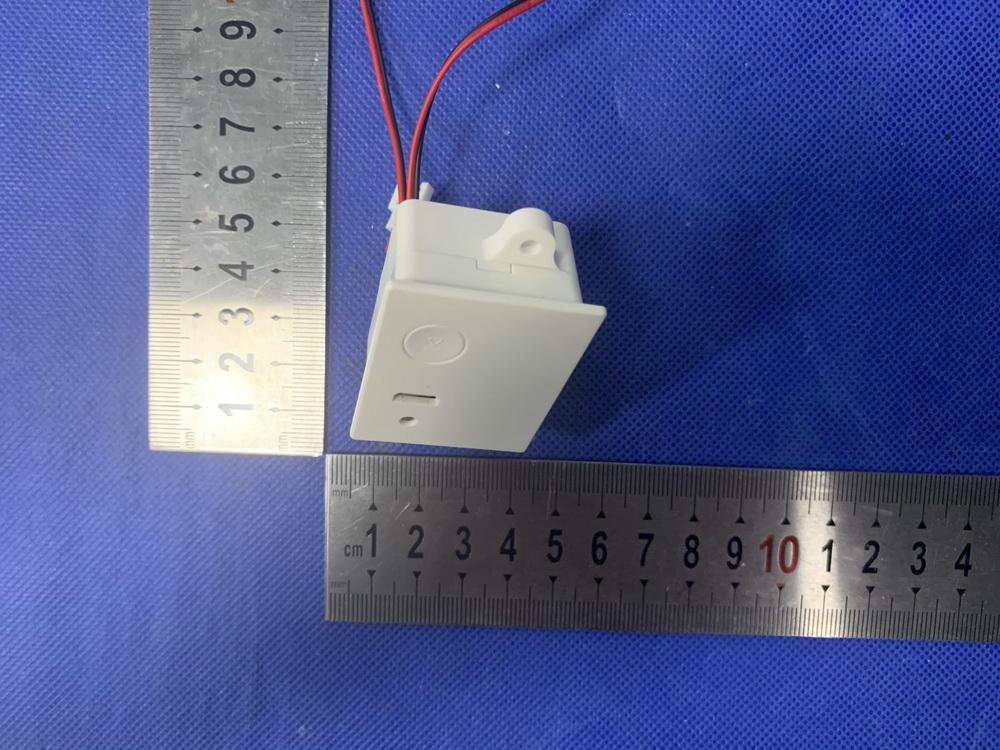

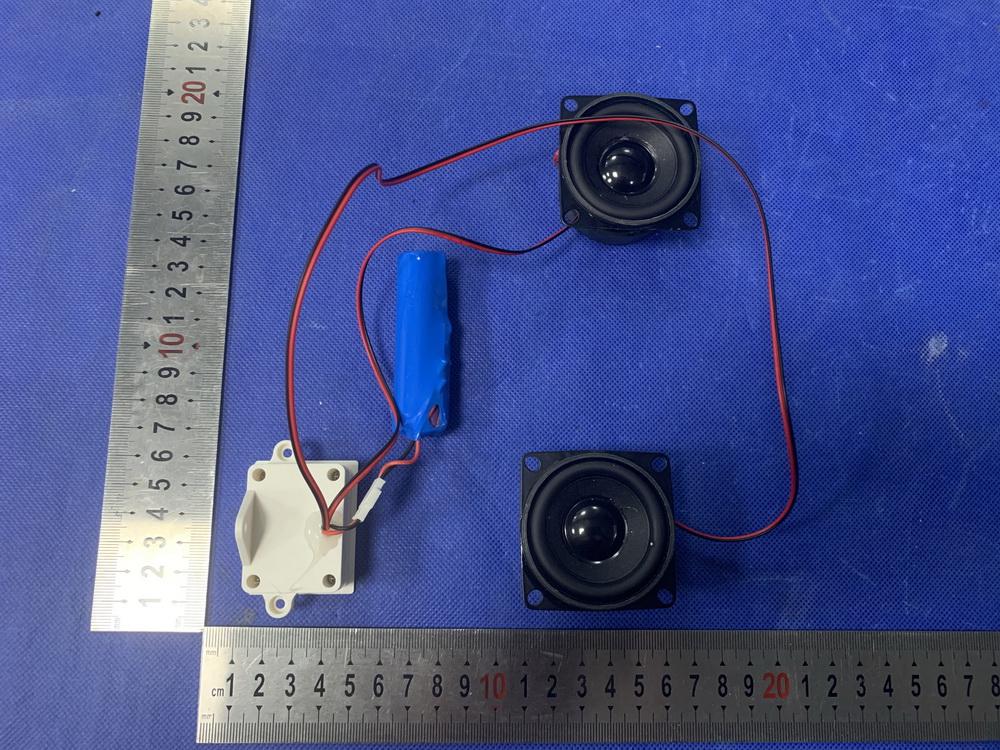

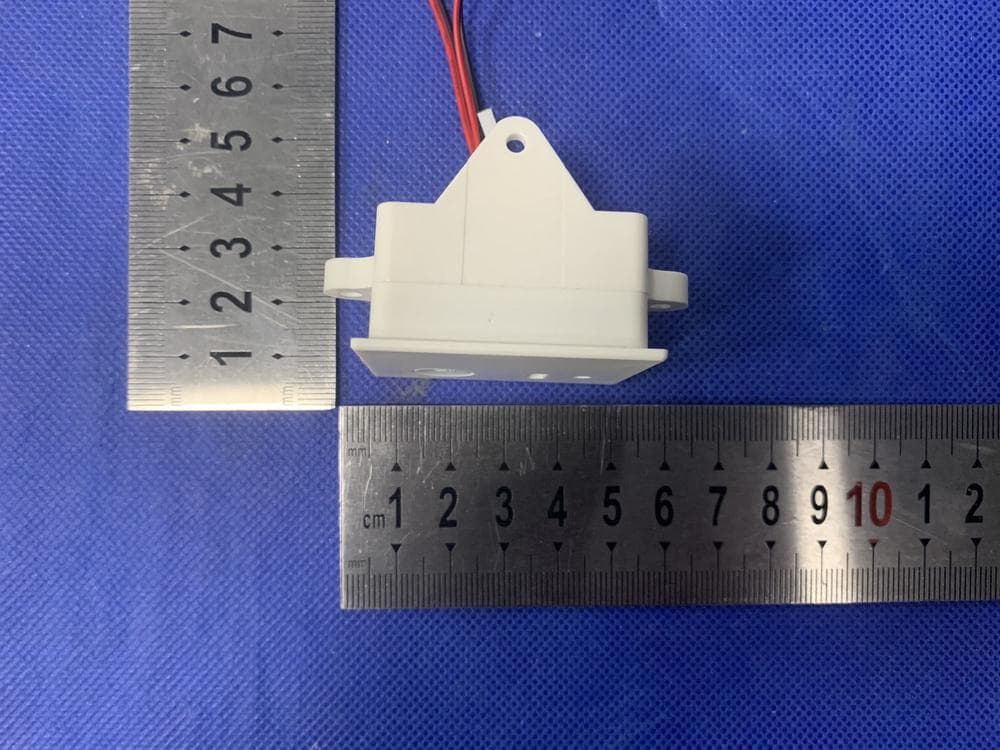

Label: Silkscreen Labellocation: Name:SpeakerMirror Model:216222 Trade: FCCID:2AWNF216222 Input:DC5V500mA Li-ionBattery:DC3.7V,1200mAh SHENZHENVITALTRADINGCOLTD Date:05/20/2021

ANT

RFEXPOSUREEVALUATION EUTSpecification EUTSpeakerMirror ModelNumber216222 FCCID2AWNF216222 Antennagain(Max)-0.58dBi OperationFrequency2402-2480MHz InputRatingDC5V,0.5A Modulation GFSK,π/4-DQPSK Max.outputpower5.04dBm(0.0032W) TestRequirement: AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 11.1Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=Numericgainoftheantennarelativetoisotropicantenna Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotal powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. 11.2MeasurementResult Antennagain:-0.58dBi BR+EDR: Mode Channe lFreq. (MHz) Measu red power (dBm) Tune- up power (dBm) Max tune-up power (dBm) Antenn a Gain Numeri c Evaluation result (mW/cm2) Power density Limits (mW/c m2) GFSK24025.045±160.8750.0006931 GFSK24414.534±150.8750.0005501 GFSK24804.184±150.8750.0005501 π/4- DQPSK 24024.895±160.8750.0006931 π/4- DQPSK 24414.605±160.8750.0006931 π/4- DQPSK 24804.354±150.8750.0005501 Signature: AlanHe Date:2021-05-20

Report No.: EA21050191F01001 1 of 75 DongGuan Anci Electronic Technology Co., Ltd 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. Phone: 86-769- 8507 5888; Fax: 86-769- 8507 5898 E-mail: [email protected] Rev. 1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Speaker Mirror Model No.: 216222 Trademark: FCC ID: 2AWNF216222 Report No.: EA21050191F01001 Issue Date: May 18, 2021 Prepared for SHENZHEN VITAL TRADING CO LTD RM2705 BLOCK A OF HARBIN MANSION, NO. 7045 BEIHUAN RD, LIANHUA STREET, FUTIAN DISTRICT, SHENZHEN Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Electronic Technology Co., Ltd. Report No.: EA21050191F01001 2 of 75 TRF No.: FCC 15.247/A Rev. 1.0 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN VITAL TRADING CO LTD RM2705 BLOCK A OF HARBIN MANSION, NO. 7045 BEIHUAN RD, LIANHUA STREET, FUTIAN DISTRICT, SHENZHEN Manufacturer: SHENZHEN VITAL TRADING CO LTD RM2705 BLOCK A OF HARBIN MANSION, NO. 7045 BEIHUAN RD, LIANHUA STREET, FUTIAN DISTRICT, SHENZHEN Product Description: Speaker Mirror Trade Mark: Model Number: 216222 We hereby certify that: The above equipment was tested by Dong Guan Anci Electronic Technology Co., Ltd.The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2020). Date of Test : May 14, 2021 to May 17, 2021 Prepared by : Tomas Yang/Supervisor Reviewer & Authorized Signer : Alan He/Manager Report No.: EA21050191F01001 3 of 75 TRF No.: FCC 15.247/A Rev. 1.0 Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / EA21050191F01001 Report No.: EA21050191F01001 4 of 75 TRF No.: FCC 15.247/A Rev. 1.0 Table of Contents 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 PRODUCT DESCRIPTION ............................................................................................................................. 6 1.2 TEST METHODOLOGY ................................................................................................................................. 6 1.3 TEST FACILITY ............................................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION............................................................................................... 8 2.1EUT CONFIGURATION ................................................................................................................................. 8 2.2 EUT EXERCISE..................................................................................................................................... 8 2.3 TEST PROCEDURE..................................................................................................................................... 8 2.4CONFIGURATION OF TESTED SYSTEM ........................................................................................................ 9 3. SUMMARY OF TEST RESULTS ................................................................................................. 10 4. DESCRIPTION OF TEST MODES .............................................................................................. 11 5. TEST SYSTEM UNCERTAINTY .................................................................................................. 12 6. CONDUCTED EMISSIONS TEST ............................................................................................... 13 6.1MEASUREMENT PROCEDURE: ................................................................................................................... 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................................... 13 6.3MEASUREMENT EQUIPMENT USED: .......................................................................................................... 13 6.4 MEASUREMENT RESULT: .......................................................................................................................... 13 CONDUCTED MEASUREMENT PHOTOS: ......................................................................................................... 15 6.5 CONDUCTED MEASUREMENT PHOTOS: ................................................................................................... 16 7. RADIATED EMISSION TEST ....................................................................................................... 17 7.1MEASUREMENT PROCEDURE .................................................................................................................... 17 7.2TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................................... 19 7.3 MEASUREMENT EQUIPMENT USED: ......................................................................................................... 20 7..4 RADIATED EMISSION LIMIT ...................................................................................................................... 21 7.5 MEASUREMENT RESULT ......................................................................................................................... 22 7.5 RADIATED MEASUREMENT PHOTOS: ....................................................................................................... 29 8. CHANNEL SEPARATION TEST ....................................…
