2AWNFHPDHBSHarry Potter Deathly Hallows Bluetooth Speaker

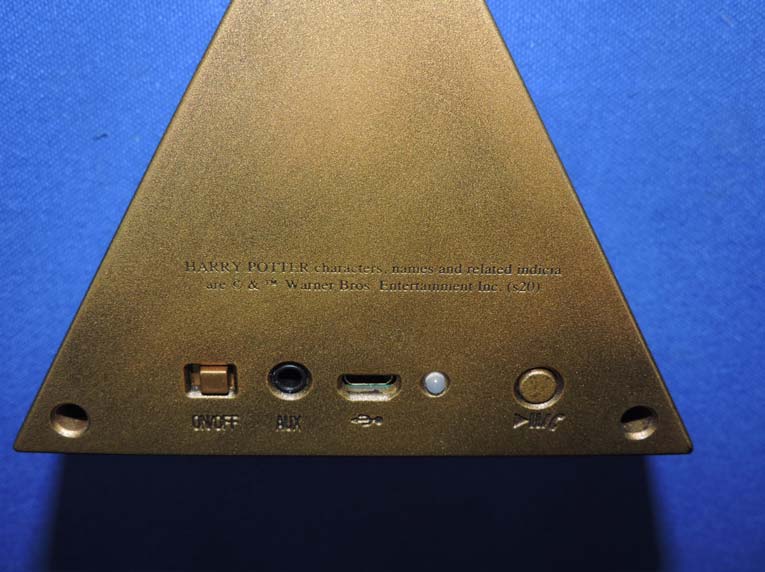

WIZARDING WORLD characters, names and related indicia are © & ™ Warner Bros. Entertainment Inc. WB SHIELD: © & ™ WBEI. Publishing Rights © JKR. (s20) HARRY POTTER TM DEATHLY HALLOWS TM Bluetooth® Speaker User Manual Please read this manual carefully before operating the device and save it for further reference. Thank you for purchasing the Harry Potter Deathly Hallows Bluetooth Speaker. This manual will help you operate the speaker. Pleasefamiliarize yourself first with the Bluetooth functionality of the device you wish to connect. Package ContentGeneral Functions “OFF/ON”: Switch the button to turn the power on and off. “DC IN” (charging port): Insert the micro USB end of the charging cable into this port and connect the USB end to power supply to charge the battery. “AUX” (audio cable output port): Insert the audio cable into this port to play music through a non-Bluetooth device. Indicator light: Blue or red light indicates operation status. (See “SPECIFICATIONS” below for more details.) Play/pause; answer call/hang up call button: Press to play or pause music. If there is an incoming call on the connected device, press to answer and press again to hang up. Microphone: This is the sound receiver when answering a call. Charging  This speaker contains a built-in rechargeable battery. Before the first use, please fully charge the speaker to ensure optimal performance and battery life.  Connect the charging cable to any powered USB port (output 5V 500mA). Make sure it is fully plugged in. Charging time: at least 6 hours. The indicator light will automatically turn red while charging and turn off when fully charged. Note: Operating the speaker while charging may affect the battery life. Pairing  The speaker must be paired with a Bluetooth output device before it can operate. Manual pairing is only necessary once per device.After the first time, the device will connect automatically. 1. Turn on the Bluetooth function on the device that you wish to pair (i.e. smartphone or other compatible device). Some devices may require selecting “Search for Devices” or “Add New Device” in order to create a Bluetooth pairing. If so, initiate a manual search. 2. Select “HP Deathly Hallows Speaker” once it appears on your device screen.Once a connection is established and the pairing is complete, the indicator light will turn blue and you will hear an ascending tone. 3.The speaker is now ready to play music. Press thebutton to play or pause music. * It is advised to turn the volume on your device all the way down before connecting, then gradually increase the volume until a comfortable listening level is reached. *If the speaker does not pair with any device after 3 minutes, it will turn off automatically to save power. SPECIFICATIONS: Bluetooth Version4.1 Bluetooth Profiles Supported A2DP,AVRCP Driver32mm dynamic driver Frequency Response20Hz to 20kHz Operation Range10M (30ft) SAFETY AND CARE When the speaker is not in use, turn it off and store in a cool and dry place. Battery performance will be severely decreased if stored in extreme temperatures, including in direct sunlight.  Clean with a soft and dry (or slightly damp) cloth.Avoid any liquid leaking into the seams of the device. Never use any kind of chemical cleaner.  Do not attempt to repair or disassemble any part to avoid permanent damage. Do not place on any wet surface. Do not use near water. Do not drop the speaker on any hard surface. This may damage the product.  Press the function buttons gently. Pressing hard could shorten the lifetime of the buttons. Do not place the speaker near a TV, speakers, wireless telephones or other objects that generate strong magnetic fields.  If the device comes in contact with any liquids, wipe away as quick as possible. If submerged in water, do not turn the device on until 100% dry. Do not use around flammable gases, as fire or explosion may occur. WARNING * Using the speaker at high-volume levels for long periods of time may result in permanent hearing damage. Please keep volume levels moderate to low at all times for your health. StatusLight Device has been turned on and is searching Quick blue light flashes Connection Success Slow blue light flashes Low voltage Red light flashes Charge Mode Red light turns on while charging, and off when charging is completed * Do not use while driving a car, cycling, operating machinery or performing other activities that require hearing surrounding sounds. TROUBLESHOOTING: Q:I cannot pair the speaker successfully. A: Check that the speaker is on and within 10 meters of the music device, without any obstacles in between. A: Check if there are other Bluetooth receivers nearby, then turn off unnecessary devices to avoid interference and try pairing again. Q:Why does the speaker not work even though the power is on? A: Check the indicator light color – if it is flashing red, the speaker needs to be charged before it can be used. A: Ensure the battery is charged for at least 4 hours before using for the first time. The LED will turn red when the speaker starts charging. Q:The sound is too low or distorted. A: Check the volume setting on your music device and adjust to a suitable sound level. A: The battery may be low; please charge the device. Q:The speaker cannot play music properly. A: Check that the distance between the speaker and music device isunder 10 metersand that obstacles are not blocking the communication between them. FCC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital devic…

Text truncated - open the document above for the full version.

June 18, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AWNFHPDHBS Product Name: Harry Potter Deathly Hallows Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Ace Chan Title：Manager Company：Shenzhen VITAL Trading Co., LTD.

June 18, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Timeway Testing Laboratories/ Zone C, 1st Floor, Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with S h e n z h e n V I T A L T r a d i n g C o . , L T D . / Rm.2705, Block A, Harbin Mansion, No. 7045, Beihuan Rd., Lianhua Street, Futian, Shenzhen, China <Signature>： Name：Ace Chan Title：Manager Company：Shenzhen VITAL Trading Co., LTD.

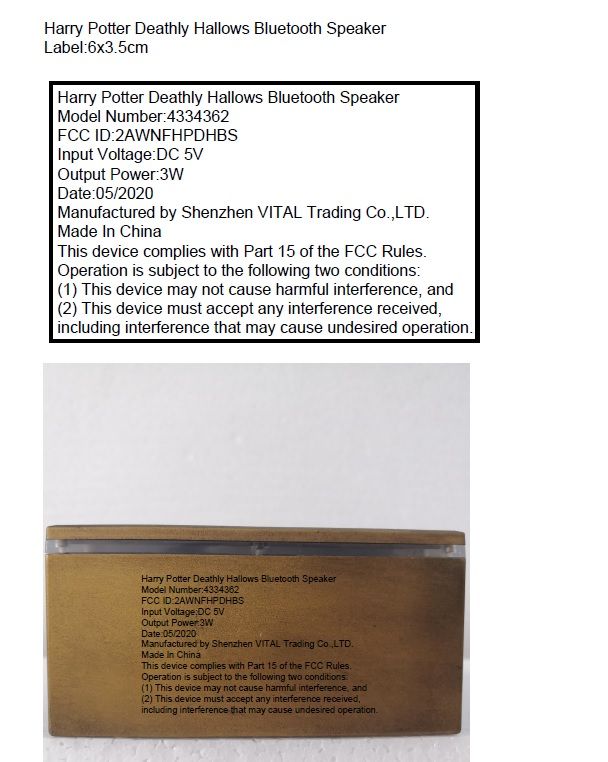

Label Location

FCC ID: 2AWNFHPDHBS RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse case) High Channel [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =0.2/5 * 1.57= 0.063, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

Report No.: FCC 2006002 File reference No.: 2020-06-11 Applicant: Shenzhen VITAL Trading Co., LTD. Product: Harry Potter Deathly Hallows Bluetooth Speaker Model No.: 4334362 Trademark: N/A Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15.247 for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: June 11, 2020 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: FCC2006002 Page 2 of 89 Date: 2020-06-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No.: FCC2006002 Page 3 of 89 Date: 2020-06-11 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Cond…

Text truncated - open the document above for the full version.

Conducted Emission Te s t Setup: Radiated Emission Te s t Setup:
