2AWOIJUPITER-02Electric skateboard

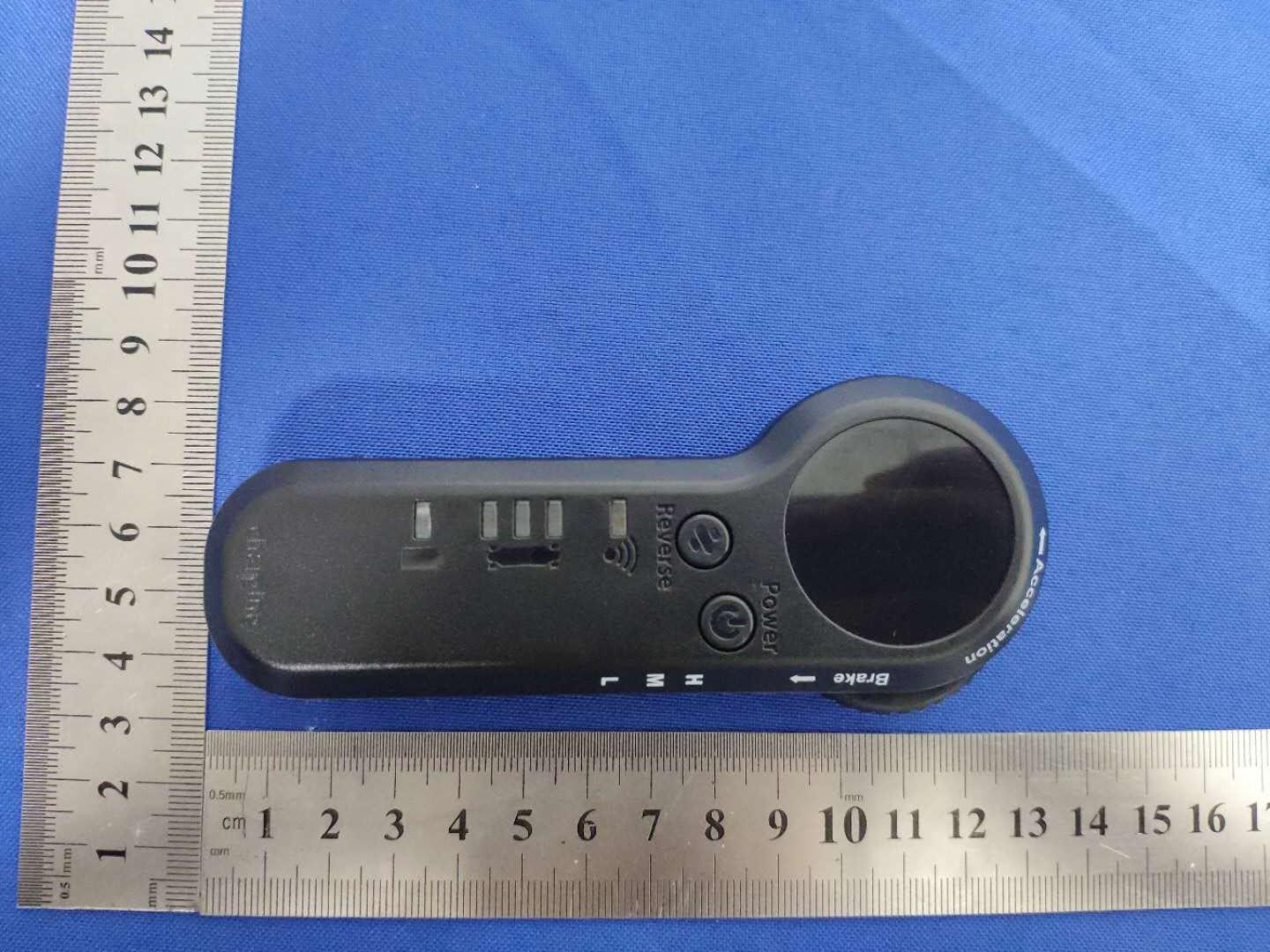

USER MANUAL Jupiter-02 Dual Hub motor Long board Power button Front truck Heat sink Battery case Drive truck Deck Charge port LED light 2 1 4 5 6 3 7 8 1 3 5 7 2 4 6 8 PARTS DIAGRAMREMOTE CONTROL PAIR INSTRUCTIONSPECIFICATION USER MANUAL At the first step, the Board and Remote must be paired. Before starting, to ensure the Board and Remote are turn off. Turn on the board Press the power button for 5 seconds, then the power button light will flash. Reverse button Power switch 100% of the battery left 50% of the battery left Signal indicator 10% of the battery left The battery indicator of remote Pair button Speed mode toggle High Middle Low Speed control 1234 5 6 78 PREPARATION SAFETY INSTRUCTIONS The electric skateboard is not a toy, should be treated with appropriate caution. Always practice safety first-as it is possible to lose balance and cause a collision or fall. Ensure that you use the board in a safe appropriate environment, and always wear appropriate safety gear. Safety Gear: we recommend that you wear full safety gear while riding. Please wear a suitable skateboard helmet, elbow pads, knee pads, and gloves. Wear shoes: Flipflops or similar loose footwear are not suitable for riding wear. The skateboard is designed for rider over 10 years old and above. Only one person riding for each skateboard at a time. The maximum load of the board is 150kg. Exceeding this weight will compromise the structural integrity of the skateboard, as well as remote and functionality,and may cause board damage, losing control or other breakage. Please observe your local traffic laws and regulations. The board is designed to drive on flat and paved surfaces. Avoid driving on sand, gravel,mud, rugged or open ground. Do not drive on slippery ground, such as snow, ice or wet ground. Keep fingers, hairs, and clothing away from motors, wheels and moving parts. Do not open or tamper with electronics housing. Electricshock is possible and this also voids the warranty. 10+ 150 4. Please start with the low speed mode to be familiar with the accelerate and brake of the skateboard. 5. Please stop riding by remote control brake operation,then get down your front foot at first and then get down your back foot. 3. Confirm the position on the skateboard, The feet stand on the widest front and back skateboard. 2. Confirm the front direction of the skateboard Thank you for buy our electric skateboard Do note that an electric skateboard is not a toy. Please take time to learn it and read this manual carefully. Particularly the safety instruction pages. We hope you will enjoy this product and have lots of fun with it in the future Charge port Accelerate Brake Turn on the remote,then press the pair button. the signal indicator will flash and the power button light will flash with same frequence. Then means the paired successfully. Push the joystick, forward to test the accelarate and backward to test the brake. After tested all function work normal you can start your riding. 1. Be sure that wear a helmet and safty gear when you ride it Inner Box Size Product Size Charge Type Capacity Voltage Deck 90mm 8 layers Canadian maple Lithium Battery 4 hours 2.4GHz 14M 970*265*125mm 1025*310*170mm Outer Box Size 1050*325*195mm G.W. N.W. TypeHub motor *2 Max load Speed Specification Motor Weight Wheel Size Battery Remote Mileage Watts 36V 6000mAh / 7500mAh 450W*2 15° 150KG 35KM 8.3KG 9.6KG 38KM/H Dual Hub Motor Climbing ability Valid range Frequency FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Rev11/20/07 (ShenzhenDBSTechnologyCo.,Ltd.) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AWOIJUPITER-02 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (LYUYUANBO)

(ShenzhenDBSTechnologyCo.,Ltd.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020.6.16 SUBJECT:FCCApplicationforFCCID:2AWOIJUPITER-02 ToWhomItMayConcern: We,theundersigned,herebyauthorizeAlanMeiatShenzhenBCTCTestingCo.,Ltd. onourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment. AnyandallactscarriedoutbyAlanMeiofShenzhenBCTCTestingCo.,Ltd.onour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, (LYUYUANBO)

ExternalPhotos

Label&labellocation Model:Jupiter-02 FCCID:2AWOIJUPITER-02

InternalPhotos Antenna

ShenzhenBCTCTestingCo.,Ltd. FCCID:2AWOIJUPITER-02 Portabledevice Accordingto§15.247(e)(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelinexcessoftheCommission’sguidelines. AccordingtoKDB447498D01GeneralRFExposureGuidanceV06 The1-gSARand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHZ)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHZ)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison Whentheminimumtestseparationdistanceis＞20mm,adistanceof5mmisappliedto determineSARtestexclusion. 2.4G: Conclusion: Forthemaxresult:0.49918W/Kg≤FCCLimit3.0for1gSAR.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 41 Test Report FCC ID: 2AWOIJUPITER-02 Product Name: Electric skateboard Trademark: N/A Model Name : Jupiter-02 Prepared For : Shenzhen DBS Technology Co., Ltd. Address : 14th floor, senhainuo Kechuang building, No.1, Dezheng Road, Shilong community, Shiyan street, Bao’an District, Shenzhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: May 15, 2020 – Jun. 09, 2020 Date of Report : Jun. 09, 2020 Report No.: BCTC2005000757E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 41 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen DBS Technology Co., Ltd. Address ................................. : 14th floor, senhainuo Kechuang building, No.1, Dezheng Road, Shilong community, Shiyan street, Bao’an District, Shenzhen, China Manufacture's Name ............ : Shenzhen DBS Technology Co., Ltd. Address ................................. : 14th floor, senhainuo Kechuang building, No.1, Dezheng Road, Shilong community, Shiyan street, Bao’an District, Shenzhen, China Product description Product name ........................... : Electric skateboard Trademark ................................. : N/A Model and/or type reference : Jupiter-02 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Kelsey Tan Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 41 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 24 3.3.3 DEVIATION FROM TEST STANDARD 25 3.3.4 TEST SETUP 25 3.3.5 EUT OPERATING CONDITIONS 25 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 41 Table of Contents Page 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 APPLICABLE STANDARD 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 7.6 TEST RESULTS 35 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 10 . EUT PHOTO 41 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 41 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark FCC Part15.207 Conducted Emission PASS FCC Part 15.247 (a)(2) 6dB Bandwidth PASS FCC Part 15.247 (b) Peak Output Power PASS FCC Part 15.247 (d) FCC Part 15.209 Radiated Spurious Emission PASS FCC Part 15.247 (e) Power Spectral Density PASS FCC Part 15.205 Restricted Band of Operation PASS FCC Part 15.247(d) Band Edge (Out of Band Emissions) PASS FCC Part15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000757E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 41 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidenc…
