2AWONNTF81CSmart Flood Light

Shenzhen Ustellar Technology Ltd. Add:308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community, Longhua, Shenzhen, China Tel:0755-21008194 Email: [email protected] Date: 2023-04-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, S henzhen Ustellar Technology Ltd., hereby authorize China Certification ICT Co., Ltd (Dongguan). to act as a laboratory for testing and test report generation for the following project(s): (Product description: Smart Flood Light ,Model name: NTF81, FCC ID:2AWONNTF81C) The chip BK7231N supports 2.4G wifi and BT 5.2,but for the product, it only supports 2 .4G Wi-Fi (2412-2462MHz) and BLE 1M. BLE 2M and BT BDR/EDR were disabled by software, the end user has no capability to activate it. Sincerely, Signature: Pr inted Name: li changchun Title: Power Supervisor

ATTESTATION STATEMENT Shenzhen Ustellar Technology Ltd. Add:308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community, Longhua, Shenzhen, China Tel:0755-21008194 Email: [email protected] Date: 2023-04-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID:2AWONNTF81C Shenzhen Ustellar Technology Ltd., certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And Shenzhen Ustellar Technology Ltd.,certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed by (printed name): li changchun Title: Power Supervisor Signature: wer Supervisor e:

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AWONNTF81C Shenzhen Ustellar Technology Ltd. certifies that, as of the date of the filing of the application, Ustellar Technology Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Ustellar Technology Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Ustellar Technology Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Ustellar Technology Inc. Adress: 919 North Market Street, Suite 950, Wilmington, DE 19801 United States FRN: 0033710120 Tel.: 189 169 6014 Email: [email protected] Signed by (printed name): Mia conner Signature: Shenzhen Ustellar Technology Ltd. Add:308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community, Longhua, Shenzhen, China Tel:0755-21008194 Email: [email protected] Signed by (printed name): li changchun Signature:

QA-FR-170-B Shenzhen Ustellar Technology Ltd. Add:308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community, Longhua, Shenzhen, China Tel:0755-21008194 Email: [email protected] FCC Authorization Date: 2023-04-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen Ustellar Technology Ltd. Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: li changchun Title: Power Supervisor e changchun

QA-FR-171-A Shenzhen Ustellar Technology Ltd. Add:308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community, Longhua, Shenzhen, China Tel:0755-21008194 Email: [email protected] FCC Confidential Authorization Date: 2023-04-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWONNTF81C In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen Ustellar Technology Ltd.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: xBlock Diagram xSchematics xOperation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: li changchun Title: Power Supervisor y, e: Name: li changchun

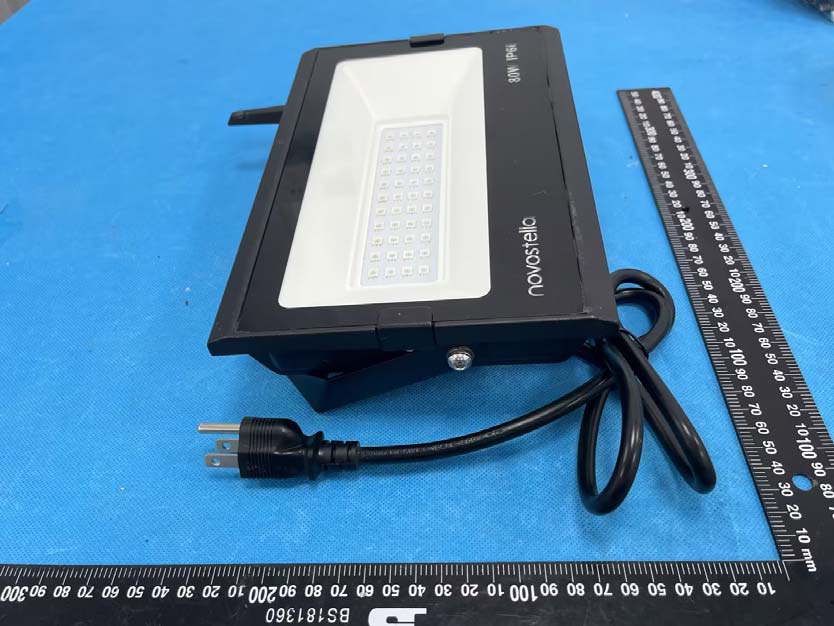

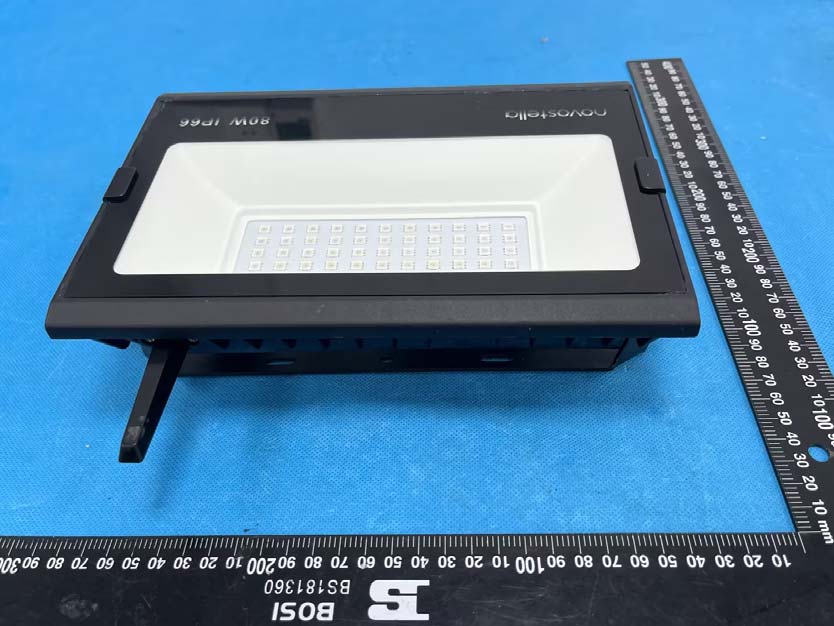

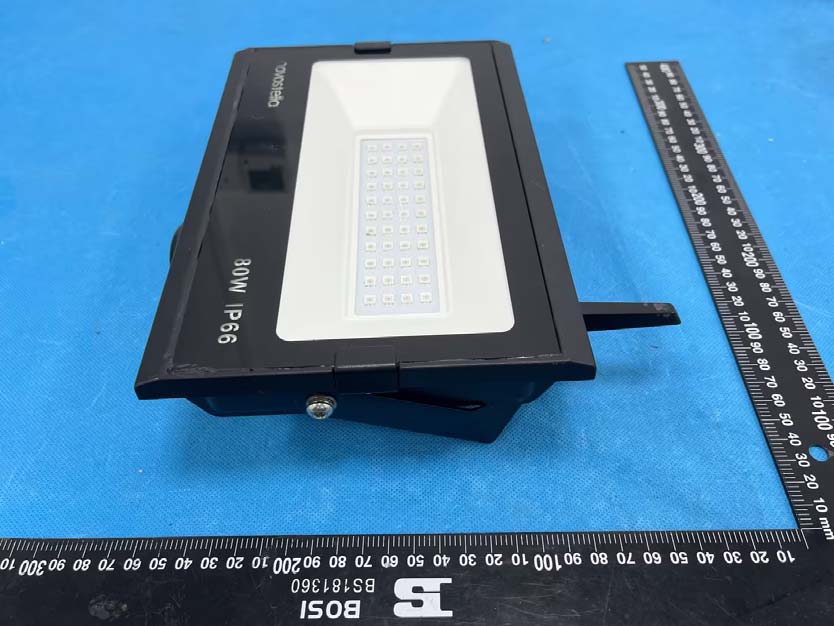

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

FCC ID: 2AWONNTF81C

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna RF Module Circuit not connected to PCB antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230208506-00B Page 43 of 43 5. RF EXPOSURE EVALUATION Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Operating Mode Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) WLAN 2.4G 2412-2462 2.97 1.98 14.00 25.12 20.00 0.01 1.0 BLE 2402-2480 2.97 1.98 5.00 3.16 20.00 0.001 1.0 Note: The WLAN 2.4G and BLE can`t transmit simultaneously. The Conducted output power including Tune-up Tolerance was declared by manufacturer. Result: The device meet FCC MPE at 20 cm distance ===== END OF REPORT ====

C ustomer ： Name ： M aterial No.： C ustomer Material No.： D ate ： TEL ：0769-81663533 FAX：0769-89361945 E-mail:[email protected] Http://www.nogps.com 東莞市亨杺電子科技有限公司 Dongguan Hengxin Electronic Technology Co., Ltd. 2.4G ANT S henzhen Bling Lighting Technologies Co., Ltd 2022.07.23 HX-A310-PEX30B 53.0501.0007 Index: 1.Reliability Testing 2. Specification 3. S Parameter Test Data 4. Antenna Radiation Pattern ================================================== 1.Reliability Testing Test Item Procedure Requirement 1. Visual inspection and Dimension Check Applicable methods using x5 magnification follow specification 2. Rapid Changing of Temperature -40 ̊C (30minutes) to 80 ̊C (30minutes); 24 cycles After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 3. Damp Heat24 hours at 60 ̊C; 90 ~ 95% RH After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 4. Endurance24 hours at 80 ̊C After 2 hours recovery: 1. no visible damage 2. bandwidth tolerance < ±5% 5. Connector Pull Strength Test >= 1.0 Kg Hold 2~3S: 1. no visible damage 2. bandwidth tolerance < ±5% 2.Specification A. Electrical Characteristics S.W.R.( Tested in PC ) <= 2.0 @ 2400~2500 MHz Typical Antenna Gain 2.97dBi @ 2450 MHz Impedance 50 Ohm B. Material Material of Radiator CU Cable Length 30mm Connector Type I-PEX / Mini C. Environmental Operation Temperature - 40 ̊C ~ + 85 ̊C Storage Temperature - 40 ̊C ~ + 85 ̊C 3.S.W.R. Testing Result 4.Antenna Radiation Pattern Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna Phi 0 2D Phi 90 2D Theta 90 2D Efficiency Gain i 3D 2400 3D 2450 3D 2500 2.97 2.97 2.97

TEST REPORT Applicant: Shenzhen Ustellar Technology Ltd. Address: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 FCC ID: 2AWONNTF81C Product Name: Smart Flood Light Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230208506-00B Date Of Issue: 2023/3/30 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230208506-00B Page 2 of 43 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230208506-00B Page 3 of 43 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ..................................................................................…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: Shenzhen Ustellar Technology Ltd. Address: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 FCC ID: 2AWONNTF81C Product Name: Smart Flood Light Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230208506-00C Date Of Issue: 2023/3/30 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230208506-00C Page 2 of 59 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230208506-00C Page 3 of 59 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 6 DB EMISSION BANDWIDTH: ...................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
