2AWONNTF96Smart Flood Light

120V±10% AC

Shenzhen Ustellar Technology Ltd. ADD: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 TEL: 0755-21008194 FAX: 0755-21008194 E-mail: [email protected] Da te: 2022-12-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Ustellar Technology Ltd., hereby authorize China Certification ICT Co., Ltd (Dongguan) to act as a laboratory for testing and test report generation for the following project(s): (Product description: Smart Flood Light, FCC ID: 2AWONNTF96) The chip BK7231N supports Bluetooth BDR(GFSK), EDR(π/4-DQPSK, 8DPSK) ,BLE Mode and 2.4G WiFi, but for this device, only BLE 1M and 2.4G WiFi were active, the others were disabled by software. Sincerely Yours, Client’s signature Printed Name: lichangchun Title: Power Supervisor

QA-FR-170-B Shenzhen Ustellar Technology Ltd. ADD: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 TEL: 0755-21008194 FAX: 0755-21008194 E-mail: [email protected] FCC Authorization Date: 2022-12-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen Ustellar Technology Ltd., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: lichangchun Title: Power Supervisor

QA-F R-171-A Shenzhen Ustellar Technology Ltd. ADD: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 TEL: 0755-21008194 FAX: 0755-21008194 E-mail: [email protected] FCC Confidential Authorization Date: 202 2-12-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWONNTF96 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ( Shenzhen Ustellar Technology Ltd. ) hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagra m Sch emati cs O peration Descriptio n Th e above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: lichangchun Title: Power Supervisor

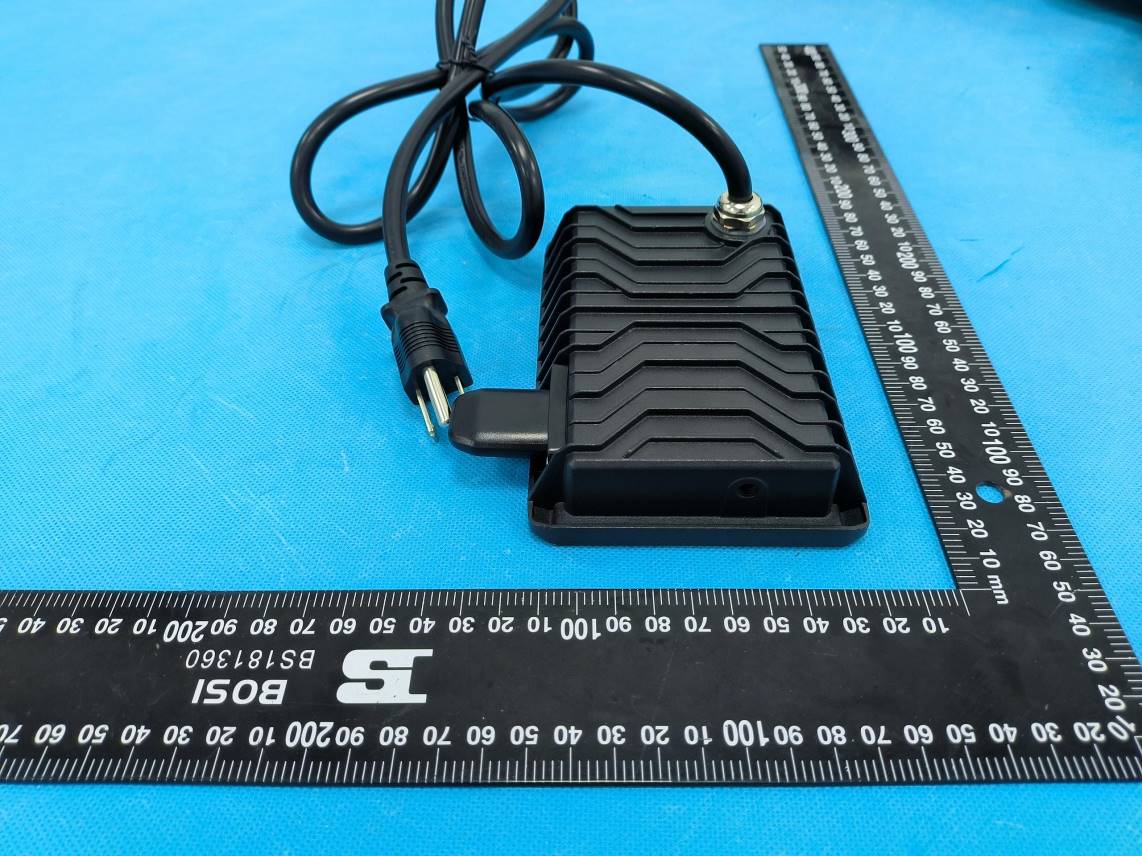

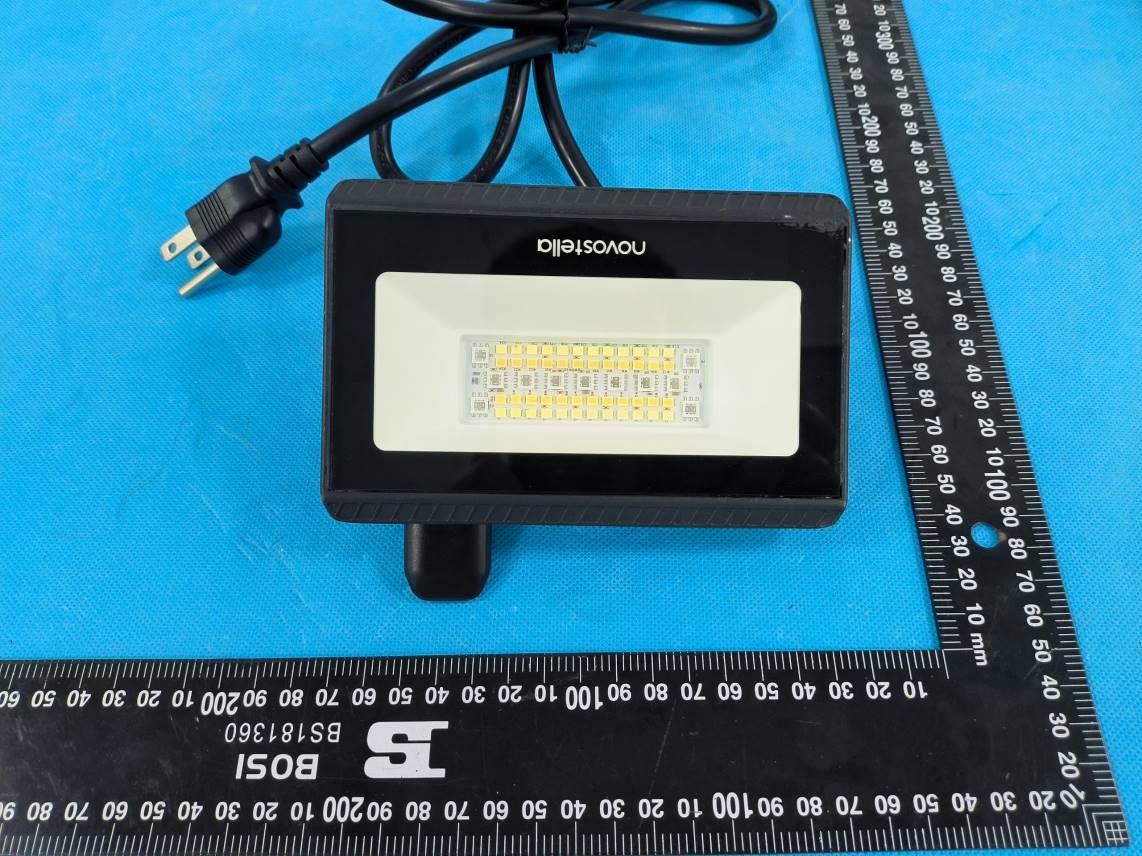

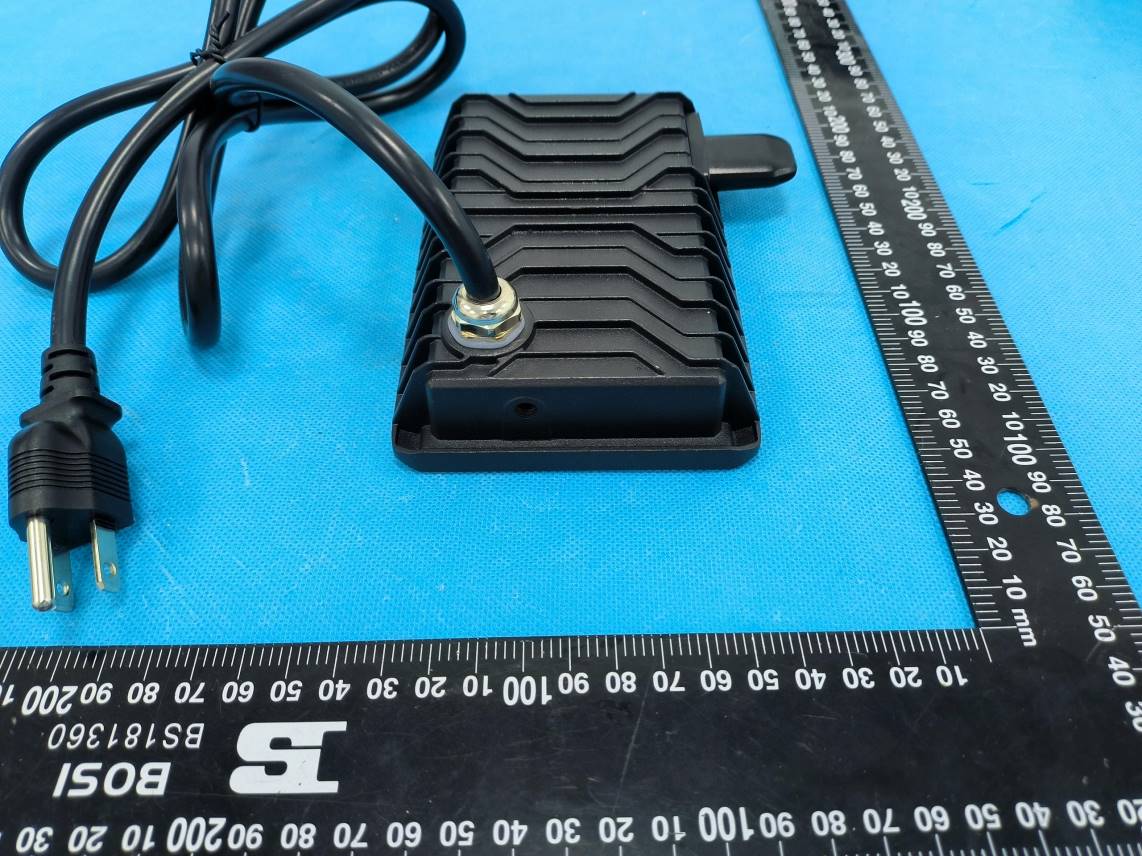

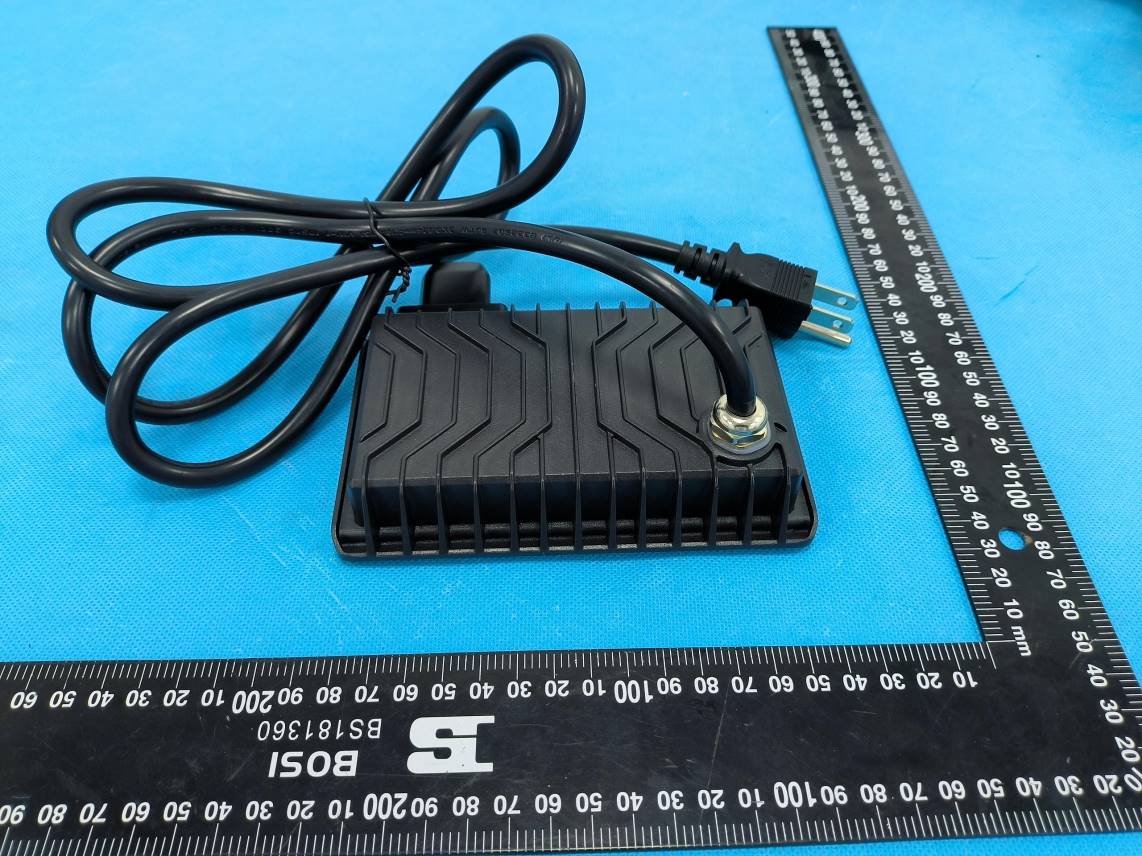

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Smart LED Flood Light Model: NTF96 Wa�age:20W Input Current: 300mA 40°C Frequency: 50/60HzVoltage: AC120V D/C: 2250Max Luminous Flux: 2000lm Manufacturer: Shenzhen Ustellar Technology Ltd. (Shen zhen shi you shi tuo ke ji you xian gong si) Address: Rm.308A, 3/F,A Bldg., Youth Entrepreneur Hub, Jianshe East Rd., SZ, CN Contact: [email protected] FCC ID:2AWONNTF96 This device complies with Part 15 of the FCC Rule s. Opera�on is subject to the following two condi�ons: (1) this device may not cause harmful in terference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on. SUITABLE FOR WET LOCATIONS SUITABLE FOR OPERATION IN AMBIENT NOT EXCEEDING 40°C

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip1 Chip2 Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR221151177-00A Page 62 of 62 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §15.247 (i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. 5.2 Procedure According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.3 Measurement Result Radio Frequency (MHz) λ/2 Π (mm) Distance (mm) Exemption ERP (mW) Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP MPE- Based Exemption dBm mW WiFi 2412-2462 19.80 200 768 22 2.21 22.06 160.69 Compliant BLE 2402-2480 19.88 200 768 2 2.21 2.06 1.61 Compliant Note: WiFi and Bluetooth can’t transmit simultaneously. The Value of Maximum Conducted Power including Tune-up Tolerance was declared by the customer. Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT ====

TEST REPORT Applicant: Shenzhen Ustellar Technology Ltd. Address: 308A,3/F,Building A,Youth Entrepreneur Hub,Jianshe East Road,Qinghua Community Longhua Shenzhen, CHINA 518000 FCC ID: 2AWONNTF96 Product Name: Smart Flood Light Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221151177-00A Date Of Issue: 2022/11/24 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221151177-00A Page 2 of 62 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221151177-00A Page 3 of 62 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup......................................................................…

Text truncated - open the document above for the full version.

BT/ 2412MHz-2462MHz

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
