2AWOQ-003001C508Ondur C508

AuVerte AG
Ondur C508 - FCC ID 2AWOQ-003001C508 - AuVerte AG
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 20, 2020
Application Purpose
Original Equipment
Date of Application
Sep 20, 2020
Equipment Note
Ondur C508
Frequency Range
2405.00000000 - 2480.00000000
Company
AuVerte AG
Country
Switzerland

Documents & Files

Select a file to view

Users Manual

↗

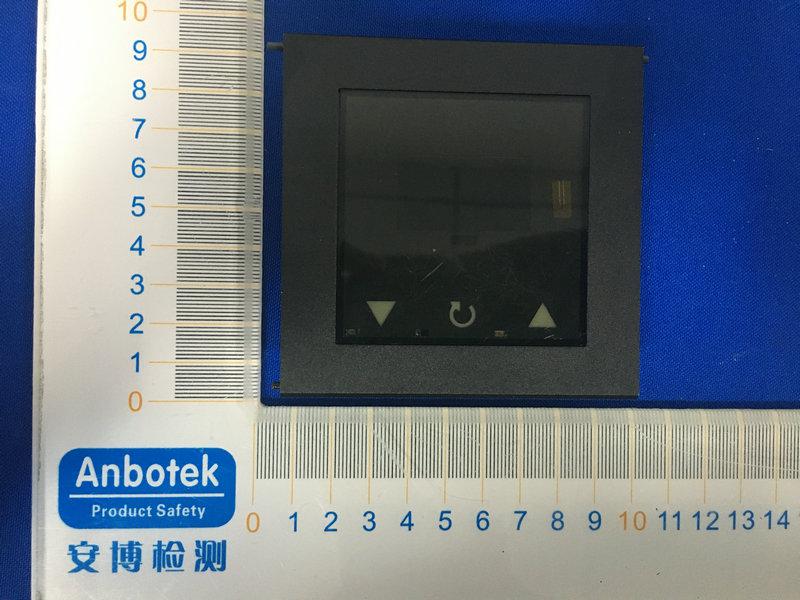

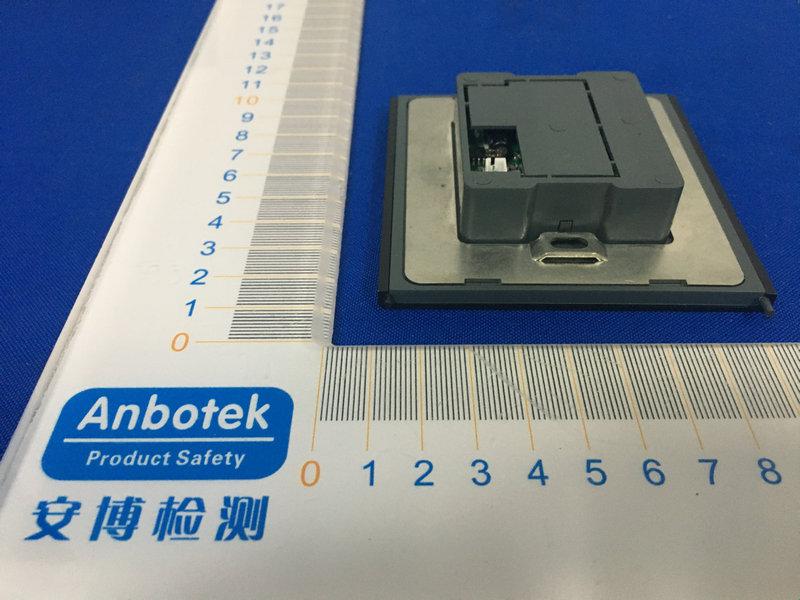

External Photos

↗

ID Label/Location Info

↗

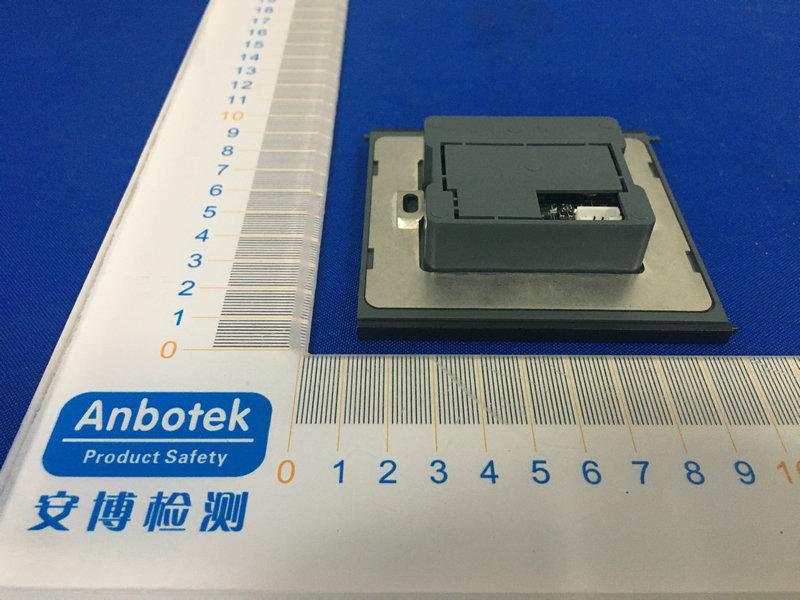

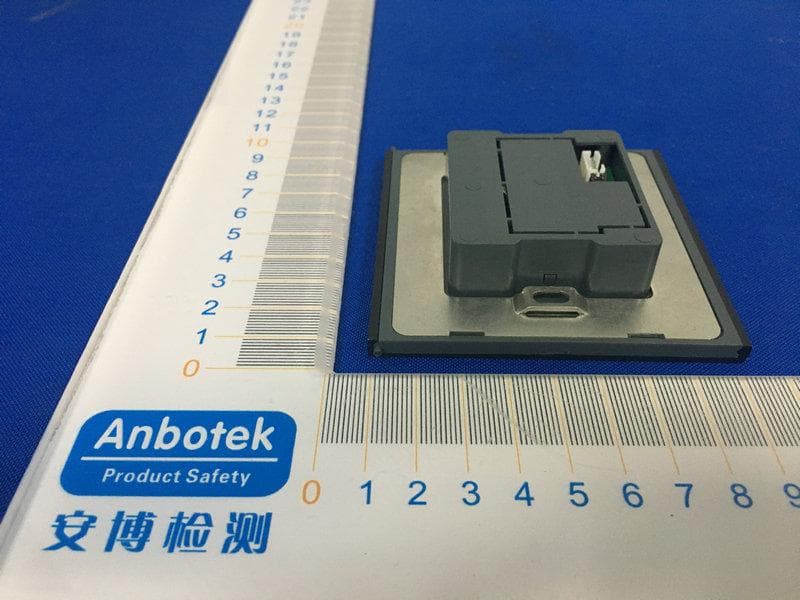

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Model:003001.C508                       FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

External Photos

FCCID:2AWOQ-003001C508

ID Label/Location Info

LabelLocationOnEUT Label ProductName:OndurC508 ModelNumber:003001.C508 FCCID:2AWOQ-003001C508 ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Internal Photos

FCCID:2AWOQ-003001C508 ANT

Operational Description

version01 AuVerteAG DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:003001.C508 FCCID:2AWOQ-003001C508 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:003001.C508 Typeofantenna:CeramicAntenna Gainoftheantenna:1dBi Frequencyrange:2405-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname: AuVerteAG Address:Rothusmatt14,CH-6300Zug,Switzerland City:Zug ZIP/Postalcode: Country:UnitedStates Place:Zug,SwitzerlandDate: 2020-09-18 Signature:

RF Exposure Info

RFEXPOSUREEVALUATION FCCID:2AWOQ-003001C508 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. TestResults:PASS. Channel (MHz) Maxoutput power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance( mm) Calculation results Limit 2405-0.962±1 0.044 50.3133 2440-0.632±1 0.368 50.3403 2480-0.752 ±1 0.269 50.3333
