2AWTV-W18LGps Tracker

GPS Tracker Model:W18L Manual 1.Product Features IP67 waterproof design Real-time Tracking 4G network communication GPS dual satellite positioning OTA remote upgrade Track Playback Strong magnetic suction 10000 ma rechargeable large battery GPS Remote listening Multiple working modes SOS alarmVibration alarm SOS Temperature and humidity detection Low electric alarm GEO-FENCE alarm 2.Installation Instructions 2.2.1. Insert the SIM card into the GPS tracker (SIM card requires SMS, data service and phone function) (Ensure the device is powered, if not, connect the charger to power it) 2.2.Device online operation 2.1.Appearance Front SOS alarm Back T&H MIC On-off key Insert the sim card SIM ON/OFF 2.1.2 Command send operation Please send two text messages to sim card number of GPS tracker using your mobile phone. 1) APN, apnname# This SMS is used to connect the GPS tracker to your local network. (APN's name, is the APN of your SIM card's local carrier, such as APN, cmnet# , If you don't know the APN of your sim card, check it by searching or ask your local carrier) 2) SERVER, 1, gps.whatsgps.com, 6801,0# This SMS is used to connect GPS tracker to WhatsGPS tracking platform For other platforms, please refer to this format to send commands, see the command list below for details 2.1.3 To see whether the tracker is online, go to www.whatsgps.com or download the WhatsGPS app. 2.3 Indicator light status ON/OFF LED type LED status Meaning Orange Flash Network/GPRS online The network reception signal is normal Slow flash Always on Network initialization Network signal is not received / the card is not inserted Not bright Blue GPS signal search Flash GPS positioning success Always on Red GPS sleeping/not working Not bright Equipment charging Always on No charge Not bright The installation mode of the device is hidden installation. * To avoid damage by thieves, the device location should be hidden as far as possible; * Avoid being placed with transmitting sources such as reversing radars, burglars, and other in-vehicle communication devices; * Can be fixed with cable ties, or with wide sponge strong double-sided adhesive; Ark:If the battery is completely dead, the full charge time is about 8 hours. Mild fever is normal when charging. 2.4 Installation method 3.Installation diagram * The device has a built-in GSM antenna and GPS antenna. When installing, it should be sure to face up (towards the sky), and there is no metal shielding above. The Bluetooth configuration function needs to be used with the Bluetooth tool software. You can contact the dealer technicians to get the download address or download it through the IOS app store and the Android app store. The specific operation mode can be scanned through the QR code at the end of the manual for video viewing. The listening function requires the SOS number to use. 2.5 Function declaration Deputy location glove box Under the rear windshield Under the passenger seat In the glove compartment Armrest box Under the rear seat Back in the box 4.Specifications 2. Main Function Global version: LTE-FDD B1/B2/B3/B4/B5/B7/B8/ B12/B13/B18/B19/B20/B2 5/B26/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM 850/900/1800/1900 MHz ProjectSpecificationRemark Operating voltage 3.8V Position method Positioning error GPS+LBS <10 M Communications network 2G/4G Communication band Communication mode TCP Working humidity10% RH ~ 85%RH Specifications size Weight 92mm*63mm*36mm 317g Range of working temperature -20°C~ +75°C 5.Description of Common Commands The following commands can be sent by SIM card SMS or WhatsGPS platform 5.1 Common setup commands Set online 1 Command format Remark Command function SN SERVER,mode,domai nName/IP,port,0# SERVER,1,gps.whatsg ps.com,6801,0# 2 3 4 Set APN APN, [APN's name]# APN, cmiot# The APN varies according to the local telecom operator Set the device to point to server IP and port Set upload interval TIMER,[T1]# TIMER,10# T1: 5-18000 seconds, motion upload interval, the device defaults to 10s ; Heartbeat interval setting HBT,[T]# HBT,3# T1: 60-360S, default 180s 5 Set time zone GMT,[A],[b],[C]# GMT,E,0,0# A=E/W, for the eastern and western time zones; B: 0-12, is time zone C: 0,15,30,45, which represents the half time zone and defaults to 0. 6 Set the SOS / listening number SOS,A, [phone1][,pho ne2][,phone3]# Add the SOS numbers, and you can add three SOS numbers simultaneously 7 Delete the SOS / listening number SOS,D,[sequence number 1][, sequence number 2][,sequence number 3]# SOS,[D],[phone number]# Multiple numbers can be deleted by the serial number or SOS number, and multiple numbers can be deleted simultaneously Query the current working status of the device Query the currently set parameters of the device Command format Remark Command function SN RESET# PARAM# Query parameters 1 STATUS# Query status 2 Device restart 3 5.2. Common query commands 5.3.Common alarm commands Command format Remark Command function SN Vibration alarm 1 A=ON/OFF, default is OFF; M=0/1/2 Alarm mode: 0 only GPRS 1:SMS+GPRS, 2:GPRS+SMS+PHONE SENALMAM# Low electric alarm 2 Please turn on the device power switch in advance. A=ON/OFF, the default is ON; M=0/1/2/3,Alarm mode : 0 : only GPRS, 1: SMS+GPRS, 2: GPRS+SMS+PHONE, 3:GPRS+PHONE The default alarm mode is 0. BATALM,[A] [M]# SOS alarm 3 Please turn on the device power switch in advance. A=ON/OFF, the default is ON; M=0/1/2/3,Alarm mode : 0 : only GPRS, 1: SMS+GPRS, 2: GPRS+SMS+PHONE, 3:GPRS+PHONE The default alarm mode is 0 SOSALM, [A][M]#, [A][M]# The installation mode of the device is hidden installation. * To avoid damage by thieves, the device location should be hidden as far as possible; * Avoid being placed with transmitting sources such as reversing radars, burglars, and other in-vehicle communication devices; * Can be fixed with cable ties, or with wide sponge strong double-sided adhesive; 5.4.Common working mode instructions Command format Remark Command function SN Timed positioning mode 1 Timing positionin…

Text truncated - open the document above for the full version.

SEEWORLD Technology Co.,ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (AOCE Corporation Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023-11-29 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SEEWORLD Technology Co.,ltd FRN: 0029734274 FCC ID: 2AWTV-W18L Contact Name: Jack Liu Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Telephone No: 020-36636771 Email: [email protected] Applicant Signature: Date: 2023-11-29 Signed by (Printed Name/Title): Jack Liu/ Manager

SEEWORLD Technology Co.,ltd 2023.12.05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AWTV-W18L [SEEWORLD Technology Co.,ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Jack Liu SEEWORLD Technology Co.,ltd 2023.12.05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AWTV-W18L [SEEWORLD Technology Co.,ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jack Liu

SEEWORLD Technology Co.,ltd 2023.12.05 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Gps Tracker Trademark: N/A MODEL : W18L, D21, D11, D11L, G10L, G20L, G11L, G30L, P1, P2, i1, S11L, i2, D13L, V5, V6-S, V7, W33L, S26L, S708L, i3 FCC ID : 2AWTV-W18L To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - BOM - Tune-up Procedure required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Jack Liu /Manager Contact information / address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700

SEEWORLD Technology Co.,ltd 2023.12.05 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Jack Liu /Manager Contact information / address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700

SEEWORLD Technology Co.,ltd Shielding statement 2023.12.05 EUT NAME: Gps Tracker FCC ID: 2AWTV-W18L MODEL : W18L, D21, D11, D11L, G10L, G20L, G11L, G30L, P1, P2, i1, S11L, i2, D13L, V5, V6-S, V7, W33L, S26L, S708L, i3 This product has WiFi and Bluetooth functions in the design, this product does not need WiFi and Bluetooth functions in use, SEEWORLD Technology Co.,ltd hereby declares that this product will block WiFi and Bluetooth functions when selling. Client’s signature: Client’s name / title : Jack Liu /Manager Contact information / address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700

SEEWORLD Technology Co.,ltd Model Difference 2023-12-05 EUT NAME: Gps Tracker MODEL : W18L, D21, D11, D11L, G10L, G20L, G11L, G30L, P1, P2, i1, S11L, i2, D13L, V5, V6-S, V7, W33L, S26L, S708L, i3 FCC ID: 2AWTV-W18L All the model are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : Jack Liu /Manager Contact information / address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700

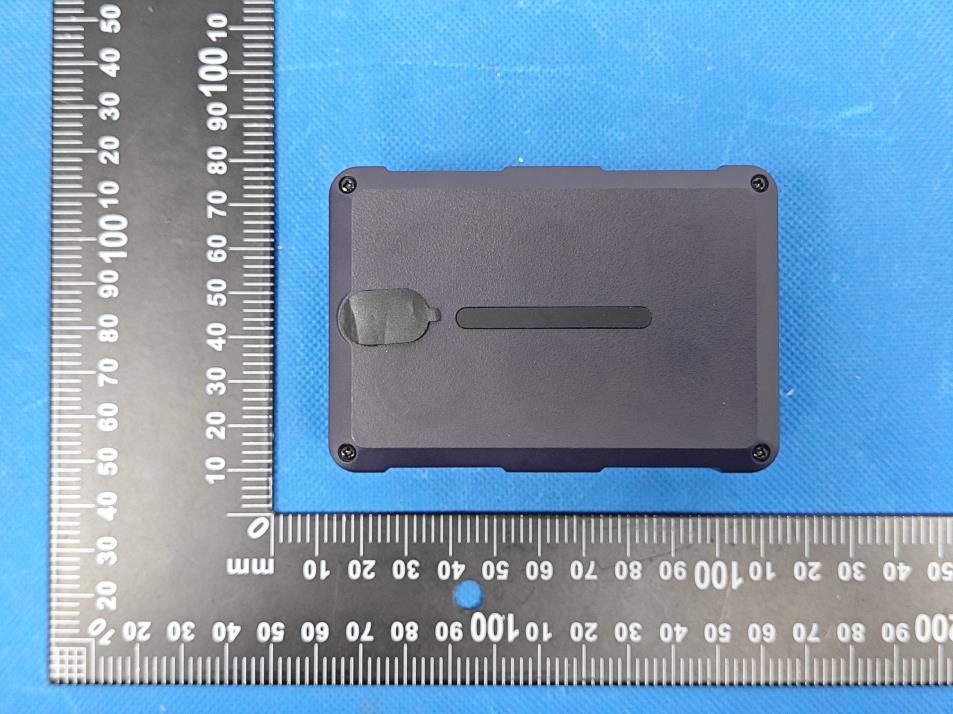

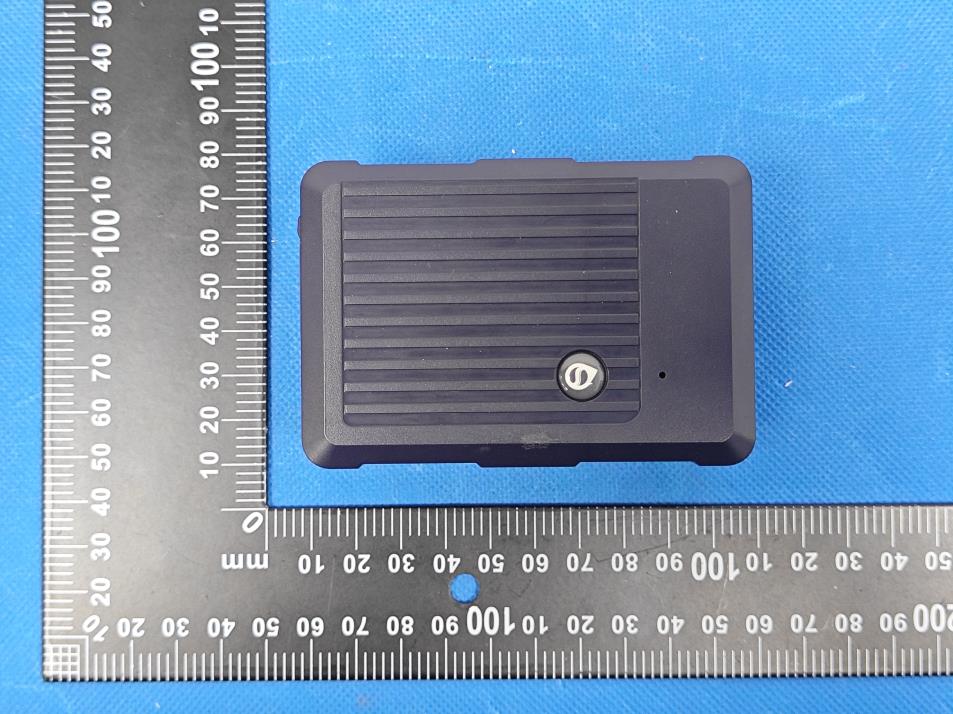

External Photos

Size:40*20mm Gps Tracker FCC ID: 2AWTV-W18L This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos GSM+LTE Antenna GPS Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AWTV-W18L Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result GSM850 31±1 32 1584.89 1.15 (0.6dBi) 0.36261 0.55 Pass GSM1900 28±1 29 794.33 1.7 (2.3dBi) 0.26865 1 Pass LTE- BADN2 23±1 24 251.19 1.7 (2.3dBi) 0.08496 1 Pass LTE- BADN4 23±1 24 251.19 1.78 (2.5dBi) 0.08895 1 Pass LTE- BADN5 23±1 24 251.19 1.15 (0.6dBi) 0.05747 0.55 Pass LTE- BADN7 23±1 24 251.19 1.48 (1.7dBi) 0.07396 1 Pass LTE- BADN38 23±1 24 251.19 1.48 (1.7dBi) 0.07396 1 Pass LTE- BADN41 23±1 24 251.19 1.29 (1.1dBi) 0.06447 1 Pass LTE- BADN66 23±1 24 251.19 1.78 (2.5dBi) 0.08895 1 Pass ⚫ For the max result : 0.36261≤ 0.55, compliance with FCC's RF Exposure

No.：BCTC/RF-EMC-005 Page: 1 of 51 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2310798345-1E Applicant: SEEWORLD Technology Co.,ltd Product Name: Gps Tracker Model/Type reference: W18L Tested Date: 2023-10-19 to 2023-11-24 Issued Date: 2023-11-24 Report No.: BCTC2310798345-1E No.：BCTC/RF-EMC-005 Page: 2 of 51 Edition：B.0 FCC ID: 2AWTV-W18L The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Gps Tracker Trademark: N/A Model/Type reference: W18L D21, D11, D11L, G10L, G20L, G11L, G30L, P1, P2, i1, S11L, i2, D13L, V5, V6-S, V7, W33L, S26L, S708L, i3 Prepared For: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Manufacturer: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-10-19 Sample tested Date: 2023-10-19 to 2023-11-24 Issue Date: 2023-11-24 Report No.: BCTC2310798345-1E Test Standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part22 Subpart H FCC CFR Title 47 Part24 Subpart E ANSI/ TIA/ EIA-603-D-2010 FCC KDB 971168 D01 Power Meas. License Digital Systems v02v02 Test Results: PASS Remark: This is GSM radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2310798345-1E No.：BCTC/RF-EMC-005 Page: 3 of 51 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 8 4.5 Test Mode ............................................................................................................. 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 5.2 Test Instrument Used .......................................................................................... 10 6. RF Output Power ................................................................................................. 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 12 6.3 Test procedure .................................................................................................... 13 6.4 Test Result .......................................................................................................... 13 7. Peak-to-average Ratio(PAR) of Transmitter ........................................................ 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 16 7.3 Test procedure .................................................................................................... 16 7.4 Test Result .......................................................................................................... 16 8. Emission Bandwidth ............................................................................................ 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test procedure .................................................................................................... 24 8.4 Test Result .......................................................................................................... 24 9. Out of Band Emissions at Antenna Terminal ....................................................... 32 9.1 Block Diagram Of Test Setup .............................................................................. 32 9.2 Limit .................................................................................................................... 32 9.3 Test procedure .................................................................................................... 32 9.4 Test Result .......................................................................................................... 32 10. Spurious Radiated Emissions .............................................................................. 43 10.1 Block Diagram Of Test Setup ............................................................................ 43 10.2 Limit .................................................…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 40 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2310798345-2E Applicant: SEEWORLD Technology Co.,ltd Product Name: Gps Tracker Model/Type reference: W18L Tested Date: 2023-10-19 to 2023-11-24 Issued Date: 2023-11-24 Report No.:BCTC2310798345-2E No.：BCTC/RF-EMC-005 Page: 2 of 40 Edition：B.0 FCC ID: 2AWTV-W18L The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Gps Tracker Trademark: N/A Model/Type reference: W18L D21, D11, D11L, G10L, G20L, G11L, G30L, P1, P2, i1, S11L, i2, D13L, V5, V6-S, V7, W33L, S26L, S708L, i3 Prepared For: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Manufacturer: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-10-19 Sample tested Date: 2023-10-19 to 2023-11-24 Issue Date: 2023-11-24 Report No.: BCTC2310798345-2E Test Standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 24 FCC CFR Title 47 Part 27 Test Results: PASS Remark: This is radio test report for 4G in US full bands. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.:BCTC2310798345-2E No.：BCTC/RF-EMC-005 Page: 3 of 40 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.2 Emission Designator ............................................................................................. 9 4.3 Description Operation Frequency ....................................................................... 12 4.4 Test Mode ........................................................................................................... 15 4.5 Support Equipment ............................................................................................. 18 4.6 Measurement Results Explanation Example ....................................................... 18 5. Test Facility And Test Instrument Used ............................................................... 19 5.1 Test Facility ......................................................................................................... 19 5.2 Test Instrument Used .......................................................................................... 19 6. Effective Radiated Power and Effective Isotropic Radiated Power Measurement ........ 20 6.1 Block Diagram Of Test Setup .............................................................................. 20 6.2 Limit .................................................................................................................... 22 6.3 Test procedure .................................................................................................... 22 6.4 Test Result .......................................................................................................... 24 7. Peak-To-Average Ratio(PAR) Of Transmitter ..................................................... 25 7.1 Block Diagram Of Test Setup .............................................................................. 25 7.2 Limit .................................................................................................................... 25 7.3 Test procedure .................................................................................................... 26 7.4 Test Result .......................................................................................................... 26 8. Emission Bandwidth ............................................................................................ 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Standard Applicable ............................................................................................ 27 8.3 Test procedure .................................................................................................... 27 8.4 Test Result .......................................................................................................... 27 9. Out of Band Emissions at Antenna Terminal ....................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 29 9.4 Test Result .......................................................................................................... 29 10. Spurious Radiated Emissions ............................…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 85 Edition：B.0 Band 2 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2310798345-2E Applicant: SEEWORLD Technology Co.,ltd Product Name: Gps Tracker Model/Type reference: W18L Tested Date: 2023-10-19 to 2023-11-24 Report No.:BCTC2310798345-2E No.：BCTC/RF-EMC-005 Page: 2 of 85 Edition：B.0 Contents Appendix 1. Effective Isotropic Radiated Power ............................................................ 3 Appendix 2. Frequency stability..................................................................................... 8 Appendix 3. Peak-to-Average Ratio ............................................................................ 16 Appendix 4. Occupied bandwidth ................................................................................ 35 Appendix 5. Band edge ............................................................................................... 54 Appendix 6. Out-of-band emissions ............................................................................ 67 Report No.:BCTC2310798345-2E No.：BCTC/RF-EMC-005 Page: 3 of 85 Edition：B.0 Appendix 1. Effective Isotropic Radiated Power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Gain (dBm) EIRP (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 22.85 2.3 25.15 PASS Band2 1.4 18607 1 #Mid QPSK 22.79 2.3 25.09 PASS Band2 1.4 18607 1 #Max QPSK 22.72 2.3 25.02 PASS Band2 1.4 18607 3 #0 QPSK 22.63 2.3 24.93 PASS Band2 1.4 18607 3 #Mid QPSK 22.63 2.3 24.93 PASS Band2 1.4 18607 3 #Max QPSK 22.59 2.3 24.89 PASS Band2 1.4 18607 6 #0 QPSK 21.60 2.3 23.90 PASS Band2 1.4 18607 1 #0 16QAM 21.92 2.3 24.22 PASS Band2 1.4 18607 1 #Mid 16QAM 21.86 2.3 24.16 PASS Band2 1.4 18607 1 #Max 16QAM 21.88 2.3 24.18 PASS Band2 1.4 18607 3 #0 16QAM 21.88 2.3 24.18 PASS Band2 1.4 18607 3 #Mid 16QAM 21.89 2.3 24.19 PASS Band2 1.4 18607 3 #Max 16QAM 21.81 2.3 24.11 PASS Band2 1.4 18607 6 #0 16QAM 20.80 2.3 23.10 PASS Band2 1.4 18900 1 #0 QPSK 23.26 2.3 25.56 PASS Band2 1.4 18900 1 #Mid QPSK 23.30 2.3 25.60 PASS Band2 1.4 18900 1 #Max QPSK 23.18 2.3 25.48 PASS Band2 1.4 18900 3 #0 QPSK 23.20 2.3 25.50 PASS Band2 1.4 18900 3 #Mid QPSK 23.22 2.3 25.52 PASS Band2 1.4 18900 3 #Max QPSK 23.17 2.3 25.47 PASS Band2 1.4 18900 6 #0 QPSK 22.30 2.3 24.60 PASS Band2 1.4 18900 1 #0 16QAM 22.47 2.3 24.77 PASS Band2 1.4 18900 1 #Mid 16QAM 22.52 2.3 24.82 PASS Band2 1.4 18900 1 #Max 16QAM 22.50 2.3 24.80 PASS Band2 1.4 18900 3 #0 16QAM 22.48 2.3 24.78 PASS Band2 1.4 18900 3 #Mid 16QAM 22.58 2.3 24.88 PASS Band2 1.4 18900 3 #Max 16QAM 22.53 2.3 24.83 PASS Band2 1.4 18900 6 #0 16QAM 21.50 2.3 23.80 PASS Band2 1.4 19193 1 #0 QPSK 23.02 2.3 25.32 PASS Band2 1.4 19193 1 #Mid QPSK 23.00 2.3 25.30 PASS Band2 1.4 19193 1 #Max QPSK 22.78 2.3 25.08 PASS Band2 1.4 19193 3 #0 QPSK 22.85 2.3 25.15 PASS Band2 1.4 19193 3 #Mid QPSK 22.86 2.3 25.16 PASS Band2 1.4 19193 3 #Max QPSK 22.76 2.3 25.06 PASS Band2 1.4 19193 6 #0 QPSK 21.77 2.3 24.07 PASS Band2 1.4 19193 1 #0 16QAM 21.80 2.3 24.10 PASS Band2 1.4 19193 1 #Mid 16QAM 21.76 2.3 24.06 PASS Report No.:BCTC2310798345-2E No.：BCTC/RF-EMC-005 Page: 4 of 85 Edition：B.0 Band2 1.4 19193 1 #Max 16QAM 21.70 2.3 24.00 PASS Band2 1.4 19193 3 #0 16QAM 22.01 2.3 24.31 PASS Band2 1.4 19193 3 #Mid 16QAM 21.99 2.3 24.29 PASS Band2 1.4 19193 3 #Max 16QAM 21.93 2.3 24.23 PASS Band2 1.4 19193 6 #0 16QAM 21.13 2.3 23.43 PASS Band2 3 18615 1 #0 QPSK 22.48 2.3 24.78 PASS Band2 3 18615 1 #Mid QPSK 22.32 2.3 24.62 PASS Band2 3 18615 1 #Max QPSK 22.06 2.3 24.36 PASS Band2…

Text truncated - open the document above for the full version.
