2AWTVS102AGPS Tracker

User Manual GPS Tracker Model: S102A Chapter 1 Product Composition and Interface Definition Light sensor Sim Card Slot Switch RedYellow 1. Product Overview Product Name: GPS Tracker Product Model: S102A Product Size: L77mm*W27mm*H12mm 2. The Schematic Of Product 3. The Product Configuration List 4. Interface Definition Of Product NameQuantityUnit Unit Unit Unit Remark S102T 3-In-1 1 1 1Power Cable User Manual; Warranty Card; Certificate Of Approval ColourInterface definition YellowOil - ACC Power GND Power + Orange Black Red Note: The Above Is a List Of Standard Configurations For The Entire Set Of Products,And Accessories Outside The Above Range Are Subject To Additional Fees. S102A Chapter II Parameters Of Device And Function Instructions Indicator GSM (Red) GPS(Yellow) Fast Flash: GSM In The Initialization Slow Flash: GSM Signals Is Normal Long Bright: GPRS On Line )DVW)ODVK*366LJQDO,Qc The Search Long Bright: GPS Has Been Positioning Not Light: GPS Dormancy/ Not Working 5. Definition Of Product Indicator 1. Parameter List Of The Device ItemSpecificationsRemark Working VoltageDC9V-36V 25ma @12V(Static Current10mA) Not Charge Test Data Working Current Size L78.5mm *W23mm*H12mm Located Way Location Accuracy GPS+LBS <10 Meters Not Light: Not Yet Received The GSM Signal/Not Insert Sim Card/GSM Dormancy 90V Communication Network GPRS TCP §a§ §a§ Communication Way Standby Battery Working Temperature Storage Temperature Gsm Frequency 850/900/1800/1900MHz Warranty 0.5 Hours 1 Year FunctionsFunction DetailsDescription Location Data Report Vehicle Status Detection Real-Time Tracking Car Acc On/Off Status. Power Down Alarm Low Power Alarm Over Speed Alarm Oil Checking 2. Function List Of The Device Upload The Longitude And Latitude Information According To The Time Interval Setted Uploaded Data Include The Acc On/Off Status Each Time Turn On Backup Battery, When The Vehicle Voltage Is Lower Than 5v, The Device Upload a Alarm To The Server When The Voltage Is 5v-10v, The Device Will Upload a Alarm To The Server Set The Maximum Speed Limit Value On The Platform, When The Gps Speed Is More The Setted Value, The Device Will Upload a Alarm To The Server Cut Off/Supply Fuel Remotely Through Server And Message 3. Installation Process Of Product Other Functions Low Power Consumption Static Mode Illegal Dismantling Alarm Blind Area Uploading Data Epo Located For Assistance Inflexion Upload Upgrade Remotely The Power Down Alarm And Light Sensor Alarm Triggered Of The Device In 2 Minutes, Then The Illegal Dismantling Alarm Will Be Reported To The Server The Data Is Stored Up To 300pcs If The Terminal Is Located And Not Online, Upload When The Signal Is Good The Terminal Supports The Epo Assisted Positioning Function To Enhance The Positioning Effect. When The Angle That Vehicle Turned Is More Than a Normal Scale It Will Send a Location Data Soon To Optimize The Playback The 3D Triaxial Accelerometer Senses The Vibration State Of The Vehicle In Real Time, When The Car Is Moving, The Device Is In Motion Mode; The Device Will Change To Static Mode After 5 Minutes Without Vibration, Close The Gps Module, When Vibration Is Detected, The Device Automatically Changes To Motion Mode. Need Assistance Of Factory Device installation 1) Check Device Check whether the appearance of the device is good and whether the related accessories are complete 2) Install the SIM card Open the bottom cover of the device and insert the SIM card into the card holder. Do not use excessive force to damage the card holder. Do not insert or remove the SIM card while the device is power on. Make sure the SIM card has Internet access. 3) Select installation location A. Waterproof: Should choose a position that does not easily enter the water to ensure the drying of the terminal; Pay attention to keep away from the outlet of the air conditioner to prevent condensation water from accumulating inside the terminal and seriously affecting the service life of the product when the temperature difference changes. B. Shockproof: The terminal cannot be suspended and installed in a long-term vibration0. C. Anti-interference: The terminal should be far away from the electronic equipment such as audio and intercom in the car to prevent conduction interference and radiation interference. 4) Connect GPS Antenna A.Please notice that the GPS Antenna signal receiving side should up to sky and no metal block. Bottom keep flat, tilt should not be more than45° B.Wires should be concealed; C.Please make sure the GPS antenna is connected to the right connector and fixed tightening to avoid vibrated. Exactly format: Set IP Online: <SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMN ET*N:IMEI number*C:0030> Set The Domain Name Online: <SPBSJ*P:BSJGPS*Q:s3.gps18.com:7700*A:CMNE T*N:IMEI number> SPBSJ: Header P: Password (Default Password: BSJGPS) T: TCP IP and Port Q: Domain Name And Port A: APN N: Device Number C: Time Interval (Seconds) SMS Command for Online Tracking Setup Chapter III Analysis of Common Problems and After-sales Service 1. Analysis Of Common Problems 2. Attention ProblemReasonSolution Center Monitor Cannot Wrong Light Alarm Cannot Locate Sim Card No Money Sim Card Connect Good Or Not Online Parameter Setting Error Installation Location Is In Light Area Vehicle In Underground Car Parks Or Tunnels GPS Antenna Side Is Not Up To Sky Make The Gps Antenna Side Up To Sky Recharge Money Please Install Sim Card Again Reset Parameters With Correct Format According To User Manual Leave Off The District With Weak Signal Install The Device In Area Without Light Leave That Area Vehicles Are In Underground Parking Lots, Tunnels, Weak Signals 1) Stay away from water 2) Please keep the car battery fully charged 3) Device working current is 9-36V, recommended 12V and 24V. Tracker will damage if the current is over this range. 9-90V 3. After-sale service 4) Working temperature is -25to 75centigrade, Please cut off power if the temperature is over this …

Text truncated - open the document above for the full version.

SEEWORLD Technology Co.,ltd Agent Authorization Company: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Product Name: GPS Tracker Model Number(s): S102A, GS03A, GS03B, GS05A, GS05B, GS03C, GS03D, GS05C, GS05D, S003, S003T, S005, S005T, S102, S102T, S102L, S103, S06U, S06A, S06L, S09L, S03, S05, S11, S13, S15, S18, S19, S709, S709N, S708, S208, S288, S228, S308, S5E, S5L, S116L, S116, S116N, S112U, S006, S007 Trademark: N/A We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/07/03 Name: Jack Liu Title: Manager Company: SEEWORLD Technology Co.,ltd

SEEWORLD Technology Co.,ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/7/3 Subject; Request for Confidentiality FCC ID: 2AWTVS102A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure BOM In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack Liu Title: Manager

SEEWORLD Technology Co.,ltd Model Difference Product Name: GPS Tracker Model Number(s): S102A, GS03A, GS03B, GS05A, GS05B, GS03C, GS03D, GS05C, GS05D, S003, S003T, S005, S005T, S102, S102T, S102L, S103, S06U, S06A, S06L, S09L, S03, S05, S11, S13, S15, S18, S19, S709, S709N, S708, S208, S288, S228, S308, S5E, S5L, S116L, S116, S116N, S112U, S006, S007 Trademark: N/A All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Jack Liu /Manager Contact information / address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700

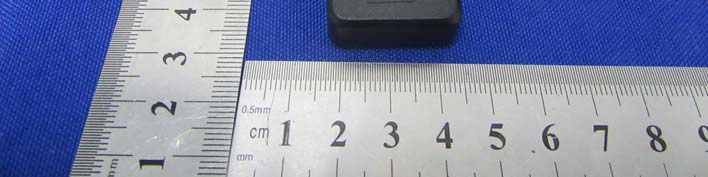

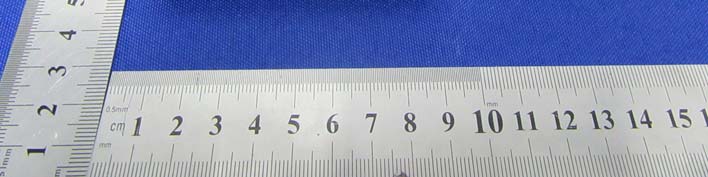

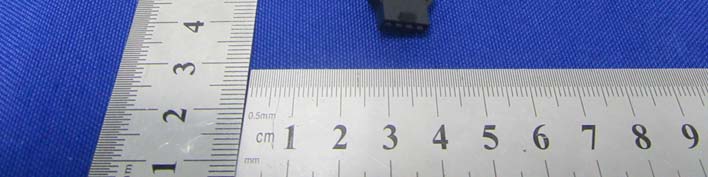

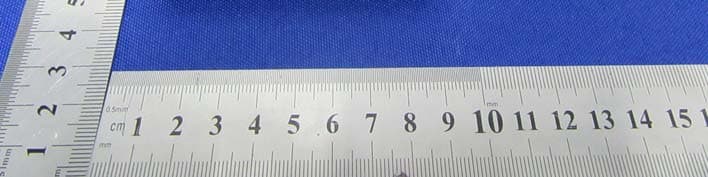

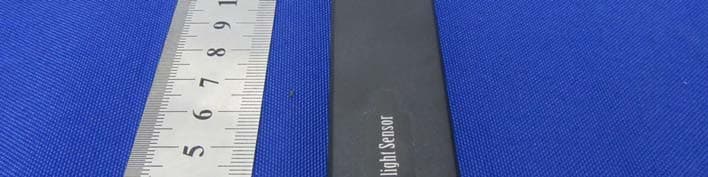

External Photos

20*10mm FCC ID: 2AWTVS102A Label Location

Internal Photos GPS Antenna GPRS Antenna

RF Exposure FCC ID: 2AWTVS102A Applied procedures / limit According to FCC §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm π=3.142 Test Result of RF Exposure Evaluation Targe t power W/ tolerance (dBm) Max tune up power tolerance (dBm) Total Output power to antenna (mW) Antenna Gain(dBi) Antenna Gain Numeric Total Pow er Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result GPRS850 32±1.0 33 1995.26 1 1.26 0.50010 0.549 Pass GPRS1900 30±1.0 31 1258.93 1 1.26 0.31555 1.0 Pass

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001465E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 36 FCC Part 22H & 24E Test Report FCC ID: 2AWTVS102A Product Name: GPS Tracker Trademark: N/A Model Name: S102A GS03A, GS03B, GS05A, GS05B, GS03C, GS03D, GS05C, GS05D, S003, S003T, S005, S005T, S102, S102T, S102L, S103, S06U, S06A, S06L, S09L, S03, S05, S11, S13, S15, S18, S19, S709, S709N, S708, S208, S288, S228, S308, S5E, S5L, S116L, S116, S116N, S112U, S006, S007 Prepared For: SEEWORLD Technology Co.,ltd Address: 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Jun. 19 - Jun. 30, 2020 Date of Report: Jul. 01, 2020 Report No.: BCTC2006001465E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001465E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 36 VERIFICATION OF COMPLIANCE Applicant’s name ....................... : SEEWORLD Technology Co.,ltd Address ........................................ : 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Manufacture's Name ................. : SEEWORLD Technology Co.,ltd Address ........................................ : 4th Floor, No.121, Kecheng Building, Science Road, Luogang District, Guangzhou, Guangdong Province, China. 510700 Product description Product name ............................... : GPS Tracker Trademark: N/A Model Name: S102A GS03A, GS03B, GS05A, GS05B, GS03C, GS03D, GS05C, GS05D, S003, S003T, S005, S005T, S102, S102T, S102L, S103, S06U, S06A, S06L, S09L, S03, S05, S11, S13, S15, S18, S19, S709, S709N, S708, S208, S288, S228, S308, S5E, S5L, S116L, S116, S116N, S112U, S006, S007 Test procedure FCC Part 22H & 24E This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001465E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 36 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY .......................................................................................................................... 4 2. GENERAL PRODUCT INFORMATION .................................................................................... 5 2.1. Product Function .............................................................................................................................. 5 2.2. Description of Device (EUT) .......................................................................................................... 5 2.3. Difference between Model Numbers ............................................................................................... 5 2.4. Test Supporting System .................................................................................................................... 5 2.5. Independent Operation Modes ......................................................................................................... 6 3. TEST SITES ................................................................................................................................... 7 3.1. Test Facilities ...................................................................................................................................... 7 3.2. List of Test and Measurement Instruments .................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1. Principle of Configuration Selection ............................................................................................... 10 4.2. Block Diagram of Test Set-up ......................................................................................................... 10 4.3. Test Operation Mode and Test Software ...................................................................................... 10 4.4. Special Accessories and Auxiliary Equipment ............................................................................. 10 4.5. Countermeasures to Achieve EMC Compliance ......................................................................... 10 4.6. Test Environment: ............................................................................................................................ 10 5. EMISSION TEST RESULTS ..................................................................................................... 11 5.1. Conducted RF Output Power ......................................................................................................... 11 5.2. Peak to Average Radio .................................................................................................................... 12 5.3. 99% Occupied Bandwidth ............................................................................................................... 14 5.4. Frequency Stability ........................................................................................................................... 18 5.5. Conducted Out of Band Emissions ................................................................................................ 20 5.6. Conducted O…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd.
