2AWVZ-JL500NRFID module

Datasheet FM17520 Contactless Transceiver IC Ver 1.0 1 FM17520 Contactless Transceiver IC Datasheet Oct.2016 Datasheet FM17520 Contactless Transceiver IC Ver 1.0 2 INFORMATION IN THIS DOCUMENT IS INTENDED AS A REFERENCE TO ASSIST OUR CUSTOMERS IN THE SELECTION OF SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD PRODUCT BEST SUITED TO THE CUSTOMER'S APPLICATION; THEY DO NOT CONVEY ANY LICENSE UNDER ANY INTELLECTUAL PROPERTY RIGHTS, OR ANY OTHER RIGHTS, BELONGING TO SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD OR A THIRD PARTY. WHEN USING THE INFORMATION CONTAINED IN THIS DOCUMENTS, PLEASE BE SURE TO EVALUATE ALL INFORMATION AS A TOTAL SYSTEM BEFORE MAKING A FINAL DECISION ON THE APPLICABILITY OF THE INFORMATION AND PRODUCTS. PURCHASERS ARE SOLELY RESPONSIBLE FOR THE CHOICE, SELECTION AND USE OF THE SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD PRODUCTS AND SERVICES DESCRIBED HEREIN, AND SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD ASSUMES NO LIABILITY WHATSOEVER RELATING TO THE CHOICE, SELECTION OR USE OF THE SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD PRODUCTS AND SERVICES DESCRIBED HEREIN.UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD REPRESENTATIVE, SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. FUTURE ROUTINE REVISIONS WILL OCCUR WHEN APPROPRIATE, WITHOUT NOTICE. CONTACT SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD SALES OFFICE TO OBTAIN THE LATEST SPECIFICATIONS AND BEFORE PLACING YOUR PRODUCT ORDER. PLEASE ALSO PAY ATTENTION TO INFORMATION PUBLISHED BY SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD BY VARIOUS MEANS, INCLUDING SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD HOME PAGE (HTTP://WWW.FMSH.COM/). PLEASE CONTACT SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD LOCAL SALES OFFICE FOR THE SPECIFICATION REGARDING THE INFORMATION IN THIS DOCUMENT OR SHANGHAI FUDAN MICROELECTRONICS GROUP CO., LTD PRODUCTS. Trademarks Shanghai Fudan Microelectronics Group Co., Ltd name and logo, the “复旦” logo are trademarks or registered trademarks of Shanghai Fudan Microelectronics Group Co., Ltd or its subsidiaries in China. Shanghai Fudan Microelectronics Group Co., Ltd, Printed in the China, All Rights Reserved. Contents Datasheet FM17520 Contactless Transceiver IC Ver 1.0 3 Contents CONTENTS ............................................................................................................................................................................. 3 TABLES ................................................................................................................................................................................... 5 FIGURES ................................................................................................................................................................................. 8 1 PRODUCT OVERVIEW .................................................................................................................................................... 9 1.1 INTRODUCTION ..................................................................................................................................................................... 9 1.2 FEATURES ............................................................................................................................................................................ 9 1.3 BLOCK DIAGRAM ................................................................................................................................................................ 10 1.4 PINNING INFORMATION ....................................................................................................................................................... 11 1.4.1 FM17520 Pinning Assignment ............................................................................................................................... 11 2 FUNCTIONAL DESCRIPTION ......................................................................................................................................... 13 2.1 GENERAL DESCRIPTION ........................................................................................................................................................ 13 2.2 ISO/IEC14443 A FUNCTIONALITY ........................................................................................................................................ 13 3 FM17520 REGISTER SET .............................................................................................................................................. 15 3.1 FM17520 REGISTERS OVERVIEW .......................................................................................................................................... 15 3.1.1 Registers Overview ................................................................................................................................................. 15 3.1.2 Register Bit Behavior .............................................................................................................................................. 17 3.2 REGISTER DESCRIPTION ........................................................................................................................................................ 17 3.2.1 Page 0：Command and Status .............................................................................................................................. 17 3.2.2 Page 1：Communication ....................................................................................................................................... 26 3.2.3 Page 2：Configuration .......................................................................…

Text truncated - open the document above for the full version.

Declaration letter If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AWVZ-JL500N Or Contains FCC ID: 2AWVZ-JL500N” When the module is installed inside another device, the user manual of the host must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. Any company of the host device which install this modular with limit modular approval should perform the test of radiated emission and spurious emission according to FCC part 15C : 15.247 and 15.209 requirement, Only if the test result comply with FCC part 15C : 15.247 and 15.209 requirement，then the host can be sold legally. Sincerely, Name: Ericliang Title: Manager Company: Guangzhou Jetinno Intelligent Equipment Co.,LTD.

2020-07-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Name: Ericliang Title: Manager Company: Guangzhou Jetinno Intelligent Equipment Co.,LTD.

2020-07-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen STS Test Services Co., Ltd., 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Guangzhou Jetinno Intelligent Equipment Co.,LTD. 4/F,Building A,No.2,Ruitai Road,Huangpu,Guangzhou,Guangdong,China Guangzhou, 510670, CHINA (Applicant Name and address) Sincerely, Name: Ericliang Title: Manager Company: Guangzhou Jetinno Intelligent Equipment Co.,LTD.

Limit Modular Approval Declaration letter 2020-07-20 We, Guangzhou Jetinno Intelligent Equipment Co.,LTD.applyLimitModular Approval for Product Name: RFID module Model:FM17520 FCC ID:2AWVZ-JL500N According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: No, Not Shielded for both side. 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer:Yes,All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer:Yes,A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer:Yes, Device is equipped with coil antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer:No, the limit module is installed in the Coffee machine(Main PCB board) for testing. (6) The module must be labeled with its permanently affixed FCC ID label, or use anelectronic display (See KDB Publication 784748 about labelling requirements); Answer :Yes, The modular has a permanent fixed label, and below statement was listed in the UserManual.The host device must be labeled to display the FCC ID of the module “Contains 2AWVZ-JL500N” (7) The module must comply with all specific rules applicable to the transmitter includingall the conditions provided in the integration instructions by the grantee; Answer :Yes, The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer :Yes, Transmitter meets MPE calculation of 47 CFR 1.1307 and KDB447498 . Refer to MPE Reports and Refer to modular installation manual Please contact me if you have any further questions. Thanks for your attention. Best Regards, Sincerely, Name:Ericliang Title:Manager Company:Guangzhou Jetinno Intelligent Equipment Co.,LTD.

2020-07-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__ 2AWVZ-JL500N___ Product Name:___ RFID module ___ Model name: FM17520 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Name: Ericliang Title: Manager Company: Guangzhou Jetinno Intelligent Equipment Co.,LTD.

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: FM17520 FCC ID: 2AWVZ-JL500N

Label Size: 20mm * 10mm, silk screen Model: FM17520 FCC ID: 2AWVZ-JL500N

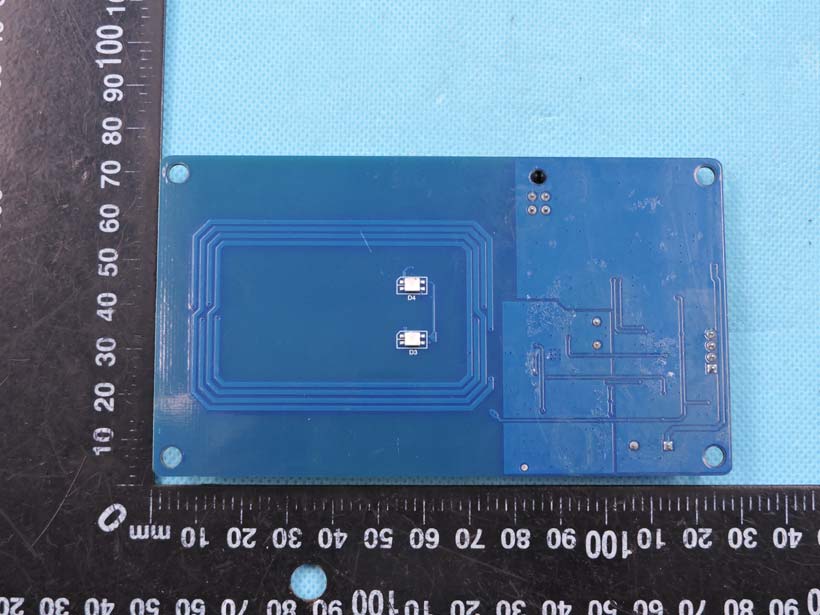

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: FM17520 FCC ID: 2AWVZ-JL500N

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China RADIO TEST REPORT Report No.: STS2004241W02 Issued for Guangzhou Jetinno Intelligent Equipment Co.,LTD. 4/F,Building A,No.2,Ruitai Road,Huangpu,Guangzhou,Guangdong,China Guangzhou, 510670, CHINA Product Name: RFID module Brand Name: N/A Model Name: FM17520 Series Model: N/A FCC ID: 2AWVZ-JL500N Test Standard: FCC Part 15.225 Page 2 of 30 Report No.: STS2004241W02 TEST REPORT CERTIFICATION Applicant’s Name ................. : Guangzhou Jetinno Intelligent Equipment Co.,LTD. Address .................................. : 4/F,Building A,No.2,Ruitai Road,Huangpu,Guangzhou,Guangdong, China Guangzhou, 510670, CHINA Manufacture's Name ............ : Guangzhou Jetinno Intelligent Equipment Co.,LTD. Address .................................. : 4/F,Building A,No.2,Ruitai Road,Huangpu,Guangzhou,Guangdong, China Guangzhou, 510670, CHINA Product Description Product Name ........................ : RFID module Brand Name ......................... : N/A Model Name........................... : FM17520 Series Model .......................... : N/A Test Standards ..................... : FCC Part15.225 Test Procedure.................... : ANSI C63.10: 2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, thidocument only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 26 Apr. 2020 Date (s) of performance of tests.............. : 26 Apr. 2020 ~ 07 July 2020 Date of Issue ........................................... : 07 July 2020 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 30 Report No.: STS2004241W02 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 5
1.1 TEST FACTORY 5
1.2 MEASUREMENT UNCERTAINTY 5
2. GENERAL INFORMATION 6
2.1 GENERAL DESCRIPTION OF THE EUT 6
2.2 DESCRIPTION OF THE TEST MODES 7
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8
2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9
2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10
3. EMC EMISSION TEST 11
3.1 CONDUCTED EMISSION MEASUREMENT 11
3.2 TEST PROCEDURE 12
3.3 TEST SETUP 12
3.4 EUT OPERATING CONDITIONS 12
3.5 TEST RESULTS 13
4. RADIATED EMISSION MEASUREMENT 15
4.1 RADIATED EMISSION LIMITS 15
4.2 TEST PROCEDURE 17
4.3 TEST SETUP 18
4.4 EUT OPERATING CONDITIONS 18
4.5 FIELD STRENGTH CALCULATION 19
4.6 TEST RESULTS 20
5. FREQUENCY TOLERANCE 25
5.1 REQUIREMENT 25
5.2 TEST PROCEDURE 25
5.3 TEST SETUP 25
5.4 EUT OPERATION CONDITIONS 25
5.5 TEST RESULTS 26
6. 20DB BANDWIDTH 27
6.1 LIMIT 27
6.2 TEST PROCEDURE 27
6.3 TEST SETUP 27
Page 4 of 30 Report No.: STS2004241W02 TABLE OF CONTENTS Page 6.4 EUT OPERATION CONDITIONS 27
6.5 TEST RESULTS 28
7. ANTENNA REQUIREMENT 29
7.1 STANDARD REQUIREMENT 29
7.2 EUT ANTENNA 29
APPENDIX 1- PHOTOS OF TEST SETUP 30
Page 5 of 30 Report No.: STS2004241W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 15.225 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.209 15.225(a)(b)(c)(d) Radiated Emission PASS -- 15.225(e) Frequency Tolerance PASS -- 15.203 Antenna Requirement PASS -- 15.215 20dB Bandwidth PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 6 of 30 Report No.: STS2004241W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name RFID module Trade Name N/A Model Name FM17520 Serial Model N/A Model Difference N/A Product Description The EUT is a RFID module Operation Frequency: 13.56MHz Modulation Type: FSK Antenna Designation: Please see Note 2. Antenna Gain (dBi) 0dBi Power Rating DC 12V Hardware version number N/A Software version number N/A Connecting I/O Port(s) Please see Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) NOTE A N/A N/A Coil Antenna N/A 0dBi ANT Page 7 of 30 Report No.: STS2004241W02 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possib…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AWVZ-JL500N DXX Setup photo Model name: FM17520 DXX conduction DXX radiation L Page 2 of 2 FCC ID: 2AWVZ-JL500N DXX Loop antenna
