2AX6X-R1Room Keeper

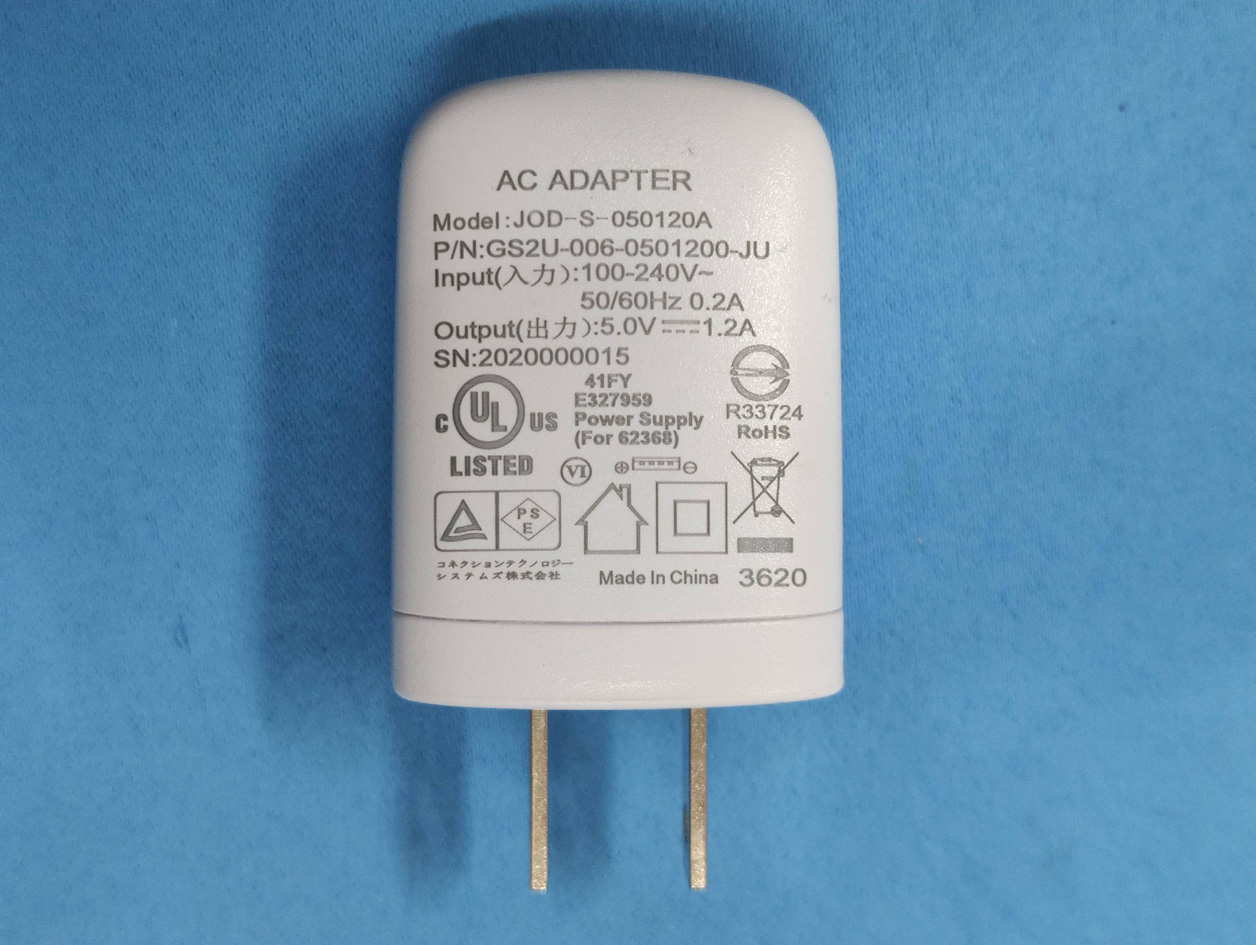

Quick Installation Guide Room Keeper R o o m キーパースマー เอ็มไอยู คีปเปอร์ Model: R1 Contents 1. What’s in package 2. Get Started 2.1 Preparation 2.2 Connect Room Keeper to internet 2.2.1 Setup by wireless 2.3 Add your Room Keeper to App 2.3.1 By scan QR code 2.3.2 By Wi-Fi search 2.4 Name and login your Room Keeper 3. FAQ 4. Support 5. FCC Statement 6. Warranty 1. What’s in package 1. Room Keeper 2. Micro USB cable 3. USB/AC adapter 4. Quick installation guide 5. Warranty 2. Get Started 2.1 Preparation ⚫ Power on Please turn on the power of Room Keeper by Micro USB cable and AC adapter. The LED will light in red. Please wait about 2 minutes until turn to pink, which means it is ready for Wi-Fi link process. ⚫ Download SiMPNiC APP Visit App Store (iOS) or Google Play (Android) to download the latest version of SiMPNiC App. User can also scan the QR code below to download too. 2.2 Connect Room Keeper to internet 2.2.1 Setup by Wireless Press the right button of Room Keeper 3 times constantly within 3 seconds, the LED will turn to blink white for 4 minutes, then please follow the steps below. 1. Please follow the APP amination to connect your smartphone to Wi- Fi that SSID named "SiMPNiC-XXXXXX", the last six letters is from the last six letters of MAC ID that printed on the stick of Room Keeper, then click next. 2. Select your Home Wi-Fi, key in the password, and click “Send SSID and password” for Room Keeper to connect. 3. If Room Keeper is connected to Home Wi-Fi, LED will light in steady white. 4. There will be a push notice on your screen. 5. Follow APP instruction to go to Wi-Fi settings and make your smartphone re-connect to Home Wi-Fi (2.4GHz). 2.3 Add your Room Keeper to SiMPNiC App 2.3.1 Scan QR code: Press “Scan QR Code” then use camera of your smartphone (If permission is requested, please press agree) to scan the QR code at the back of Room Keeper. And then you will find Room Keeper in your SiMPNiC App. 2.3.2 Wi-Fi-search: Press “Wi-Fi Search” to start search. Room Keeper will appear in your SiMPNiC App 2.4 Naming and Logging in Your Room Keeper ⚫ Naming Key in preferred name for your Room Keeper. ⚫ Logging in Key in the default account (admin) and password (admin). After log-in, you have to change password. 3. FAQ Q: If Room Keeper is successfully setup, how can other family members use it? A: Family members can download SiMPNiC App and open it. If Room Keeper is already connected to internet, please click "Skip" at welcome page and add Room Keeper by scanning QR code. Q: My Room Keeper does not work. What can I do? A: Please re-plug Room Keeper again and reboot it. You will see the LED light in red for two minutes then turn to white (connected) or pink (disconnected). In most cases, Room Keeper can back to normal after reboot. Q: I try to reboot Room Keeper, but it still not work. A: In this case, you have to reset Room Keeper. Notice: once you reset Room Keeper, all the Wi-Fi linked information saved in Room Keeper will be lost, you have to re-link Wi-Fi for connection. Q: How to reset Room Keeper? A: Press the middle button of Room Keeper over 10 seconds. The LED light will turn to blink red. After two minutes, LED will turn to white (connected) or pink (disconnected). 4. Support For more product information, FAQ, and tutorials, please visit SiMPNiC website: YouTube Facebook For More support, please contact us via [email protected] 5. FCC Statement Thi s equipment has been tested and found to comply with the limits fo r a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user i s encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Thi s device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The distance between user and device should be no less than 20cm. 6. Warranty Warranty Disclaimer: Thank you for your interest in the products and services of SiMPNiC. This Limited Warranty applies to physical goods, and only for physical goods, purchased from SiMPNiC. What does this limited warranty cover? This Limited Warranty covers any defects in material or workmanship under normal use during the warranty period. During the warranty period, SiMPNiC will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance. What will we do to correct problems? SiMPNiC will either repair the product at no charge, using new or refurbished replacement parts. How long does the coverage last? The warranty period for physical goods purchased from SiMPNiC is 365 days from the date of purchase. A replacement physical good or part assumes the remaining warranty of the original physical good or 90 days from the date of replacement or repair, whichever is longer. What does …

Text truncated - open the document above for the full version.

DATE : 2021-01-06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AX6X-R1 Product Name: Room Keeper Request for Confidentiality To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Leo Lee Title: PM Manager Company: SiMPNiC Co., Ltd.

DATE : 2021-01-06 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with SiMPNiC Co., Ltd. and 16F-6, No. 79, Sec 1, Xintai 5th Rd, Xizhi Dist., New Taipei City, Taiwan Signature: Name: Leo Lee Title: PM Manager Company: SiMPNiC Co., Ltd.

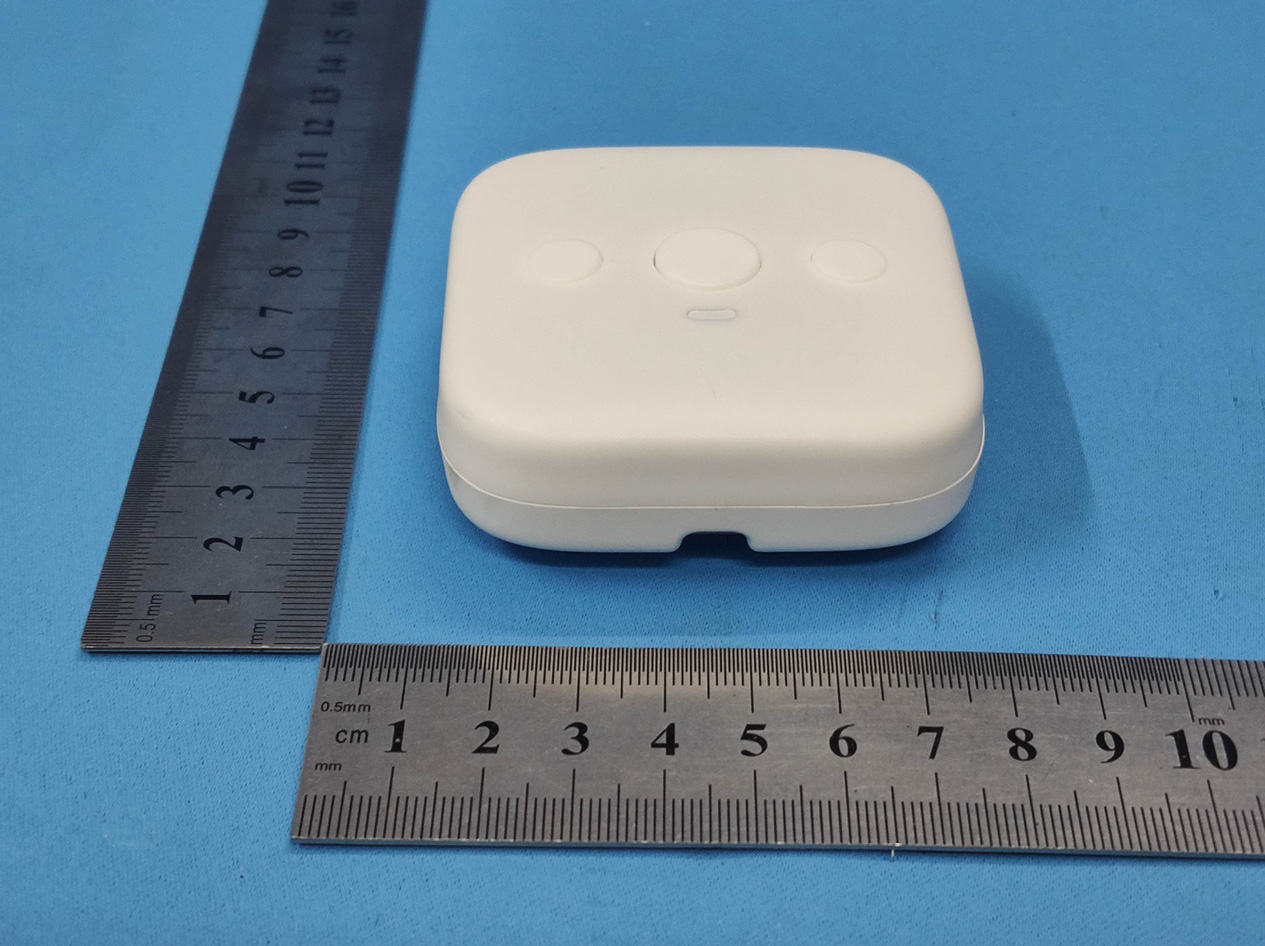

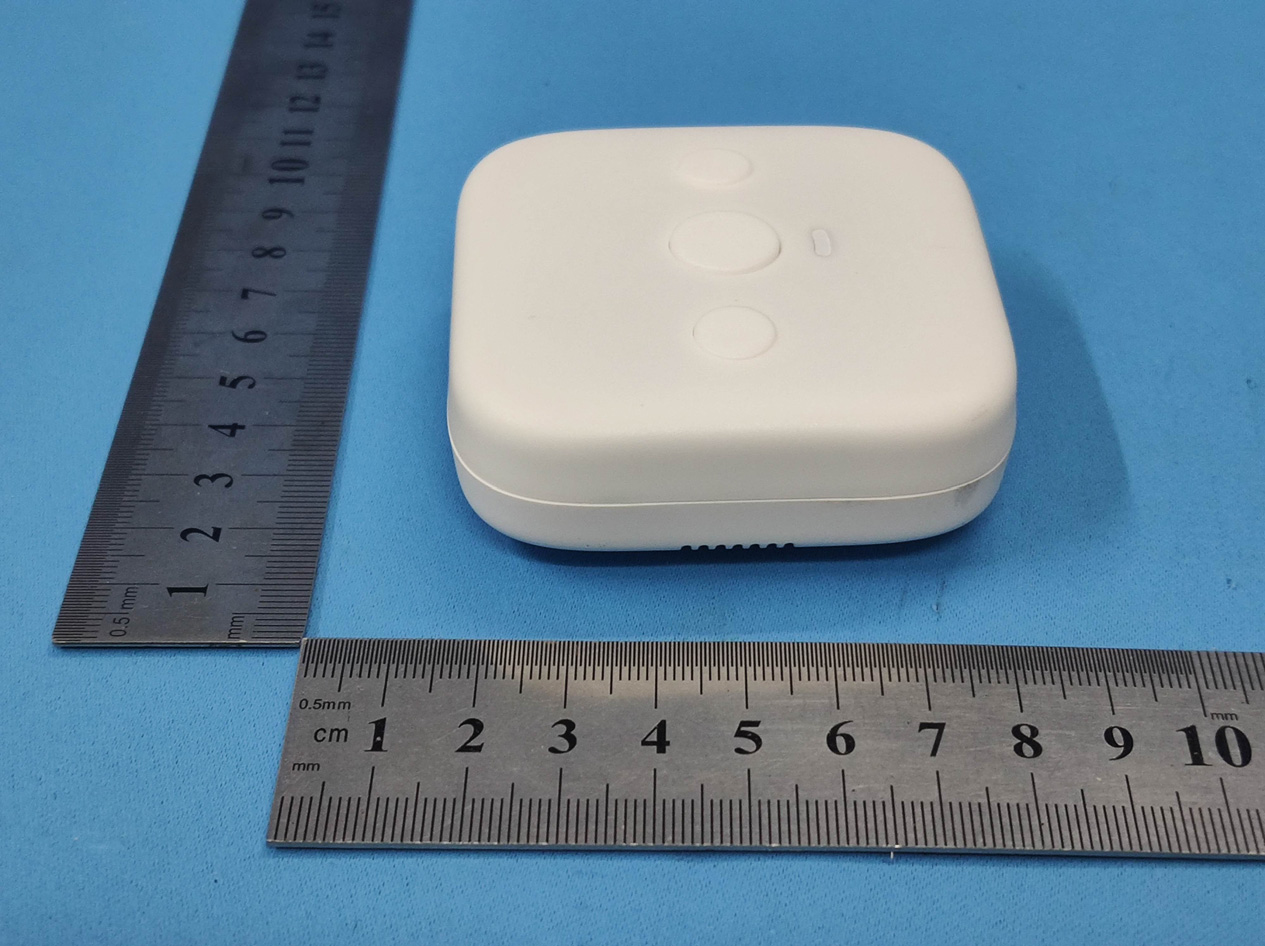

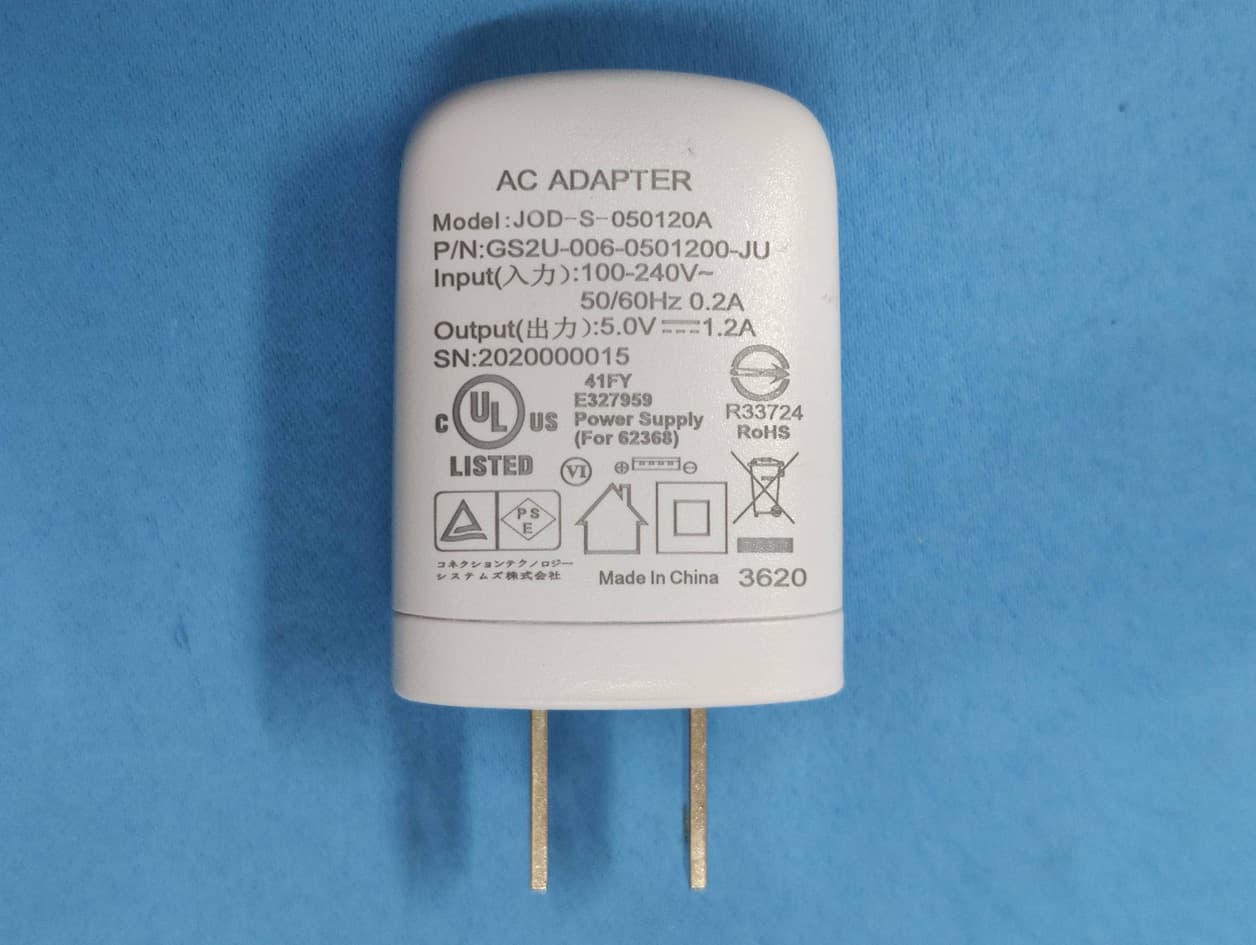

Test Model No.: R1

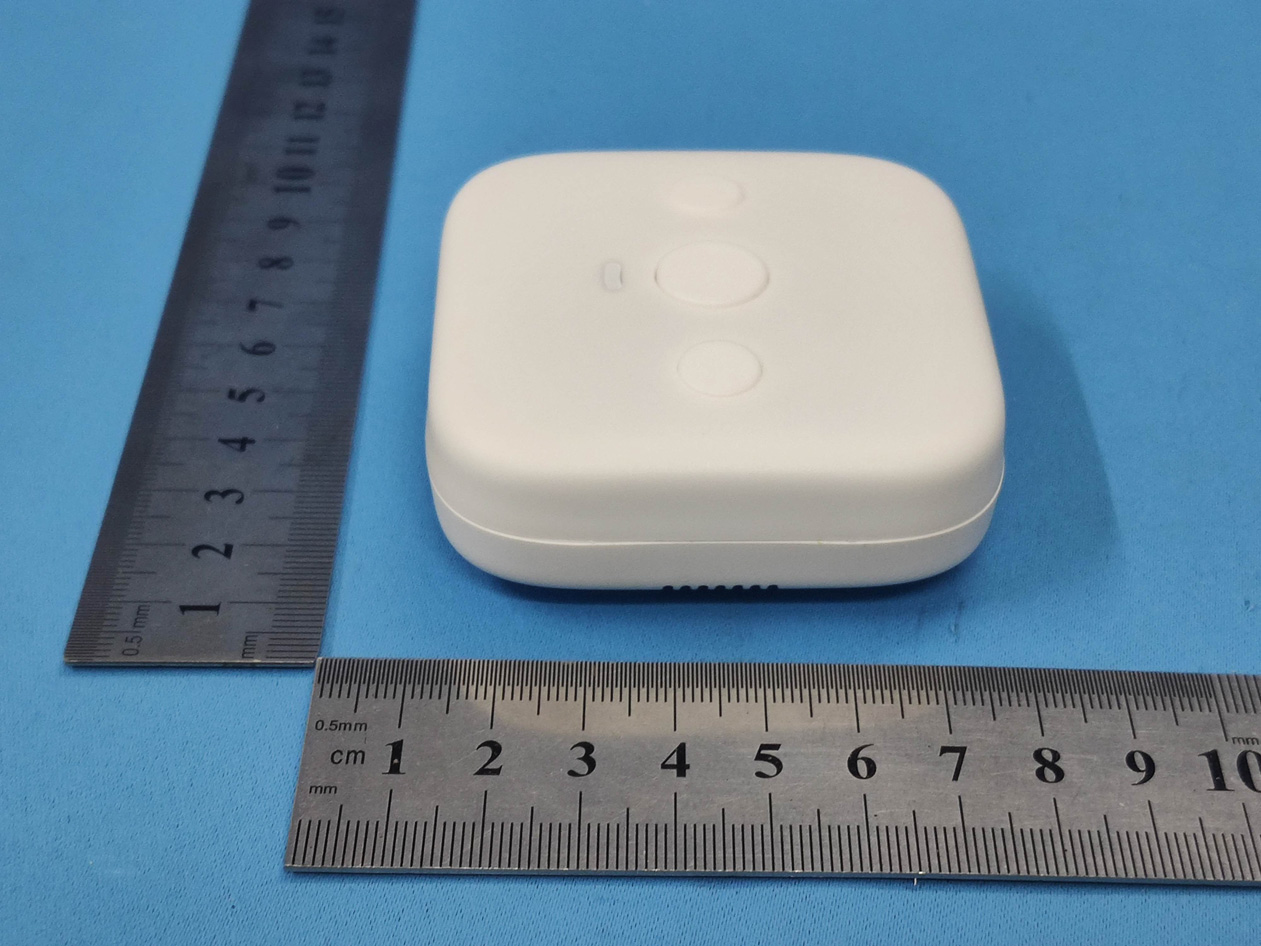

Test Model No.: R1

FCC ID: 2AX6X-R1 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2AX6X-R1 Test Result of RF Exposure Evaluation WIFI: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2412MHz) 86.90 0.0383 1.0 PASS Middle (2437MHz) 78.52 0.0346 1.0 PASS Highest (2462MHz) 82.99 0.0365 1.0 PASS Remark: antenna gain=3.45dBi BLE: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result Lowest (2402MHz) 4.38 0.0019 1.0 PASS Middle (2440MHz) 4.61 0.0020 1.0 PASS Highest (2480MHz) 4.81 0.0021 1.0 PASS Remark: antenna gain=3.45dBi

Global United Technology Services Co., Ltd. Report No.: GTS202012000267F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 33 TEST REPORT Applicant: SiMPNiC Co., Ltd. Address of Applicant: 16F-6, No. 79, Sec 1, Xintai 5th Rd, Xizhi Dist., New Taipei City, Taiwan Manufacturer: Remotec Technology Ltd. Address of Manufacturer: 9/F., Sing Shun Centre, No. 495 Castle Peak Rd, Lai Chi Kok, Kowloon, Hong Kong Factory: Guangdong Seneasy Intelligent Technology Co., LTD Address of Factory: No 63, Huitai Industrial Park,Huizhou City,Guangdong, China Equipment Under Test (EUT) Product Name: Room Keeper Model No.: R1 Trade Mark: SiMPNiC FCC ID: 2AX6X-R1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 23, 2020 Date of Test: December 24, 2020-January 06, 2021 Date of report issued: January 06, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202012000267F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 33 2 Version Version No. Date Description 00 January 06, 2021 Original Prepared By: Date: January 06, 2021 Project Engineer Check By: Date: January 06, 2021 Reviewer Report No.: GTS202012000267F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 33 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED OUTPUT POWER ........................................................................................................... 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 16 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 18 7.6 BAND EDGES .................................................................................................................................... 20 7.6.1 Conducted Emission Method ..................................................................................................... 20 7.6.2 Radiated Emission Method ........................................................................................................ 21 7.7 SPURIOUS EMISSION ......................................................................................................................... 24 7.7.1 Conducted Emission Method ..................................................................................................... 24 7.7.2 Radiated Emission Method ........................................................................................................ 26 8 TEST SETUP PHOTO ............................................................................................................................ 33 9 EUT CONSTRUCTIONAL DETAILS .........................................................…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTS202012000267F02 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 51 TEST REPORT Applicant: SiMPNiC Co., Ltd. Address of Applicant: 16F-6, No. 79, Sec 1, Xintai 5th Rd, Xizhi Dist., New Taipei City, Taiwan Manufacturer: Remotec Technology Ltd. Address of Manufacturer: 9/F., Sing Shun Centre, No. 495 Castle Peak Rd, Lai Chi Kok, Kowloon, Hong Kong Factory: Guangdong Seneasy Intelligent Technology Co., LTD Address of Factory: No 63, Huitai Industrial Park,Huizhou City,Guangdong, China Equipment Under Test (EUT) Product Name: Room Keeper Model No.: R1 Trade Mark: SiMPNiC FCC ID: 2AX6X-R1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 23, 2020 Date of Test: December 24, 2020-January 06, 2021 Date of report issued: January 06, 2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202012000267F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 51 2 Version Version No. Date Description 00 January 06, 2021 Original Prepared By: Date: January 06, 2021 Project Engineer Check By: Date: January 06, 2021 Reviewer Report No.: GTS202012000267F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 51 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 17 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 20 7.6 BAND EDGES .................................................................................................................................... 23 7.6.1 Conducted Emission Method ..................................................................................................... 23 7.6.2 Radiated Emission Method ........................................................................................................ 26 7.7 SPURIOUS EMISSION ......................................................................................................................... 31 7.7.1 Conducted Emission Method ..................................................................................................... 31 7.7.2 Radiated Emission Method ........................................................................................................ 34 8 TEST SETUP PHOTO ............................................................................................................................ 51 9 EUT CONSTRUCTIONAL DETAILS ...............................................................…

Text truncated - open the document above for the full version.

Test Model No.: R1 Radiated Emission Conducted Emission
