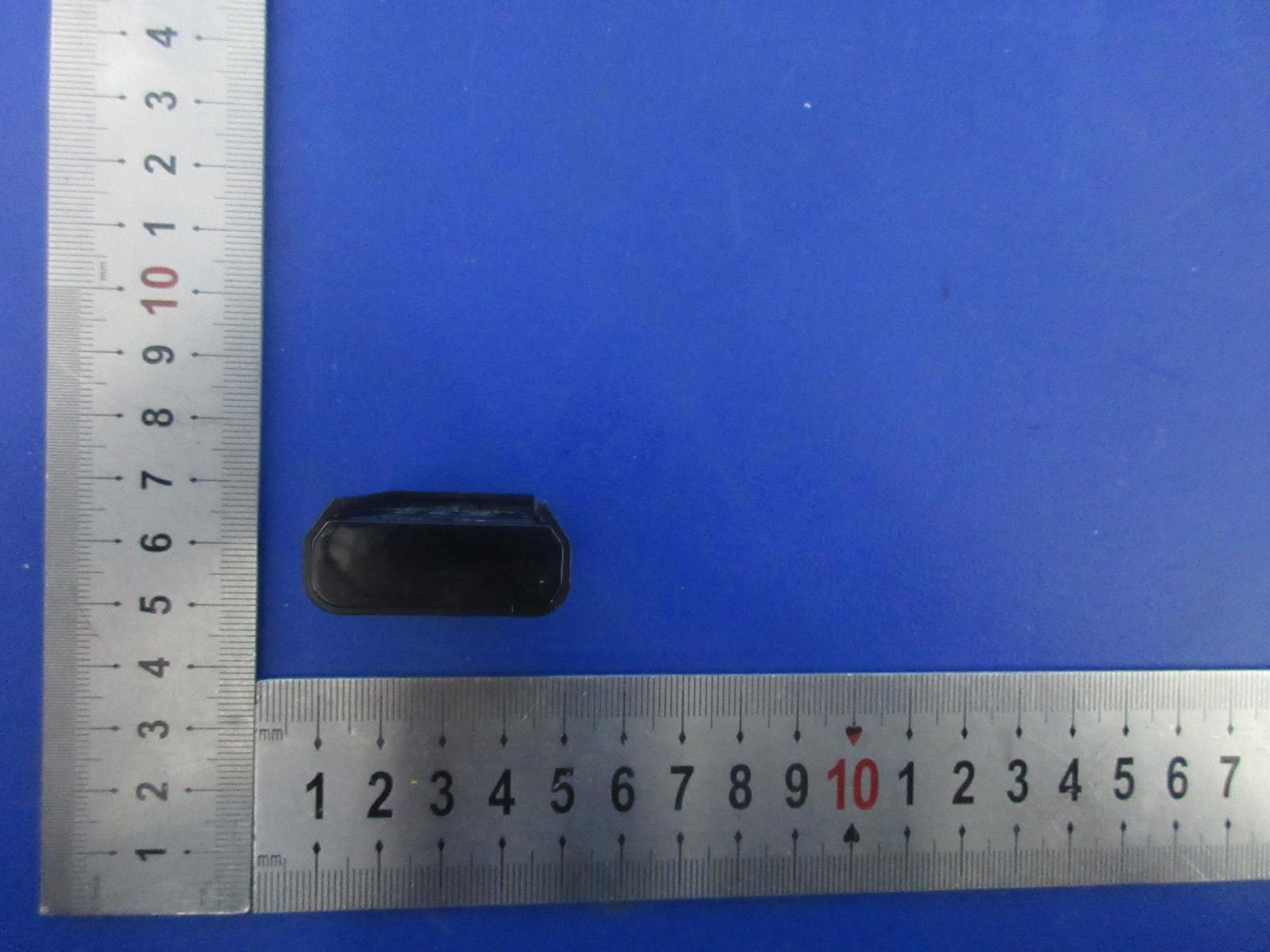

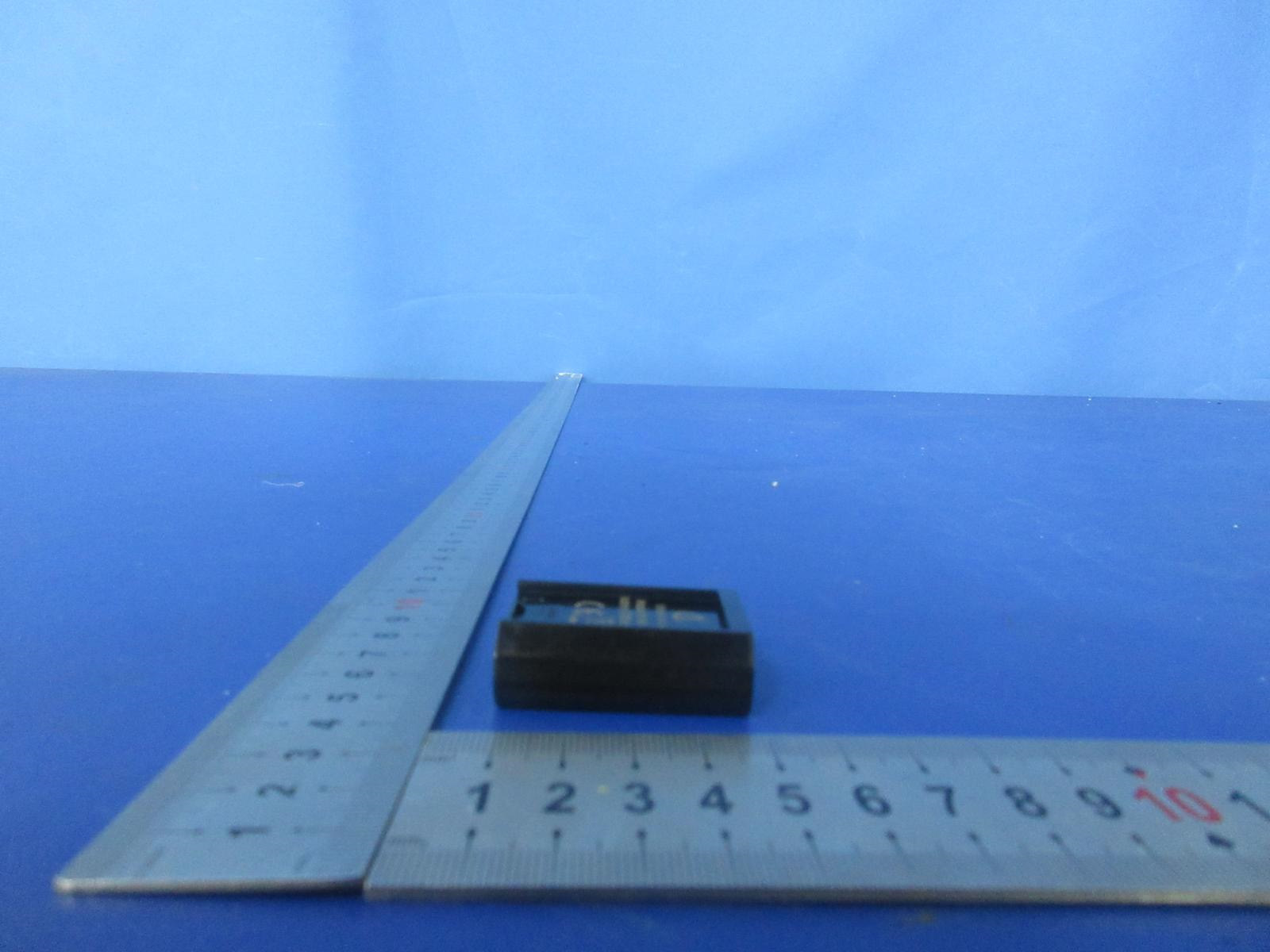

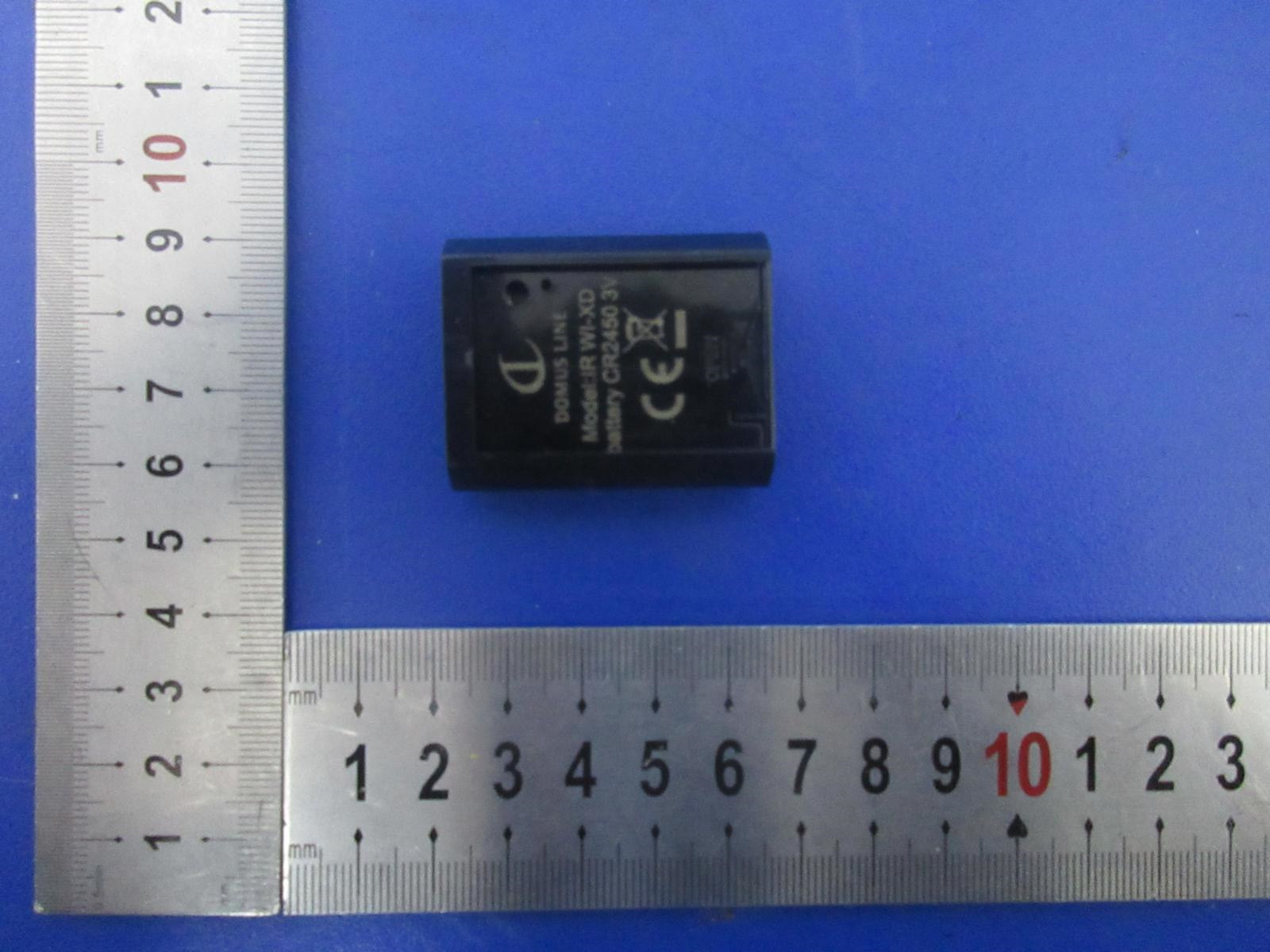

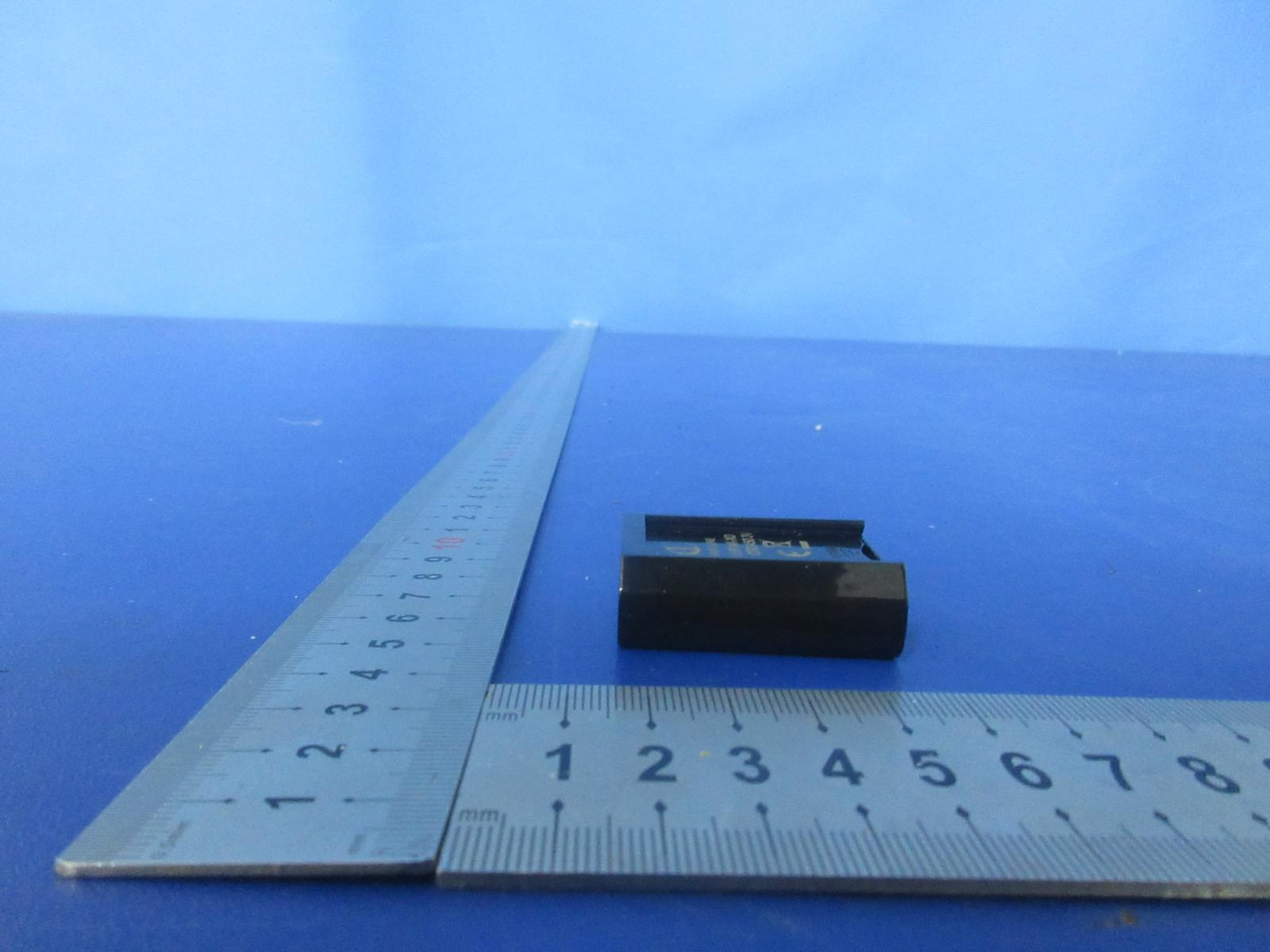

2AX76-IR-WIRemote radio emitter for lighting control

MANUALE DI INSTALLAZIONE E USO INSTALLATION MANUAL INSTALLATIONSHANDBUCH MANUEL D'INSTALLATION MANUAL DE INSTALACIÓN IT EN DE FR ES Ref. 3488600_ r1 IR WI-XD DOMUS LINE Srl Via Maestri del Lavoro, 1 33080 PORCIA _ PN _ Italy phone fax e-mail website 0039 0434 595911 0039 0434 923345 [email protected] www.domusline.com Apparecchio in classe di protezione III. Protection class III device. Appareil avec classe de protection III. Leuchte mit Schutzklasse III. Il prodotto deve essere smaltito separatamente dai rifiuti urbani consegnandolo ai centri di raccolta previsti dalla normativa in vigore. L'adeguata raccolta differenziata contribuisce ad evitare possibili effetti negativi sull'ambiente e sulla salute e favorisce il reimpiego e/o il riciclo dei materiali. Lo smaltimento abusivo comporta l'applicazione delle sanzioni amministrative previste dalla normativa vigente. The product must be disposed of separately from urban waste, delivering it to the collection centres established by the prevailing standard. Adequate sorted waste collection contributes to preventing negative effects on the environment and health and favours reuse and/or recycling materials. Incorrect disposal of the product implies the application of the administrative sanctions envisaged by the prevailing regulation. Die Leuchte muss getrennt vom Hausmüll entsorgt und entsprechend der geltenden Richtlinien, an den vorgesehenen Sammelstellen abgegeben werden. Die angemessene getrennte Sammlung trägt dazu bei, eventuelle negative Auswirkungen auf die Umwelt und die Gesundheit zu vermeiden und die Wiederverwendung und/oder das Recycling der Materialien zu begünstigen. Die unsachgemäße Entsorgung bringt die Anwendung administrativer Strafen mit sich, die in den geltenden Richtlinien vorgesehen sind. Le produit doit être collecté séparément et non jeté avec les déchets ménagers en le portant dans les déchetteries prévues par la réglementation en vigueur. Un tri sélectif approprié contribue à éviter des possibles effets négatifs sur l'environnement et sur la santé et favorise la réutilisation et/ou le recyclage des matériaux. L'élimination abusive entraîne l'application des sanctions administratives prévues par la réglementation en vigueur. Aparato de clase de protección III. Se debe desechar el producto de forma separada de los residuos urbanos; se lo debe entregar en los centros de recolección previstos por la norma en vigor. La recolección diferenciada adecuada contribuye a evitar posibles efectos negativos en el medioambiente y en la salud y favorece la reutilización y/o el reciclaje de los materiales. Si se lo desecha en forma abusiva tendrá como consecuencia la aplicación de sanciones administrativas previstas por la normativa vigente. Apparecchio per sola installazione in ambiente interno. Device only for indoor installation. L'appareil doit être uniquement installé à l'intérieur. Leuchte nur für die Installation im Innenbereich. Aparato para un solo uso en un ambiente interior. Fig. 1 A B Fig. 2 H1 Battery: CR2450 + CR2450 NO OK OK + Remote radio emitter for lighting control Model IR WI-XD IC: 26690-IRWI FCC ID: 2AX76-IR-WI Fig. 4 X-Driver set up example Fig. 3 laminate Material H max. 80-100mm varnished 140-160mm glass 80-100mm H1 wood 160-180mm Finish dark oak bright white natural extra light serigraphy 20mm 3mm 3mm 20mm glass aluminium brown 100-120mm 3mm 80-100mm20mm matt H1 H1 H H CM2-XD X-DRIVER LED profile LED spotlight IR WI XD max. 8mt E D F IR WI XD max. 8mt E D F X-Driver TW set up example CM2-XDTW X-DRIVER TW LED profile TW LED spotlight TW MOS distributor C C Fig. 5 IR WI XD IR WI XD INSTALLATION MANUAL EN LIMIT SWITCH OPERATION x TW STATIC AND DYNAMIC LIGHT: - Limit switch operation, when the unit door covers the sensor (F) the luminaires connected to the X-DRIVER switch off, and vice versa when opening the door they switch on. To change the operation from LIMIT SWITCH to DIMMER SWITCH briefly press button (D). DIMMER SWITCH OPERATION x STATIC LIGHT: - ON-OFF function: The luminaires connected to X-DRIVER are switched on and off by briefly moving the hand in front of the sensor (F). - DIMMER and LEVEL MEMORY functions: Keeping the hand steady in front of the sensor (F) it is possible to adjust the brightness of the luminaires. The selected brightness will be stored until the next reset (LEVEL MEMORY). To change the operation from DIMMER SWITCH to LIMIT SWITCH briefly press button (D). COLOUR CHANGE OPERATION x TW DYNAMIC LIGHT: The luminaires are switched on and off by briefly moving the hand in front of the sensor (F). Keeping the hand steady in front of the sensor (F) it is possible to vary the colour hue of the luminaire, the selected colour will be stored until it is changed again (Color Memory). To change the operation from DIMMER SWITCH to LIMIT SWITCH briefly press button (D). TECHNICAL DATA - Maximum operating distance 8 metres. - Battery mod. CR2450 (3V) lithium (Fig.1). INSTALLATION: Fix the bracket (A) in the required position using the screws (B) supplied in the pack (Fig.2) Check the operating distance according to the indications given in the table in Fig.3 CAUTION: The sensor must not be installed near electromagnetic or heat sources or exposed to direct sunlight. A maximum of 7 IR WI-XD sensors can be applied to a single X-Driver COUPLING WITH STATIC LIGHT X-DRIVER WITH MODULE CM2-XD (Fig.4): - Press the X-Driver button (C) until the blue signalling LED comes on and then press the IR WI-XD (D) button until the signalling LED (E) remains on steady, then briefly press the button (D) again until the signalling LED (E) flashes. COUPLING WITH DYNAMIC TW LIGHT X-DRIVER WITH MODULE CM2-XDTW (Fig.5): - Press the X-Driver button (C) until the blue signalling LED comes on and then press the IR WI-XD (D) button until the signalling LED (E) remains on steady, then briefly press the button (D) again twice until the signalling LED flashes twice. INSTALLATION MANUAL EN This device complies with part 15 of t…
