2AX7S-ACEP13MDigital Signage Display

ACeP13M User Guide Version-3.0 ACeP13M user guide_V3.0_English version AIMobile Co.,Ltd. - 1 - 1 Brief introduction ....................................................................................................................... 2 1.1 About this user guide ................................................................................................... 2 1.2 Product overview ........................................................................................................ 2 1.3 Appearance Description .............................................................................................. 2 1.4 Lights notification ......................................................................................................... 3 2 Basic operations ......................................................................................................................... 4 2.1 Power on ..................................................................................................................... 4 2.2 Power on ..................................................................................................................... 4 2.3 Shutdown .................................................................................................................... 4 2.4 Restart the system ...................................................................................................... 4 2.4.1 Turn on WiFi hotspot .................................................................................................. 5 2.4.2 Connect to AAS ......................................................................................................... 6 2.4.3 Upload the picture file .............................................................................................. 7 2.4.4 Set the playback interval ........................................................................................... 8 2.4.5 Wi-Fi settings ............................................................................................................ 9 2.4.6 Set the time zone ....................................................................................................... 9 2.5 Manual upload the picture file ................................................................................... 10 2.6 Manual WIFI settings ................................................................................................. 10 2.7 Manual time zone Settings ........................................................................................ 12 2.8 Log file ....................................................................................................................... 13 3 Switch mode ............................................................................................................................. 14 4 Supported picture format ......................................................................................................... 21 5 Battery protection mode .......................................................................................................... 22 5.1 Turn off battery protection mode ............................................................................... 22 5.2 Turn on battery protection mode ............................................................................... 22 6 FCC Statement .......................................................................................................................... 23 DIRECTORY. ACeP13M user guide_V3.0_English version AIMobile Co.,Ltd. - 2 - 1 Brief introduction. 1.1 About this user guide This user guide explains the features and operating methods of the ACeP13M digital billboard system. 1.2 Product overview This product integrates Eink 13.3 inches advanced color electronic paper (Advanced Color ePaper, ACeP™) with Qualcomm high-performance processor technology to support resolutions up to 1600X1200. The picture can be uploaded via Wi-fi or Type-C transmission lines for widely used in enterprises, schools, Cram schools, art galleries, retail, restaurants, government agencies, hospitals, banks, transportation, and other industries. 1.3 Appearance Description ACeP13M user guide_V3.0_English version AIMobile Co.,Ltd. - 3 - 1.4 Lights notification Mode Red Green Blue Play mode Constant light Upload picture Flash Engineering mode Slow flash Switch pictures Flash Press and hold the power button to shut down Flash for 11 times Play mode under low battery Slow flash Constant light Engineering mode under Low battery Slow flash Slow flash Press and hold the power button to power on Constant light for 5 seconds ACeP13M user guide_V3.0_English version AIMobile Co.,Ltd. - 4 - 2 Basic operations 2.1 Power on i. Plug in type-C power cord to ACeP13 device and it will power on immediately. The LED indicator is shown as “RED”. ii. Press and hold the power button for 3 seconds to power on ACeP13 device and make sure the LED red indicator is constant flash. If the power key is released, the LED red indictor will disappear. It means that the ACeP13 device is failed to power-on. If the power key is released, the LED red indicator remains constantly on, indicating a successful power-on. 2.2 Shutdown Press and hold the power button for 1 second to turn off ACeP13 device and make sure that the LED red light flashes. The system of ACeP13 device will be shut down after 11 flashes. 2.3 Restart the system Sometimes for certain functions to take effect, the system needs to be restarted. The easiest way is to use the power button to perform the shutdown task and then perform a power-on task again. If the system does not shut down or restart as mentioned above, please press and hold the power button for 10 seconds to force the system to restart. This method may be cause irreversible damage to the system, so do not use this method to restart the system if not necessary. Another method to restart the system by performing the adb command from the PC side. 2.4 U…

Text truncated - open the document above for the full version.

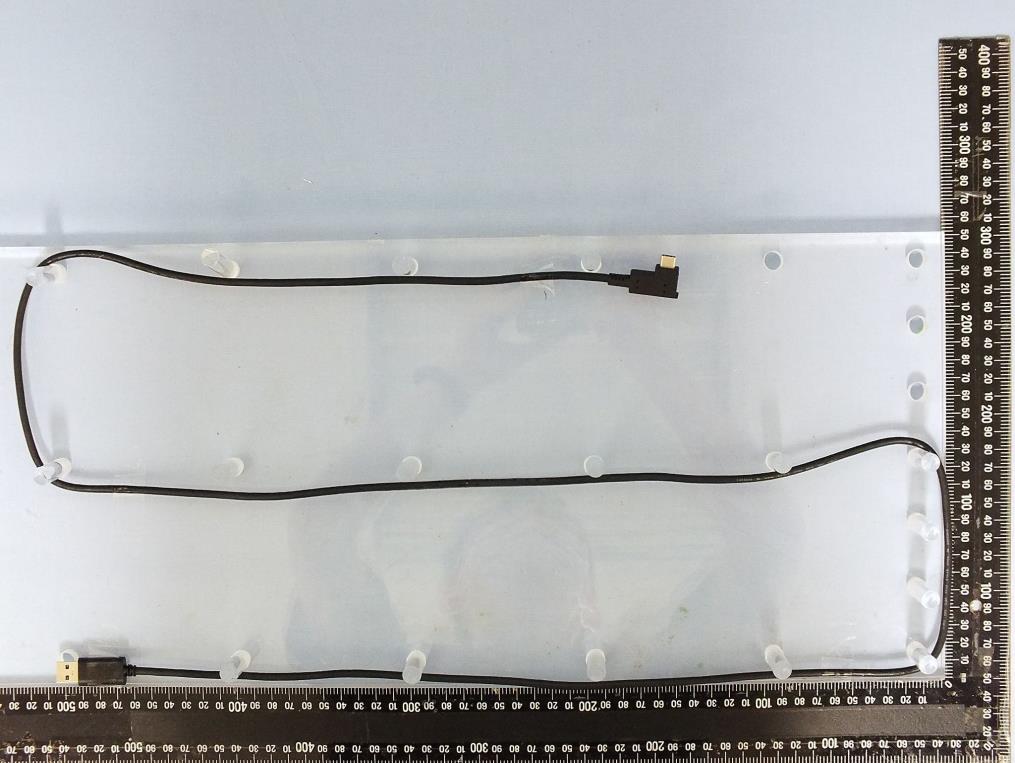

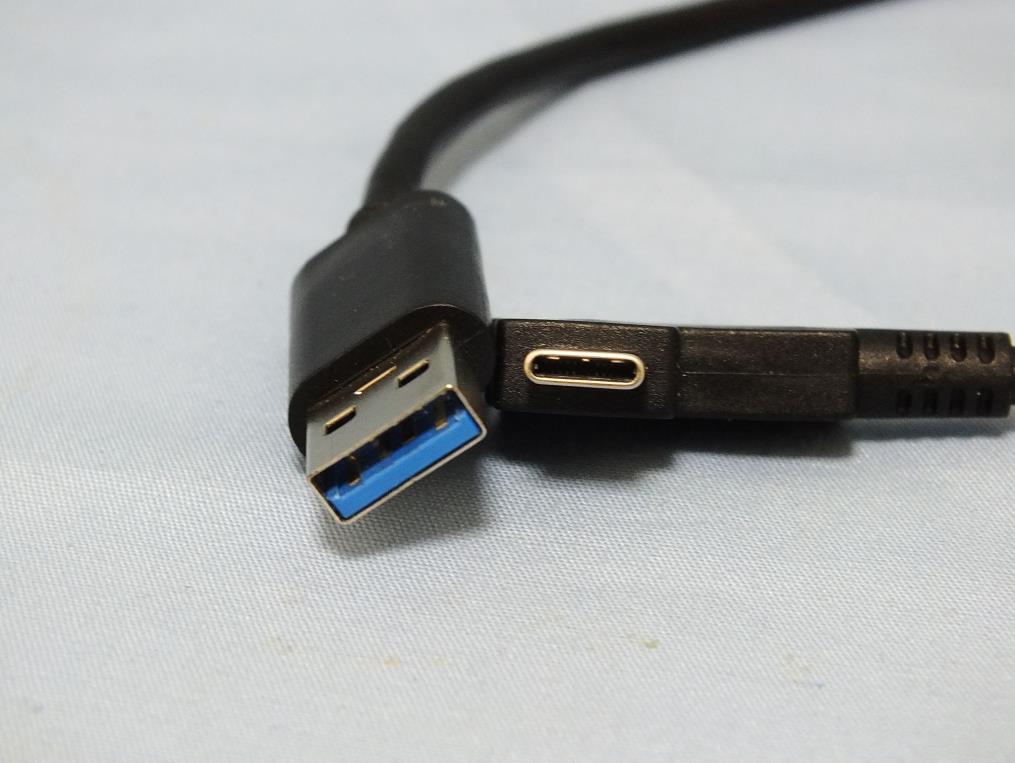

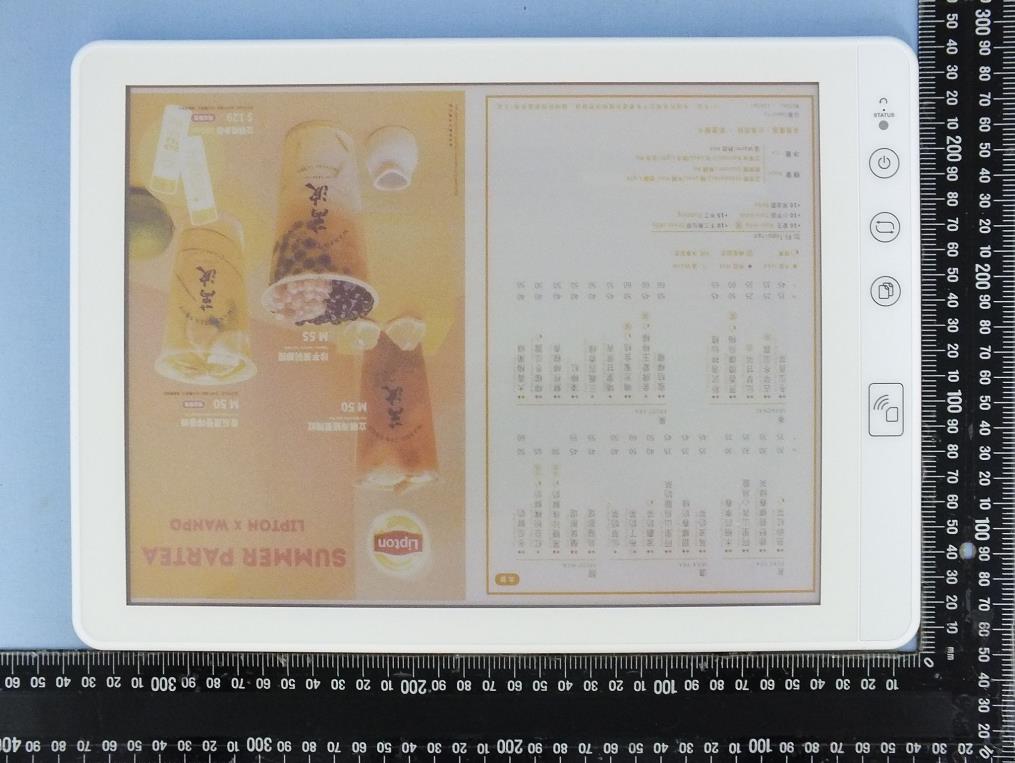

Project No.:EP222501-01 Page No. : 1 of 20 Photographs of EUT Project No.:EP222501-01 Page No. : 2 of 20 Project No.:EP222501-01 Page No. : 3 of 20 Project No.:EP222501-01 Page No. : 4 of 20 Project No.:EP222501-01 Page No. : 5 of 20

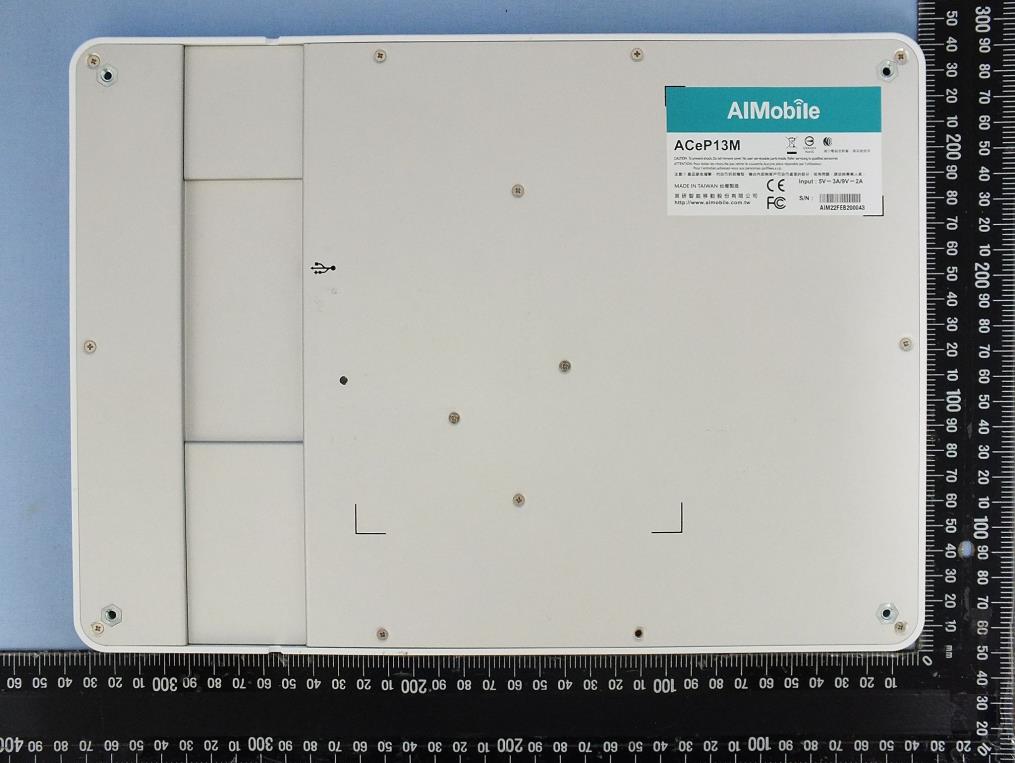

FCC ID:2AX7S-ACEP13M AIMobile Co.,Ltd. AIM23JAN300219 ACeP13M Rating Label for US Label Location The label is located on the upper right corner of the back cover of the product.

Project No.:EP222501-01 Page No. : 6 of 20 Project No.:EP222501-01 Page No. : 7 of 20 Project No.:EP222501-01 Page No. : 8 of 20 Project No.:EP222501-01 Page No. : 9 of 20 Project No.:EP222501-01 Page No. : 10 of 20 Project No.:EP222501-01 Page No. : 11 of 20 Project No.:EP222501-01 Page No. : 12 of 20 Project No.:EP222501-01 Page No. : 13 of 20 Project No.:EP222501-01 Page No. : 14 of 20 Project No.:EP222501-01 Page No. : 15 of 20 Project No.:EP222501-01 Page No. : 16 of 20 Project No.:EP222501-01 Page No. : 17 of 20 Project No.:EP222501-01 Page No. : 18 of 20 Project No.:EP222501-01 Page No. : 19 of 20 Project No.:EP222501-01 Page No. : 20 of 20

Report No.: FA222501-01 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2AX7S-ACEP13M Equipment : Digital Signage Display Model No. : ACeP13M Brand Name : AIMobile Applicant : AIMobile Co., Ltd. Address : 6F, No. 166, Section 4, Chengde Road, Shilin District, Taipei City, 111 Standard : 47 CFR FCC Part 2.1091 Received Date : Feb. 25, 2022 Tested Date : Mar. 08 ~ May 13, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA222501-01 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 REFERENCE GUIDANCE ..................................................................................................................... 4 1.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.5 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.6 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA222501-01 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA222501 Rev. 01 Initial issue Jun. 21, 2023 Report No.: FA222501-01 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 REFERENCE GUIDANCE 447498 D01 General RF Exposure Guidance v06 1.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.5 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA222501-01 Page : 5 of 6 Report Version: Rev. 01 1.6 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412~2462 (Wi-Fi) 16.55 17 2.81 20 0.019 1 0.019 Pass 5150~5250 (Wi-Fi) 13.49 13.5 3.25 20 0.009 1 0.009 Pass 5250~5350 (Wi-Fi) 13.47 13.5 3.49 20 0.010 1 0.010 Pass 5470~5725 (Wi-Fi) 13.47 13.5 3.73 20 0.011 1 0.011 Pass 5725~5850 (Wi-Fi) 13.49 13.5 3.97 20 0.011 1 0.011 Pass 2402-2480 (BT EDR) 12.46 12.5 2.81 20 0.007 1 0.007 Pass Ratio* = Power density / Limit. Report No.: FA222501-01 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corporation (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No.30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan (R.O.C.) No.3-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.2-1, Lane 6, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) No.14-1, Lane 19, Wen San 3rd St., Kwei Shan Dist., Tao Yuan City 33381, Taiwan (R.O.C.) If you have any suggestion, please feel free to contact us as below information. Tel: 886-3-271-8666 Fax: 886-3-318-0345 Email: [email protected] ══END══

Customer CustomerCustomer Customer： ：： ： 英業達股份有限公司 英業達股份有限公司英業達股份有限公司 英業達股份有限公司 Vendor code Vendor codeVendor code Vendor code： ：： ： MACHINERT: MACHINERT: MACHINERT: MACHINERT: ACEP 13 ACEP 13ACEP 13 ACEP 13 PART NAME : PART NAME : PART NAME : PART NAME : ACEP 13 WLAN ANTENNA ACEP 13 WLAN ANTENNAACEP 13 WLAN ANTENNA ACEP 13 WLAN ANTENNA Customer P/N Customer P/NCustomer P/N Customer P/N： ：： ：6036B0287401 6036B02874016036B0287401 6036B0287401 Pulse P/N Pulse P/NPulse P/N Pulse P/N： ：： ：ANTA0ZV1420124551 ANTA0ZV1420124551ANTA0ZV1420124551 ANTA0ZV1420124551Date : Date : Date : Date : 核准 核准核准 核准審 核 審 核審 核 審 核 承認者 承認者承認者 承認者 承認單位 承認單位承認單位 承認單位審 核 審 核審 核 審 核 作 成 作 成作 成 作 成 Y YY Yen enen enEllen EllenEllen Ellen ACCEPTED BY: ACCEPTED BY:ACCEPTED BY: ACCEPTED BY: 新加坡商普思電子有限公司 新加坡商普思電子有限公司 新加坡商普思電子有限公司 新加坡商普思電子有限公司 PULSE ELECTRONICS (SINGAPORE) PTE LTD PULSE ELECTRONICS (SINGAPORE) PTE LTD PULSE ELECTRONICS (SINGAPORE) PTE LTD PULSE ELECTRONICS (SINGAPORE) PTE LTD No. 99 Huo Ju Road, Suzhou New District Jiangsu No. 99 Huo Ju Road, Suzhou New District Jiangsu No. 99 Huo Ju Road, Suzhou New District Jiangsu No. 99 Huo Ju Road, Suzhou New District Jiangsu Province, suzhou 215009, P.R. China Province, suzhou 215009, P.R. ChinaProvince, suzhou 215009, P.R. China Province, suzhou 215009, P.R. China RoHS & Halogen Free & REACH Compliance RoHS & Halogen Free & REACH ComplianceRoHS & Halogen Free & REACH Compliance RoHS & Halogen Free & REACH Compliance 234764 234764234764 234764 20221101 2022110120221101 20221101 SPECIFICATION SPECIFICATIONSPECIFICATION SPECIFICATION 產 產產 產 品 品品 品 規 規規 規 格 格格 格 承 承承 承 認 認認 認 書 書書 書 SPECIFIATION FOR APPROVAL ACeP13 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. For more information: Pulse Worldwide HeadquartersPulse/Larsen AntennasEurope HeadquartersPulse (Suzhou) Wireless Products Co, Inc. 15255 Innovation Drive #100Pulse GmbH & Do, KG99 Huo Ju Road(#29 Bldg,4 th Phase San Diego, CA 92128Vancouver, WA 98683Zeppelinstrasse 15Suzhou New District USAUSAHerrenberg, Germany Jiangsu Province, Suzhou 215009 PR China Tel:1-858-674-8100Tel: 1-360-944-7551 - Tel: 49 7032 7806 0 Tel: 86 512 6807 9998 18110 SE 34 th St Bldg 2 Suite 250 Description: 2400 ~ 2500 / 5150 ~ 5850 FPC+Holder Antenna PART NUMBER: ANTA0ZV1420124551 INVENTEC P/N: 6036B0287401 Features: Applications: All dimensions are in mm / inches •WLAN Antenna •2.4~2.5 GHz, 5.15-5.85 GHz, •Gain 2.7~ 3.97 dBi peak •Size 27.74x25x6.1 mm •1.13mm cable with IPEX-1L •RoHS Compliant •廣告刊版 1 In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. ACeP13 Description: 2400 ~ 2500 / 5150 ~ 5850 FPC+Holder Antenna PART NUMBER: ANTA0ZV1420124551 INVENTEC P/N: 6036B0287401 2 Antenna TypePIFA Frequency2.4-2.5GHz,5.15-5.85GHz Nominal Impedance50Ω VSWR≦3.0 Radiation PatternOmni Gain2.70 ~ 3.97 dBi PolarizationLinear Power Withstanding1W Overall Length27.74x25x6.1mm Antenna Color / MaterialBlack/ FPC Connector type See table, P3 Cable type Material:FEP ,See table, P3 Cable length See table, P3 Adhesive tapeHSDS15 Protective tube Color : Yellow Operating Temperature -40 ~ +55°C Storage Temperature -40 ~ +75°C RoHS Compliant Yes MECHANICAL SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. ACeP13 Description: 2400 ~ 2500 / 5150 ~ 5850 FPC+Holder Antenna PART NUMBER: ANTA0ZV1420124551 INVENTEC P/N: 6036B0287401 Gain Table (dBi) 3 MECHANICAL DRAWING In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. ACeP13 Description: 2400 ~ 2500 / 5150 ~ 5850 FPC+Holder Antenna PART NUMBER: ANTA0ZV1420124551 INVENTEC P/N: 6036B0287401 Gain Table (dBi) 4 VSWR In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federa…

Text truncated - open the document above for the full version.

Report No.: FR222501-01AD Page : 1 of 23 Report Version: Rev. 01 FCC Test Report FCC ID : 2AX7S-ACEP13M Equipment : Digital Signage Display Model No. : ACeP13M Brand Name : AIMobile Applicant : AIMobile Co., Ltd. Address : 6F, No. 166, Section 4, Chengde Road, Shilin District, Taipei City, 111 Standard : 47 CFR FCC Part 15.247 Received Date : Feb. 25, 2022 Tested Date : Mar. 10 ~ May 13, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR222501-01AD Page : 2 of 23 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................ 10 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.8 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Facility ..................................................................................................................................... 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ....................................................................................................... 13 3.1 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 13 3.2 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 16 3.3 Conducted Output Power ..................................................................................................................... 17 3.4 Number of Hopping Frequency ............................................................................................................ 18 3.5 20dB and Occupied Bandwidth ............................................................................................................ 19 3.6 Channel Separation .............................................................................................................................. 20 3.7 Number of Dwell Time .......................................................................................................................... 21 3.8 AC Power line Conducted Emissions ................................................................................................... 22 4 TEST LABORATORY INFORMATION ............................................................................................... 23 Appendix A. Unwanted Emissions into Restricted Frequency Bands Appendix B. Unwanted Emissions into Non-Restricted Frequency Bands Appendix C. Conducted Output Power Appendix D. Number of Hopping Frequency Appendix E. 20dB and Occupied Bandwidth Appendix F. Channel Separation Appendix G. Number of Dwell Time Appendix H. AC Power Line Conducted Emissions Report No.: FR222501-01AD Page : 3 of 23 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR222501-01AD Rev. 01 Initial issue Jun. 21, 2023 Report No.: FR222501-01AD Page : 4 of 23 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power line Conducted Emission [dBuV]: 0.456MHz 35.63 (Margin -11.13dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 558.65MHz 41.25 (Margin -4.75dB) - PK Pass 15.247(d) Band Edge Meet the requirement of limit Pass 15.247(b)(1) Conducted Output Power Power [dBm]: 12.56 Pass 15.247(a)(1)(iii) Number of Hopping Channels Meet the requirement of limit Pass 15.247(a)(1) Hopping Channel Separation Meet the requirement of limit Pass 15.247(a)(1)(iii) Dwell Time Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR222501-01AD Page : 5 of 23 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 BR V5.0 240…

Text truncated - open the document above for the full version.

Report No.: FR222501-01CO Page : 1 of 11 Report Version: Rev. 01 FCC Co-Location Test Report FCC ID : 2AX7S-ACEP13M Equipment : Digital Signage Display Model No. : ACeP13M Brand Name : AIMobile Applicant : AIMobile Co., Ltd. Address : 6F, No. 166, Section 4, Chengde Road, Shilin District, Taipei City, 111 Standard : 47 CFR FCC Part 15.247 47 CFR FCC Part 15.407 47 CFR FCC Part 15.225 Received Date : Feb. 25, 2022 Tested Date : Feb. 22 ~ Mar. 01,2023 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR222501-01CO Page : 2 of 11 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 The Equipment List ................................................................................................................................ 6 1.3 Test Standards ....................................................................................................................................... 7 1.4 Reference Guidance .............................................................................................................................. 7 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION ....................................................................................................................... 8 2.1 Testing Facility ....................................................................................................................................... 8 2.2 The Worst Test Modes and Channel Details ......................................................................................... 8 3 TRANSMITTER TEST RESULTS ......................................................................................................... 9 3.1 Unwanted Emissions into Restricted Frequency Bands ........................................................................ 9 4 TEST LABORATORY INFORMATION ............................................................................................... 11 Appendix A. Unwanted Emissions Into Restricted Frequency Bands Report No.: FR222501-01CO Page : 3 of 11 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR222501-01CO Rev. 01 Initial issue Jun. 21, 2023 Report No.: FR222501-01CO Page : 4 of 11 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.247(d) 15.407(b) 15.225(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 39.70MHz 36.45 (Margin -3.55dB) - QP Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR222501-01CO Page : 5 of 11 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) WLAN Operating Frequency 802.11b/g/n: 2412 MHz ~ 2462 MHz 802.11a/n/ac: 5180 MHz ~ 5240 MHz; 5260 MHz ~ 5320 MHz; 5500 MHz ~ 5700 MHz, 5745 ~ 5825 MHz Modulation Type 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11a/g/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) BT Operating Frequency 2402 MHz ~ 2480 MHz Modulaton Type Bluetooth LE: GFSK Bluetooth BR(1Mbps): GFSK Bluetooth EDR (2Mbps): π/4-DQPSK Bluetooth EDR (3Mbps): 8-DPSK NFC Operating Frequency 13.553 – 13.567 Modulation Type ASK 1.1.2 Antenna Details WiFi Ant. No. Brand Model Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 Pulse Electronics ANTA0ZV1420124551 PIFA UFL 2.81 3.25 3.49 3.73 3.97 BT Ant. No. Brand Model Type Connector Gain (dBi) 1 Pulse Electronics ANTA0ZV1420124551 PIFA UFL 2.81 NFC Ant. No. Brand Model Type Connector Gain (dBi) 1 WNC 6036B0264501 Loop --- --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 5V/3A from adapter 9V/2A from adapter Report No.: FR222501-01CO Page : 6 of 11 Report Version: Rev. 01 1.2 The Equipment List Test Item Radiated Emission Test Site 966 chamber3 / (03CH03-WS) Tested Date Feb. 22 ~ Mar. 01,2023 Instrument Brand Model No. Serial No. Calibration Date Calibration Until Receiver R&S ESR3 101657 Mar. 15, 2022 Mar. 14, 2023 Spectrum Analyzer R&S FSV40 101499 Mar. 08, 2022 Mar. 07, 2023 Loop Antenna R&S HFH2-Z2 100330 Nov. 01, 2022 Oct. 31, 2023 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-685 Jun. 28, 2022 Jun. 27, 2023 Horn Antenna 1G-18G SCHWARZBECK BBHA 9120 D BBHA 9120 D 1206 Dec. 15, 2022 Dec. 14, 2023 Horn Antenna 18G-40G SCHWARZBECK BBHA 9170 BBHA 9170517 Oct. 27, 2022 Oct. 26, 2023 Pre…

Text truncated - open the document above for the full version.
