2AX7S-LN310ADigital Paper System

Digital Paper System Quick Start Guide Owner’s Record The model and serial number are located at the rear of the device. Record the serial number in the space provided below. Serial No. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Getting Started Checking the supplied items Check the following items are present. • Digital Paper device (1) • Stylus (1) • Replacement tips – Felt (gray) (1) – POM (black) (2) • Tip puller (1) • USB cable (1) • Quick Start Guide (this document) (1) • Warranty (1) Initial setup Set up the Digital Paper device (hereafter referred to as “the device”) and your computer according to the instructions displayed. 1 Turn on the device. 2 Set a stylus according to the instructions on the screen. 3 Turn on the computer and connect to the Internet. 4 Download Digital Paper App from the following site and install on the computer. Digital Paper App is required to transfer documents (PDF files). 5 Start Digital Paper App and connect the supplied USB cable to the USB connector of the device and the USB connector of the computer. 6 Set the computer according to the instructions displayed by Digital Paper App. Documents can be transferred only between the device and the computer. 7 Update the app software if a software update is advised. Note Wi-Fi is used only for transferring documents between the device and the computer. The device cannot display Internet content. Charging the device and stylus 1 Turn on the computer. 2 Connect the supplied USB cable to the USB connector of the device or stylus and the USB connector of the computer. Charge indicator Notes • Charge the device within the recommended temperature range of 5 °C to 35 °C (41 °F to 95 °F). If the room is too hot or cold, disconnect the USB cable, adjust the room temperature accordingly, then reconnect the USB cable to charge. • The device will not charge if your computer is turned off, enters sleep mode, standby mode or hibernation mode. Tip The Charge indicator lights up in red while charging. Parts and controls Digital Paper device ̚ (home) button






Touchscreen ̔ USB connector ̕ Æ (power) button ̖ Charge indicator ̗ RESET button ̘ (N-Mark) Troubleshooting The following information will help you remedy problems if you cannot operate the device. 1 Charge the device and the stylus. 2 Reset the device. Press the RESET button with a plastic toothpick, clip, etc. Press the Æ (power) button to restart the device. Notes • Content handwritten within documents, created notes, and settings may be deleted when the device is reset. • Do not press the RESET button with a fragile object (pencil lead, etc.). How to use the system and the support site For more detailed information on using the Digital Paper System, see supportYGDUKVG If you cannot recover the device Consult the Support Center and provide the following information. • Model name (specified on the back panel) • Serial number (specified on the back panel) • Purchase date Replacing the stylus tip The stylus tip may wear out through use. It is recommended to replace the tip when it becomes shorter than 1.5 mm (1/16 in). Replacement tips and a tip puller are supplied with the device. Replace the tip when it becomes shorter than 1.5 mm (1/16 in) 1 Pinch the tip with the supplied tip puller, then pull it out straight. Pinch the base of the tip firmly 2 Check the orientation of the replacement tip, pinch it with the tip puller, then push it straight into the stylus. 3 Push the tip firmly with your finger. Notes • Keep out of reach of children, as the tip may be swallowed. In case the tip is swallowed, please consult your doctor. • Pressing on the tip with excessive pressure will wear it out more quickly. Tips • Replace the stylus tip periodically to prevent damage to the device and maintain consistent operation. • If the stylus tip is lost, contact the Supp ort Center. Important Information Safety Do not expose the battery to fire or heat. Do not disassemble the battery. It may cause electric shock. Do not remove the battery yourself. For battery replacement, internal checking or repair, consult the Support Center. Do not charge the device near fire, heat, or leave it in hot sunlight. Do not leave coins, keys, jewelry, etc., near the USB connector or USB cable. Do not use the device while moving. Do not operate the device or watch the display while driving a vehicle, riding a motor cycle, walking, etc. Do not use the device where it may distract you from danger; for example at a railroad crossing, road, construction site, etc. Be careful not to allow liquid or a foreign object to get into the device, as doing so may cause electric shock or fire. If liquid or a foreign object gets into the device, consult the Support Center. Keep out of reach of children. The stylus or replacement tip may be accidentally swallowed. If the battery is swallowed, consult a doctor immediately. It may cause choking or damage the stomach. Never subject the device to high temperature. Never subject the device to extremes of light, high temperature (more than 60 °C (140°F)), moisture or vibration. For example, if the device is left in a car parked in the sun, excessive heat buildup may result in deformation of the device casing, or other malfunction. Do not cover the device with a blanket when turned on. The device may overheat and deform or catch fire. If you feel discomfort while using the device, stop using it. Do not leave the device on an unstable surface. Do not leave the device on an unstable or sloping surface. Do not stand the device upright, or turn it upside down. The device may drop or be damaged. The device screen is delicate. If heavy weight or force is applied, the screen may be damaged. Precautions Safety Handling the device • If the device causes interference to radio or television reception, turn the device off and move it away from the radio or television. • Refrain from us…

Text truncated - open the document above for the full version.

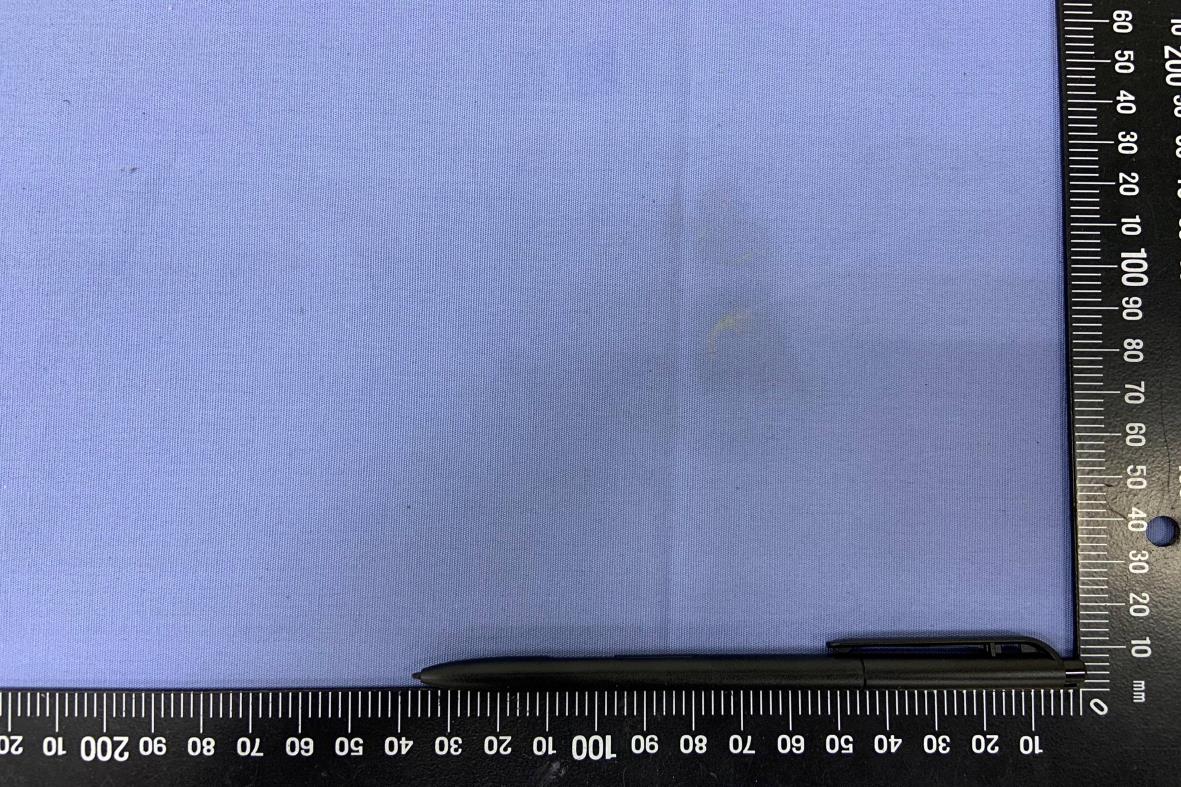

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 20 Report No.: T201104D06 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 20 Report No.: T201104D06 Rev.: 00 USB Cable

e-label User manual

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 20 Report No.: T201104D06 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 20 Report No.: T201104D06 Rev.: 00 PCB-1 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 13 / 20 Report No.: T201104D06 Rev.: 00 PCB-2 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 14 / 20 Report No.: T201104D06 Rev.: 00 PCB-3 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 15 / 20 Report No.: T201104D06 Rev.: 00 PCB-4 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 16 / 20 Report No.: T201104D06 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 17 / 20 Report No.: T201104D06 Rev.: 00 Battery This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 18 / 20 Report No.: T201104D06 Rev.: 00 Antenna-1 Antenna-2 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 19 / 20 Report No.: T201104D06 Rev.: 00 WLAN Shielding WLAN & BT RF IC & Crystal This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 20 / 20 Report No.: T201104D06 Rev.: 00 NFC Antenna NFC RF IC & Crystal

FCC ID: 2AX7S-LN310A Page: 1 / 44 Report No.: T201104D06-SF Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC TEST REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 for Digital Paper System Model No.: EL310XX (X= 0~9 or A~Z) Issued to: AIMobile Co., Ltd. 6F., No. 166, Sec.4, Chengde Rd., Shilin Dist., Taipei City 11167 , Taiwan Issued by Compliance Certification Services Inc. Wugu Lab. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issued Date: 1/14/2021 Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page: 2 / 44 Report No.: T201104D06-SF Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 1/14/2021 Initial Issue ALL Sky Page: 3 / 44 Report No.: T201104D06-SF Rev.: 00 Table of Contents 1 CERTIFICATE OF COMPLIANCE (SAR EVALUATION)..................................................... 5 2 DESCRIPTION OF EQUIPMENT UNDER TEST ............................................................... 6 2.1 SUMMARY OF HIGHEST SAR VALUES .............................................................................................................. 7 3 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED ............................................... 8 3.1 REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .......................................................... 8 4 DOSIMETRIC ASSESSMENT SYSTEM .......................................................................... 9 4.1 MEASUREMENT SYSTEM DIAGRAM .............................................................................................................. 10 4.2 SYSTEM COMPONENTS ................................................................................................................................... 11 5 EVALUATION PROCEDURES .................................................................................... 14 6 SAR MEASUREMENT PROCEDURES ......................................................................... 16 6.1 NORMAL SAR TEST PROCEDURE .................................................................................................................... 16 7 MEASUREMENT UNCERTAINTY .............................................................................. 18 8 ANTENNA LOCATION ............................................................................................. 19 9 RF EXPOSURE CONDITIONS (TEST CONFIGURATIONS) .............................................. 20 9.1. STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ............................................................................ 20 9.1. REQUIRED TEST CONFIGURATIONS .............................................................................................................. 23 10 EXPOSURE LIMIT ................................................................................................... 24 11 TISSUE DIELECTRIC PROPERTIES ............................................................................. 25 11.1 TEST LIQUID CONFIRMATION ......................................................................................................................... 25 11.2 TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS........................................... 26 11.3 SIMULATING LIQUIDS PARAMETER CHECK RESULTS .................................................................................. 27 12 SYSTEM PERFORMANCE CHECK .............................................................................. 28 12.1 SYSTEM PERFORMANCE CHECK RESULTS .................................................................................................... 29 13 RF OUTPUT POWER MEASUREMENT ...................................................................... 30 13.1 WI-FI 2.4GHZ (DTS BAND) ............................................................................................................................... 31 13.2 WI-FI 5GHZ (U-NII BANDS) .............................................................................................................................. 32 13.3 BLUETOOTH. ............................................…

Text truncated - open the document above for the full version.

Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/26 System Performance Check-D2450V2 SN727 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 2450 MHz; σ = 1.764 S/m; ε r = 39.624; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(7.35, 7.35, 7.35) @ 2450 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=250mW/Area Scan (71x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.9 W/kg Head/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.7 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 27.0 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.13 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 49.3% Maximum value of SAR (measured) = 20.1 W/kg 0 dB = 20.1 W/kg = 13.03 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/17 System Performance Check-D5300V2 SN1023 Frequency: 5300 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.5°C; Liquid Temperature: 22.2°C Medium parameters used: f = 5300 MHz; σ = 4.687 S/m; ε r = 36.675; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(5.25, 5.25, 5.25) @ 5300 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=100mW/Area Scan (51x51x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.5 W/kg Head/Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 65.94 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 34.5 W/kg SAR(1 g) = 8.44 W/kg; SAR(10 g) = 2.41 W/kg Smallest distance from peaks to all points 3 dB below = 7.5 mm Ratio of SAR at M2 to SAR at M1 = 54% Maximum value of SAR (measured) = 17.6 W/kg 0 dB = 17.6 W/kg = 12.46 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/18 System Performance Check-D5300V2 SN1023 Frequency: 5300 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 5300 MHz; σ = 4.847 S/m; ε r = 35.927; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(5.25, 5.25, 5.25) @ 5300 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=100mW/Area Scan (51x51x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.2 W/kg Head/Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 66.09 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 36.1 W/kg SAR(1 g) = 8.67 W/kg; SAR(10 g) = 2.46 W/kg Smallest distance from peaks to all points 3 dB below = 7.4 mm Ratio of SAR at M2 to SAR at M1 = 53.2% Maximum value of SAR (measured) = 18.4 W/kg 0 dB = 18.4 W/kg = 12.65 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/19 System Performance Check-D5300V2 SN1023 Frequency: 5300 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.6°C; Liquid Temperature: 22.4°C Medium parameters used: f = 5300 MHz; σ = 4.84 S/m; ε r = 35.788; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(5.25, 5.25, 5.25) @ 5300 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=100mW/Area Scan (51x51x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.0 W/kg Head/Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 64.10 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 34.1 W/kg SAR(1 g) = 8.21 W/kg; SAR(10 g) = 2.35 W/kg Smallest distance from peaks to all points 3 dB below = 7.2 mm Ratio of SAR at M2 to SAR at M1 = 53.5% Maximum value of SAR (measured) = 17.4 W/kg 0 dB = 17.4 W/kg = 12.41 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/17 System Performance Check-D5600V2 SN1023 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 5600 MHz; σ = 5.046 S/m; ε r = 36.107; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(4.95, 4.95, 4.95) @ 5600 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Head/Pin=100mW/Area Scan (51x51x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.7 W/kg Head/Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 66.28 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 39.5 W/kg SAR(1 g) = 8.77 W/kg; SAR(10 g) = 2.46 W/kg Smallest distance from peaks to all points 3 dB below = 7.4 mm Ratio of SAR at M2 to SAR at M1 = 50.7% Maximum value of SAR (measured) = 18.9 W/kg 0 dB = 18.9 W/kg = 12.76 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/18 System Performance Check-D5600V2 SN1023 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.3°C; Liquid Temperature: 22.0°C Medium parameters used: f = 5600 MHz; σ = 5.06…

Text truncated - open the document above for the full version.

Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/26 WiFi 2.4GHz_Main Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 2412 MHz; σ = 1.723 S/m; ε r = 39.796; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(7.35, 7.35, 7.35) @ 2412 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Rear/802.11b CH 1_0mm/Area Scan (61x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.00 W/kg Rear/802.11b CH 1_0mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.68 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.592 W/kg; SAR(10 g) = 0.272 W/kg Smallest distance from peaks to all points 3 dB below = 8.5 mm Ratio of SAR at M2 to SAR at M1 = 46.2% Maximum value of SAR (measured) = 0.965 W/kg 0 dB = 1.04 W/kg = 0.17 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/26 WiFi 2.4GHz_Aux Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 2437 MHz; σ = 1.75 S/m; ε r = 39.685; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(7.35, 7.35, 7.35) @ 2437 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Rear/802.11b CH 6_0mm/Area Scan (61x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.771 W/kg Rear/802.11b CH 6_0mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.55 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.524 W/kg; SAR(10 g) = 0.243 W/kg Smallest distance from peaks to all points 3 dB below = 7.3 mm Ratio of SAR at M2 to SAR at M1 = 41.1% Maximum value of SAR (measured) = 0.910 W/kg 0 dB = 0.910 W/kg = -0.41 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/26 WiFi 2.4GHz_MIMO Frequency: 2412 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.4°C; Liquid Temperature: 22.1°C Medium parameters used: f = 2412 MHz; σ = 1.723 S/m; ε r = 39.796; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(7.35, 7.35, 7.35) @ 2412 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Rear/802.11b CH 1_0mm/Area Scan (161x51x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.42 W/kg Rear/802.11b CH 1_0mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.81 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 2.06 W/kg SAR(1 g) = 0.742 W/kg; SAR(10 g) = 0.325 W/kg Smallest distance from peaks to all points 3 dB below = 7.6 mm Ratio of SAR at M2 to SAR at M1 = 39% Maximum value of SAR (measured) = 1.31 W/kg Rear/802.11b CH 1_0mm/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.81 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 0.620 W/kg; SAR(10 g) = 0.291 W/kg Smallest distance from peaks to all points 3 dB below = 8 mm Ratio of SAR at M2 to SAR at M1 = 44.4% Maximum value of SAR (measured) = 1.02 W/kg 0 dB = 1.10 W/kg = 0.41 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/17 WiFi 5.3GHz_Main Frequency: 5280 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.5°C; Liquid Temperature: 22.2°C Medium parameters used: f = 5280 MHz; σ = 4.587 S/m; ε r = 36.279; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(5.25, 5.25, 5.25) @ 5280 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Rear/802.11a CH 56_0mm/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.717 W/kg Rear/802.11a CH 56_0mm/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 11.01 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.450 W/kg; SAR(10 g) = 0.292 W/kg Smallest distance from peaks to all points 3 dB below = 9.1 mm Ratio of SAR at M2 to SAR at M1 = 69.9% Maximum value of SAR (measured) = 0.681 W/kg 0 dB = 0.681 W/kg = -1.67 dBW/kg Test Laboratory: CCS Taiwan.(R.O.C),Ltd. Wugu Laboratory. Date: 2020/11/17 WiFi 5.3GHz_Aux Frequency: 5280 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 22.5°C; Liquid Temperature: 22.2°C Medium parameters used: f = 5280 MHz; σ = 4.587 S/m; ε r = 36.279; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn914; Calibrated: 2020/6/22 - Probe: EX3DV4 - SN3665; ConvF(5.25, 5.25, 5.25) @ 5280 MHz; Calibrated: 2020/8/20 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Rear/802.11a CH 56_0mm/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.20 W/kg Rear/802.11a CH 56_0mm/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 14.35; Power Drift = -0.06 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 0.735 W/kg; SAR(10 g) = 0.346 W/kg Smallest distance from peaks to all points 3 dB below = 5.8 mm Ratio of SAR at M2 to SAR at M1 = 59% Ma…

Text truncated - open the document above for the full version.

FCC ID: 2AX7S-LN310A Page: 1 / 240 Report No.: T201104D06-RP4 Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART E Test Standard FCC Part 15.407 Product name Digital Paper System Brand Name Avalue Model No. EL310XX (X= 0~9 or A~Z) Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.(Wugu Laboratory) Approved by: Tested by: Kevin Tsai Dally Hong Deputy Manager Eng…

Text truncated - open the document above for the full version.
