2AX9S-RBW100UVCdisinfectant charger

Specification Input5V/3.1A Output5V/3.1A BatteryLi-Polymer/10000mAh Charging time 4-5 hours Capacity10000mAh Dimension135*71*22mm Wiress charger 3.7W W eight220g • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. RBW100UVC Rush Charge can also be used to charge iPods, MP3 players, mobile phones, smart phones, iPads, micro USB compatible tablets, electronic vaporizers, e-readers, portable gaming devices, headphones, digital cameras, camcorders, video game console controllers, portable speakers, power banks, charging cases, and much more. Charging Your Smartphone with Power BankCharging Your Smartphone with Wireless charging Charging Your UVC LED When power bank is fully charged, the LED display will show “Green” FOR ANDROID Micro-USB FOR ANDROID Micro-USB FOR iPHONE LIGHTING FOR iPHONE LIGHTING FOR ANDROID USB-Type-C FOR ANDROID USB-Type-C UVC display On/Off UVC LED LED Charge Meter Output 1 USB Cable: Output 2 Micro USB Input Micro USB Type-C USB Input/Output Wireless charger Type-C USB Lighting USB Input Lighting USB Getting Started 1 6 2 7 3 8 4 5 9 10 Dual Charging Your Rush Charge When charging multiple devices with USB: output will be 1.5A When charging one single device: output will be 3.1A. A B AC Power Adapter (5V) USB* 3 in1 charging cable • Charge Power Bank before use. • Full Power Bank charging time is approximately 4-5 hours. • Charge Power Bank by using your mobile device’s charging cable or use the 3 in 1 charging cable included. DO NOT USE any defective charging cables 2 3 1 4 5 7 8 10 9 6 SAFETY PRECAUTIONS keep 1.5--2 cm from any device you want to sanitize (like your phones, wallets, watch, bags, headsets, eating utensils or clothing. Anything you need to disinfect). It only takes 5-10 mins! Kills 99.9% of Germs Viruses fungus particularly for the Escherichia coli, Pseudomonas aeruginosa, Staphylococcus aureus, Candida albicans. A B 1.Press ON/OFF button and the RC LED display will turn on to indicate wireless charging is enabled. 2.The display will go into sleep mode after 35s without use. 3. Press ON/OFF to wake from sleep mode. Display will turn on again and wireless charging is enabled. 4. Lay phone on top of the wireless charger to charge wirelessly, as shown in photo. 1. Do not look directly at the UV light when lit to avoid eye damage; Avoid prolonged exposure to humans and animals without protective gear and clothing. 2. Store in dry protected area to avoid moisture damage. Recommended storage temperature range is 5 to 30 and a maximum humidity of RH50%. 3 UVC&UVA LED Press the “ON/OFF” button for 3 seconds to turn ON the UVC led. Red LED: 1-25% Charged Yellow LED: 25-50% Charged Blue LED: 50-75% Charged Green LED: 75-100% Charged * The LED lights are an approximate representation of the available battery power. WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire, or other high temperatures, it contains polymer battery. Do not dispose of unit with general waste. Contains lithium polymer battery. Please return it to battery recycling collection center. For recycling center near you, call +1 352-323-3500 3 Charge via car adapter

Molonlave Group LLC Agent Authorization Date: 2020-11-22 Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Product Description: disinfectant charger FCC ID Number: 2AX9S-RBW100UVC Tested Model Number: RBW100UVC We authorize Eurofins Product Service GmbH, Storkower Strasse 38c, D-15526 Reichenwalde, Germany, to act on our behalf on all matters concerning the certification of above mentioned equipment. We declare that Eurofins Product Service GmbH is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We, Molonlave Group LLC, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.), Shenzhen Microwave Certification Services Co., Ltd. (Gilbert Lui, Marketing Manager) and Ka.Ma.S UG (Karin Schmidt, CEO) on our behalf, to apply to the Federal Communications Commission on our equipment. We, the undersigned, hereby authorize Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) to act on our behalf in matters relating to the application for a FCC equipment authorization for mentioned FCC ID Number including the signing of Form 731, necessary forms and documents in connection with this application. Any and all acts carried out by Shenzhen Toby Technology Co., Ltd. (Ivan Su, Supervisor of EMC Dep.) on our behalf shall have the same effect as acts of our own. This authorization expires on February 28, 2022. Yours Sincerely, <Signature of Cleopatra Georgiades > Name： Cleopatra Georgiades Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

Molonlave Group LLC CONFIDENTIALITY REQUEST for Certification under the FCC Rules Date: Nov. 22, 2020 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID Number: 2AX9S-RBW100UVC Tested Model Number: RBW100UVC For the product stated above, we request that the following information be held confidential: Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days Block Diagram Schematic Diagram/ Circuit Diagram Circuit Description/ Operational Description Parts List Tune Up Information User’s Manual External Photos Internal Photos Test Setup Photos The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Please do not hesitate to contact me if you have any queries. Yours Sincerely, <Signature of Cleopatra Georgiades > Name： Cleopatra Georgiades Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

Molonlave Group LLC Date: 11/22/2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AX9S-RBW100UVC To Whom It May Concern: This letter is to ascertain that Molonlave Group LLC Product disinfectant charger Model:RBW100UVC , has been the units used for conducting FCC compliance testing, and it meets KDB 680106 Clause 5(2) all 6 conditions as stated below hence PBA is need required. 1 Power transfer frequency is less than 1 MHz. Yes, Operation Frequency is 110KHz-205KHz. 2 Output power from each primary coil is less than or equal to 15 watts. max output power less than 15W. 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes. 4 Client device is placed directly in contact with the transmitter Yes. 5 Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion).. No. 6 The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. If you have any question or concerns, pls. contact us. Sincerely, <Signature of Cleopatra Georgiades > Name： Cleopatra Georgiades Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

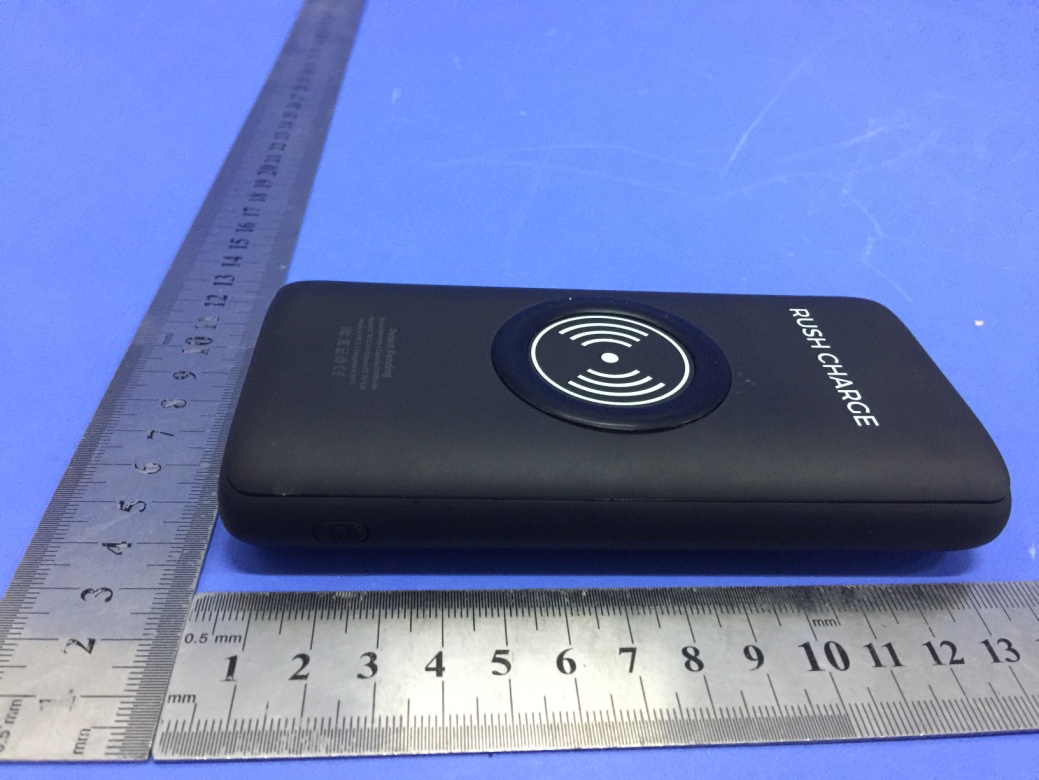

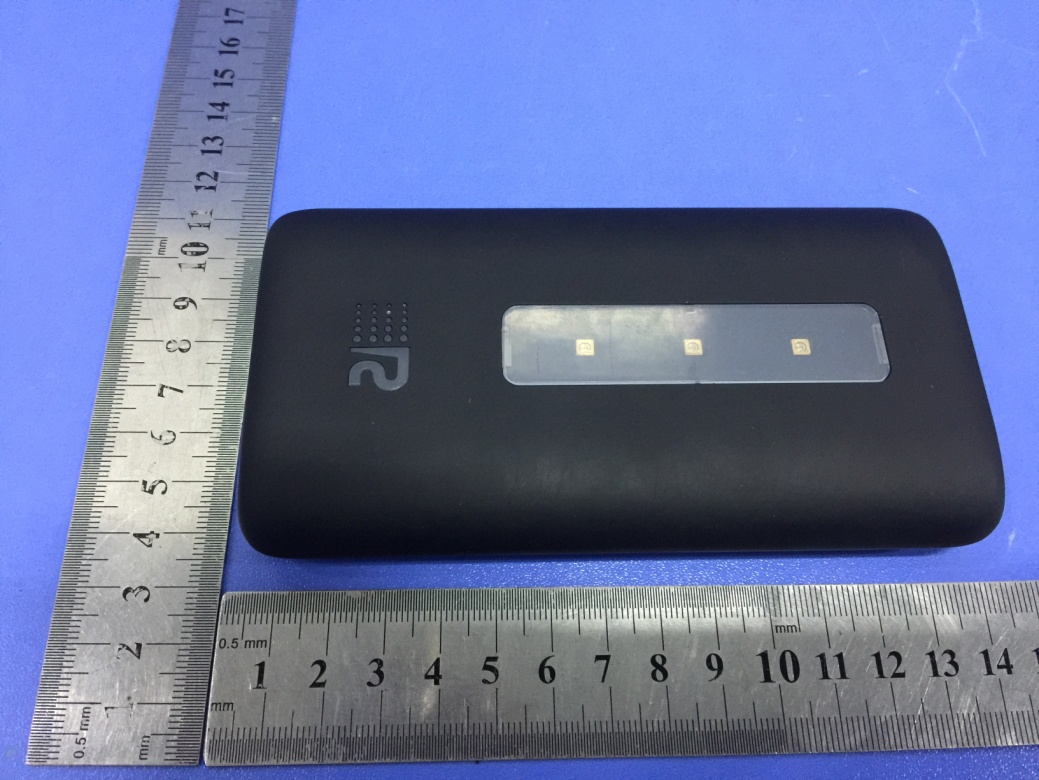

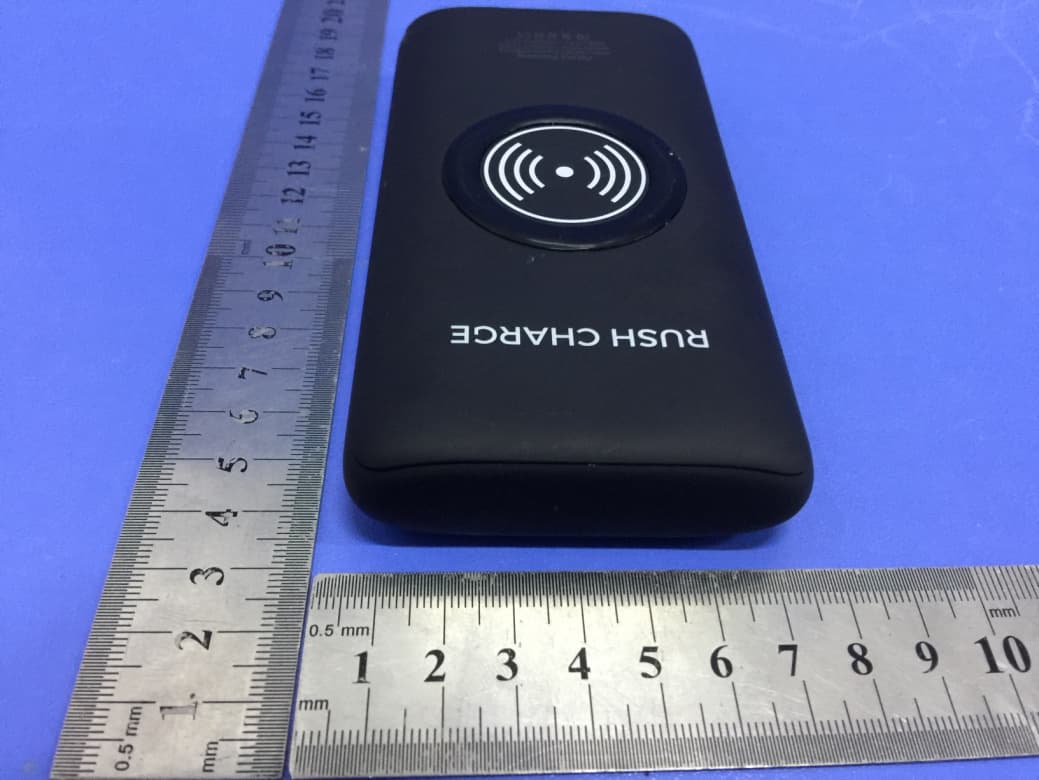

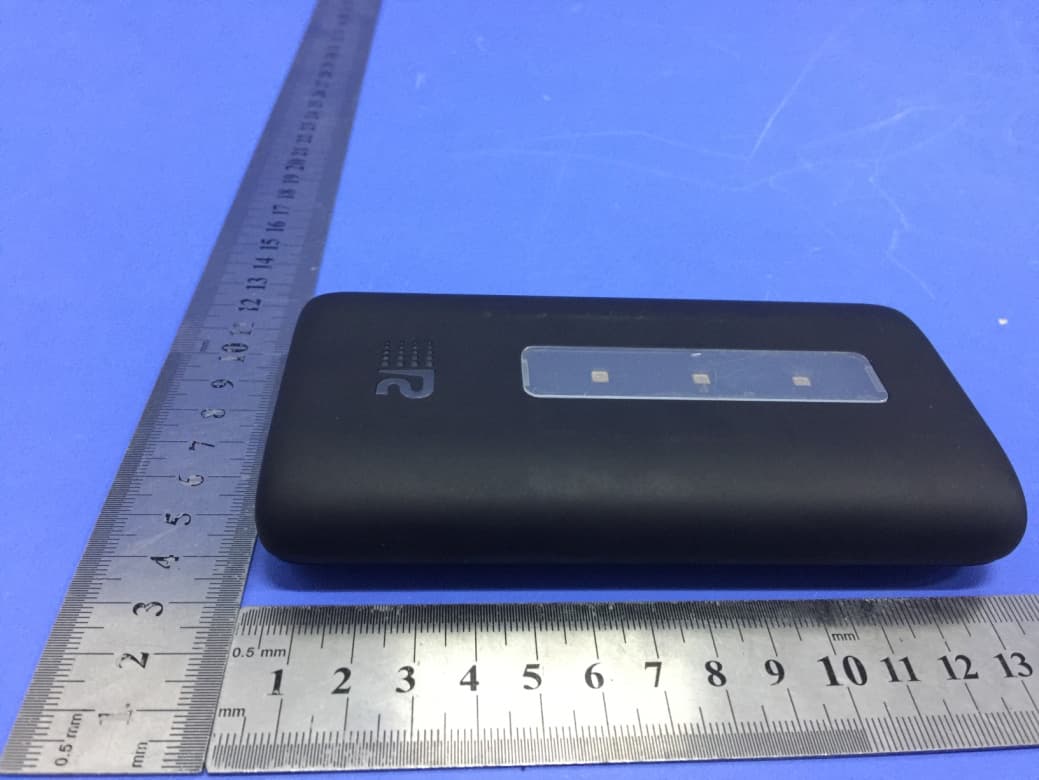

Page: 3 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page: 4 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Page: 5 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Page: 1 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AX9S-RBW100UVC disinfectant charger This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: RBW100UVC Size for the label: 50mm X 20mm Page: 2 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Page: 6 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Appearance of PCB Photo 8 Appearance of PCB Coil Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE177034 Page: 1 of 6 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AX9S-RBW100UVC 1. Client Information Applicant : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA Manufacturer : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA 2. General Description of EUT EUT Name : disinfectant charger Models No. : RBW100UVC Sample ID : 20201028-04_1-01 Model Difference : N/A Product Description : Operation Frequency: 110KHz-205KHz Modulation Type: ASK Antenna: Coil Antenna Power Rating : Input: DC 5V/3.1A Output: DC 5V/3.1A Battery: : Li-Polymer/10000mAh Software Version : 1.1 Hardware Version : 1.1 Connecting I/O Port(S) : : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE177034 Page: 2 of 6 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TB-MPE177034 Page: 3 of 6 TB-RF-074-1.0 3. Test Setup Note: 1) For mobile RF exposure condition, due to installation limitations no tests from the underside of the charging device are required. 2)For portable RF exposure, need measure all sides. 4.Test Procedure For mobile RF exposure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. e) The EUT were measured according to the dictates of KDB 680106D01v03. For portable RF exposure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (0cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E, F) were completed. e). Repeated measured (a) – (d) at measure distance 5cm and 10cm. f) The EUT were measured according to the dictates of KDB 680106D01v03. 5. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 11, 2020 Sep. 10, 2021 15cm Report No.: TB-MPE177034 Page: 4 of 6 TB-RF-074-1.0 5.4 Deviation From Test Standard No deviation 6. Mode of operation during the test / Test peripherals used Test Conditions Description Exposure conditions TM1 AC/DC Adapter + EUT + Mobile Phone (Battery Status: <1%) Mobile Record TM2 AC/DC Adapter + EUT + Mobile Phone (Battery Status: <50%) Mobile Record TM3 AC/DC Adapter + EUT + Mobile Phone (Battery Status: 100%) Mobile Record TM4 EUT + Mobile Phone (Battery Status: <1%) Portable Record TM5 EUT + Mobile Phone (Battery Status: <50%) Portable Record TM6 EUT + Mobile Phone (Battery Status: 100%) Portable Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. Report No.: TB-MPE177034 Page: 5 of 6 TB-RF-074-1.0 7. Test Result EUT was tested with empty load, half load and full load, the full load is the worst case and we listed the results in the report. For mobile exposure: H-Field Strength at 15 cm from the edges surrounding the EUT Test mode Charging Battery Level Frequency Range (MHz) Measured H-Field Strength Values (A/m) H-Field Strength 50% Limits (A/m) H-Field Strength Limits (A/m) Test Positio n A Test Positio n B Test Positio n C Test Positio n D Test Positio n E TM1 1% 0.131 0.104 0.093 0.105 0.135 0.127 0.815 1.63 TM2 50% 0.131 0.098 0.094 0.101 0.091 0.136 0.815 1.63 TM3 99% 0.131 0.074 0.078 0.082 0.082 0.125 0.815 1.63 H-Field Strength at 20cm from the top surface of the EUT Test mode Charging Battery Level Frequency Range (MHz) Measured H-Field Strength Values (A/m) H-Field Strength 50% Limits (A/m) H-Field Strength Limits (A/m) Test Position E TM1 1% 0.131 0.096 0.815 1.63 TM2 50% 0.131 0.097 0.815 1.63 TM3 99% 0.131 0.089 0.815 1.63 For portable exposure: H-Field Strength at all sides of the EUT Test mode Charging Battery Level Measured Distance (cm) Frequency Range (MHz) Measured H-Field Strength Values (A/m) H-Field Strength Limits (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E Test Position F TM4 1% 0 0.131 1.234 1.267 1.322 1.304 1.323 1.236 1.63 TM5 50% 0 0.131 1.211 1.245 1.254 1.284 1.274 1.145 1.63 TM6 99% 0 0.131 1.204 1.132 1.124 1.132 1.135 1.104 1.63 TM4 1% 5 0.131 0.545 0.524 0.544 0.535 0.539 0.522 1.63 TM5 50% 5 0.131 0.514 0.515 0.508 0.51…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC177033 Page: 1 of 26 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AX9S-RBW100UVC Original Grant Report No. : TB-FCC177033 Applicant : Molonlave Group LLC Equipment Under Test (EUT) EUT Name : disinfectant charger Model No. : RBW100UVC Series Model No. : N/A Brand Name : Rush Charge Sample ID : 20201028-04_1-01 Receipt Date : 2020-11-09 Test Date : 2020-11-10 to 2020-11-19 Issue Date : 2020-11-20 Standards : FCC Part 15, Subpart C(15.209) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, Test/Witness Engineer : Rebeca Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC177033 Page: 2 of 26 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT.............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST SOFTWARE ..................................................................................................................... 9 4. TEST EQUIPMENT .................................................................................................................. 10 5. CONDUCTED EMISSION TEST ........................................................................................... 11 5.1 Test Standard and Limit .................................................................................................... 11 5.2 Test Setup ........................................................................................................................... 11 5.3 Test Procedure ................................................................................................................... 12 5.4 Deviation From Test Standard ......................................................................................... 12 5.5 EUT Operating Mode ........................................................................................................ 12 5.6 Test Data ............................................................................................................................. 12 6. RADIATED EMISSION TEST ................................................................................................ 13 6.1 Test Standard and Limit .................................................................................................... 13 6.2 Test Setup ........................................................................................................................... 14 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH MEASUREMENT ............................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. ANTENNA REQUIREMENT ................................................................................................... 17 8.1 Standard Requirement ...................................................................................................... 17 8.2 Deviation …

Text truncated - open the document above for the full version.

Page: 7 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (9KHz-30MHz) Photo of Setup for Radiated Emission (Below 1 GHz) Page: 8 of 8 FCC ID: 2AX9S-RBW100UVC TB-RF-075-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
