2AX9S-RCBUDSBluetooth earbuds charger

Rush Charge can also be used to charge iPods, MP3 players, mobile phones, smart phones, iPads, micro USB compatible tablets, electronic vaporizers, e-readers, portable gaming devices, headphones, digital cameras, camcorders, video game console controllers, portable speakers, power banks, charging cases, and much more. 3 + 1 352-323-3500 Volume + Double click L or R to touch power button. Volume - Double click L or R to touch power button. Track Back triple click L or R to touch power button. Pause/playback Single click L or R to touch power button. Answer call Single click L or R to touch power button. End call Single click L or R to touch power button. Next/Track triple click L or R to touch power button. Switch OFF Place earbuds into Rush charger / Long press with 5s touch power button Long Press 1x 1x 00:05 1x 1x Press two 1x Press three Bluetooth earbuds charger Charge Earbuds Cap Earbuds indicate Earphone Track Back Power-On 1x Long Press 1x 00:03 1x Long Press 1x 00:02 Pairing Mode Pause/playback Decline to answer Settings Bluetooth Bluetooth Now discoverable as “iPhone”. MY DEVICES Connected RCbuds 3000 mAh 10mW 83x23x86mm Capacity Earphone L/R Dimension Charging Rush Charge Decline to answer Long press will 2s L or R to touch power button. Press earbuds for 3s, Red and Blue flashing lights will appear, wait for the Bluetooth to connect. Look for Rcbuds in your list of Bluetooth Devices,After connected the LED lights will turn off . (Power will show on mobilephone). Bluetooth function is enabled and the range is approx 10m. Place earbuds in case, while charging the LED lights will be red. Fully charged the LED will be green. All trademarks are the property of their respective owners. Volume +/Volume -

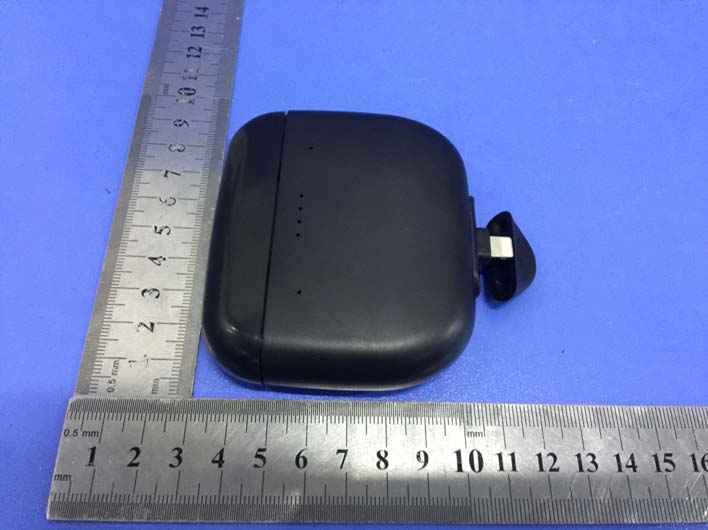

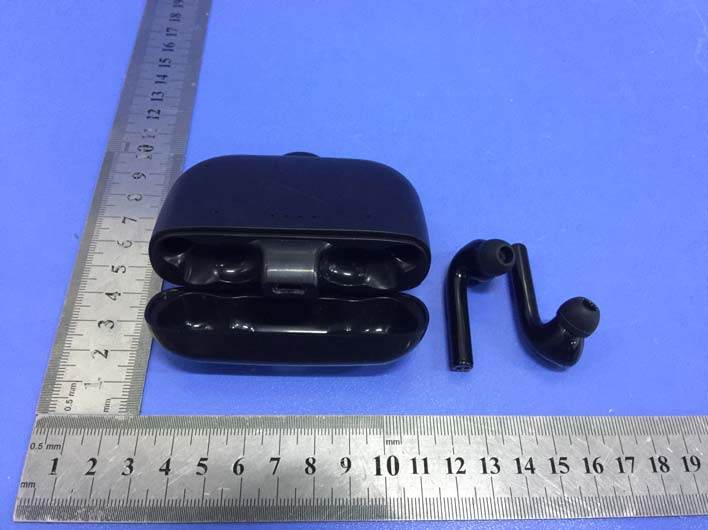

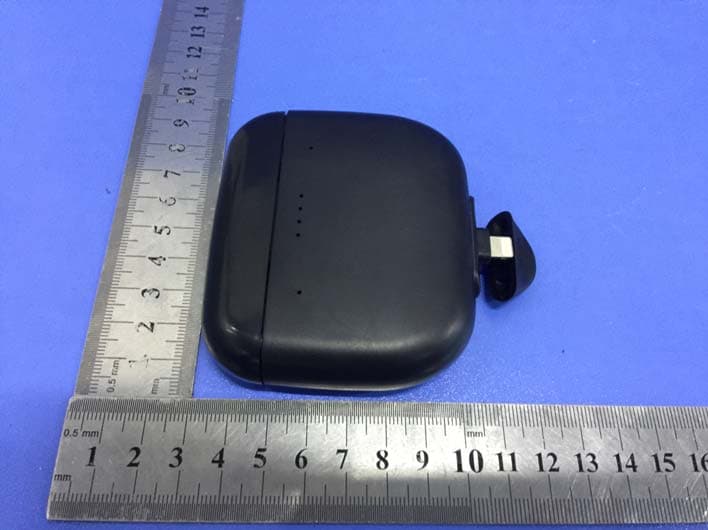

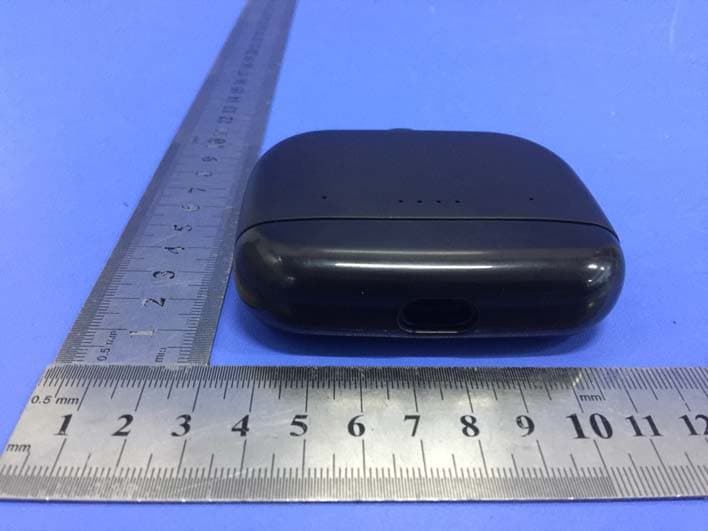

Page: 3 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page: 4 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Page: 1 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Appendix IFCC ID Label Size for the label: 10mm X 10mm FCCID: 2AX9S-RCBUDS Model: RCbuds Page: 2 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

Page: 5 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Page: 6 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB Page: 7 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance PCB Antenna

version01 Molonlave Group LLC Declaration concerning Antenna Specification It is hereby declared that the product Model No.: RCbuds FCC ID: 2AX9S-RCBUDS fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA City: Long Island ZIP / Postal code: 11106 Country: USA Place: Cleopatra Georgiades/ Manager Date: 2020-11-27 Signature:

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE177040 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AX9S-RCBUDS 1. Client Information Applicant : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA Manufacturer : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA 2. General Description of EUT EUT Name : Bluetooth earbuds charger Model(s) No. : RCbuds Model Different : N/A Sample ID : TBBJ-20201028-04-1#& TBBJ-20201028-04-2# Product Description : Operation Frequency: Bluetooth 5.0(BT): 2402MHz~2480MHz Number of Channel: Bluetooth 5.0(BT): 79 channels RF Output Power: 6.339dBm(8-DPSK) Antenna Gain: 0 dBi PCB Antenna Modulation Type: GFSK, π/4-DQPSK, 8-DPSK Bit Rate of Transmitter: 1/2/3Mbps Power Supply (Charge box) : Input: DC 5V 2.1A. Output: DC 5V 2.1A. DC 3.7V by 3000mAh Li-ion battery. Power Supply (Earphone) : Input: DC 5V. DC 3.7V by Li-ion battery. Software Version : ac696x_earphone_v0.1.7 Hardware Version : HKSE-0463A-V01 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE177040 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE177040 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.204 3±1 4 2.512 0.779 3.0 2.441 4.419 4±1 5 3.162 0.988 3.0 2.480 5.444 5±1 6 3.981 1.254 3.0 Bluetooth Mode (π/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.931 4±1 5 3.162 0.980 3.0 2.441 5.001 5±1 6 3.981 1.244 3.0 2.480 5.989 5±1 6 3.981 1.254 3.0 Bluetooth Mode(8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.301 4±1 5 3.162 0.980 3.0 2.441 5.301 5±1 6 3.981 1.244 3.0 2.480 6.339 6±1 7 5.012 1.579 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC177039 Page: 1 of 84 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AX9S-RCBUDS Original Grant Report No. : TB-FCC177039 Applicant : Molonlave Group LLC Equipment Under Test (EUT) EUT Name : Bluetooth earbuds charger Model No. : RCbuds Series Model No. : N/A Brand Name : Rush Charge Sample ID : TBBJ-20201028-04-1#& TBBJ-20201028-04-2# Receipt Date : 2020-11-09 Test Date : 2020-11-09 to 2020-11-26 Issue Date : 2020-11-27 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC177039 Page: 2 of 84 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION TEST ........................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED EMISSION TEST ................................................................................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 17 6.4 EUT Operating Condition ................................................................................................. 17 6.5 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. NUMBER OF HOPPING CHANNEL .................................................................................... 20 8.1 Test Standard and Limit .........................................................…

Text truncated - open the document above for the full version.

Page: 8 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Page: 9 of 9 FCC ID: 2AX9S-RCBUDS TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
