2AX9S-RCWPAWireless pad

User Manual www.rushcharge.com Wireless Pad Getting Started Charging Your Wireless PadCharging Your Smartphone with Wireless Pad Wireless Charger Wireless Charger Wireless Charger Wireless Charger LED Charge Meter Charging Wireless Pad 1.Use Type-C to Type-C charging Cable to charge your Wireless Pad 2.After plug in the Type-C cable the LED will flashing 3S and then off. 3.LED indicate will show red by accident. 1 1 2 3 4 3 2 4 Specification 40W(max) 4*7.5W/5W/10W • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television re ception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: 1. This d evice may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Made in P.R.C. All trademarks are the property of their respective owners. Frequency Response Output Input 110-205KHZ 202*202*12mm Charging Distance Dimension 2-5mm 1.Powers any device equipped with wireless charging. 2. “ ”wireless charge is show by the“ ”LED indicate. “ ” wireless charge is show by the “ ”LED indicate. “ ” wireless charge is show by the “ ”LED indicate. “ ” wireless charge is show by the “ ”LED indicate. 3.When charger is in use,LED will show green , After full charge, LED will show red. 4. When the device is not in the correct charging area,the LED flash red. 2 3 4 1 2 3 4 ①

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2020/12/18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AX9S-RCWPA RCWPA For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Cleopatra Georgiades/Manager Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

Molonlave Group LLC 36-20 34th Street, Long Island City, NY 11106, USA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/12/18 To whom it may concern: We, Molonlave Group LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AX9S-RCWPA including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Cleopatra Georgiades/Manager Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

Molonlave Group LLC Date: 12/18/2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AX9S-RCWPA To Whom It May Concern: This letter is to ascertain that Molonlave Group LLC Product Wireless pad Model:RCWPA , has been the units used for conducting FCC compliance testing, and it meets KDB 680106 Clause 5(2) all 6 conditions as stated below hence PBA is not required. 1 Power transfer frequency is less than 1 MHz. Yes, Operation Frequency is 110KHz-205KHz. 2 Output power from each primary coil is less than or equal to 15 watts. max output power less than 40W. 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. No. The transfer system includes four same charging circuit part and each part include one pair of primary and secondary coils. 4 Client device is placed directly in contact with the transmitter Yes. 5 Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion).. Yes 6 The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. If you have any question or concerns, pls. contact us. Sincerely, <Signature of Cleopatra Georgiades > Name： Cleopatra Georgiades Company: Molonlave Group LLC Address: 36-20 34th Street, Long Island City, NY 11106, USA Phone: 201 560 7647 Fax: N/A E-Mail: [email protected]

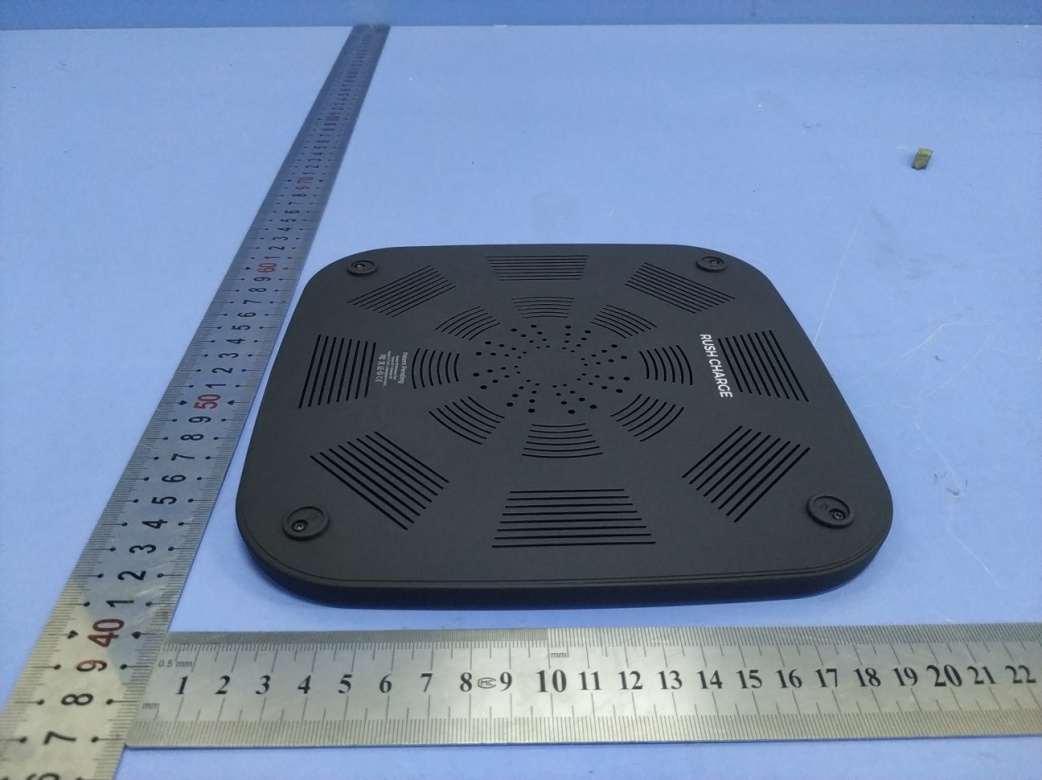

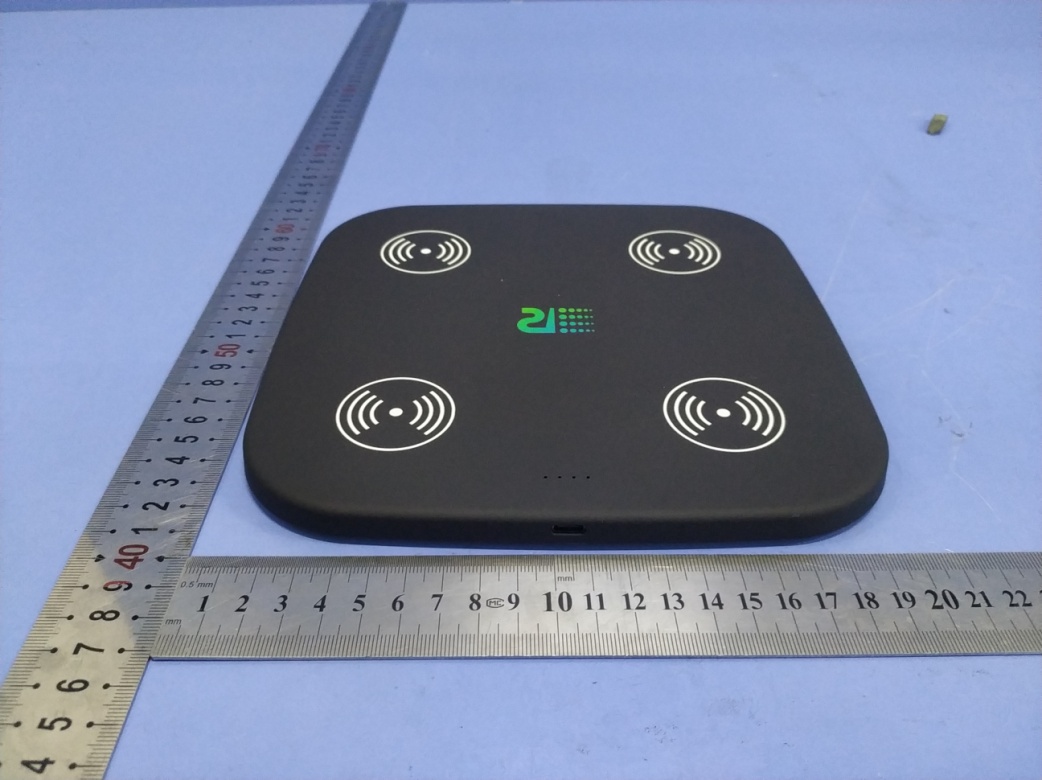

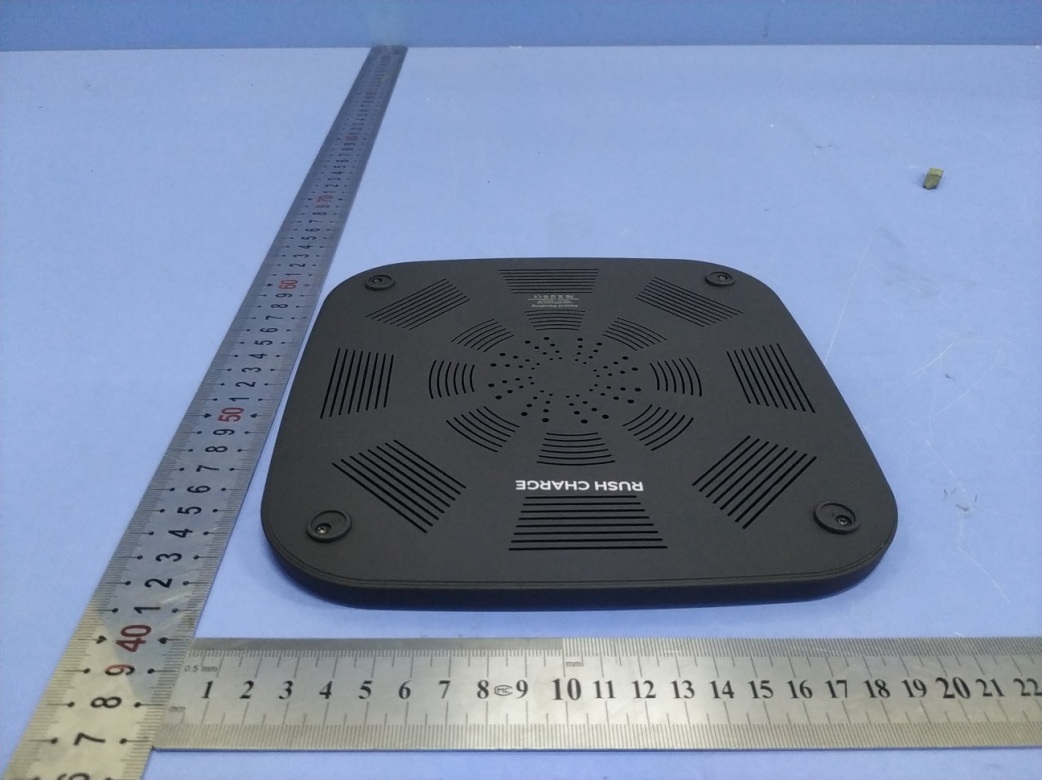

Page: 3 of 8 FCC ID: 2AX9S-RCWPA TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page: 4 of 8 FCC ID: 2AX9S-RCWPA TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Page: 1 of 8 FCC ID: 2AX9S-RCWPA TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AX9S-RCWPA Wireless pad This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: RCWPA Size for the label: 30mm X 20mm Page: 2 of 8 FCC ID: 2AX9S-RCWPA TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Page: 5 of 8 FCC ID: 2AX9S-RCWPA TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Appearance of PCB Photo 6 Appearance of PCB Page: 6 of 8 FCC ID: 2AX9S-RCWPA TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB Coil Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE177565 Page: 1 of 9 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AX9S-RCWPA 1. Client Information Applicant : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA Manufacturer : Molonlave Group LLC Address : 36-20 34th Street, Long Island City, NY 11106, USA 2. General Description of EUT EUT Name : Wireless pad Models No. : RCWPA Sample ID : TBBJ-20201120-13-01 Model Difference : N/A Product Description : Operation Frequency: 110KHz-205KHz Modulation Type: ASK Antenna: Coil Antenna Power Rating : Input: DC 9V/5A Total Output: DC 9V/4.5A Max Single Output: DC 9V/1.2A Max Software Version : 1.1 Hardware Version : 1.1 Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE177565 Page: 2 of 9 TB-RF-074-1.0 RF Exposure Considerations 1. Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging App v03. 2. Requirements According to the item 5.2 of KDB 680106 D01v03: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation: (1) Power transfer frequency is less than 1 MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Limits For Maximum Permissible Exposure (MPE) Report No.: TB-MPE177565 Page: 3 of 9 TB-RF-074-1.0 3. Test Setup Note: 1) For mobile RF exposure condition, due to installation limitations no tests from the underside of the charging device are required. 2)For portable RF exposure, need measure all sides. 4.Test Procedure For mobile RF exposure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. e) The EUT were measured according to the dictates of KDB 680106D01v03. For portable RF exposure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (0cm) which is between the edge of the charger and the geometric center of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E, F) were completed. e). Repeated measured (a) – (d) at measure distance 5cm and 10cm. f) The EUT were measured according to the dictates of KDB 680106D01v03. 5. Test Equipment List Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Due Date Magnetic field meter NARDA ELT-400 EE030 Sep. 11, 2020Sep. 10, 2021 15cm Report No.: TB-MPE177565 Page: 4 of 9 TB-RF-074-1.0 5.4 Deviation From Test Standard No deviation 6. Mode of operation during the test / Test peripherals used Test Conditions Description Exposure conditions TM1 AC/DC Adapter + EUT + 1*Wireless Power Bank (Battery Status: <1%) Mobile Record TM2 AC/DC Adapter + EUT + 1*Wireless Power Bank (Battery Status: <50%) Mobile Record TM3 AC/DC Adapter + EUT + 1*Wireless Power Bank (Battery Status: <100%) Mobile Record TM4 AC/DC Adapter + EUT + 2*Wireless Power Bank (Battery Status: <1%) Mobile Record TM5 AC/DC Adapter + EUT + 2*Wireless Power Bank (Battery Status: <50%) Mobile Record TM6 AC/DC Adapter + EUT + 2*Wireless Power Bank (Battery Status: <100%) Mobile Record TM7 AC/DC Adapter + EUT + 3*Wireless Power Bank (Battery Status: <1%) Mobile Record TM8 AC/DC Adapter + EUT + 3*Wireless Power Bank (Battery Status: <50%) Mobile Record TM9 AC/DC Adapter + EUT + 3*Wireless Power Bank (Battery Status: <100%) Mobile Record TM10 AC/DC Adapter + EUT + 4*Wireless Power Bank (Battery Status: <1%) Mobile Record TM11 AC/DC Adapter + EUT + 4*Wireless Power Bank (Battery Status: <50%) Mobile Record TM12 AC/DC Adapter + EUT + 4*Wireless Power Bank (Battery Status: <100%) Mobile Record Note: All test modes were pre-tested, but we only recorded the worst case in this report. Report No.: TB-MPE177565 Page: 5 of 9 TB-RF-074-1.0 7. Test Result EUT was tested with empty load, half load and full load, the full load is the worst case and we listed the results in the report. Symbols For the purpose of the present document, the following symbols apply; E: Filed strength H: Magnetic field strength E AVG = Spatial average of Filed strength H AVG = Spatial average of Magnetic field strength E 1 : Filed Strength of wireless charge port 1 H 1 : Magnetic field strength of wireless charge port 1 E 2 : Filed Strength of wireless charge port 2 H 2 : Magnetic field strength of wireless charge port 2 E 1 : Filed Strength of wireless charge port 3 H 1 : Magnetic field strength of wireless charge port 3 E 2 : Filed Strength of wireless charge port 4 H 2 : Magnetic field strength of wireless charge port 4 Port 1 Port 2 Port 3 Port 4 Report No.: TB-MPE177565 Page: 6 of 9 TB-RF-074-1.0 E-Filed Strength at 15 cm from the edges surrounding the EUT and 15 cm ab…
