2AXDT-RFM007RF Module for Hearing Aids

Sivantos GmbH - R&D PSA WLS L DE ERL - Richard Rose Page 1 of 3 Erlangen, 2022-09-06 Integration manual for RF Module 7 (RFM007) The “RFM007” radio module contains two radio transceivers running at 3.27 MHz and 2.45 GHz which are implemented in a single hardware platform. The 3.27 MHz radio consists of a nearfield inductive magnetic transceiver. It uses time division duplex and runs on a single channel with phase modulation. The signal is transmitted by a coil antenna. The intended use of this radio is to exchange data between two hearing aids or to communicate with a proprietary accessory. The 2.45 GHz radio is mainly used for Bluetooth® Low Energy Radio communication. In addition to that, the receiver is also capable of proprietary communication modes. The transceiver is connected to a die cut antenna. The intended use of this radio is to exchange data between hearing aids and Bluetooth accessories. The main part of the module is a set of analog and digital ASICs which contain both radios. These ASICs are mounted on a flex PCB. In addition to that the module comprises the coil antenna for the nearfield inductive magnetic system, one crystal and an EEPROM memory. The antenna for the 2.45 GHz radio is integrated in the flex PCB of the module. The matching circuitry between the radio ASIC and the antenna is also on the flex PCB. On the flex PCB additional components are mounted and connected to the radio module. These include microphones, the connector to the external speaker, push buttons, the telecoil and the battery connector. The system is powered by a zinc-air battery, all necessary voltage regulators are included in the module. The PCB with the module and all other components of the hearing aid are arranged in a plastic frame that is not user serviceable or user modifiable. The outer housing may be replaced by field service, but this is not relevant for the wireless module. The module is thus not installed but instead assembled at the same time as the host is. The position of components and interconnection through the PCB are decided during the project phase for the different hosts and following the best practice of the engineering team in order to assure an optimal integration of the module. Several validation steps are done through the development to assure the full compliance with all the regulatory requirements. Sivantos GmbH - R&D PSA WLS L DE ERL - Richard Rose Page 2 of 3 Erlangen, 2022-09-06 The user guide must contain the HVIN, the FCC ID and the IC ID: HVIN: RFM007 Contains FCC ID: 2AXDT-RFM007 Contains IC ID: 26428-RFM007 and following statements: (English version) This Class B digital apparatus complies with Canadian ICES‑003. Changes or modifications made to this equipment not expressly approved by the legal manufacturer may void the FCC authorization to operate this equipment. This device complies with Part 15 of the FCC Rules and with ISED's licence-exempt RSSs. Operation is subject to the following conditions: • this device may not cause harmful interference, and • this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The radiated output power of the device is far below the FCC and ISED radio frequency exposure limits. Sivantos GmbH - R&D PSA WLS L DE ERL - Richard Rose Page 3 of 3 Erlangen, 2022-09-06 For body worn operation, this device has been tested and meets the FCC RF exposure guidelines when used with the legal manufacturer’s accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. (French version) Cet appareil numérique de classe B est conforme à la norme canadienne ICES‑003. Un changement ou une modification apporté à cet appareil sans être expressément approuvé par le fabricant légal peut annuler l'autorisation FCC d'utilisation de l'appareil. Cet appareil est conforme à la partie 15 des règlements FCC et aux normes RSS d'exemption de licence de l'organisme canadien ISDE. Son fonctionnement est soumis aux conditions suivantes : • cet appareil ne doit pas causer d'interférences nuisibles, et • cet appareil doit supporter toutes les interferences reçues, y compris celles susceptibles de perturber son bon fonctionnement. Cet appareil a été testé et déclaré conforme aux valeurs limites d'un appareil numérique de classe B selon la partie 15 des règlements FCC. Ces limites sont destinées à garantir une protection raisonnable contre les interférences nuisibles en milieu résidentiel. Cet appareil génère, utilise et peut rayonner de l'énergie radiofréquence et, s'il n'est pas installé et utilisé dans le respect des instructions, peut produire des interferences nuisibles aux liaisons radio. Cependant, rien ne garantit que ces interférences ne se produiront pas dans une installation particulière. Si cet appareil provoque des interférences nuisibles avec des récepteurs de radio ou télé…

Text truncated - open the document above for the full version.

Sivantos GmbH - R&D PSA WLS L DE ERL - Richard Rose Page 1 of 1 Erlangen, 2022-05-30 Integrated Module RFM007– Host: Intuis M FCC ID: 2AXDT-RFM007 IC: 26428-RFM007

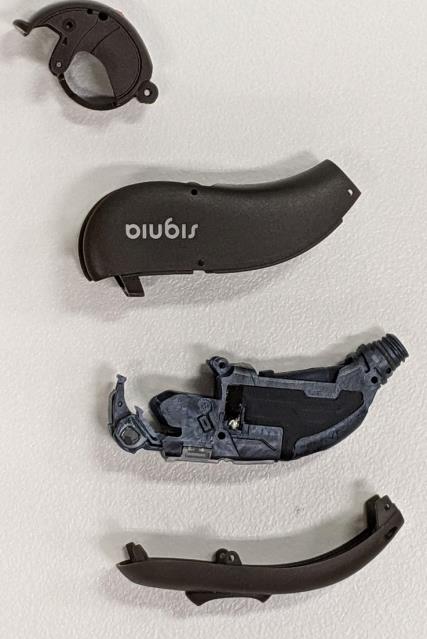

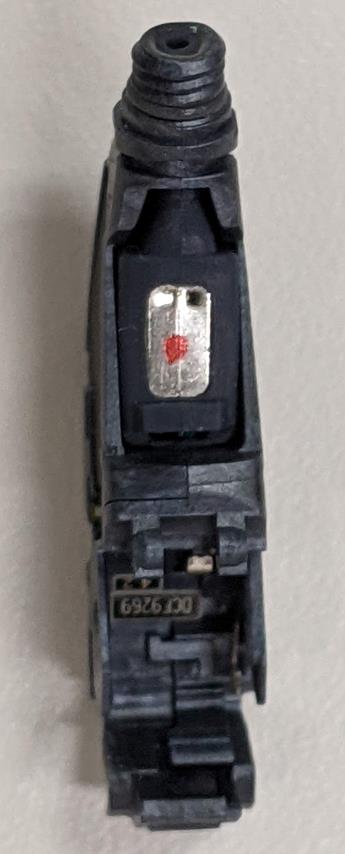

Sivantos GmbH - R&D PSA WLS L DE ERL - Richard Rose Page 1 of 1 Erlangen, 2022-05-30 Module pictures RFM007 – Host: Intuis M FCC ID: 2AXDT-RFM007 IC: 26428-RFM007

BNetzA - CAB - 02/21 - 102 SAR Test exclusion documentation according to FCC KDB 447498, RSS-102 Report identification number: 1-1607/20-01-06 Exclusion (FCC_ISED) contains the module with the following certification numbers FCC ID 2AXDT-RFM003 ISED number 26428-RFM003 HVIN (Hardware Version Identification Number) RFM003 PMN (Product Marketing Name) RF Module 3 FVIN (Firmware Version Identification Number) -/- HMN (Host Marketing Name) -/- This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-1607/20-01-06 © CTC advanced GmbH Page 2 of 5 EUT technologies: Technologies: Max. rated EIRP Bluetooth LE 8.0 dBm (Peak) -1.7 dBm (AVG) MI Link 3.27 MHz )* 0.1 dBμV/m @ 30m (QP) Note: Bluetooth LE test results see CTC advanced test report 1-1607/20-01-05 )* exempt from routine evaluation for FCC according to CFR47 § 2.1093 Duty cycle correction with worst case operation mode see plots and calculations at the end of the document. SAR test exclusion according to KDB447498 (General RF Exposure Guidance v06) Equation from Chapter 4.3.1: Standalone SAR test exclusion considerations page 11 and ff. (1) Standalone SAR test exclusion for 100 MHz to 6 GHz at test separation distances ≤ 50mm ( Threshold 1-g;10-g ) × d seperation / f 0.5 where Threshold 1-g;10-g is 3 for 1-g; 7.5 for 10-g d seperation is the min. test separation distance; 5mm is used if the distance is less f is the RF channel transmit frequency The table below gives the calculated maximal power that could be used for source based time averaged conducted or radiated power, adjusted for tune up tolerance. If this is at or below the calculated value the DUT is exempted from SAR evaluation. frequency d separation Powerlimit [MHz] [mm] [mW] [dBm] [mW] 2450.00 5 3 9.58 -1.70 0.68 yes Threshold 1-g Exclusion P max-declared SAR test exclusion according to RSS-102 Issue 5 Section 2.5.1/Table 1 The table below gives the calculated maximal power that could be used for source based time averaged conducted or radiated power, adjusted for tune up tolerance. If this is at or below the calculated value the DUT is exempted from SAR evaluation. frequency d separation Powerlimit [MHz][mm][mW][dBm][mW] 2450.00 5 1 g 4.00-1.700.68yes tissue volume P max-declared Exclusion The limits above are defined for body worn application and therefore cover all use cases. Test report no.: 1-1607/20-01-06 © CTC advanced GmbH Page 3 of 5 Plot 1: Plot 2: Date: 27.APR.2021 12:03:12 Date: 27.APR.2021 12:03:47 Test report no.: 1-1607/20-01-06 © CTC advanced GmbH Page 4 of 5 Plot 3: Plot 4: Date: 27.APR.2021 12:04:08 Date: 27.APR.2021 12:06:29 Test report no.: 1-1607/20-01-06 © CTC advanced GmbH Page 5 of 5 2416 MHz 2444 MHz 2472 MHz 2.4 GHz band Number of bursts 6 10 6 -/- Burst duration (worst case) [ms] 3*0.161 = 0.483 3*0.161 = 0.483 3*0.161 = 0.483 -/- Sum of each plot [ms] 2.898 4.83 2.898 -/- Sum of the whole 2.4 GHz band [ms] -/- -/- -/- 10.626 This leads to a duty cycle correction factor of: F = 10 * log (duty cycle / 100 ms) = -9.7 dB

BNetzA - CAB - 02/21 - 102 SAR Test exclusion documentation according to FCC KDB 447498, RSS-102 Report identification number: 1-4688/22-02-05 Exclusion (FCC) contains the module with the following certification numbers FCC ID 2AXDT-RFM007 This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-4688/22-02-05 © CTC advanced GmbH Page 2 of 3 EUT technologies: Technologies: Max. declared cond. AVG Power* Max. measured EIRP: MI Mode 3.27 MHz -9.47dBm (=0.113 mW) -40.6dBm (= 0.087 μW) BT LE 2450 -3.7 dBm (=0.43 mW) (4.2 dBm – 3.5 dBi – 9.7 dB) -9.0 dBm (= 0.13 mW) *) Declared by manufacturer MI mode - max. measured EIRP is 64.2dBμV @1m see CTC advanced GmbH report 1-4688/22-01-04 BT LE - max. conducted measured power is 4.2 dBm peak and max antenna gain is – 3.5 dBi according CTC advanced GmbH report 1-4687/22-02-03. With the duty cycle correction factor of -9.7 dB the max. avg. measured EIRP is is 9.0 dBm. Max declared power for BT LE is 6 dBm peak with a correction factor of -9.7dB. Collocation: Active scenario: Technology 1 2 3 4 MI Mode x x BT LE x x SAR test exclusion according to KDB447498 (General RF Exposure Guidance v06) Equation from Chapter 4.3.1: Standalone SAR test exclusion considerations page 11 and ff. BT LE: (1) Standalone SAR test exclusion for 100 MHz to 6 GHz at test separation distances ≤ 50mm ( Threshold 1-g;10-g ) × d seperation / f 0.5 where Threshold 1-g;10-g is 3 for 1-g; 7.5 for 10-g d seperation is the min. test separation distance; 5mm is used if the distance is less f is the RF channel transmit frequency The table below gives the calculated maximal power that could be used for source based time averaged conducted or radiated power, adjusted for tune up tolerance. If this is at or below the calculated value the DUT is exempted from SAR evaluation. frequencyd separation Powerlimit [MHz][mm][mW][dBm][mW] 2450.00539.58-3.700.43yes Threshold 1-g Exclusion P max-declared Test report no.: 1-4688/22-02-05 © CTC advanced GmbH Page 3 of 3 MI Mode: (c) (2) Standalone SAR test exclusion below 100 MHz < 50mm 0.5 × (Threshold 100MHz ) × (1+log(100/f)) where Threshold 1-g;10-g is 3 for 1-g; 7.5 for 10-g f is the RF channel transmit frequency Threshold 100MHz,50mm is Threshold 1-g;10-g × d / f 0.5 ; with f = 100MHz and d=50mm The table below gives the calculated maximal power that could be used for source based time averaged conducted power, adjusted for tune up tolerance. If this is below the calculated value SAR testing is excluded. frequency d separation Powerlimit [MHz] [mm] [mW] [dBm] [mW] 3.27 5 3 474.34 589.48 -9.47 0.113 yes Threshold 100MHz,50mm P max-declared Exclusion Threshold1-g;10-g Collocation: Overview: Technology , [MHz] MI Mode BT LE Exemption based on Limit EIRP [mW]: 589.48 9.58 Result EIRP [mW]: 0.113 0.43 Limit-Exhaustion [%] 0.02 4.49 Collocated percentage [%] [ MI Mode + BT LE ] Verdict: SAR Exclusion 4.5 Excluded This prediction demonstrates the following: The power density levels for FCC that are larger than the minimum safety-distances stated above, are below the maximum levels allowed by regulations.

Sivantos GmbH - R&D PSA WLS-L - Richard Rose Page 1 of 3 Erlangen, 2023-02-01 Antenna Datasheet – RF Module 7 (RFM007) 1 Information Antenna Type Die Cut Dipole Antenna Frequency in MHz 2402 2440 2480 Conducted Power in dBm 3.9 4.2 -1.3 EIRP in dBm -5.3 -2.9 -4.8 Gain in dBi -9.2 -7.1 -3.5 Where: Gain = EIRP – Conducted Power 2 Antenna Location The BLE Antenna is integrated into the PCB of the hearing aid as shown in the photo below: Antenna Sivantos GmbH - R&D PSA WLS-L - Richard Rose Page 2 of 3 Erlangen, 2023-02-01 3 Antenna Radiation Pattern 2402 MHz 2440 MHz Sivantos GmbH - R&D PSA WLS-L - Richard Rose Page 3 of 3 Erlangen, 2023-02-01 2480 MHz

Measurement Results No.1-4688/22-02-03_Annex_MR Test logging This document is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Labs CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Table of Content EUT Information3 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps4 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps12 FCC 15.247 # Peak power spectral density DTS ~ BT LE 1 Msps17 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps22 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps33 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 2 Msps41 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 2 Msps49 FCC 15.247 # Peak power spectral density DTS ~ BT LE 2 Msps54 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 2 Msps59 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 2 Msps70 Common 2G4 # Peak output power 3MHz/3MHz ~ BT LE 1 Msps78 2023-01-25Document 1-4688/22-02-03_Annex_MR2/82 EUT Information EUT DEFINITION ManufacturerWSAUD AS TypeRF Module 7 Serial NumberDCF9253 Setup Number1.0 Version SWNI Version FW10.35.140 Version HWD12AF12A Comment 1 Comment 2 Temperature [°C] Min0 Temperature [°C] Nom20 Temperature [°C] Max50 Voltage [V] Min1 Voltage [V] Nom1.3 Voltage [V] Max1.5 2023-01-25Document 1-4688/22-02-03_Annex_MR3/82 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps Test References TC Start04.01.2023 09:15:12 Ambit Temp [°C] | Humidity [rel%] 24.8 | 34 System Version3.3.3.0 Test SpecificationFCC 15.247 - Test MethodDTS: KDB 558074 D01 V05 - Chapter 8.3.1.1 RBW ≥ DTS Bandwidth TC Version0.0.1 My DescriptionFCC 15.247 Maximum Peak Output Power Conducted DTS - BT LE 1 Msps Add. Information EUT Common Settings BT Low Energy Intermodulation Value N 3 Image Freq. Low | Mid | High [MHz] 0 | 0 | 0 Power Class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported True | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling Settings USB_RS232 | TWO | 33 | 2400 | None | S1 | None | On Signaling RF Settings RF1com | 0 | 0 | On | User Interaction No Switch Matrix & Pathcompensation enabled Yes Test Parameter Technology to testBT LE 1 Msps Antenna Port used1 Temperaturenom Voltagenom Frequency low to testTrue | Freq [MHz] 2402 Frequency mid to testTrue | Freq [MHz] 2440 Frequency high to testTrue | Freq [MHz] 2480 Auto Control enabled Power Supply | Climatic Box No | No Additional Path Loss [dB]0.5 Switched PathEUT - SignalingUnit - SpectrumAnalyzer 2023-01-25Document 1-4688/22-02-03_Annex_MR4/82 Test Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.60 Signaling unit,Rohde&Schwarz,CMW,1201.0002k75/102550,4.0.62 Switch matrix,CTCadvanced,RSM-1 NI DAQ,31534892,NI 2023-01-25Document 1-4688/22-02-03_Annex_MR5/82 Test at TX 2402 MHz RESULT: Reference Power cond. Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Ref. Power 1MHz/1MHz cond. ------4.01dBmINFO Ref. Frequency------2402.300MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]9.01 | 11.09 | 15 Start [MHz] | Stop [MHz]2401.000 | 2403.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 10001 | SWE DTS Bandwidth Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict DTS Bandwidth (6dB)------654kHzINFO FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps DTS BW READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]14.01 | 11.09 | 20 Start [MHz] | Stop [MHz]2401.000 | 2403.000 RBW [MHz] | VBW [MHz]1.000000 | 3.000000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 1001 | SWE 2023-01-25Document 1-4688/22-02-03_Annex_MR6/82 RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Peak Power---30.003.94dBmPASS Peak Power---10002.477422mWPASS Frequency at Peak------2402.24MHzINFO FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps 2023-01-25Document 1-4688/22-02-03_Annex_MR7/82 Test at TX 2440 MHz RESULT: Reference Power cond. Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Ref. Power 1MHz/1MHz cond. ------4.22dBmINFO Ref. Frequency------2440.300MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]9.22 | 11.16 | 15 Start [MHz] | Stop [MHz]2439.000 | 2441.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 10001 | SWE DTS Bandwidth Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict DTS Bandwidth (6dB)------652kHzINFO FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps DTS BW READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]14.22 | 11.16 | 20 Start [MHz] | Stop [MHz]2439.000 | 2441.000 RBW [MHz] | VBW [MHz]1.000000 | 3.000000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 1001 | SWE 2023-01-25Document 1-4688/22-02-03_Annex_MR8/82 RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Peak Power---30.004.22dBmPASS Peak Power---10002.642409mWPASS Frequency at Peak------2440.248MHzINFO FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps 2023-01-25Document 1-4688/22-02-03_Annex_MR9/82 Test at TX 2480 MHz RESULT: Reference Power cond. Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Ref. Power 1MHz/1MHz cond. -------1.19dBmINFO Ref. Frequency------2480.200MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]3.81 | 11.21 | 10 Start [MHz] | Stop [MHz]2479.000 | 2481.000 RBW [MHz] | VBW [M…

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-4688/22-02-03 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Phone: +45 4435 5600 Contact: Richard Rose e-mail: [email protected] Manufacturer WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence - Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: RF Module for Hearing Instruments Model name: RF Module 7 FCC ID: 2AXDT-RFM007 ISED certification number: 26428-RFM007 Frequency: 2400 MHz to 2483.5 MHz Technology tested: Bluetooth ® LE Antenna: Integrated antenna Power supply: 1.30 V DC by battery Temperature range: 0°C to +50°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Marco Bertolino Michael Dorongovski Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-4688/22-02-03 © CTC advanced GmbH Page 2 of 44 1 Table of contents 1 Table of contents .................................................................................................................................... 2 2 General information ................................................................................................................................ 3 2.1 Notes and disclaimer .................................................................................................................... 3 2.2 Application details ........................................................................................................................ 3 2.3 Test laboratories sub-contracted .................................................................................................. 3 3 Test standard/s, references and accreditations ....................................................................................... 4 4 Reporting statements of conformity – decision rule ................................................................................ 5 5 Test environment .................................................................................................................................... 6 6 Test item ................................................................................................................................................ 6 6.1 General description ...................................................................................................................... 6 6.2 Additional information .................................................................................................................. 6 7 Sequence of testing ................................................................................................................................ 7 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................ 7 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ............................................................... 8 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................ 9 7.4 Sequence of testing radiated spurious above 18 GHz .................................................................. 10 8 Description of the test setup ................................................................................................................. 11 8.1 Shielded semi anechoic chamber ................................................................................................ 12 8.2 Shielded fully anechoic chamber ................................................................................................ 13 8.3 Radiated measurements > 18 GHz .............................................................................................. 14 8.4 Conducted measurements with peak power meter & spectrum analyzer ...................................... 15 9 Measurement uncertainty ..................................................................................................................... 16 10 Summary of measurement results .................................................................................................. 17 11 Additional comments ..................................................................................................................... 18 12 Measurement results ..................................................................................................................... 19 12.1 System gain ............................................................................................................................ 19 12.2 Power spectral density ............................................................................................................ 20 12.3 DTS bandwidth – 6 dB bandwidth ............................................................................................ 21 12.4 Occupied bandwidth – 99% emission bandwidth ...................................................................... 22 12.5 Maximum output power ...............................................…

Text truncated - open the document above for the full version.

Annex D 1-4688/22-01-01_AnnexD Setup photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Labs CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2023-01-30Document No. 1-4688/22-01-01_AnnexD2/6 Photo 3 Photo 4 2023-01-30Document No. 1-4688/22-01-01_AnnexD3/6 Photo 5 Photo 6 2023-01-30Document No. 1-4688/22-01-01_AnnexD4/6 Photo 7 2023-01-30Document No. 1-4688/22-01-01_AnnexD5/6 Document history VersionApplied changesDate of release initial release2023-01-30 - END OF DOCUMENT - 2023-01-30Document No. 1-4688/22-01-01_AnnexD6/6
