April 7, 2023 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Vermeer Manufacturing Company 1210 Vermeer Road East Pella, IA 50219 CORES number: 0029937455 Equipment: FCC ID: 2AXF5-VTSSEN1 FCC Rules: Parts 2, 15C To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be uploaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Vermeer Manufacturing Company requests that the material in the Block Diagram, Operational Description, and Schematics be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. CONFIDENTIAL FILES TEMPSENSE Conf BlkDia.pdf TEMPSENSE Conf OpDes.pdf TEMPSENSE Conf Schem.pdf TEMPSENSE Conf TunPro.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

File: TEMPSENSE Confidential Request Letter Page 1 of 2 April 28, 2023 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Vermeer Manufacturing Company 1210 Vermeer Road East Pella, IA 50219 Re: Confidentiality for submittal information regarding FCC ID: 2AXF5-VTSSEN1 Product: Transmitter operated under 47CFR Section 15C Dear Sirs: Vermeer Manufacturing Company requests that the material in the Block Diagram, Operational Description, and Schematics be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, Vermeer Manufacturing Company submits the following information. CONFIDENTIAL FILES TEMPSENSE Conf BlkDia.pdf TEMPSENSE Conf OpDes.pdf TEMPSENSE Conf Schem.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Block Diagram, Operational Description, and Schematics which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID: 2AXF5-VTSSEN1 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed Block Diagram, Operational Description, and Schematics. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 File: TEMPSENSE Confidential Request Letter Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Vermeer Manufacturing Company’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Vermeer Manufacturing Company 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Vermeer Manufacturing Company and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry the protection sought is narrowly drawn as provided in regulations. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

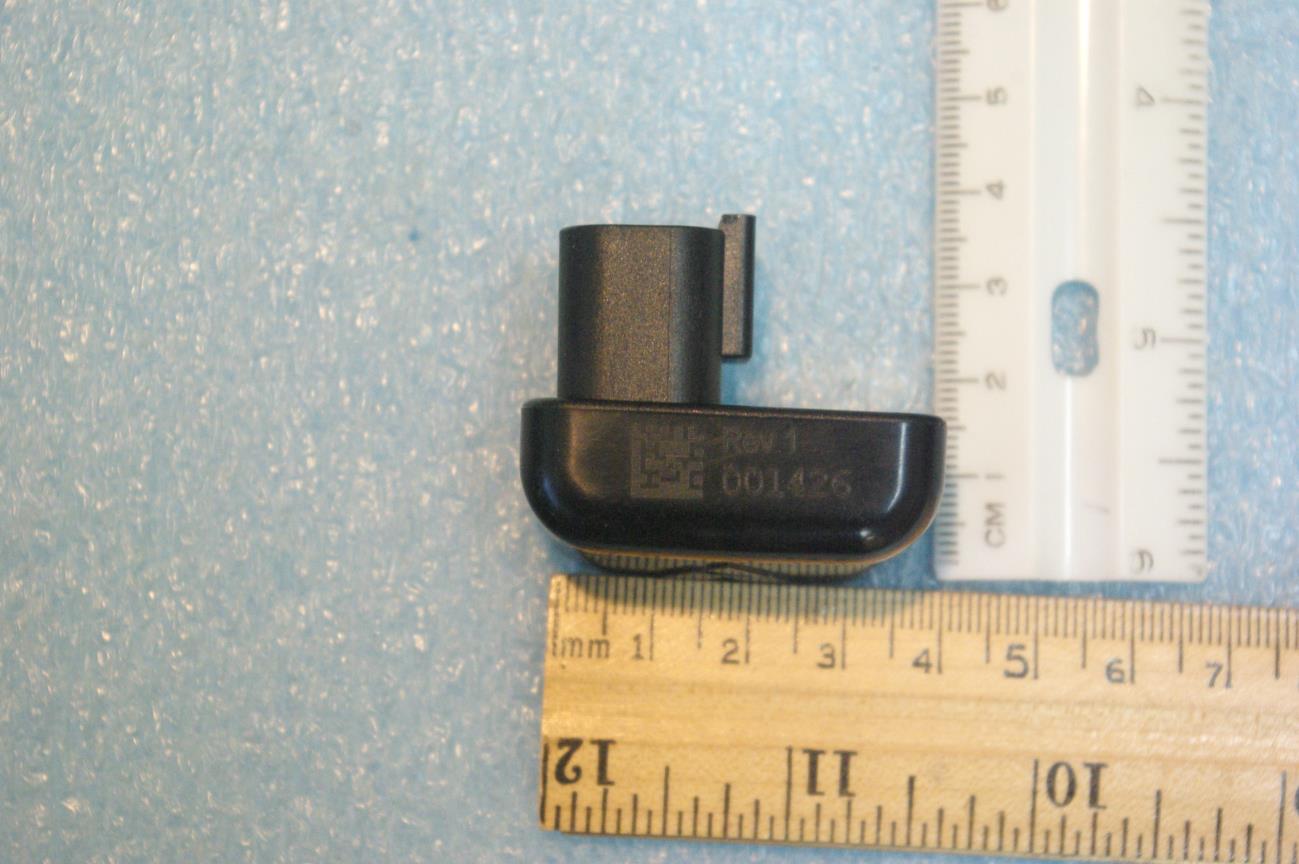

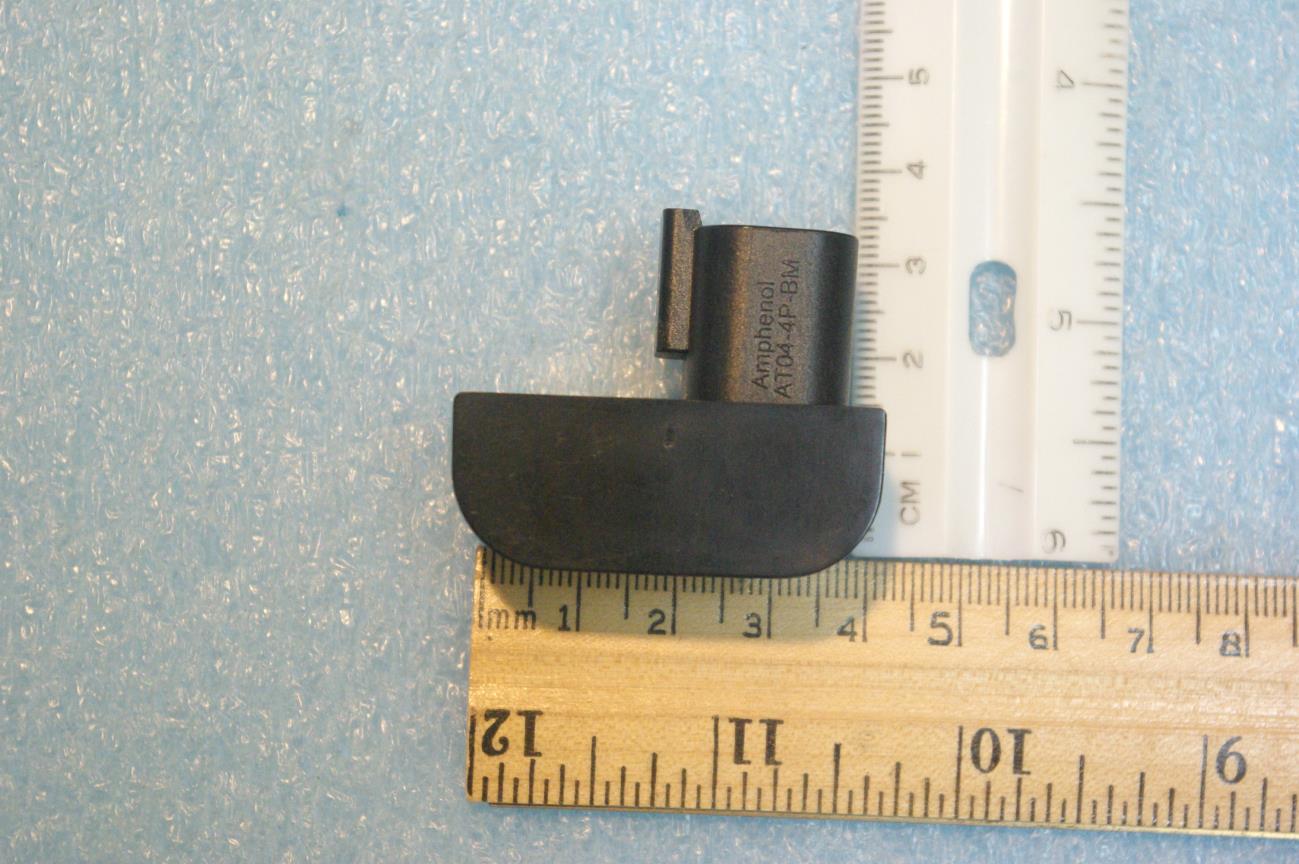

Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 7, 2023 Revision 1 File: TempSense ExtPho Page 1 of 3 External photographs of equipment under test Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 7, 2023 Revision 1 File: TempSense ExtPho Page 2 of 3 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 7, 2023 Revision 1 File: TempSense ExtPho Page 3 of 3

Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 7, 2023 Revision 1 File: TempSense LabelSmpl Page 1 of 2 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 7, 2023 Revision 1 File: TempSense LabelSmpl Page 2 of 2

Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: TempSense IntPho Page 1 of 4 PCB Top Note: battery is solder connected to PCB. Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: TempSense IntPho Page 2 of 4 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: TempSense IntPho Page 3 of 4 PCB Top Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: TempSense IntPho Page 4 of 4 Antenna Location Antenna

Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 10, 2023 Revision 1 File: TempSense RFExp Page 1 of 1 SAR Test Exclusion Calculator Insert values in yellow highlighted boxes to determine SAR Exclusion Max Power 1 mW Min Separation 5 mm Frequency 0.917 GHz Answer 0.2 Please also note the following: [FCC KDB quote] These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface. [End quote] FCC IC SAR Eclusion 4.3.1. Standalone SAR test exclusion considerations 100 MHz to 6 GHz at separation distance less than or equal to 50 mm When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Must be less than or equal to 3.0 for SAR Exclusion KDB 628591 D01 TCB Exclusion List v14 TCBs are excluded from granting if: General Population: The Answer is equal to or greater than 24 (8x threshold) Controlled Use: The Answer is equal to or greater than 60 (20x threshold) and, when published RF exposure KDB procedures are not established for SAR testing or when SAR data is not provided to support compliance.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: Vermeer TempSense DTS 230207 Page 1 of 32 47CFR, PART 15C - Intentional Radiators 47CFR Paragraph 15.247 and Industry Canada RSS-247 Issue 2 and RSS-GEN Issue 5 Application For Grant of Certification Model: 510565504 902-928 MHz (DTS) Digital Transmission System FCC ID: 2AXF5-VTSSEN1 IC: 26431-VTSSEN1 Vermeer Manufacturing Company 1210 Vermeer Road East Pella, IA 50219 FCC Designation: US5305 ISED Registration: 3041A Test Report Number: 230207 Test Date: February 7, 2023 Authorized Signatory: Scot D. Rogers This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: Vermeer TempSense DTS 230207 Page 2 of 32 Tabl e of Cont ents Tabl e of Cont ents TABLE OF CONTENTS .................................................................................................. 2 REVISIONS ..................................................................................................................... 3 EXECUTIVE SUMMARY ................................................................................................ 4 OPINION / INTERPRETATION OF RESULTS ............................................................... 4 EQUIPMENT TESTED .................................................................................................... 6 Equipment Function ............................................................................................................................................ 6 Equipment Configuration.................................................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 TESTING PROCEDURES .............................................................................................. 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Antenna Port Conducted Emission Test Procedure .......................................................................................... 8 Diagram 1 Test arrangement for radiated emissions of tabletop equipment. ....................................................... 9 Diagram 2 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) ........................... 10 Diagram 3 Test arrangement for Antenna Port Conducted emissions. .............................................................. 11 TEST SITE LOCATIONS .............................................................................................. 11 UNITS OF MEASUREMENTS ...................................................................................... 12 ENVIRONMENTAL CONDITIONS................................................................................ 12 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................. 12 INTENTIONAL RADIATORS ........................................................................................ 13 Antenna Requirements ...................................................................................................................................... 13 Restricted Bands of Operation .......................................................................................................................... 13 Table 1 Harmonic Radiated Emissions in Restricted Bands .............................................................................. 14 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Vermeer Manufacturing Company SN’s: 1425, 1426, EUT2 4405 West 259 th Terrace Model: 510565504 FCC ID: 2AXF5-VTSSEN1 Louisburg, KS 66053 Test: 230207 IC: 26431-VTSSEN1 Phone/Fax: (913) 837-3214 Test to: 47CFR 15C, RSS-Gen RSS-247 Date: April 25, 2023 Revision 1 File: Vermeer TempSense DTS 230207 Page 3 of 32 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 14 General Radiated Emissions Procedure ........................................................................................................... 15 Table 2 General Radiated Emissions Data ........................................................................................................ 15 Summary of Results for General Radiated Emissions .................................................................................... 16 Operation in the Band 902-928 MHz ................................................................................................................ 16 Figure 1 Plot of Transmitter Emissions in 902-928 MHz .................................................................................. 17 Figure 2 Plot of Transmitter Emissions Low Band Edge .................................................................................. 18 Figure 3 Plot of Transmitter Emissions High Band Edge ......…

Text truncated - open the document above for the full version.

PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915 MHz Flexible Antenna Product Specification SHEET No. A EC No: 608264 1 of 7 DATE: 2018/12/03 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2111400100 Kang Cheng 2018/11/20 Cooper Zhou 2018/11/20 Stary Song 2018/11/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE 868/915MHZ FLEXIBLE ANTENNA TABLE OF CONTENTS 1. SCOPE 2. PRODUCT DESCRIPTION 3. APPLICABLE DOCUMENTS 4. GENERAL SPECIFICATION 5. ANTENNA SPECIFICATION 6. MECHANICAL SPECIFICATION 7. ENVIRONMENTAL SPECIFICATION 8. PACKING PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915 MHz Flexible Antenna Product Specification SHEET No. A EC No: 608264 2 of 7 DATE: 2018/12/03 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2111400100 Kang Cheng 2018/11/20 Cooper Zhou 2018/11/20 Stary Song 2018/11/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 868/915 MHZ FLEXIBLE ANTENNA 1.0 SCOPE This Product Specification covers the mechanical, electrical and environmental performances specification for 868/915 MHz Flexible Antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: 868/915MHz Flexible Antenna Series Number: 211140* 2.2 DESCRIPTION 211140 is a monopole flexible antenna for ISM 868/915MHz dual band. Antenna size 38x10x0.1mm is made from flexible polymer material, cable standard length 100mm. It can be easily installed by simply “peel and stick” on non-metal surface. 2.3 FEATURES  ISM 868/915MHz dual band  Antenna size 38x10x0.1mm  IPEX MHF (U.FL compatible) connector  Cable OD1.13mm, standard length options for 100 mm  Cable and connector can be customized  RoHS Compliant Molex 2111400100 868/915 MHz FLEXIBLE ANTENNA MODULE 3D VIEW PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915 MHz Flexible Antenna Product Specification SHEET No. A EC No: 608264 3 of 7 DATE: 2018/12/03 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2111400100 Kang Cheng 2018/11/20 Cooper Zhou 2018/11/20 Stary Song 2018/11/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 2.4 PRODUCT STRUCTURE INFORMATION P/N 2111400100 Mechanical Structure Information for 2111400100 PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915 MHz Flexible Antenna Product Specification SHEET No. A EC No: 608264 4 of 7 DATE: 2018/12/03 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2111400100 Kang Cheng 2018/11/20 Cooper Zhou 2018/11/20 Stary Song 2018/11/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 3.0 APPLICABLE DOCUMENTS Document Number Description Sale Drawing(SD) SD-2111400100 Mechanical Dimension of the product Application Guide(AS) AS-2111400100 Antenna Application and surrounding Packing Drawing(PK) PK-2111400100 Product packaging specifications 4.0 GENERAL SPECIFICATION Product name 868/915 MHz Flexible Antenna Part number 2111400100 Frequency 868-870 MHz 902-928 MHz Polarization Linear Operating with matching -40°C to 85°C Storage with matching -40°C to 85°C RF Power 2 Watts Impedance with matching 50 Ohms Antenna type Flex Connector type U.FL (MHF compatible) User Implementation type Adhesive 3M 9077 Cable diameter Ø1.13mm Single weight 0.626 g (P/N For 2111400100) Cable length 100 mm (P/N for 2111400100) PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915 MHz Flexible Antenna Product Specification SHEET No. A EC No: 608264 5 of 7 DATE: 2018/12/03 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2111400100 Kang Cheng 2018/11/20 Cooper Zhou 2018/11/20 Stary Song 2018/11/20 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 5.0 ANTENNA SPECIFICATION. 5.1 ELECTRICAL REQUIREMENT 5.1.1 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 100mm P/N 2111400100 Frequency Range 868-870MHz 902-928MHz Peak Gain(Max) 0.3dBi 1.0dBi Average Total efficiency >55% >60% Return Loss < -5 dB Note that the above antenna performance is measured with just the antenna mounted on a PC/ABS block to similar a free-space condition. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free-space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. 6.0 MECHANICAL SPECIFICATION DESCRIPTION TEST CONDITION TEST RESULT Pull Test 1. Test machine: Max intelligent load tester 2. Stick the flex antenna on a plastic board, pull cable in axial direction. Pull force >8N Un-mating force (connector) Solder the receptacle connector to the test board ,then place the board and plug on push-on/pull-off machine, and repeat mating and un-mating 30 cycles at a speed 25±3mm/min. along t…
