TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: September 28, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID: 2AXJ4AX55V4 Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: AX3000 Gigabit Wi-Fi 6 Router FCC ID: 2AXJ4AX55V4 Model: Archer AX55 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-09-15

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4AX55V4 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-09-15

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AX3000 Gigabit Wi-Fi 6 Router FCC ID: 2AXJ4AX55V4 Model: Archer AX55 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-09-15

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: AX3000 Gigabit Wi-Fi 6 Router FCC ID: 2AXJ4AX55V4 Model: Archer AX55 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-09-15

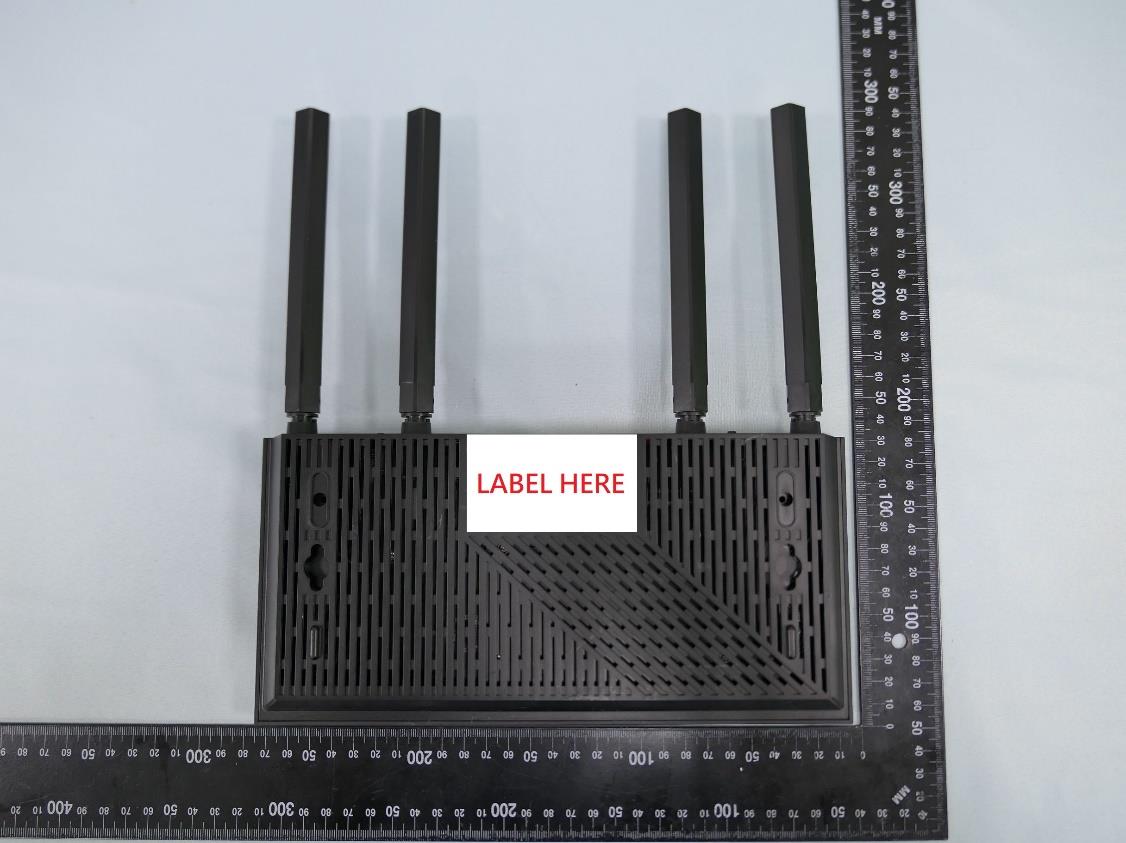

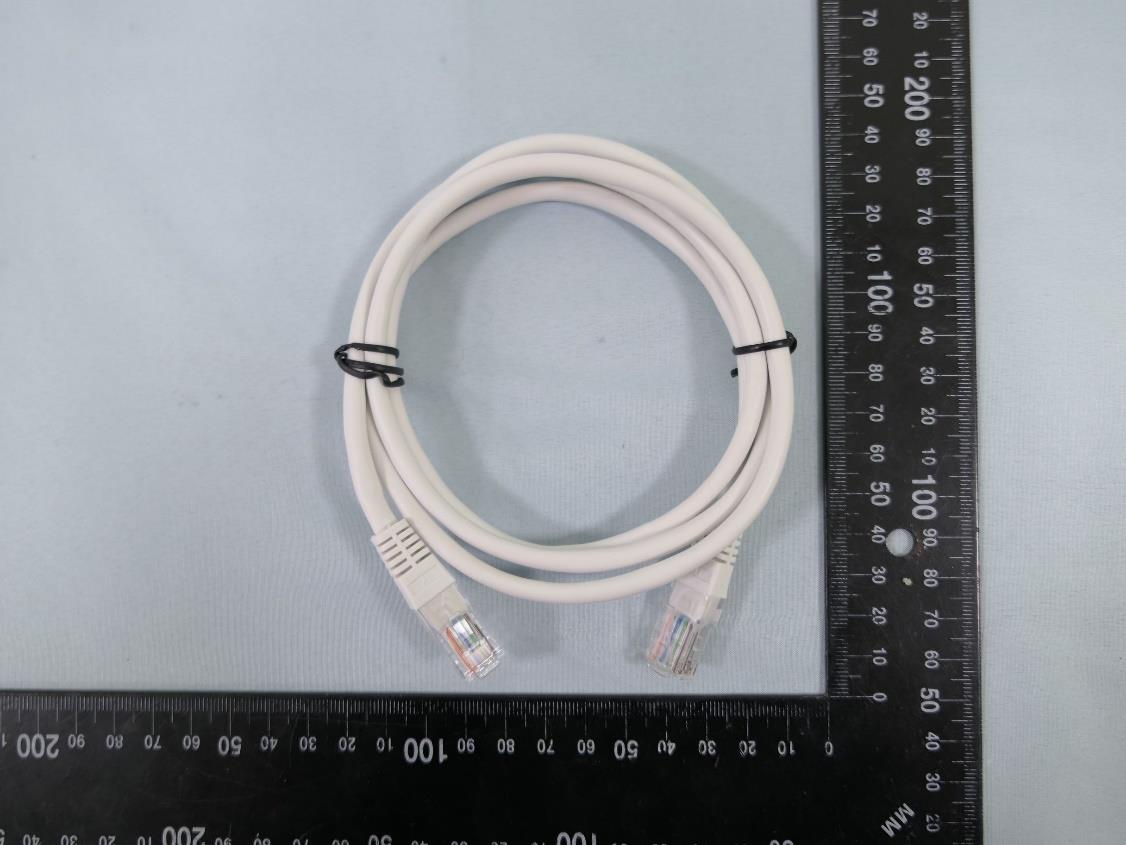

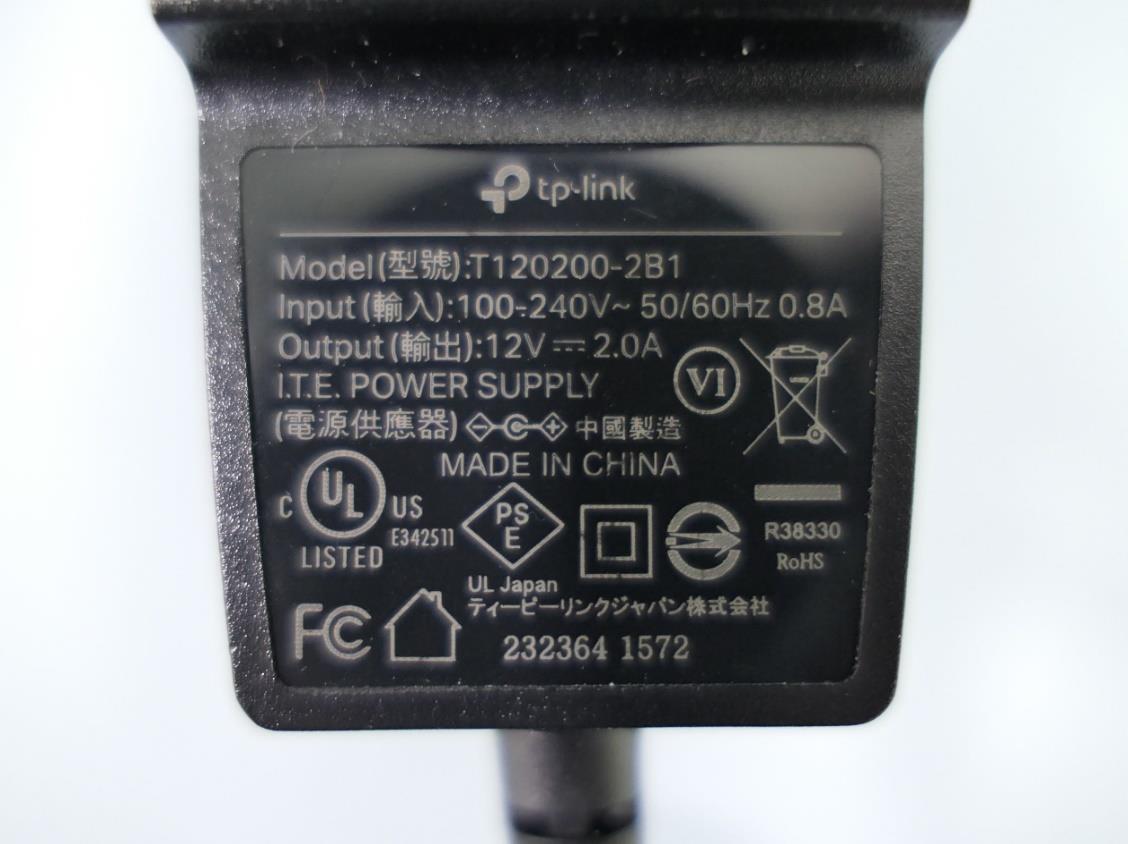

Report No.: 2308TW0104-UE Product: AX3000 Gigabit Wi-Fi 6 Router Brand Name: tp-link Model Number: Archer AX55 1 of 8 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2308TW0104-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2308TW0104-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2308TW0104-UE 4 of 8 (7) EUT Photo (Brand: tp-link, M/N: T120200-2B1) (8) EUT Photo (Brand: tp-link, M/N: T120200-2B1) Report No.: 2308TW0104-UE 5 of 8 (9) EUT Photo (Brand: tp-link, M/N: T120200-2B1) (10) EUT Photo (Brand: tp-link, M/N: T120200-2B1) Report No.: 2308TW0104-UE 6 of 8 (11) EUT Photo (Brand: tp-link, M/N: T120200-2B1) (12) EUT Photo (Brand: tp-link, M/N: T120200-2B1) Report No.: 2308TW0104-UE 7 of 8 (13) EUT Photo (Brand: tp-link, M/N: T120200-2B1) (14) EUT Photo (Brand: tp-link, M/N: T120200-2B1) Report No.: 2308TW0104-UE 8 of 8 (15) EUT Photo

Label Label Location

Report No.: 2308TW0104-UI Product: AX3000 Gigabit Wi-Fi 6 Router Brand Name: tp-link Model Number: Archer AX55 1 of 7 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2308TW0104-UI 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2308TW0104-UI 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2308TW0104-UI 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2308TW0104-UI 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2308TW0104-UI 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2308TW0104-UI 7 of 7 (13) EUT Photo (14) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2308TW0104-U5 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2023-09-18 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4AX55V4 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AX3000 Gigabit Wi-Fi 6 Router Model No. : Archer AX55 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Received Date : August 2, 2023 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2308TW0104-U5 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2308TW0104-U5 1.0 Original Report 2023-09-18 Valid Report No.: 2308TW0104-U5 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION ....................................................................................................................... 5 1.1. Scope .............................................................................................................................. 5 1.2. MRT Test Location ......................................................................................................... 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Feature of Equipment under Test ................................................................................... 6 2.2. Description of Available Antennas .................................................................................. 6 2.3. Device Classification ....................................................................................................... 7 2.4. Applied Standards .......................................................................................................... 7 3. RF Exposure Evaluation ......................................................................................................... 8 3.1. Limits .............................................................................................................................. 8 3.2. MPE Exemptions ............................................................................................................ 9 3.3. Test Result of RF Exposure Evaluation ........................................................................ 12 Report No.: 2308TW0104-U5 Page Number: 4 of 12 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2308TW0104-U5 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2308TW0104-U5 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test 2.2. Description of Available Antennas Product Name: AX3000 Gigabit Wi-Fi 6 Router Model No.: Archer AX55 Brand Name: tp-link Specification 802.11a/b/g/n/ac/ax Accessory Adapter Brand: tp-link Model No: T120200-2B1 Input: AC 100-240V~0.8A, 50-60Hz Output: 12V⎓2.0A DC Cable Out: Non-Shielded, 1.5m Antenna Type Frequency Band (MHz) T X Paths Number of spatial streams Max Antenna Gain (dBi) Beamforming Directional Gain(dBi) CDD Directional Gain (dBi) For Power For PSD Wi-Fi Antenna Dipole 2412 ~ 2462 2 1 1.95 4.96 1.95 4.96 5150 ~ 5850 2 1 2.47 5.48 2.47 5.48 Remark: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT also supports Beam Forming mode, and the Beam Forming support 802.11ac/ax, not include 802.11a/b/g/n. BF Directional gain = G ANT + 10 log (N ANT ). 3. The information as above is from the antenna specifications. Report No.: 2308TW0104-U5 Page Number: 7 of 12 2.3. Device Classification According to the user manual, the antenna of this device is at least 20cm away fr…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2308TW0104-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2023-09-18 Page Number: 1 of 219 FCC ID : 2AXJ4AX55V4 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AX3000 Gigabit Wi-Fi 6 Router Model No. : Archer AX55 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Received Date : August 2, 2023 Test Date : August 4, 2023 ~ September 5, 2023 RF MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2308TW0104-U2 Page Number: 2 of 219 Revision History Report No. Version Description Issue Date Note 2308TW0104-U2 1.0 Original Report 2023-09-18 Valid Report No.: 2308TW0104-U2 Page Number: 3 of 219 CONTENTS Description Page 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope ................................................................................................................................ 6 1.2. MRT Test Location ............................................................................................................ 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Feature of Equipment under Test ...................................................................................... 7 2.2. Product Specification Subjective to this Report ................................................................. 7 2.3. Working Frequencies for this report .................................................................................. 8 2.4. Description of Available Antennas ..................................................................................... 8 2.5. Test Mode .......................................................................................................................... 9 2.6. Configuration of Test System .......................................................................................... 10 2.7. Test System Details ......................................................................................................... 11 2.8. Description of Test Software ........................................................................................... 11 2.9. Applied Standards ........................................................................................................... 11 2.10. Duty Cycle .................................................................................................................... 12 2.11. Test Configuration ........................................................................................................ 13 2.12. EMI Suppression Device(s)/Modifications .................................................................... 13 2.13. Labeling Requirements ................................................................................................ 13 3. DESCRIPTION of TEST .......................................................................................................... 14 3.1. Evaluation Procedure ...................................................................................................... 14 3.2. AC Line Conducted Emissions ........................................................................................ 14 3.3. Radiated Emissions ......................................................................................................... 15 4. ANTENNA REQUIREMENTS .................................................................................................. 16 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 17 6. MEASUREMENT UNCERTAINTY ........................................................................................... 19 7. TEST RESULT ......................................................................................................................... 20 7.1. Summary ......................................................................................................................... 20 7.2. 6dB Bandwidth Measurement ......................................................................................... 21 7.2.1. Test Limit ...................................................................................................................... 21 7.2.2. Test Procedure used .................................................................................................... 21 7.2.3. Test Setting .................................................................................................................. 21 7.2.4. Test Setup .................................................................................................................... 21 7.2.5. Test Result ................................................................................................................... 22 7.3. Output Power Measurement ............................................................................................ 26 Report No.: 2308TW0104-U2 Page Number: 4 of 219 7.3.1. Test Limit ...................................................................................................................... 26 7.3.2. Test Procedure Used.................................................................................................... 26 7.3.3. Test Setti…

Text truncated - open the document above for the full version.

Report No.: 2308TW0104-U2 Page Number: 41 of 219 Ant 0 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 42 of 219 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 43 of 219 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 44 of 219 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2308TW0104-U2 Page Number: 45 of 219 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 46 of 219 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2308TW0104-U2 Page Number: 47 of 219 Ant 1 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 48 of 219 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 49 of 219 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) Report No.: 2308TW0104-U2 Page Number: 50 of 219 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2308TW0104-U2 Page Number: 51 of 219 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz)

Report No.: 2308TW0104-U2 Page Number: 52 of 219 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2308TW0104-U2 Page Number: 53 of 219 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [Uv/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used ANSI C63.10-2013 Section 6.3 (General Requirements) ANSI C63.10-2013 Section 6.4 (Standard test method below 30MHz) ANSI C63.10-2013 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10-2013 Section 6.6 (Standard test method above 1GHz) 7.6.3. Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2308TW0104-U2 Page Number: 54 of 219 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2308TW0104-U2 Page Number: 55 of 219 7.6.4. Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2308TW0104-U2 Page Number: 56 of 219 7.6.5. Test Result EUT AX3000 Gigabit Wi-Fi 6 Router Date of Test 2023-08-04 Factor VULB 9162 Temp. / Humidity 20C /60% Polarity Horizontal Site / Test Engineer AC2 / Stanley Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 61.940 13.21 18.41 31.62 -8.38 40.00 100 334 QP 2 117.630 10.52 16.96 27.48 -16.02 43.50 150 42 QP 3 * 173.400 21.80 15.92 37.72 -5.78 43.50 100 168 QP 4 211.340 12.05 17.79 29.84 -13.66 43.50 200 104 QP 5 399.770 12.20 23.08 35.28 -10.72 46.00 150 242 QP 6 497.100 14.87 24.83 39.71 -6.29 46.00 100 52 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2308TW0104-U2 Page Number: 57 of 219 EUT AX3000 Gigabit Wi-Fi 6 Router Date of Test 2023-08-04 Factor VULB 9162 Temp. / Humidity 20C /60% Polarity Vertical Site / Test Engineer AC2 / Stanley Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 41.940 9.00 19.72 28.72 -11.28 40.00 150 130 QP 2 67.630 19.24 16.38 35.63 …
