  1. Home/
  2. TP-Link Corporation Limited/
  3. 2AXJ4EAP215BRG

2AXJ4EAP215BRG5GHz 867Mbps Long-range Indoor/Outdoor Access Point

TP-Link Corporation Limited
5GHz 867Mbps Long-range Indoor/Outdoor Access Point - FCC ID 2AXJ4EAP215BRG - TP-Link Corporation Limited
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Dec 11, 2023
Application Purpose
Original Equipment
Date of Application
Dec 10, 2023
Equipment Note
5GHz 867Mbps Long-range Indoor/Outdoor Access Point
Frequency Range
5745.00000000 - 5825.00000000
Company
TP-Link Corporation Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Indoor/Outdoor Access Point • Package Contents • Panel Layout © 2023 TP-Link 7106510404 REV1.0.0 • Passive PoE Adapter Power LED: On: Power on Off: Power off Remote Reset: Press and hold for about 8 seconds until the EAP’s Signal and LAN LEDs flash. The EAP will restore factory settings. Overview 1 Note: Images may differ from your actual product. Lightning and ESD Protection Before mounting the EAP, consider Lightning and ESD Protection to ensure safety. Proper grounding is extremely important for outdoor devices. By using shielded CAT5e (or above) cable with ground wire for the connection and the provided PoE adapter (Method 1), you can effectively eliminate ESD attacks. If you use the general CAT5e cable for the connection, then it is necessary to connect the grounding terminal of the EAP to earth ground through grounding cable (Method 2). 4 EAP Grounding Terminal Earth Ground Two Methods: 2 2 1 1 1 1 Grounded PoE Adapter Grounding Cable Shielded CAT5e (or above) Cable with Ground Wire Grounding Terminal and Cable Shielded CAT5e (or above) Cable with Ground Wire Grounded 3-Wire Power Outlet RESET Button Grounding Terminal LAN1(POE IN)LAN2LAN3 Power Port • Mounting Height Site Consideration 2 Ensure a clear line of sight between the wireless devices for an optimum performance. An elevated location is recommended as obstacles like trees, buildings and large steel structures will weaken the wireless signal. Line of Sight Side View Hardware Connection Connect the EAP and power adapter as shown in the figure below. Ethernet cable length up to 100m Prepare an Ethernet cable to connect the EAP and the passive PoE adapter. Shielded CAT5e (or above) cable with ground wire is recommended (refer to the next section). Connect to a computer, router or switch. (Depending on your intended usage and/or network topology) Slide to replace the cover of the EAP when all connections are finished. LAN1(POE IN) PoELAN 3 EAPs EAP Covers Pole Mounting Straps Power Cords Passive PoE Adapters Mounting Kits (Brackets, Wall Anchors, Self-tapping Scr ews) Installation Guide • Orientation Install the EAP devices with the front facing the intended signal receiving devices. You can orient the devices with the assistance of Google Maps, GPS and some landmarks according to the horizontal beamwidth listed below. A shenzhen B Line of Sight Horizontal Beamwidth ModelEAP115-Bridge/EAP215-Bridge 35°70° EAP211-Bridge Horizontal Beamwidth • LED Explanation * When the Locate feature is activated in the Omada controller, the SYSTEM LED flashes quickly to locate and identify the device. The LED will flash for 10 minutes. You can disable the feature manually to stop it from flashing. Signal LEDs LAN LEDs SYSTEM LED Work as Main AP: All LEDs remain solid on. Work as Sub-AP: More lit LEDs indicates better wireless signal strength. On: The port is connected, but no active. Flashing: The port is connected and active. Off: The port is not connected. On: Working normally/Initializing Off: Working abnormally/Power off/LED is turned off. Flash: • Flash twice: Initialization is completed. • Flash quickly: The EAP is resetting, or the Omada controller is locating the device*. • Flash once per second: The EAP is upgrading. • Flash Slowly: The EAP is in the isolated state. Signal LEDs LEDIndication LAN LEDs SYSTEM LED Indoor/Outdoor Access Point © 2023 TP-Link Note: Images may differ from your actual product. Quick Installation Guide Quick Installation Guide Attention: In EU member states, EFTA countries and Northern Ireland, the operation in the frequency range 5150MHz-5350MHz is only permitted indoors. Attention: In Great Britain, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors. For EAP Controller, go to Access Point page and select the desired EAP to specify the channel. For web browser, go to Wireless > Wireless Settings to specify the channel. Safety Information • Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • Do not use damaged charger or USB cable to charge the device. • Do not use any other chargers than those recommended. • Adapter shall be installed near the equipment and shall be easily accessible. • Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us. • Adapter should be used indoors where the ambient temperature is lower than or equal to 40°C. • The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible. • This equipment can be powered only by equipments that comply with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of IEC 62368-1. • Plug the adapter into the wall outlets with earthing connection through the power supply cord. AT EE IS NOPLPTROSESISK UK(NI) ITLILTLULVMTNL ELESFIFRHR HUIE BEBGCH CYCZDEDK UK Method 1: Standalone Mode InternetRouter Management Clients Main APSub-AP Wireless Bridge • Method 1: Standalone Mode Configure and manage bridge AP devices with the Main AP (Convenient for a small network with only a few devices) • Method 2: Controller Mode Configure and manage EAPs in batches on a central platform, namely Omada Controller. Note: • Before you start, be sure to power up and connect your devices according to the topology figure. • A DHCP server (typically a router with DHCP function enabled) is required to assign IP addresses to the EAPs and clients in your local network. Software Configuration 6 Via Web Browser 1. Connect your device to the Main AP by using the default SSIDs printed on the label at the bottom of the product. 2. Launch a web browser and enter http://tplinkeap.net in the address bar. Use admin for both Username and Password to log in. 3. Set up a n…

Text truncated - open the document above for the full version.

Users Manual

Regulatory Compliance Outdoor EAP © 2023 TP-Link 1910013244 REV1.3.0 For Class A Outdoor EAP with adapter: FCC Compliance Information Statement Product Name: Omada Outdoor Access Point Model Number: EAP110-Outdoor Component NameModel I.T.E. Power SupplyTL-POE2406 (EAP110-Outdoor) Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: TL-POE2406 Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2023-08-14 CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. OPERATING FREQUENCY (the maximum transmitted power) 2412MHz—2472MHz(20dBm) EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/ce. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body. Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est …

Text truncated - open the document above for the full version.

Attestation Statements

TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Cover Letter(s)

Declaration of Frequency Stability We [TP-Link Corporation Limited] ensure that the product (FCC ID: 2AXJ4EAP215BRG, IC: 26583-EAP215BRG) meets e-CFR Title 47 section 15.407(g) & RSS-GEN Section 8.11 and KDB 789033 D02v02r01 frequency stability such that the emissions are maintained within the band of operation under all conditions of normal operation as specified in the user's manual. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-11-24

Cover Letter(s)

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4EAP215BRG Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-11-24

Cover Letter(s)

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: 5GHz 867Mbps Long-range Indoor/Outdoor Access Point FCC ID: 2AXJ4EAP215BRG Model: EAP215-Bridge Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-11-24

Cover Letter(s)

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: 5GHz 867Mbps Long-range Indoor/Outdoor Access Point FCC ID: 2AXJ4EAP215BRG Model: EAP215-Bridge Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-11-24

Cover Letter(s)

Non-SDR (Software Defined Radio) Cover Letter Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Answer: No 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. Answer: No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. Answer: No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. Answer: 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR Answer: No Conclusion: According to the above questions reply, we can confirm this device (FCC ID: 2AXJ4EAP215BRG, IC: 26583-EAP215BRG) must be a Non-SDR device. __________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-11-24

External Photos

Report No.: 2310TW0110-UE Product: 5GHz 867Mbps Long- range Indoor/Outdoor Access Point Brand Name: tp-link Model Number: EAP215-Bridge 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2310TW0110-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2310TW0110-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2310TW0110-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2310TW0110-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2310TW0110-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2310TW0110-UE 7 of 7 (13) EUT Photo (14) EUT Photo

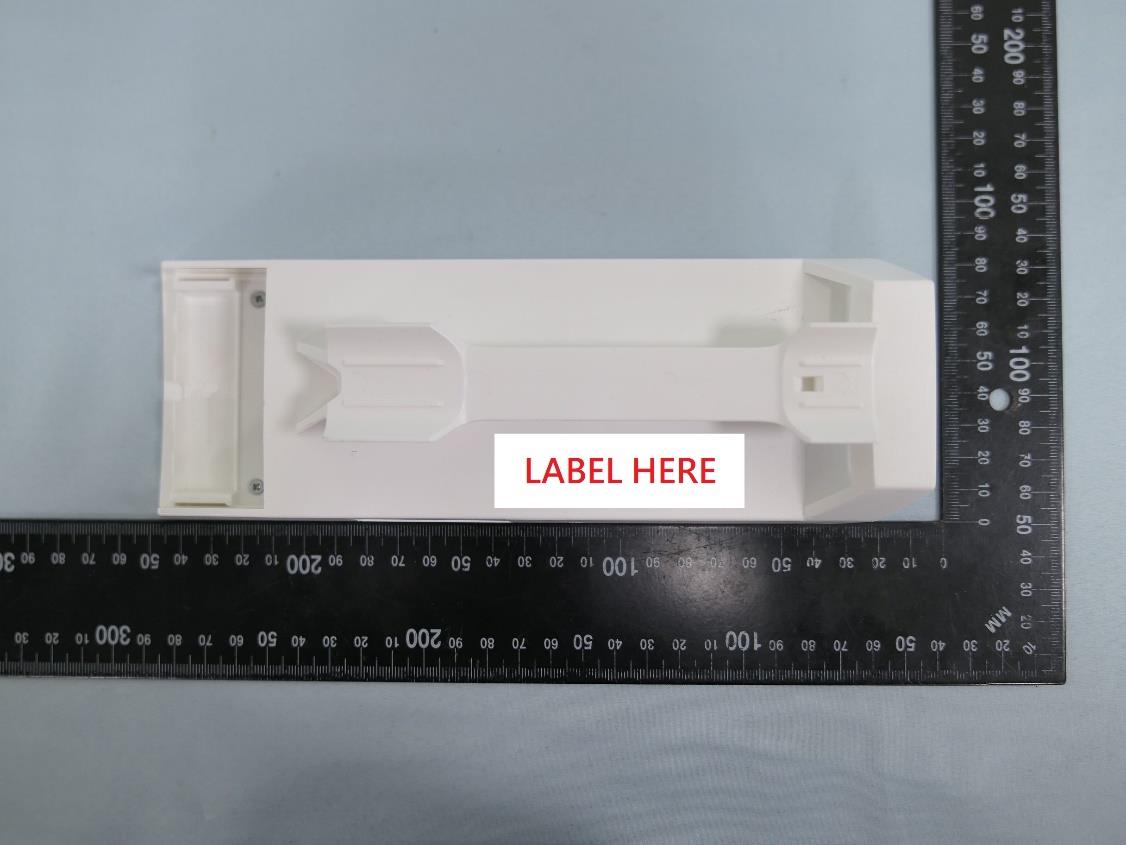

ID Label/Location Info

庄剧慈 镭雕尺寸: 镭雕颜色: EAP215-Bridge(EU & US)1.0 _壳体镭雕 A2 3.7± 0.3 16.7±0.5 深圳市联洲国际技术有限公司 5GHz 867Mbps Long-range Indoor/Outdoor Access Point FCC ID: 2AXJ4EAP215BRG IC: 26583-EAP215BRG TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong MADE IN CHINA Model: EAP215-Bridge Power: 12V 1A Passive PoE: 24V 0.5A Default Access: http://tplinkeap.net Username: admin Password: admin This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Rainproof 菲林图 Device Key: XXXX-XXXX-XXXX-XXXX-XXXX S/N: XXXXXXXXXXXXX Scan for Device Key 2.5±0.3 注: 定位角处粘贴38*14设备Key标贴,工厂自行打印S/N码、设备Key、设备Key二维码。 字体:TP-Link Aktiv Bold 6pt/4.5pt。字号大小可根据实际打印效果调整 设备Key由“XXXXXXXXXXXXXXXXXXXX”生成,文本按 “XXXX-XXXX-XXXX-XXXX-XXXX”格式打印。 图示仅为示意,具体以机型实际/软件生成工具为准 二维码: 尺寸:11.5*11.5±1mm, 码制QR Code; 扫描显示内容(二维码内容为设备Key):XXXXXXXXXXXXXXXXXXXX 66*19mm 尺寸: 颜色: 1.5*1.5mm 尺寸: 颜色: 菲林图 2023-08-03 产品改名Indoor/Outdoor。加Rainproof

Internal Photos

Report No.: 2310TW0110-UI Product: 5GHz 867Mbps Long- range Indoor/Outdoor Access Point Brand Name: tp-link Model Number: EAP215-Bridge 1 of 10 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2310TW0110-UI 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2310TW0110-UI 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2310TW0110-UI 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2310TW0110-UI 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2310TW0110-UI 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2310TW0110-UI 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2310TW0110-UI 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2310TW0110-UI 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2310TW0110-UI 10 of 10 (19) EUT Photo

RF Exposure Info

MRT Technology (Taiwan) Co., Ltd Report No.: 2310TW0110-U3 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2023-12-05 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4EAP215BRG Applicant : TP-Link Corporation Limited Application Type : Certification Product : 5GHz 867Mbps Long-range Indoor/Outdoor Access Point Model No. : EAP215-Bridge Brand Name : tp-link FCC Classification : Unlicensed National Information Infrastructure (NII) Received Date : October 19, 2023 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2310TW0110-U3 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2310TW0110-U3 1.0 Original Report 2023-12-05 Valid Report No.: 2310TW0110-U3 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION ....................................................................................................................... 5 1.1. Scope .............................................................................................................................. 5 1.2. MRT Test Location ......................................................................................................... 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Feature of Equipment under Test ................................................................................... 6 2.2. Description of Available Antennas .................................................................................. 6 2.3. Device Classification ....................................................................................................... 7 2.4. Applied Standards .......................................................................................................... 7 3. RF Exposure Evaluation ......................................................................................................... 8 3.1. Limits .............................................................................................................................. 8 3.2. MPE Exemptions ............................................................................................................ 9 3.3. Test Result of RF Exposure Evaluation ........................................................................ 12 Report No.: 2310TW0110-U3 Page Number: 4 of 12 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2310TW0110-U3 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2310TW0110-U3 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Number of spatial streams Max. Antenna Gain (dBi) Beamforming Directional Gain(dBi) CDD Directional Gain (dBi) For Power For PSD Microstrip 5150 ~ 5250 2 1 7.90 10.91 7.90 10.91 5725 ~ 5850 2 1 7.44 10.45 7.44 10.45 Antenna Gain (at any elevation angle above 30 degrees) Microstrip 5150 ~ 5250 2 1 -2.03 0.98 -2.03 0.98 Notes: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT also supports Beam Forming mode, and the Beam Forming support 802.11ac, not include 802.11a/n. BF Directional gain = G ANT + 10 log (N ANT ). 3. The information as above is from the AUT report. Product Name: 5GHz 867Mbps Long-range Indoor/Outdoor Access Point Model No.: EAP215-Bridge Brand Name: tp-link Specification 802.11a/n/ac Accessory PoE Adapter BRAND: tp-link MODEL: TL-POE2412G INPUT: 100 - 240V ~ 50/60Hz 0.4A. OUTPUT: DC 24.0V 0.5A 12.0W Report No.: 2310TW0…

Text truncated - open the document above for the full version.

Test Report

MRT Technology (Taiwan) Co., Ltd Report No.: 2310TW0110-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2023-12-05 Page Number: 1 of 126 FCC ID : 2AXJ4EAP215BRG Applicant : TP-Link Corporation Limited Application Type : Certification Product : 5GHz 867Mbps Long-range Indoor/Outdoor Access Point Model No. : EAP215-Bridge Brand Name : tp-link FCC Classification : Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : Part15 Subpart E (Section 15.407) Received Date : October 19, 2023 Test Date : October 20, 2023 ~ November 9, 2023 RF MEASUREMENT REPORT Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2310TW0110-U2 Page Number: 2 of 126 Revision History Report No. Version Description Issue Date Note 2310TW0110-U2 1.0 Original Report 2023-12-05 Valid Report No.: 2310TW0110-U2 Page Number: 3 of 126 CONTENTS Description Page General Information .......................................................................................................................... 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Equipment Description .................................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................... 7 2.3. Working Frequencies for this report ................................................................................ 8 2.4. Description of Available Antennas ................................................................................... 8 2.5. Test Mode ....................................................................................................................... 9 2.6. Configuration of Test System ........................................................................................ 10 2.7. Test System Details ...................................................................................................... 10 2.8. Description of Test Software .......................................................................................... 10 2.9. Applied Standards ......................................................................................................... 11 2.10. Duty Cycle ..................................................................................................................... 11 2.11. Test Configuration ......................................................................................................... 12 2.12. EMI Suppression Device(s)/Modifications ..................................................................... 12 2.13. Labeling Requirements ................................................................................................. 12 3. DESCRIPTION …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sarah Wang
[email protected]00852-37585503Fax: 00852-21110695

Technical Contact

MRT Technology (Suzhou) Co., LtdRobin Wu
[email protected]86-512-66308358

D8 Building, Youxin Industrial Park, · Suzhou · China

Non-Technical Contact

MRT Technology (Suzhou) Co., LtdRobin Wu
[email protected]0512-66308358

Test Firm

MRT Technology (Taiwan) Co.,LtdChenz Ker
[email protected]+886-3-328-8388Fax: +886-3-328-8918

Technical Specifications

#Rule PartsFrequency RangePower Output
215E5.75 GHz - 5.83 GHz248.30 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device has 20MHz, 40MHz and 80MHz bandwidth modes.
