2AXJ4AX73V2AX5400 Wi-Fi 6 Router

© 2022 TP-Link 1910013195 REV2.0.0 User Guide AX5400 Wi-Fi 6 Router Archer AX73 Contents About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 1. Get to Know About Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 2. Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1. 2. 3. Side Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Chapter 2. Connect the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. Connect Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Chapter 3. Log In to Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Chapter 4. Set Up Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4. 1. Use Quick Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4. 2. Quick Setup Via TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 4. 3. Manually Set Up Your Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 4. 4. Set Up the Router as an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 4. 5. Set Up an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Chapter 5. TP-Link Cloud Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 3. 1. Add TP-Link ID to Manage the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 5. 3. 2. Remove TP-Link ID(s) from Managing the Router . . . . . . . . . . . . . . . . . . . . . . 25 5. 4. Manage the Router via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Chapter 6. Network Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Chapter 7. Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 7. 1. Specify Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 7. 2. Schedule Your Wireless Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 7. 3. Use WPS for Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 7. 3. 1. Connect via the Client’s PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 7. 3. 2. Connect via the Router’s PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 7. 3. 3. Push the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 7. 4. Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Chapter 8. Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 8. 1. Create a Network for Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 8. 2. Set Up Portal Authentication for the Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . 41 8. 3. Limit the Bandwidth of the Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 8. 4. Specify the Effective Time of the Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 8. 5. Customize Guest Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Chapter 9. USB Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 9. 1. Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 9. 1. 1. Access the USB Device Locally . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 9. 1. 2. Access the USB Device Remotely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 9. 1. 3. Customize the Access Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 9. 2. Media Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 9. 3. Time Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Chapter 10. HomeShield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 10. 1. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited June 30, 2022 Power of Attorney To whom it may concern: I, the undersigned, Abby Liang, hereby authorize the person(s) listed below to act in behalf of me to sign all related documents for FCC application of TP-Link Corporation Limited. Name : Sarah Wang Title : Regulatory Compliance Manager E-mai : [email protected] Tel : 00852-37585503 Company Name : TP-Link Corporation Limited Company Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Authorization peroid: June 30, 2022 ~ June 30, 2023 Should you have any question regarding this power of attorney, please don’t hesitate to contact me. Sincerely, Signed: Name: Abby Liang Company Name: Tel: 00852-37585503 E-mail: [email protected]

TP-Link Corporation Limited 030122-15 Request for Confidentiality Date: July 20, 2022 Subject: Confidentiality Request for: 2AXJ4AX73V2 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-Link Corporation Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager Sarah Wang (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Declare that: Product: AX5400 Wi-Fi 6 Router FCC ID: 2AXJ4AX73V2 Model: Archer AX73 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-07-15

Non-SDR (Software Defined Radio) Cover Letter Date: 2022-07-15 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AX5400 Wi-Fi 6 Router (FCC ID: 2AXJ4AX73V2) must be a Non- SDR. Name: Sarah Wang Position: Regulatory Compliance Manager TP-Link Corporation Limited

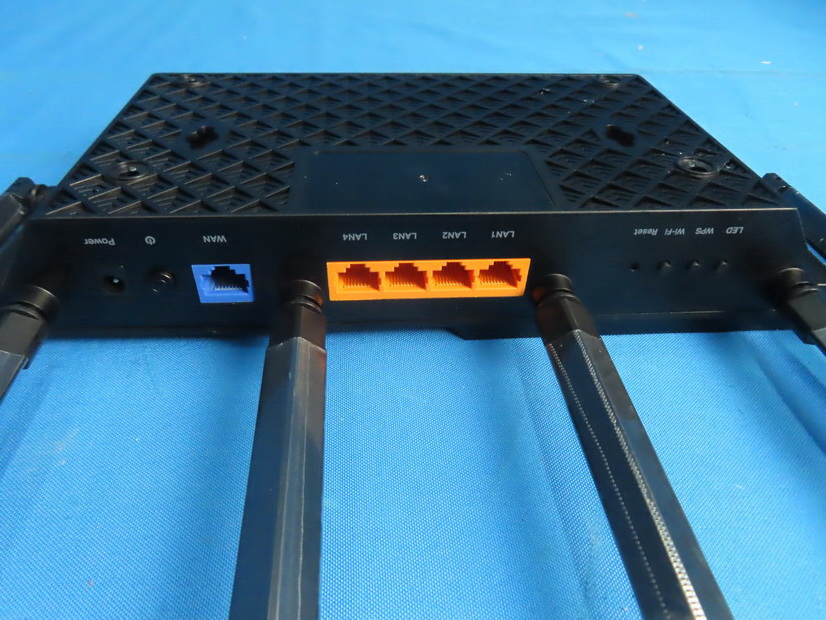

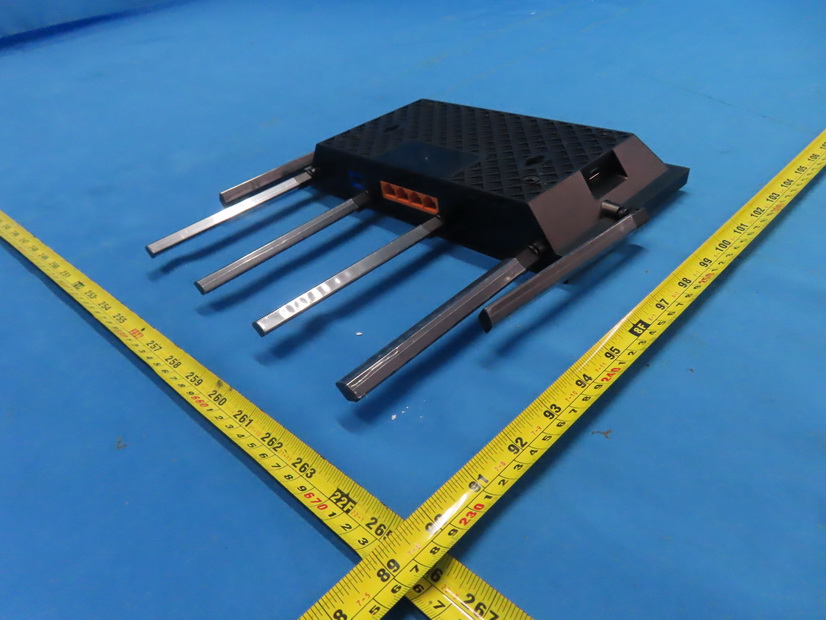

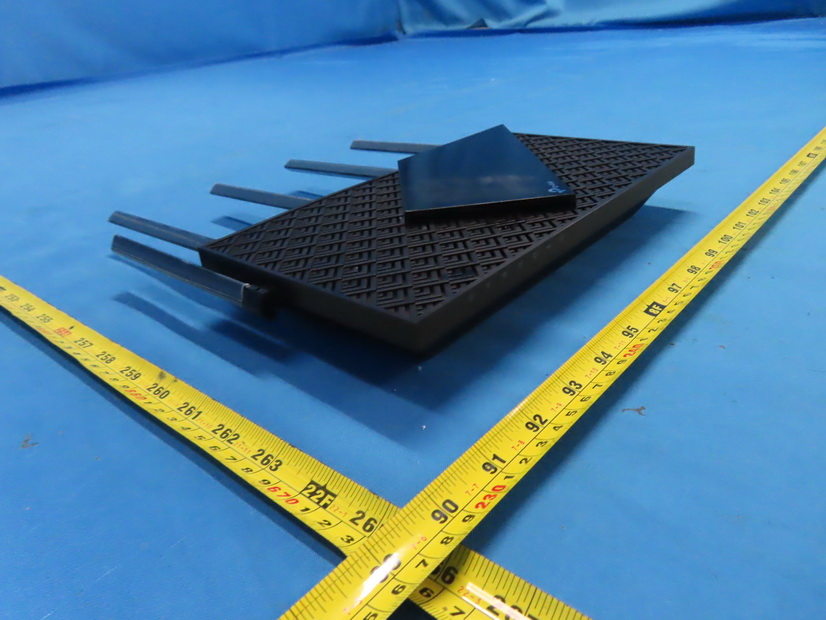

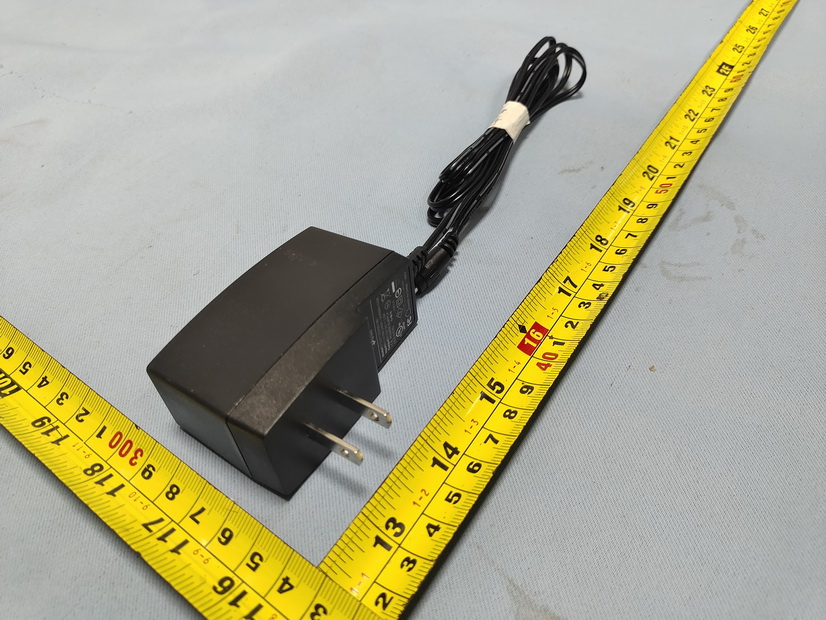

Project No.: 2204C236 Page 1 of 11 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2204C236 Page 2 of 11 Project No.: 2204C236 Page 3 of 11 Project No.: 2204C236 Page 4 of 11 Project No.: 2204C236 Page 5 of 11

69.7*38.2mm, R3.5, C2, 公差±0.2mm 文字转曲线（供应商来料效果图） C B A 12 C 345678 B E D D A 9 料号：7202507706 12345 与上一版的区别 E 6789 颜 色 名 称 版 本 材 质 模 具 机型版本号 logo 底色 文字 其它 结构工程师 硬件工程师 产品工程师 平面负责人 记 录 完成日期 设 计 Archer AX73(US)2.0_产品规格标贴 A1 80g艾利铜版纸+雾膜 屋檐-273 Archer AX73(US)2.0 庄剧慈 2022-02-17 黑色 Pantone 877C 3mm 3mm 3mm 文字方向 文字方向 卷装供货 跳距：3mm 边距：3mm 备注： 1）S/N码由工厂用35*7mm空白标贴（7210500061）打印，贴于锡标指定位置； MAC/PIN/SSID由工厂直接打印于锡标上，MAC条码由“XXXXXXXXXXXX”生成，文本打印成： XX-XX-XX-XX-XX-XX。 2）SSID编码规则以软件为准。 3）图示条码均为示意，具体请以生产实际为准。 Model: Archer AX73(US) Ver:2.0 S/N:XXXXXXXXXXXXX MAC: XX-XX-XX-XX-XX-XX Wireless Password/PIN: XXXXXXXX SSID:TP-Link_XXXX SSID:TP-Link_XXXX_5G JOIN PRESET WI-FI Model: Archer AX73 AX5400 Wi-Fi 6 Router FCC ID: 2AXJ4AX73V2TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong MADE IN CHINA Power: 12V 2.0A Default Access: http://tplinkwifi.net This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 26583-AX73V2 HVIN: Archer AX73V2 8.8mm 31.7mm 二维码制：QR CODE； 二维码尺寸：10*10 mm；误差要求正负1MM； 二维码内容：“WIFI:T:WPA;S:SSID;P:Wireless Password/PIN;;” ，其中“SSID”及“Wireless Password/PIN”内容与产品规格标贴 SSID及Wireless Password/PIN一维码内容对应；对于双频及三频产 品，打印2.4G Wi-Fi的二维码

Project No.: 2204C236 Page 6 of 11 2.4G Ant. 1 2.4G Ant. 2 5G Ant. 1 5G Ant. 2 5G Ant. 3 5G Ant. 4 Project No.: 2204C236 Page 7 of 11 Project No.: 2204C236 Page 8 of 11 Project No.: 2204C236 Page 9 of 11 Project No.: 2204C236 Page 10 of 11 Project No.: 2204C236 Page 11 of 11

Report No.: BTL-FCCP-4-2204C236 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4AX73V2 Project No. : 2204C236 Equipment : AX5400 Wi-Fi 6 Router Brand Name : tp-link Test Model : Archer AX73 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Apr. 25, 2022 Date of Test : Apr. 27, 2022 ~ Jun. 21, 2022 Issued Date : Jul. 28, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG2022042675 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-4-2204C236 Page 2 of 6 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-4-2204C236 R00 Original Report Jul. 28, 2022 Valid Report No.: BTL-FCCP-4-2204C236 Page 3 of 6 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. BTL's Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For 2.4GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 3101503773 Dipole I-PEX 2 2 tp -link 3101503775 Dipole I-PEX 2 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=2 dBi. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi= 2+10log(2/1)dBi=5.01 dBi. 2) Beamforming Gain: 3 dB. So the Directional gain=3+2=5 dBi. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11b V(Ant. 1 + Ant. 2) IEEE 802.11g V(Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V(Ant. 1 + Ant. 2) Report No.: BTL-FCCP-4-2204C236 Page 4 of 6 For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V(Ant. 1 + Ant. 2) For 5GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) Note 1 tp -link 3101503772 Dipole I-PEX 1.95 UNII-1 2 tp -link 3101503774 Dipole I-PEX 3 tp -link 3101503772 Dipole I-PEX 4 tp -link 3101503776 Dipole I-PEX 1 tp -link 3101503772 Dipole I-PEX 1.76 UNII-2A 2 tp -link 3101503774 Dipole I-PEX 3 tp -link 3101503772 Dipole I-PEX 4 tp -link 3101503776 Dipole I-PEX 1 tp -link 3101503772 Dipole I-PEX 2.50 UNII-2C 2 tp -link 3101503774 Dipole I-PEX 3 tp -link 3101503772 Dipole I-PEX 4 tp -link 3101503776 Dipole I-PEX 1 tp -link 3101503772 Dipole I-PEX 2.38 UNII-3 2 tp -link 3101503774 Dipole I-PEX 3 tp -link 3101503772 Dipole I-PEX 4 tp -link 3101503776 Dipole I-PEX Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain=G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the UNII-1 Directional gain=1.95 dBi, the UNII-2A Directional gain=1.76 dBi, the UNII-2C Directional gain=2.50 dBi, the UNII-3 Directional gain=2.38 dBi. For power spectral density measurements, N ANT =4, N SS = 1. Then, the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi. So, For UNII-1: The Directional gain=1.95+10log(4/1)dBi=7.97dBi. For UNII-2A: The Directional gain=1.76+10log(4/1)dBi=7.78dBi. For UNII-2C: The UNII-2C Directional gain=2.50+10log(4/1)dBi=8.52dBi. For UNII-3: The UNII-3 Di rectional gain =2.38+10log(4/1)dBi=8.40dBi. 2) Beamforming Gain: 6dB. Then, For UNII-1: The Directional gain=6+1.95=7.95dBi. For UNII-2A: The Directional gain=6+1.76=7.76dBi. For UNII-2C: The Directional gain=6+2.50=8.50dBi. For UNII-3: The Directional gain=6+2.38=8.38dBi. 3) The antenna gain and beamforming gain are provided by the manufacturer. Report No.: BTL-FCCP-4-2204C236 Page 5 of 6 Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 4TX IEEE 802.11a V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT80) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT160) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax(HE40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax(HE80) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax(HE160) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) For Beamforming: Operating Mode TX Mode 4TX IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT20) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT40) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT80) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ac(VHT160) V (Ant. 1 + Ant. 2 + Ant. 3 + Ant. 4) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2 + Ant. 3 + An…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2204C236 Page 1 of 260 FCC DFS Test Report FCC ID: 2AXJ4AX73V2 This report concerns: Original Grant Project No. : 2204C236 Equipment : AX5400 Wi-Fi 6 Router Brand Name : tp-link Test Model : Archer AX73 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Apr. 25, 2022 Date of Test : Apr. 27, 2022 ~ Jul. 13, 2022 Issued Date : Jul. 13, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG2022042673 Standard(s) : FCC CFR Title 47, Part 15, Subpart E FCC KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2204C236 Page 2 of 260 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments μsed has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report mμst not be μsed by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatμs meets the essential requirements of applied standards and in all the possible configurations as representative of its intended μse. Limitation For the μse of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not μse in determining the Pass/Fail results. Report No.: BTL-FCCP-3-2204C236 Page 3 of 260 Table of Contents Page REPORT ISSUED HISTORY 4 1 . TEST FACILITY 5 2 . TEST ENVIRONMENT CONDITIONS 5 3 . SUMMARY OF TEST RESULTS 5 4 . GENERAL INFORMATION 6 4.1 GENERAL DESCRIPTION OF EUT 6 4.2 MAXIMUM OUTPUT POWER AND E.I.R.P. 10 4.3 TRANSMIT POWER CONTROL (TPC) 11 4.4 DESCRIPTION OF TEST MODES 14 5 . U-NII DFS RULE REQUIREMENTS 15 5.1 WORKING MODES AND REQUIRED TEST ITEMS 15 5.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 16 6 . MEASUREMENT INSTRUMENTS LIST 19 7 . DYNAMIC FREQUENCY SELECTION (DFS) 20 7.1 DFS MEASUREMENT SYSTEM 20 7.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL 24 7.3 DEVIATION FROM TEST STANDARD 24 8 . TEST RESULTS 25 8.1 SUMMARY OF DFS TEST RESULT 25 8.2 DFS DETECTION THRESHOLD 26 8.3 RADAR TEST WAVEFORMS 30 8.4 CHANNEL AVAILABILITY CHECK TIME 215 8.5 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME 227 8.6 STATISTICAL PERFORMANCE CHECK 232 8.7 NON-OCCUPANCY PERIOD 248 8.8 U-NII DETECTION BANDWIDTH 250 9 . EUT TEST PHOTO 259 Report No.: BTL-FCCP-3-2204C236 Page 4 of 260 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-3-2204C236 R00 Original Report Jul. 13, 2022 Valid Report No.: BTL-FCCP-3-2204C236 Page 5 of 260 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. BTL's Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By Dynamic Frequency Selection (DFS) 24-25°C 48-58% AC 120V/60Hz Golden Yu 3. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart E Standard(s) Section Test Item Test Result Judgment Remark FCC 15.407(h) Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) ------ PASS ------ Report No.: BTL-FCCP-3-2204C236 Page 6 of 260 4. GENERAL INFORMATION 4.1 GENERAL DESCRIPTION OF EUT Equipment AX5400 Wi-Fi 6 Router Brand Name tp-link Test Model Archer AX73 Series Model N/A Model Difference(s) N/A Power Source DC voltage supplied from AC adapter. Model: T120200-2B1 Power Rating I/P: 100-240V~ 50/60Hz 0.8A O/P: 12V2.0A Operation Frequency Band(s) UNII-2A: 5250 MHz ~ 5350 MHz UNII-2C: 5470 MHz ~ 5725 MHz Modulation Type IEEE 802.11a/n/ac: OFDM IEEE 802.11ax: OFDMA Bit Rate of Transmitter IEEE 802.11a: 54/48/36/24/18/12/9/6 Mbps IEEE 802.11n: up to 600 Mbps IEEE 802.11ac: up to 3466.8 Mbps IEEE 802.11ax: up to 4804 Mbps Operating Mode(s) Master Client device without radar detection Client device with radar detection Maximum Output Power _UNII-2A Non Beamforming IEEE 802.11ax(HE40): 23.97 dBm (0.2495 W) Maximum…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-3-2204C236 Page 223 of 260 IEEE 802.11ac(VHT80) Mode Radar Burst at the End of the Channel Availability Check Time Note: T1 denotes the end of power up time period is 0 second. T3 denotes 54 second and radar burst was commenced within 54 second to 60 second indow starting from the end of power-up sequence. T4 denotes the 60 second. Report No.: BTL-FCCP-3-2204C236 Page 224 of 260 IEEE 802.11ax(HE160) Mode Initial Channel Availability Check Time Note: T1 denotes the end of power-up time period is 0 second. T4 denotes the end of Channel Availability Check time is 60 second. Channel Availability Check time is equal to (T4 - T1) 60 seconds. Report No.: BTL-FCCP-3-2204C236 Page 225 of 260 IEEE 802.11ax(HE160) Mode Radar Burst at the Beginning of the Channel Availability Check Time Note: T1 denotes the end of power up time period is 0 second. T2 denotes 6 second. The radar burst was commenced within a 6 second window starting from the end of power-up sequence. T4 denotes the 60 second. Report No.: BTL-FCCP-3-2204C236 Page 226 of 260 IEEE 802.11ax(HE160) Mode Radar Burst at the End of the Channel Availability Check Time Note: T1 denotes the end of power up time period is 0 second. T3 denotes 54 second and radar burst was commenced within 54 second to 60 second indow starting from the end of power-up sequence. T4 denotes the 60 second. Report No.: BTL-FCCP-3-2204C236 Page 227 of 260 8.5 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME TX (IEEE 802.11a Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2204C236 Page 228 of 260 TX (IEEE 802.11n(HT40) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2204C236 Page 229 of 260 TX (IEEE 802.11ac(VHT80) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2204C236 Page 230 of 260 TX (IEEE 802.11ax(HE160) Mode) Radar signal 0 Note: T0 denotes the Radar Injection Start. T1 denotes the start of Channel Move Time upon the end of the last Radar burst. T2 denotes the data transmission time of 200ms from T1. T3 denotes the end of Channel Move Time. Note: An expanded plot for the device vacates the channel in the required 500ms Report No.: BTL-FCCP-3-2204C236 Page 231 of 260 IEEE 802.11a Mode Item Measured Value(s) Limit(s) Channel Move Time 0.9109772 10 Channel Close Time 0.0054999 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11n(HT40) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.8299793 10 Channel Close Time 0.0054999 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11ac(VHT80) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.2379941 10 Channel Close Time 0.01 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. IEEE 802.11ax(HE160) Mode Item Measured Value(s) Limit(s) Channel Move Time 0.2109947 10 Channel Close Time 0.01 200 milliseconds + an aggregate of 60 milliseconds over remaining 10 second period. Report No.: BTL-FCCP-3-2204C236 Page 232 of 260 8.6 STATISTICAL PERFORMANCE CHECK TX (IEEE 802.11a Mode) Table 1: Short Pulse Radar Test Waveforms. Radar Type Pulse Width (μsec) PRI (μsec) Number of Pulses Pass times Fail times Percentage of Successful Detection (%) 1 1 28 2 93% 2 1-5 150-230 23-29 27 3 90% 3 6-10 200-500 16-18 27 3 90% 4 11-20 200-500 12-16 29 1 97% Aggregate (Radar Types 1-4) 111 9 93% Table 2: Long Pulse Radar Test Waveform Radar Type Pulse Width (μsec) Chirp Width (MHz) PRI (μsec) Number of Pulses Per Burst Number of Bursts Pass times Fail times Percent…
