2AXJ4AXE300AXE16000 Quad-Band Wi-Fi 6E Router

© 2022 TP-Link 1910013121 REV1.0.0 User Guide AXE16000 Quad-Band Wi-Fi 6E Router Archer AXE300 Contents About This Guide 1 Chapter 1 Get to Know About Your Router 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 2. Back Panel and Side Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2 Connect the Hardware 7 2. 1. Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. Connect Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Chapter 3 Log In to Your Router 11 Chapter 4 Set Up Internet Connection 13 4. 1. Use Quick Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4. 2. Quick Setup Via TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 4. 3. Manually Set Up Your Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 4. 4. Set Up the Router as an Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 4. 5. Set Up an IPv6 Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Chapter 5 TP-Link Cloud Service 23 5. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 5. 3. 1. Add TP-Link ID to Manage the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 5. 3. 2. Remove TP-Link ID(s) from Managing the Router. . . . . . . . . . . . . . . . . . . . . .26 5. 4. Manage the Router via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Chapter 6 Wireless Settings 28 6. 1. Specify Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 6. 2. Schedule Your Wireless Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 6. 3. Use WPS for Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 6. 3. 1. Connect via the Client’s PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 6. 3. 2. Connect via the Router’s PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 6. 3. 3. Push the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 6. 4. Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Chapter 7 Guest Network 36 7. 1. Create a Network for Guests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 7. 2. Customize Guest Network Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Chapter 8 USB Settings 39 8. 1. Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 8. 1. 1. Access the USB Device Locally. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 8. 1. 2. Access the USB Device Remotely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 8. 1. 3. Customize the Access Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 8. 2. Media Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 8. 3. Time Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Chapter 9 HomeShield 48 9. 1. Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 9. 2. Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 9. 3. Network Analysis & Optimization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Chapter 10 OneMesh with Seamless Roaming 52 10. 1. Set Up a OneMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 10. 2. Manage Devices in the OneMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Chapter 11 Network Security 57 11. 1. Protect the Network from Cyber Attacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 11. 2. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 11. 3. IP & MAC Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 11. 4. ALG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Chapter 12 NAT Forwarding 63 12. 1. Share Local Resources on the Internet by Port Forwarding . . . . . . . . . . . . . . . . . .64 12. 2. Open Ports Dynamically by Port Triggering. . .…

Text truncated - open the document above for the full version.

75 Chapter 13 VPN Server 4. Select Use my Internet connection (VPN). 5. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field. Click Next. 76 Chapter 13 VPN Server 6. Enter the User name and Password you have set for the PPTP VPN server on your router, and click Connect. 7. The PPTP VPN connection is created and ready to use. 77 Chapter 13 VPN Server Chapter 14 Customize Your Network Settings This chapter guides you on how to configure advanced network features. It contains the following sections: • Change the LAN Settings • Configure to Support IPTV Service • Specify DHCP Server Settings • Set Up a Dynamic DNS Service Account • Create Static Routes 79 Chapter 14 Customize Your Network Settings 14 1 Change the LAN Settings The router is preset with a default LAN IP 192.168.0.1, which you can use to log in to its web management page. The LAN IP address together with the Subnet Mask also defines the subnet that the connected devices are on. If the IP address conflicts with another device on your local network or your network requires a specific IP subnet, you can change it. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Network > LAN. 3. Type in a new IP Address appropriate to your needs. And leave the Subnet Mask as the default settings. 4. Click S AV E. Note: If you have set the Port Forwarding, DMZ or DHCP address reservation, and the new LAN IP address is not in the same subnet with the old one, then you should reconfigure these features. 14 2 Configure to Support IPTV Service I want to: Configure IPTV setup to enable Internet/IPTV/Phone service provided by my internet service provider (ISP). How can I do that? 1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2 Go to Advanced > Network > IPTV/VLAN. 3 If your ISP provides the networking service based on IGMP technology, e.g., British Telecom(BT) and Talk Talk in UK: 1 ) Tick the IGMP Proxy and IGMP Snooping checkbox, then select the IGMP Version, either V2 or V3, as required by your ISP. 80 Chapter 14 Customize Your Network Settings 2 ) Click S AV E. 3 ) After configuring IGMP proxy, IPTV can work behind your router now. You can connect your set-top box to any of the router’s Ethernet port. If IGMP is not the technology your ISP applies to provide IPTV service: 1 ) Tick Enable IPTV/VLAN. 2 ) Select the appropriate Mode according to your ISP. • Select Bridge if your ISP is not listed and no other parameters are required. • Select Custom if your ISP is not listed but provides necessary parameters. 3 ) After you have selected a mode, the necessary parameters, including the LAN port for IPTV connection, are predetermined. If not, select the LAN type to determine which port is used to support IPTV service. 4 ) Click S AV E. 5 ) Connect the set-top box to the corresponding LAN port which is predetermined or you have specified in Step 3. Done! Your IPTV setup is done now! You may need to configure your set-top box before enjoying your TV. 81 Chapter 14 Customize Your Network Settings 14 3 Specify DHCP Server Settings By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and the router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client devices from the IP Address Pool. You can change the settings of the DHCP Server if necessary, and you can reserve LAN IP addresses for specified client devices. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Network > DHCP Server. • To specify the IP address that the router assigns: 1. Tick the Enable checkbox. 2. Enter the starting and ending IP addresses in the IP Address Pool. 3. Enter other parameters if the ISP offers. The Default Gateway is automatically filled in and is the same as the LAN IP address of the router. 4. Click S AV E. • To reserve an IP address for a specified client device: 1. Click Add in the Address Reservation section. 82 Chapter 14 Customize Your Network Settings 2. Click VIEW CONNECTED DEVICES and select the you device you want to reserve an IP for. Then the MAC Address will be automatically filled in. Or enter the MAC address of the client device manually. 3. Enter the IP address to reserve for the client device. 4. Click S AV E. 14 4 Set Up a Dynamic DNS Service Account Most ISPs assign a dynamic IP address to the router and you can use this IP address to access your router remotely. However, the IP address can change from time to time and you don’t know when it changes. In this case, you might apply the DDNS (Dynamic Domain Name Server) feature on the router to allow you and your friends to access your router and local servers (FTP, HTTP, etc.) using a domain name without checking and remembering the IP address. Note: DDNS does not work if the ISP assigns a private WAN IP address (such as 192.168.1.x) to the router. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Network > Dynamic DNS. 3. Select the DDNS Service Provider: TP-Link, NO-IP or DynDNS. It is recommended to select TP-Link so that you can enjoy TP-Link’s superior DDNS service. Otherwise, please select NO-IP or DynDNS. If you don’t have a DDNS account, you have to register first by clicking Register Now. Note: To enjoy TP-Link’s DDNS service, you have to log in with a TP-Link ID. If you have not logged in with one, click log in. 4. Click Register in the Domain Name List if you have selected TP-Link, and enter the Domain Name as needed. 83 Chapter 14 Customize Your Network Settings If you have selected NO-IP or DynDNS, enter the username, password and domain name of your account. 5. Click LOGIN AND SAVE. Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account. 14 5 Create Static Routes Static routing is a…

Text truncated - open the document above for the full version.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4AXE300 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-09-05

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AXE16000 Quad-Band Wi-Fi 6E Router FCC ID: 2AXJ4AXE300 Model: Archer AXE300 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-09-05

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: AXE16000 Quad-Band Wi-Fi 6E Router FCC ID: 2AXJ4AXE300 Model: Archer AXE300 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-09-05

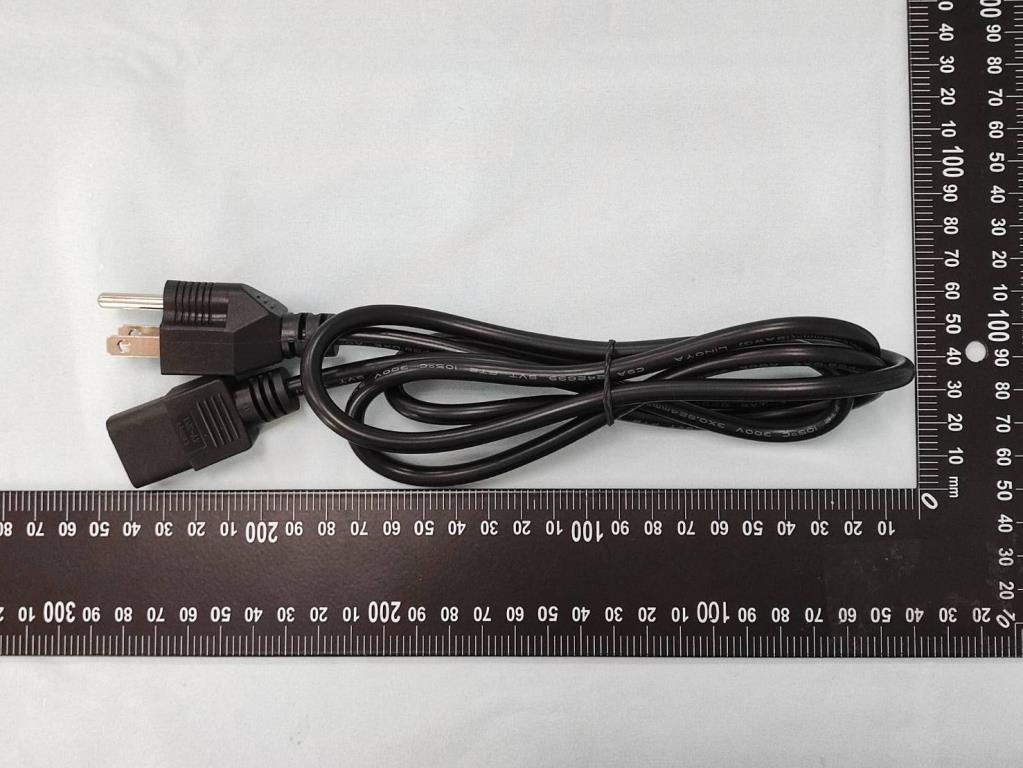

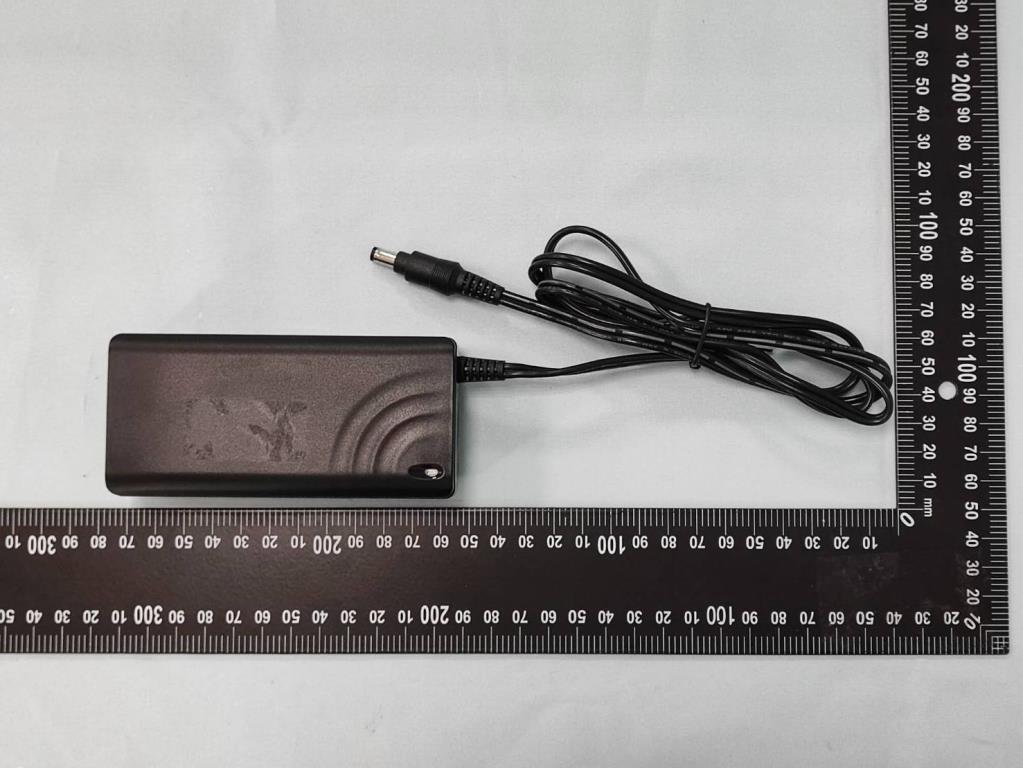

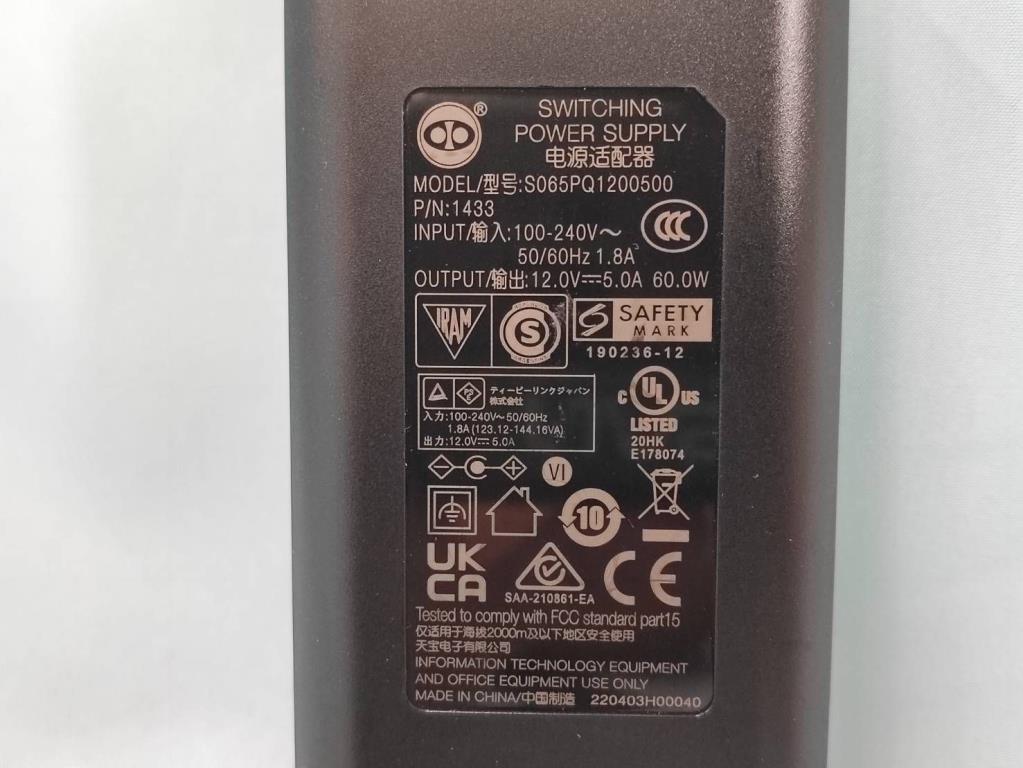

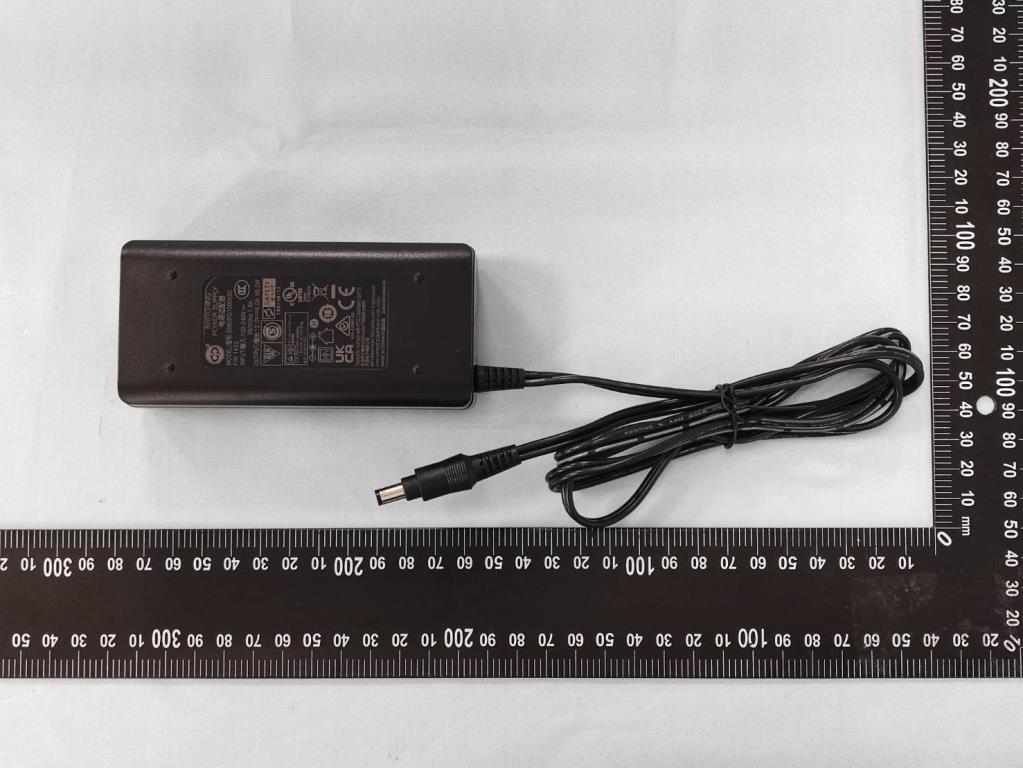

Report No.: 2206TW0120-U1~U6 Product: AXE16000 Quad-Band Wi-Fi 6E Router Brand Name: tp-link Model Number: Archer AXE300 1 of 8 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206TW0120-U1~U6 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2206TW0120-U1~U6 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2206TW0120-U1~U6 4 of 8 (7) EUT Photo (8) Adapter Report No.: 2206TW0120-U1~U6 5 of 8 (9) Adapter (10) Adapter Report No.: 2206TW0120-U1~U6 6 of 8 (11) Adapter (12) Adapter Report No.: 2206TW0120-U1~U6 7 of 8 (13) Adapter (14) Adapter Report No.: 2206TW0120-U1~U6 8 of 8 (15) Adapter

Label Label Location

Report No.: 2206TW0120-U1~U6 Product: AXE16000 Quad-Band Wi-Fi 6E Router Brand Name: tp-link Model Number: Archer AXE300 1 of 11 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206TW0120-U1~U6 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 2206TW0120-U1~U6 3 of 11 (5) EUT Photo (6) EUT Photo Report No.: 2206TW0120-U1~U6 4 of 11 (7) EUT Photo (8) EUT Photo Report No.: 2206TW0120-U1~U6 5 of 11 (9) EUT Photo (10) EUT Photo Report No.: 2206TW0120-U1~U6 6 of 11 (11) EUT Photo (12) EUT Photo Report No.: 2206TW0120-U1~U6 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 2206TW0120-U1~U6 8 of 11 (15) EUT Photo (16) EUT Photo Report No.: 2206TW0120-U1~U6 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 2206TW0120-U1~U6 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 2206TW0120-U1~U6 11 of 11 (21) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2206TW0120-U6 Phone: +886-3-3288388 Report Version V1.0 Web: www.mrt-cert.com Issue Date: 2022-09-09 FCC ID: 2AXJ4AXE300 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4AXE300 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AXE16000 Quad-Band Wi-Fi 6E Router Model No. : Archer AXE300 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) 15E 6GHz Low Power Indoor Access Point (6ID) Result : Complies Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2206TW0120-U6 1.0 Initial Report 2022-09-09 Valid Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION .................................................................................................................... 5 1.1. Scope .......................................................................................................................... 5 1.2. MRT Test Location ....................................................................................................... 5 2. PRODUCT INFORMATION .................................................................................................... 6 2.1. Feature of Equipment under Test ................................................................................. 6 2.2. Description of Available Antennas ................................................................................ 6 2.3. Applied Standards ........................................................................................................ 7 3. RF Exposure Evaluation ...................................................................................................... 8 3.1. Test Limits .................................................................................................................... 8 3.2. MPE Exemptions ......................................................................................................... 9 3.3. Calculated Result ........................................................................................................12 Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 4 of 12 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name AXE16000 Quad-Band Wi-Fi 6E Router Model No. Archer AXE300 Brand Name tp-link Bluetooth Specification Bluetooth v4.2 (Single mode, LE only) Wi-Fi Specification: 802.11a/b/g/n/ac/ax Adapter MODEL: S065PQ1200500 INPUT: 100 - 240V ~ 50/60Hz 1.8A. OUTPUT: 12.0V⎓5.0A Cable Out: Non-shielding, 1.2m 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Number of spatial streams Max Antenna Gain (dBi) Beamforming Directional Gain(dBi) CDD Directional Gain (dBi) For Power For PSD Bluetooth Antenna IFA 2402 ~ 2480 1 1 3.0 -- -- -- Wi-Fi Antenna Dipole 2412 ~ 2462 4 1 2.91 8.93 2.91 8.93 5150 ~ 5250 4 1 3.02 9.04 3.02 9.04 5250 ~ 5350 4 1 3.08 9.10 3.08 9.10 5470 ~ 5725 4 1 3.13 9.15 3.13 9.15 5725 ~ 5850 4 1 2.97 8.99 2.97 8.99 6105 ~ 6425 4 1 3.10 9.12 3.10 9.12 4 4 3.10 -- 3.10 3.10 6425 ~ 6525 4 1 3.03 9.05 3.03 9.05 4 4 3.03 -- 3.03 3.03 6525 ~ 6885 4 1 3.04 9.06 3.04 9.06 4 4 3.04 -- 3.04 3.04 6885 ~ 7105 4 1 2.93 8.95 2.93 8.95 4 4 2.93 -- 2.93 2.93 Remark: Report No.: 2206TW0120-U6 FCC ID: 2AXJ4AXE300 Page Number: 7 of 12 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain …

Text truncated - open the document above for the full version.

Product Number: Product Name: Antenna Product Number: Product Name: Antenna Specification For Approval Date: File No. : Version: 1.0 Customer: / Customer P/N : / TP-LINK P/N: Description: Archer AXE300(US)1.0 Bluetooth TP-LINK Checked By: Customer Approved By: TP-LINK TECHNOLOGIES CO., LTD. South Buiding, No.5 Keyuan Road, Central Zone, Science&Technology Park, Nanshan, Shenzhen, P.R.China TEL: + 86 755 26612350 + 86 755 26504400 http:// www.tp-link.com Product Number: Product Name: Antenna Index I. Specification ..................................................................................................... 1 II. Antenna – Radiation Pattern Test Data .......................................................... 2 Product Number: Product Name: Antenna Page 1 Version:1.0 Issue Date: I. Specification A. Electrical Characteristics Frequency 2400 ~ 2500MHz Impedance 50 Ohm S.W.R. <= 2.0 Antenna Type IFA Antenna Gain [email protected]~2.5GHz Polarization Linear Radiation pattern Omni-Directional Product Number: Product Name: Antenna Page 2 Version:1.0 Issue Date: II. Antenna – Radiation Pattern Test Data Testing Equipment Specification Microwave Chamber ETS Testing Equipment Agilent 5071B S参数 PeakGain Peak Gain Freq（MHz） 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain（dB） 2.58 2.68 2.75 2.66 3.00 2.92 2.90 2.64 2.53 2.29 2.28 Efficiency Efficiency Freq（MHz） 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 % 80.52 80.75 81.87 80.72 81.15 82.24 82.29 81.04 80.13 79.97 78.93 Product Number: Product Name: Antenna Page 3 Version:1.0 Issue Date: Theta=90° Phi=0° Phi=90°

MRT Technology (Taiwan) Co., Ltd Report No.: 2206TW0120-U1 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2022-09-09 Web: www.mrt-cert.com FCC ID: 2AXJ4AXE300 Page Number: 1 of 59 FCC ID : 2AXJ4AXE300 APPLICANT : TP-Link Corporation Limited Application Type : Certification Product : AXE16000 Quad-Band Wi-Fi 6E Router Model No. : Archer AXE300 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part 15.247 Test Procedure(s) : ANSI C63.10-2013 Received Date : June 28, 2022 Test Date : July 14, 2022~ July 27, 2022 MEASUREMENT REPORT Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2206TW0120-U1 FCC ID: 2AXJ4AXE300 Page Number: 2 of 59 Revision History Report No. Version Description Issue Date Note 2206TW0120-U1 1.0 Original Report 2022-09-09 Valid Report No.: 2206TW0120-U1 FCC ID: 2AXJ4AXE300 Page Number: 3 of 59 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Standard .................................................................. 7 2.3. Test Mode ............................................................................................................................. 7 2.4. Operation Frequency / Channel List ...................................................................................... 8 2.5. Test Configuration ................................................................................................................. 9 2.6. Test System Details .............................................................................................................. 9 2.7. Test Software ........................................................................................................................ 9 2.8. EMI Suppression Device(s)/Modifications ........................................................................... 10 2.9. Labeling Requirements ....................................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .......................................................................................................... 11 3.2. AC Line Conducted Emissions ............................................................................................ 11 3.3. Radiated Emissions ............................................................................................................ 12 4. ANTENNA REQUIREMENTS ................................................................................................ 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 15 7. TEST RESULT ...................................................................................................................... 16 7.1. Summary ............................................................................................................................. 16 7.2. 6dB Bandwidth Measurement ............................................................................................. 17 7.2.1. Test Limit ......................................................................................................................... 17 7.2.2. Test Procedure used ....................................................................................................... 17 7.2.3. Test Setting ..................................................................................................................... 17 7.2.4. Test Setup ....................................................................................................................... 17 7.2.5. Test Result ...................................................................................................................... 18 7.3. Output Power Measurement ................................................................................................ 19 7.3.1. Test Limit ......................................................................................................................... 19 7.3.2. Test Procedure Used ....................................................................................................... 19 7.3.3. Test Setting ..................................................................................................................... 19 7.3.4. Test Setup .......................................................................................................................…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2206TW0120-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2022-09-09 FCC ID: 2AXJ4AXE300 Page Number: 1 of 206 FCC ID : 2AXJ4AXE300 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AXE16000 Quad-Band Wi-Fi 6E Router Model No. : Archer AXE300 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Received Date : June 28, 2022 Test Date : July 08, 2022~ July 28, 2022 RF MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement pro…

Text truncated - open the document above for the full version.
