2AXJ4C110Home Security Wi-Fi Camera

User Guide Home Security Wi-Fi Camera Tapo C110 © 2021 TP-Link 1910012986 REV1.0.0 Contents About This Guide ······················································································1 Introduction ·································································································2 Appearance ·································································································3 Set Up Your Camera ················································································4 Setup using Amazon Frustration-Free Setup ···························6 Main Camera Controls ········································································10 Motion Detection ···················································································12 24-hour Recordings ·············································································16 Privacy Mode ···························································································18 Authentication ·························································································19 1 About This Guide This guide provides a brief introduction to the Home Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available of the Tapo smart camera may vary by model and software version. The availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following convention is used: Convention Description Blue Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. Note: Ignoring this type of note might result in a malfunction or damage to the device. More Info • Specifications can be found on the product page at https://www.tapo.com. • Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/. • The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras. 2 Introduction When you are away home, there are always something you care about. This is where the smart camera functions. No matter your child is climbing the kitchen cabinet, or the pet is stealing snacks, Tapo C110 helps you stay with them anytime, anywhere. • 3MP High-Definition – Provide greater sharpness and clarity. • Night Vision – Even at night, the camera can provide a visual distance of up to 30 ft. • Live View – Always stay with what matters most to you anytime, anywhere. • Two-Way Audio – Communicate with loved ones with the built-in microphone and speaker. • Sound and Light Alarm – Trigger light and sound effects to frighten away unwanted visitors. • Privacy Mode - Shut down the surveillance to protect your privacy. • Sharing - Share the memorable moments with your family and friends. • Easy Setup - Set up the camera with free app within minutes. • Safe Storage – Store up to 256 GB on a microSD card † , equal to 512 hours (21 days) of footage △ . † microSD card needs to be purchased separately. △ The data comes from TP-Link laboratory. 3 Appearance The Home Security Wi-Fi Camera has a system LED that changes color according to its status, an alert light, lens, microphone, DC power port, RESET button, and a microSD card slot. Refer below for details. microSD Card Slot Insert a microSD card and initialize it on the app for local recording. System LED • Solid red: Starting up • Blinking red and green: Ready for setup • Blinking red slowly: Connecting to Wi-Fi • Solid amber: Connected to Wi-Fi • Solid green: Connected to TP-Link Cloud server • Blinking red quickly: Camera resetting • Blinking green quickly: Camera updating RESET Button Press and hold for at least 5 seconds until the LED blinks red to reset your camera. Alert Light Blinks to alert you when the activity detected. DC Power Port Connect the power cord provided. Lens Microphone Built-in internal microphone. Note: Do NOT insert objects into the hole. 4 Set Up Your Camera Follow the steps below to get started with your new camera. Step 1. Download App Get the Tapo app from the Apple App Store or Google Play, or by scanning the QR code below. OR Step 2. Log In Open the app, and log in with your TP-Link ID. If you don't have an account, create one first. Step 3. Add Your Camera Tap the button in the app and select your model. 5 Step 4. Configure Camera Follow app instructions to configure your camera and add it to your home network. Step 5. Place Camera Place your camera on a flat surface, or install it on a wall or ceiling with the provided mounting screws. 1. Mark Position Place the mounting template where you want the camera. For wall mounting, drill two holes through two circles. 2. Mount Base Affix two mounting screws with the help of mounting template. For wall mounting, insert two anchors into holes and screw the screws into the anchors. 3. Secure Camera Hang your camera on the screws. Unit: mm 6 Setup using Amazon Frustration-Free Setup What is Amazon Frustration-Free Setup? Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device. To use this feature, confirm the following: ● The new Tapo device supports Amazon FFS. ● You have an Amazon FFS enabled Alexa device or router. ● You have saved your Wi-Fi information to Amazon by using Alexa echo. ● Your Tapo device and router are on the same network as your Alexa echo. LED Indications during Amazon Frustration-Free Setup LEDStatus Blinking orange and greenReady for setup Blinking orangeFFS setup in progress Solid greenWorking properly If the LED does not turn solid green after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once. Then open the Tapo app, tap the + button on the pag…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2021-08-13 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2022-08-13 By: ______________ _______Abby Liang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-08-13 Subject: Confidentiality Request for: 2AXJ4C110 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-08-13 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Declare that: Product description: Home Security Wi-Fi Camera Type designation: Tapo C110 Brand: tp-link, tapo FCC ID: 2AXJ4C110 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: _______________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

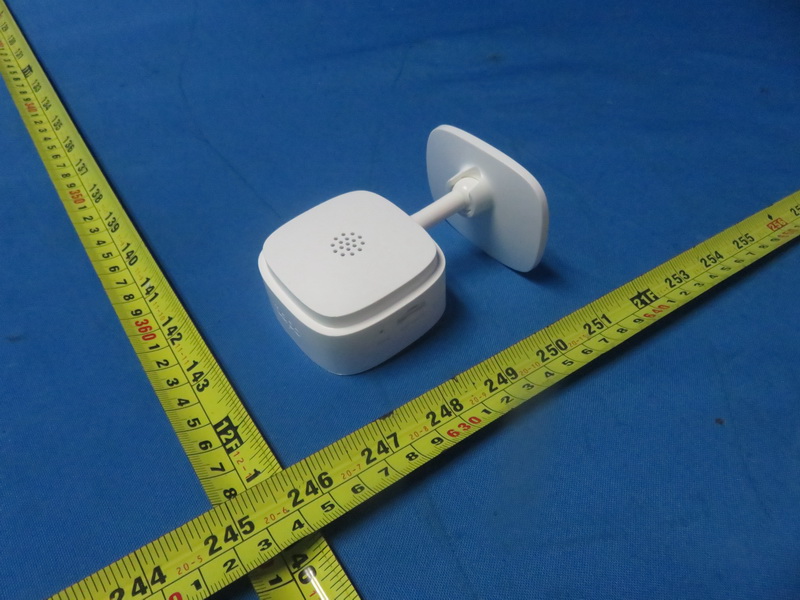

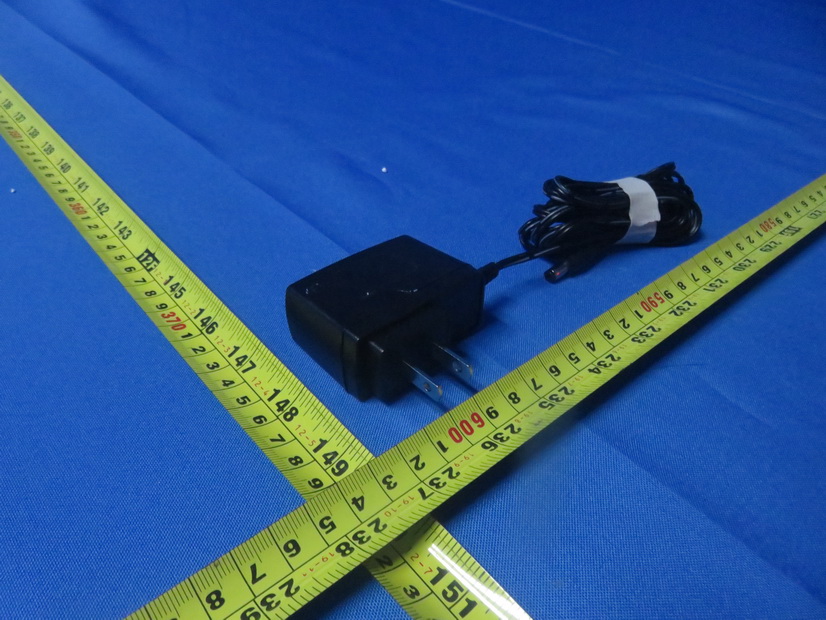

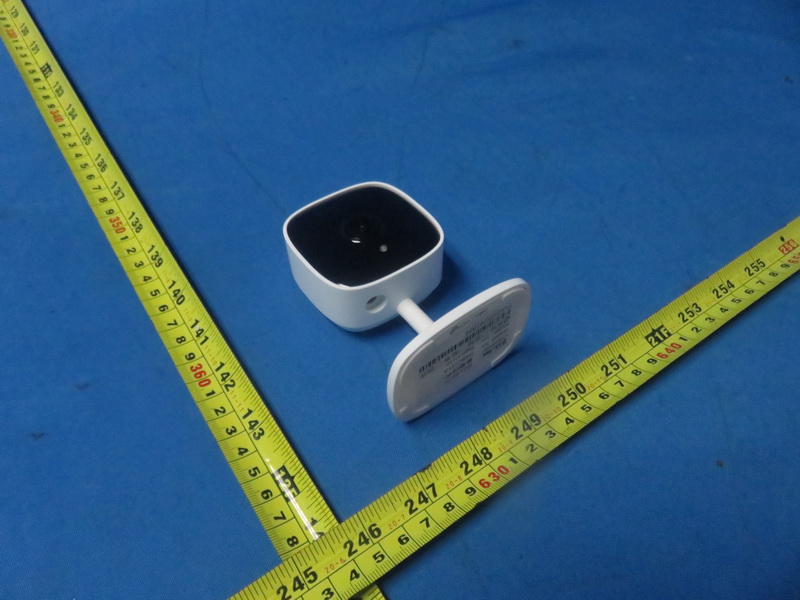

Report No.: 2008C121B Page 1 of 9 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2008C121B Page 2 of 9 Report No.: 2008C121B Page 3 of 9 Report No.: 2008C121B Page 4 of 9 Report No.: 2008C121B Page 5 of 9

Report No.: 2008C121B Page 6 of 9 Report No.: 2008C121B Page 7 of 9 Antenna Report No.: 2008C121B Page 8 of 9 Report No.: 2008C121B Page 9 of 9 Antenna

Report No.: BTL-FCCP-2-2008C121B Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4C110 Project No. : 2008C121B Equipment : Home Security Wi-Fi Camera Brand Name : tp-link, tapo Test Model : Tapo C110 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Feb. 19, 2021 Jul. 21, 2021 Date of Test : Mar. 02, 2021 ~ Aug. 05, 2021 Issued Date : Aug. 09, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021021990 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2008C121B Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Aug. 09, 2021 Report No.: BTL-FCCP-2-2008C121B Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of N No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 2070501005 Internal N/A 3.08 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.08 2.0324 17.69 58.7489 0.02377 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2008C121B Page 1 of 120 FCC Radio Test Report FCC ID: 2AXJ4C110 This report concerns: Original Grant Project No. : 2008C121B Equipment : Home Security Wi-Fi Camera Brand Name : tp-link, tapo Test Model : Tapo C110 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Feb. 19, 2021 Jul. 21, 2021 Date of Test : Mar. 02, 2021 ~ Aug. 05, 2021 Issued Date : Aug. 09, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021021990 for conducted, DG2021052138 and DG2021072138 for radiated . Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2008C121B Page 2 of 120 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2008C121B Page 3 of 120 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 2.6 SUPPORT UNITS 15 3 . AC POWER LINE CONDUCTED EMISSIONS 16 3.1 LIMIT 16 3.2 TEST PROCEDURE 16 3.3 DEVIATION FROM TEST STANDARD 16 3.4 TEST SETUP 17 3.5 EUT OPERATION CONDITIONS 17 3.6 TEST RESULTS 17 4 . RADIATED EMISSIONS 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 20 4.5 EUT OPERATION CONDITIONS 21 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 21 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 21 4.8 TEST RESULTS - ABOVE 1000 MHZ 21 5 . BANDWIDTH 22 5.1 LIMIT 22 5.2 TEST PROCEDURE 22 5.3 DEVIATION FROM STANDARD 22 5.4 TEST SETUP 22 Report No.: BTL-FCCP-1-2008C121B Page 4 of 120 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 22 5.6 TEST RESULTS 22 6 . MAXIMUM AVERAGE OUTPUT POWER 23 6.1 LIMIT 23 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULTS 23 7 . CONDUCTED SPURIOUS EMISSIONS 24 7.1 LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULTS 24 8 . POWER SPECTRAL DENSITY 25 8.1 LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULTS 25 9 . MEASUREMENT INSTRUMENTS LIST 26 10 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 33 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 36 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 41 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 44 APPENDIX E - BANDWIDTH 105 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 109 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 111 Report No.: BTL-FCCP-1-2008C121B Page 5 of 120 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 118 Report No.: BTL-FCCP-1-2008C121B Page 6 of 120 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Aug. 09, 2021 Report No.: BTL-FCCP-1-2008C121B Page 7 of 120 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious E…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C121B Page 116 of 120 Test Mode TX N(HT20) Mode Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Report No.: BTL-FCCP-1-2008C121B Page 117 of 120 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2008C121B Page 118 of 120 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2008C121B Page 119 of 120 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.53 8.00 Complies 06 2437 -4.71 8.00 Complies 11 2462 -6.07 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -9.43 8.00 Complies 06 2437 -9.05 8.00 Complies 11 2462 -8.05 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2008C121B Page 120 of 120 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -9.73 8.00 Complies 06 2437 -8.75 8.00 Complies 11 2462 -9.66 8.00 Complies CH01 CH06 CH11 End of Test Report

Report No.: BTL-FCCP-1-2008C121B Page 28 of 120 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2008C121B Page 29 of 120 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2008C121B Page 30 of 120 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2008C121B Page 31 of 120 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2008C121B Page 32 of 120 Conducted Test Photos
