2AXJ4C340W4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

Quick Start Guide *Images may differ from actual products. Appearance RESET Button 5 Lens 4 White Light 3 IR LED 2 Power Supply Interface 10 9 RJ45 Ethernet Port 7 Status LED 8 Speaker 6 Microphone 1 5 3 2 4 9 Package Contents Network Camera Waterproof Cable Attachments Quick Start Guide Anchors and Screws Quick Start Guide • Make sure your power supply matches your camera. • Make sure that the wall is strong enough to withstand 4 times the weight of the camera and mounting bracket. • If you are uncertain or uncomfortable performing the installation, consult a qualified electrician. Safety First: 1 Mount Camera 7 3 2 8 6 Note: Before inserting the micro SD card or resetting the camera, unfasten the two fixed screws to remove the cover. Mounting Template 1 Micro SD Card Slot Insert a micro SD card for local storage. Initialize the SD card via VIGI app before recording videos. Option 1: Wall/Ceiling Mounting 1. Stick the mounting template to the desired mounting place. Drill 4 screw holes according to the template. 2. Insert the anchors into the holes, use the provided screws to fix the camera’s bracket to the wall or ceiling. Option 2: Pole Mounting 1. Thread each of the two cable ties through the slits on the back of the camera’s bracket indicated below. 2. Slip the two cable ties through the pole. Tighten them to firmly attach the pole. OR 10 Long press the button to reset the camera to factory settings. Micro SD RESET Status LED Indication Status Description Solid red Starting up Blink red and green Ready for setup Blink green slowly Connecting to Wi-Fi Solid green Connected to Wi-Fi Blink red slowly Wi-Fi connection lost Blink red quickly Camera resetting Blink green quickly Camera updating Installing Waterproof Cable Attachments Install the waterproof cable attachments for the network interface when the camera is installed outdoors. Note: Make sure each part is securely attached and the waterproof rings are flush to keep out water. 1. Route the network cable through the following components in order: fix nut, waterproof ring, and then the waterproof jacket. 2. Fix the O-ring to the network interface of the camera and connect the network cables. 3. Attach the network interface with the waterproof jacket, then twist to lock. 4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut to secure it to the waterproof jacket. Fix Nut Waterproof Ring O-ring Network Interface Waterproof Jacket Install the waterproof seal for the power connectors when the camera is installed outdoors. Install Waterproof Seal for Power Connectors Male Power ConnectorWaterproof Seal Female Power Connector Waterproof Seal ©2023 TP-Link 7106510275 REV2.0.1 VIGI Wi-Fi Network Camera Power Adapter 2 Set Up Camera Here is a typical network topology. The camera works with an NVR for easier batch access and management. Network Camera Network Camera Step 2. Power On the Camera Connect your camera to the power source with the provided power adapter. Step 1. Download the TP-Link VIGI App Get the TP-Link VIGI App from the Apple App Store or Google Play. Step 3. Set Up 1. Open the TP-Link VIGI app and log in with your TP-Link ID. If you don’t have an account, sign up first. 2. Tap the + button on the top right and follow the app instructions to activate and add your cameras. Note: If you want to use the NVR for easier batch access and management later, add the camera to the same network as the NVR. Done! You can now remotely view live video, manage cameras, and get instant alerts. or More Management Methods 1. Download the VIGI Security Manager on your computer at https://www.tp-link.com/support/download/vigi-se curity-manager/. 2. Install the VIGI Security Manager and open it. 3. Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras. Method 2: Via the VIGI Security Manager (Windows only) You can also access and manage your cameras via any of the methods below. View live video and modify camera settings on your computer. Method 1: Use the camera with your VIGI NVR Before you start, make sure the NVR is working properly. 1. Right click on the Live View screen and click Add Camera. 2. Select your camera and click + to add your camera directly. If you have disabled Plug and Play on your NVR, create a password or use a preset password for your camera. If you are using your cameras with other NVR brands, refer to the NVR’s User Manual to add cameras. Frequently Asked Questions (FAQ) Q1: What can I do if I fail to configure my camera? • Check if the camera is powered on properly. • Make sure you have a 2.4 GHz wireless network for camera connection. • Make sure your camera and NVR/computer/Phone are in the same subnet. If not, use TP-Link VIGI app to add your camera to the same network wirelessly or connect your camera to the same network via an Ethernet cable. • For other NVR brands, make sure you have activated the camera by setting a password via the VIGI Security Manager or TP-Link VIGI app. Q2: How do I reset the camera? • Rotate the sphere and unfasten the two fixed screws to remove the cover. Long press the reset button until the Status LED starts blinking red quickly. Q3: What should I do if I forgot the password of the camera? • You can reset the password of the camera via VIGI NVR or VIGI Security Manager. For more details, refer to NVR and Security Manager’s User Guides. • You can reset the camera and activate it again. During the activation process, you can set a new password. Q4: What should I do if the SD card is not working properly? • Make sure you are using a micro SD card. • Unplug the SD card and insert it again. Make sure you have inserted the SD card correctly. • It’s recommended to use a Class 10 micro SD card or higher, with storage from 8 GB to 256 GB. • Make sure you have initialized the microSD card in TP-Link …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4C340W Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-08-07

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera FCC ID: 2AXJ4C340W Model: VI-W Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-08-07

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera FCC ID: 2AXJ4C340W Model: VIGI C340-W Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-08-07

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera FCC ID: 2AXJ4C340W Model: VIGI C340-W Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-08-07

Report No.: 2307TW0114-UE Product: 4MP Outdoor Full- Color Wi-Fi Bullet Network Camera Brand Name: tp-link Model Number: VIGI C340-W 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2307TW0114-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2307TW0114-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2307TW0114-UE 4 of 7 (7) Adapter (8) Adapter Report No.: 2307TW0114-UE 5 of 7 (9) Adapter (10) Adapter Report No.: 2307TW0114-UE 6 of 7 (11) Adapter (12) Adapter Report No.: 2307TW0114-UE 7 of 7 (13) Adapter

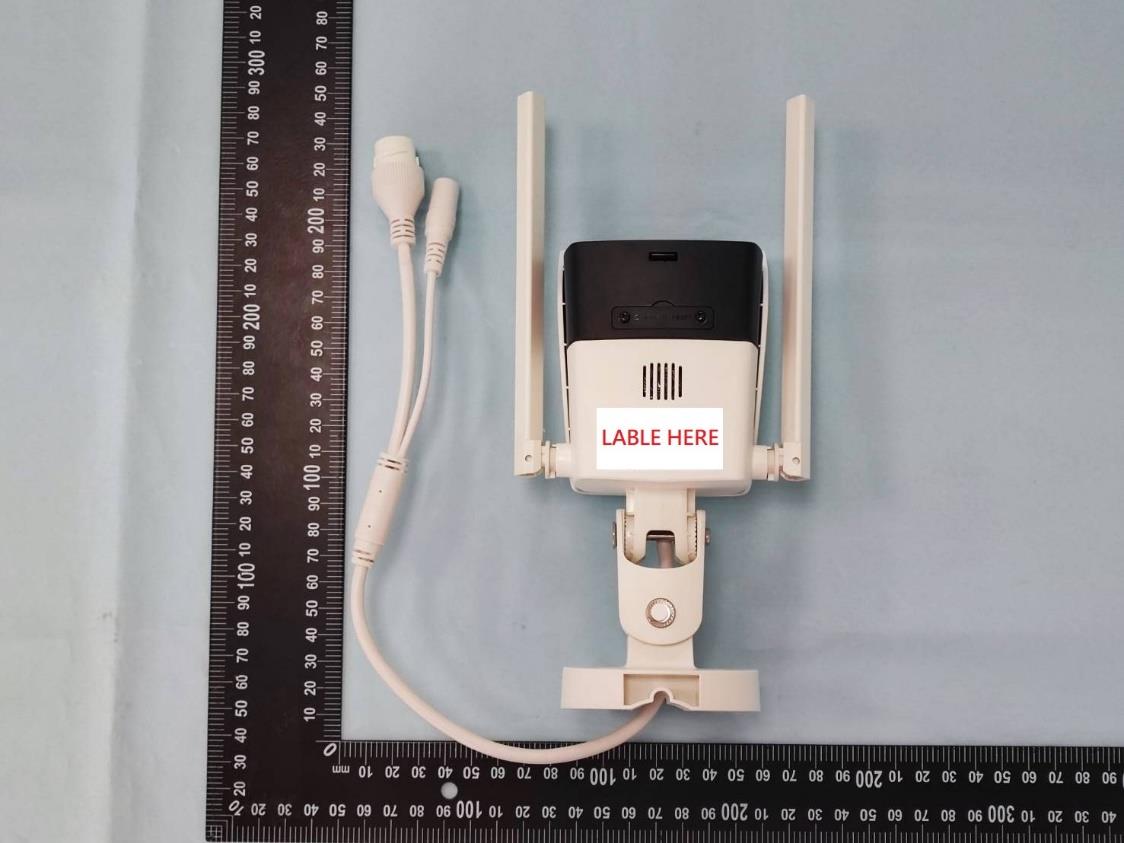

Label Label Location

Report No.: 2307TW0114-UI Product: 4MP Outdoor Full- Color Wi-Fi Bullet Network Camera Brand Name: tp-link Model Number: VIGI C340-W 1 of 6 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2307TW0114-UI 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2307TW0114-UI 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2307TW0114-UI 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 2307TW0114-UI 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2307TW0114-UI 6 of 6 (11) EUT Photo (12) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2307TW0114-U3 Phone: +886-3-3288388 Report Version V1.0 Web: www.mrt-cert.com Issue Date: 2023-08-16 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4C340W Applicant : TP-Link Corporation Limited Application Type : Certification Product : 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera Model No. : VIGI C340-W Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Received Date : July 17, 2023 Test By : ( Kaunaz Lee) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2307TW0114-U3 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2307TW0114-U3 1.0 Original Report 2023-08-16 Valid Report No.: 2307TW0114-U3 Page Number: 3 of 12 CONTENTS Description Page 1. INTRODUCTION .................................................................................................................... 5 1.1. Scope .......................................................................................................................... 5 1.2. MRT Test Location ....................................................................................................... 5 2. PRODUCT INFORMATION .................................................................................................... 6 2.1. Feature of Equipment under Test ................................................................................. 6 2.2. Description of Available Antennas ................................................................................ 6 2.3. Device Classification .................................................................................................... 7 2.4. Applied Standards ........................................................................................................ 7 3. RF Exposure Evaluation ...................................................................................................... 8 3.1. Limits ........................................................................................................................... 8 3.2. MPE Exemptions ......................................................................................................... 9 3.3. Test Result of RF Exposure Evaluation .......................................................................12 Report No.: 2307TW0114-U3 Page Number: 4 of 12 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Canada, EU and TELEC Rules. Report No.: 2307TW0114-U3 Page Number: 5 of 12 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2307TW0114-U3 Page Number: 6 of 12 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) Mode T X Paths Max Antenna Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Dipole 2412 ~ 2462 802.11b 1 2 -- -- 802.11g/n 2 2 2 5.01 Note: 1. For 802.11b, the EUT supports SISO mode only at Ant 0. 2. For 802.11g/n, the EUT supports Cyclic Delay Diversity (CDD) mode and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; Product Name: 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera Model No.: VIGI C340-W Brand Name: tp-link Specification 802.11b/g/n Accessories Power Adapter Brand: tp-link Model: T120100-2B1 Input: 100 - 240V ~ 50/60Hz 0.3A Output: 12V⎓1A Cable Out: Non-shielding, 1.5m Report No.: 2307TW0114-U3 Page Number: 7 of 12 2.3. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 2.4. Applied Standards According to the …
