2AXJ4C720Tapo Smart Floodlight Camera

User Guide Tapo Smart Floodlight Camera ©2022 TP-Link 1910013303 REV1.0.0 Contents About This Guide ···········································································1 Introduction ······················································································2 Appearance ······················································································3 Mount Your Camera······································································5 Set Up Your Camera ·····································································8 Set Up Using Amazon Frustration-Free Setup ··············9 Install a microSD Card ······························································13 How to Reset Your Camera ···················································14 Authentication ··············································································15 1 About This Guide This guide provides a brief introduction to the Outdoor Pan/Tilt Security Wi-Fi Camera and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience. Conventions In this guide, the following convention is used: Convention Description Blue Key information appears in blue, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in blue and underlined. You can click to redirect to a website. Note: Ignoring this type of note might result in a malfunction or damage to the device. More Info • Specifications can be found on the product page at https://www.tapo.com. • Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/. 2 Introduction Light the Night Up with an Ultra-Bright Floodlight • 2800lm Ultra-Bright Dimmable Floodlight – Schedule your angle-adjustable, high-intensity 2800lm lighting to capture a full-color night view. • 2K QHD Full-Color Vision – Provides higher-quality security views with vivid colors even at night with floodlighting. • Motion-Activated – Deftly identifies moving objects and turns on the floodlight within a 270°detection zone. • Customizable Alarm – Record your customized audio as an alarm to extend your usages. • Smart AI Detection and Notification – Smart AI identifies people, pets, and vehicles, notifying users as needed. • Motion Tagging – Tags movement caught by the camera, so you know what you’re looking at during live views. • Customizable Sound Alarm – Record your customized audio as an alarm that plays when motion is detected. • Two-Way Audio – Enables communication through a built-in microphone and speaker. • Flexible Storage Choices – Save recorded videos on the hub-installed microSD card† (up to 512 GB) or by using Tapo Care** cloud storage services. **Subscribe for cloud storage at https://www.tapo.com/tapocare/ 3 Appearance Front System LED 3 4 Motion Sensor 6 Microphone 5 Light Sensor Floodlights 11 Camera Lens 2 Side 9 Camera Adjustment Knob Speaker 17 10 microSD Card Slot**Reset button* 8 *Reset Button While the camera is powered on, press and hold the RESET button for at least 5 seconds until the System LED blinks red. The camera will reset and reboot. **microSD Card Slot Loosen the screws and insert a microSD card. Initialize it on the Tapo app for local recording. microSD card not included 4 Blinking red and green Blinking red slowly Solid amber Blinking red quickly Solid red Solid green Blinking green quickly Starting up Connected to the cloud Ready for setup Connecting to Wi-Fi Connected to Wi-Fi Camera resetting Camera updating System LED Indication 5 Mount Your Camera You can mount your Tapo floodlight camera vertically on a wall or overhang under an eave. Make sure the area has a strong Wi-Fi signal. Before You Start WARNING: Risk of Electric Shocks • Disconnect power at the fuse or circuit breaker before installing. • Verify that the power supply voltage is correct. Connect fixture to a 110-240 VAC 50/60 Hz power source. • Always follow code standards when installing wired connections. • Install only on a UL-listed junction box or on a wall with a Neutral wire and a Line wire. • An all-pole mains switch shall be incorporated in the electrical installation of the building. And the contact separation of the switch shall not be less than 3 mm. • You can always find detailed wiring and mounting instructions in the Tapo app. If you are unfamiliar with basic electrical wiring, please consult a licensed electrician. NOTICE • Do not install near combustible or flammable surfaces. • Do not connect this light fixture to a dimmer switch or timer. Wall Mount OR Eave Mount For Wall Mount Ensure the UP arrow on the bracket points up. *To install horizontally, adjust the bracket to ensure the air bubble in the level is centered. Point the UP arrow on the bracket towards your house. For Eave Mount N(Neutral) UP L(Line) N(Neutral) UP OR 6 Option 1: Install on an existing junction box The floodlight camera can be mounted on a junction box on a wall or under an eave. 2 Remove the existing floodlight camera and disconnect wires from the junction box. 3 Route the wires through the bracket. 1 Turn off the circuit breaker. Make sure the power is off by turning your light on and off a few times. OFF N(Neutral) UP N(Neutral) UP L(Line) L(Line) 5 Attach the bracket to the junction box with screws. N(Neutral) UP L(Line) 6 Align the mounting posts on the bracket with the holes on the floodlight camera. Secure the floodlight camera to the bracket with screws and insert the screw caps into the screw holes. 7 Adjust the camera and light position to the desired angles. 8 Turn on the circuit breaker. N(Neutral) UP L(Line) Take care to avoid electric shocks. 4 Connect the Neutral wire (usually white/blue) and the Line wire (usually black/brown/red) to the bracket. Secure the …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited 030122-15 Authority to Act as Agent Date: November 30, 2022 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2023-11-23 By: _____________ Sarah Wang (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited 030122-15 Request for Confidentiality Date: November 30, 2022 Subject: Confidentiality Request for: 2AXJ4C720 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-Link Corporation Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: /Regulatory Compliance Manager Sarah Wang (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2022-11-23 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: Tapo Smart Floodlight Camera Type designation: Tapo C720 Brand: tp-link FCC ID: 2AXJ4C720 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: __________ Name: Sarah Wang Tel: 00852-37585503 Email: [email protected]

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Declare that: Product: Tapo Smart Floodlight Camera FCC ID: 2AXJ4C720 Model: Tapo C720 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-11-23

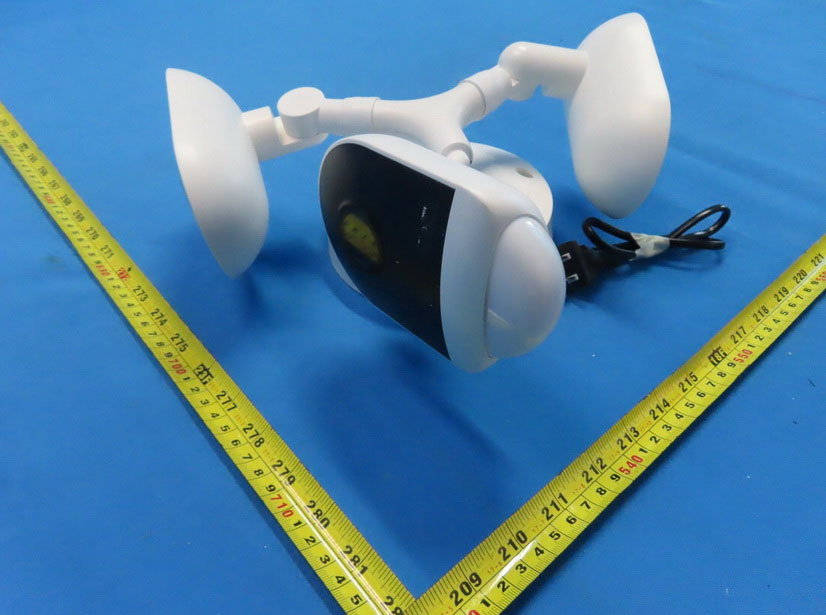

Project No.: 2209C147 Page 1 of 16 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2209C147 Page 2 of 16 Project No.: 2209C147 Page 3 of 16

Project No.: 2209C147 Page 4 of 16 Project No.: 2209C147 Page 5 of 16 Project No.: 2209C147 Page 6 of 16 Project No.: 2209C147 Page 7 of 16 Project No.: 2209C147 Page 8 of 16 Project No.: 2209C147 Page 9 of 16 Project No.: 2209C147 Page 10 of 16 Project No.: 2209C147 Page 11 of 16 Project No.: 2209C147 Page 12 of 16 Project No.: 2209C147 Page 13 of 16 Project No.: 2209C147 Page 14 of 16 Project No.: 2209C147 Page 15 of 16 Project No.: 2209C147 Page 16 of 16

Report No.: FCC022022-05623RF2 Page 1 of 5 Product Name: Tapo Smart Floodlight Camera Report No: FCC022022-05623RF1 Product Model: Tapo C720 Security Classification: Open Version: V1.0 Total Page: 5 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-05623RF2 Page 2 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4C720 Project No. : 2022-05623 Equipment : Tapo Smart Floodlight Camera Brand Name : TP-Link Test Model : Tapo C720 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : 2022.10.17 Date of Test : 2022.10.17-2022.10.28 Issued Date : 2022.10.28 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221026018940 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 • The test result referred exclusively to the presented test model /sample. • Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China TEL: +86-0755-27087573 Report No.: FCC022022-05623RF2 Page 3 of 5 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-05623RF2 V1.0 Original Report 2022.10.28 Valid Report No.: FCC022022-05623RF2 Page 4 of 5 1. TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China CNAS Registration Number: CNAS L14158 A2LA Registration Number 6049.01 Telephone: +86-0755-27087573 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For LE : Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 TP-Link N/A IFA N/A 0.02 2 TP-Link N/A Dipole N/A -0.40 Note: 1. The antenna gain is provided by the manufacturer. 2. EUT support CDD, power Directional Gain 0.02 dBi Report No.: FCC022022-05623RF2 Page 5 of 5 3. TEST RESULTS For 802.11n(20MHz)-CH06: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0.02 1 26.89 488.6524 0.09771 1 Complies Note: 1. Only the worst case recorded. 2. The calculated distance is 20 cm. End of Test Report

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com Specification For Approval Date: Version: 1.0 Product Model: Tapo C720(US)1.0 Checked By: TP-LINK TECHNOLOGIES CO., LTD. South Buiding, No.5 Keyuan Road, Central Zone, Science&Technology Park, Nanshan, Shenzhen, P.R.China TEL: + 86 755 26612350 + 86 755 26504400 http:// www.tp-link.com Index I. Antenna Distribution ........................................................................................ 5 II. Electrical Characteristics ................................................................................ 5 III. Antenna Peak Gain........................................................................................... 6 IV. Antenna Radiation Pattern .............................................................................. 6 I. Antenna Distribution Tapo C720(US)1.0 II. Electrical Characteristics Ant1 Frequency 2400 ~ 2500MHz Impedance 50Ohm Antenna Type IFA Antenna Gain 0.02dBi@2400~2500MHz Radiation pattern Directional Ant2 Frequency 2400 ~ 2500MHz Page 5 Version:1.0 Issue Date: Impedance 50Ohm Antenna Type Dipole Antenna Gain -0.09dBi@2400~2500MHz Radiation pattern Directional III. Antenna Peak Gain Ant1 Frequency(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain(dBi) -0.43 -0.38 -0.39 -0.17 -0.09 -0.03 0.02 -0.11 -0.23 -0.24 -0.26 Ant2 Frequency(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain(dBi) -0.98 -0.9 -0.81 -0.62 -0.57 -0.55 -0.56 -0.48 -0.4 -0.21 -0.09 IV. Antenna Radiation Pattern Ant1 Ant2 Page 6 Version:1.0 Issue Date: Page 7 Version:1.0 Issue Date:

Report No.: FCC022022-05623RF1 Page 1 of 103 Product Name: Tapo Smart Floodlight Camera Report No: FCC022022-05623RF1 Product Model: Tapo C720 Security Classification: Open Version: V1.0 Total Page: 103 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-05623RF1 Page 2 of 103 FCC Radio Test Report FCC ID: 2AXJ4C720 This report concerns: Original Grant Project No. : 2022-05623 Equipment : Tapo Smart Floodlight Camera Brand Name : TP-Link Test Model : Tapo C720 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : 2022.10.17 Date of Test : 2022.10.17-2022.10.28 Issued Date : 2022.10.28 Report Version : V1.0 Test Sample : Engineering Sample No.: 20221026018940 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 • The test result referred exclusively to the presented test model /sample. • Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China TEL: +86-0755-27087573 Report No.: FCC022022-05623RF1 Page 3 of 103 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 DESCRIPTION OF TEST MODES 10 2.3 PARAMETERS OF TEST SOFTWARE 11 2.4 DUTY CYCLE OF TEST SIGNAL 11 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.6 SUPPORT UNITS 12 3 . AC POWER LINE CONDUCTED EMISSIONS 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 18 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 18 4.8 TEST RESULT - ABOVE 1000 MHZ 18 5 . BANDWIDTH 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 Report No.: FCC022022-05623RF1 Page 4 of 103 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 19 5.6 TEST RESULTS 19 6 . MAXIMUM OUTPUT POWER 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 . CONDUCTED SPURIOUS EMISSION 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 8 . POWER SPECTRAL DENSITY 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 . MEASUREMENT INSTRUMENTS LIST 23 10 . EUT TEST PHOTO 24 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 29 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 30 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 33 APPENDIX E - BANDWIDTH 76 APPENDIX F - MAXIMUM OUTPUT POWER 91 APPENDIX G - CONDUCTED SPURIOUS EMISSION 93 Report No.: FCC022022-05623RF1 Page 5 of 103 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 100 Report No.: FCC022022-05623RF1 Page 6 of 103 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-05623RF1 V1.0 Original Report. 2022.10.28 Valid Report No.: FCC022022-05623RF1 Page 7 of 103 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: FCC022022-05623RF1 Page 8 of 103 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics, Shatin Community, KengziStreet, Pingshan District, Shenzhen City, Guangdong province, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The TIRT measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12 KHz RF power conducted ±0.74 dB RF power radiated ±3.25dB Spurious emissions, conducted ±1.78dB Spurious emissions, radiated (30MHz~1GHz) ±4.6dB Spurious emissions, radiated (1GHz ~18GHz) ±4.9dB Conduction Emissions(150kHz~30MHz) ±3.1 dB Humidity ±4.6% Temprature ±0.7°C Time ±1.25% Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By AC Power Line Conducted Emissions 25°C 56% AC 120V/60Hz Stone Tang Radiated…

Text truncated - open the document above for the full version.

Report No.: FCC022022-05623RF1 Page 88 of 103 11G-CDD_Ant1_2462 11G-CDD_Ant2_2462 11N20MIMO_Ant1_2412 Report No.: FCC022022-05623RF1 Page 89 of 103 11N20MIMO_Ant2_2412 11N20MIMO_Ant1_2437 11N20MIMO_Ant2_2437 Report No.: FCC022022-05623RF1 Page 90 of 103 11N20MIMO_Ant1_2462 11N20MIMO_Ant2_2462 Report No.: FCC022022-05623RF1 Page 91 of 103 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: FCC022022-05623RF1 Page 92 of 103 TestMode Antenna Channel Peak Powert [dBm] Conducted Limit [dBm] Verdict 11B-CDD Ant1 2412 19.46 ≤30.00 PASS Ant2 2412 19.40 ≤30.00 PASS total 2412 22.44 ≤30.00 PASS Ant1 2437 19.77 ≤30.00 PASS Ant2 2437 20.07 ≤30.00 PASS total 2437 22.93 ≤30.00 PASS Ant1 2462 20.06 ≤30.00 PASS Ant2 2462 19.91 ≤30.00 PASS total 2462 23.00 ≤30.00 PASS 11G-CDD Ant1 2412 19.83 ≤30.00 PASS Ant2 2412 20.30 ≤30.00 PASS total 2412 23.08 ≤30.00 PASS Ant1 2437 23.90 ≤30.00 PASS Ant2 2437 23.27 ≤30.00 PASS total 2437 26.61 ≤30.00 PASS Ant1 2462 23.85 ≤30.00 PASS Ant2 2462 23.01 ≤30.00 PASS total 2462 26.46 ≤30.00 PASS 11N20 MIMO Ant1 2412 20.19 ≤30.00 PASS Ant2 2412 20.44 ≤30.00 PASS total 2412 23.33 ≤30.00 PASS Ant1 2437 24.19 ≤30.00 PASS Ant2 2437 23.55 ≤30.00 PASS total 2437 26.89 ≤30.00 PASS Ant1 2462 23.89 ≤30.00 PASS Ant2 2462 22.97 ≤30.00 PASS total 2462 26.46 ≤30.00 PASS Report No.: FCC022022-05623RF1 Page 93 of 103 APPENDIX G - CONDUCTED SPURIOUS EMISSION Report No.: FCC022022-05623RF1 Page 94 of 103 Test Mode TX_802.11B-ANT1 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-05623RF1 Page 95 of 103 Test Mode TX_802.11B-ANT2 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-05623RF1 Page 96 of 103 Test Mode TX_802.11G-ANT1 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-05623RF1 Page 97 of 103 Test Mode TX_802.11G-ANT2 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-05623RF1 Page 98 of 103 Test Mode TX_802.11N(20MHz)-ANT1 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency

Report No.: FCC022022-05623RF1 Page 99 of 103 Test Mode TX_802.11N(20MHz)-ANT2 Bandedge CH01 (Lower) Bandedge CH11 (Upper) CH01 – 10th Harmonic of the fundamental frequency CH06– 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-05623RF1 Page 100 of 103 APPENDIX H - POWER SPECTRAL DENSITY Report No.: FCC022022-05623RF1 Page 101 of 103 Test Mode TX_802.11b-ANT1 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -5.86 8.00 Pass 06 2437 -4.73 8.00 Pass 11 2462 -4.82 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11b-ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -5.09 8.00 Pass 06 2437 -4.48 8.00 Pass 11 2462 -4.7 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11b-ANT1+ ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -2.45 8.00 Pass 06 2437 -1.59 8.00 Pass 11 2462 -1.75 8.00 Pass Report No.: FCC022022-05623RF1 Page 102 of 103 Test Mode TX_802.11g-ANT1 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -12.31 8.00 Pass 06 2437 -8.09 8.00 Pass 11 2462 -8.06 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11g-ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -11.95 8.00 Pass 06 2437 -9.00 8.00 Pass 11 2462 -9.00 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11g-ANT1+ ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -9.12 8.00 Pass 06 2437 -5.51 8.00 Pass 11 2462 -5.49 8.00 Pass Report No.: FCC022022-05623RF1 Page 103 of 103 Test Mode TX_802.11n(20MHz)-ANT1 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -12.90 8.00 Pass 06 2437 -8.68 8.00 Pass 11 2462 -8.83 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11n(20MHz)-ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -12.59 8.00 Pass 06 2437 -9.22 8.00 Pass 11 2462 -9.86 8.00 Pass CH01 CH06 CH11 Test Mode TX_802.11n(20MHz)-ANT1+ ANT2 Channel Frequency (MHz) Power Spectral Density (dBm/3 kHz) Max. Limit (dBm/3 kHz) Test Result 01 2412 -9.74 8.00 Pass 06 2437 -5.93 8.00 Pass 11 2462 -6.30 8.00 Pass End of Test Report

FCC ID: 2AXJ4C720 IC:26583-C720 Page 1 of 3 APPENDIX_TEST SETUP FCC ID: 2AXJ4C720 IC:26583-C720 Page 2 of 3 AC Power Line Conducted Emissions Test Photos Radiated Emissions Test Photos 30 MHz to 1000 MHz FCC ID: 2AXJ4C720 IC:26583-C720 Page 3 of 3 Radiated Emissions Test Photos Above 1 GHz Conducted Test Photos
