2AXJ4D230Tapo Video Doorbell Camera

User Guide Video Doorbell Camera Kit ©2023 TP-Link 1910013321 REV1.0.0 Contents About This Guide ···········································································1 Introduction ······················································································2 Appearance - Doorbell ·······························································3 Appearance - Hub ······································································4 Charge the Battery ········································································7 Insert the Battery ···········································································8 Set Up Your Hub and Doorbell ················································9 Install a microSD Card ······························································11 Install Your Doorbell ···································································12 Authentication ··············································································14 1 About This Guide This guide provides a brief introduction to the Video Doorbell Camera Kit and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Doorbell experience. Conventions In this guide, the following convention is used: Convention Description Blue Key information appears in blue, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in blue and underlined. You can click to redirect to a website. Note: Ignoring this type of note might result in a malfunction or damage to the device. More Info • Specifications can be found on the product page at https://www.tapo.com. • Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/. 2 Introduction With Tapo Video Doorbell Camera Kit, you always know who’s there. Its rechargeable and removable battery with a low-power protocol extends your usage. No wires means you can place the doorbell wherever you like. The doorbell is equipped with the starlight sensor and the spotlights, catching more colors. The highly-sensitive starlight sensor captures higher-quality images even in low-light conditions. The integrated spotlights help enhance your security view with vivid colors even at night. • 2K 5MP Video – Provides higher-quality security views with 2K 5MP resolution. • Head-to-Toe View – Compared with the traditional 16:9 aspect ratio, Tapo D230's 4:3 aspect ratio captures more field of view. • Smart AI Detection and Notification – Smart AI identifies people, pets, and packages, notifying users as needed. • 180-Day Battery Life △ – The rechargeable and removable battery with a low-power protocol extends your usage. △ 180-day battery life is based on TP-Link’s laboratory testing with 10-20 triggered events per day. Actual battery life may vary based on device settings, use, and environmental factors. • Wire-Free Placement – No wires means you can place the doorbell wherever you want. • Color Night Vision – Reveals high-fidelity details and color at night with the starlight sensor. • Quick Response – Responds to your deliveries without saying a word with customizable responses through the Tapo app. • Flexible Storage Choices – Saves recorded videos on the hub-installed microSD card* (up to 256 GB ) or by using Tapo Care** cloud storage services. *microSD card needs to be purchased separately. **Subscribe for cloud storage at https://www.tapo.com/tapocare/. • Hub as Indoor Chime – Chooses from a variety of ringtones to replace a traditional wired chime. • Motion Detection – Gets instant notifications when your camera detects motion. • IP64 Water & Dust Resistant– Helps Tapo doorbell performs well even in harsh environments with rain and dust. • Two-Way Audio – Communicates with others with the built-in microphone and speaker. 3 Appearance - Doorbell Front Back 1 Indicates the status of your doorbell. 3 Spotlight 7 Light Sensor 8 Speaker 4 Ring Button 6 Status LED 2 Motion Sensor Lens 5 Microphone 6 4 2 7 8 1 5 3 SYNC/RESET Button 9 • Press for 1s: Pair with the hub • Press and hold for about 5s: Reset the doorbell • Press and hold for 5s: Pause the alarm (Continues to alarm when released) • Press and hold buttons simultaneously for 10s: Disable the anti-theft alarm feature 9 10 Anti-Theft Button 10 When the Anti-Theft Alarm is enabled on the Tapo app, an alarm will trigger once the doorbell is removed. 4 Appearance - Hub ▲ microSD card not included. 1 SYNC Press to pair with the camera, or silence the hub when it rings. 2 RESET Press and hold for about 5 seconds until the hub LED quickly blinks red to reset the hub. 3 microSD Card Slot Insert a microSD card to record camera videos locally. Initialize the microSD card within the Tapo app first. 4 Status LED Indicate the status of your hub. mic roSD 123 4 5 Solid amber Blinking red quickly Solid red Solid green Blinking green quickly Starting up Connected to the cloud Connected to router Hub resetting Hub updating Blinking red and greenReady for setup Blinking green slowlyPairing Hub Status LED 6 Doorbell Status LED Blinking red and green Solid Red Blinking red once a minute Blinking green quicklyDoorbell updating Blinking red quicklyDoorbell resetting Ready for pairing Pairing Blinking red slowly Blinking green slowly Solid green Connected to the cloud Solid amberConnected to the hub Starting up Low battery Offline 7 Charge the Battery Connect the battery to a power source. Notes: 1. Charge the battery before use. This will take about 5~6 hours. 2. If you want to use the doorbell while charging the battery, we recommend purchasing another battery for your convenience. Solid amber Solid green 5V USB Charger Charging: Fully charged: 8 Insert the Battery 1. Use a pin to detach the doorbell. 2. Insert the charged b…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4D230 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-3-17

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Tapo Video Doorbell Camera FCC ID: 2AXJ4D230 Model: Tapo D230 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-3-17

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: Tapo Video Doorbell Camera FCC ID: 2AXJ4D230 Model: Tapo D230 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-3-17

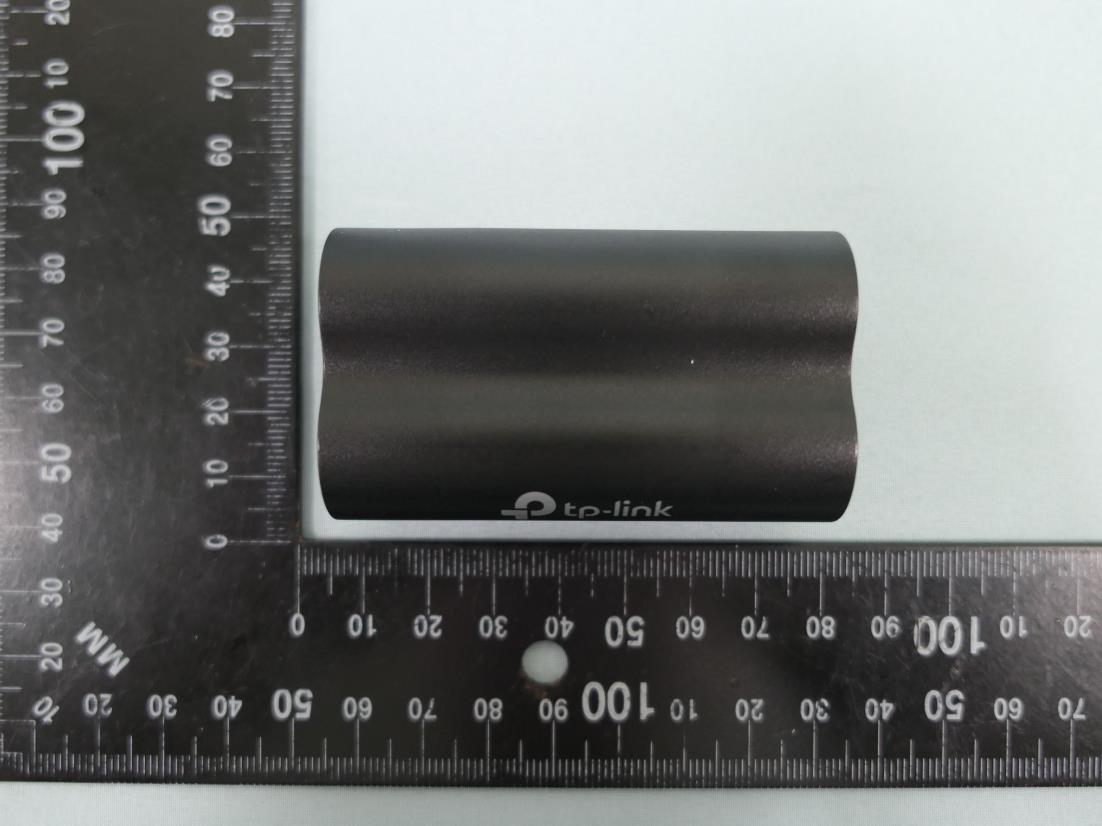

Report No.: 2212TW0107-U1~U3 Product: Tapo Video Doorbell Camera Brand Name: tp-link Model Number: Tapo D230 1 of 10 External Photograph ( 1 ) EUT Photo ( 2 ) EUT Photo Report No.: 2212TW0107-U1~U3 2 of 10 ( 3 ) EUT Photo ( 4 ) EUT Photo Report No.: 2212TW0107-U1~U3 3 of 10 ( 5 ) EUT Photo ( 6 ) EUT Photo Report No.: 2212TW0107-U1~U3 4 of 10 ( 7 ) EUT Photo (Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) ( 8 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) Report No.: 2212TW0107-U1~U3 5 of 10 ( 9 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) ( 10 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) Report No.: 2212TW0107-U1~U3 6 of 10 ( 11 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) ( 12 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) Report No.: 2212TW0107-U1~U3 7 of 10 ( 13 ) EUT Photo(Brand: Dongguan Aohai Technology Co .,Ltd,M/N: A8-501000) ( 14 ) Micro USB Cable Report No.: 2212TW0107-U1~U3 8 of 10 ( 15 ) Battery ( 16 ) Battery Report No.: 2212TW0107-U1~U3 9 of 10 ( 17 ) Battery ( 18 ) Battery Report No.: 2212TW0107-U1~U3 10 of 10 ( 19 ) Battery ( 20 ) Battery

Report No.: 2212TW0107-U1~U3 Product: Tapo Video Doorbell Camera Brand Name: tp-link Model Number: Tapo D230 1 of 12 Internal Photograph ( 1 ) EUT Photo ( 2 ) EUT Photo Report No.: 2212TW0107-U1~U3 2 of 12 ( 3 ) EUT Photo ( 4 ) EUT Photo Report No.: 2212TW0107-U1~U3 3 of 12 ( 5 ) EUT Photo ( 6 ) EUT Photo Report No.: 2212TW0107-U1~U3 4 of 12 ( 7 ) EUT Photo ( 8 ) EUT Photo Report No.: 2212TW0107-U1~U3 5 of 12 ( 9 ) EUT Photo ( 10 ) EUT Photo Report No.: 2212TW0107-U1~U3 6 of 12 ( 11 ) EUT Photo ( 12 ) EUT Photo Report No.: 2212TW0107-U1~U3 7 of 12 ( 13 ) EUT Photo ( 14 ) EUT Photo Report No.: 2212TW0107-U1~U3 8 of 12 ( 15 ) EUT Photo ( 16 ) EUT Photo Report No.: 2212TW0107-U1~U3 9 of 12 ( 17 ) EUT Photo ( 18 ) EUT Photo Report No.: 2212TW0107-U1~U3 10 of 12 ( 19 ) EUT Photo ( 20 ) EUT Photo Report No.: 2212TW0107-U1~U3 11 of 12 ( 21 ) EUT Photo ( 22 ) EUT Photo Report No.: 2212TW0107-U1~U3 12 of 12 ( 23 ) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2213TW0107-U3 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2023-03-06 Page Number: 1 of 10 RF Exposure Evaluation Declaration FCC ID : 2AXJ4D230 Applicant : TP-Link Corporation Limited Application Type : Certification Product : Tapo Video Doorbell Camera Model No. : Tapo D230 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part 2.1091 Received Date : December 01, 2022 Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2212TW0107-U3 Page Number: 2 of 10 Revision History Report No. Version Description Issue Date Note 2212TW0107-U3 1.0 Original Report 2023-03-06 Valid Report No.: 2212TW0107-U3 Page Number: 3 of 10 CONTENTS Description Page 1. INTRODUCTION .................................................................................................................... 5 1.1. Scope .................................................................................................................................. 5 1.2. MRT Test Location .............................................................................................................. 5 2. PRODUCT INFORMATION .................................................................................................... 6 2.1. Feature of Equipment under Test ........................................................................................ 6 2.2. Description of Available Antennas ........................................................................................ 6 2.3. Device Classification ............................................................................................................ 6 2.4. Applied Standards ............................................................................................................... 6 3. RF Exposure Test Exemptions ............................................................................................ 7 3.1. SAR-Based Exemption ........................................................................................................ 7 3.2. Calculated Result............................................................................................................... 10 Report No.: 2212TW0107-U3 Page Number: 4 of 10 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2212TW0107-U3 Page Number: 5 of 10 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2212TW0107-U3 Page Number: 6 of 10 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name: Tapo Video Doorbell Camera Model No.: Tapo D230 Brand Name: tp-link Radio Specification: WLAN: 802.11b/g/n (1TX / 1RX) WPAN: Sub 1G Accessories Adapter Brand: Dongguan Aohai Technology Co .,Ltd Model No: A8-501000 Input: AC 100-240V~0.2A, 50-60Hz Output: DC 5V, 1A Battery Brand: TP-Link Corporation Limited Model No: Tapo A100 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Path Max Antenna Gain (dBi) IFA 2412 ~ 2462 1 0.0 IFA 920 ~ 923 1 -6.5 2.3. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 2.4. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2212TW0107-U3 Page Number: 7 of 10 3. RF Exposure Test Exemptions 3.1. SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40…

Text truncated - open the document above for the full version.

Product Model： Tapo D230S1(US)1.0 Version： 1.0 Date： Checked By： Company Name：TP-Link Corporation Limited Company Address：Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Index I. Antenna Distribution ........................................................................................ 3 II. Electrical Characteristics ................................................................................ 3 III. Antenna Peak Gain........................................................................................... 3 IV. Antenna Radiation Pattern .............................................................................. 4 Page 3 Version:1.0 Issue Date: I. Antenna Distribution Tapo D230S1(US)1.0 Ant1 Ant2 II. Electrical Characteristics Ant1 Frequency 918~924MHz Impedance 50Ohm Antenna Type IFA Antenna Gain -6.5dBi@862~868MHz Radiation pattern Omni-Directional Ant2 Frequency 2400MHz~2500MHz Impedance 50Ohm Antenna Type IFA Antenna Gain 0dBi@2400MHz~2500MHz Radiation pattern Omni-Directional III. Antenna Peak Gain Ant1 Freq(MHz) 918 920 922 924 Gain(dBi) -6.8 -6.5 -6.5 -6.6 Ant2 Freq(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 803 Gain(dBi) -0.91 -0.41 -0.17 -0.25 0 0 -0.35 -0.48 -0.64 -0.71 -0.88 -0.89 Page 4 Version:1.0 Issue Date: IV. Antenna Radiation Pattern Ant1 Ant2

Report No.: 2212TW0107-U1 Page Number: 40 of 148 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH12 (2467MHz) 802.11 n20 CH12 (2467MHz) 802.11 n20 CH12 (2467MHz) Report No.: 2212TW0107-U1 Page Number: 41 of 148 802.11 n20 CH13 (2472MHz) 802.11 n20 CH13 (2472MHz) 802.11 n20 CH13 (2472MHz) Report No.: 2212TW0107-U1 Page Number: 42 of 148 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [Uv/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10 - 2013 Section 6.3 (General Requirements) ANSI C63.10 - 2013 Section 6.4 (Standard test method below 30MHz) ANSI C63.10 - 2013 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 - 2013 Section 6.6 (Standard test method above 1GHz) 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2212TW0107-U1 Page Number: 43 of 148 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2212TW0107-U1 Page Number: 44 of 148 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2212TW0107-U1 Page Number: 45 of 148 7.6.5.Test Result EUT Tapo Video Doorbell Camera Date of Test 2022-12-13 Factor VULB 9162 Temp. / Humidity 22C /60% Polarity Horizontal Site / Test Engineer AC2 / Xuan Test Mode 802.11n-20MHz_TX_CH 6_ANT 0 Test Voltage By Battery No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 64.060 7.15 18.52 25.68 -14.32 40.00 200 42 QP 2 140.460 13.52 15.55 29.07 -14.43 43.50 150 100 QP 3 * 304.220 18.50 21.49 39.99 -6.01 46.00 200 167 QP 4 441.250 13.55 24.36 37.92 -8.08 46.00 200 178 QP 5 724.090 10.65 29.25 39.90 -6.10 46.00 100 44 QP 6 886.440 2.27 31.44 33.71 -12.29 46.00 150 96 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2212TW0107-U1 Page Number: 46 of 148 EUT Tapo Video Doorbell Camera Date of Test 2022-12-13 Factor VULB 9162 Temp. / Humidity 22C /60% Polarity Vertical Site / Test Engineer AC2 / Xuan Test Mode 802.11n-20MHz_TX_CH 6_ANT 0 Test Voltage By Battery No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 39.810 7.38 20.38 27.76 -12.24 40.00 150 121 QP 2 140.460 12.05 15.55 27.60 -15.90 43.50 200 354 QP 3 304.220 8.11 21.49 29.60 -16.40 46.00 200 306 QP 4 * 441.250 12.09 24.36 36.45 -9.55 46.00 100 33 QP 5 724.090 3.78 29.25 33.03 -12.97 46.00 200 281 QP 6 910.690 2.15 31.64 33.79 -12.21 46.00 200 33 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2212TW0107-U1 Page Number: 47 of 148 EUT Tapo Video Doorbell Camera Date of Test 2022-12-14 Factor DRH18-E Temp. / Humidity 22C /60% Polarity Horizontal Site / Test Engineer AC2 / Xuan Test Mode 802.11b_TX_CH 1_ANT 0 Test Voltage By Battery No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 4824.000 55.97 0.25 56.22 -17.78 74.00 202 199 Peak 2 * 4824.000 53.64 0.25 53.89 -0.11 54.00 202 199 Average 3 7236.000 43.46 5.81 49.28 -24.72 74.00 200 200 Peak 4 9648.000 39.65 5.32 44.97 -29.03 74.00 200 0 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m) + Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2212TW0107-U1 Page Number: 48 of 148 EUT Tapo Video Doorbell Camera Date of Test 2022-12-14 Factor DRH18-E Temp. / Humidity 22C /60% Polarity Vertical Site / Test Engineer AC2 / Xuan Test Mode 802.11b_TX_CH 1_ANT 0 Test Voltage By Battery No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 52.41 0.25 52.66 -21.34 74.00 200 267 Peak 2 * 7236.000 48.12 5.81 53.93 -20.07 74.00 200 252 Peak 3 9648.000 41.40 5.32 46.72 -27.28 74.00 200 22 Peak Note: 1. " *", means this data is the worst emis…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2212TW0107-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2023-03-06 Page Number: 1 of 65 FCC ID : 2AXJ4D230 APPLICANT : TP-Link Corporation Limited Application Type : Certification Product : Tapo Video Doorbell Camera Model No. : Tapo D230 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Test Procedure(s) : ANSI C63.10-2013 Received Date : December 01, 2022 Test Date : December 14~20, 2022 RF MEASUREMENT REPORT Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2212TW0107-U2 Page Number: 2 of 65 Revision History Report No. Version Description Issue Date Note 2212TW0107-U2 1.0 Original Report 2023-03-06 Valid Report No.: 2212TW0107-U2 Page Number: 3 of 65 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Standard .................................................................. 7 2.3. Test Mode ............................................................................................................................. 8 2.4. Operation Frequency / Channel List ...................................................................................... 8 2.5. Test Software ........................................................................................................................ 8 2.6. EMI Suppression Device(s)/Modifications ............................................................................. 8 2.7. Labeling Requirements ......................................................................................................... 9 3. DESCRIPTION of TEST ........................................................................................................ 10 3.1. Evaluation Procedure .......................................................................................................... 10 3.2. AC Line Conducted Emissions ............................................................................................ 10 3.3. Radiated Emissions ............................................................................................................ 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary ............................................................................................................................. 15 7.2. 6dB Bandwidth Measurement ............................................................................................. 16 7.2.1. Test Limit ......................................................................................................................... 16 7.2.2. Test Procedure used ....................................................................................................... 16 7.2.3. Test Setting ..............................................................................…
