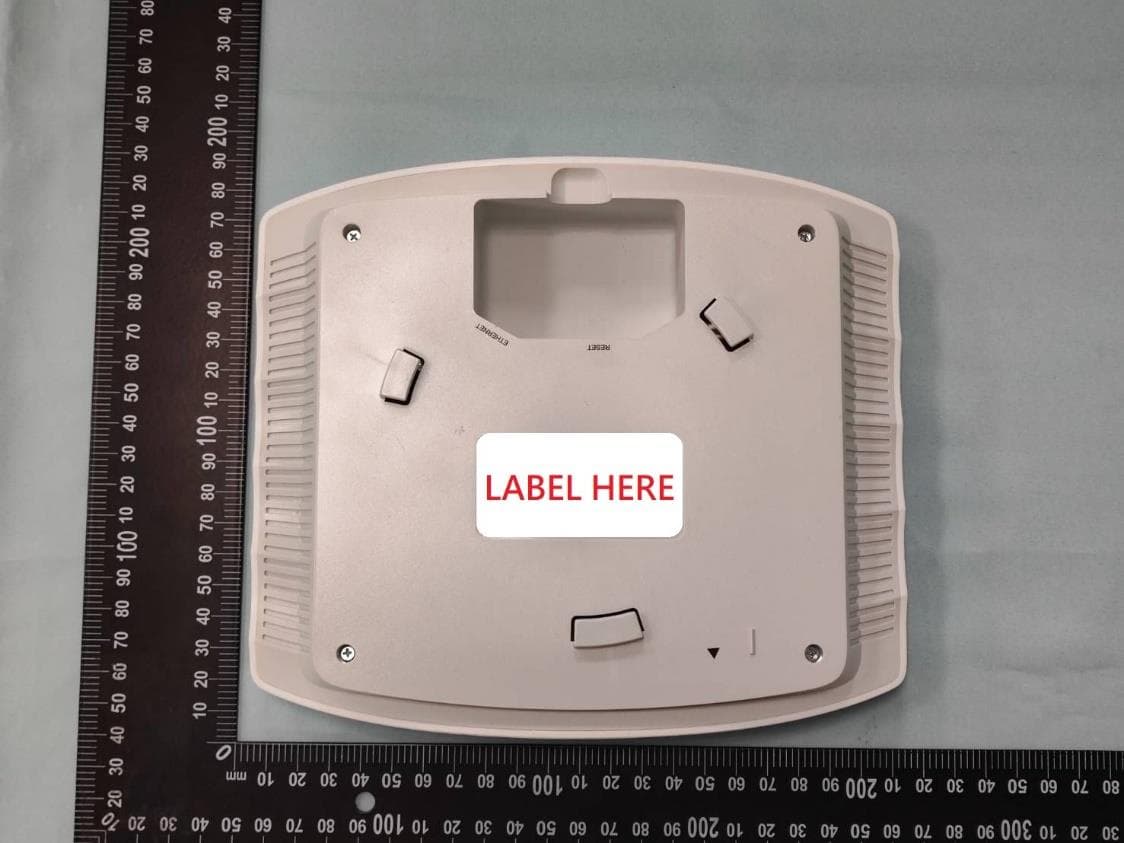

2AXJ4EAP225V5AC1350 Wireless Dual Band Gigabit Ceiling Mount Access Point

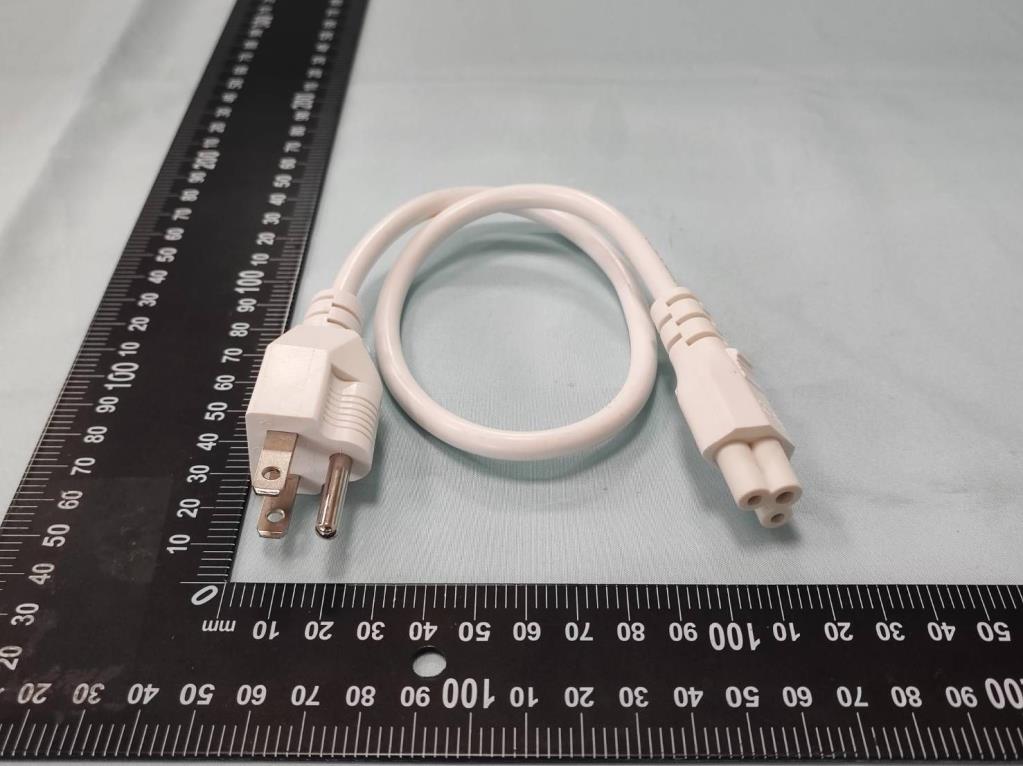

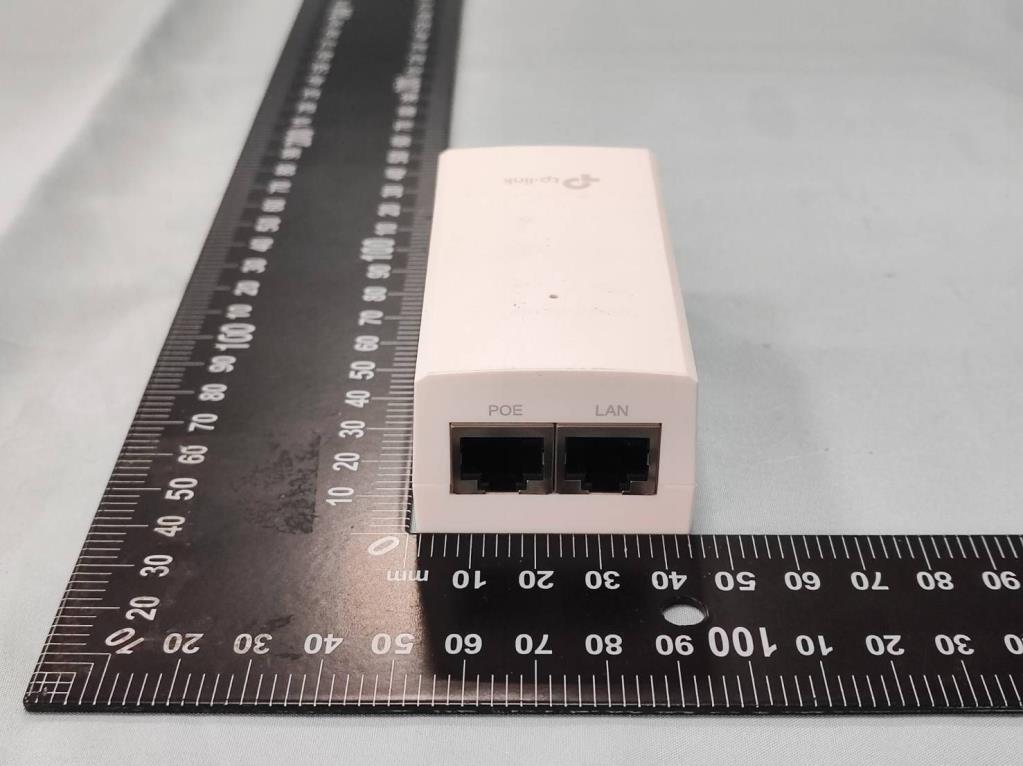

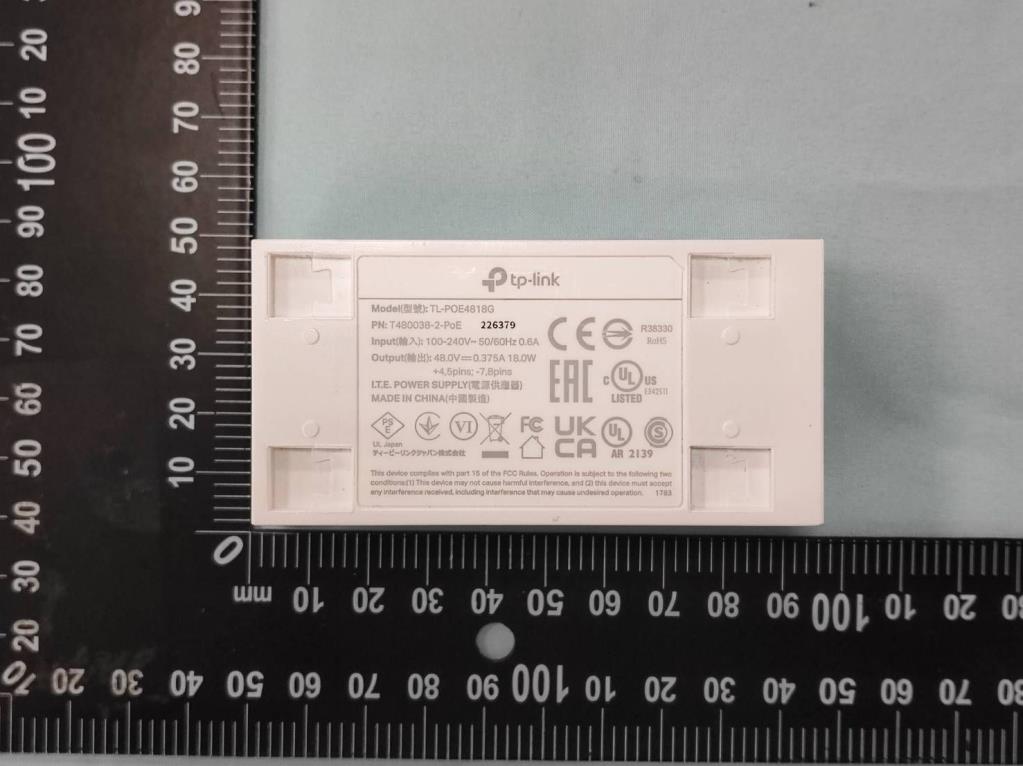

Regulatory Compliance Ceiling Mount EAP For Class A Ceiling Mount EAP with adapter: FCC Compliance Information Statement Product Name: Omada Ceiling Mount Access Point Model Number: EAP660 HD Component NameModel I.T.E. Power SupplyT120200-2B1 (For EAP660 HD) Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: T120200-2B1 Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date: 2022-08-02 CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. OPERATING FREQUENCY (the maximum transmitted power) 2412MHz—2472MHz(20dBm) EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body. Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, mê…

Text truncated - open the document above for the full version.

User Guide For TP-Link Omada Access Points 1910013169 REV4.7.1 March 2022 I CONTENTS About This User Guide........................................................................................................1 Overview .................................................................................................................................3 1 Quick Start .......................................................................................................................4 1.1 Determine the Management Method ..................................................................................................5 1.2 Connect Network Devices ......................................................................................................................6 1.3 Log in to the EAP and Change the SSID .............................................................................................8 1.4 Configure and Manage the EAP ..........................................................................................................21 2 Configure the Network ..............................................................................................22 2.1 Configure the Wireless Parameters ..................................................................................................23 2.1.1 Configure SSIDs ..............................................................................................................................24 2.1.2 Configure Wireless Advanced Settings .................................................................................30 Radio Setting ....................................................................................................................................30 Load Balance ....................................................................................................................................32 Airtime Fairness ..............................................................................................................................32 More Settings ..................................................................................................................................33 2.2 Configure Portal Authentication ........................................................................................................35 Configure Portal............................................................................................................................................36 Configure Free Authentication Policy ..................................................................................................42 2.3 Configure VLAN ........................................................................................................................................45 2.4 Configure MAC Filtering ........................................................................................................................46 2.5 Configure Scheduler ...............................................................................................................................49 2.6 Configure Band Steering .......................................................................................................................52 2.7 Configure QoS ...........................................................................................................................................54 2.8 Configure Rogue AP Detection ...........................................................................................................58 Detect Rogue APs and Move the Rogue APs to the Trusted AP List .......................................59 Manage the Trusted AP List .....................................................................................................................60 II 3 Monitor the Network ..................................................................................................62 3.1 Monitor the EAP ........................................................................................................................................63 3.2 Monitor the Wireless Parameters ......................................................................................................65 Monitor the SSIDs ........................................................................................................................................66 Monitor the Radio Settings .......................................................................................................................67 Monitor Radio Traffic ..................................................................................................................................67 Monitor LAN Traffic .....................................................................................................................................68 3.3 Monitor the Clients ..................................................................................................................................70 View Client Information ..............................................................................................................................70 View Block Client Information .................................................................................................................72 4 Manage the EAP ...........................................................................................................73 4.1 Manage the IP Address of the EAP ....................................................................................................74 4.2 Manage System Logs .............................................................................................................................77 View System Logs .......................................................................................................................................77 Configure the Way of Receiving Logs ..................................................................................................78 4.3 C…

Text truncated - open the document above for the full version.

58 Arbitration Inter- Frame Space A wait time for data frames. The wait time is measured in slots. Valid values are from 0 to 15. Minimum Contention Window A list to the algorithm that determines the initial random backoff wait time (window) for retry of a transmission. This value cannot be higher than the value of Maximum Contention Window. Maximum Contention Window The upper limit (in milliseconds) for the doubling of the random backoff value. This doubling continues until either the data frame is sent or the Maximum Contention Window size is reached. This value must be higher than the value of Minimum Contention Window. TXOP LimitThe TXOP Limit is a station EDCA parameter and only applies to traffic flowing from the client station to the EAP. The Transmission Opportunity (TXOP) is an interval of time, in milliseconds, when a WME (Wireless Multimedia Extensions) client station has the right to initiate transmissions onto the wireless medium (WM) towards the EAP. The valid values are multiples of 32 between 0 and 8192. 5. Choose whether to enable the following two options according to your need. The following table detailedly explains these options: No AcknowledgmentWith this option enabled, the EAP would not acknowledge frames with QosNoAck. No Acknowledgment is recommended if VoIP phones access the network through the EAP. Unscheduled Automatic Power Save Delivery As a power management method, it can greatly improve the energy-saving capacity of clients. 6. Click Save. 59 2.8 Configure Rogue AP Detection A Rogue AP is an access point that is installed on a secure network without explicit authorization from the network administrator. With Rogue AP Detection, the EAP can scan all channels to detect the nearby APs and display the detected APs in the Detected Rogue AP list. If the specific AP is known as safe, you can move it to the Trusted APs list. Also, you can backup and import the Trusted AP list as needed. Note:
The Rogue AP Detection feature is only used for collecting information of the nearby wireless network and does not impact the detected APs, no matter what operations you have executed in this feature. To configure Rogue AP Detection, go to the Wireless > Rogue AP Detection page. 60 Detect Rogue APs and Move the Rogue APs to the Trusted AP List Follow the steps below to detect the nearby APs and move the trusted ones to the Trusted AP list. 1. In the Settings section, check the box to enable Rogue AP Detection. Click Save. 2. In the Detected Rogue AP List section, click . 3. Wait for a few seconds without any operation. After detection is finished, the detected APs will be displayed in the list. The following table introduces the displayed information of the APs: MACDisplays the MAC address of the AP. SSIDDisplays the SSID of the AP. BandDisplays the frequency band the AP is working on. ChannelDisplays the channel the AP is using. SecurityDisplays whether the security mode is enabled on the AP. 61 Beacon IntervalDisplays the Beacon Interval value of the EAP. Beacon frames are sent periodically by the AP to announce to the stations the presence of a wireless network. Beacon Interval determines the time interval of the beacon frames sent by the AP device. SignalDisplays the signal strength of the AP. 4. To move the specific AP to the Trusted AP list, click in the Action column. For example, we move the first two APs in the above Detected Rogue AP list to the Trusted AP list. 5. View the trusted APs in the Trusted AP List section. To move the specific AP back to the Rogue AP list, you can click in the Action column. Manage the Trusted AP List You can download the trusted AP list from your local host to the EAP or backup the current Trusted AP list to your local host. •Download the Trusted AP List From the Host You can import a trusted AP list which records the MAC addresses of the trusted APs. The AP whose MAC address is in the list will not be detected as a rogue AP. Follow the steps below to import a trusted AP list to the EAP: 1. Acquire the trusted AP list. There are two ways: • Backup the list from a EAP. For details, refer to Backup the Trusted AP List to the Host . 62 • Manually create a trusted AP list. Create a txt. file, input the MAC addresses of the trusted APs in the format XX:XX:XX:XX:XX:XX and use the Space key to separate each MAC address. Save the file as a cfg file. 2. On this page, check the box to choose Download (PC to AP). 3. Click and select the trusted AP list from your local host. 4. Select the file management mode. Two modes are available: Replace and Merge. Replace means that the current trusted AP list will be replaced by the one you import. Merge means that the APs in the imported list will be added to the current list with the original APs remained. 5. Click Save to import the trusted AP list. •Backup the Trusted AP List to the Host You can backup the current trusted AP list and save the backup file to the local host. Follow the steps below to backup the current trusted AP list: 1. On this page, check the box to choose Backup (AP to PC). 2. Click Save and the current trusted AP list will be downloaded to your local host as a cfg file. 63 3 Monitor the Network This chapter introduces how to monitor the running status and statistics of the wireless network, including: •3.1 Monitor the EAP •3.2 Monitor the Wireless Parameters •3.3 Monitor the Clients 64 3.1 Monitor the EAP To monitor the EAP information, go to the Status > Device page. The following device information is displayed: Device NameDisplays the name of the EAP. The name consists of the product model followed with the MAC address of the EAP by default. Device ModelDisplays the product model of the EAP. Firmware VersionDisplays the current firmware version the EAP. To update the firmware, you can refer to 5.6 Update the Firmware . Hardware VersionDisplays the hardware version the EAP. MAC AddressDisplays the MAC address of the EAP. IP AddressDisplays the IP address of the EAP. Subnet MaskDisp…

Text truncated - open the document above for the full version.

113 Tips:
Generally, the web browser pops up automatically. But if the web browser does not pop up, we can manually launch the web browser and visit any http website. Then the authentication page will appear. 4 ) If the network is working normally, we will be redirected to the website of the restaurant: http://www.restaurant1.com. COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2021 TP-Link Technologies Co., Ltd.. All rights reserved.
