2AXJ4EAP610AX1800 Ceiling Mount Wi-Fi 6 Access Point

Quick Installation Guide Wireless Access Point Setup with videos Visit https://www.tp-link.com/support/setup-video/ or scan the QR code to search for the setup video of your product model. Note: For simplicity, we will take EAP660 HD for example throughout the Guide. The image may differ from the actual product. Hardware Overview 1 On: Working normally/Initializing. Off: Working abnormally/Power off/LED is turned off. Flashing: Initialization: The LED flashes twice after initialization is completed. Upgrade: The LED flashes once per second while upgrading. Reset: The LED flashes quickly during the reset. The EAP will then reboot. Locate: When the Locate feature is activated in the Omada controller, the LED flashes quickly to locate and identify the device. The LED will flash for 10 minutes, or you can disable the feature manually to stop it flashing. LED Indicator RESET With the device powered on, press and hold the button for about 5 seconds until the LED flashes quickly . Then release the button. The device will restore to factory default settings. The port is used to connect to a router or a switch to transmit data, or to a PSE (Power Sourcing Equipment), such as a PoE switch, for both data transmission and Power over Ethernet (PoE) through Ethernet cable. The port supports transmission speed of 10/100/1000/2500 Mbps for EAP660 HD and 10/100/1000 Mbps for EAP610 / EAP620 HD. Ethernet Port: 2.5G ETH (PoE) (for EAP660 HD) | ETH (PoE) (for EAP610 / EAP620 HD) Plug one end of the provided power adapter to this port and the other end to a standard electrical wall outlet to power the EAP. Power Port: 12V 2A (for EAP660 HD) | 12V 1A (for EAP610 / EAP620 HD) 2 Insert the plastic wall anchors into the 6 mm diameter holes. 4 Connect the Ethernet cable to the Ethernet port on the EAP. 5 Attach the EAP to the mounting bracket, then rotate the EAP until it locks into place, as shown on the left. M3×20 Self-tapping Screws (Qty.4) M3×28 Plastic Wall Anchors (Qty.4) 1 If your Ethernet cable feeds through the wall, you can position the mounting bracket below the cable hole. Mark four positions for the screw holes and then drill four 6 mm diameter holes at the marked positions. 3 Secure the mounting bracket to the wall by driving the self-tapping screws into the anchors. Make sure that the shoulders of the mounting bracket are on the outside. 1 Remove the ceiling tile. 2 Place the mounting bracket in the center of the ceiling tile. Mark four positions for the screw holes and a position for the Ethernet cable hole. Drill four 4 mm diameter holes for the screws and a 25 mm diameter hole for the Ethernet cable at the marked positions. 3 Secure the mounting bracket to the ceiling tile using four M3x30 pan-head screws, washers and wing nuts, as shown on the left. 4 Feed the Ethernet cable through the hole and set the ceiling tile back into place. 5 Connect the Ethernet cable to the Ethernet port. Attach the EAP to the mounting bracket, then rotate the EAP until it locks into place, as shown on the left. Note: Make sure that the ceiling tile is bigger than the EAP. Wing Nuts (Qty.4)Washers (Qty.4)M3×30 Pan-head Screws (Qty.4) The EAP can be ceiling-mounted or wall-mounted. Choose a mounting method according to your needs. Follow the steps below for the appropriate installation. Hardware Installation 2 Drill Hole for Ethernet cable X4 X4 Front Panel Rear Panel Option 1: Ceiling MountingOption 2: Wall Mounting Option1: Ceiling Mounting Option2: Wall Mounting ©2021 TP-Link 7106509200 REV1.1.1 The products of TP-Link partly contain software code developed by third parties, including software code subject to the GNU General Public License (“GPL”). As applicable, the terms of the GPL and any information on obtaining access to the respective GPL Code used in TP-Link products are available to you in GPL-Code-Centre under (https://www.tp-link.com/en/support/gpl/). The respective programs are distributed WITHOUT ANY WARRANTY and are subject to the copyrights of one or more authors. For details, see the GPL Code and other terms of the GPL. The EAP supports two configuring options: To configure and manage EAPs singly (usually suitable for a small network with a few EAPs), Standalone Mode is recommended. Please refer to Option 1. To configure and manage EAPs in batch, Controller Mode is recommended. Please refer to Option 2. The EAP can be powered via a power adapter or a PSE device (such as a PoE switch). Option1: Standalone Mode Option1: Via PoE Switch (Compliant with 802.3at) Option2: Via Power Adapter A DHCP server (typically a router with DHCP function enabled) is required to assign IP addresses to the EAPs and clients in your local network. Via Omada App 1. Connect wirelessly by using the default SSID (format: TP-Link_2.4GHz/5GHz_XXXXXX) printed on the label at the bottom of the product. 2. Launch a web browser and enter http://tplinkeap.net in the address bar. Use admin for both Username and Password to log in. 3. Set up a new Username and Password for secure management purpose. Modify the wireless parameters and reconnect your wireless devices to the new wireless network. To configure other EAPs, connect your device to the EAP by the coresponding default SSID and repeat the steps listed above. You can configure some basic functions in Standalone Mode. If you want to configure advanced functions, use Controller Mode. 1. Download the TP-Link Omada App on your mobile device. It can be downloaded from App Store or Google Play: 2. Connect your mobile device to the EAP by using the default SSID (format: TP-Link_2.4GHz/5GHz_XXXXXX) printed on the label at the bottom of the product. 3. Open the Omada App, and wait for the EAP to appear on the Standalone APs page. Tap on the EAP you want to configure. The Omada App is designed to help you quickly configure the common settings. If you want to configure advanced settings, log in to the web page of your EAP or the controller. Via a Web Browser Omada Hardware Controller (OC20…

Text truncated - open the document above for the full version.

Regulatory Compliance EAP For Class A EAP with adapter: FCC Compliance Information Statement Product Name: Omada EAP Model Number: EAP110 / EAP110-Outdoor / EAP660 HD Component NameModel I.T.E. Power Supply TL-POE2406 (For EAP110 / EAP110-Outdoor) T120200-2B1 (For EAP660 HD) Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” Product Name: I.T.E. Power Supply Model Number: TL-POE2406 / T120200-2B1 Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: [email protected] This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Issue Date:2020-5-12 CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. OPERATING FREQUENCY (the maximum transmitted power) 2412MHz—2472MHz(20dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce. RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body. Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deu…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-07-12 Subject: Confidentiality Request for: 2AXJ4EAP610 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Non-SDR (Software Defined Radio) Cover Letter Date: 2021.07.09 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AX1800 Ceiling Mount Wi-Fi 6 Access Point (FCC ID: 2AXJ4EAP610) must be a Non-SDR. Name: Abby Liang Position: Regulatory Compliance Manager TP-Link Corporation Limited

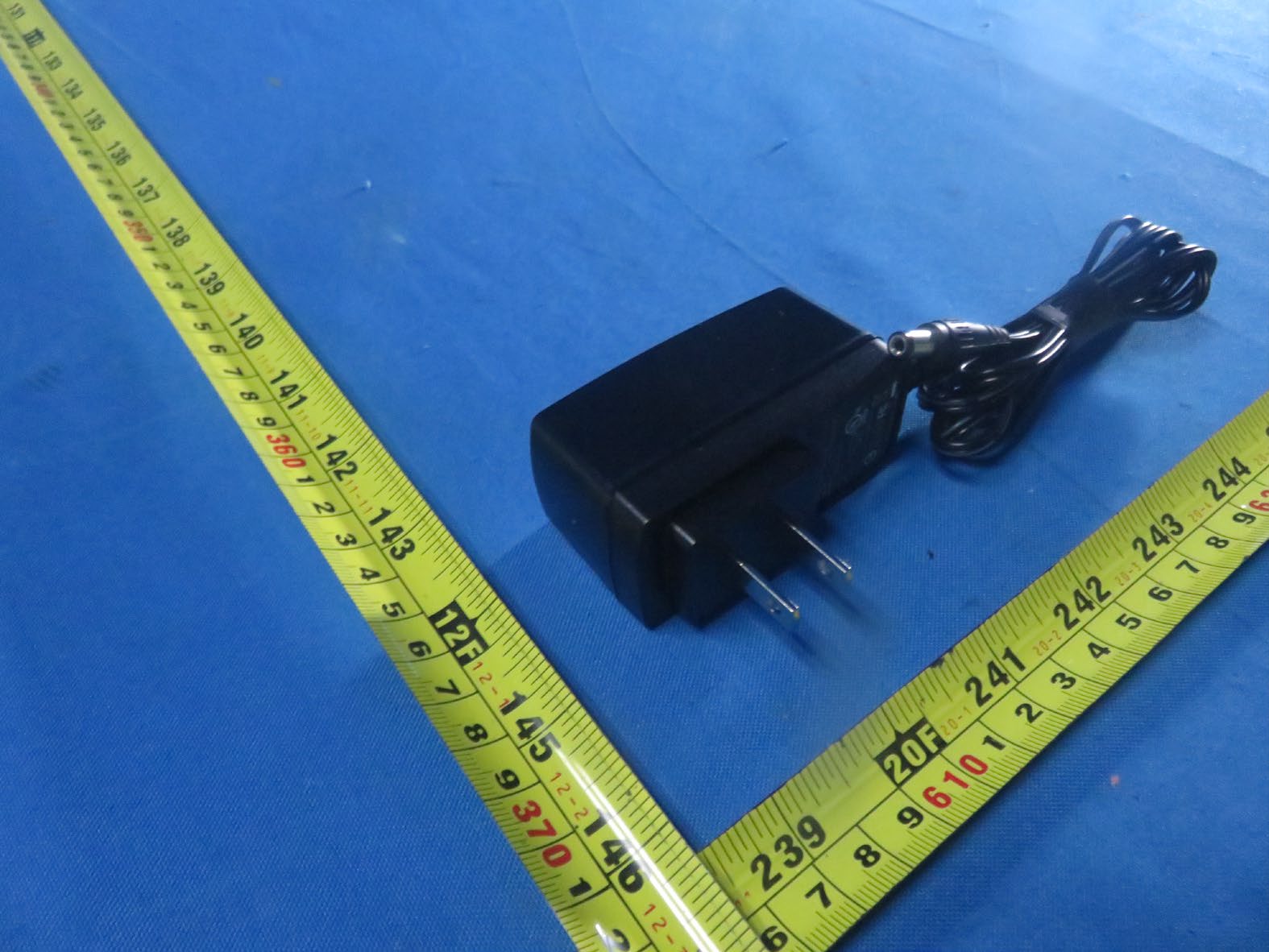

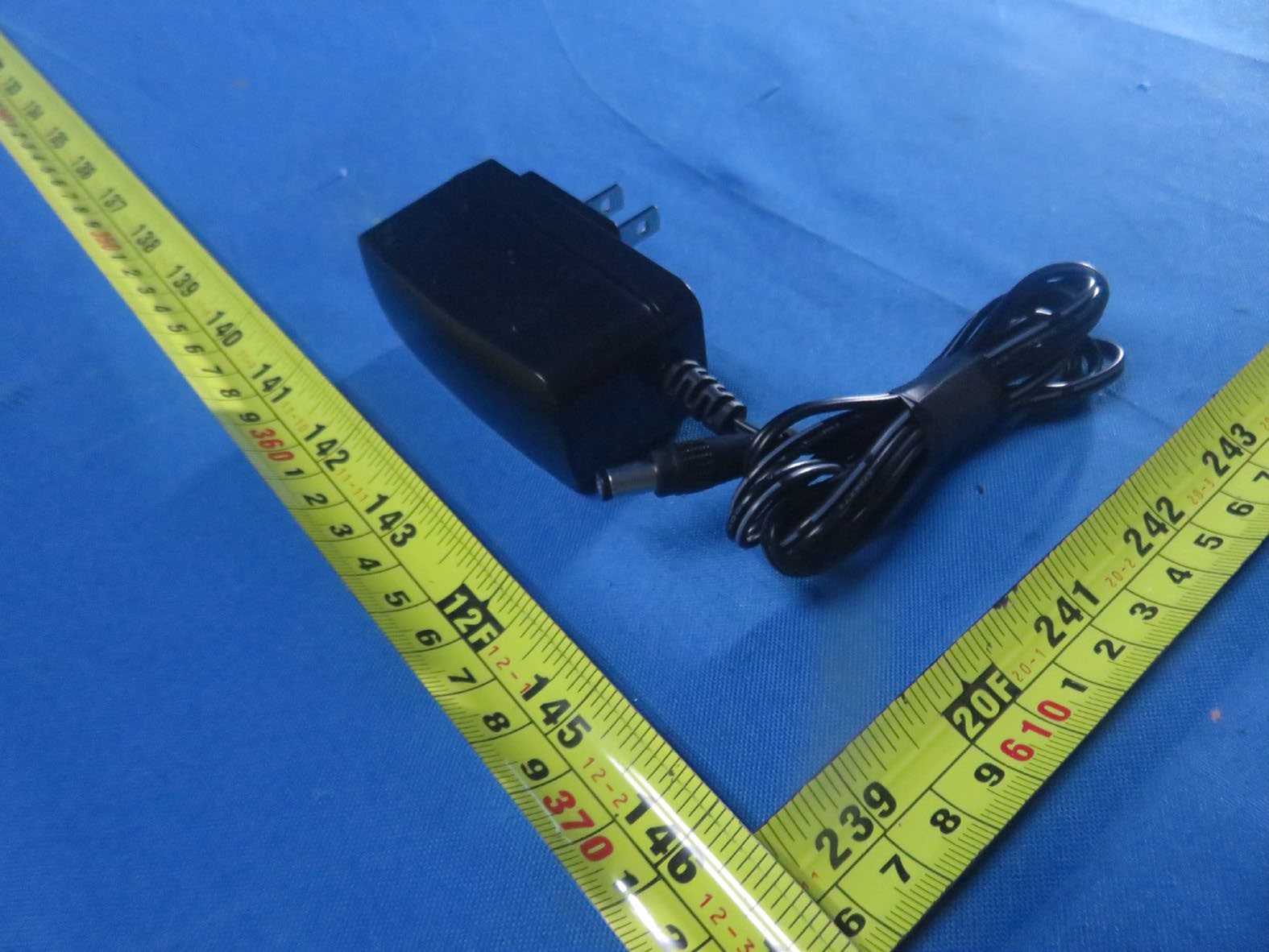

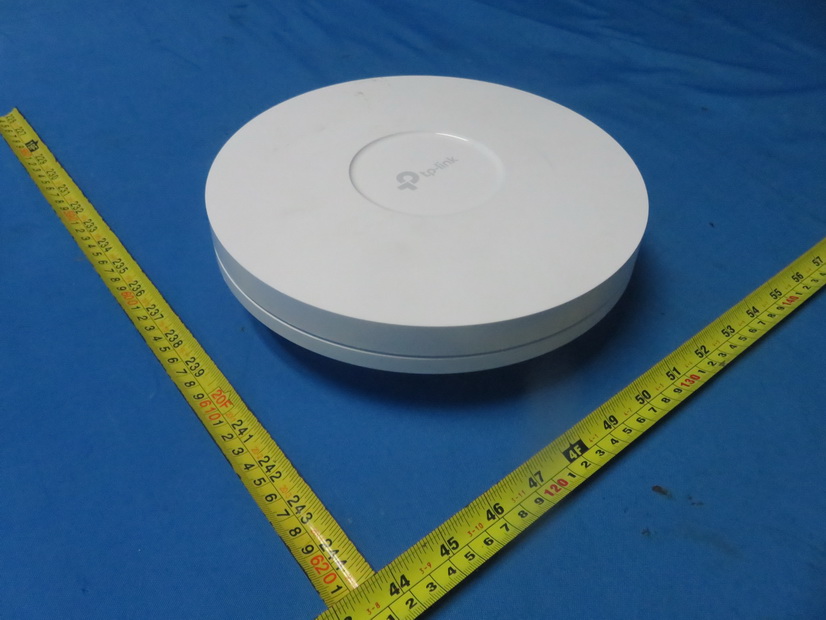

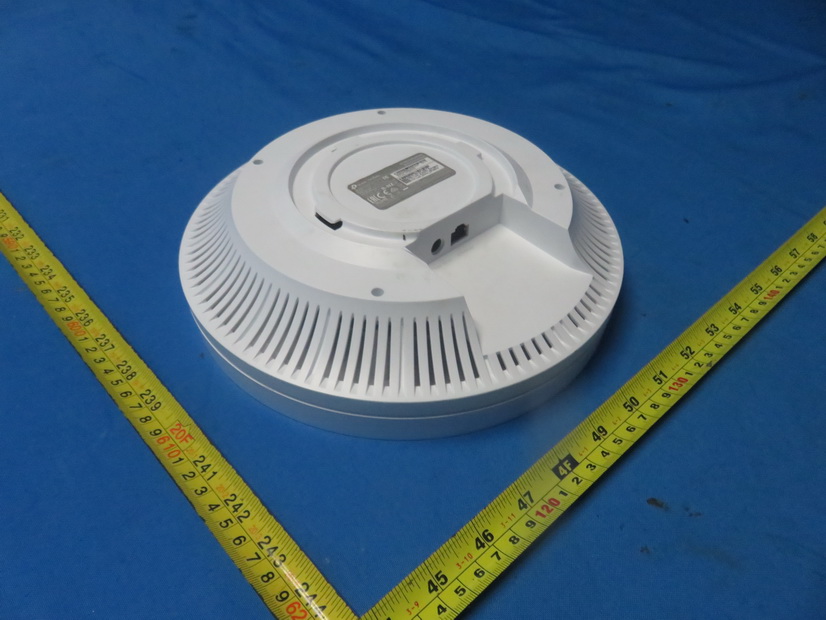

Report No.: 2102C267B Page 1 of 12 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2102C267B Page 2 of 12 Report No.: 2102C267B Page 3 of 12 Report No.: 2102C267B Page 4 of 12 Report No.: 2102C267B Page 5 of 12

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 EAP610(EU) 1.0_产品规格标贴 A1 80g艾利铜版纸+雾膜 EAP610(EU) 1.0 姚远 2021-03-02 白色 TP底壳灰 白色 白色 注：S/N码由工厂打印至27*5mm空白标贴(7210500214) 空白标贴后黏贴至指定条码框上，MAC码、SSID由工厂直接打印在标贴上。 MAC条码由“XXXXXXXXXXXX”生成， 文本打印为“XX-XX-XX-XX-XX-XX”。 SSID以软件生成工具为准 3mm3mm 3mm 卷装供货： 边距&跳距=3mm 文字方向 文字方向 文字转曲（供应商来料效果）54.5*29.5±0.2mm，3.5R，2C AX1800 Ceiling Mount Wi-Fi 6 Access Point This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: EAP610 Power: 12V 1.0A 802.3at PoE: 42.5-57V 0.6A Default Access: http://tplinkeap.net Username: admin Password: admin S/N:XXXXXXXXXXXXX Model:EAP610(EU) Ver:1.0 MAC:XX-XX-XX-XX-XX-XX SSID: TP-Link_2.4GHz_XXXXXX SSID: TP-Link_5GHz_XXXXXX TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong IC: 26583-EAP610 FCC ID: 2AXJ4EAP610

Report No.: 2102C267B Page 6 of 12 Report No.: 2102C267B Page 7 of 12 2.4G Ant. 2 5G Ant. 2 2.4G Ant. 1 5G Ant. 1 Report No.: 2102C267B Page 8 of 12 Report No.: 2102C267B Page 9 of 12 Report No.: 2102C267B Page 10 of 12 Report No.: 2102C267B Page 11 of 12 Report No.: 2102C267B Page 12 of 12

Report No.: BTL-FCCP-3-2102C267B Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4EAP610 The test data were reissue from the FCC ID: 2AXJ4EAP620HDV2, model name: EAP620 HD. Model difference: EAP610 has single DDR, EAP620 HD has dual DDR. Project No. : 2102C267B Equipment : AX1800 Ceiling Mount Wi-Fi 6 Access Point Brand Name : tp-link Test Model : EAP610 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Feb. 10, 2021 Apr. 28, 2021 Date of Test : Feb. 25, 2021 ~ Mar. 24, 2021 Issued Date : Jul. 27, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210225114 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2102C267B Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jul. 27, 2021 Report No.: BTL-FCCP-3-2102C267B Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link EAP1800(EU)1.0 PIFA I-PEX 3 2 tp -link EAP1800(EU)1.0 PIFA I-PEX 3 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=3. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi= 3+10log(2/1)dBi=6.01. Then, the power spectral density limit is 8-(6.01-6)=7.99. 2) Beamforming Gain: 3dB. So Directional gain=3+3=6. 3) The antenna gain and beamforming gain are provided by the manufacturer. For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11b V (Ant. 1 + Ant. 2) IEEE 802.11g V (Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V (Ant. 1 + Ant. 2) For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2102C267B Page 4 of 5 For 5GHz: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link EAP1800(EU)1.0 PIFA I-PEX 3 2 tp -link EAP1800(EU)1.0 PIFA I-PEX 3 Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=3. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi= 3+10log(2/1)dBi=6.01. Then, the UNII-1 power spectral density limit is 17-(6.01-6)=16.99, the UNII-3 power spectral density limit is 30-(6.01-6)=29.99. 2) Beamforming Gain: 3dB. So Directional gain=3+3=6. 3) The antenna gain and beamforming gain are provided by the manufacturer. For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2102C267B Page 5 of 5 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 26.58 454.9881 0.18070 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6 3.9811 25.37 344.3499 0.27287 1 Complies For 5GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 25.65 367.2823 0.14586 1 Complies For 5GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6 3.9811 24.75 298.5383 0.23656 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.27287 0.23656 0.50943 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2102C267B Page 1 of 24 FCC Radio Test Report FCC ID: 2AXJ4EAP610 The worst case of radiated emissions above 1GHz have been re-evaluated by sample of FCC ID: 2AXJ4EAP610, model name: EAP610. Meanwhile. The other test data were reissue from the FCC ID: 2AXJ4EAP620HDV2, model name: EAP620 HD. The test data of radiated emissions above 1GHz please see the Appendix A. Model difference: EAP610 has single DDR, EAP620 HD has dual DDR. This report concerns: Original Grant Project No. : 2102C267B Equipment : AX1800 Ceiling Mount Wi-Fi 6 Access Point Brand Name : tp-link Test Model : EAP610 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Apr. 28, 2021 Date of Test : May 27, 2021 ~ Jun. 16, 2021 Issued Date : Jul. 27, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG20210423110 Standard(s) : FCC Part15, Subpart E(15.407) FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2102C267B Page 2 of 24 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2102C267B Page 3 of 24 Table of Contents Page REPORT ISSUED HISTORY 4 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 TEST MODES 10 2.3 TEST SOFTWARE SETTING 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 SUPPORT UNITS 11 3 . RADIATED EMISSIONS TEST 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 DEVIATION FROM TEST STANDARD 12 3.4 TEST SETUP 13 3.5 EUT OPERATION CONDITIONS 13 3.6 TEST RESULTS - ABOVE 1000 MHz 13 4 . MEASUREMENT INSTRUMENTS LIST 14 5 . EUT TEST PHOTOS 15 APPENDIX A - RADIATED EMISSION - ABOVE 1000 MHZ 16 Report No.: BTL-FCCP-2-2102C267B Page 4 of 24 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 12, 2021 R01 Added the test software version. Jul. 27, 2021 Report No.: BTL-FCCP-2-2102C267B Page 5 of 24 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions ------ PASS NOTE (5) 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX A PASS NOTE (5) 15.407(a) 15.407(e) Spectrum Bandwidth ------ PASS NOTE (5) 15.407(a) Maximum Output Power ------ PASS NOTE (5) 15.407(a) Power Spectral Density ------ PASS NOTE (5) 15.407(g) Frequency Stability ------ PASS NOTE (5) 15.203 Antenna Requirements ------ PASS NOTE (2) 15.407(c) Automatically Discontinue Transmission ------ PASS NOTE (3) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. (3) During no any information transmission, the EUT can automatically discontinue transmission and become standby mode for power saving. the EUT can detect the controlling signal of ACK message transmitting from remote device and verify whether it shall resend or discontinue transmission. (4) For UNII-1 this device was functioned as a Access point device Client device (5) Reissue from the FCC ID: 2AXJ4EAP620HDV2. Report No.: BTL-FCCP-2-2102C267. Report No.: BTL-FCCP-2-2102C267B Page 6 of 24 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2102C267B Page 15 of 24 5. EUT TEST PHOTOS Radiated Emissions Test Photos Above 1 GHz
