User Guide Kasa Smart Light Bulb KL110 / KL130 / KL125 1910012847 REV2.0.0 © 2020 TP-Link Contents About This Guide ····················································1 Introduction ·······························································2 Set Up Your Smart Bulb ·······································3 Main Device Control ··············································4 Configure Your Smart Bulb ································5 Create Scenes··························································8 Reset Your Smart Bulb ·········································9 Discover Kasa ·························································10 Authentication ························································11 1 About This Guide This guide provides a brief introduction to Smart Bulb and the Kasa app, as well as regulatory information. Features available in smart bulb may vary by model and software version. Smart bulb availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual smart bulb experience. Conventions In this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. Support • Specific product information can be found on the product page at https://www.tp-link.com. • A Technical Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page at https://www.tp-link.com/support. • Videos about how to configure the smart bulb features can be found on the Setup Videos page at https://www.tp-link.com/support/setup-video/#smart-bulbs. 2 Introduction The Smart Bulb is part of the Kasa smart home family of products, including plugs, switches, cameras and more. You can adjust brightness, track energy consumption, set schedules and timers and set an alarm that wakes you naturally by simulating the sunrise. Group lights together to control your smart bulbs more easily and create your own scenes. Turn your home into a true smart home with Kasa Smart. You can also control multiple smart home devices with the Kasa Smart app or use your voice for added convenience. With Kasa, your home is never more than a few taps away. • No Hub Required - The Smart Light screws in just like an ordinary bulb. Simply download the Kasa Smart app, connect to Wi-Fi and enjoy. No need for a hub or extra equipment. • Scheduling - Set your smart bulb to turn on or off while you are home or away. • Energy Saving - Reduce power usage without compromising on light quality. • Voice Control - Use simple voice commands with Alexa, Google Assistant or SmartThings. • Remote Control - Set up the smart bulb easily and control from anywhere with the free Kasa Smart app. KL110 (Dimmable )KL130 (Multicolor)KL125 (Multicolor) A dimming range from 1%-100%, lighting for any occasion A wide range of colors and adjustable brightness (2500K~9000K) A wide range of colors and adjustable brightness (2500K~6500K) 3 Set Up Your Smart Bulb Follow the steps below to set up your smart bulb via the Kasa Smart app. Step 1. Download Kasa Get the Kasa Smart app from the App Store or Google Play. Step 2. Connect to Network Connect your mobile device to a 2.4GHz Wi-Fi network. Step 3. Add Devices Tap the button in the Kasa app and select Device to add your new Kasa smart bulb. Follow app instructions to complete the setup. 4 Main Device Control After you successfully set up your Smart Bulb, you will see the Devices page on the Kasa app. You can add new devices, control multiple devices simultaneously in a group, configure account settings, and more. Devices Page On the Devices page, you can instantly turn on/ off the bulb, adjust brightness or change colors (only for KL130 / KL125). Add a Group On the Devices page, tap > Group to add a group for controlling multiple devices simultaneously. Configure Kasa Settings On the Devices page, swipe right and you can configure settings for your Kasa account or get more information about Kasa. ON OFF 5 Configure Your Smart Bulb On the Devices page, tap a smart bulb and enter the Smart Bulb page. You can adjust the light temperature or color (only for KL130 / KL125), set brightness, schedules, track energy consumption and configure the bulb settings. *Here we take KL130 as an example. Power On/Off At One Tap On the Smart Bulb page, you can quickly power on or off your smart bulb with a single button. Adjust Brightness Dim your smart bulb with a range from 1% to 100%. Adjust Light Temperature Adjust the light temperature for your smart bulb easily (Only for KL130 / KL125). 6 Adjust Color Choose a preferred color for your smart bulb (Only for KL130 / KL125). Presets and Recents Tap to add presets and apply what you have set recently to your smart bulb. Add Schedules Tap to add schedules for your smart bulb to simplify your daily routine by creating automatic On/Off actions. Configure Your Smart Bulb On the Devices page, tap a smart bulb and enter the Smart Bulb page. You can adjust the light temperature or color (only for KL130 / KL125), set brightness, schedules, track energy consumption and configure the bulb settings. *Here we take KL130 as an example. 7 Track Energy Usage Tap to view and track energy consumption of your smart bulb. Device Settings Tap to configure device settings and check device information . Configure Your Smart Bulb On the Devices page, tap a smart bulb and enter the Smart Bulb page. You can adjust the light temperature or color (only for KL130 / KL125), set brightness, schedules, track energy consumption and configure the bulb settings. *Here we take KL130 as an example. 8 Create Scenes A scene is a preset group of smart devices that can be…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band any non-US channels in all the operational mode(s) for the following product. Product: Kasa Smart Wi-Fi Light Bulb, Multicolor, Tapo Smart Wi-Fi Light Bulb, Multicolor FCC ID: 2AXJ4KL125V4 Model: KL125, Tapo L530E Brand: tp-link Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 04/12/2023

TP-Link Corporation Limited. 050222-31a Request for Confidentiality Date: April 12, 2023 Subject: Confidentiality Request for: ___FCC ID:2AXJ4KL125V4_and IC:26583-KL125V4 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐Short Term☒Permanent Block Diagrams ☐Short Term --------------------------- External Photos ☐Short Term☐Permanent * 1 Internal Photos ☐Short Term☒Permanent Operation Description/Theory of Operation ☐Short Term☐Permanent Parts List & Placement/BOM ☐Short Term☐Permanent Tune-Up Procedure ☐Short Term☒Permanent Schematics ☐Short Term --------------------------- Test Setup Photos ☐Short Term☐Permanent * 3 User’s Manual __ TP-Link Corporation Limited._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: __________________________ _________ Sarah Wang _______________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-LinkCorporationLimited 050222-17 AuthoritytoActasAgent Date:April24,2023 AmericanCertificationBody,Inc. 313ParkAvenue Suite300 FallsChurch,VA22046 ToWhomItMayConcern: ULVerificationServices(Guangzhou)Co.,Ltd,SongShanLakeBranch__isauthorizedtoactonour behalf,untilotherwisenotified,forapplicationstoAmericanCertificationBody,Inc.(ACB). Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits,pursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further,noparty,asdefinedin47 CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits,thatincludesFCCbenefits. WealsodeclarethattheinformationprovidedtotheFCCistrueandcorrecttothebestofour knowledge(47CFR2.911(d))andwehavebeeninformedofthegranteeresponsibilities(47CFR 2.909)withregardtocertifiedequipment. Thankyou, AgencyAgreementExpirationDate:____4 /24/2024 By:_____________________________________SarahWang_____________ (Signature 1 )(Printname) Title:__________LeadofProductCertificationTeam________________ Onbehalfof:_________TP-LinkCorporationLimited._________________________________ (CompanyName) Telephone:_______________+8675526615494___________________ 1 -MustbesignedbyapplicantcontactgivenforapplicantontheFCCsite,orbytheauthorizedagentifanappropriateauthorizedagent letterhasbeenprovided.Lettersshouldbeplacedonappropriateletterhead.

TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Confirmation Letter We, Company name: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong The product: Kasa Smart Wi-Fi Light Bulb, Multicolor Tapo Smart Wi-Fi Light Bulb, Multicolor And model No.: KL125, Tapo L530E FCC ID: 2AXJ4KL125V4 Tapo L530E have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with KL125. The difference lies only the product name and model number. We choose Model KL125(Kasa Smart Wi-Fi Light Bulb, Multicolor ) to test.all these changes do not degrade the unwanted emissions of the certified product. Company Name: TP-Link Corporation Limited Contact Name: Sarah Wang Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date:04/12/2023

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: Kasa Smart Wi-Fi Light Bulb, Multicolor, Tapo Smart Wi-Fi Light Bulb, Multicolor FCC ID: 2AXJ4KL125V4 Model: KL125, Tapo L530E Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 04/12/2023

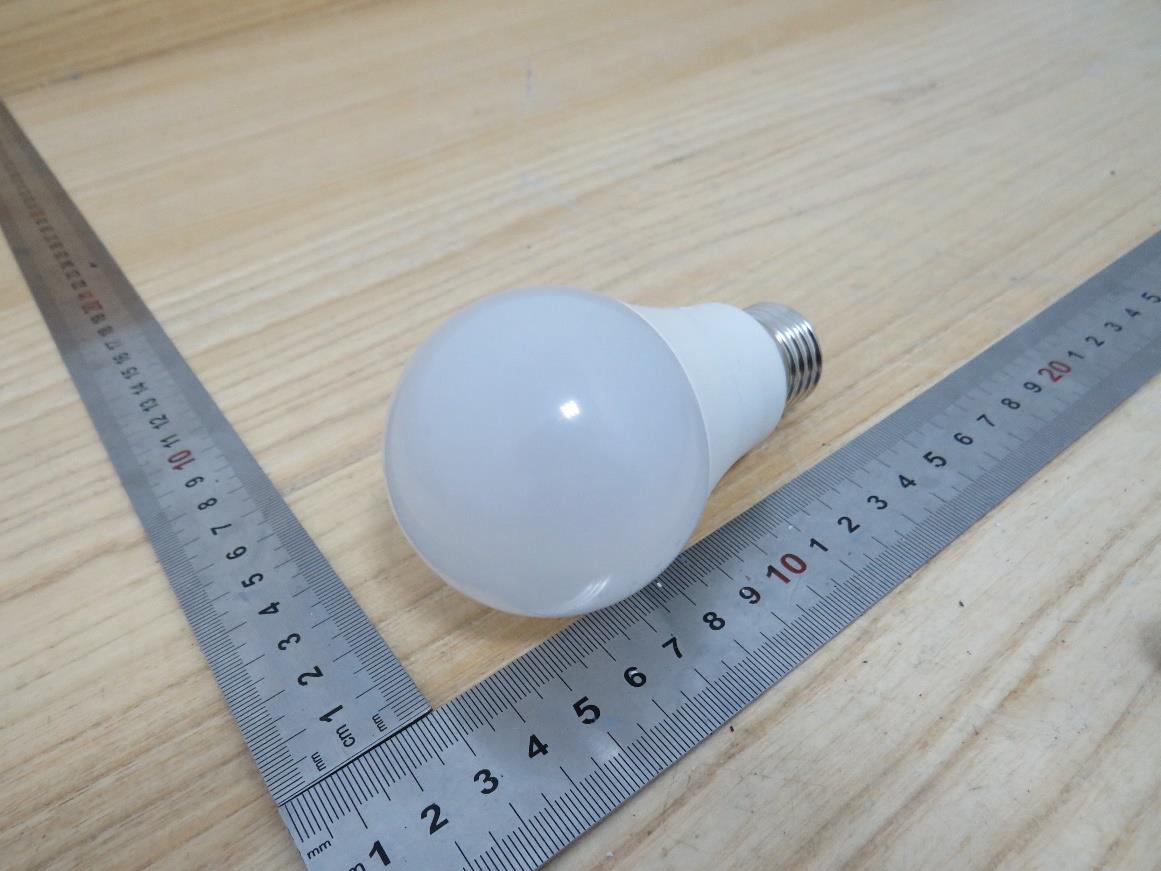

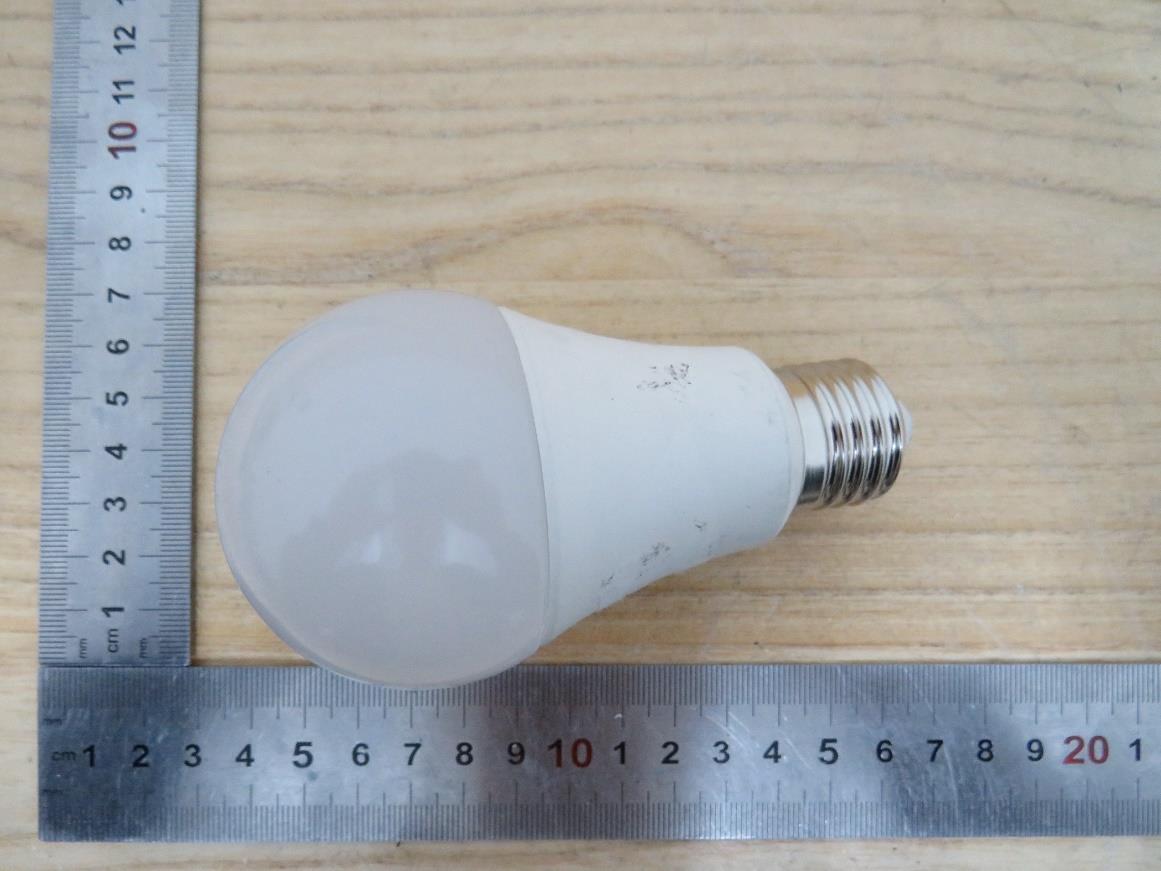

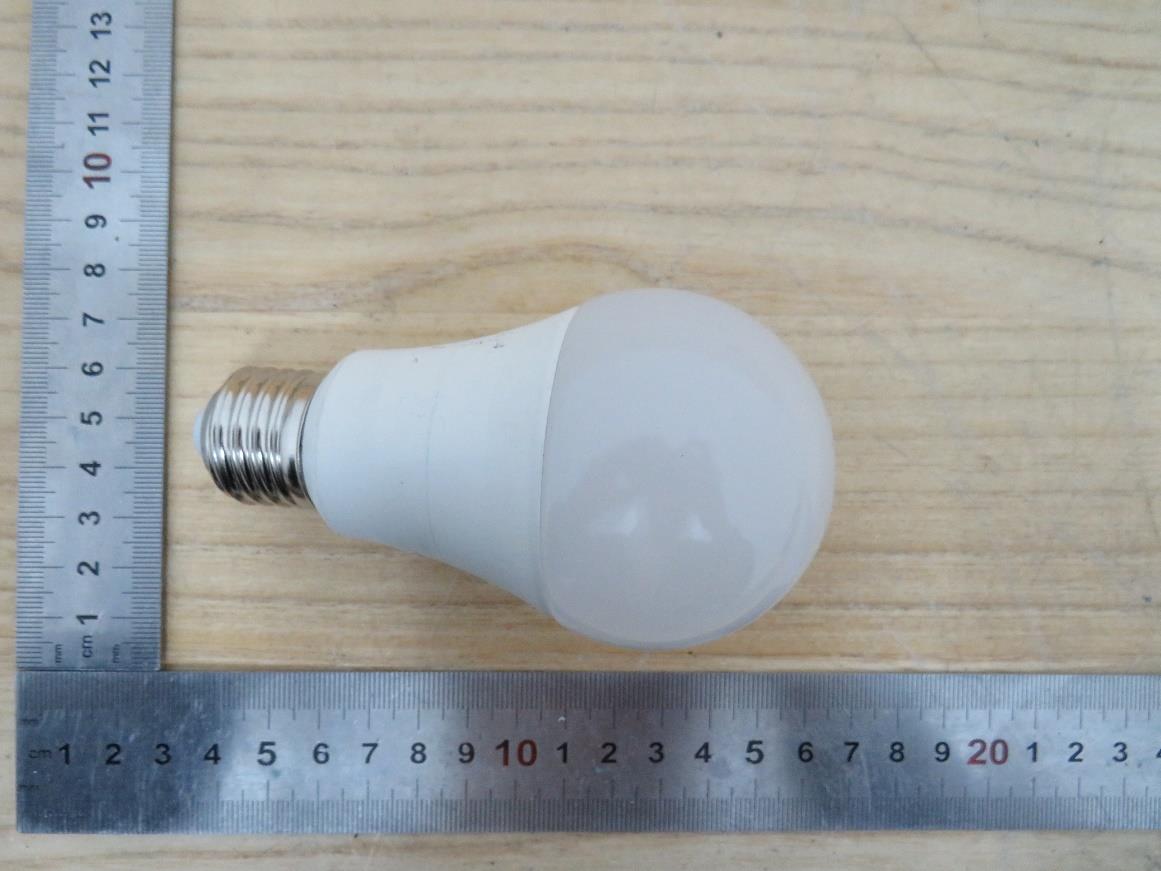

External Photographs Page 2 of 3 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 3 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4

菲林图： 结构图结构图效果图 尺寸： 5.5*5.5mm 颜色：Pantone Cool Gray 3C 工艺：镭雕 *LOGO与壳体居中对齐*LOGO和镭雕信息整体与壳体居中对齐 *图纸上标准均为垂直尺寸，实际尺寸以 打样确认效果为准。 尺寸：67.55*33.5mm 颜色：Pantone Cool Gray 3C （具体以签样为准） 工艺：镭雕 注意：Date Code: YYMM需要 根据生产日期改动 1.6±0.2mm （垂直尺寸） 2.68±0.2mm （垂直尺寸） 4±0.3mm （垂直尺寸） 效果图 29.29±0.8mm （垂直尺寸） Model: KL125 Kasa Smart Wi-Fi Light Bulb, Multicolor A19 E26 800 lumens 120V~60Hz 0.1A 2500K~6500K 8.8W CAUTION - NOT FOR USE IN TOTALLY ENCLOSED LUMINAIRES. SUITABLE FOR DAMP LOCATIONS. DO NOT USE WITH STANDARD DIMMERS, SEE INSTRUCTIONS. ATTENTION - CONVIENT AUX EMPLACEMENTS HUMIDES. NE PAS UTILISER AVEC DES GRADATEURS STANDARD. SE REPORTER AUX INSTRUCTIONS. NE CONVIENT PAS À DES LUMINAIRES TOTALEMENT FERMÉS YYMM Conforms to ANSI/UL Std.1993 Cert. to CAN/CSA Std. C22.2 No. 1993 CAN ICES-005(B)/NMB-005(B) FCC ID: 2AXJ4KL125V4 IC: 26583-KL125V4 HVIN: KL125V4

Internal Photographs Page 2 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Page 5 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 Antenna Page 6 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9 Internal View of EUT-10

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For Kasa Smart Wi-Fi Light Bulb, Multicolor Tapo Smart Wi-Fi Light Bulb, Multicolor MODEL NUMBER: KL125, Tapo L530E FCC ID: 2AXJ4KL125V4 REPORT NUMBER: 4790769271-1-RF-2 ISSUE DATE: March 29, 2023 Prepared for TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790769271-1-RF-2 Page 2 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 March 29, 2023 Initial Issue REPORT NO.: 4790769271-1-RF-2 Page 3 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. DESCRIPTION OF EUT ........................................................................................................ 6 5. REQUIREMENT .................................................................................................................... 7 REPORT NO.: 4790769271-1-RF-2 Page 4 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer Information Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong EUT Information EUT Name: Kasa Smart Wi-Fi Light Bulb, Multicolor Tapo Smart Wi-Fi Light Bulb, Multicolor Model: KL125, Tapo L530E Brand: tp-link Sample Received Date: March 14, 2023 Sample Status: Normal Sample ID: 5882865 Date of Tested: March 14, 2023 to March 29, 2023 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS KDB 447498 D01V06 Prepared By: Checked By: Kebo Zhang Denny Huang Senior Project Engineer Senior Project Engineer Approved By: Stephen Guo Operations Manager REPORT NO.: 4790769271-1-RF-2 Page 5 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4790769271-1-RF-2 Page 6 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. DESCRIPTION OF EUT EUT Name Kasa Smart Wi-Fi Light Bulb, Multicolor Tapo Smart Wi-Fi Light Bulb, Multicolor Model KL125, Tapo L530E Model Difference They are all the same. Expect the product name and model number. We choose Model KL125(Kasa Smart Wi-Fi Light Bulb, Multicolor ) to test. Frequency Range: 2412 MHz to 2462 MHz Radio Technology: IEEE802.11b/g/n HT20 Type of Modulation: IEEE 802.11b: DSSS(CCK…

Text truncated - open the document above for the full version.

Product Model： Tapo L530E(US)3.0 Version： 3.0 Manufacturer： Date： Checked By： TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Konga TEL: 00852-37585503 http://www.tp-link.com/en Index I. Antenna Distribution ........................................................................................ 3 II. Electrical Characteristics ................................................................................ 3 III. Antenna Peak Gain............................................... Error! Bookmark not defined. IV. Antenna Radiation Pattern .............................................................................. 4 Page 3 Version:3.0 Issue Date: I. Antenna Distribution Tapo L530E(US)3.0 II. Electrical Characteristics Ant Frequency 2400~2500MHz Impedance 50Ohm Antenna Type Monopole Antenna Gain -3.30dBi@2400~2500MHz Radiation pattern Omni-Directional III. Antenna Peak Gain Ant Frequency(MHz) 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Gain(dBi) -5.19 -5.00 -4.71 -4.53 -4.26 -4.01 -3.71 -3.43 -3.32 -3.33 -3.30 Page 4 Version:3.0 Issue Date: IV. Antenna Radiation Pattern Ant

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C TEST REPORT For Kasa Smart Wi-Fi Light Bulb, Multicolor Tapo Smart Wi-Fi Light Bulb, Multicolor MODEL NUMBER: KL125, Tapo L530E REPORT NUMBER: 4790769271-1-RF-1 ISSUE DATE: March 29, 2023 FCC ID: 2AXJ4KL125V4 Prepared for TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790769271-1-RF-1 Page 2 of 118 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 March 29, 2023 Initial Issue REPORT NO.: 4790769271-1-RF-1 Page 3 of 118 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.12 & Clause 11.13 FCC Part 15.247 (d) FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: 4790769271-1-RF-1 Page 4 of 118 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ...................................................................................... 6 2. TEST METHODOLOGY .......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ...................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ..................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................ 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................. 8 5. EQUIPMENT UNDER TEST .................................................................................................... 9 5.1. DESCRIPTION OF EUT ............................................................................................. 9 5.2. CHANNEL LIST .......................................................................................................... 9 5.3. MAXIMUM EIRP ......................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ......................................................................... 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. WORST-CASE CONFIGURATIONS ........................................................................ 10 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .......................................................... 10 5.8. SUPPORT UNITS FOR SYSTEM TEST .................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED ......................................................... 12 7. ANTENNA PORT TEST RESULTS ...................................................................................... 15 7.1. CONDUCTED OUTPUT POWER ............................................................................ 15 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 16 7.3. POWER SPECTRAL DENSITY ............................................................................... 18 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION...................................... 20 7.5. DUTY CYCLE ........................................................................................................... 22 8. RADIATED TEST RESULTS ................................................................................................ 23 8.1. RESTRICTED BANDEDGE ..................................................................................... 31 8.2. SPURIOUS EMISSIONS(1 GHZ~3 GHZ) .............…
