2AXJ4KP400V3Kasa Smart Wi-Fi Outdoor Plug

User Guide Kasa Smart Wi-Fi Outdoor Plug KP400 ©2021 TP-Link 1910012969 REV3.0.0 Contents About This Guide ····················································1 Introduction ·······························································2 Appearance ·······························································3 Set Up Your Smart Outdoor Plug ···················4 Main Device Controls ···········································5 Configure Your Smart Outdoor Plug ············6 Create Scenes··························································8 Discover Kasa ···························································9 Authentication ························································10 1 About This Guide This guide provides a brief introduction to smart outdoor plug and the Kasa Smart app, as well as regulatory information. Features available of this product and in Kasa Smart may vary by model and software version. Smart outdoor plug and Kasa Smart availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info • Specifications can be found on the product page at https://www.tp-link.com. • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support. 2 Introduction Extend your smart home to the outdoors with the weather-resistant smart outdoor plug. Power on your patio lights, holiday decorations, and more from the convenience of your smartphone. Turn each outlet on/off individually, set schedules, even use simple voice commands with Alexa or Google Assistant to control the devices connected to the plug. • Double the Outlets - Access and use 2 outdoor devices from anywhere together or individually with one smart plug. • Weather-resistant - IP64 rating ensures your outdoor plug is protected against entry of dust and splashes of water from any direction. Weather- resistant cover included.* *When not in use, the sockets should be firmly capped with the included weather-resistant cover. • Control from Anywhere - Turn your outlets on/off or set schedules from anywhere using your Kasa Smart app. • Voice Control - Use voice commands to power up your smart plug with Alexa or Google Assistant. • No Hub Required - This plug works with a secured 2.4GHz wireless network without the need for a separate hub. • Set Schedules - Individually schedule each device connected to this plug to automatically switch on or off if you're home or away. 3 Appearance This smart outdoor plug has two individual smart outlets, each with a control button to turn on or off the plug-in device and a LED to show you the current status. See the explanation below: Provided clamp: Smart Outlet x 2 Plug in your device and control it from your smartphone. Each outlet is independently controllable. Control Button x 2 Press a control button to turn on or off the corresponding outlet. Press and hold any one of the control buttons for 5s to reset Wi-Fi connection. Press and hold any one of the control buttons for 10s to factory reset your plug. LED of Smart Outlet x 2 Lit up when the corresponding smart outlet is on. Provided screw: Unit: mm Unit: mm 4 Set Up Your Smart Outdoor Plug Follow the steps below to set up your plug via Kasa Smart app. 1. Download and install Kasa app Get the Kasa Smart app from the Apple App Store or Google Play, or by scanning the QR code below. 2. Log in or sign up with TP-Link ID Open the app, and log in with your TP-Link ID. If you don't have an account, create one first. 3. Add Device Tap the + button in the Kasa app, go to Smart Plug > Smart Outdoor Plug KP400 and then follow app instructions to complete the setup. Note: When not in use, the sockets should be firmly capped with the included weather-resistant cover. 5 Main Device Controls After you successfully set up your plug, you will see the home page of the Kasa Smart app. Here you can view the status of all devices that you've added to Kasa Smart and manage them. There are 2 smart outlets of this plug and you can tap on a smart outlet to control and manage. Home Page Device Status 6 Configure Your Smart Outdoor Plug On Device Status page, you can set Schedule, preset Away Mode, set Timer, check Runtime and change the settings of your smart outlets. Set Schedule Tap to set a schedule for your smart outlet to simplify your daily routine by creating automatic On/Off action. Preset Away Mode Ta p to preset the Away Mode and your smart outlet will be randomly turned on/off during this time. Set Timer Tap to set the timer and your smart outlet will automatically turn on/off after the time ends. 7 View Device Settings Tap to view and change the settings of your device. Check Runtime Tap to view and track runtime statistics. 8 Create Scenes A scene is a preset group of smart devices that can be programmed, customized and activated simultaneously at the touch of a button from your smartphone or tablet, allowing you to easily set your mood, activity or fit any special occasion. This page allows you to preset how your smart home devices should act automatically at special occasions. 9 Discover Kasa Use the Kasa app to pair your plug with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Launch the Kasa app and go to Add Device > WORKS WITH KASA > Amazon Alexa / Google Assistant for detailed instructions. 10 Authentication FCC Compliance Information Statement Product Name: Kasa Smart Wi-Fi Outdoor Plug Model Number: KP400 Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: http://www.tp-link.com/us/ Tel: …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: _2021-01-14_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____BTL Inc/Rose Liu______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____2022-01-14_____ By: ______________ _______ Abby Liang_________________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: _00852-37585503_ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-01-14 Subject: Confidentiality Request for: 2AXJ4KP400V3 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _______Abby Liang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-01-14 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Declare that: Product description: Kasa Smart Wi-Fi Outdoor Plug Type designation: KP400, EP40 Brand: tp-link FCC ID: 2AXJ4KP400V3 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

Model Declaration Letter We, the undersigning company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Hereby confirm that the following products: Product description: Kasa Smart Wi-Fi Outdoor Plug Type designation: KP400, EP40 Trademark: tp-link That All versions of the Model KP400 and EP40 are electrically equal except the following difference: 1. Only differ in model name. Date: 2021-01-14 Name: Abby Liang Telephone: 00852-37585503 E-mail: [email protected] Signature:

Project No.: 2011C174 Page 2 of 6 Project No.: 2011C174 Page 3 of 6

֣ߥ੅ تؾ͹SS ோ਩͹6GTZUTK)UUR-XG_) 94չ3')юОॐ۞ͫ Ӏѽљ૷ўࣿۨٗӀОӕ ֣ߧݼ ֣تؾ HVIN:KP400V3 FCC ID:2AXJ4KP400V3 IP64 IC:26583-KP400V3 Outdoor Use MADE IN CHINA RoHS Operation Temperature: -20°C~50°C INSTRUCTION Mount vertically with the receptacles facing downward, at least 2 ft above the ground. / Montez verticalement avec les prises orientées vers le bas et à au moins 2 pieds au-dessus du sol. For outdoor usage, use this product with GFCI outlet. / Pour une utilisation en extérieur, utilisez ce produit avec une prise GFCI. CERTIFIED TO CSA STD E60730-1 Kasa Smart Wi-Fi Outdoor Plug KP400 Rating: 125V~ 60Hz 15A Maximum Load in Total, 1/2 HP Motor MICRO-DISCONNECTION (TYPE 1.B) CONFORMS TO UL STD. 60730-1 M AC : X X-X X-X X-X X-X X-X X KP400(US) Ver:3.0 S/N:XXXXXXXXXXXXX

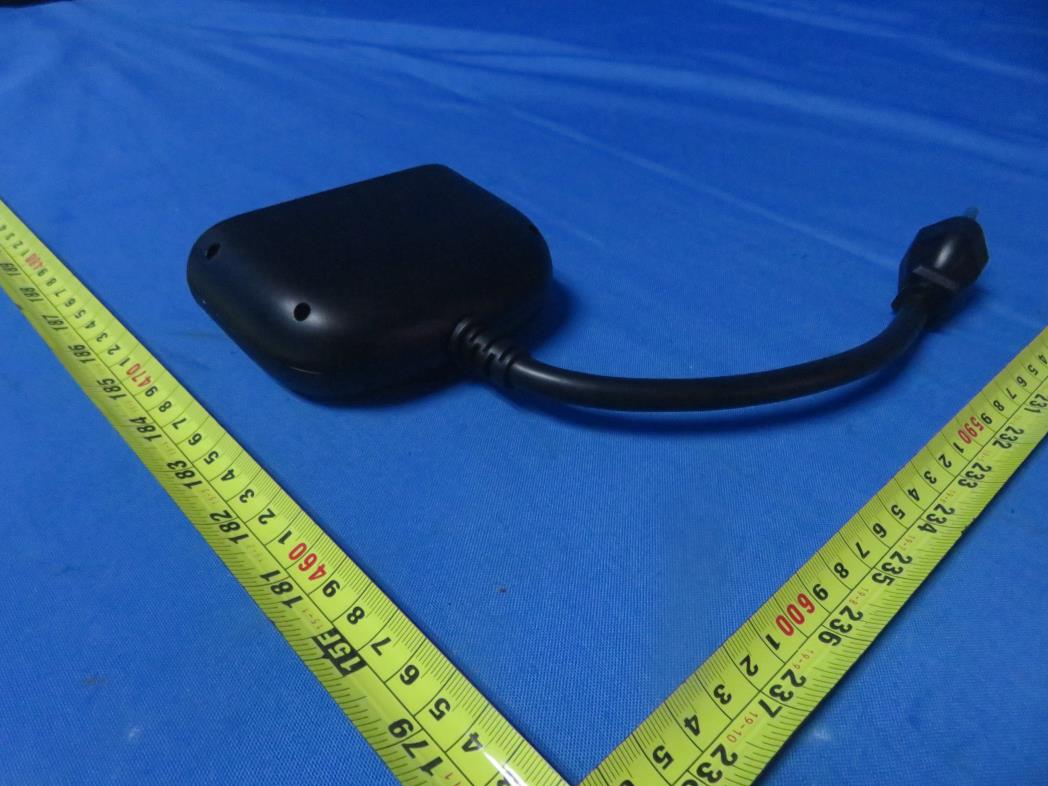

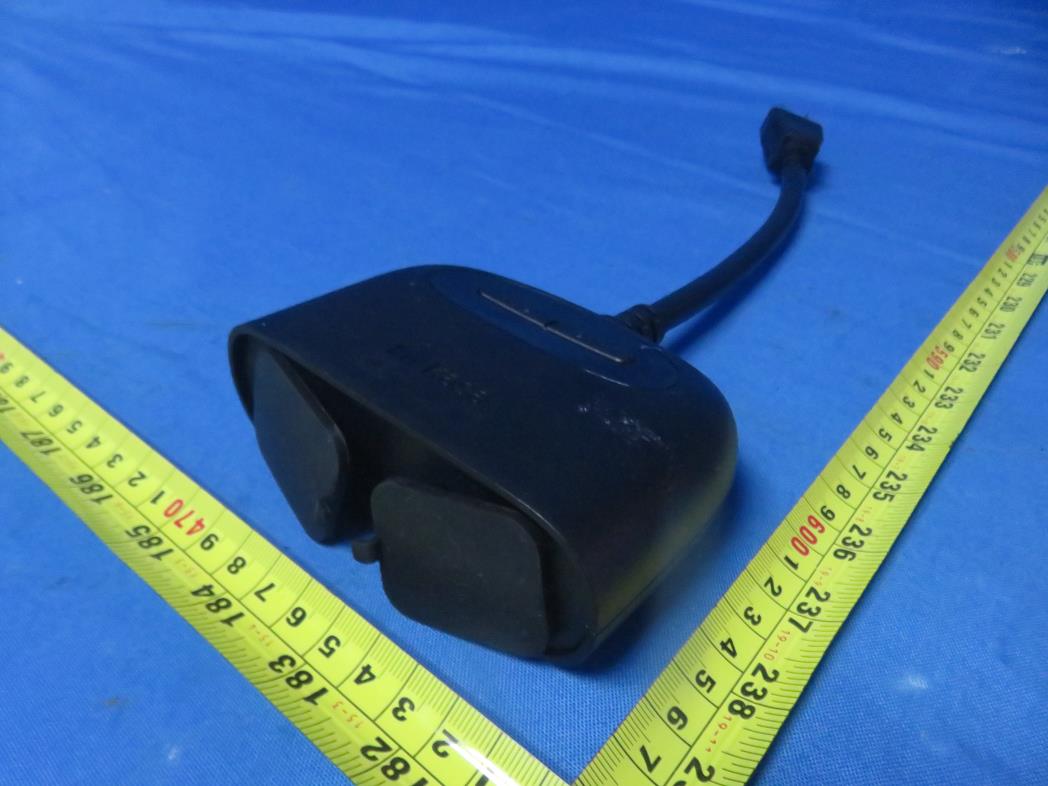

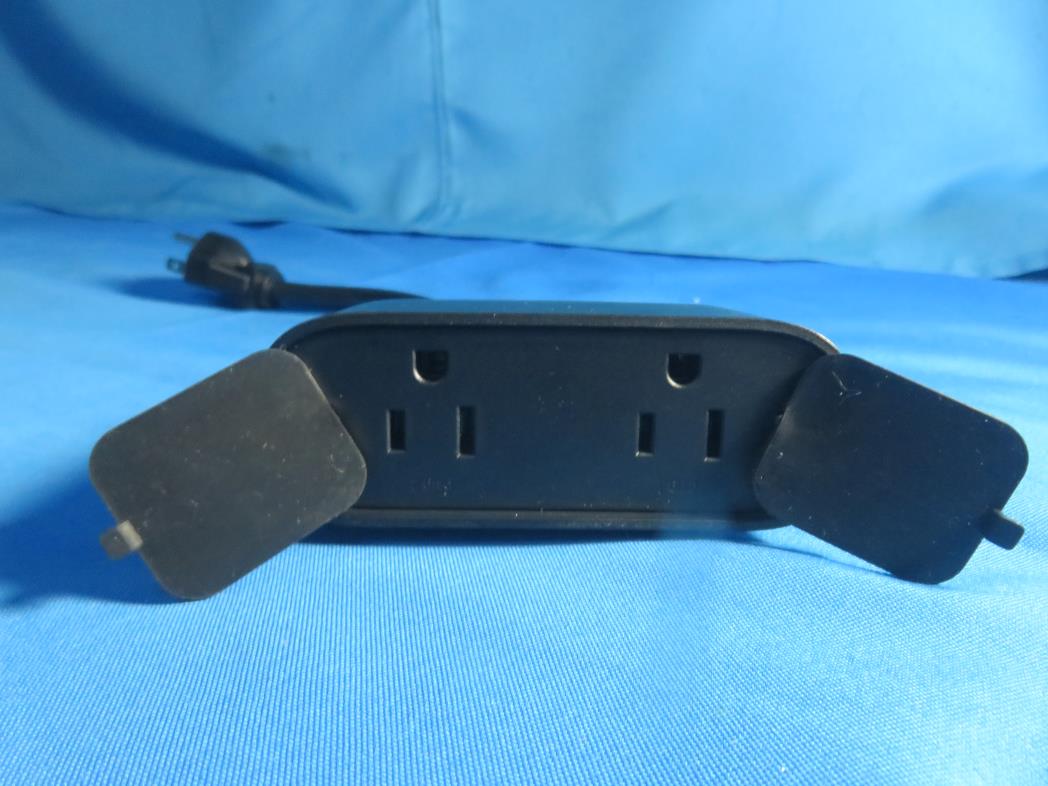

Project No.: 2011C174 Page 4 of 6 Project No.: 2011C174 Page 5 of 6 Ant.1 Ant.2 Project No.: 2011C174 Page 6 of 6

Report No.: BTL-FCCP-2-2011C174 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4KP400V3 Project No. : 2011C174 Equipment : Kasa Smart Wi-Fi Outdoor Plug Brand Name : tp-link Test Model : KP400 Series Model : EP40 Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Nov. 23, 2020 Date of Test : Dec. 17, 2020 ~ Dec. 26, 2020 Issued Date : Jan. 08, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20201123212 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2011C174 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jan. 08, 2021 Report No.: BTL-FCCP-2-2011C174 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A PCB N/A 3.50 2 N/A PCB N/A 1.50 Note: 1) The antenna gain is provided by the manufacturer. 2) Smart antenna system with two transmit/receive chains, but operating in a mode where only one transmit/receive chain is used. 3. TEST RESULTS Ant.1: Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.50 2.2387 20.40 109.6478 0.04886 1 Complies Ant.2: Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.50 1.4125 20.38 109.1440 0.03069 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2011C174 Page 1 of 117 FCC Radio Test Report FCC ID: 2AXJ4KP400V3 This report concerns: Original Grant Project No. : 2011C174 Equipment : Kasa Smart Wi-Fi Outdoor Plug Brand Name : tp-link Test Model : KP400 Series Model : EP40 Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Nov. 23, 2020 Date of Test : Dec. 17, 2020 ~ Dec. 26, 2020 Issued Date : Jan. 08, 2021 Report Version : R00 Test Sample : Engineering Sample No.:DG20201123180 for radiated, DG202012171 for conducted Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2011C174 Page 2 of 117 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2011C174 Page 3 of 117 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2011C174 Page 4 of 117 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 104 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 108 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 111 Report No.: BTL-FCCP-1-2011C174 Page 5 of 117 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 115 Report No.: BTL-FCCP-1-2011C174 Page 6 of 117 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 08, 2021 Report No.: BTL-FCCP-1-2011C174 Page 7 of 117 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Den…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2011C174 Page 27 of 117 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2011C174 Page 28 of 117 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2011C174 Page 29 of 117 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2011C174 Page 30 of 117 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2011C174 Page 31 of 117 Conducted Emissions Test Photos
