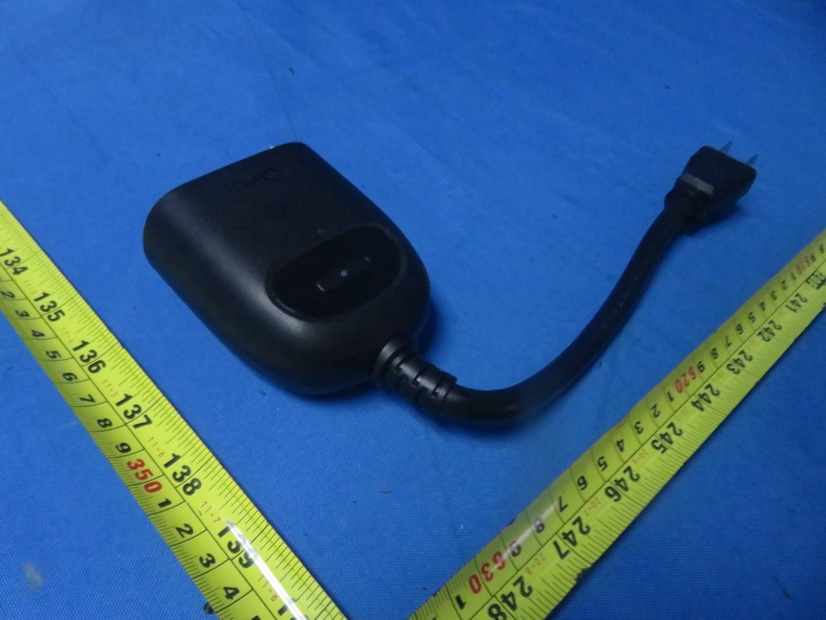

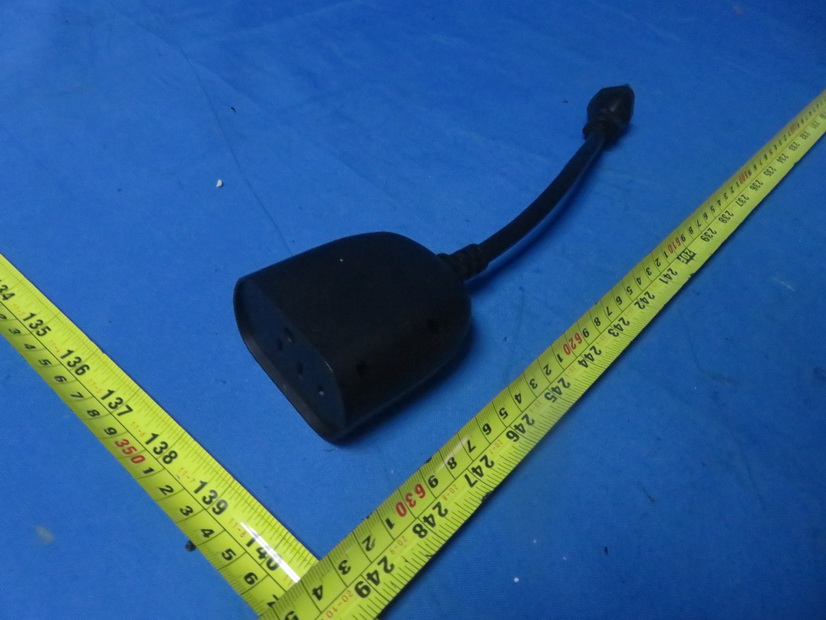

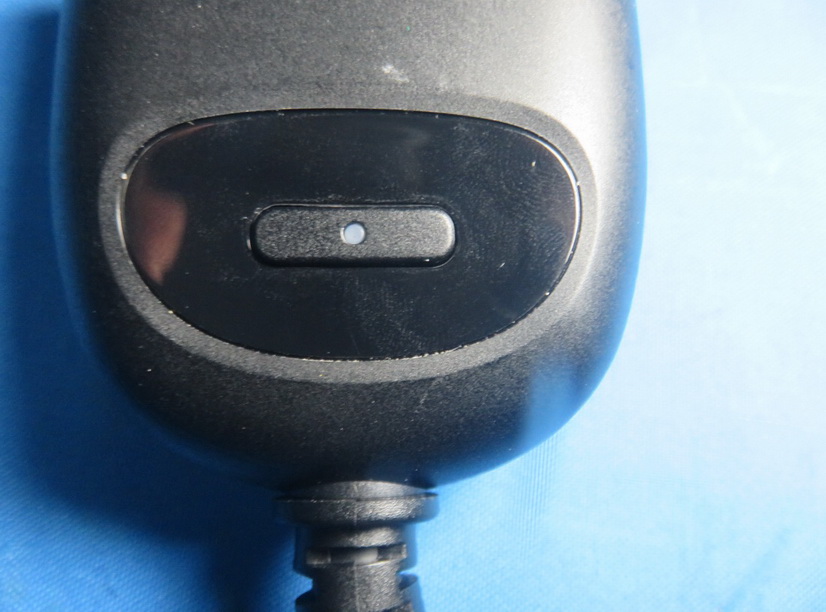

2AXJ4KP401Kasa Smart Wi-Fi Outdoor Plug

User Guide Kasa Smart Wi-Fi Outdoor Plug KP401 © 2021 TP-Link 1910013019 REV1.0.0 Contents About This Guide ···················································· 1 Introduction ······························································· 2 Appearance ······························································· 3 Set Up Your Smart Outdoor Plug ··················· 4 Main Device Controls ··········································· 5 Manage Device Settings ··································11 Create Groups ························································15 Create Scenes························································20 Smart Actions ·························································22 Discover Kasa ·························································33 1 About This Guide This guide provides a brief introduction to smart outdoor plug and the Kasa Smart app, as well as regulatory information. Features available of this product and in Kasa Smart may vary by model and software version. Smart outdoor plug and Kasa Smart availability may also YDU\E\UHJLRQRU,63$OOLPDJHVVWHSVDQGGHVFULSWLRQVLQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\QRWUHưHFW\RXUDFWXDOH[SHULHQFH Conventions In this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info • 6SHFLƮFDWLRQVFDQEHIRXQGRQWKHSURGXFWSDJHDWhttps://www.tp-link.com. • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support. 2 Introduction Extend your smart home to the outdoors with the weather-resistant smart outdoor plug. Power on your patio lights, holiday decorations, and more from the convenience of your smartphone. Control your plug from anywhere, set schedules, even use simple voice commands with Alexa or Google Assistant to control the devices connected to the plug. • Weather-resistant - IP64 rating and weather-resistant cover ensure your outdoor plug is protected against entry of dust and splashes of water from any direction.* *To prevent water from entering, always keep the outdoor plug's scocket faced down and cover the socket with the weatherproof cover when not in use. • Control from Anywhere - 7XUQ\RXUFRQQHFWHGGHYLFHRQDQGRƬIURPDQ\ZKHUHXVLQJ\RXU.DVD6PDUWDSS • Voice Control - Use simple voice commands with Alexa or Gogole Assistant to control your connected devices. • No Hub Required - This plug works with a secured 2.4GHz wireless network without the need for a separate hub. • Set Schedules6ZLWFK\RXUFRQQHFWHGGHYLFHRQDQGRƬDXWRPDWLFDOO\WRVDYH\RXHQHUJ\DQGHƬRUW 3 Appearance 7KLVVPDUWRXWGRRUSOXJKDVRQHFRQWUROEXWWRQWRWXUQRQRURƬWKHplug-in device and a LED to show you the current status. The LED changes color DFFRUGLQJWRGLƬHUHQWVWDWXV6HHWKHH[SODQDWLRQEHORZ Provided clamp: Blinking Orange Resetting. Blinking Green Searching for Wi-Fi. Red No Wi-Fi connection. Blinking Orange and Green Setup mode initiated. System LED Orange Rebooting. White Connected to Wi-Fi network successfully. Smart Outlet Plug in your device and control it from your smartphone. Control Button 3UHVVWRWXUQRQRURƬWKHSOXJ Press for 5s to reset Wi-Fi connection. Press for 10s to factory reset your plug. Provided screw: Unit: mm Unit: mm 4 Set Up Your Smart Outdoor Plug Follow the steps below to set up your plug via Kasa Smart app. 1. Download and install Kasa app Get the Kasa Smart app from the Apple App Store or Google Play, or by scanning the QR code below. 2. Log in or sign up with TP-Link ID Open the app, and log in with your TP-Link ID. ,I\RXGRQ WKDYHDQDFFRXQWFUHDWHRQHƮUVW 3. Add Device Tap the + button in the Kasa app, go to Smart Plug > Smart Outdoor Plug and then follow app instructions to complete the setup. Note: When not in use, the sockets should be firmly capped with the weather-resistant cover. 5 Main Device Controls After you successfully set up your Smart Outdoor Plug, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've added to Kasa. Tap your plug to control and manage it. Home Page You can see all your Kasa devices listed in the Home page. 7XUQRQRƬWKHSOXJ 7XUQRQRƬ\RXU6PDUW2XWGRRU3OXJTXLFNO\E\WDSSLQJWKHVZLWFKRI\RXUSOXJ Tapping in the device, you can also check or change its status. 6 Set Schedules Schedule: Set schedules to automatically WXUQRQRƬWKHGHYLFHconnected to your Smart Outdoor Plug according to your daily routine. 1. Tap your Smart Outdoor Plug in the Home page, and then Tap . 2. Tap + on the top right corner. 2. Set a schedule to turn the Smart Outdoor 3OXJRQRURƬ e.g. I want to turn on the plugged-in outdoor light at 10:00 PM every day. 7 4. You can also choose to turn on/off the smart outlet simply at Sunrise or Sunset. Please note that the Sunrise and Sunset times are based on your location. 5. Tap Save and you'll see your schedule listed in the Schedule Page. You can turn on RURƬWKHVFKHGXOHDWDQ\WLPHRUDGGPRUH schedules following the same steps. 8 Set Timer Timer: 6HWWKHWLPHUIRU\RXU6PDUW2XWGRRU3OXJWRDXWRPDWLFDOO\WXUQRQRƬDIWHUWKHWLPHHQGV 1. Tap your Smart Outdoor Plug in the Home page, and then tap . 2. Set the time after which the plug will be DXWRPDWLFDOO\WXUQHGRQRƬ e.g. when I turn on the outdoor light, I want it WRWXUQRƬDXWRPDWLFDOO\DIWHUPLQXWHV 2. Tap START and you'll see the timer is counting down. Tap Stop to stop the Timer at any time. 9 Set Away Mode Away Mode: Set Away Mode for your Smart Outdoor PlugWRWXUQRQRƬDXWRPDWLFDOO\DWUDQGRPLQWHUYDOV while you are away to make the appearance that someone is at home. 1. Tap your Smart Outdoor Plug in the Home page, and then tap . 2. Set the start and end time during which the plug will be automatically turn…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2021-04-19 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2022-04-19 By: __________________________ _______Abby Liang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-04-19 Subject: Confidentiality Request for: 2AXJ4KP401 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. TP-Link Corporation Limited (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-04-19 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: Kasa Smart Wi-Fi Outdoor Plug Type designation: KP401 Brand: tp-link FCC ID: 2AXJ4KP401 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

Report No.: 2103C221 Page 2 of 7 Report No.: 2103C221 Page 3 of 7

外销镭雕 菲林图 尺寸：42.42*47.31mm 颜色：pantone cool gary7C S/N和MAC仅为示意， 具体以软件生成工具为准 效果图 尺寸图 2.0 ± 0.3mm 4.0 ± 0.3mm M AC : X X-X X-X X-X X-X X-X X S/N:XXXXXXXXXXXXX Ver:1.0 Kasa Smart Wi-Fi Outdoor Plug KP401 Rating: 100-120V~ 50/60Hz 15A 1/2 HP Motor INSTRUCTION: For outdoor usage, use this product with GFCI outlet. / Pour une utilisation en extérieur, utilisez ce produit avec une prise GFCI. Mount vertically with the receptacles facing downward, at least 2 ft above the ground. / Montez verticalement avec les prises orientées vers le bas et à au moins 2 pieds au-dessus du sol. Micro-Disconnection(1.B) CERTIFIED TO CSA STD E60730-1 CONFORMS TO UL STD. 60730-1 IC: 26583-KP401FCC ID: 2AXJ4KP401 Operation Temperature: -20°C~50°C IP64 RoHS MADE IN CHINA

Report No.: 2103C221 Page 4 of 7 Report No.: 2103C221 Page 5 of 7 Antenna Report No.: 2103C221 Page 6 of 7 Report No.: 2103C221 Page 7 of 7 Antenna

Report No.: BTL-FCCP-2-2103C221 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4KP401 Project No. : 2103C221 Equipment : Kasa Smart Wi-Fi Outdoor Plug Brand Name : tp-link Test Model : KP401 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Mar. 26, 2021 Date of Test : Mar. 28, 2021 ~ Apr. 02, 2021 Issued Date : Apr. 19, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021032675 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2103C221 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 19, 2021 Report No.: BTL-FCCP-2-2103C221 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 tp -link N/A Internal N/A 3.65 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.65 2.3174 20.44 110.6624 0.05104 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2103C221 Page 1 of 116 FCC Radio Test Report FCC ID: 2AXJ4KP401 This report concerns: Original Grant Project No. : 2103C221 Equipment : Kasa Smart Wi-Fi Outdoor Plug Brand Name : tp-link Test Model : KP401 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Mar. 26, 2021 Date of Test : Mar. 28, 2021 ~ Apr. 02, 2021 Issued Date : Apr. 19, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021032675 for conducted, DG2021032674 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2103C221 Page 2 of 116 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2103C221 Page 3 of 116 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2103C221 Page 4 of 116 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 104 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 108 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 110 Report No.: BTL-FCCP-1-2103C221 Page 5 of 116 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 114 Report No.: BTL-FCCP-1-2103C221 Page 6 of 116 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 19, 2021 Report No.: BTL-FCCP-1-2103C221 Page 7 of 116 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDI…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2103C221 Page 113 of 116 Test Mode TX N(HT20) Mode Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2103C221 Page 114 of 116 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2103C221 Page 115 of 116 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.36 8.00 Complies 06 2437 -3.54 8.00 Complies 11 2462 -2.43 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.88 8.00 Complies 06 2437 -6.29 8.00 Complies 11 2462 -5.51 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2103C221 Page 116 of 116 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.37 8.00 Complies 06 2437 -6.71 8.00 Complies 11 2462 -6.06 8.00 Complies CH01 CH06 CH11 End of Test Report

Report No.: BTL-FCCP-1-2103C221 Page 27 of 116 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2103C221 Page 28 of 116 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2103C221 Page 29 of 116 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2103C221 Page 30 of 116 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2103C221 Page 31 of 116 Conducted Test Photos
