2AXJ4KS220Kasa Smart Wi-Fi Light Switch Dimmer

Product IntroductionWire Your Switch Kasa smart dimmer switch turns on and dims the lights automatically, saving you effort and electricity bills. Connect the wires to the smart dimmer switch as shown below. 4 Disconnect the wires from the old switch. Ground: Usually green or copper. Neutral: Usually white and not connected to a dumb switch. Line: Usually black and coming from the circuit breaker. Load: Usually black. One end is connected to the light. If you are unsure, consult a qualified electrician. Turn off the circuit breaker. Then remove the old wallplate of the wall switch and label the Ground and Neutral wires. 1 2 Identify Line and Load wires. 3 Line up the switch with the mounting holes. Secure it with screws. 5 Attach the wallplate. Then the wiring is finished. 6 Flip the page over to complete setup. Power Source To Light 1) Turn on the circuit breaker. Use a voltage detector to identify the energized wire (Line wire). 2) Turn off the circuit breaker. Label the Line and Load wires. Take care to avoid electric shocks. Load wireLine wire Button Explanations LED Status Smart Wi-Fi Dimmer Switch Quick Start Guide 7106509677 REV1.0.0 ©2022 TP-Link Specifications Rating: 120V~ 60Hz Load: 300W Incandescent, 150W LED Operation temperature: 0~40°C Method of mounting included: Independently mounted (Vertically position only); Operating control, Type 1 action Pollution Degree 2, Rated Impulse Voltage 2500 V Software Class A, NEMA Type 1 Need some help? ? Visit www.tp-link.com/support for technical support, user guides, FAQs, warranty & more *Images may differ from your actual product. Restart Reset Press and hold for about 5s to reset Wi-Fi while keeping other settings. Press to restart your switch. Decrease or increase the brightness. Press and hold for about 10s to restore your switch to factory default settings. / Set Up Your Switch Appearance S T E P 2 SET UP Tap the button in the app and select Smart Switches. Then follow the step-by-step app instructions to set up your smart dimmer switch. DOWNLOAD APP Get the Kasa Smart app from the App Store or Google Play. S T EP 1 OR Safety Notice Before installing, servicing or removing the switch, read and follow all safety precautions including the following: • CAUTION – Risk of Electric Shock – More than one disconnect switch may be required to de-energize the equipment before servicing. A circuit breaker which disconnects the Line and Neutral conductor simultaneously is suitable. Ensure power is off at the circuit breaker before removing or installing any switch. Use a non-contact voltage tester to ensure the power is off. • The Smart Switch must be installed and used in accordance with the National Electric Code (NEC) or your local electrical code. If you are unfamiliar with these codes and requirements, or are uncomfortable performing the installation, consult a qualified electrician. • Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces. • Install only in a suitable UL Listed outlet box (suitable dimensions: H > 2.95 in./75 mm, W > 1.81 in./46 mm, D > 2 in./51 mm). • Tighten terminal screws to 13 lbf-in. High Voltage-Disconnect power supply before servicing CAUTION On/Off Button Dimmer Buttons Restart LED Reset Brightness Indicators Starting up.Solid amber Blinking amber Blinking green White Solid red Stay green for 30s Blinking amber & green Connecting to Wi-Fi. Ready for setup. Device resetting. Light fixture is off. Disconnected from Wi-Fi. Connected to Wi-Fi. model :KS220 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:Th (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated. Canadian Compliance Statement This device contains licence-exempt t…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2022-07-12 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2023-07-12 By: __________________________ _______Sarah Wang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. See https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=33316 . 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2022-07-12 Subject: Confidentiality Request for: 2AXJ4KS220 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Sarah Wang __________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2022-07-12 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: Kasa Smart Wi-Fi Light Switch Dimmer Type designation: KS220 Brand: tp-link FCC ID: 2AXJ4KS220 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Sarah Wang Tel: 00852-37585503 Email: [email protected]

TP-Link Corporation Limited Supplier’s Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: TP-Link Corporation Limited, Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong U.S. Responsible Party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. 145 South State College Blvd. Suite 400, Brea, CA 92821 Contact Person: Tel.: 00852-37585503 Email: [email protected] Internet: https://www.tp-link.com Model: KS220 Classification: FCC Part 15B We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rule part(s) 15B and the most accurate measurement standards. We confirm that the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. 2022.07.12 Sarah Wang ------------- -------------------- Date: Signature:

Project No.: 2205C095 Page 2 of 6

KS220(US)1.0_产品规格标贴 2022-05-20 陈博博 KS220(US)1.0 白板-128 50#网纹胶亮白PET+雾膜 A1 MADE IN CHINA UL 1.0 FCC ID: 2AXJ4KS220 Kasa Smart Wi-Fi Light Switch Dimmer Model: KS220 Rating: 120VAC 60Hz 300W Incandescent 150W LED Model: KS220(US) Ver:1.0 注：序列号直接由工厂打印在产品规格标贴上。 label location

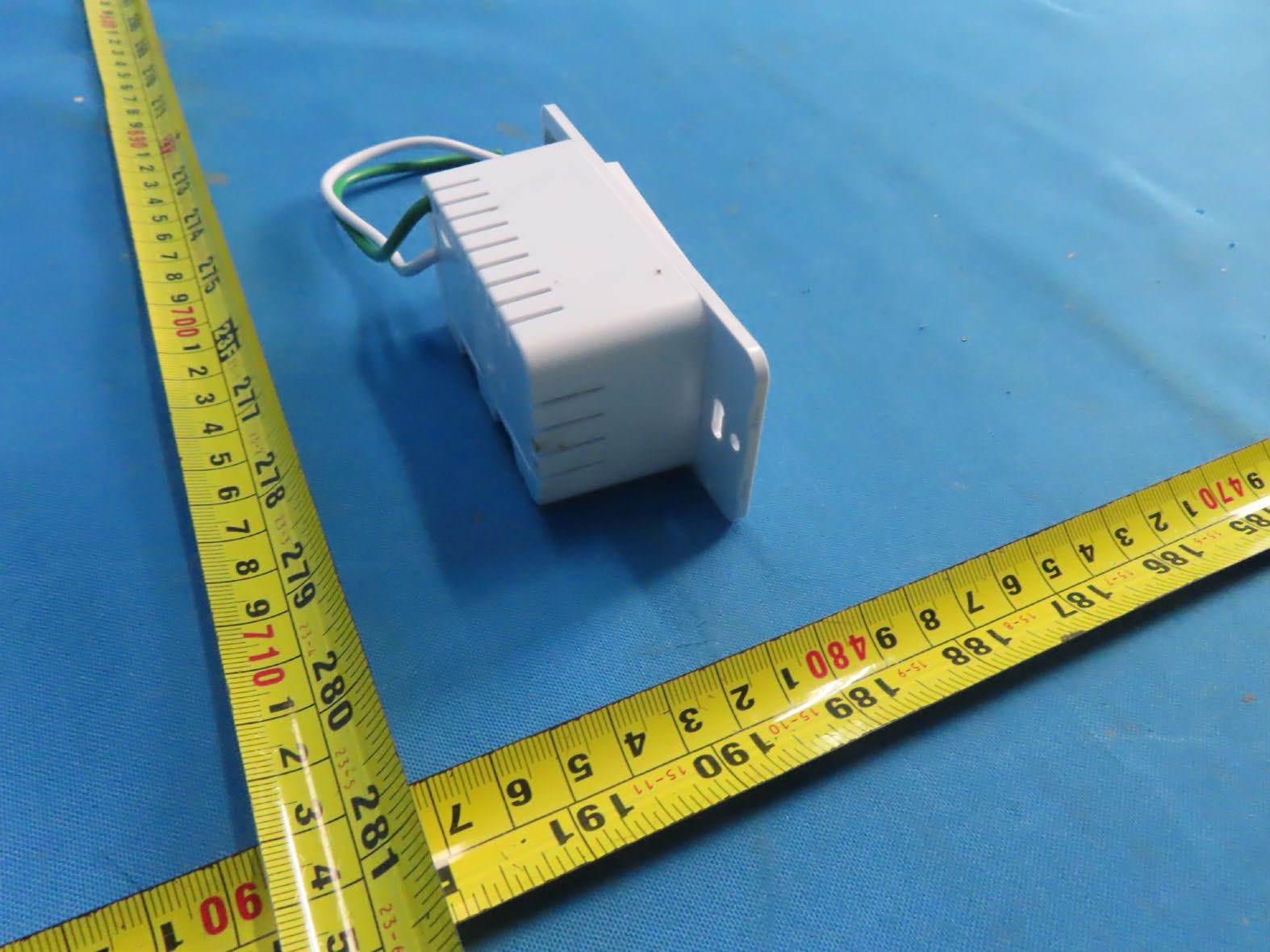

Project No.: 2205C095 Page 3 of 6 Project No.: 2205C095 Page 4 of 6 Project No.: 2205C095 Page 5 of 6 Antenna Project No.: 2205C095 Page 6 of 6

Report No.: BTL-FCCP-3-2205C095 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4KS220 Project No. : 2205C095 Equipment : Kasa Smart Wi-Fi Light Switch Dimmer Brand Name : tp-link Test Model : KS220 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : May 20, 2022 Date of Test : May 23, 2022 ~ Jun. 21, 2022 Issued Date : Jul. 18, 2022 Report Version : R01 Test Sample : Engineering Sample No.: DG2022052043 for BLE, DG2022052042 for 2.4G WIFI. Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Chay Cai BTL Inc. No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-3-2205C095 Page 2 of 3 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-3-2205C095 R00 Original Report Jul. 13, 2022 Invalid BTL-FCCP-3-2205C095 R01 Updated the test results. Jul. 18, 2022 Valid Report No.: BTL-FCCP-3-2205C095 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. BTL's Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 6035500079 PIFA N/A 2.98 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS For BLE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 3.35 2.1627 0.00085 1 Complies For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 23.31 214.2891 0.08471 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2205C095 Page 1 of 62 FCC Radio Test Report FCC ID: 2AXJ4KS220 This report concerns: Original Grant Project No. : 2205C095 Equipment : Kasa Smart Wi-Fi Light Switch Dimmer Brand Name : tp-link Test Model : KS220 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : May 20, 2022 Date of Test : May 23, 2022 ~ Jun. 21, 2022 Issued Date : Jul. 13, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG2022052043 for conducted, DG2022052045 for radiated emissions (Above 30MHz), DG2022052044 for radiated emissions (Below 30MHz) and AC Power Line Conducted Emissions. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Chay Cai BTL Inc. No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2205C095 Page 2 of 62 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2205C095 Page 3 of 62 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.5 SUPPORT UNITS 12 3 . AC POWER LINE CONDUCTED EMISSIONS 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 EUT OPERATING CONDITIONS 14 3.6 TEST RESULTS 14 4 . RADIATED EMISSIONS 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 18 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 18 4.8 TEST RESULT - ABOVE 1000 MHZ 18 5 . BANDWIDTH 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM STANDARD 19 5.4 TEST SETUP 19 Report No.: BTL-FCCP-1-2205C095 Page 4 of 62 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 19 5.6 TEST RESULTS 19 6 . MAXIMUM AVERAGE OUTPUT POWER 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 20 6.6 TEST RESULTS 20 7 . CONDUCTED SPURIOUS EMISSION 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATION CONDITIONS 21 7.6 TEST RESULTS 21 8 . POWER SPECTRAL DENSITY 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATION CONDITIONS 22 8.6 TEST RESULTS 22 9 . MEASUREMENT INSTRUMENTS LIST 23 10 . EUT TEST PHOTO 25 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 30 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 33 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 38 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 41 APPENDIX E - BANDWIDTH 54 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 56 Report No.: BTL-FCCP-1-2205C095 Page 5 of 62 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSION 58 APPENDIX H - POWER SPECTRAL DENSITY 61 Report No.: BTL-FCCP-1-2205C095 Page 6 of 62 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2205C095 R00 Original Report Jul. 13, 2022 Valid Report No.: BTL-FCCP-1-2205C095 Page 7 of 62 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2205C095 Page 1 of 120 FCC Radio Test Report FCC ID: 2AXJ4KS220 This report concerns: Original Grant Project No. : 2205C095 Equipment : Kasa Smart Wi-Fi Light Switch Dimmer Brand Name : tp-link Test Model : KS220 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : May 20, 2022 Date of Test : May 23, 2022 ~ Jun. 21, 2022 Issued Date : Jul. 13, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG2022052042 for conducted, DG2022052045 for radiated emissions (Above 30MHz), DG2022052044 for radiated emissions (Below 30MHz) and AC Power Line Conducted Emissions. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Chay Cai BTL Inc. No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. Te l : + 8 6-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2205C095 Page 2 of 120 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2205C095 Page 3 of 120 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 2.6 SUPPORT UNITS 15 3 . AC POWER LINE CONDUCTED EMISSIONS 16 3.1 LIMIT 16 3.2 TEST PROCEDURE 16 3.3 DEVIATION FROM TEST STANDARD 16 3.4 TEST SETUP 17 3.5 EUT OPERATION CONDITIONS 17 3.6 TEST RESULTS 17 4 . RADIATED EMISSIONS 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 20 4.5 EUT OPERATION CONDITIONS 21 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 21 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 21 4.8 TEST RESULTS - ABOVE 1000 MHZ 21 5 . BANDWIDTH 22 5.1 LIMIT 22 5.2 TEST PROCEDURE 22 5.3 DEVIATION FROM STANDARD 22 5.4 TEST SETUP 22 Report No.: BTL-FCCP-2-2205C095 Page 4 of 120 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 22 5.6 TEST RESULTS 22 6 . MAXIMUM AVERAGE OUTPUT POWER 23 6.1 LIMIT 23 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULTS 23 7 . CONDUCTED SPURIOUS EMISSIONS 24 7.1 LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULTS 24 8 . POWER SPECTRAL DENSITY 25 8.1 LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULTS 25 9 . MEASUREMENT INSTRUMENTS LIST 26 10 . EUT TEST PHOTO 28 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 33 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 36 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 41 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 44 APPENDIX E - BANDWIDTH 105 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 109 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 111 Report No.: BTL-FCCP-2-2205C095 Page 5 of 120 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 118 Report No.: BTL-FCCP-2-2205C095 Page 6 of 120 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2205C095 R00 Original Report Jul. 13, 2022 Valid Report No.: BTL-FCCP-2-2205C095 Page 7 of 120 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2205C095 Page 115 of 120 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-2-2205C095 Page 116 of 120 Test Mode TX N(HT20) Mode Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Report No.: BTL-FCCP-2-2205C095 Page 117 of 120 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-2-2205C095 Page 118 of 120 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-2-2205C095 Page 119 of 120 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.41 8.00 Complies 06 2437 -0.50 8.00 Complies 11 2462 -0.75 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.93 8.00 Complies 06 2437 -4.31 8.00 Complies 11 2462 -5.77 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-2-2205C095 Page 120 of 120 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.78 8.00 Complies 06 2437 -5.61 8.00 Complies 11 2462 -4.35 8.00 Complies CH01 CH06 CH11 End of Test Report

Report No.: BTL-FCCP-1-2205C095 Page 25 of 62 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2205C095 Page 26 of 62 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2205C095 Page 27 of 62 Radiated Emissions Test Photos 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-2205C095 Page 28 of 62 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2205C095 Page 29 of 62 Conducted Test Photos
