2AXJ4KS220MKasa Smart Wi-Fi Dimmer Switch, Motion-Activated

User Guide Kasa Smart Wi-Fi Light Switch, Motion Activated KS220M © 2021 TP-Link 1910013026 REV1.0.0 ContentsAbout This Guide ···················································· 1Introduction ······························································· 2Appearance ······························································· 3Set Up Your Smart Light Switch ····················· 4Main Device Controls ··········································· 5Create Scenes························································15Smart Actions ·························································17Discover Kasa ·························································28 1 About This GuideThis guide provides a brief introduction to Kasa Smart Wi-Fi Light Switch and the Kasa app, as well as regulatory information.Please note that features of Kasa Smart Wi-Fi Light Switch may vary slightly depending on the model and software version you ha ve, and on your ORFDWLRQODQJXDJHDQGLQWHUQHWVHUYLFHSURYLGHU$OOLPDJHVV WHSVDQGGHVFULSWLRQVLQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\ QRWUHưHFW\RXUDFWXDO experience. ConventionsIn this guide, the following convention is used: Convention Description Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website. More Info• 6SHFLƮFDWLRQVFDQEHIRXQGRQWKHSURGXFWSDJHDW https://www.tp-link.com . • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support . 2 IntroductionTP-Link Smart Wi-Fi Light Switch is a standard, single-pole, wall light switch that can be controlled via your iOS or Android d evices. Control your home OLJKWLQJRUFHLOLQJIDQVRQ\RXUSKRQHIURPDQ\ZKHUHDQ\WLPHZ LWKWKH.DVD6PDUWDSS7XUQƮ[WXUHVRQDQGRƬVHWVFKHGXOHV HYHQJURXSWKHPZLWK other Kasa Smart devices. The Kasa Smart app provides easy step-by-step installation instructions and convenient remote control from anywhere. • Remote Control - &RQWURODQ\WKLQJFRQQHFWHGWR\RXUVPDUWOLJKWVZLWFKOLNHOLJ KWVFHLOLQJIDQVRURWKHUƮ[WXUHVIURPDQ\ZKHUHXVLQJWKH.DV D Smart app. • No Hub Required - Connect to your existing Wi-Fi router. • Away Mode - 6HW\RXUVPDUWOLJKWVZLWFKWRWXUQFRQQHFWHGƮ[WXUHVRQDQGRƬ DWUDQGRPLQWHUYDOVWRJLYHWKHDSSHDUDQFH\RX UHKRPHHYHQZK LOH \RX UHDZD\ • Scheduling 6HWOLJKWVWRDXWRPDWLFDOO\WXUQRQDQGRƬWKURXJKRXWWKHGD \RUQLJKWZKHWKHU\RXoUHKRPHRUDZD\ • Voice Control - Use Alexa, Google Assistant, or Microsoft Cortana to control your devices with voice commands. • Group - &RPELQH.DVD6PDUWGHYLFHVIRUXQLƮHGFRQWUROZLWKMXVWDVLQJO HWDS 3 Appearance7KH6PDUW6ZLWFKLVFRPSDWLEOHZLWKLQFDQGHVFHQW/('+DORJHQ DQGFRPSDFWưXRUHVFHQWOLJKWEXOEV7KHVZLWFKDOVRLQFOXGHVD ZKLWHEDFNOLJKW/(' indicator to easily locate the switch at night. See the explanation below: RT Blinking Amber and Green: Ready for setup. Blinking Green: Connecting to Wi-Fi. Stay Green for 30s: Connected to Wi-Fi. Blinking Amber: Resetting. Red: No Wi-Fi connection. White: /LWXSZKHQWKHOLJKWLVRƬWRVKRZWKHVZLWFKORFDWLRQLQWKH GDUN Press to reboot the Smart Switch.Press and hold for about 5 VHFRQGVXQWLOWKH:L)LVWDWXV/('EOLQNV DPEHUDQGJUHHQDOWHUQDWHO\WRLQLWLDWH$SS&RQƮJPRGHPress and hold for about 10 VHFRQGVXQWLOWKH:L)LVWDWXV/('EOLQNV amber rapidly to factory reset the Smart Switch.Decrease or increase the brightness of the light. Reset Restart 4 Set Up Your Smart Light SwitchFollow the steps below to set up your Smart Light Switch via Kasa Smart app. 1. Download and install Kasa appGo to Google Play or the Apple App Store or scan the QR code below to download the Kasa app on your Android or iOS smartphone or tablet. 2. Log in or sign up with TP-Link IDOpen the app. Use your TP-Link ID to log in. ,I\RXGRQoWKDYHD73/LQN,'WDS Create Account and the Kasa app will guide you through the rest. 3. Add DeviceTap the + button in the Kasa app, select Smart Switches > Smart Switch , and then follow step-by-step app instructions to complete the installation and setup. 5 Main Device ControlsAfter you successfully set up your Smart Light Switch, you will see the home page of the Kasa Smart app. Here you can view and manage all devices WKDW\RX YHDGGHGWR.DVD7DS\RXUVPDUWVZLWFKWRFRQWURODQG PDQDJHLW Home Page You can see all your Kasa devices listed in the Home page. 7XUQRQRƬWKHVPDUWRXWOHW 7XUQRQRƬDQ\RXWOHWRI\RXU6PDUW/LJKW6ZLWFKTXLFNO\E\WDS SLQJWKHVZLWFKRQWKH home page. Tapping in the device, you can also check or change its status. 6 Set SchedulesSchedule: Set schedules to automatically WXUQRQRƬWKHOLJKWDWVHWWLPHVDFFRUGLQJWR\RXUGDLO\URXWL QH 1. Tap your Smart Light Switch in the Home page, and then tap . 2. Tap + on the top right corner. 6HWDVFKHGXOHWRWXUQWKHOLJKWRQRURƬFor example, I want to turn off the light at 11:00 PM every day. 7 4. You can also choose to turn on/off the light at Sunrise or Sunset. Please note that the Sunrise and Sunset times are based your location. 5. Tap Save DQG\RX OOVHH\RXUVFKHGXOH listed in the Schedule Page. You can add more schedules following the same steps. 6. You can turn off your schedule any time at the Schedule page. 8 Set TimerTimer: 6HWWKHWLPHUIRU\RXU6PDUW/LJKW6ZLWFKWRDXWRPDWLFDOO\WXUQ RQRƬDIWHUWKHWLPHHQGV 1. Tap your Smart Light Switch in the Home page, and then tap . 2. Set the time after which the light will be DXWRPDWLFDOO\WXUQHGRQRƬFor example, when I turn on the light, I want LWWREHRƬDIWHUPLQXWHV 2. Tap START DQG\RX OOVHHWKHWLPHULV counting down. Tap Stop to stop the Timer at any time. 9 Set Away ModeAway Mode: 6HW$ZD\0RGHIRU\RXU6PDUW/LJKW6ZLWFKWRWXUQRQRƬWKHOLJ KWDXWRPDWLFDOO\DWUDQGRP intervals while you are away to make the appearance that someone is at …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2021-04-13 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2022-04-13 By: __________________________ _______Abby Liang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-04-13 Subject: Confidentiality Request for: 2AXJ4KS220M Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. TP-Link Corporation Limited (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-05-08 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: Kasa Smart Wi-Fi Dimmer Switch, Motion-Activated Type designation: KS220M, ES20M Brand: tp-link FCC ID: 2AXJ4KS220M Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

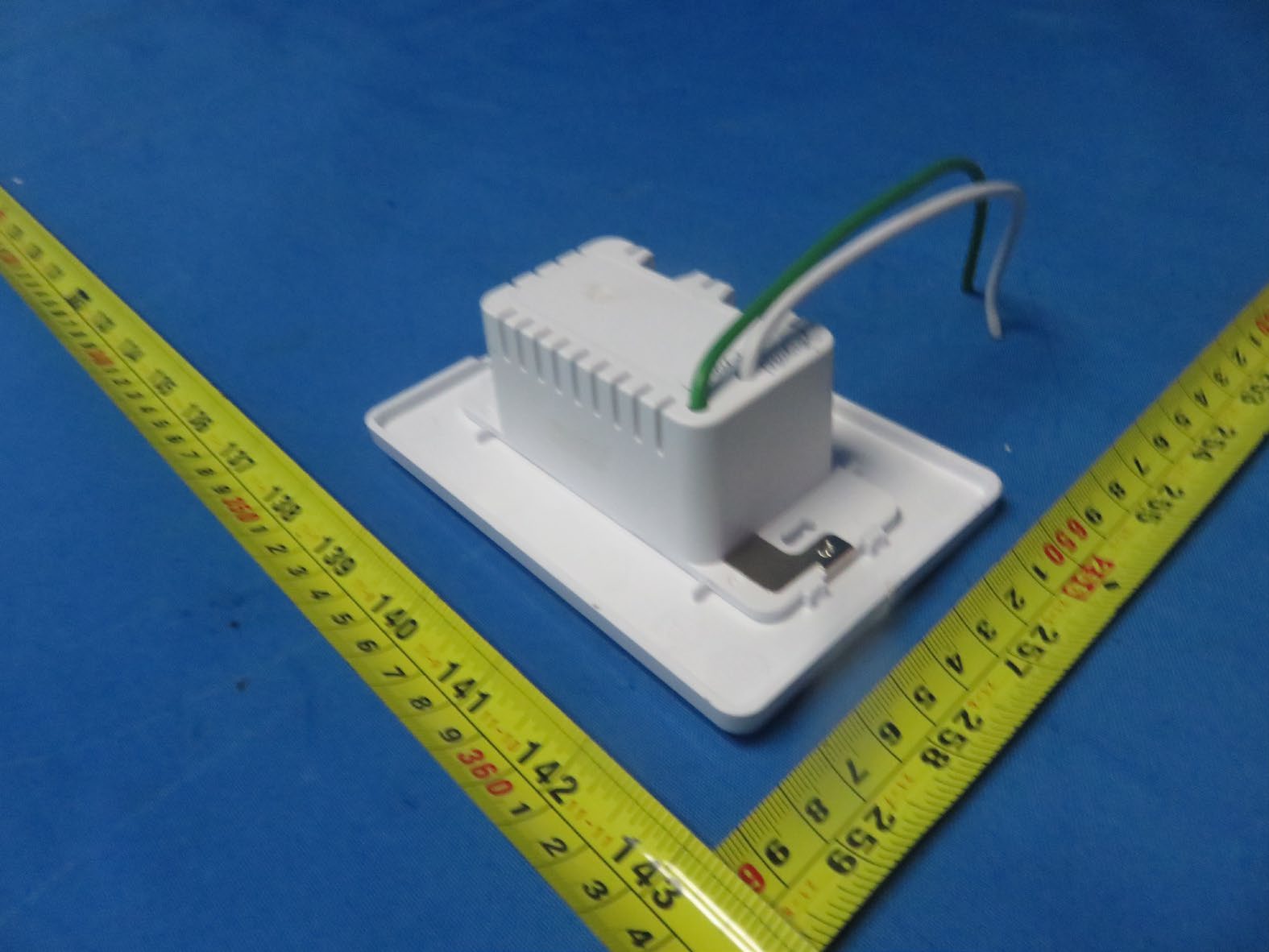

Report No.: 2103C171 Page 1 of 6 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2103C171 Page 2 of 6

KS220M(US)1.0_产品规格标贴 2021-02-05 陈博博 KS220M(US)1.0 白板-128 50#网纹胶亮白PET+雾膜 A1 MADE IN CHINA IC: 26583-KS220M FCC ID: 2AXJ4KS220M Kasa Smart Wi-Fi Dimmer Switch Motion-Activated Model: KS220M Rating: 120VAC 60Hz 300W Incandescent 150W LED Model: KS220M(US) Ver:1.0 SN:XXXXXXXXXXXXX 注：序列号直接由工厂打印在产品规格标贴上。 Dimmer

Report No.: 2103C171 Page 3 of 6 Report No.: 2103C171 Page 4 of 6 Report No.: 2103C171 Page 5 of 6 Antenna Report No.: 2103C171 Page 6 of 6 Antenna

Report No.: BTL-FCCP-2-2103C171 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4KS220M Project No. : 2103C171 Equipment : Kasa Smart Wi-Fi Dimmer Switch, Motion-Activated Brand Name : tp-link Test Model : KS220M Series Model : ES20M Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Mar. 22, 2021 Date of Test : Mar. 24, 2021 ~ Mar. 31, 2021 Issued Date : May 08, 2021 Report Version : R01 Test Sample : Engineering Sample No.: DG2021031987 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2103C171 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 20, 2021 R01 Added the series model. May 08, 2021 Report No.: BTL-FCCP-2-2103C171 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 tp -link 6035500079 Internal N/A 2.98 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.98 1.9861 20.44 110.6624 0.04375 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-1-2103C171 Page 1 of 119 FCC Radio Test Report FCC ID: 2AXJ4KS220M This report concerns: Original Grant Project No. : 2103C171 Equipment : Kasa Smart Wi-Fi Dimmer Switch, Motion-Activated Brand Name : tp-link Test Model : KS220M Series Model : ES20M Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Mar. 22, 2021 Date of Test : Mar. 24, 2021 ~ Mar. 31, 2021 Apr. 26, 2021 ~ Apr. 28, 2021 May 11, 2021 Issued Date : May 13, 2021 Report Version : R04 Test Sample : Engineering Sample No.: DG2021031987 for conducted, DG2021031988 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 T he above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2103C171 Page 2 of 119 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2103C171 Page 3 of 119 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS – 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS – 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS – ABOVE 1000 MHZ 20 5 . BANDWIDTH 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2103C171 Page 4 of 119 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM AVERAGE OUTPUT POWER 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A – AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B – RADIATED EMISSION – 9 KHZ TO 30 MHZ 35 APPENDIX C – RADIATED EMISSION – 30 MHZ TO 1000 MHZ 40 APPENDIX D – RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E – BANDWIDTH 104 APPENDIX F – MAXIMUM AVERAGE OUTPUT POWER 108 APPENDIX G – CONDUCTED SPURIOUS EMISSIONS 110 Report No.: BTL-FCCP-1-2103C171 Page 5 of 119 Table of Contents Page APPENDIX H – POWER SPECTRAL DENSITY 117 Report No.: BTL-FCCP-1-2103C171 Page 6 of 119 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 20, 2021 R01 1. Added the description in section 2.1. 2. Updated the test photos for AC Power Line Conducted Emissions test. 3. Updated the data of Appendix A and Appendix G. Apr. 28, 2021 R02 Added the description in section 7.2. May 07, 2021 R03 Added the series model. May 08, 2021 R04 Updated the description in section 7.2 and the data of Appendix G. May 13, 2021 Report No.: BTL-FCCP-1-2103C171 Page 7 of 119 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Sta…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2103C171 Page 114 of 119 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2103C171 Page 115 of 119 Test Mode TX N(HT20) Mode Reference Level-CH01 Reference Level-CH06 Reference Level-CH11 Bandedge-CH01 Bandedge-CH11 Report No.: BTL-FCCP-1-2103C171 Page 116 of 119 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-1-2103C171 Page 117 of 119 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-1-2103C171 Page 118 of 119 Test Mode TX B Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.07 8.00 Complies 06 2437 -3.21 8.00 Complies 11 2462 -4.44 8.00 Complies CH01 CH06 CH11 Test Mode TX G Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.85 8.00 Complies 06 2437 -6.46 8.00 Complies 11 2462 -6.67 8.00 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2103C171 Page 119 of 119 Test Mode TX N(HT20) Mode Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.73 8.00 Complies 06 2437 -7.84 8.00 Complies 11 2462 -6.54 8.00 Complies CH01 CH06 CH11 End of Test Report

Report No.: BTL-FCCP-1-2103C171 Page 27 of 119 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2103C171 Page 28 of 119 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2103C171 Page 29 of 119 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2103C171 Page 30 of 119 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2103C171 Page 31 of 119 Conducted Test Photos
