2AXJ4RE600XAX1800 Wi-Fi 6 Range Extender

© 2020 TP-Link 1910012925 REV1.0.0 AX1500/AX1800 Wi-Fi 6 Range Extender RE500X/RE600X User Guide Contents About This Guide 1 Chapter 1 Get to Know About Your Extender 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. LED Explanation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1. 2. 2. Button Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2 Set Up Internet Connection 6 2. 1. Power On the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. Set Up the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 1. Method 1: Via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 2. Method 2: Via a Web Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2. 2. 3. Method 3: Via the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Chapter 3 OneMesh with Seamless Roaming 15 3. 1. What‘s a OneMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 3. 2. How to Set Up a OneMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 3. 3. How to Manage a OneMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Chapter 4 TP-Link Cloud Service 18 4. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. 1. Add TP-Link ID to Manage the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4. 3. 2. Remove TP-Link ID(s) from Managing the Extender . . . . . . . . . . . . . . . . . . .21 4. 4. Manage the Extender via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Chapter 5 Customize Your Network 23 5. 1. Check Internet Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 2. Configure Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 5. 3. Change LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5. 4. Adjust Wi-Fi Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5. 5. Set Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 5. 6. Set High Speed Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Chapter 6 Use Your Extender as an Access Point 32 6. 1. Set Up the Extender as an Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 6. 2. Connect Wireless Devices to the Extender. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Method 1: Connect to the extender manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Method 2: Connect to the extender via WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 6. 3. LED Explanation for the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Chapter 7 Manage Your Extender 37 7. 1. Set System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 7. 2. Control LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 7. 3. Set Power Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 7. 4. Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 7. 5. Backup and Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 7. 6. Change Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 7. 7. Check System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 FAQ 45 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide provides instructions for quick internet setup, while this guide contains details of each function and demonstrates how to configure them. Note: Features available in this range extender may vary by model and software version. Range extender availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual range extender experience. Conventions In this guide the following conventions are used: ConventionDescription Underline Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons and so on. > The menu structures to show the path to load the corresponding page. For example, Settings > System Tools > Firmware Upgrade m…

Text truncated - open the document above for the full version.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: AX1800 Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE600X Model: RE600X Brand: tp-link Sincerely, _________________ Name: Abby Liang Position: Regulatory Compliance Manager Date: 2021-07-02

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4RE600X Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Abby Liang Position: Regulatory Compliance Manager Date: 2021-07-02

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AX1800 Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE600X Model: RE600X Brand: tp-link Sincerely, _________________ Name: Abby Liang Position: Regulatory Compliance Manager Date: 2021-07-02

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: AX1800 Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE600X Model: RE600X Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Abby Liang Position: Regulatory Compliance Manager Date: 2021-07-02

Non-SDR (Software Defined Radio) Cover Letter Date: July 02, 2021 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR No 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR No Conclusion: According to the above questions reply, we can confirm this device (FCC ID: 2AXJ4RE600X & IC: 26583-RE600X) must be a Non-SDR. __________________ Name: Abby Liang Position: Regulatory Compliance Manager Date: 2021-07-02

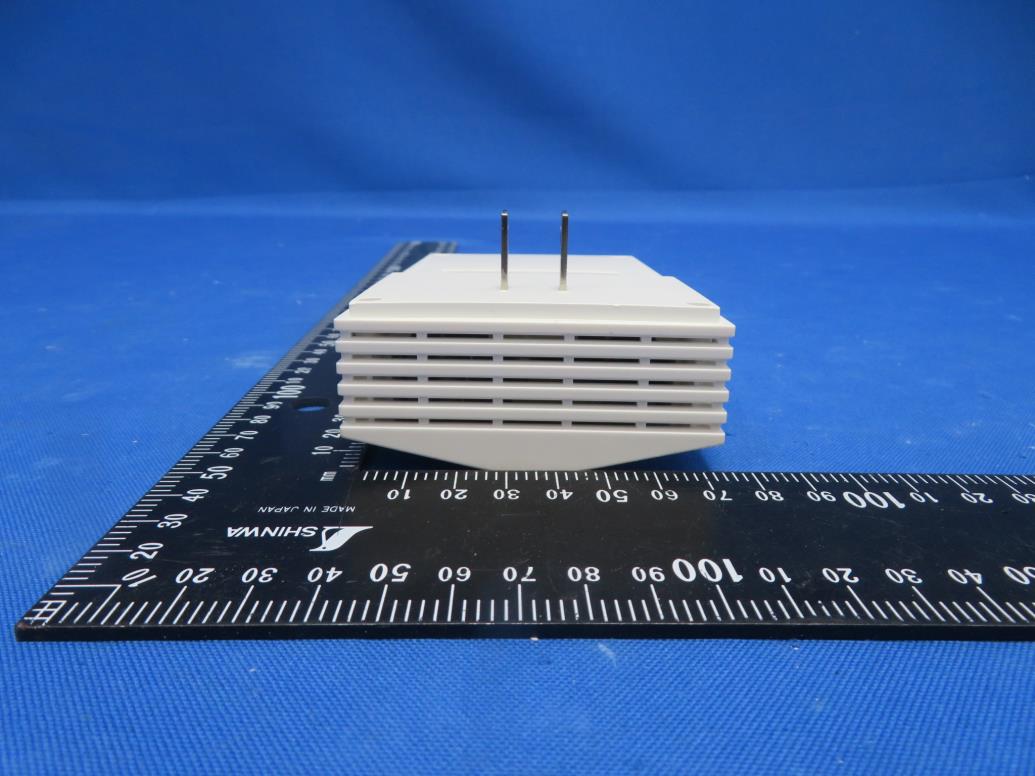

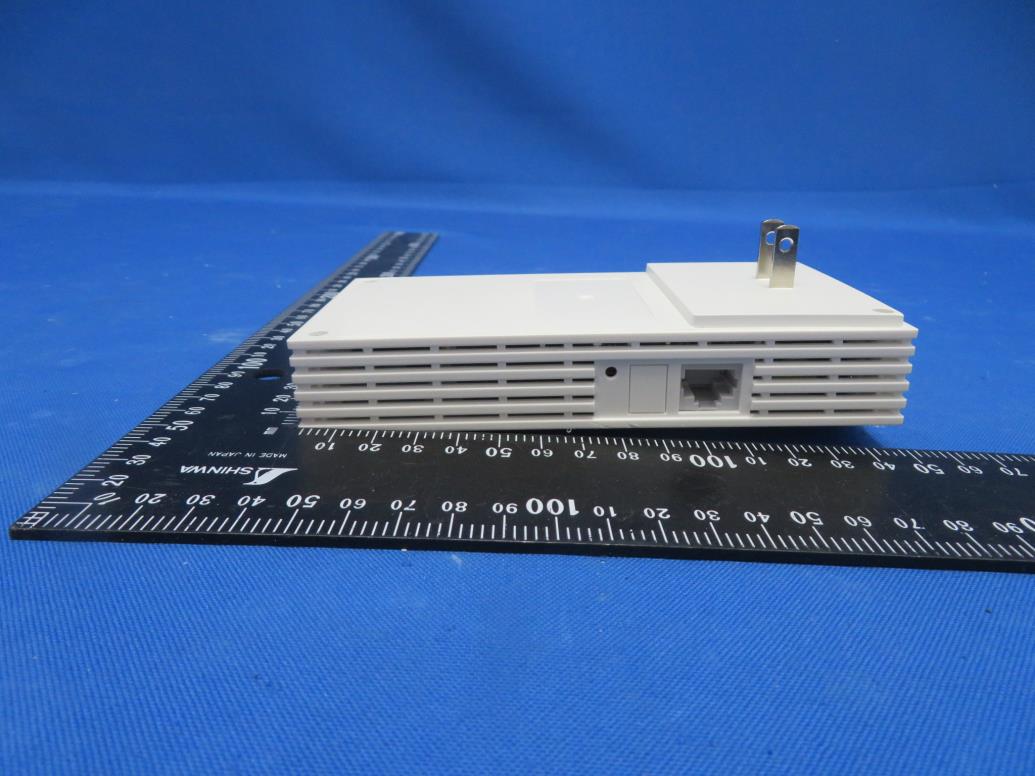

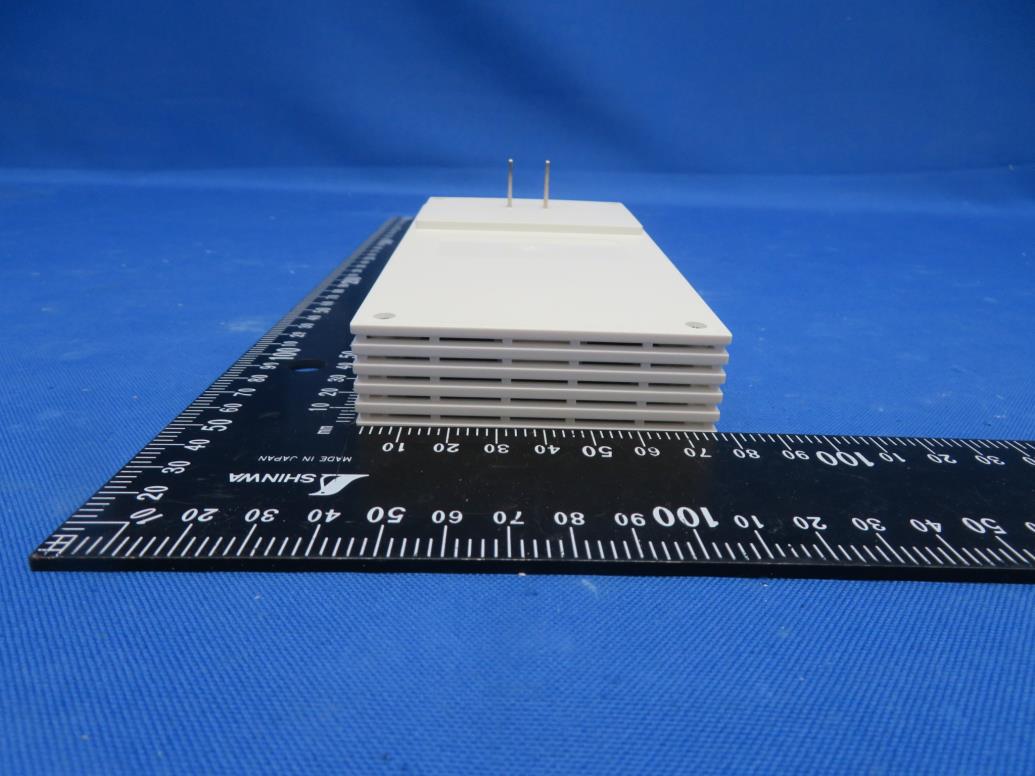

Report No.: 2101TW0004-External Photo External Photograph (1) EUT Photo (2) EUT Photo Label Here Report No.: 2101TW0004-External Photo (3) EUT Photo (4) EUT Photo Report No.: 2101TW0004-External Photo (5) EUT Photo (6) EUT Photo

Label and Label Location

Report No.: 2101TW0004-Internal Photo Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2101TW0004-Internal Photo (3) EUT Photo (4) EUT Photo Report No.: 2101TW0004-Internal Photo (5) EUT Photo (6) EUT Photo Report No.: 2101TW0004-Internal Photo (7) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2101TW0004-U4 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2021-07-01 FCC ID: 2AXJ4RE600X Page Number: 1 of 10 RF Exposure Evaluation Declaration FCC ID: 2AXJ4RE600X APPLICANT: TP-Link Corporation Limited Application Type: Certification Product: AX1800 Wi-Fi 6 Range Extender Model No.: RE600X Trademark: tp-link FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Test Date: June 01, 2021 Reviewed By: ( Paddy Chen ) Approved By: ( Chenz Ker ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 2 of 10 Revision History Report No. Version Description Issue Date Note 2101TW0004-U4 Rev. 01 Initial report 2021-07-01 Valid Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 3 of 10 CONTENTS Description Page 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope .................................................................................................................................... 5 1.2. MRT Test Location .............................................................................................................. 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Feature of Equipment under Test ..................................................................................... 6 2.2. Description of Available Antennas..................................................................................... 6 3. RF Exposure Evaluation ..................................................................................................... 7 3.1. Limits ..................................................................................................................................... 7 3.2. Test Result of RF Exposure Evaluation ........................................................................... 8 Appendix A - External Photograph ............................................................................................ 9 Appendix B - Internal Photograph ............................................................................................10 Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 4 of 10 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 5 of 10 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 6 of 10 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) Beamforming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD PCB Antenna 2412 ~ 2462 2 1.00 4.01 1.00 4.01 5150 ~ 5250 2 1.94 4.95 1.94 4.95 5250 ~ 5350 2 1.34 4.35 1.34 4.35 5470 ~ 5725 2 2.00 5.01 2.00 5.01 5725 ~ 5850 2 1.96 4.97 1.96 4.97 Note 1: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; Note 2: The EUT also supports Beam Forming mode, and the Beam Forming support 802.11n/ac/ax, not include 802.11a/b/g. BF Directional gain = G ANT + 10 log (N ANT ). Note 3: All information declared by manufacturer. Product Name AX1800 Wi-Fi 6 Range Extender Model No. RE600X Brand Name: tp-link Wi-Fi Specification: 802.11a/b/g/n/ac/ax Working Voltage: AC100~240V/50~60Hz Report No.: 2101TW0004-U4 FCC ID: 2AXJ4RE600X Page Number: 7 of 10 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used …

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2101TW0004-U2 Phone: +886-3-3288388 Report Version: V1.0 Web: www.mrt-cert.com Issue Date: 2021-08-20 FCC ID: 2AXJ4RE600X Page Number: 1 of 360 FCC ID: 2AXJ4RE600X Applicant: TP-Link Corporation Limited Application Type: Certification Product: AX1800 Wi-Fi 6 Range Extender Model No.: RE600X Brand Name: tp-link FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part15 Subpart E (Section 15.407) Receive Date: January 22, 2021 Test Date: January 29 ~ August 17, 2021 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n/ac/ax Tested By : ( Kevin Ker ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 2 of 360 Revision History Report No. Version Description Issue Date Note 2101TW0004-U2 V1.0 Initial report 2021-08-20 Valid Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 3 of 360 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Report ............................................................. 8 2.3. Working Frequencies for this report .............................................................................. 9 2.4. Description of Available Antennas ............................................................................... 10 2.5. Test Mode ................................................................................................................... 11 2.6. Configuration of Test System ...................................................................................... 12 2.7. Test System Details .................................................................................................... 12 2.8. Description of Test Software ....................................................................................... 12 2.9. Applied Standards ...................................................................................................... 12 2.10. Duty Cycle .................................................................................................................. 13 2.11. EMI Suppression Device(s)/Modifications ................................................................... 14 2.12. Labeling Requirements ............................................................................................... 14 3. DESCRIPTION of TEST ........................................................................................................ 15 3.1. Evaluation Procedure ................................................................................................. 15 3.2. AC Line Conducted Emissions ................................................................................... 15 3.3. Radiated Emissions .................................................................................................... 16 4. ANTENNA REQUIREMENTS ................................................................................................ 17 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 18 6. MEASUREMENT UNCERTAINTY ......................................................................................... 19 7. TEST RESULT ...................................................................................................................... 20 7.1. Summary .................................................................................................................... 20 7.2. 26dB Bandwidth Measurement ................................................................................... 21 7.2.1. Test Limit .................................................................................................................... 21 7.2.2. Test Procedure used ................................................................................................... 21 7.2.3. Test Setting ................................................................................................................. 21 7.2.4. Test Setup .................................................................................................................. 21 7.2.5. Test Result .................................................................................................................. 22 7.3. 6dB Bandwidth Measurement ..................................................................................... 37 7.3.1. Test Limit .................................................................................................................... 37 Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 4 of 360 7.3.2. Test Procedure used ................................................................................................... 37 7.3.3. Test Setting ................................................................................................................. 37 7.3.4. Tes…

Text truncated - open the document above for the full version.

Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 63 of 360 802.11a Power Spectral Density – Ant 1/Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 64 of 360 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 65 of 360 802.11ac-VHT20 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 66 of 360 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 67 of 360 802.11ac-VHT40 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 151 (5755MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 68 of 360 Channel 159 (5795MHz) 802.11ac-VHT80 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 155 (5775MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 69 of 360 802.11ax-HE20 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 70 of 360 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 71 of 360 802.11ax-HE40 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 151 (5755MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 72 of 360 Channel 159 (5795MHz) 802.11ax-HE80 Power Spectral Density – Ant 1/Ant 0 + 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 155 (5775MHz) Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 73 of 360 7.7. Frequency Stability Measurement 7.7.1.Test Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. The transmitter center frequency tolerance shall be ±20 ppm maximum for the 5GHz band (IEEE 802.11 specification). 7.7.2.Test Procedure Used Frequency Stability Under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to highest. After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C decreased per stage until the lowest temperature reached. Frequency Stability Under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, recordthe maximum frequency change. Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 74 of 360 7.7.3.Test Setup Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 75 of 360 7.7.4.Test Result Product AX1800 Wi-Fi 6 Range Extender Temperature 24°C Test Engineer Eric Lin Relative Humidity 45%RH Test Site SR2 Test Date 2021/06/01 Test Mode 5180MHz (Carrier Mode) Voltage (%) Power (VAC) Temp (°C) Frequency Tolerance (ppm) 0 minutes 2 minutes 5 minutes 10 minutes 100% 120 0 7.72 0.00 0.00 -13.51 + 10 17.37 5.79 0.00 -13.51 + 20 -5.79 11.58 0.00 -7.72 + 30 19.31 -1.93 -9.65 3.86 + 40 13.51 23.17 -1.93 -3.86 115% 138 + 20 -1.93 1.93 -15.44 9.65 85% 102 + 20 11.58 1.93 -1.93 -11.58 Note: Frequency Tolerance (ppm) = {[Measured Frequency (Hz) - Declared Frequency (Hz)] / Declared Frequency (Hz)} *10 6 . Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 76 of 360 7.8. Radiated Spurious Emission Measurement 7.8.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [uV/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.8.2.Test Procedure Used KDB 789033 D02v02r01- Section G 7.8.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz >1000 MHz 1 MHz Report No.:2101TW0004-U2 FCC ID: 2AXJ4RE600X Page Number: 77 of 360 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2101TW0004-U3 Phone: +886-3-3288388 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2021-08-25 FCC ID: 2AXJ4RE600X Page Number: 1 of 327 FCC ID: 2AXJ4RE600X Applicant: TP-Link Corporation Limited Application Type: Certification Product: AX1800 Wi-Fi 6 Range Extender Model No.: RE600X Brand Name: tp-link FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E - 15.407 Section (h)(2) Type of Device: Master Device Receive Date: February 07, 2021 Test Date: April 13 ~ August 25, 2021 DFS MEASUREMENT REPORT FCC PART 15 Subpart E Tested By : ( Kevin Ker ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462 D02v02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2101TW0004-U3 FCC ID: 2AXJ4RE600X Page Number: 2 of 327 Revision History Report No. Version Description Issue Date Note 2101TW0004-U3 Rev. 01 Initial report 2021-08-25 Valid Report No.: 2101TW0004-U3 FCC ID: 2AXJ4RE600X Page Number: 3 of 327 CONTENTS Des…

Text truncated - open the document above for the full version.
