2AXJ4RE815XAX5400 Tri-Band Wi-Fi 6 Range Extender

© 2022 TP-Link 1910013087 REV1.0.0 AX5400 Tri-Band Wi-Fi 6 Range Extender RE815X User Guide Contents About This Guide 1 Chapter 1 Get to Know About Your Extender 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. LED Explanation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1. 2. 2. Button Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2 Set Up Internet Connection 6 2. 1. Power On the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. Set Up the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 1. Method 1: Via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 2. 2. Method 2: Via a Web Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2. 2. 3. Method 3: Via the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Chapter 3 OneMesh with Seamless Roaming 15 3. 1. What‘s a OneMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 3. 2. How to Set Up a OneMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 3. 3. How to Manage a OneMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Chapter 4 TP-Link Cloud Service 18 4. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 4. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 3. 1. Add TP-Link ID to Manage the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4. 3. 2. Remove TP-Link ID(s) from Managing the Extender . . . . . . . . . . . . . . . . . . .21 4. 4. Manage the Extender via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Chapter 5 Customize Your Network 23 5. 1. Check Internet Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 5. 2. Configure Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 5. 3. Change LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5. 4. Adjust Wi-Fi Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5. 5. Set Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 5. 6. Set High Speed Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Chapter 6 Use Your Extender as an Access Point 32 6. 1. Set Up the Extender as an Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 6. 2. Connect Wireless Devices to the Extender. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Method 1: Connect to the extender manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Method 2: Connect to the extender via WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 6. 3. LED Explanation for the Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Chapter 7 Manage Your Extender 37 7. 1. Set System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 7. 2. Control LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 7. 3. Set Power Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 7. 4. Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 7. 5. Backup and Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 7. 6. Change Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 7. 7. Check System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 FAQ 45 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide provides instructions for quick internet setup, while this guide contains details of each function and demonstrates how to configure them. Note: Features available in this range extender may vary by model and software version. Range extender availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual range extender experience. Conventions In this guide the following conventions are used: ConventionDescription Underline Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons and so on. > The menu structures to show the path to load the corresponding page. For example, Settings > System Tools > Firmware Upgrade means …

Text truncated - open the document above for the full version.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: AX5400 Tri-Band Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE815X Model: RE815X Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-13

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4RE815X Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-13

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: AX5400 Tri-Band Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE815X Model: RE815X Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-13

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AX5400 Tri-Band Wi-Fi 6 Range Extender FCC ID: 2AXJ4RE815X Model: RE815X Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-13

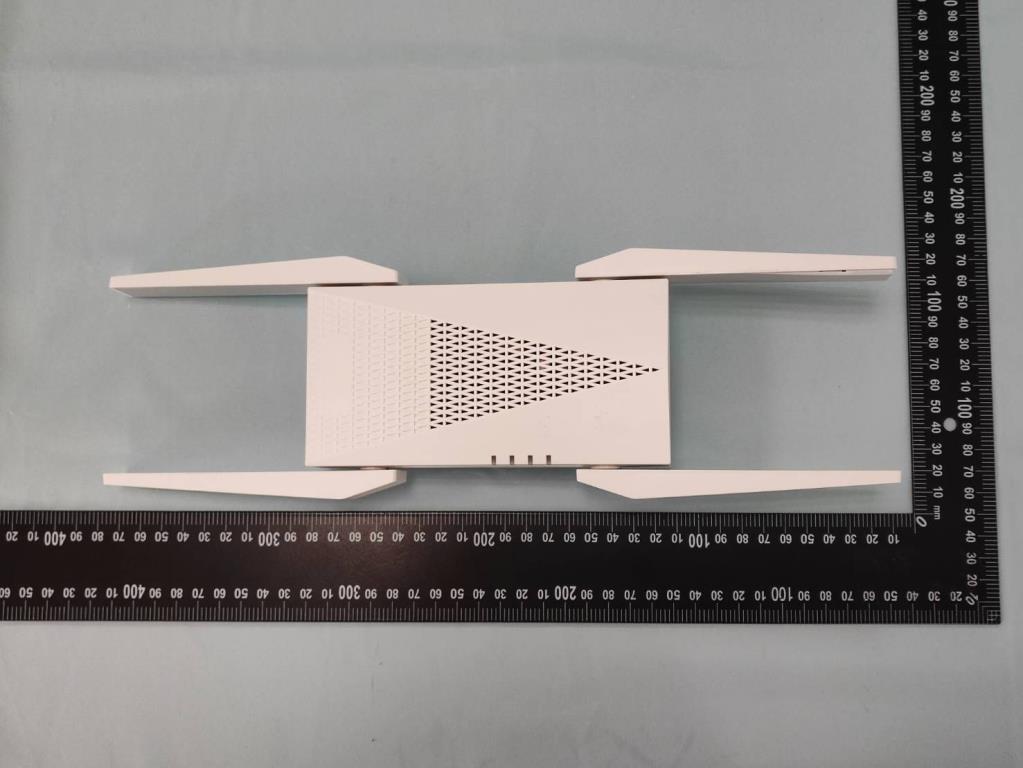

Report No.: 2206TW0104-U1~U4 Product: AX5400 Tri-Band Wi- Fi 6 Range Extender Brand Name: tp-link Model Number: RE815X 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206TW0104-U1~U4 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2206TW0104-U1~U4 3 of 3 (5) EUT Photo (6) EUT Photo

Label Label Location

Report No.: 2206TW0104-U1~U4 Product: AX5400 Tri-Band Wi- Fi 6 Range Extender Brand Name: tp-link Model Number: RE815X 1 of 10 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2206TW0104-U1~U4 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2206TW0104-U1~U4 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2206TW0104-U1~U4 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2206TW0104-U1~U4 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2206TW0104-U1~U4 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2206TW0104-U1~U4 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2206TW0104-U1~U4 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2206TW0104-U1~U4 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2206TW0104-U1~U4 10 of 10 (19) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2206TW0104-U4 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2022-10-27 FCC ID: 2AXJ4RE815X Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4RE815X Applicant : TP-Link Corporation Limited Application Type : Certification Product : AX5400 Tri-Band Wi-Fi 6 Range Extender Model No. : RE815X Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : FCC Part 2.1091 Result : Complies Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2206TW0104-U4 FCC ID: 2AXJ4RE815X Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2206TW0104-U4 1.0 Original Report 2022-10-27 Valid Report No.: 2206TW0104-U4 FCC ID: 2AXJ4RE815X Page Number: 3 of 12 CONTENTS Description Page 1. General Information ............................................................................................................... 4 2. INTRODUCTION ...................................................................................................................... 5 2.1. Scope............................................................................................................................. 5 2.2. MRT Test Location ......................................................................................................... 5 3. PRODUCT INFORMATION ...................................................................................................... 6 3.1. Feature of Equipment under Test ................................................................................... 6 3.2. Description of Available Antennas .................................................................................. 6 3.3. Applied Standards .......................................................................................................... 7 4. RF Exposure Evaluation ........................................................................................................ 8 4.1. Limits ............................................................................................................................. 8 4.2. MPE Exemptions ........................................................................................................... 9 4.3. Calculated Result ......................................................................................................... 12 Report No.: 2206TW0104-U4 FCC ID: 2AXJ4RE815X Page Number: 4 of 12 1. General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2206TW0104-U4 FCC ID: 2AXJ4RE815X Page Number: 5 of 12 2. INTRODUCTION 2.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 2.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2206TW0104-U4 FCC ID: 2AXJ4RE815X Page Number: 6 of 12 3. PRODUCT INFORMATION 3.1. Feature of Equipment under Test Product Name: AX5400 Tri-Band Wi-Fi 6 Range Extender Model No.: RE815X Brand Name: tp-link Wi-Fi Specification: 802.11a/b/g/n/ac/ax Working Voltage: AC 100-240V ~ 50/60Hz 3.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) Beamforming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Dipole Antenna 2412 ~ 2462 2 3.00 6.01 3.00 6.01 5150 ~ 5850 2 3.00 6.01 3.00 6.01 Remark: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT also supports Beam Forming mode, and the Beam Forming support 802.11ac/ax, not include 802.11a/b/g/n. BF Directional gain = G ANT + 10 log (N ANT ). Test Mode T X Paths CDD Mode Beamforming Mode 802.11b/g/n (DTS) 2 √ X 802.11ax (DTS) 2 √ √ 802.11a/n (NII) 2 √ X 802.…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2206TW0104-U1 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2022-10-27 FCC ID: 2AXJ4RE815X Page Number: 1 of 205 FCC ID : 2AXJ4RE815X Applicant : TP-Link Corporation Limited Application Type : Certification Product : AX5400 Tri-Band Wi-Fi 6 Range Extender Model No. : RE815X Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Received Date : June 7, 2022 Test Date : June 22 ~ September 15, 2022 RF MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 2 of 205 Revision History Report No. Version Description Issue Date Note 2206TW0104-U1 1.0 Original Report 2022-10-27 Valid Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 3 of 205 CONTENTS Description Page 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ............................................................................................................................. 6 1.2. MRT Test Location ......................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................... 7 2.3. Working Frequencies for this report ................................................................................ 8 2.4. Description of Available Antennas ................................................................................... 8 2.5. Test Mode ....................................................................................................................... 9 2.6. Configuration of Test System ........................................................................................ 10 2.7. Test System Details ...................................................................................................... 10 2.8. Description of Test Software ......................................................................................... 10 2.9. Applied Standards ......................................................................................................... 11 2.10. Duty Cycle .................................................................................................................. 11 2.11. Test Configuration ..................................................................................................... 12 2.12. EMI Suppression Device(s)/Modifications .................................................................. 12 2.13. Labeling Requirements .............................................................................................. 12 3. DESCRIPTION of TEST ......................................................................................................... 13 3.1. Evaluation Procedure ................................................................................................... 13 3.2. AC Line Conducted Emissions ...................................................................................... 13 3.3. Radiated Emissions ...................................................................................................... 14 4. ANTENNA REQUIREMENTS................................................................................................. 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 17 7. TEST RESULT ....................................................................................................................... 18 7.1. Summary ...................................................................................................................... 18 7.2. 6dB Bandwidth Measurement ....................................................................................... 19 7.2.1. Test Limit ................................................................................................................... 19 7.2.2. Test Procedure used.................................................................................................. 19 7.2.3. Test Setting ............................................................................................................... 19 7.2.4. Test Setup ................................................................................................................. 19 7.2.5. Test Result ................................................................................................................ 20 7.3. Output Power Measurement ......................................................................................... 24 Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 4 of 205 7.3.1. Test Limit ................................................................................................................... 24 7.3.2. Test Procedure Used ................................................................................................. 24 7.3.3. Test Setting ...…

Text truncated - open the document above for the full version.

Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 41 of 205 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 42 of 205 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 43 of 205 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 44 of 205 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 45 of 205 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 46 of 205 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 47 of 205 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 02.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 48 of 205 Antenna 1 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 49 of 205 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 50 of 205 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 51 of 205 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 52 of 205 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 53 of 205 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz)

Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 54 of 205 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 55 of 205 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 56 of 205 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 02.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 57 of 205 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [Uv/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10 – 2013 Section 11.11 & 11.12 ANSI C63.10 – 2013 Section 6.3 (General Requirements) ANSI C63.10 – 2013 Section 6.4 (Standard test method below 30MHz) ANSI C63.10 – 2013 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 – 2013 Section 6.6 (Standard test method above 1GHz) 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 58 of 205 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 59 of 205 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 60 of 205 7.6.5.Test Result EUT AX5400 Tri-Band Wi-Fi 6 Range Extender Date of Test 2022-06-24 Factor VULB 9162 Temp. / Humidity 25C /65% Polarity Horizontal Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 42.610 8.82 20.99 29.81 -10.19 40.00 100 250 QP 2 119.240 8.26 17.68 25.94 -17.56 43.50 100 280 QP 3 124.090 8.84 17.02 25.86 -17.64 43.50 100 90 QP 4 167.740 5.24 16.56 21.79 -21.71 43.50 100 335 QP 5 245.340 4.17 20.59 24.76 -21.24 46.00 100 295 QP 6 341.370 7.68 22.68 30.36 -15.64 46.00 100 250 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 61 of 205 EUT AX5400 Tri-Band Wi-Fi 6 Range Extender Date of Test 2022-06-24 Factor VULB 9162 Temp. / Humidity 25C /65% Polarity Vertical Site / Test Engineer AC2 / Ares Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 34.850 16.76 18.48 35.24 -4.76 40.00 100 0 QP 2 38.730 14.16 19.96 34.12 -5.88 40.00 100 265 QP 3 42.610 13.21 20.99 34.20 -5.80 40.00 100 0 QP 4 46.490 10.88 21.51 32.39 -7.61 40.00 100 0 QP 5 120.210 10.50 17.55 28.05 -15.45 43.50 100 0 QP 6 191.990 4.87 18.45 23.32 -20.18 43.50 100 315 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2206TW0104-U1 FCC ID: 2AXJ4RE815X Page Number: 62 of 205 EUT AX5400 Tri-Band Wi-Fi 6 Range Extender Date of Test 2022-06-24 Factor DRH18-E Temp. / Humidity 25C /65% Polarity Horizontal Site / Test Engineer AC2 / Ares Test Mode 802.11b_TX_CH 1_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MH…
