2AXJ4S7AC1900 Whole Home Mesh Wi-Fi System

Deco S7Fast, Stable, Everywhere User Guide AC1900 Whole Home Mesh Wi-Fi System 1910012867 REV1.0.0 ©2021 TP-Link ContentsAbout This Guide ···················································· 1Appearance ······························································· 2Set Up Your Deco ··················································· 3Add More Decos ····················································· 7Dashboard ·································································· 8Check Deco Status ··············································· 9Remove/Reboot Deco ·······································11Manage Connected Devices ·························12Create a New Network ·······································15Delete a Network ··················································17Wi-Fi Settings··························································18Guest Network ·······················································19Blacklist ······································································20Upgrade Your Deco ·············································21 Advanced Features ·············································22WPS ··············································································27Parental Controls ··················································28QoS···············································································29Monthly Report ······················································30Managers ··································································31Control Your Deco with Alexa ·························32Troubleshooting ····················································33Authentication ························································34 1 About This GuideThis guide provides a brief introduction to Deco Whole Home Mesh Wi-Fi System and the Deco app, as well as regulatory informati on. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images , steps, and descriptions LQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\QRWUHưHFW\RXUDFWXDO 'HFRH[SHULHQFH ConventionsIn this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/Unit. Underline Hyperlinks are in teal and underlined. You can click to UHGLUHFWWRDZHEVLWHRUDVSHFLƮFVHFWLRQ Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info• 6SHFLƮFSURGXFWLQIRUPDWLRQFDQEHIRXQGRQWKHSURGXFWSDJHDW  https://www.tp-link.com . • A Technical Community is provided for you to discuss our products at https://community.tp-link.com . • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support . Speed/Coverage/Device Quantity DisclaimerMaximum wireless transmission rates are the physical rates derived from ,(((6WDQGDUGVSHFLƮFDWLRQV5DQJHFRYHUDJHDQGPD[LPX P quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput. wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local LQWHUIHUHQFHYROXPHDQGGHQVLW\RIWUDƱFSURGXFWORFDWLRQQH WZRUN complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition. MU-MIMO DisclaimerUse of MU-MIMO requires clients to also support MU-MIMO.Seamless Roaming DisclaimerClients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. 2 AppearanceEach Deco has an LED that changes color according to its status, three RJ-45 Ethernet ports, a power slot, and a Reset button. See the explanation below: Tip: The product label can be found at the bottom of the product. Pluse Yellow:Deco is resetting.Solid Yellow:Deco is starting up.Pluse Blue:Deco is ready for setup, or WPS in progress.Solid Blue:Deco is setting up.Pluse White:'HFRLVXSJUDGLQJƮUPZDUHSolid White:Deco is all set up and connected.Pluse Red:Deco is disconnected from main Deco.Solid Red:Deco has an issue. Ethernet Ports: For connecting Deco to your modem, the Ethernet outlet, or to other internet devices. Reset Button:Press for 1 second and release to reset Deco to factory default settings. The light changing from pulsing yellow to solid yellow indicates a successful reset.Power Slot:For connecting Deco to the power socket via the provided power adapter. 3 Set Up Your DecoThe intuitive Deco app guides you through an easy setup process that gets each unit up and all your devices connected and onlin e. Follow the steps below to set up your Deco Whole Home Mesh Wi-Fi System. 1. Download and install the Deco appScan the QR code below or go to Google Play or the App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. or 2. Log in with TP-Link IDOpen the app. Use your TP-Link ID to log in. If \RXGRQoWKDYHD73/LQN,'VLJQXSƮUVW Note: If you forgot your login password, tap Forgot Password? . The Deco app will guide you through the rest. 3. Identify your DecoChoose your Deco model. 4 5. Connect to the Deco's Wi-FiWait until the Wi-Fi Signal LED pulses blue, then connect to the Deco's Wi-Fi using the default SSID printed on the product label. 6. Select a locationSelect a location for this Deco. If its location is not listed, you can create a new one by choosing Custom . This will be the name of your Deco. 4. Plug in and power on Deco3RZHURƬ\RXUPRGHP&RQQHFW\RXU'HFRWRthe modem an…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2021-07-30 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2022-07-30 By: ______________ ___Abby Liang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-07-30 Subject: Confidentiality Request for: 2AXJ4S7 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-07-30 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: AC1900 Whole Home Mesh Wi-Fi System Type designation: Deco S7 Brand: tp-link FCC ID: 2AXJ4S7 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ____________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

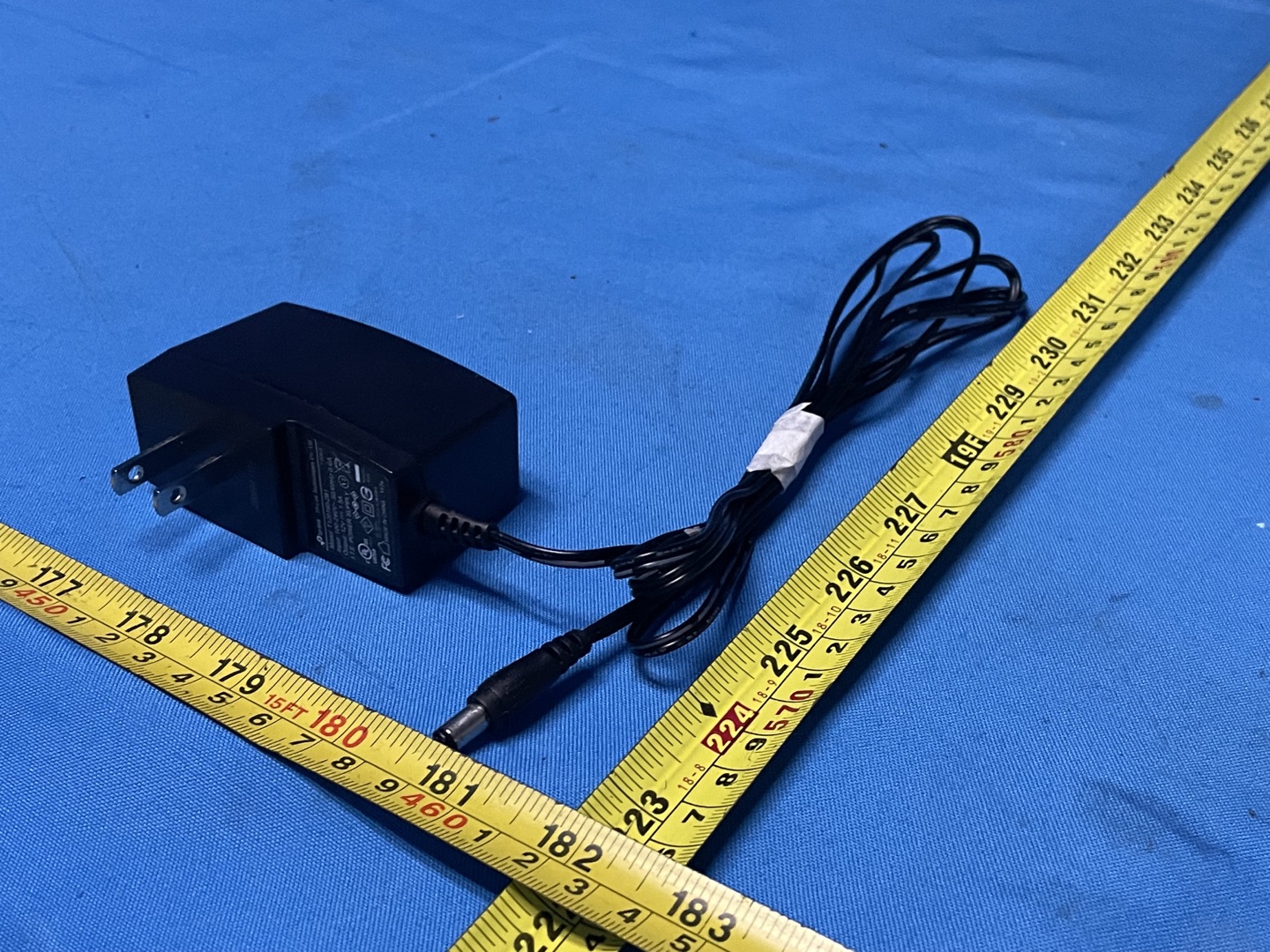

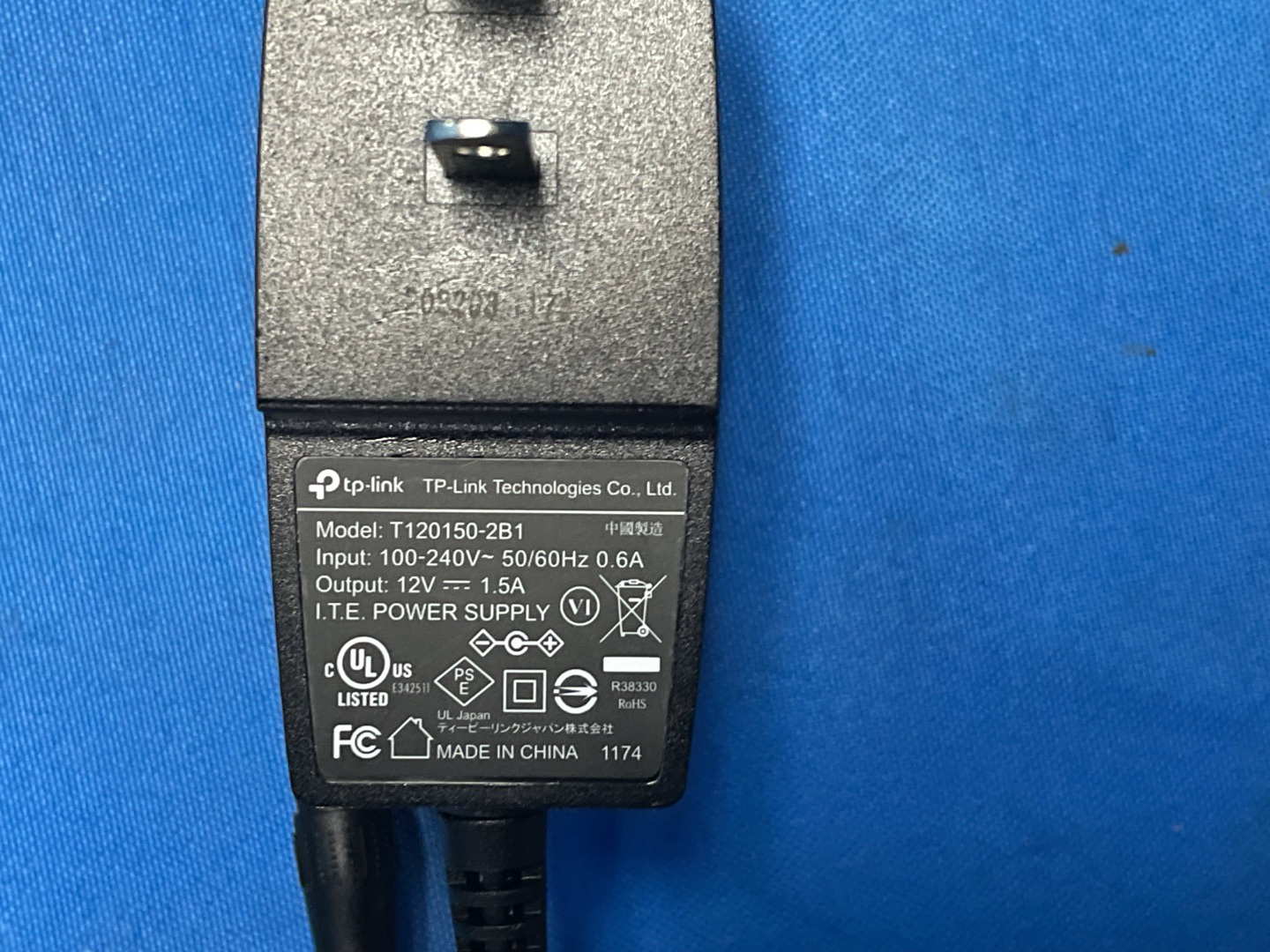

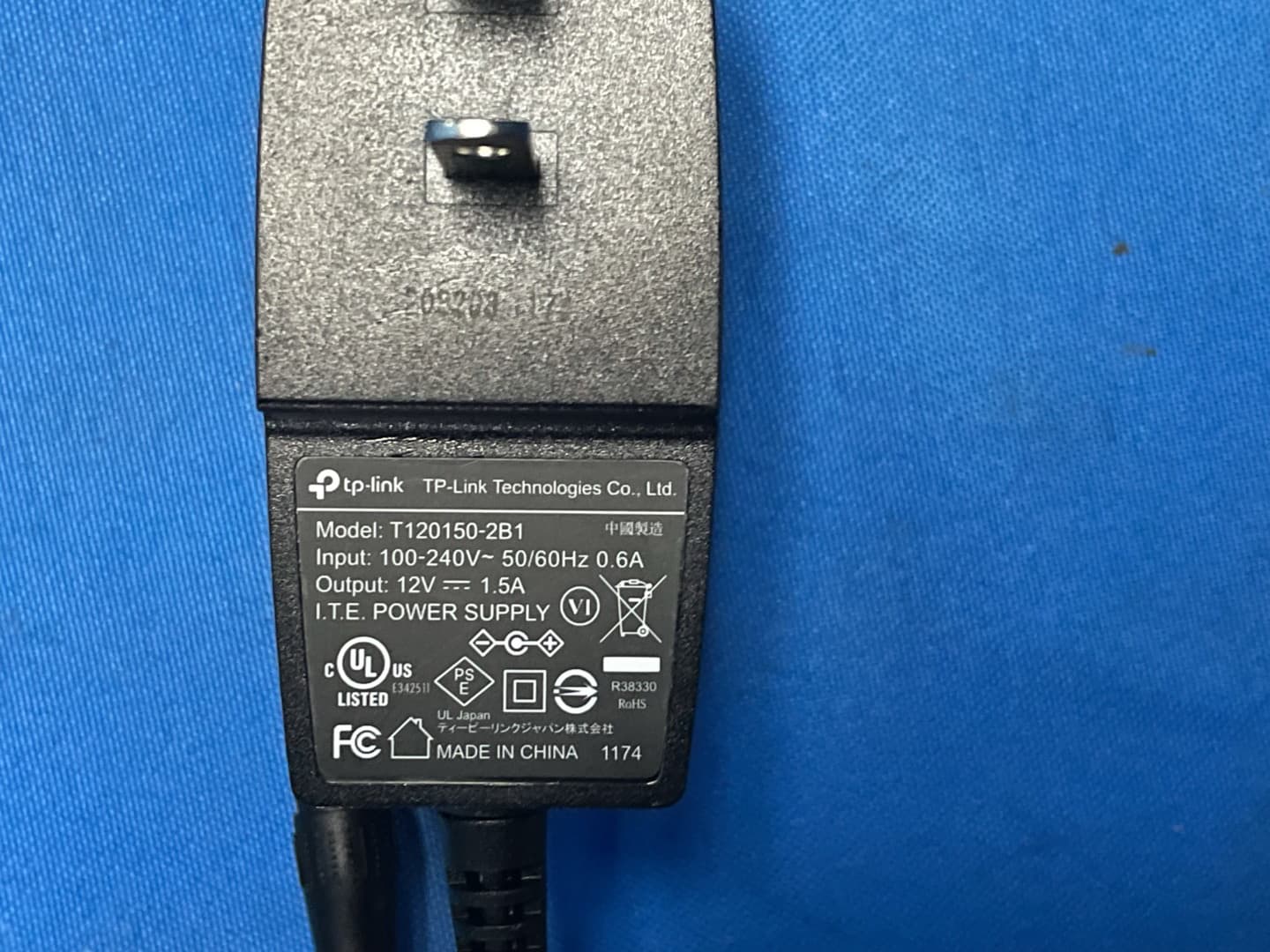

Report No.: 2104C097 Page 1 of 12 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2104C097 Page 2 of 12 Report No.: 2104C097 Page 3 of 12 Report No.: 2104C097 Page 4 of 12 Report No.: 2104C097 Page 5 of 12

文字转曲（来料效果图） C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 Deco S7(US) 1.0_产品规格标贴 A3 100#珠光合成纸+雾膜 Deco S7(US)1.0 陈映徽 2021-03-16 更新公司名称地址、认证号 黑色 Pantone 877C Pantone 877C 备注： 1）S/N码由工厂用 23*6(7210500124) 空白标贴打印，贴于产品规格标贴指定位置； 2）MAC地址 、SSID由工厂直接打印于产品规格标贴指定位置。 MAC：条码由“XXXXXXXXXXXX”生成，文本格式写成“XX-XX-XX-XX-XX-XX”；具体内容以软件生成为准 SSID：“Deco_”为固定内容，XXXX为MAC地址后四位（大写），具体内容以软件生成为准 3）图示条码均为示意，具体请以生产实际为准。 AC1900 Whole Home Mesh Wi-Fi System Model:Deco S7(US) Ver:1.0 S/N:XXXXXXXXXXXXX MAC:XX-XX-XX-XX-XX-XX SSID:Deco_XXXX Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong KongTP-Link Corporation Limited MADE IN CHINAPower: 12V 1.5A Model: Deco S7 IC: 26583-S7 FCC ID: 2AXJ4S7

Report No.: 2104C097 Page 6 of 12 Ant. 1 Ant. 2 Ant. 3 Report No.: 2104C097 Page 7 of 12 Ant. 1 Ant. 2 Ant. 3 Report No.: 2104C097 Page 8 of 12 Report No.: 2104C097 Page 9 of 12 Report No.: 2104C097 Page 10 of 12

Report No.: 2104C097 Page 11 of 12 Report No.: 2104C097 Page 12 of 12

Report No.: BTL-FCCP-3-2104C097 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4S7 Project No. : 2104C097 Equipment : AC1900 Whole Home Mesh Wi-Fi System Brand Name : tp-link Test Model : Deco S7 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Apr. 13, 2021 Date of Test : Jun. 02, 2021 ~ Jul. 07, 2021 Issued Date : Jul. 29, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210527190 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2104C097 Page 2 of 6 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Jul. 29, 2021 Report No.: BTL-FCCP-3-2104C097 Page 3 of 6 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For 2.4GHz Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 tp -link N/A Dipole I-PEX 1.96 2 tp -link N/A Dipole I-PEX 1.99 3 tp -link N/A Dipole I-PEX 2.00 Note: 1) This EUT supports CDD, and all antenna gains are not equal. Then, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 1.96/20 +10 1.99/20 +10 2.00/20 ) 2 /3]dBi =6.75. So, the output power limit is 30-(6.75-6)=29.25, the power spectral density limit is 8-(6.75-6)=7.25. 2) Beamforming Gain: 4.70 dB. Then Directional gain=4.70+2.00=6.70. So, the output power limit is 30-(6.70-6)=29.30. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 3TX IEEE 802.11b V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11g V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE vht20 V (Ant. 1+Ant. 2+Ant. 3) IEEE vht40 V (Ant. 1+Ant. 2+Ant. 3) Report No.: BTL-FCCP-3-2104C097 Page 4 of 6 For Beamforming: Operating Mode TX Mode 3TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE vht20 V (Ant. 1+Ant. 2+Ant. 3) IEEE vht40 V (Ant. 1+Ant. 2+Ant. 3) For 5GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 tp -link N/A Dipole I-PEX 0.94 UNII-1 2 tp -link N/A Dipole I-PEX 0.96 3 tp -link N/A Dipole I-PEX 0.96 1 tp -link N/A Dipole I-PEX 0.97 UNII-3 2 tp -link N/A Dipole I-PEX 0.99 3 tp -link N/A Dipole I-PEX 1.00 Note: 1) This EUT supports CDD, and all antenna gains are not equal. Then, Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi. For UNII-1, Directional gain=10log[(10 0.94/20 +10 0.96/20 +10 0.96/20 ) 2 /3]dBi =5.72. For UNII-3, Directional gain=10log[(10 0.97/20 +10 0.99/20 +10 1.00/20 ) 2 /3]dBi =5.76. 2) Beamforming Gain: 4.70 dB. Then, UNII-1 Directional gain=4.70+0.96=5.66, UNII-3 Directional gain=4.70+1=5.70. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 3TX IEEE 802.11a V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2+Ant. 3) Report No.: BTL-FCCP-3-2104C097 Page 5 of 6 For Beamforming: Operating Mode TX Mode 3TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2+Ant. 3) Report No.: BTL-FCCP-3-2104C097 Page 6 of 6 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.75 4.7315 27.9 616.5950 0.37165 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.70 4.6774 27.35 543.2503 0.32369 1 Complies For 5GHz UNII-1 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.72 3.7325 25.83 382.8247 0.18202 1 Complies For 5GHz UNII-1 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.66 3.6813 25.01 316.9567 0.14864 1 Complies For 5GHz UNII-3 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5.76 3.7670 29.32 855.0667 0.41033 1 Complies For 5GHz UNII-3 Beamforming: Directional Gain (dBi) Directional G…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2104C097 Page 1 of 234 FCC Radio Test Report FCC ID: 2AXJ4S7 This report concerns: Original Grant Project No. : 2104C097 Equipment : AC1900 Whole Home Mesh Wi-Fi System Brand Name : tp-link Test Model : Deco S7 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Apr. 13, 2021 Date of Test : Jun. 02, 2021 ~ Jul. 07, 2021 Issued Date : Jul. 29, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210527190 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2104C097 Page 2 of 234 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2104C097 Page 3 of 234 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 4.8 TEST RESULTS - ABOVE 1000 MHZ 23 5 . BANDWIDTH 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM STANDARD 24 5.4 TEST SETUP 24 Report No.: BTL-FCCP-1-2104C097 Page 4 of 234 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS 24 6 . MAXIMUM AVERAGE OUTPUT POWER 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . CONDUCTED SPURIOUS EMISSIONS 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 26 8 . POWER SPECTRAL DENSITY 27 8.1 LIMIT 27 8.2 TEST PROCEDURE 27 8.3 DEVIATION FROM STANDARD 27 8.4 TEST SETUP 27 8.5 EUT OPERATION CONDITIONS 27 8.6 TEST RESULTS 27 9 . MEASUREMENT INSTRUMENTS LIST 28 10 . EUT TEST PHOTO 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 43 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 46 APPENDIX E - BANDWIDTH 167 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER 174 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 185 Report No.: BTL-FCCP-1-2104C097 Page 5 of 234 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 222 Report No.: BTL-FCCP-1-2104C097 Page 6 of 234 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jul. 29, 2021 Report No.: BTL-FCCP-1-2104C097 Page 7 of 234 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectr…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2104C097 Page 168 of 234 Test Mode TX B Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 9.07 13.60 0.50 Complies 06 2437 9.11 13.60 0.50 Complies 11 2462 9.11 13.52 0.50 Complies CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 169 of 234 Test Mode TX G Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 15.06 17.04 0.50 Complies 06 2437 15.16 16.96 0.50 Complies 11 2462 13.92 17.36 0.50 Complies CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 170 of 234 Test Mode TX N(HT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 13.88 17.84 0.50 Complies 06 2437 15.14 17.52 0.50 Complies 11 2462 15.10 18.16 0.50 Complies CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 171 of 234 Test Mode TX N(HT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 29.04 36.48 0.50 Complies 06 2437 32.72 36.96 0.50 Complies 09 2452 29.84 36.80 0.50 Complies CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 172 of 234 Test Mode TX vht20 Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 01 2412 15.52 17.84 0.50 Complies 06 2437 13.96 18.40 0.50 Complies 11 2462 15.10 18.32 0.50 Complies CH01 CH06 CH11 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 173 of 234 Test Mode TX vht40 Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 35.20 36.48 0.50 Complies 06 2437 33.88 37.60 0.50 Complies 09 2452 35.12 40.00 0.50 Complies CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-1-2104C097 Page 174 of 234 APPENDIX F - MAXIMUM AVERAGE OUTPUT POWER Report No.: BTL-FCCP-1-2104C097 Page 175 of 234 Non Beamforming Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 21.37 0.15 21.52 30.00 1.0000 Complies 06 2437 21.86 0.15 22.01 30.00 1.0000 Complies 11 2462 20.85 0.15 21.00 30.00 1.0000 Complies Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.98 0.15 21.13 30.00 1.0000 Complies 06 2437 21.58 0.15 21.73 30.00 1.0000 Complies 11 2462 20.52 0.15 20.67 30.00 1.0000 Complies Test Mode TX B Mode_Ant. 3 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 21.26 0.15 21.41 30.00 1.0000 Complies 06 2437 21.74 0.15 21.89 30.00 1.0000 Complies 11 2462 20.79 0.15 20.94 30.00 1.0000 Complies Test Mode TX B Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 26.12 29.25 0.8414 Complies 06 2437 26.64 29.25 0.8414 Complies 11 2462 25.64 29.25 0.8414 Complies Report No.: BTL-FCCP-1-2104C097 Page 176 of 234 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.36 0.87 17.23 30.00 1.0000 Complies 06 2437 21.85 0.87 22.72 30.00 1.0000 Complies 11 2462 15.61 0.87 16.48 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.13 0.87 17.00 30.00 1.0000 Complies 06 2437 21.52 0.87 22.39 30.00 1.0000 Complies 11 2462 15.16 0.87 16.03 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 3 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.42 0.87 17.29 30.00 1.0000 Complies 06 2437 21.71 0.87 22.58 30.00 1.0000 Complies 11 2462 15.26 0.87 16.13 30.00 1.0000 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 21.95 29.25 0.8414 Complies 06 2437 27.34 29.25 0.8414 Complies 11 2462 20.99 29.25 0.8414 Complies Report No.: BTL-FCCP-1-2104C097 Page 177 of 234 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.96 0.91 17.87 30.00 1.0000 Complies 06 2437 21.78 0.91 22.69 30.00 1.0000 Complies 11 2462 15.08 0.91 15.99 30.00 1.0000 Complies Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.79 0.91 17.70 30.00 1.0000 Complies 06 2437 21.58 0.91 22.49 30.00 1.0000 Complies 11 2462 14.91 0.91 15.82 30.00 1.0000 Complies Test Mode TX N(HT20) Mode_Ant. 3 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 16.84 0.91 17.75 30.00 1.0000 Complies 06 2437 21.65 0.91 22.56 30.00 1.0000 Complies 11 2462 14.69 0.91 15.60 30.00 1.0000 Complies Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Average Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 22.55 29.25 0.8414 Complies 06 2437 27.35 29.25 0.8414 Complies 11 2462 20.58 29.25 0.8414 Complies Report No.: BTL-FCCP-1-2104C097 Page 178 of 234 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Average Output Power (dBm) Duty Factor Average Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Lim…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2104C097 Page 198 of 234 Te s t Mode TX N(HT20) Mode_Ant. 1…
