2AXJ4T315Tapo Smart Temperature / Humidity Monitor

Appearance Before You Start A Tapo Hub is required. Make sure your Tapo Hub is successfully added via the Tapo app. OR Remove the back panel and insert the batteries. The Connection icon should start to blink. Note: If the Connection icon is not blinking, press and hold the button for 5 seconds to reset your monitor. 1. Power Up Your Monitor1 Quick Start Guide Smart Temperature and Humidity Monitor 7106509797 REV1.0.0 *Images may differ from actual products. 1 Humidity* 5 Display/Reset Button 4 3 Temperature* Vent Hole 2 Indicator Icons • Single Press Switch the temperature unit °C/°F. • Double Press Switch the display position of temperature and humidity. • Press and hold for 5s Reset your monitor to enter pairing mode. Display/Reset Button Battery Level Connection • Blinking: Connecting to hub • Solid On: Connected to hub • Off: No connection Battery level < 20% Battery level < 5% *You can press the button to switch display position. Inside Comfort Level Outside Comfort Level The default comfort level is temperatures between 20°C (68°F) - 26°C (78.8°F) while humidity is between 30% - 60%. You can customize the comfort level on the Tapo app. Indicator Icons Take the monitor to your preferred location. Make sure the Connection icon on the screen is solid on. If there is no connection icon, move it closer to your hub. 3. Test Your Monitor3 Open the Tapo app and tap the button. Select Sensors and then your model. Follow the app instructions to complete setup. 2. Set Up Your Monitor2 4. Place Your Monitor4 OR OR Option 2: Magnetically attach to metallic surfaces Option 3: Stick to a clean wall with the included adhesive Option 1: Place it on a table or a shelf TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU) 2015/863. The original EU declaration of conformity may be found at https://www.tapo.com/en/support/ce/ TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. Do not ingest battery, Chemical Burn Hazard Safety Information Keep the device away from water, fire, humidity or hot environments. Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. Do not use the device where wireless devices are not allowed. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk. Avoid replacement of a battery with an incorrect type that can defeat a safeguard. Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Do not leave a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; Do not leave a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Warning Risk of explosion if the battery is replaced by an incorrect type. Warning (The installation height should not be higher than 2 meters.) 3M Operating Temperature: 0°C (32°F) - 50°C (122°F) Please keep it away from harsh environments with high temperatures or high humidity. Do not immerse the vent hole into any liquid. This monitor is designed to facilitate a healthy lifestyle, but should not be used as a measuring tool. For technical support, the user guide and more information, please visit https://www.tapo.com/support/ The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/ For EU/UK Region: Operating Frequency / Nominal Operating Frequency / Max Output Power: 863~865MHz / 863.35MHz / 25mW (e.r.p) 863~865MHz / 864.35MHz / 25mW (e.r.p) 868~868.6MHz / 868.35MHz / 25mW (e.r.p) RF Exposure Information This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 20 cm from your body. Reveiver categories：1 FCC compliance information statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1） This device may not cause harmful interference. 2）This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the …

Text truncated - open the document above for the full version.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4T315 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-12-30

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Tapo Smart Temperature & Humidity Monitor FCC ID: 2AXJ4T315 Model: Tapo T315 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-12-30

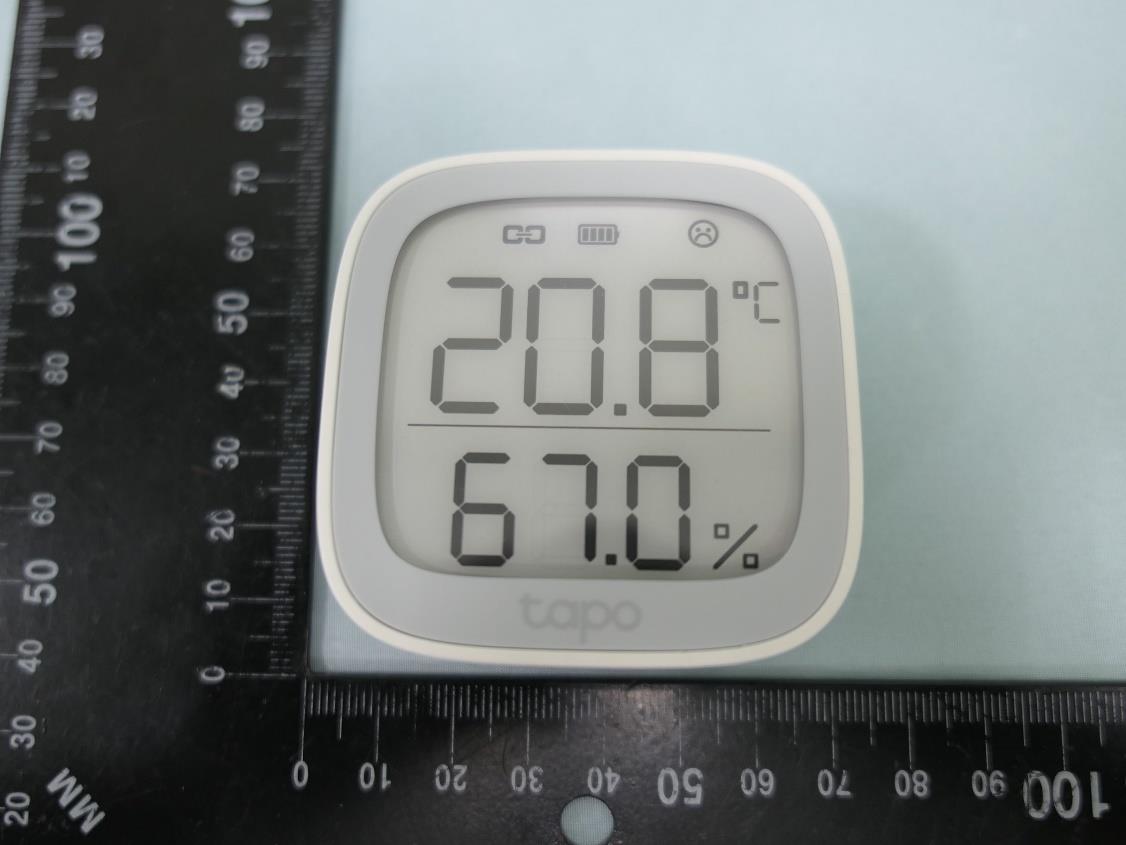

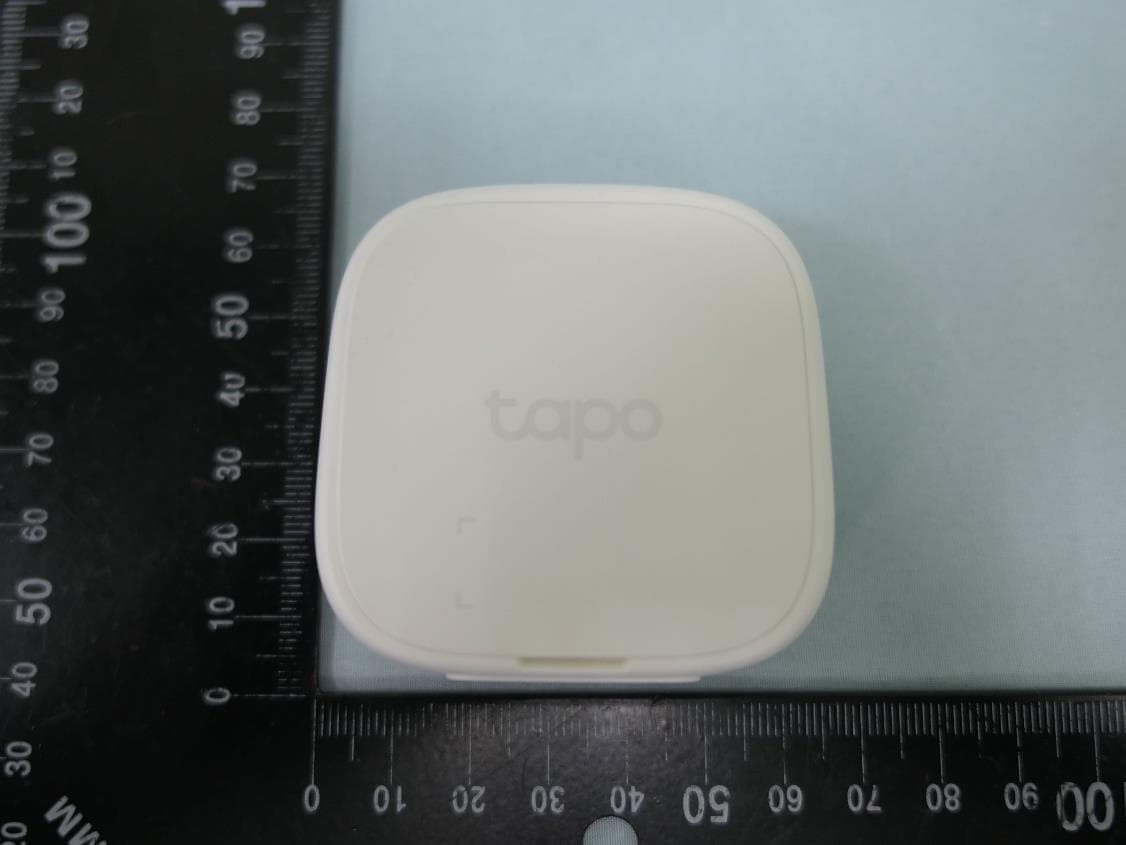

Report No.: 2211TW0112-External Photo Product: Tapo Smart Temperature & Humidity Monitor Brand Name: tp-link Model Number: Tapo T315 1 of 4 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2211TW0112-External Photo 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2211TW0112-External Photo 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2211TW0112-External Photo 4 of 4 (7) EUT Photo

Tapo T315(EU&US)1.0_壳体镭雕 A1 Tapo T315(EU&US)1.0 胡燕燕 2022.7.13 Pantone Cool Gray 4C 22.62±0.3mm 16.03±0.3mm 22.72±0.3mm 0.77±0.3mm 1.44±0.3mm 6.83±0.3mm MAC:XX-XX-XX-XX-XX-XX E U/1.0 S/N:XXXXXXXXXXXXX 1.92±0.3mm 1.92±0.3mm 菲林图 尺寸： 镭雕颜色： 13*5.08 mm Pantone Cool Gray 4C （以实际打样效果为准） 菲林图 尺寸： 镭雕颜色： 21.54*22.78 mm Pantone Cool Gray 4C （以实际打样效果为准） 菲林图 尺寸： 镭雕颜色： 30.08*20.44 mm Pantone Cool Gray 4C （以实际打样效果为准） 菲林图 尺寸： 镭雕颜色： 39.16*16.69 mm Pantone Cool Gray 4C （以实际打样效果为准） 201-XXXXXX Model: Tapo T315 Tapo Smart Temperature & Humidity Monitor Batteries: 2x 1.5V SIZE AAA/LR03 Power: 3V TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong MADE IN CHINA FCC ID: 2AXJ4T315IC: 26583-T315 RoHS

Report No.: 2211TW0112-Internal Photo Product: Tapo Smart Temperature & Humidity Monitor Brand Name: tp-link Model Number: Tapo T315 1 of 3 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2211TW0112-Internal Photo 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2211TW0112-Internal Photo 3 of 3 (5) EUT Photo (6) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2211TW0112-U3 Phone: +886-3-3288388 Report Version 2.0 Web: www.mrt-cert.com Issue Date: 2023-01-16 FCC ID: 2AXJ4T315 Page Number: 1 of 10 RF Exposure Evaluation Declaration FCC ID : 2AXJ4T315 Applicant : TP-Link Corporation Limited Application Type : Certification Product : Tapo Smart Temperature & Humidity Monitor Model No. : Tapo T315 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part 2.1091 Received Date : November 30, 2022 Test Date : December 8, 2022 Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 2 of 10 Revision History Report No. Version Description Issue Date Note 2211TW0112-U3 1.0 Original Report 2023-01-04 Invalid 2211TW0112-U3 2.0 Correct the typo 2023-01-16 Valid Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 3 of 10 CONTENTS Description Page 1. INTRODUCTION .................................................................................................................... 5 1.1. Scope .................................................................................................................................. 5 1.2. MRT Test Location .............................................................................................................. 5 2. PRODUCT INFORMATION .................................................................................................... 6 2.1. Feature of Equipment under Test ........................................................................................ 6 2.2. Description of Available Antennas ........................................................................................ 6 2.3. Device Classification ............................................................................................................ 6 2.4. Applied Standards ............................................................................................................... 6 3. RF Exposure Test Exemptions ............................................................................................ 7 3.1. SAR-Based Exemption ........................................................................................................ 7 3.2. Calculated Result............................................................................................................... 10 Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 4 of 10 General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. #1-1 Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 5 of 10 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 6 of 10 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name Tapo Smart Temperature & Humidity Monitor Model No. Tapo T315 Brand Name tp-link Operating Frequency 920.9 MHz, 921.7MHz, 922.3MHz Specification Sub 1G Type of modulation GFSK Data Rate 50kbps 2.2. Description of Available Antennas No. Manufacturer Part No. Antenna Type Peak Gain 1 TP-LINK T315(US) 1.0 IFA -7.1dBi 2.3. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 2.4. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2211TW0112-U3 FCC ID: 2AXJ4T315 Page Number: 7 of 10 3. RF Exposure Test Exemptions 3.1. SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300…

Text truncated - open the document above for the full version.

Product Model： T315(US) 1.0 Version： 1.0 Date： Checked By： Index I. Antenna Distribution ........................................................................................ 3 II. Electrical Characteristics ................................................................................ 3 III. Antenna Peak Gain........................................................................................... 3 IV. Antenna Radiation Pattern .............................................................................. 4 Page 3 Version:1.0 Issue Date: I. Antenna Distribution T315(US)1.0 II. Electrical Characteristics Ant1 Frequency 916~924MHz Impedance 50Ohm Antenna Type IFA Antenna Gain -7.1dBi@916~924MHz Radiation pattern Omni-Directional Antenna Peak Gain Ant1 Frequency(MHz) 916 918 920 922 924 Gain(dBi) -7.4 -7.3 -7.2 -7.1 -7.1 Page 4 Version:1.0 Issue Date: III. Antenna Radiation Pattern Ant1

MRT Technology (Taiwan) Co., Ltd Report No.: 2211TW0112-U2 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2023-01-04 FCC ID: 2AXJ4T315 Page Number: 1 of 52 FCC ID : 2AXJ4T315 APPLICANT : TP-Link Corporation Limited Application Type : Certification Product : Tapo Smart Temperature & Humidity Monitor Model No. : Tapo T315 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part 15.247 Standard : AS/NZS 4268: 2017 + A1: 2021 Test Procedure(s) : ANSI C63.10-2013 Received Date : November 30, 2022 Test Date : December 2 ~ 6, 2022 RF MEASUREMENT REPORT Tested By : ( Peter Syu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested sample. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2211TW0112-U2 FCC ID: 2AXJ4T315 Page Number: 2 of 52 Revision History Report No. Version Description Issue Date Note 2211TW0112-U2 1.0 Original Report 2023-01-04 Valid Report No.: 2211TW0112-U2 FCC ID: 2AXJ4T315 Page Number: 3 of 52 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Product Specification Subjective to this Standard .................................................................. 8 2.3. Test Mode ............................................................................................................................. 8 2.4. Operation Frequency / Channel List ...................................................................................... 9 2.5. Test Configuration ................................................................................................................. 9 2.6. Test Software ........................................................................................................................ 9 2.7. Applied Standards ............................................................................................................... 10 2.8. EMI Suppression Device(s)/Modifications ........................................................................... 10 2.9. Labeling Requirements ....................................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .......................................................................................................... 11 3.2. AC Line Conducted Emissions ............................................................................................ 11 3.3. Radiated Emissions ............................................................................................................ 12 4. ANTENNA REQUIREMENTS ................................................................................................ 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 15 7. TEST RESULT ...................................................................................................................... 16 7.1. Summary ............................................................................................................................. 16 7.2. 6dB Bandwidth Measurement ............................................................................................. 17 7.2.1. Test Limit ......................................................................................................................... 17 7.2.2. Test Procedure used ....................................................................................................... 17 7.2.3. Test Setting ..................................................................................................................... 17 7.2.4. Test Setup ....................................................................................................................... 17 7.2.5. Test Result ...................................................................................................................... 18 7.3. Output Power Measurement ................................................................................................ 19 7.3.1. Test Limit ......................................................................................................................... 19 7.3.2. Test Procedure Used ....................................................................................................... 19 7.3.3. Test Setting ..................................................................................................................... 19 7.3.4. Test Setup .........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2211TW0112-Setup Photo Product: Tapo Smart Temperature & Humidity Monitor Brand Name: tp-link Model Number: Tapo T315 1 of 2 Test Photograph Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2211TW0112-U2~U3 2 of 2 Description: Conducted Test Setup
