2AXJ4T3UNANOAC1300 Nano Wireless MU-MIMO USB Adapter

© 2021 TP-Link REV1.0.0 1910012968 User Guide AC1300 Nano Wireless MU-MIMO USB Adapter Archer T3U Nano Contents About This Guide 1 Chapter 1 Get to Know About Your Adapter 2 1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1. 2. LED Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Chapter 2 Connect to a Computer 4 Chapter 3 Windows 6 3. 1. Install Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3. 3. Uninstall Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Chapter 4 macOS 9 4. 1. Install Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 4. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4. 2. 1. TP-Link Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4. 2. 2. WPS (Wi-Fi Protected Setup). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 4. 3. Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 4. 4. Uninstall Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Appendix: Troubleshooting 19 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and detailed instructions for each steps. When using this guide, please notice that features of the adapter may vary slightly depending on the model and software version you have. All screenshots, images, parameters and descriptions documented in this guide are used for demonstration only. Conventions In this guide, the following conventions are used: Convention Description Teal Italic Hyperlinks are in teal italic. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. Use of MU-MIMO, 256-QAM and WPA3 requires clients to also support the corresponding features. To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of supported operating systems in the download center at tp-link.com/download-center. More Info • The latest software and utility can be found at https://www.tp-link.com/download-center. • The Quick Installation Guide (QIG) can be found where you find this guide or inside the package of the product. • Specifications can be found on the product page at https://www.tp-link.com. • A Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support. Chapter 1 Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status 3 Chapter 1 Get to Know about Your Adapter 1 1 Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for smooth HD video, voice streaming and online gaming. • Small, unobtrusive design allows you to plug it in and forget it is even there • Blazing fast wireless data transmission rates of up to 867 Mbps at 5 GHz and 400 Mbps at 2.4 GHz • Utilizes 802.11ac standard and is backward compatible with 802.11a/b/g/n • Supports 256QAM technology, 33% faster on 2.4GHz • Supports ad-hoc and infrastructure mode • Supports WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK, WPA3-SAE • Supports Windows and Mac 1 2 LED Status You can check the adapter’s working status by following the LED Explanation table. Status Indication Off The driver is not installed. The adapter is not detected. OnThe driver has been installed successfully. Tips: If the LED is off, try these troubleshooting tips: 1. Check if the adapter is recognized and enabled or not. Refer to Troubleshooting-T2 for detailed instructions. 2. Remove and reinsert the adapter. 3. Reinstall the software, if necessary. Chapter 2 Connect to a Computer This chapter introduces how to connect the adapter to your computer. 5 Chapter 2 Connect to a Computer Before you start using your adapter, insert the adapter into a USB port on your computer directly. * The image is for demonstration only. After connecting your adapter to the computer, please follow the instructions in the appropriate chapter for your operating system: Windows, macOS. Chapter 3 Windows This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. This chapter includes the following sections: • Install Driver • Join a Wireless Network • Uninstall Driver 7 Chapter 3 Windows 3 1 Install Driver 1 Insert the resource CD into you…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Authority to Act as Agent Date: 2021-08-27 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2022-08-27 By: __________________________ _______Abby Liang________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2021-08-27 Subject: Confidentiality Request for: 2AXJ4T3UNANO Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager _Abby Liang__________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2021-08-27 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong Declare that: Product description: AC1300 Nano Wireless MU-MIMO USB Adapter Type designation: Archer T3U Nano Brand: tp-link FCC ID: 2AXJ4T3UNANO Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: ________________________ Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

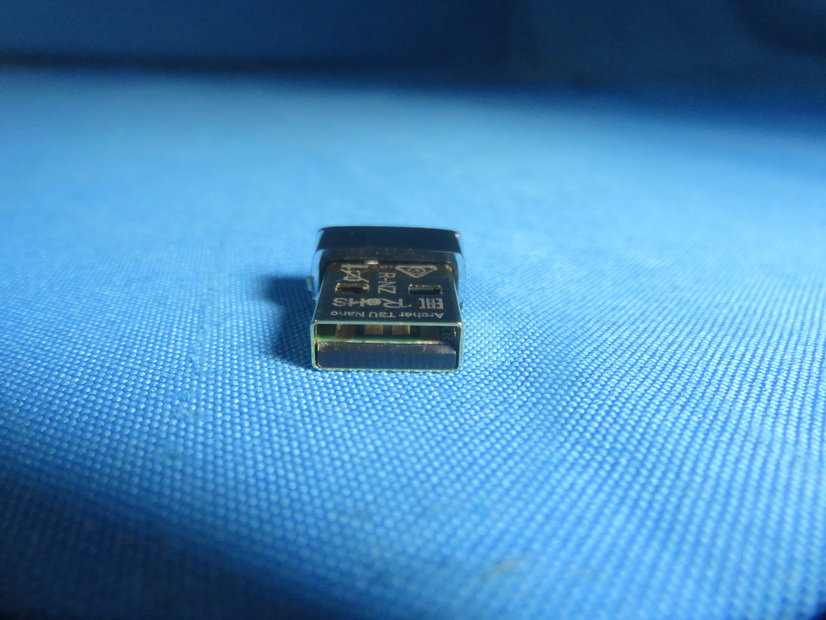

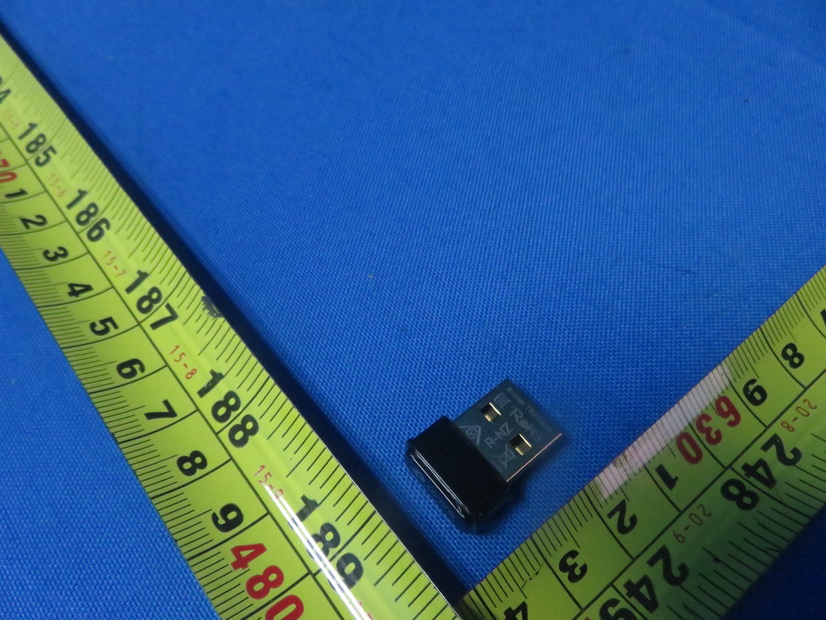

Report No.: 2012C131 Page 2 of 6 Report No.: 2012C131 Page 3 of 6

FCC ID:2AXJ4T3UNANO IC: 26583-T3UNANO FCC ID:2AXJ4T3UNANO IC: 26583-T3UNANO 1.5±0.2mm 1.631±0.2mm1.631±0.2mm 0.585±0.2mm 0.54±0.2mm 0.54±0.2mm label location

Report No.: 2012C131 Page 4 of 6 Ant. 1 Ant. 2 Report No.: 2012C131 Page 5 of 6 Report No.: 2012C131 Page 6 of 6

Report No.: BTL-FCC SAR-1-2012C131_Appendix A. Page 1 of 4 Test Laboratory: BTL.Inc Date: 2021/9/18 System Check_H2450_0918 DUT: Dipole 2450 MHz D2450V2;SN:919; Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.814 S/m; ε r = 39.916; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2450 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 18.4 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.5 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 24.6 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.98 W/kg Maximum value of SAR (measured) = 18.6 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix A. Page 2 of 4 Test Laboratory: BTL.Inc Date: 2021/9/18 System Check_H5250_0918 DUT: Dipole D5GHzV2;SN:1160; Communication System: UID 0, CW (0); Frequency: 5250 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5250 MHz; σ = 4.832 S/m; ε r = 35.636; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.56, 5.56, 5.56) @ 5250 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.6 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 70.37 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 36.0 W/kg SAR(1 g) = 7.61 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (measured) = 20.2 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix A. Page 3 of 4 Test Laboratory: BTL.Inc Date: 2021/9/18 System Check_H5600_0918 DUT: Dipole D5GHzV2;SN:1160; Communication System: UID 0, CW (0); Frequency: 5600 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5600 MHz; σ = 5.245 S/m; ε r = 34.796; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.82, 4.82, 4.82) @ 5600 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 13.6 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 70.65 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 41.6 W/kg SAR(1 g) = 8.12 W/kg; SAR(10 g) = 2.27 W/kg Maximum value of SAR (measured) = 22.0 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix A. Page 4 of 4 Test Laboratory: BTL.Inc Date: 2021/9/18 System Check_H5750_0918 DUT: Dipole D5GHzV2;SN:1160; Communication System: UID 0, CW (0); Frequency: 5750 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5750 MHz; σ = 5.439 S/m; ε r = 34.425; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(4.8, 4.8, 4.8) @ 5750 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x6x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.9 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 68.79 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 41.8 W/kg SAR(1 g) = 7.91 W/kg; SAR(10 g) = 2.22 W/kg Maximum value of SAR (measured) = 21.6 W/kg

Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 1 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W02_802.11g_CH1_Horizontal Down_0.5cm_Ant 0 DUT: SUB Dongle; Communication System: UID 0, 802.11g (0); Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.71 S/m; ε r = 38.855; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2412 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (5x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.133 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.58 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.261 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.143 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 2 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W10_802.11n HT20_CH1_Horizontal Down_0.5cm_Ant 0+1 DUT: SUB Dongle; Communication System: UID 10598 - AAB, IEEE 802.11n (HT Mixed, 20MHz, MCS8, 90pc duty cycle); Frequency: 2412 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.71 S/m; εr = 38.855; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(7.56, 7.56, 7.56) @ 2412 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Right v5.0; Type: QD000P40CC; Serial: TP:1469 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (5x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0895 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.404 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.265 W/kg; SAR(10 g) = 0.146 W/kg Maximum value of SAR (measured) = 0.409 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 3 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W18_802.11a_CH48_Horizontal Down_0.5cm_Ant 0 DUT: SUB Dongle; Communication System: UID 10317 - AAC, IEEE 802.11a WiFi 5 GHz (OFDM, 6 Mbps, 96pc duty cycle); Frequency: 5260 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5260 MHz; σ = 4.845 S/m; ε r = 35.625; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.25, 5.25, 5.25) @ 5260 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.649 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 13.74 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 0.450 W/kg; SAR(10 g) = 0.141 W/kg Maximum value of SAR (measured) = 1.06 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 4 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W29_802.11ac VHT40_CH46_Tip Side_0.5cm_Ant 0+1 DUT: SUB Dongle; Communication System: UID 10624 - AAB, IEEE 802.11ac WiFi (40MHz, MCS8, 90pc duty cycle); Frequency: 5230 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5230 MHz; σ = 4.801 S/m; ε r = 35.693; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.56, 5.56, 5.56) @ 5230 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.218 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 10.19 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.87 W/kg SAR(1 g) = 0.214 W/kg; SAR(10 g) = 0.051 W/kg Maximum value of SAR (measured) = 0.615 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 5 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W32_802.11a_CH52_Horizontal Down_0.5cm_Ant 0 DUT: SUB Dongle; Communication System: UID 10317 - AAC, IEEE 802.11a WiFi 5 GHz (OFDM, 6 Mbps, 96pc duty cycle); Frequency: 5260 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5260 MHz; σ = 4.845 S/m; ε r = 35.625; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.25, 5.25, 5.25) @ 5260 MHz; Calibrated: 2020/10/29 • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 23.0 • Electronics: DAE4 Sn1390; Calibrated: 2020/11/6 • Phantom: SAM Left; Type: Twin SAM; Serial: 1784 • DASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Area Scan (6x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.649 W/kg Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 13.74 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 0.443 W/kg; SAR(10 g) = 0.139 W/kg Maximum value of SAR (measured) = 1.06 W/kg Report No.: BTL-FCC SAR-1-2012C131_Appendix B. Page 6 of 10 Test Laboratory: BTL.Inc Date: 2021/9/18 W43_802.11ac VHT40_CH54_Tip Side_0.5cm_Ant 0+1 DUT: SUB Dongle; Communication System: UID 10624 - AAB, IEEE 802.11ac WiFi (40MHz, MCS8, 90pc duty cycle); Frequency: 5270 MHz; Duty Cycle: 1:1 Medium parameters used: f = 5270 MHz; σ = 4.855 S/m; ε r = 35.609; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.4 °C DASY Configuration: • Probe: EX3DV4 - SN7544; ConvF(5.25, 5.25, 5…

Text truncated - open the document above for the full version.

rn Co laboration with ,,~'\"1 11 / 1 ~,, ~ rhfi!~l w ~"'~~'.-Tl:!!ilii'\""J ~~~ m~~i.\ . fj~~CNAS&~t f/LTTL Add: No.52 HuaYuanBei Road, Haidian District, Beijing, 100191, Chi ~/..~~~ ~ CALIBRATION Tel: +86-10-62304633-2079 Fax: +86-10-62304633-2504 ''l,,f,ln\'~'' ~ CNAS L0570 E-mail: [email protected] http://www.chinattl.cn Client BTL Inc. Certificate No: Z21-60224 CALIBRATION CERTIFICATE Object D2450V2-SN: 919 Calibration Procedure(s) FF-Z11 .. 003-01 Calibration Procedures for dipole validation kits Calibration date: May 28,2021 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements (SI). The measurements and 1 the uncertainties with confidence probability are given on the following pages and are part of the certificate. All calibrations have been conducted humidity<70%. laboratory facility: environment temperature (22±3)°C and Calibration Equipment used (M&TE critical fqr calibration) Primary Standards ID# Cal Date (Calibrated by, Certificate No.) Scheduled Calibration Power Meter NRP2 106277 23-Sep-20 (CTTL, No.J20X08336) Sep~21 Power sensor NRP8S 104291 3-Sep-20 (CTTL, No.J20X08336) Sep-21 Reference Probe EX3DV4 SN 3846 26-Apr-21 (CTTL-SPEAG,No.Z21-60084) Apr-22 DAE4 SN 777 . 08-Jan-21 (CTTL-SPEAG, No.Z21-60003) Jan-22 Secondary Standards ID# Cal Date (Calibrated by, Certificate No.) Scheduled Cplibration Signal Generator E4438C MY49071430 01-Feb-21 (CTTL, No.J21X00593) Jan-22 NetworkAnalyzer E5071 C MY46110673 14-Jan-21 (CTTL, No.J21X00232) Jan-22 Name Function Signature Calibrated by: Zhao Jing SAR Test Engineer .~D Reviewed by: Lin Hao SAR Test Engineer ~~- Approved by: Qi Dianyuan SAR Project Leader ~ Issued: June 2, 2021 This calibration certificate shall not be reproduced except in full without written approval of the laboratory. Certificate No: Z21-60224 Page 1 of6 e a . CAU · ON lABORATORY Add: No.52 HuaYuanBei Road, Haidian b istrict, Beijing, 100191, China Tel: +86-1 0-62304633-2079 Fax: +86-10-62304633-2504 E-mail: [email protected] http://Www.chinattl.cn Glossary: l tissue simulating liquid TSL ConvF N/A sensitivity in TSL I NORMx,y,z not applicable or not measured ! l Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b) IEC 62209-1, "Measurement pro·cedure for assessment of specific absorption rate of human exposure to radio frequency fiel; s from hand-h~ld and body-mounted wireless communication devices-Part 1: evice used next to the ear (Frequency range of 300M Hz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to me sure the Specific Absorption Rate (SAR) For wireless communication devices used in lose proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measuremen1 Requirements for 100 MHz to 6 GHz Additional Documentation: ··' e) DASY4/5 System Handbook 1· Methods Applied and Interpretation of Parameters: • Measurement Conditions: Furtt~er details are available from the Validation Report at the end of the certificate. All figures sta ed in t~e certificate are valid at the frequency indicated. • Antenna Parameters with TSL': The dipole is mounted with the spacer to position its feed point exactly below the center.rnarkinQ~ of the flat phantom section, with the arms oriented parallel to the body axis. • Feed Point Impedance andRe urn Loss: These parameters are measured with the dipole positioned under the liquid fille< phantom. The impedance stated is transformed from the measurement at the SMA conn~ctor t~ the feed point. The Return Loss ensures low · reflected power. No uncertaint~ requir~d. . • Electrical Delay: One-way dela V between the SMA connector and the antenna feed point. No uncertainty required. 1 • SAR measured: SAR measure~ at the stated antenna input power. • SAR normalized: SAR as me~s ured, rnormalized to an input power of 1 W at the antenna • SAR for nominal TSL param te rs: Th~ measUired TSL parameters are used to calculate the connector. 1 , nominal SAR result. 1 • I The reported uncertainty of n easurfment is stated as the standard uncertainty of Measurement multiplied by t1E coverage fattor k=2, which for a normal distribution Corresponds to a coverage prc~>bability pf approximately 95%. Certificate No: Z21-60224 P~ge 2 of6 '.'~~~ Measurement Conditions DASY sy_stem configuration, as far as lilO g1ven on page . 1 DASY Version , DASY52l ~ V52.10.4 Extrapolation Advanced Extra~olation Phantom Triple Flat Phantom 5.1 C Distance Dipole Center -TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency : .. ':#: 2450 MHz ± 1 MHz Head TSL parameters ~f:-ti : The following parameters and calculations were ClPPiied. Tempe ature Permittivity Conductivity Nominal Head TSL parameters 'j j Measured Head TSL parameters 1 Head TSL temperature change during test , SAR result with Head TSL 1 22.0 c 39.2 i (22.0 ± 0 2) oc 38.8 ±6% <1.0 c SAR averaged over 1 cm 3 (1 g) of :H~ad TSL Condition 2~0 mW input power SAR measured 1 I , I SAR for nominal Head TSL parameters normalized to 1 W I SAR averaged over 10 cm 3 (1 0 g) of Head TSL Condition SAR measured I SAR for nominal Head TSL parameters I Certificate No: Z21-60224 i 1 tl I• I 250 mW input power normalized to 1 W Page 3 of6 1.80 mho/m 1.81 mho/m ± 6% 13.1 W/kg 52.1 W/kg ± 18.8% (lc=2) 5.95 W/kg 23.7 W/kg ± 18.7% (lc=2) In Co laboration with -TTL e a CAUBRA110N LABORATORY' Add: No.52 HuaYuanBei Road, Haidian District, B~ijing, 100191, China Tel: +86-1 0-62304633-2079 Fax: +86-1 0-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL I Impedance, transformed to feed point Return Loss . i General Antenna Parameters and Design l I Electrical Delay (one direction…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2012C131 Page 1 of 151 FCC Radio Test Report FCC ID: 2AXJ4T3UNANO This report concerns: Original Grant Project No. : 2012C131 Equipment : AC1300 Nano Wireless MU-MIMO USB Adapter Brand Name : tp-link Test Model : Archer T3U Nano Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Dec. 21, 2020 Date of Test : Mar 04, 2021 ~ Jul. 19, 2021 Issued Date : Aug. 24, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021030236 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town, Dongguan City, Guangdong, People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2012C131 Page 2 of 151 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’…

Text truncated - open the document above for the full version.
