2AXJ4TXE70UHAXE5400 Wi-Fi 6E High Gain Wireless USB Adapter

© 2023 TP-Link 1910013465 REV1.0.0 User Guide AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Archer TXE70UH Contents About This Guide 1 Chapter 1 Get to Know About Your Adapter 2 1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1. 2. LED Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Chapter 2 Use the Adapter 4 2. 1. Install Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2. 2. Join a Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2. 3. Uninstall Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Appendix: Troubleshooting 6 1 About This Guide This guide is a complement to Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and detailed instructions for each steps. When using this guide, please notice that features available of the adapter may vary by model and software version. It may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual experience. Conventions In this guide, the following conventions are used: Convention Description Underlined Underlined words or phrases are hyperlinks. You can click to redirect to a website or a specific section. Teal Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. *Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput , wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. *Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, Beamforming, 1024-QAM, or HE160 require APs to also support the corresponding features. *Functionality of Archer TXE70UH may be restricted on some operating systems and platforms. Please try to update the device’s driver for feature compatibility. *Use of WPA3 requires APs to also support the corresponding feature. More Info • The latest driver can be found at Download Center at https://www.tp-link.com/support. • The Quick Installation Guide can be found where you find this guide or inside the package of the router. • Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support. Chapter 1 Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status 3 Chapter 1 Get to Know about Your Adapter 1 1 Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for smooth HD video, voice streaming and online gaming. • The high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter. • Utilizes 802.11ax standard and is backward compatible with 802.11a/b/g/n/ac*. • Supports WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK*. • Supports Windows 10(32-bit), Windows 10/11(64-bit)*. 1 2 LED Status You can check the adapter’s working status by following the LED explanation table. Status Indication OnThe driver has been installed successfully. Off The driver is not installed. The adapter is not detected. Tips: If the LED is off, try these troubleshooting tips: 1. Check if the adapter is recognized and enabled or not. Refer to Appendix: Troubleshooting for detailed instructions. 2. Remove and reinsert the adapter. 3. Reinstall the software, if necessary. Chapter 2 Use the Adapter This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. This chapter includes the following sections: • Install Driver • Join a Wireless Network • Uninstall Driver 5 Chapter 2 Use the Adapter 2 1 Install Driver 1 Go to My Computer or This PC. 2 Double click the TP-Link CD ROM then run SetupInstall.exe to install driver. Note: 1. If you cannot find the setup program, please download the driver at www.tp-link.com/support. 2. If an unknown publisher message pops up, select Yes to continue. 3. If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. . 2 2 Join a Wireless Network You can join a wireless network via Windows built-in wireless utility. Follow the instructions below to use your computer system’s built-in wireless utility: Click the Network icon on the taskbar. Select the Wi-Fi network you want to join, and click Connect. Enter the network password when prompted. 2 3 Uninstall Driver The software uninstallation steps vary a bit from different systems. Here we take the instructions for Windows 10 as an example. Go to Contol Pannel > Programs, click Uninstall a program, then double-click TP- Link Archer TXE70UH Driver, then follow the on-screen instructions to complete the uninstallation. SetupInstall.exe 6 Appendix: Troubleshooting T1 What should I do if the adapter is not detected? • Make sure the adapter is securely connected to the computer. …

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong 012423-17 rev2 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) _____TP-Link Corporation Limited______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ____ TP-Link Corporation Limited_______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /- is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ____Sarah Wang__ (Signature 2 ) (Print name) Title: Compliance manager Company: TP-Link Corporation Limited_____ Telephone: +86 755 21534921 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Declaration of Frequency Stability We [TP-Link Corporation Limited] ensure that the product (FCC ID: 2AXJ4TXE70UH, IC: 26583- TXE70UH) meets e-CFR Title 47 section 15.407(g) & RSS-GEN Section 8.11 and KDB 789033 D02v02r01 frequency stability such that the emissions are maintained within the band of operation under all conditions of normal operation as specified in the user's manual. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-07-25

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4TXE70UH Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-07-25

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter FCC ID: 2AXJ4TXE70UH Model: Archer TXE70UH Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-07-25

Non-SDR (Software Defined Radio) Cover Letter Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR No 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR No Conclusion: According to the above questions reply, we can confirm this device (FCC ID: 2AXJ4TXE70UH & IC: 26583-TXE70UH) must be a Non-SDR device. __________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2023-07-25

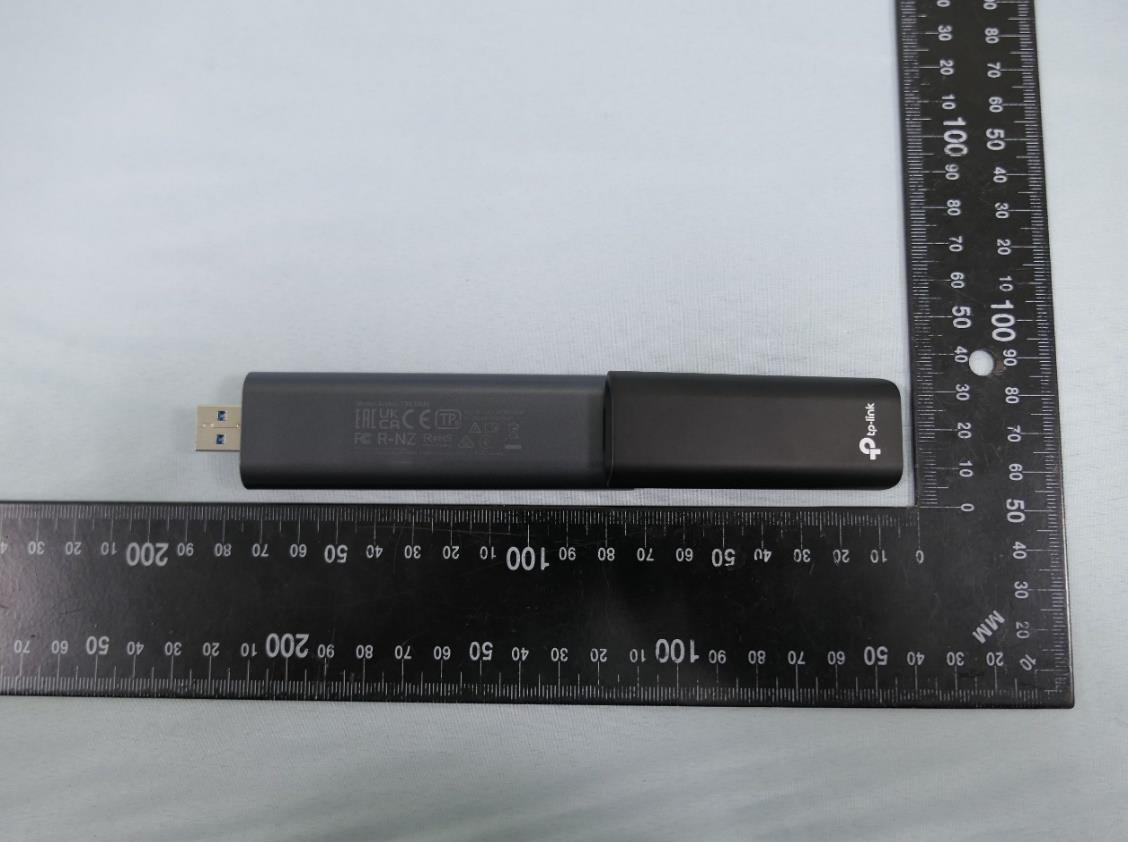

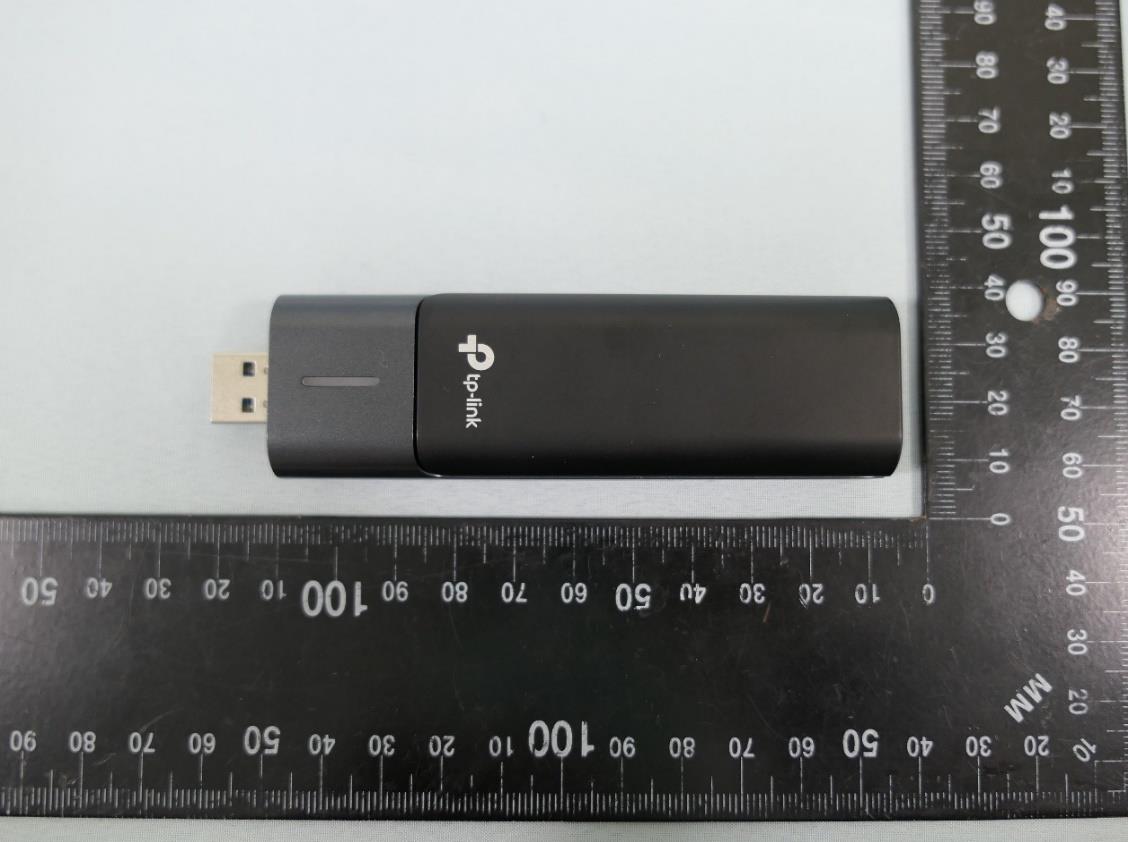

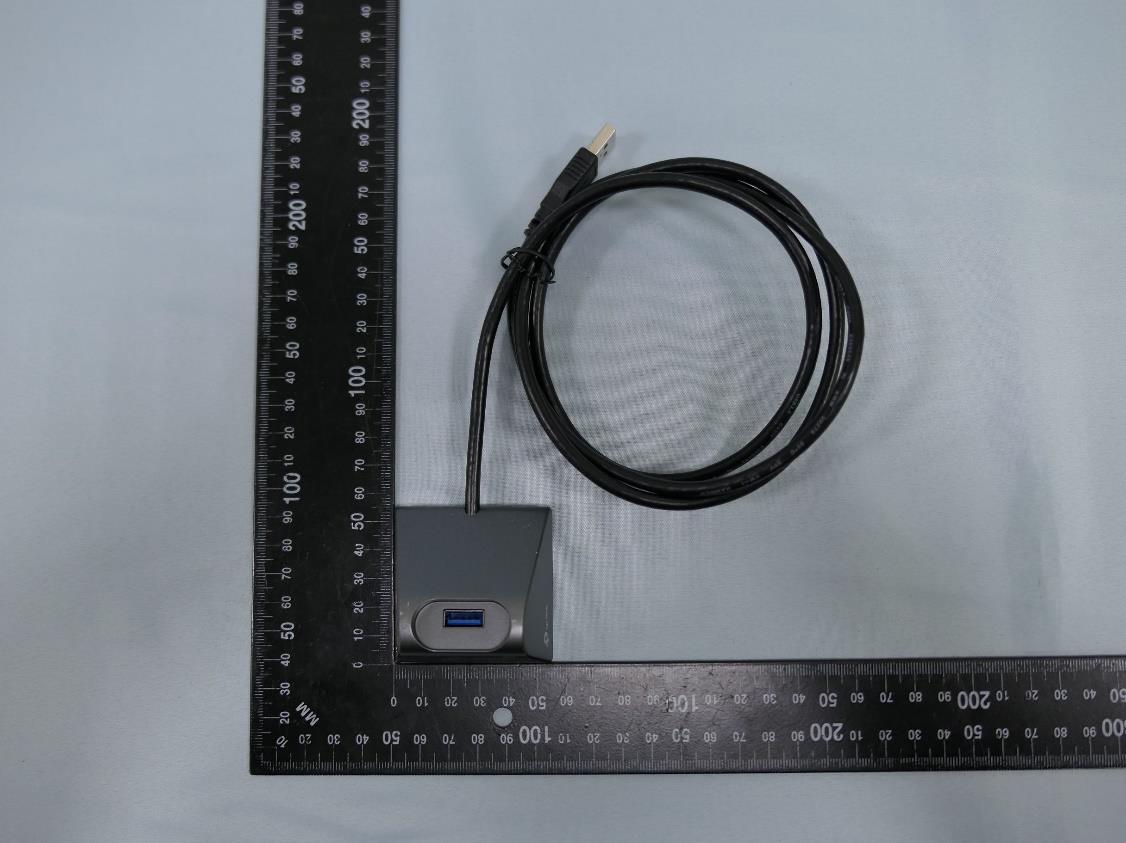

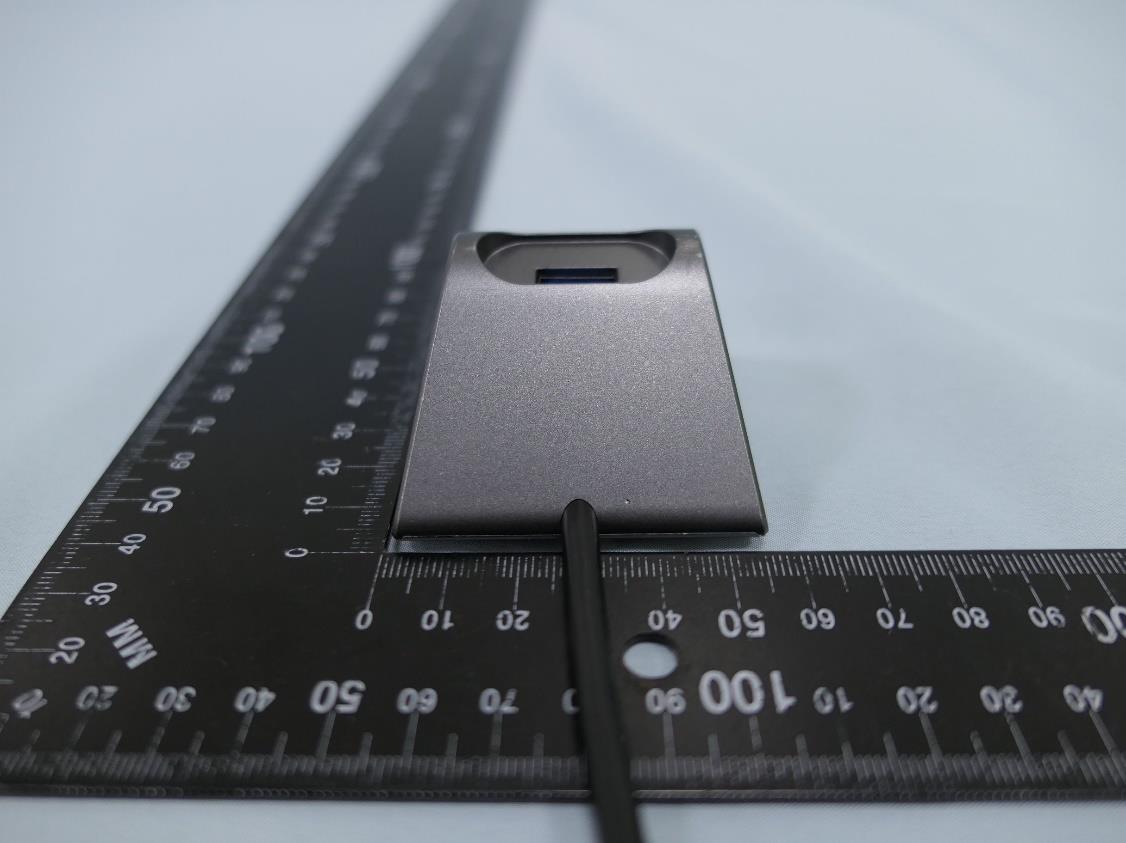

Report No.: 2301TW0105-UE Product: AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Brand Name: tp-link Model Number: Archer TXE70UH 1 of 10 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2301TW0105-UE 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2301TW0105-UE 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2301TW0105-UE 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2301TW0105-UE 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2301TW0105-UE 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2301TW0105-UE 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2301TW0105-UE 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2301TW0105-UE 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2301TW0105-UE 10 of 10 (19) EUT Photo

Archer TXE70UH(US)1.0镭雕 A1 Archer TXE70UH(US)1.0 王浩 2023-02-06 尺寸图(垂直方向上目视居中) 菲林图 镭雕颜色参考：Pantone Cool Gray 4C 镭雕颜色：Pantone Cool Gray 4C 镭雕尺寸：41.891*13.580mm 以实际签样为准 效果图

Report No.: 2301TW0105-UI Product: AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Brand Name: tp-link Model Number: Archer TXE70UH 1 of 7 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2301TW0105-UI 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2301TW0105-UI 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2301TW0105-UI 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2301TW0105-UI 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2301TW0105-UI 6 of 7 (11) EUT Photo (Antenna appearance #1) (12) EUT Photo (Antenna appearance #1) Report No.: 2301TW0105-UI 7 of 7 (13) EUT Photo (Antenna appearance #2) (14) EUT Photo (Antenna appearance #2)

MRT Technology (Suzhou) Co., Ltd Report No.: 2301RSU040-U1 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-08-19 Template Version:0.0 1 of 103 SAR MEASUREMENT REPORT FCC ID: 2AXJ4TXE70UH Applicant: TP-Link Corporation Limited Product: AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Model No.: Archer TXE70UH Brand Name: tp-link FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2023-01-16 Test Date: 2023-02-08 ~ 2023-06-21 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2301RSU040-U1 2 of 103 Revision History Report No. Version Description Issue Date Note 2301RSU040-U1 V01 Initial Report 2023-07-25 Invalid 2301RSU040-U1 V02 Correct the frequency range of antennas 2023-08-19 Valid Report No.: 2301RSU040-U1 3 of 103 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ........................................................................................................................ 6 1.5. Radio Specification under Test ...................................................................................................... 6 1.6. Antennas Details ............................................................................................................................ 8 2. Summary of Test Result .......................................................................................................................... 9 2.1. Test Standards ............................................................................................................................... 9 2.2. Environment Condition ................................................................................................................... 9 2.3. RF Exposure Limits below 6GHz ................................................................................................. 10 2.4. RF Exposure Limits above 6GHz................................................................................................. 10 2.5. Test Result Summary .................................................................................................................. 11 3. Specific Absorption Rate (SAR) ............................................................................................................ 12 3.1. Introduction .................................................................................................................................. 12 3.2. Definition ...................................................................................................................................... 12 4. DASY6 Measurement System................................................................................................................ 13 4.1. Introduction .................................................................................................................................. 13 4.2. DASY6 Measurement System Diagram ...................................................................................... 13 4.3. System Components Details........................................................................................................ 15 5. The SAR Measurement Procedure ....................................................................................................... 28 5.1. Measurement Process Diagram .................................................................................................. 28 5.2. Test Position Definition ................................................................................................................ 29 5.3. Test Procedure ............................................................................................................................ 32 6. System Verificaiton ................................................................................................................................ 35 6.1. SAR Tissue Check ....................................................................................................................... 35 6.2. SAR System Check ..................................................................................................................... 38 6.3. PD System Check ........................................................................................................................ 41 7. Analysis and Results ............................................................................................................................. 42 7.1. Antenna Location ......................................................................................................................... 42 7.2. Conducted Power ........................................................................................................................ 43 7.3. SAR Test Results ......................................................................................................................... 50 7.4. PD Test Results .......…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -29.0 -32.42 11.79% Impedance 53.7Ω - 0.01jΩ 49.20Ω + 2.28Ω -4.50Ω Real part 2.29Ω Imaginary part Test Date: 2023/0 5/ 18 Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation 5250MH Z Return Loss(dB) -32.8 -3 2.07 -2.23% Impedance 49.7Ω - 2.26jΩ 51.16Ω + 2.23jΩ 1.46Ω Real part 4.49Ω Imaginary part 56 00MH Z Return Loss(dB) -33.1 -31.03 -6 .25% Impedance 51.8Ω + 1.33jΩ 46 .99Ω + 0.2jΩ -4.81Ω Real part -1.13Ω Imaginary part 5750MH Z Return Loss(dB) -23.4 -2 1.23 -9.27% Impedance 51.7Ω + 6 .6 8jΩ 50.13Ω + 9.09jΩ - 1.57Ω Real part 2.41Ω Imaginary part Test Date: 2023/03/ 27 Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -33.8 -29.84 -11.72% Impedance 51.1Ω - 1.7jΩ 51.09Ω - 3.03jΩ -0.01Ω Real part -1.33Ω Imaginary part Test Date: 2022/0 9/01

MRT Technology (Taiwan) Co., Ltd Report No.: 2301TW0105-U2 Phone: +886-3-3288388 Report Version: 2.0 Web: www.mrt-cert.com Issue Date: 2023-08-19 Page Number: 1 of 337 FCC ID : 2AXJ4TXE70UH Applicant : TP-Link Corporation Limited Application Type : Certification Product : AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Model No. : Archer TXE70UH Brand Name : tp-link FCC Classification : Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : Part15 Subpart E (Section 15.407) Received Date : January 12, 2023 Test Date : January 16, 2023~July 30, 2023 RF MEASUREMENT REPORT Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2301TW0105-U2 Page Number: 2 of 337 Revision History Report No. Version Description Issue Date Note 2301TW0105-U2 1.0 Original Report 2023-07-25 Invalid 2301TW0105-U2 2.0 Correct the frequency range of antennas 2023-08-19 Valid Report No.: 2301TW0105-U2 Page Number: 3 of 337 CONTENTS Description Page General Information ....................................................................................................................... 6 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Report ............................................................. 8 2.3. Working Frequencies for this report .............................................................................. 9 2.4. Description of Available Antennas ............................................................................... 10 2.5. Test Mode ................................................................................................................... 11 2.6. Configuration of Test System ...................................................................................... 12 2.7. Test System Details .................................................................................................... 13 2.8. Description of Test Software ....................................................................................... 13 2.9. Applied Standards ...................................................................................................... 13 2.10. Duty Cycle .................................................................................................................. 14 2.11. Test Configuration ...................................................................................................... 16 2.12. EMI Suppression Device(s)/Modifications ................................................................... 16 2.13. Labeling Requirements ............................................................................................... 16 3. DESCRIPTION OF TEST ...................................................................................................... 17 3.1. Evaluation Procedure ................................................................................................. 17 3.2. AC Line Conducted Emissions ................................................................................... 17 3.3. Radiated Emissions .................................................................................................... 18 4. ANTENNA REQUIREMENTS ................................................................................................ 19 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 20 6. MEASUREMENT UNCERTAINTY ......................................................................................... 22 7. TEST RESULT ...................................................................................................................... 23 7.1. Summary .................................................................................................................... 23 7.2. 26dB Bandwidth Measurement ................................................................................... 24 7.2.1. Test Limit .................................................................................................................... 24 7.2.2. Test Procedure used ................................................................................................... 24 7.2.3. Test Setting ................................................................................................................. 24 7.2.4. Test Setup .................................................................................................................. 24 7.2.5. Test Result .................................................................................................................. 25 Report No.: 2301TW0105-U2 Page Number: 4 of 337 7.3. 6dB Bandwidth Measurement ..................................................................................... 40 7.3.1. Test Limit ...................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2301TW0105-U2 Page Number: 66 of 337 802.11ax-HE40 Power Spectral Density - Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142 (5710MHz) Report No.: 2301TW0105-U2 Page Number: 67 of 337 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2301TW0105-U2 Page Number: 68 of 337 802.11ax-HE80 Power Spectral Density - Ant 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) 802.11ax-HE160 Power Spectral Density - Ant 1 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2301TW0105-U2 Page Number: 69 of 337 802.11a Power Spectral Density - Ant 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 2301TW0105-U2 Page Number: 70 of 337 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2301TW0105-U2 Page Number: 71 of 337 802.11ac-VHT20 Power Spectral Density - Ant 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 2301TW0105-U2 Page Number: 72 of 337 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2301TW0105-U2 Page Number: 73 of 337 802.11ac-VHT40 Power Spectral Density - Ant 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142 (5710MHz) Report No.: 2301TW0105-U2 Page Number: 74 of 337 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2301TW0105-U2 Page Number: 75 of 337 802.11ac-VHT80 Power Spectral Density - Ant 2 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) 802.11ac-VHT160 Power Spectral Density - Ant 2 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2301TW0105-U2 Page Number: 76 of 337 802.11ax-HE20 Power Spectral Density - Ant 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 116 (5580MHz) Report No.: 2301TW0105-U2 Page Number: 77 of 337 Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz)

Report No.: 2301TW0105-U2 Page Number: 78 of 337 802.11ax-HE40 Power Spectral Density - Ant 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Channel 134 (5670MHz) Channel 142 (5710MHz) Report No.: 2301TW0105-U2 Page Number: 79 of 337 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2301TW0105-U2 Page Number: 80 of 337 802.11ax-HE80 Power Spectral Density - Ant 2 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) 802.11ax-HE160 Power Spectral Density - Ant 2 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2301TW0105-U2 Page Number: 81 of 337 7.7. Frequency Stability Measurement 7.7.1. Test Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. The transmitter center frequency tolerance shall be ±20 ppm maximum for the 5GHz band (IEEE 802.11 specification). 7.7.2. Test Limit Frequency Stability Under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to highest. After the temperature stabilize…

Text truncated - open the document above for the full version.
