2AXJ4WA1201V3AC1200 Wireless Gigabit Access Point

© 2022 TP-Link User Guide AC1200 Wireless Gigabit Access Point TL-WA1201 Contents About This Guide .........................................................................................................1 Chapter 1. Get to Know About Your Access Point . . . . . . . . . . . . . . . . . . . . . 3 1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. Panel Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 1. Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1. 2. 2. Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2. Set Up Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2. 1. Position Your Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. Set Up Your Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. 1. Access Point Mode (Default). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. 2. 2. Range Extender Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2. 2. 3. Client Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2. 2. 4. Multi-SSID Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Chapter 3. TP-Link Cloud Service (for Access Point Mode). . . . . . . . . . 14 3. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 3. 3. 1. Add TP-Link ID to Manage the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3. 3. 2. Remove TP-Link ID(s) from Managing the Access Point . . . . . . . . . . . . . . . 17 3. 4. Manage the Access Point via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . 18 Chapter 4. Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 4. 1. Specify Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4. 1. 1. Access Point Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 4. 1. 2. Range Extender Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4. 1. 3. Client Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 4. 1. 4. Multi-SSID Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 4. 2. Use WPS for Wireless Connection (for Access Point/Multi-SSID Mode) . . . . . . 28 4. 3. Check Advanced Wireless Settings (for Access Point/Multi-SSID Mode) . . . . . 29 4. 4. Monitor Wireless Statistics (for Access Point/Multi-SSID Mode) . . . . . . . . . . . . . 30 4. 5. Monitor the Traffic Throughput (for Access Point/Multi-SSID Mode) . . . . . . . . . 31 Chapter 5. Portal (for Access Point/Multi-SSID Mode) . . . . . . . . . . . . . . 32 Chapter 6. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Chapter 7. Customize Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 7. 1. Change the LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 7. 2. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Chapter 8. Manage Your Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 8. 1. Set the System Time and Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 8. 2. Control LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 8. 3. Configure the SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 8. 4. Configure the Ping Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 8. 5. Update the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 8. 5. 1. Auto Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 8. 5. 2. Online Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 8. 5. 3. Local Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 8. 6. Backup and Restore Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 8. 7. Reboot the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 8. 8. Change the Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 8. 9. Password Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 8. 10. Local Management .…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited 030122-15 Authority to Act as Agent Date: April 12, 2022 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2023-04-11 By: __________________________ Abby Liang (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited 030122-15 Request for Confidentiality Date: April 12, 2022 Subject: Confidentiality Request for: 2AXJ4WA1201V3 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-Link Corporation Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager Abby Liang (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Supplier’s Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: TP-Link Corporation Limited, Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon,Hong Kong U.S. Responsible Party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc. 145 South State College Blvd. Suite 400, Brea, CA 92821 Contact Person: Tel.: 00852-37585503 Email: [email protected] Internet: https://www.tp-link.com Model: TL-WA1201 Classification: FCC Part 15B We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rule part(s) 15B and the most accurate measurement standards. We confirm that the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. 2022.04.11 Abby Liang ------------- -------------------- Date: Signature:

Non-SDR (Software Defined Radio) Cover Letter Date: 2022-04-11 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? □Yes - go to 2. No, not an SDR 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? □Yes, must be an SDR. □No - go to 3. 3. Is the device capable of operating in any other way than granted, or will be, granted? □Yes, - go to 4. □No - go to 5. 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? □Yes, qualifies as a part 15 client devices - go to 5. □No, must be an SDR. 5. Does the manufacturer elect SDR? □Yes, elects to be an SDR. □No, Not an SDR Final conclusion: According to the above questions reply, we can confirm this AC1200 Whole Home Mesh Wi-Fi AP (FCC ID: 2AXJ4WA1201V3) must be a Non-SDR. Name: Abby Liang Position: Regulatory Compliance Manager TP-Link Corporation Limited

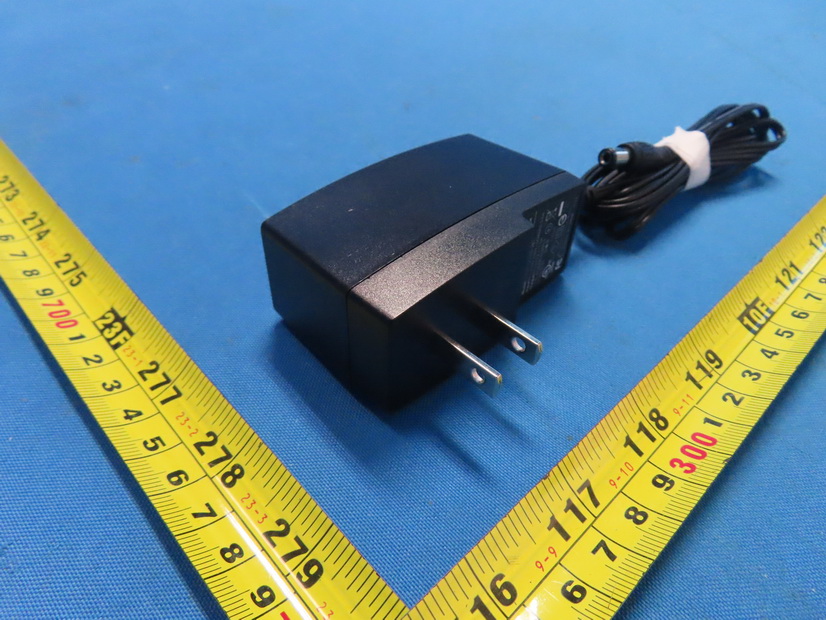

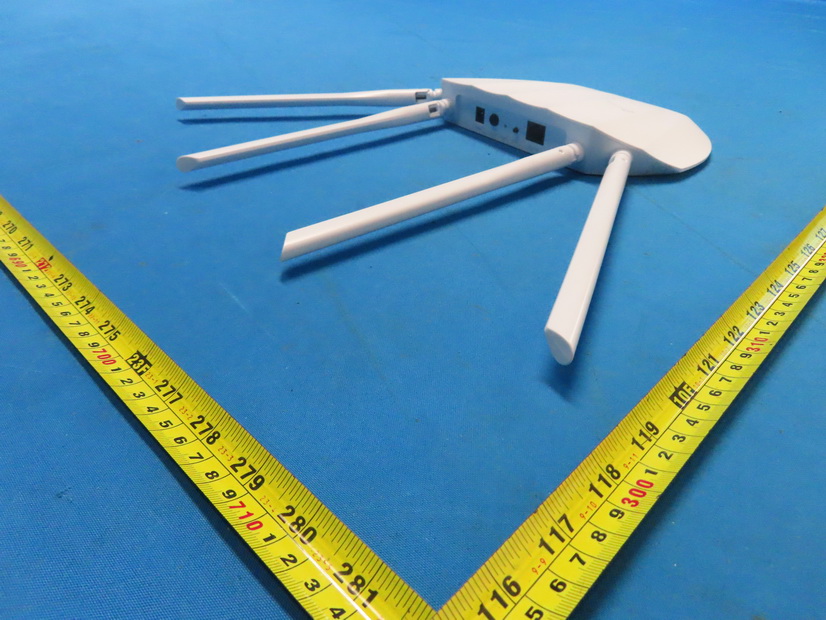

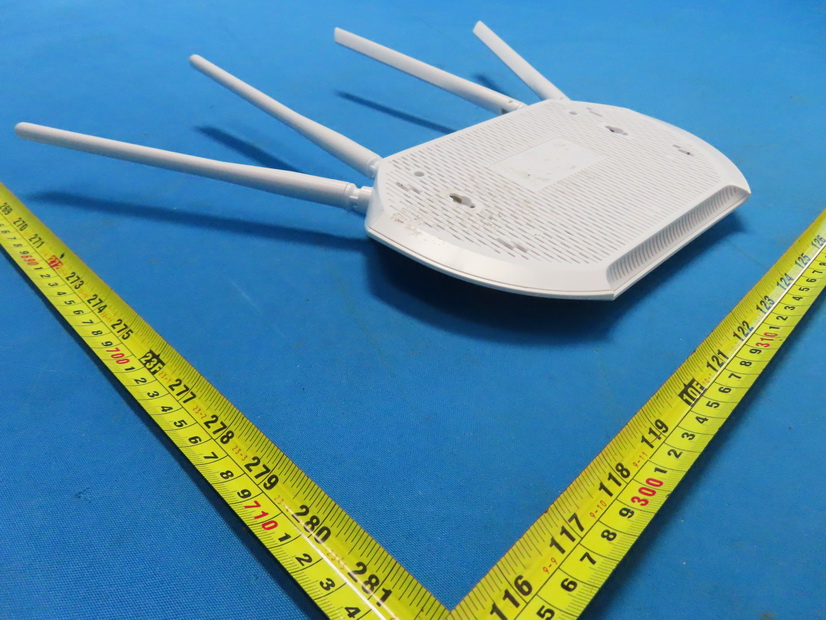

Report No.: 2201C045 Page 1 of 14 ATTACHMENT PHOTOGRAPHS OF EUT Report No.: 2201C045 Page 2 of 14 Report No.: 2201C045 Page 3 of 14 Report No.: 2201C045 Page 4 of 14 Report No.: 2201C045 Page 5 of 14 Report No.: 2201C045 Page 6 of 14 Report No.: 2201C045 Page 7 of 14

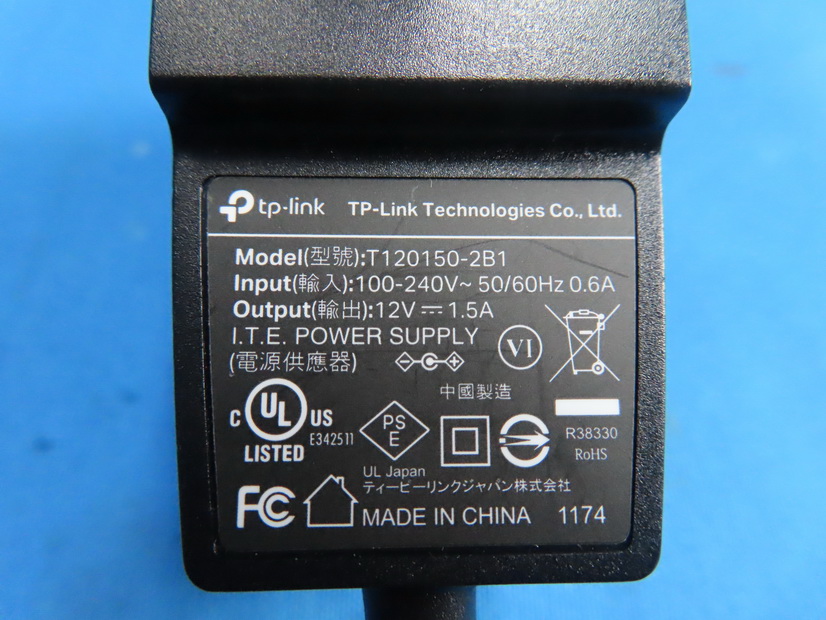

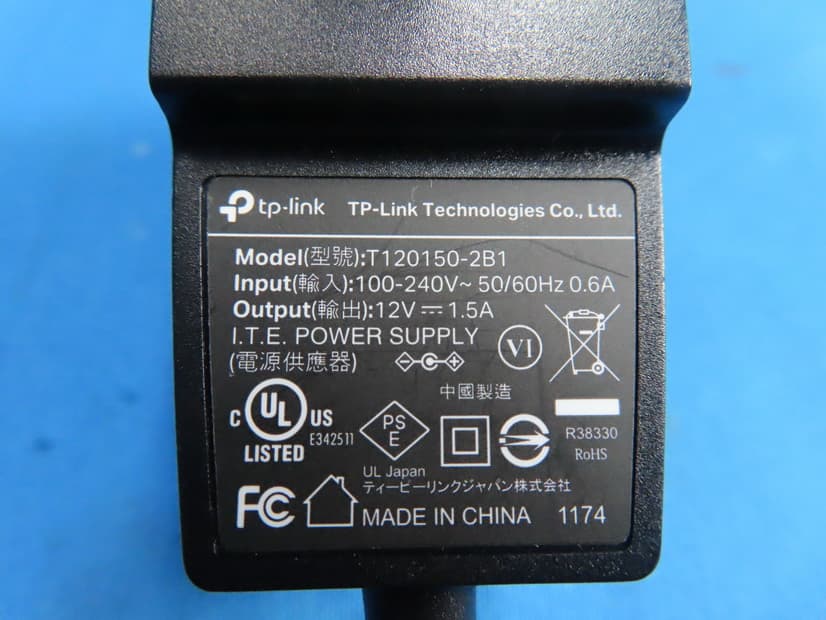

C B A 12 C 345678 B E D D A 9 12345 E 6789 3mm 3mm 3mm Model: TL-WA1201 AC1200 Wireless Gigabit Access Point MADE IN CHINA Default Access: http://tplinkap.net Power:12V 1.5A FCC ID: 2AXJ4WA1201V3 Wireless Password/PIN:XXXXXXXX SSID:TP-Link_XXXX SSID:TP-Link_XXXX_5G M AC : X X-X X-X X-X X-X X-X X Model:TL-WA1201(EU) Ver:3.0 S/N:XXXXXXXXXXXXX JOIN PRESET WI-FI This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TP-Link Corporation Limited Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong

Report No.: 2201C045 Page 8 of 14 5G (TX/RX)Ant. 1 2.4G (TX/RX)Ant. 2 2.4G (TX/RX)Ant. 1 5G (TX/RX)Ant. 2 Report No.: 2201C045 Page 9 of 14 Report No.: 2201C045 Page 10 of 14 2.4G (RX)Ant. 3 5G (RX)Ant. 3 Report No.: 2201C045 Page 11 of 14 Report No.: 2201C045 Page 12 of 14 Report No.: 2201C045 Page 13 of 14 Report No.: 2201C045 Page 14 of 14

Report No.: BTL-FCCP-3-2201C045 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4WA1201V3 Project No. : 2201C045 Equipment : AC1200 Wireless Gigabit Access Point Brand Name : tp-link Test Model : TL-WA1201 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Jan. 10, 2022 Date of Test : Jan. 11, 2022 ~ Apr. 06, 2022 Issued Date : Apr. 13, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG20220111132 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2201C045 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 13, 2022 Report No.: BTL-FCCP-3-2201C045 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. BTL's Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For 2.4GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) Note 1 tp -link 3101502316 Omni Weld 2 TX/RX 2 tp -link 3101504490 Omni Weld 2 TX/RX 3 tp -link 2G Antenna_TL-WA1201(3.0) IFA N/A 1.92 RX Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=2 dBi. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi= 2+10log(2/1)dBi=5.01 dBi. 2) Beamforming Gain: 3 dB. So the Directional gain=3+2=5 dBi. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11b V (Ant. 1+Ant. 2) IEEE 802.11g V (Ant. 1+Ant. 2) IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) IEEE vht20 V (Ant. 1+Ant. 2) IEEE vht40 V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2201C045 Page 4 of 5 For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) IEEE vht20 V (Ant. 1+Ant. 2) IEEE vht40 V (Ant. 1+Ant. 2) For 5GHz: Antenna Specification: Ant. Brand P/N Antenna Type Connector Gain (dBi) Note 1 tp -link 3101504484 Omni Weld 3 TX/RX 2 tp -link 3101504485 Omni Weld 3 TX/RX 3 tp -link 5G Antenna_TL-WA1201(3.0) IFA N/A 2.89 RX Note: 1) This EUT supports CDD, and all antennas have the same gain, Directional gain = G ANT +Array Gain. For power measurements, Array Gain=0dB (N ANT ≤4), so the Directional gain=3 dBi. For power spectral density measurements, N ANT =2, N SS = 1. So the Directional gain=G ANT +Array Gain=G ANT +10log(N ANT / N SS )dBi=3+10log(2/1)dBi=6.01 dBi. Then, the UNII-1 power spectral density limit is 17-(6.01-6)=16.99 dBm/MHz, the UNII-3 power spectral density limit is 30-(6.01-6)=29.99 dBm/500 kHz. 2) Beamforming Gain: 3 dB. so the Directional gain=3+3=6 dBi. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1+Ant. 2) IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2) For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2201C045 Page 5 of 5 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2 1.5849 24.57 286.4178 0.09035 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 24.13 258.8213 0.16291 1 Complies For 5GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 23.60 229.0868 0.09098 1 Complies For 5GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6 3.9811 23.18 207.9697 0.16480 1 Complies For the max simultaneous transmission MPE: Ratio Total Limit of Ratio Test Result 2.4GHz 5GHz 0.16291 0.16480 0.32771 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.: BTL-FCCP-2-2201C045 Page 1 of 161 FCC Radio Test Report FCC ID: 2AXJ4WA1201V3 This report concerns: Original Grant Project No. : 2201C045 Equipment : AC1200 Wireless Gigabit Access Point Brand Name : tp-link Test Model : TL-WA1201 Series Model : N/A Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Jan. 10, 2022 Date of Test : Jan. 11, 2022 ~ Apr. 06, 2022 Issued Date : Apr. 13, 2022 Report Version : R00 Test Sample : Engineering Sample No.: DG20220111132 for conducted, DG20220111131 & DG2022032558 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart E FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2201C045 Page 2 of 161 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2201C045 Page 3 of 161 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 4.8 TEST RESULTS - ABOVE 1000 MHZ 23 5 . BANDWIDTH 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM STANDARD 24 5.4 TEST SETUP 25 Report No.: BTL-FCCP-2-2201C045 Page 4 of 161 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . POWER SPECTRAL DENSITY 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 27 7.4 TEST SETUP 28 7.5 EUT OPERATION CONDITIONS 28 7.6 TEST RESULTS 28 8 . FREQUENCY STABILITY 29 8.1 LIMIT 29 8.2 TEST PROCEDURE 29 8.3 DEVIATION FROM STANDARD 29 8.4 TEST SETUP 29 8.5 EUT OPERATION CONDITIONS 29 8.6 TEST RESULTS 29 9 . MEASUREMENT INSTRUMENTS LIST 30 10 . EUT TEST PHOTOS 33 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 38 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 41 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 46 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 49 APPENDIX E - BANDWIDTH 122 APPENDIX F - MAXIMUM OUTPUT POWER 131 APPENDIX G - POWER SPECTRAL DENSITY 146 Report No.: BTL-FCCP-2-2201C045 Page 5 of 161 Table of Contents Page APPENDIX H - FREQUENCY STABILITY 159 Report No.: BTL-FCCP-2-2201C045 Page 6 of 161 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 13, 2022 Report No.: BTL-FCCP-2-2201C045 Page 7 of 161 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart E Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Output Power APPENDIX F PASS ------ 15.407(a) P…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2201C045 Page 147 of 161 Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 12.38 0.18 12.56 16.99 Complies 40 5200 12.33 0.18 12.51 16.99 Complies 48 5240 11.58 0.18 11.76 16.99 Complies CH36 CH40 CH48 Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 12.12 0.18 12.30 16.99 Complies 40 5200 11.97 0.18 12.15 16.99 Complies 48 5240 11.40 0.18 11.58 16.99 Complies CH36 CH40 CH48 Report No.: BTL-FCCP-2-2201C045 Page 148 of 161 Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 15.44 16.99 Complies 40 5200 15.34 16.99 Complies 48 5240 14.68 16.99 Complies Report No.: BTL-FCCP-2-2201C045 Page 149 of 161 Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 12.77 0.20 12.97 16.99 Complies 40 5200 12.62 0.20 12.82 16.99 Complies 48 5240 12.71 0.20 12.91 16.99 Complies CH36 CH40 CH48 Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 12.36 0.20 12.56 16.99 Complies 40 5200 12.58 0.20 12.78 16.99 Complies 48 5240 12.24 0.20 12.44 16.99 Complies CH36 CH40 CH48 Report No.: BTL-FCCP-2-2201C045 Page 150 of 161 Test Mode UNII-1_TX AC(VHT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 36 5180 15.78 16.99 Complies 40 5200 15.81 16.99 Complies 48 5240 15.69 16.99 Complies Report No.: BTL-FCCP-2-2201C045 Page 151 of 161 Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 7.64 0.18 7.82 16.99 Complies 46 5230 8.79 0.18 8.97 16.99 Complies CH38 CH46 Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 7.67 0.18 7.85 16.99 Complies 46 5230 9.06 0.18 9.24 16.99 Complies CH38 CH46 Test Mode UNII-1_TX AC(VHT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 38 5190 10.84 16.99 Complies 46 5230 12.11 16.99 Complies Report No.: BTL-FCCP-2-2201C045 Page 152 of 161 Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 42 5210 1.56 0.42 1.98 16.99 Complies CH42 Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Duty Factor Power Spectral Density + Duty Factor (dBm/MHz) Max. Limit (dBm/MHz) Result 42 5210 0.86 0.42 1.28 16.99 Complies CH42 Test Mode UNII-1_TX AC(VHT80) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/MHz) Max. Limit (dBm/MHz) Result 42 5210 4.66 16.99 Complies Report No.: BTL-FCCP-2-2201C045 Page 153 of 161 Test Mode UNII-3_TX A Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 11.80 0.18 11.98 29.99 Complies 157 5785 11.42 0.18 11.60 29.99 Complies 165 5825 10.40 0.18 10.58 29.99 Complies CH149 CH157 CH165 Test Mode UNII-3_TX A Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/500 kHz) Duty Factor Power Spectral Density + Duty Factor (dBm/500 kHz) Max. Limit (dBm/500 kHz) Result 149 5745 11.31 0.18 11.49 29.99 Complies 157 …
