2AXJ4X3600AX3600 Whole Home Mesh Wi-Fi 6 System

User Guide Tri-Band Mesh Wi-Fi 6 System Whole Home Mesh Wi-Fi 6 SystemSuperior Mesh Wi-Fi, Everywhere 1910012879 REV1.0.0 © 2020 TP-Link Contents About This Guide ··············································· 1Appearance ·························································· 2Set Up Your Deco ·············································· 3Dashboard ····························································· 6Overview ································································· 7HomeShield ························································10HomeShield Pro ···············································13Wi-Fi Settings·····················································15Blacklist ·································································16Online Update ···················································17Advanced Features ········································18WPS ·········································································23Weekly/Monthly Reports ·····························24Authentication ···················································26 1 About This Guide This guide provides a brief introduction to Deco Whole Home Mesh Wi-Fi 6 System and the Deco app, as well as regulatory informa tion. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images , steps, and descriptions LQWKLVJXLGHDUHRQO\H[DPSOHVDQGPD\QRWUHưHFW\RXUDFWXDO 'HFRH[SHULHQFH Conventions In this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/Unit. Underline Hyperlinks are in teal and underlined. You can click to UHGLUHFWWRDZHEVLWHRUDVSHFLƮFVHFWLRQ Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info • Specific product information can be found on the product page at https://www.tp-link.com . • A Technical Community is provided for you to discuss our products at https://community.tp-link.com . • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support . Speed/Coverage/Device Quantity DisclaimerMaximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, REVWDFOHVYROXPHDQGGHQVLW\RIWUDƱFDQGFOLHQWORFDWLRQMU-MIMO DisclaimerUse of MU-MIMO requires clients to also support MU-MIMO.IoT Compatibility DisclaimerIoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use.Seamless Roaming DisclaimerClients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. 2 Appearance Each Deco has an LED that changes color according to its status, two RJ-45 Ethernet ports, a power slot, and a Reset button. See the explanation below: Yellow pulse:Deco is resetting.Yellow solid:Deco is starting up.Blue pulse:Deco is ready for setup or WPS in progress.Blue solid:Deco is setting up.Green pulse:'HFRLVXSJUDGLQJƮUPZDUHGreen solid:'HFRLVUHJLVWHUHGDQGDOOLVZHOORed pulse:'HFRLVGLVFRQQHFWHGIURPPDLQ'HFRRed solid:Deco has an issue. Gigabit Ethernet ports : )RUFRQQHFWLQJ'HFRWR\RXUPRGHPWKHEthernet outlet or other internet devices. Reset Button:Press 1 second to reset Deco to factory default se ttings. 7KHOLJKWFKDQJLQJIURPSXOVLQJ\HOORZWRVROLG\HOORZ indicates a successful reset.Power Slot:)RUFRQQHFWLQJ'HFRWRWKHSRZHUVRFNHWYLDWKHSURYLGHGSRZHUDGDSWHU Z HOO  P DLQ' HFR  3 Set Up Your DecoThe intuitive Deco app guides you through an easy setup process that gets each unit up and running and all your devices connect ed and online. Follow the steps below to set up your Deco Whole Home Mesh Wi-Fi 6 System. 1. Download and install the Deco appScan the QR code below or go to Google Play or the Apple App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. or 2. Log in or sign up with TP-Link IDOpen the app. Use your TP-Link ID to log in. If you don’t have a TP-Link ID, tap SIGN UP. The Deco app will guide you through the rest. 3. Identify Your DecoIdentify your Deco from the model list. 4 5. Select a locationSelect a location for this Deco. If its location is not listed, you can create a new one by choosing Custom. 6. Set up internet connectionSelect the internet connection type and enter the information. If you are not sure, contact your internet service provider. 4. Connect Deco to your modem3RZHURƬ\RXUPRGHP&RQQHFW\RXU'HFRWRthe modem and power them both on.If you don't have a modem, connect the Ethernet outlet directly to your Deco. 5 8. Connect to your Wi-Fi networkConnect your devices to the Deco's Wi-Fi to continue the setup. 9. Setup completeYour Deco network is now up. Add more Decos or complete the setup and connect all devices to the Deco network. 7. Create your Wi-Fi networkSet a network name and a password. These will be the name and password you use to connect your devices to Wi-Fi. 6 DashboardAfter you successfully set up your Deco network, you will see the dashboard of the Deco app. Here you can get an overview of th e network status, customize your home network with enhanced security using a kit of features built to TP-Link HomeShield and set up various advan ced features. Tap to get an overview of the network status Tap to enter the HomeShield page for enhanced securit…

Text truncated - open the document above for the full version.

TP-Link Corporation Limited Wi-Fi Channel 12 and 13 Declaration Letter Date: 2020-11-16 We, the undersigned company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Declare that: Product description: AX3600 Whole Home Mesh Wi-Fi 6 System Type designation: Deco X68, Deco X3600 Brand: tp-link FCC ID: 2AXJ4X3600 Only channels 1~11 will be used in USA. Country code selection is disabled. If you have any questions regarding the authorization, please do not hesitate to contact us, thank you~ Sincerely, Signature: Name: Abby Liang Tel: 00852-37585503 Email: [email protected]

Model Declaration Letter We, the undersigning company Company Name: TP-Link Corporation Limited Address: Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Hereby confirm that the following products: Product description: AX3600 Whole Home Mesh Wi-Fi 6 System Type designation: Deco X68, Deco X3600 Trademark: tp-link That All versions of the Model Deco X68 and Deco X3600 are electrically equal except the following difference: 1. Only different in model name between model Deco X68 and model Deco X3600. Date: 2020-11-16 Name: Abby Liang Telephone: 00852-37585503 E-mail: [email protected] Signature:

TP-Link Corporation Limited Authority to Act as Agent Date: 2020-11-16 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 2021-11-16 By: ______________ ________ Abby Liang ________ (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Corporation Limited (Company Name) Telephone: 00852-37585503 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Corporation Limited Request for Confidentiality Date: 2020-11-16 Subject: Confidentiality Request for: 2AXJ4X3600 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual TP-Link Corporation Limited ____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: /Regulatory Compliance Manager ___ Abby Liang ________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

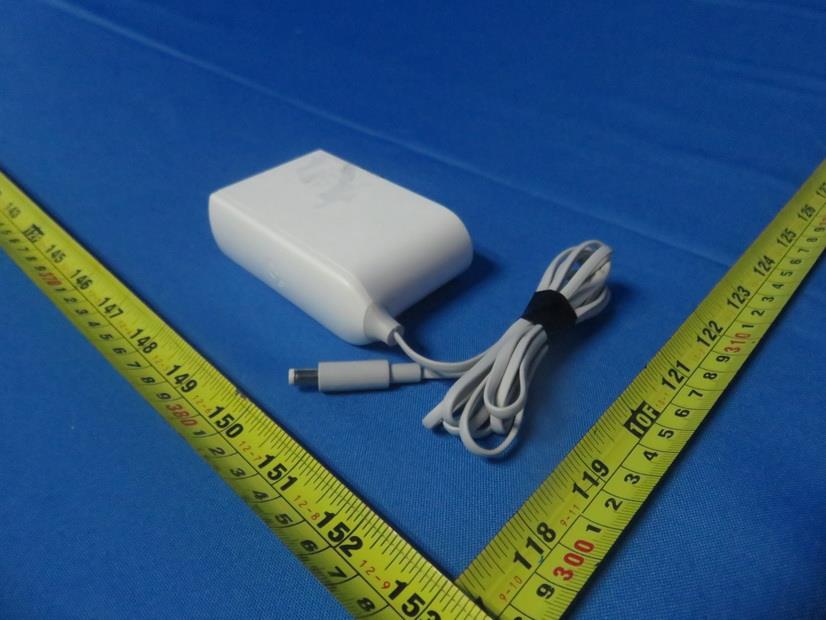

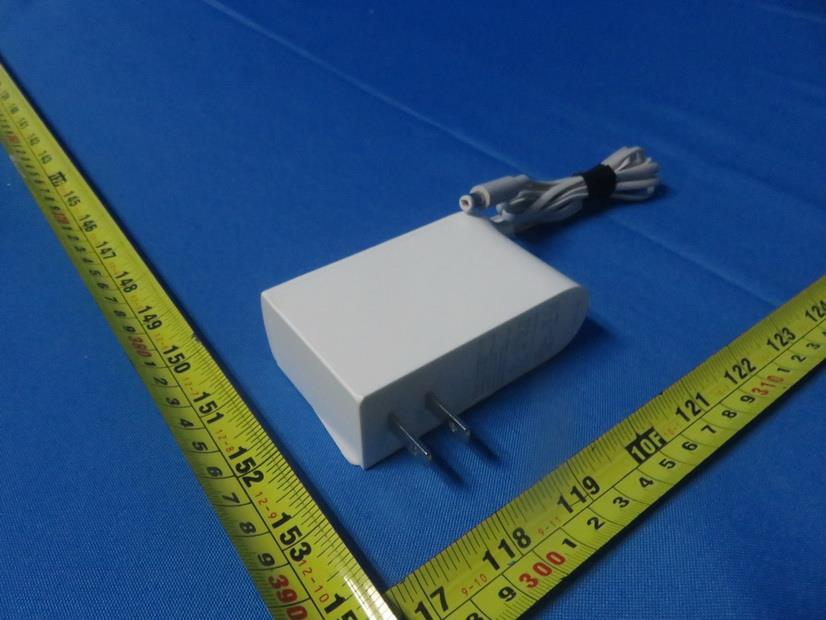

Project No.: 2008C032 Page 1 of 15 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2008C032 Page 2 of 15 Project No.: 2008C032 Page 3 of 15 Project No.: 2008C032 Page 4 of 15 Project No.: 2008C032 Page 5 of 15

C B A 12 C 345678 B E D D A 9 料号： 12345 E 6789 Pantone 877C 白色 Pantone 877C Pantone 877C 标贴尺寸：43*22mm ±0.2；R3.5,C2文字转曲（来料效果图） Deco X68(US) 1.0_产品规格标贴 A4 100#珠光合成纸+雾膜 水波纹-169 Deco X68(US) 1.0 陈映徽 2020-10-19 更新FCC ID 备注： 1）S/N码由工厂用 20*4(7210500308) 空白标贴打印，贴于产品规格标贴指定位置； 2）MAC地址 、SSID由工厂直接打印于产品规格标贴指定位置。 MAC：条码由“XXXXXXXXXXXX”生成，文本格式写成“XX-XX-XX-XX-XX-XX”；具体内容以软件生成为准 SSID：“Deco_”为固定内容，XXXX为MAC地址后四位（大写），具体内容以软件生成为准 3）图示条码均为示意，具体请以生产实际为准。 22 43 R3.5 C2 Suite 901, New East Ocean Centre, Tsim Sha Tsui, Hong Kong TP-Link Corporation Limited MAC:XX-XX-XX-XX-XX-XX SSID:Deco_XXXX S/N:XXXXXXXXXXXXX US/1.0 Model: Deco X68 AX3600 Whole Home Mesh Wi-Fi 6 System MADE IN CHINA Power: 12V 2.5A FCC ID: 2AXJ4X3600 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Project No.: 2008C032 Page 6 of 15 Project No.: 2008C032 Page 7 of 15 2.4G, 5G UNII-3 Ant.1 2.4G, 5G UNII-3 Ant.2 5G UNII-I Ant.3 5G UNII-I Ant.2 5G UNII-I Ant.1 Project No.: 2008C032 Page 8 of 15 Project No.: 2008C032 Page 9 of 15 Project No.: 2008C032 Page 10 of 15 Project No.: 2008C032 Page 11 of 15 Project No.: 2008C032 Page 12 of 15 Project No.: 2008C032 Page 13 of 15 Project No.: 2008C032 Page 14 of 15 Project No.: 2008C032 Page 15 of 15

Report No.: BTL-FCCP-3-2008C032 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: 2AXJ4X3600 Project No. : 2008C032 Equipment : AX3600 Whole Home Mesh Wi-Fi 6 System Brand Name : tp-link Test Model : Deco X68 Series Model : Deco X3600 Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Aug. 20, 2020 Date of Test : Aug. 21, 2020 ~ Oct. 21, 2020 Issued Date : Nov. 16, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020082029 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2008C032 Page 2 of 6 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Nov. 16, 2020 Report No.: BTL-FCCP-3-2008C032 Page 3 of 6 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 3101503310 Internal IPEX 1.97 2 3101503311 Internal IPEX 1.98 Note: 1) This EUT supports CDD, and all antenna gains are not equal, so Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi, that is Directional gain=10log[(10 1.97/20 +10 1.98/20 ) 2 /2]dBi=4.99. 2) Beamforming Gain: 3 dB. So the Directional gain=3+1.98=4.98. For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11b V (Ant. 1 + Ant. 2) IEEE 802.11g V (Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2) IEEE 802.11nax(HE40) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2008C032 Page 4 of 6 For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2) IEEE 802.11nax(HE40) V (Ant. 1 + Ant. 2) For 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 3101503313 Internal IPEX 0.94 UNII-1 2 3101503312 Internal IPEX 0.97 UNII-1 3 3101503314 Internal IPEX 0.98 UNII-1 1 3101503310 Internal IPEX 0.92 UNII-3 2 3101503311 Internal IPEX 0.92 UNII-3 Note: This EUT supports CDD, 1) For UNII-1, all antenna gains are not equal, so Directional gain=10log[(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi. the Directional gain=10log[(10 0.94/20 +10 0.97/20 +10 0.98/20 ) 2 /3]dBi=5.73. 2) For UNII-3, all antennas have the same gain, then, Directional gain = G ANT +Array Gain, For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=0.92. For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain = G ANT +10log (N ANT / N SS ) dB =0.92+10log(2/1)dBi=3.93. 3) a) For UNII-1, Beamforming Gain: 4.7 dB, the Directional gain=4.7+0.98=5.68. b) For UNII-3, Beamforming Gain: 3 dB the Directional gain=3+0.92=3.92. Report No.: BTL-FCCP-3-2008C032 Page 5 of 6 4. Table for Antenna Configuration: UNII-1: For Non Beamforming: Operating Mode TX Mode 3TX IEEE 802.11a V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2 + Ant. 3) For Beamforming: Operating Mode TX Mode 3TX IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2 + Ant. 3) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2 + Ant. 3) UNII-3: For Non Beamforming: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax (HE80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2008C032 Page 6 of 6 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.99 3.1550 29.28 847.2274 0.34051 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.98 3.1477 28.51 709.5778 0.28453 1 Complies For 5GHz UNII-1 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C032 Page 1 of 144 FCC Radio Test Report FCC ID: 2AXJ4X3600 This report concerns: Original Grant Project No. : 2008C032 Equipment : AX3600 Whole Home Mesh Wi-Fi 6 System Brand Name : tp-link Test Model : Deco X68 Series Model : Deco X3600 Applicant : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer : TP-Link Corporation Limited Address : Room 901, 9/F. , New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong Date of Receipt : Aug. 20, 2020 Date of Test : Aug. 21, 2020 ~ Oct. 21, 2020 Issued Date : Nov. 16, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020082029 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2008C032 Page 2 of 144 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2008C032 Page 3 of 144 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 15 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 17 2.6 SUPPORT UNITS 17 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 18 3.1 LIMIT 18 3.2 TEST PROCEDURE 18 3.3 DEVIATION FROM TEST STANDARD 18 3.4 TEST SETUP 19 3.5 EUT OPERATION CONDITIONS 19 3.6 TEST RESULTS 19 4 . RADIATED EMISSIONS TEST 20 4.1 LIMIT 20 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 21 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 23 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 23 4.8 TEST RESULTS - ABOVE 1000 MHZ 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 DEVIATION FROM STANDARD 24 5.4 TEST SETUP 24 Report No.: BTL-FCCP-1-2008C032 Page 4 of 144 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 24 5.6 TEST RESULTS 24 6 . MAXIMUM AVERAGE OUTPUT POWER TEST 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 DEVIATION FROM STANDARD 25 6.4 TEST SETUP 25 6.5 EUT OPERATION CONDITIONS 25 6.6 TEST RESULTS 25 7 . CONDUCTED SPURIOUS EMISSIONS 26 7.1 LIMIT 26 7.2 TEST PROCEDURE 26 7.3 DEVIATION FROM STANDARD 26 7.4 TEST SETUP 26 7.5 EUT OPERATION CONDITIONS 26 7.6 TEST RESULTS 26 8 . POWER SPECTRAL DENSITY TEST 27 8.1 LIMIT 27 8.2 TEST PROCEDURE 27 8.3 DEVIATION FROM STANDARD 27 8.4 TEST SETUP 27 8.5 EUT OPERATION CONDITIONS 27 8.6 TEST RESULTS 27 9 . MEASUREMENT INSTRUMENTS LIST 28 10 . EUT TEST PHOTO 30 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 43 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 46 APPENDIX E - BANDWIDTH 107 APPENDIX F - MAXIMUM AVERGAE OUTPUT POWER 114 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 125 Report No.: BTL-FCCP-1-2008C032 Page 5 of 144 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 138 Report No.: BTL-FCCP-1-2008C032 Page 6 of 144 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Nov. 16, 2020 Report No.: BTL-FCCP-1-2008C032 Page 7 of 144 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Average Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ----…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C032 Page 109 of 144 Test Mode TX G Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 01 2412 16.42 500 Complies 06 2437 16.43 500 Complies 11 2462 16.45 500 Complies CH01 CH06 CH11 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 01 2412 17.20 Complies 06 2437 17.52 Complies 11 2462 17.12 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2008C032 Page 110 of 144 Test Mode TX N-20M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 01 2412 17.67 500 Complies 06 2437 17.68 500 Complies 11 2462 17.65 500 Complies CH01 CH06 CH11 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 01 2412 18.48 Complies 06 2437 18.56 Complies 11 2462 18.40 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2008C032 Page 111 of 144 Test Mode TX N-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 36.44 500 Complies 06 2437 36.44 500 Complies 09 2452 36.48 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 36.96 Complies 06 2437 36.96 Complies 09 2452 36.96 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2008C032 Page 112 of 144 Test Mode TX AX-20M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 01 2412 19.06 500 Complies 06 2437 18.94 500 Complies 11 2462 19.04 500 Complies CH01 CH06 CH11 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 01 2412 19.20 Complies 06 2437 19.36 Complies 11 2462 19.12 Complies CH01 CH06 CH11 Report No.: BTL-FCCP-1-2008C032 Page 113 of 144 Test Mode TX AX-40M Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 03 2422 37.28 500 Complies 06 2437 37.67 500 Complies 09 2452 37.64 500 Complies CH03 CH06 CH09 Channel Frequency (MHz) 99 % Emission Bandwidth (MHz) Result 03 2422 37.76 Complies 06 2437 37.92 Complies 09 2452 37.92 Complies CH03 CH06 CH09 Report No.: BTL-FCCP-1-2008C032 Page 114 of 144 APPENDIX F - MAXIMUM AVERGAE OUTPUT POWER Report No.: BTL-FCCP-1-2008C032 Page 115 of 144 Non-Beamforming Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 25.78 0.51 26.29 30.00 1.0000 Complies 06 2437 25.87 0.51 26.38 30.00 1.0000 Complies 11 2462 25.84 0.51 26.35 30.00 1.0000 Complies Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 25.42 0.51 25.93 30.00 1.0000 Complies 06 2437 25.66 0.51 26.17 30.00 1.0000 Complies 11 2462 25.51 0.51 26.02 30.00 1.0000 Complies Test Mode TX B Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 29.12 30.00 1.0000 Complies 06 2437 29.28 30.00 1.0000 Complies 11 2462 29.19 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C032 Page 116 of 144 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.59 0.21 20.80 30.00 1.0000 Complies 06 2437 25.87 0.21 26.08 30.00 1.0000 Complies 11 2462 20.18 0.21 20.39 30.00 1.0000 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 19.98 0.21 20.19 30.00 1.0000 Complies 06 2437 25.37 0.21 25.58 30.00 1.0000 Complies 11 2462 19.11 0.21 19.32 30.00 1.0000 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 23.52 30.00 1.0000 Complies 06 2437 28.85 30.00 1.0000 Complies 11 2462 22.90 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C032 Page 117 of 144 Test Mode TX N-20M Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 21.38 0.21 21.59 30.00 1.0000 Complies 06 2437 25.82 0.21 26.03 30.00 1.0000 Complies 11 2462 20.41 0.21 20.62 30.00 1.0000 Complies Test Mode TX N-20M Mode_Ant. 2 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 20.83 0.21 21.04 30.00 1.0000 Complies 06 2437 25.26 0.21 25.47 30.00 1.0000 Complies 11 2462 19.39 0.21 19.60 30.00 1.0000 Complies Test Mode TX N-20M Mode_Total Channel Frequency (MHz) Avg Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 24.33 30.00 1.0000 Complies 06 2437 28.77 30.00 1.0000 Complies 11 2462 23.15 30.00 1.0000 Complies Report No.: BTL-FCCP-1-2008C032 Page 118 of 144 Test Mode TX N-40M Mode_Ant. 1 Channel Frequency (MHz) Avg Output Power (dBm) Duty Factor Avg Output Power + Duty Factor (dBm) Max. Limit (dBm)…

Text truncated - open the document above for the full version.
