2AXJ4XE75V2AXE5400 Whole Home Mesh Wi-Fi 6E System

Deco XE75 Superior Mesh Wi-Fi, Everywhere User Guide AXE5400 Tri-Band Mesh Wi-Fi 6E System 1910013233 REV2.0.0 © 2022 TP-Link Contents About This Guide ····················································1 Appearance ·······························································2 Set Up Your Deco ···················································3 Dashboard ··································································6 Add More Decos ·····················································7 Check Deco Status ···············································8 Set Main Deco ························································10 Remove/Reboot Deco ·······································11 Manage Connected Devices ·························12 Sort Devices By Locations ······························16 Create a New Network ·······································17 Change Network Owner ···································19 Delete a Network ··················································20 Add Smart Devices ··············································21 Shortcut ·····································································22 Automation ·······························································24 HomeShield ·····························································28 Wi-Fi Settings··························································29 Guest Network ·······················································31 Blacklist ······································································33 Upgrade Your Deco ·············································34 Advanced Features ·············································35 WPS ··············································································40 Managers ··································································41 Control Your Deco with Alexa ·························43 Troubleshooting ····················································44 Authentication ························································45 1 About This Guide This guide provides a brief introduction to Whole Home Deco Mesh Wi-Fi 6 System and the Deco app, as well as regulatory information. Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Deco experience. Conventions In this guide, the following conventions are used: Convention Description Deco Stands for Deco Whole Home Mesh Wi-Fi System/ Unit. Underline Hyperlinks are in teal and underlined. You can click to redirect to a website or a specific section. Teal Key information appears in teal, including management page text such as menus, items, buttons and so on. Note: Ignoring this type of note might result in a malfunction or damage to the device. Tips: Indicates important information that helps you make better use of your device. More Info • Specific product information can be found on the product page at https://www.tp-link.com. • A Technical Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support. Speed/Coverage/Device Quantity Disclaimer Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. MU-MIMO Disclaimer Use of MU-MIMO requires clients to also support MU-MIMO. IoT Compatibility Disclaimer IoT compatibility refers only to smart devices that can be controlled via the Deco app. Other wireless devices can still connect to Deco for normal Wi-Fi use. Seamless Roaming Disclaimer Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. HomeShield Disclaimer HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. 2 Appearance Each Deco has an LED that changes color according to its status, three RJ-45 Ethernet ports, a power slot, and a Reset button. See the explanation below: Tip: The product label can be found at the bottom of the product. Pulse Yellow: Deco is resetting. Solid Yellow: Deco is starting up. Pulse Blue: Deco is ready for setup. Solid Blue: Deco is setting up. Pulse Green: Deco is upgrading firmware. Solid Green: Deco is all set up and connected. Pulse Red: The satellite Deco is disconnected from the main Deco. Solid Red: Deco has an issue. Reset Button: Press for 1 second and release to reset Deco to factory default settings. The light changing from pulsing yellow to solid yellow indicates a successful reset. Ethernet Ports: For connecting Deco to your modem, the Ethernet outlet, or for other internet services in Wireless Router mode. Power Slot: For connecting Deco to the power socket via the provided power adapter. 3 Set Up Your Deco The intuitive Deco app guides you through an easy setup process that gets each unit up and all your devices connected. Follow the steps below to set up your Whole Home Deco Mesh Wi-Fi 6 System. 1. Download and install the Deco app Scan the QR code below or go to Google Play or the App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet. or 2. Log in or sign up with TP-Link ID Open the app. Use your TP-Link ID to log in. If you don’t have a TP-Link ID, sign up first. Note: If you forgot your login password, tap Forgot Password?. The Deco app will guide you through the rest. 3. Identify your Deco Choose your Deco model. 4 4. Plug in and power on Deco Power off your mod…

Text truncated - open the document above for the full version.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. Product: AXE5400 Whole Home Mesh Wi-Fi 6E System FCC ID: 2AXJ4XE75V2 Model: Deco XE75, Deco XE5300 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-31

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AXJ4XE75V2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-31

Declaration of Authorization We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: AXE5400 Whole Home Mesh Wi-Fi 6E System FCC ID: 2AXJ4XE75V2 Model: Deco XE75, Deco XE5300 Brand: tp-link Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-31

Declaration of Conformity We Name: TP-Link Corporation Limited Address: Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Declare that: Product: AXE5400 Whole Home Mesh Wi-Fi 6E System FCC ID: 2AXJ4XE75V2 Model: Deco XE75, Deco XE5300 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-31

Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: Deco XE75, Deco XE5300 Model Difference: Hardware design and PCB layout are the same between the two models, only the model for our marketing strategy is different. _____________________ Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2022-10-31

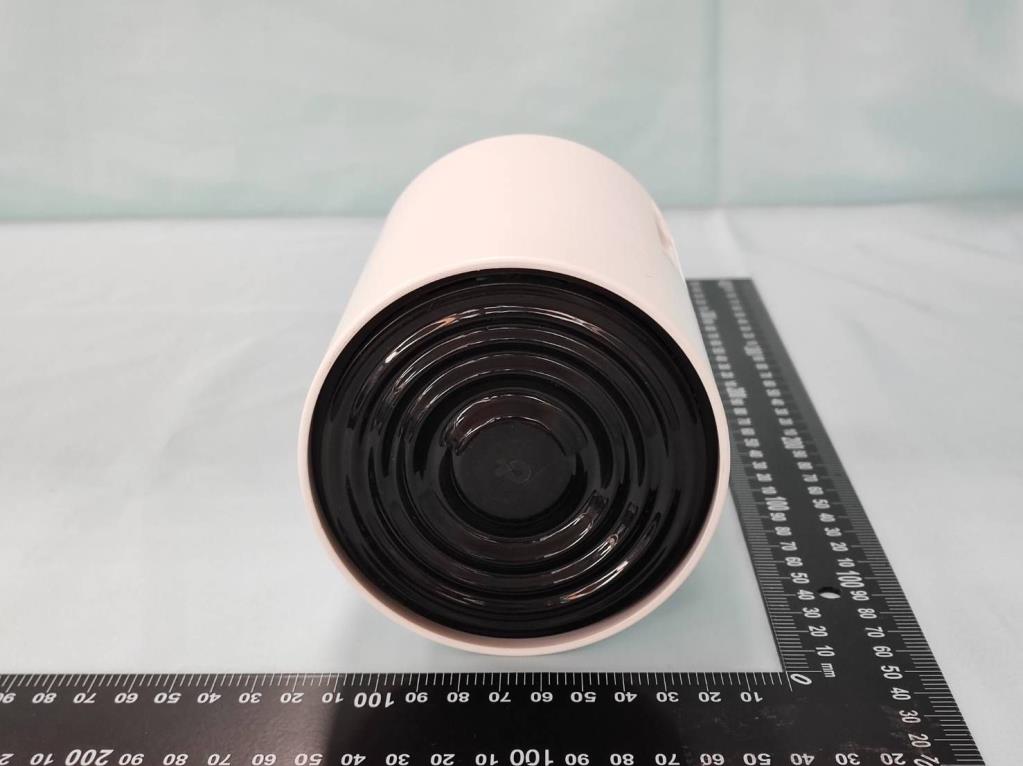

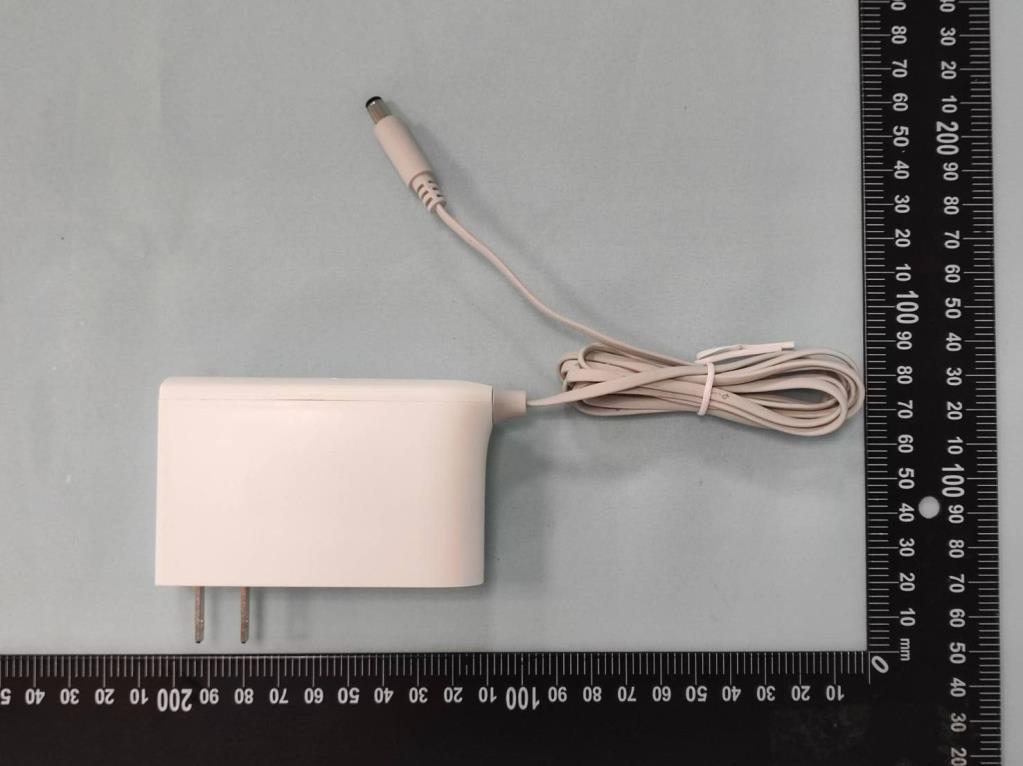

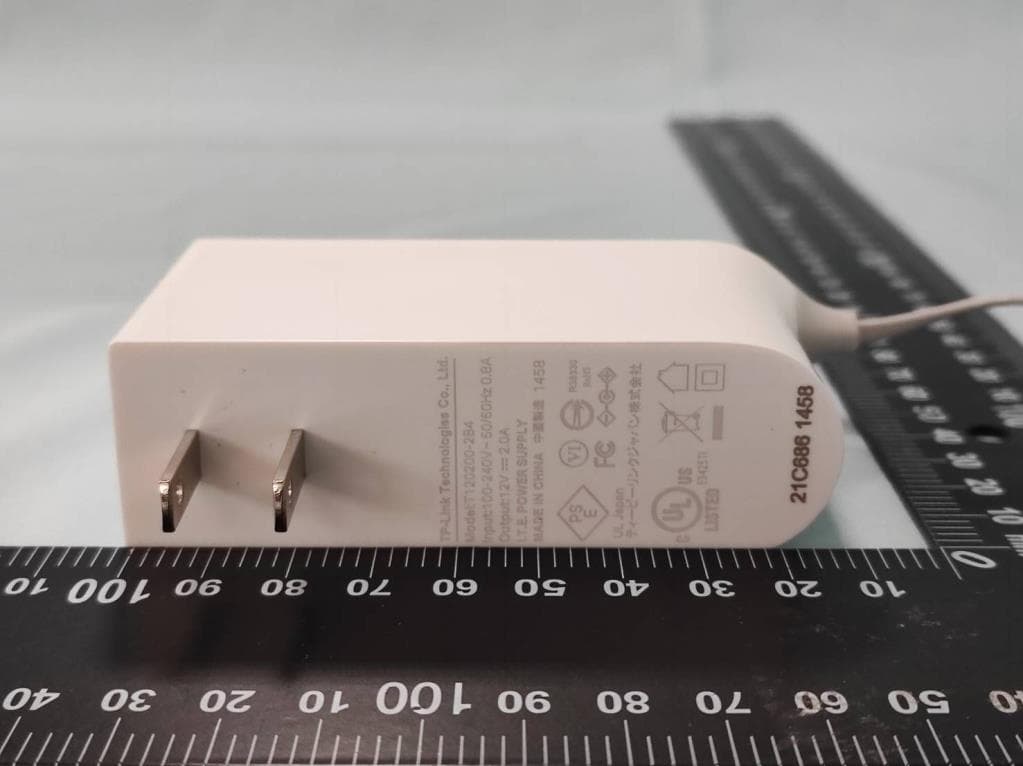

Report No.: 2209TW0106-External Photo Product: AXE5400 Whole Home Mesh Wi-Fi 6E System Brand Name: tp-link Model Number: Deco XE75 1 of 7 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209TW0106-External Photo 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2209TW0106-External Photo 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2209TW0106-External Photo 4 of 7 (7) Adapter (8) Adapter Report No.: 2209TW0106-External Photo 5 of 7 (9) Adapter (10) Adapter Report No.: 2209TW0106-External Photo 6 of 7 (11) Adapter (12) Adapter Report No.: 2209TW0106-External Photo 7 of 7 (13) Adapter

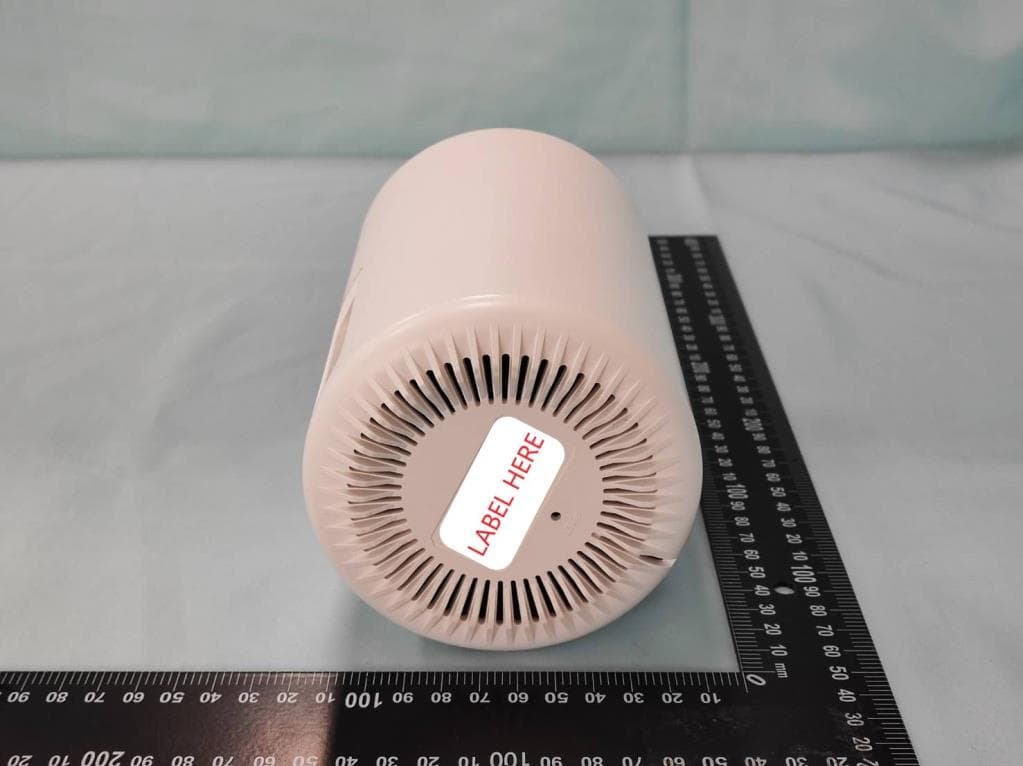

Label Label Location

Report No.: 2209TW0106-Internal Photo Product: AXE5400 Whole Home Mesh Wi-Fi 6E System Brand Name: tp-link Model Number: Deco XE75 1 of 8 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2209TW0106-Internal Photo 2 of 8 (3) EUT Photo (4) EUT Photo (Reserved) Report No.: 2209TW0106-Internal Photo 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2209TW0106-Internal Photo 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2209TW0106-Internal Photo 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2209TW0106-Internal Photo 6 of 8 (11) EUT Photo (12) EUT Photo (Reserved) Report No.: 2209TW0106-Internal Photo 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2209TW0106-Internal Photo 8 of 8 (15) EUT Photo (16) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2209TW0106-U3 Phone: +886-3-3288388 Report Version 1.0 Web: www.mrt-cert.com Issue Date: 2022-11-03 FCC ID: 2AXJ4XE75V2 Page Number: 1 of 12 RF Exposure Evaluation Declaration FCC ID : 2AXJ4XE75V2 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AXE5400 Whole Home Mesh Wi-Fi 6E System Model No. : Deco XE75, Deco XE5300 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) : FCC Part 2.1091 Result : Complies Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2209TW0106-U3 FCC ID: 2AXJ4XE75V2 Page Number: 2 of 12 Revision History Report No. Version Description Issue Date Note 2209TW0106-U3 1.0 Original Report 2022-11-03 Valid Report No.: 2209TW0106-U3 FCC ID: 2AXJ4XE75V2 Page Number: 3 of 12 CONTENTS Description Page 1. General Information ............................................................................................................... 4 2. INTRODUCTION ...................................................................................................................... 5 2.1. Scope............................................................................................................................. 5 2.2. MRT Test Location ......................................................................................................... 5 3. PRODUCT INFORMATION ...................................................................................................... 6 3.1. Feature of Equipment under Test ................................................................................... 6 3.2. Description of Available Antennas .................................................................................. 6 3.3. Applied Standards .......................................................................................................... 7 4. RF Exposure Evaluation ........................................................................................................ 8 4.1. Limits ............................................................................................................................. 8 4.2. MPE Exemptions ........................................................................................................... 9 4.3. Calculated Result ......................................................................................................... 12 Report No.: 2209TW0106-U3 FCC ID: 2AXJ4XE75V2 Page Number: 4 of 12 1. General Information Applicant TP-Link Corporation Limited Applicant Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Manufacturer TP-Link Corporation Limited Manufacturer Address Room 901, 9/F., New East Ocean Centre, 9 Science Museum Road, Tsim Sha Tsui, Kowloon, Hongkong Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Device Serial No. N/A Production Pre-Production Engineering Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2209TW0106-U3 FCC ID: 2AXJ4XE75V2 Page Number: 5 of 12 2. INTRODUCTION 2.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 2.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2209TW0106-U3 FCC ID: 2AXJ4XE75V2 Page Number: 6 of 12 3. PRODUCT INFORMATION 3.1. Feature of Equipment under Test Product Name: AXE5400 Whole Home Mesh Wi-Fi 6E System Model No.: Deco XE75, Deco XE5300 Brand Name: tp-link Wi-Fi Specification: 802.11a/b/g/n/ac/ax EUT Identification No.: 20220913Sample#1-1 (Conducted) 20220913Sample#1-2 (Radiated) Accessory Adapter MODEL: T120200-2B4 INPUT: 100 - 240V ~ 50/60Hz 0.8A. OUTPUT: 12.0V⎓2.0A Cable Out: Non-shielding, 1.2m Remark: Hardware design and PCB layout are the same between the two models, only the model for our marketing strategy is different. 3.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Dipole Antenna 2412 ~ 2462 2 2.00 2.00 5.01 5150 ~ 5250 2 1.00 1.00 4.01 5725 ~ 5850 2 1.00 1.00 4.01 Note: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices…

Text truncated - open the document above for the full version.

MRT Technology (Taiwan) Co., Ltd Report No.: 2209TW0106-U1 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2022-11-03 FCC ID: 2AXJ4XE75V2 Page Number: 1 of 196 FCC ID : 2AXJ4XE75V2 Applicant : TP-Link Corporation Limited Application Type : Certification Product : AXE5400 Whole Home Mesh Wi-Fi 6E System Model No. : Deco XE75, Deco XE5300 Brand Name : tp-link FCC Classification : Digital Transmission System (DTS) FCC Rule Part(s) : Part15 Subpart C (Section 15.247) Received Date : September 13, 2022 Test Date : September 20 ~ October 12, 2022 RF MEASUREMENT REPORT The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 2 of 196 Revision History Report No. Version Description Issue Date Note 2209TW0106-U1 1.0 Original Report 2022-11-03 Valid Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 3 of 196 CONTENTS Description Page 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ............................................................................................................................. 6 1.2. MRT Test Location ......................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Feature of Equipment under Test ................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................... 7 2.3. Working Frequencies for this report ................................................................................ 8 2.4. Description of Available Antennas ................................................................................... 8 2.5. Test Mode ....................................................................................................................... 9 2.6. Configuration of Test System .......................................................................................... 9 2.7. Test System Details ...................................................................................................... 10 2.8. Description of Test Software ......................................................................................... 10 2.9. Applied Standards ........................................................................................................ 10 2.10. Duty Cycle .................................................................................................................. 11 2.11. Test Configuration ..................................................................................................... 12 2.12. EMI Suppression Device(s)/Modifications .................................................................. 12 2.13. Labeling Requirements .............................................................................................. 12 3. DESCRIPTION of TEST ......................................................................................................... 13 3.1. Evaluation Procedure ................................................................................................... 13 3.2. AC Line Conducted Emissions ...................................................................................... 13 3.3. Radiated Emissions ...................................................................................................... 14 4. ANTENNA REQUIREMENTS................................................................................................. 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 17 7. TEST RESULT ....................................................................................................................... 18 7.1. Summary ...................................................................................................................... 18 7.2. 6dB Bandwidth Measurement ....................................................................................... 19 7.2.1. Test Limit ................................................................................................................... 19 7.2.2. Test Procedure used.................................................................................................. 19 7.2.3. Test Setting ............................................................................................................... 19 7.2.4. Test Setup ................................................................................................................. 19 7.2.5. Test Result ................................................................................................................ 20 7.3. Output Power Measurement ......................................................................................... 24 7.3.1. Test Limit ................................................................................................................... 24 7.3.2. Test Procedure Used ................................................................................................. 24 7.3.3. Test Setting .............................................…

Text truncated - open the document above for the full version.

Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 40 of 196 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 41 of 196 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 42 of 196 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 43 of 196 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 44 of 196 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 45 of 196 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 46 of 196 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 02.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 47 of 196 Antenna 1 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH01 (2412MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) 802.11 b CH06 (2437MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 48 of 196 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) 802.11 b CH11 (2462MHz) 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) 802.11 g CH01 (2412MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 49 of 196 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH06 (2437MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) 802.11 g CH11 (2462MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 50 of 196 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH01 (2412MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) 802.11 n20 CH06 (2437MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 51 of 196 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n20 CH11 (2462MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz) 802.11 n40 CH03 (2422MHz)

Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 52 of 196 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH06 (2437MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) 802.11 n40 CH09 (2452MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 53 of 196 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH01 (2412MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) 802.11 ax20 CH06 (2437MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 54 of 196 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax20 CH11 (2462MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) 802.11 ax40 CH03 (2422MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 55 of 196 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH06 (2437MHz) 802.11 ax40 CH09 (2452MHz) 02.11 ax40 CH09 (2452MHz) 802.11 ax40 CH09 (2452MHz) Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 56 of 196 7.6. Radiated Spurious Emission Measurement 7.6.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [Uv/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2.Test Procedure Used ANSI C63.10 - 2013 Section 11.11 & 11.12 ANSI C63.10 - 2013 Section 6.3 (General Requirements) ANSI C63.10 - 2013 Section 6.4 (Standard test method below 30MHz) ANSI C63.10 - 2013 Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 - 2013 Section 6.6 (Standard test method above 1GHz) 7.6.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000MHz 1MHz Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 57 of 196 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10 Hz. If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration. 4. Detector = Peak 5. Sweep time = auto 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 58 of 196 7.6.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 59 of 196 7.6.5.Test Result EUT AXE5400 Whole Home Mesh Wi-Fi 6E System Date of Test 2022-10-12 Factor VULB 9162 Temp. / Humidity 25C /60% Polarity Horizontal Site / Test Engineer AC2 / Xuan Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 41.640 11.34 20.79 32.13 -7.87 40.00 150 265 QP 2 169.680 15.08 16.62 31.70 -11.80 43.50 150 135 QP 3 209.450 14.67 18.64 33.31 -10.19 43.50 100 95 QP 4 * 250.190 18.63 20.83 39.46 -6.54 46.00 150 100 QP 5 375.320 14.09 23.50 37.60 -8.40 46.00 100 320 QP 6 500.450 11.92 25.73 37.65 -8.35 46.00 150 50 QP Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB)+ Cable Loss (dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2209TW0106-U1 FCC ID: 2AXJ4XE75V2 Page Number: 60 of 196 EUT AXE5400 Whole Home Mesh Wi-Fi 6E System Date of Test 2022-10-12 Factor VULB 9162 Temp. / Humidity 25C /60% Polarity Vertical Site / Test Engineer AC2 / Xuan Test Mode 802.11n-20MHz_TX_CH 6_ANT 0+1 Test Voltage AC 120V/60Hz No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 * 37.760 17.50 19.59 37.09 -2.91 40.00 100 0 QP 2 164.830 13.39 16.46 29.85 -13.65 43.50 100 25 QP 3 209.450 14.59 18.64 33.23 -10.27 43.50 100 50 QP 4 250.190 16.57 20.83 37.40 …

Text truncated - open the document above for the full version.
