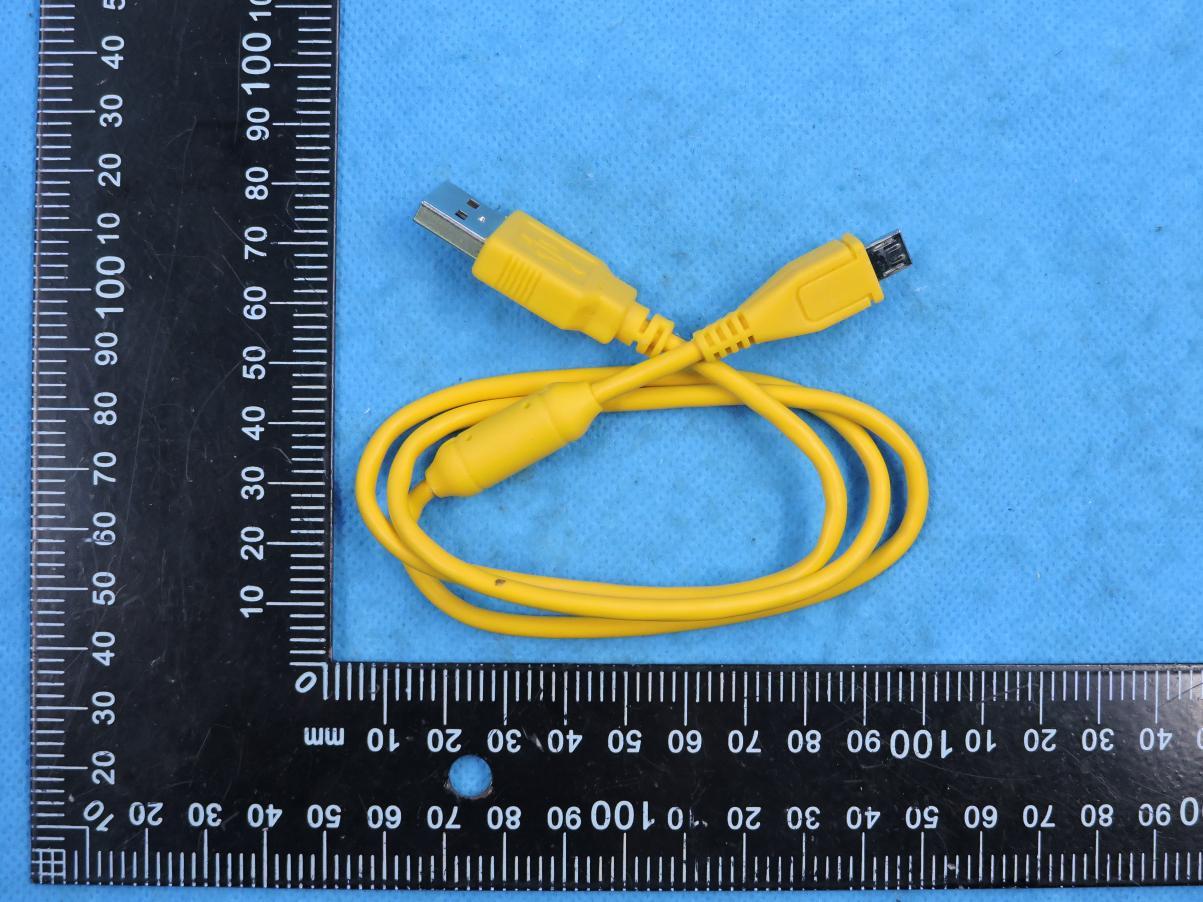

USER MANUAL FREE WALKER Bluetooth Speaker 0 03 Packing Content USB cable 1pc Warranty Card 1pc User manual 1pc User Manual Warranty Card Bluetooth speaker 1pcHook 1pc English 01 Warnings ◆Please use and store this product at room temperature ◆Do not throw and drop this product to avoid product damage ◆Do not self-dismantling ,repair and transform the product ◆Do not use chemical solvent cleaning the product ◆Please don’t arbitrarily discarded or placed the lithium battery in the fire in order to avoid the risk of explosion 02 Product Features ◎IP56 Water resistant & Dust proof ◎Class-G NCN digital AMP ◎Bluetooth 4.0 music playing ◎Hands-free function ◎USB sound card ◎Supports IOS system ringtone playback ◎Micro SD card APE,FLAC format music playing ◎Micro SD card MP3,WMA,WAV format music playing ◎Micro SD card reader data storage English English 08 FAQ Paired Bluetooth device will not connect Problems What to do 1.Restart the speaker 2.If need password , please input “0000” The speaker indicates a connection, but is not playing music 1.Check the volume of speaker Music cuts out/stops playing Please check if the Bluetooth connection is valid and in range. Check for outside interference from other electronic devices. 2.Check if the speaker is muted or paused Check if the battery is low Reset the speaker Speaker will not turn on System halted © MIFA all rights reserved .The product and the packaging trademarks or registered trademarks of MIFA INNOVATIONS LLC in the united states or other countries .All rights reserved . Other trademarks and trade names are registered mark of their respective owners . MIFA INNOVATIONS LLC for any errors that may occur in this manual does not undertake any responsibility. The information contained in this manual are subject to change no prior notice. MIFA INNOVATIONS LLC Hotline ：4007-881-899 www.mifa.net Designed in US Made in China English Pairing with the devices that with Bluetooth function. 06 Bluetooth Connection Bluetooth Bluetooth OFF Devices Mifa_F10 Disconnected Devices Mifa_F10 Wireless range is up to 10m (direct line of sight), your environment can cause shorter ranges to be experienced. Bluetooth pairing: Power on the speaker after the tone sound , a blue light will flicker, allowing pairing with a Bluetooth device “Mifa_F10”. Notes: 1, The default password is “0000” 2, The speaker will auto-connect to the last paired device when it powers on. 3, If you need to connect other devices, press at the same time to disconnect first, you will hear a sound then the speaker is re-discoverable and ready to pair with a new device. English 1,Check if the format of files in SD card is correct (supported file format is FAT32) 2,Check if the files is APE,FLAC, WAV, MMA, MP3 Micro SD card format error Notes When low battery , the red LED fast flickering with “Du Du” , then power off automatically. 05 Inter face function English USB sound card playing When the speaker powers off, connect the speaker, quick press Power key 2 times, you will hear the voice prompt, then it comes to USB sound card playing mode and can play the music in our computer. Speaker reset button LED Indicator: LED Power on : Blue flashing ,ready for Bluetooth paring , paired continuous blue Pause: Blue light flickering slowly Play mode: light continuous blue Max. /Min. volume : Blue LED light fast flickering Charging: Red light keeps on when charging, off when charging completed Charging with DC5V-500MA adaptor or USB cable. Data transfer When the speaker powers off, insert micro SD card, connect the speaker, Press and hold key , you will hear “Ding’, then you can copy or delete files from the Micro SD card. Micro SD card playing With the speaker turned on, insert a micro SD card ,you will hear “Ding”, then it can play the music stored on the Micro SD card. 04 Key Functions Microphone slot LED indicator Power : Press and hold for 3 seconds to power on/off Play/Pause: Short press to play/pause the music Press and hold:Previous song Short press:Volume up,led light will fast flash while reaches the maximum. Call answer key: When an incoming call is received, a short press will answer or hang up the call, press and hold to reject the call. Mode switching by 2 times fast pressing Bluetooth mode/Micro SD card mode (A micro SD card must be inserted)/USB sound card mode (connect to the USB cable) switch in order Bluetooth disconnect: Short press at the same time, disconnect with the current Bluetooth device and waiting for a new device to pair. Press and hold:Next song Short press:Volume down,led light will fast flash while reaches the minimum. English 07 Technique Parameters Speaker type Speaker system Active/Passive Operate mode Basic parameters Main Features Product size：W86×D97×H38mm Product weight：166g(including the lithium battery) Portable Bluetooth Speaker Mono Active Bluetooth 4.0, Hands-free, NCN digital AMP, USB sound card, Micro SD card music playing,Card reader Power supply Output power Frequency Response Technique Parameters Loudspeaker USB specification DC5V-500mA USB adaptor 4Ω 3W 80Hz~18KHz 1.5 inch + passive radiators USB2.0 compatible with USB1.1 86mm 97mm 38mm Button English Playing function File format APE、FLAC、WAV、WMA、MP3 Copyright © MIFA. All rights reserved. MIFA, the MIFA logo and other MIFA marks are all owned and registered by MIFA INNOVATIONS LLC. All other trademarks are the property of their respective owners. The information contained here is subject to change without prior notice. MIFA INNOVATIONS LLC www.mifa.net


Designed in US


Made in China EUBRIDGE ADVISORY GMBH Virginia Str. 2, 35510 Butzbach, Germany [email protected] TANMET INT'L BUSINESS LTD 9 Pantygraigwen Road, Pontypridd, Mid Glamorgan, CF37 2RR, UK [email protected] REP UK REP EC LISTEN.MIFA THE MUSIC POWER TO YOUR DEEP HEART! JUST ENJOY This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)
this
device
may
not
cause
harmful
interference,
…

Text truncated - open the document above for the full version.

Shenzhen See Me Here Electronic Co.,Ltd Agent Authorization Company:Shenzhen See Me Here Electronic Co.,Ltd Address:1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Product Name:Wireless Speaker Model Number(s): F10 Product Description:Wireless Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.03.4 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

Shenzhen See Me Here Electronic Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.3.4 FCC ID: 2AXOX-F10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Jiankuai Li Title:PM

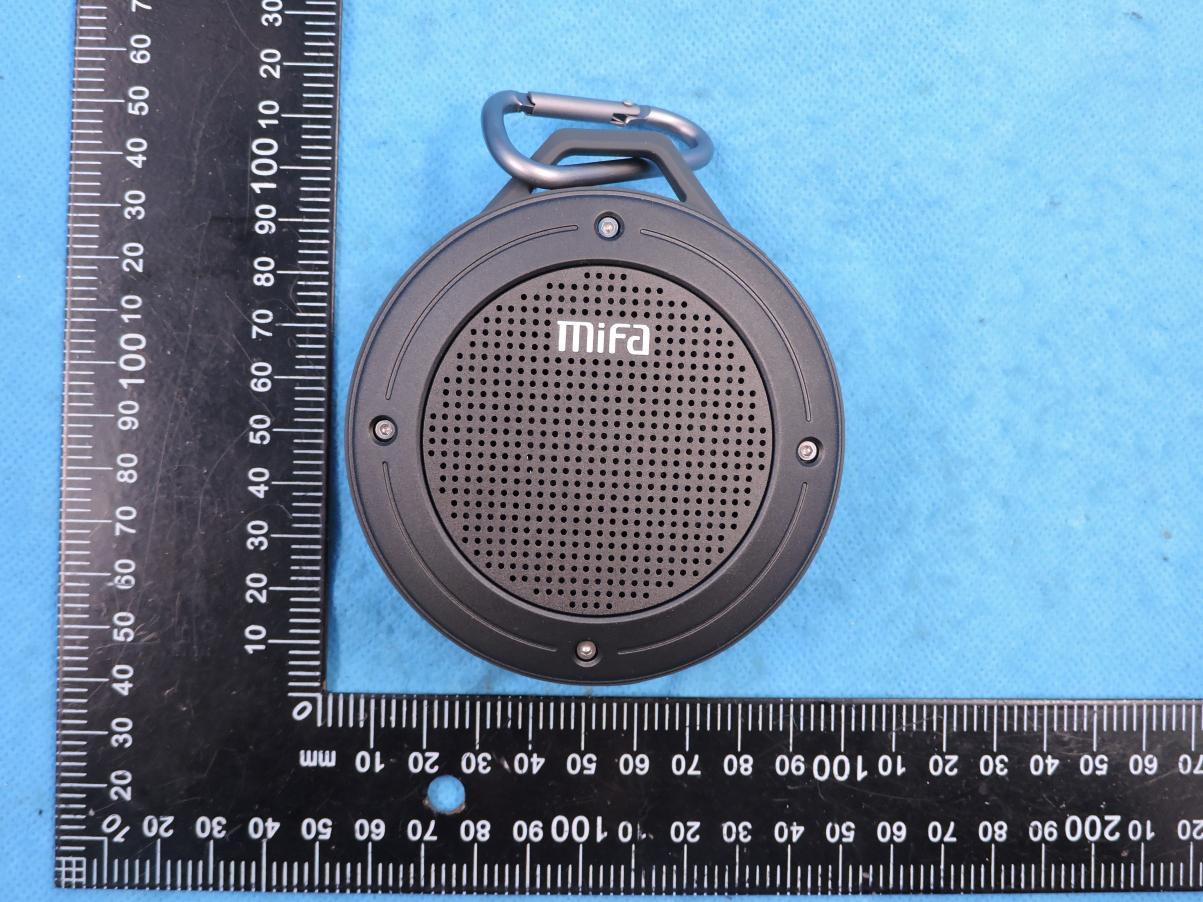

Page 1 of 4 Report No.: STS2202135 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: F10 Photo 1 Photo 2 Page 2 of 4 Report No.: STS2202135 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2202135 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2202135 Photo 7 Photo 8

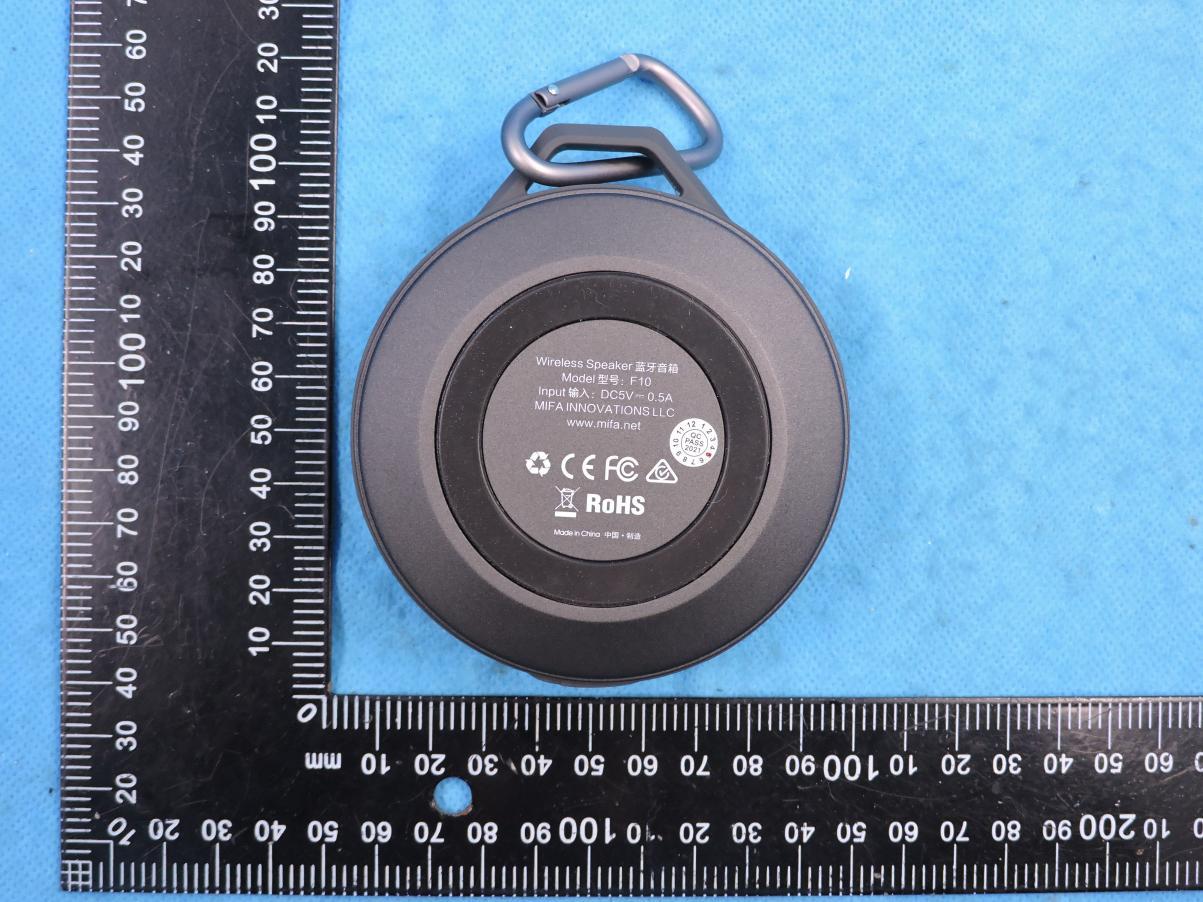

Made in China 中国 制造 Wireless Speaker 蓝牙音箱 Model 型号：F10 Input 输入：DC5V 0.5A FCC ID：2AXOX-F10
