2AXOX-WILDBOXWireless Speaker

ON Devices Mifa
WildBox

Shenzhen See Me Here Electronic Co.,Ltd Agent Authorization Company: Shenzhen See Me Here Electronic Co.,Ltd Address: 1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Product Name: Wireless Speaker Model Number(s): WildBox Product Description: Wireless Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.03.3 Name: Jiankuai Li Title: PM Company: Shenzhen STS Test Services Co., Ltd.

Shenzhen See Me Here Electronic Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.02.22 FCC ID: 2AXOX-WILDBOX To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiankuai Li Title: PM

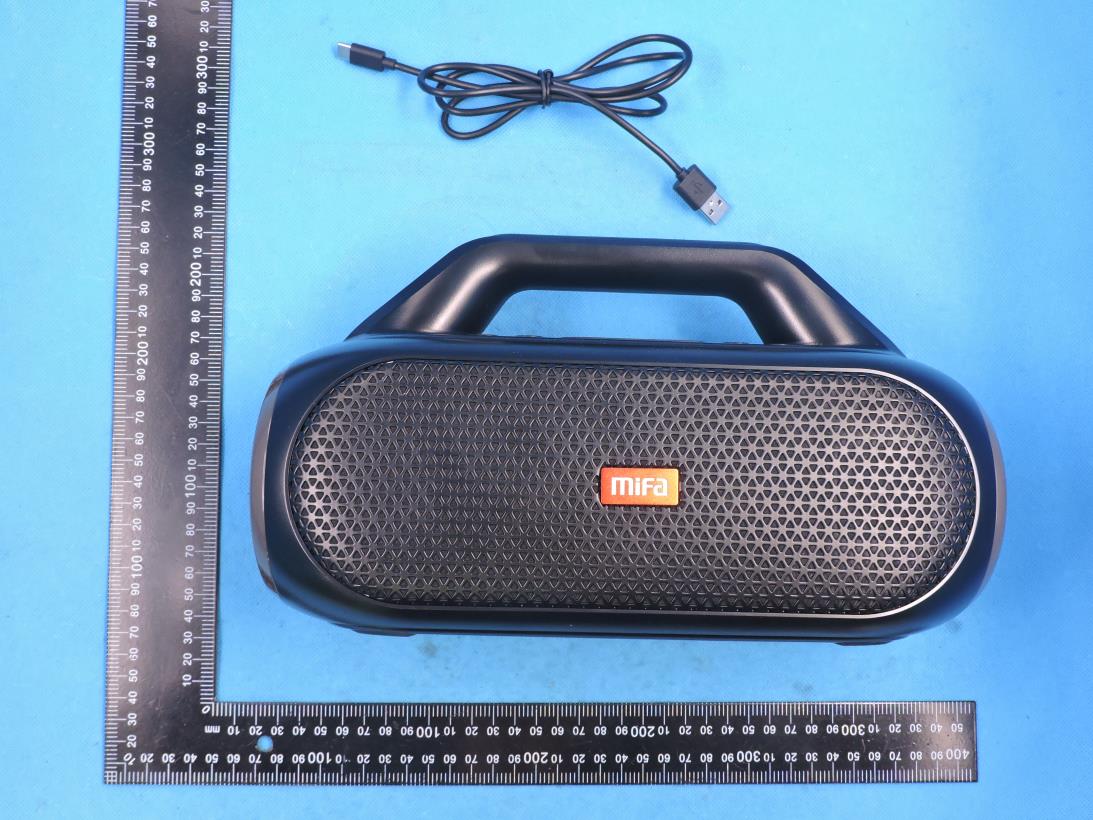

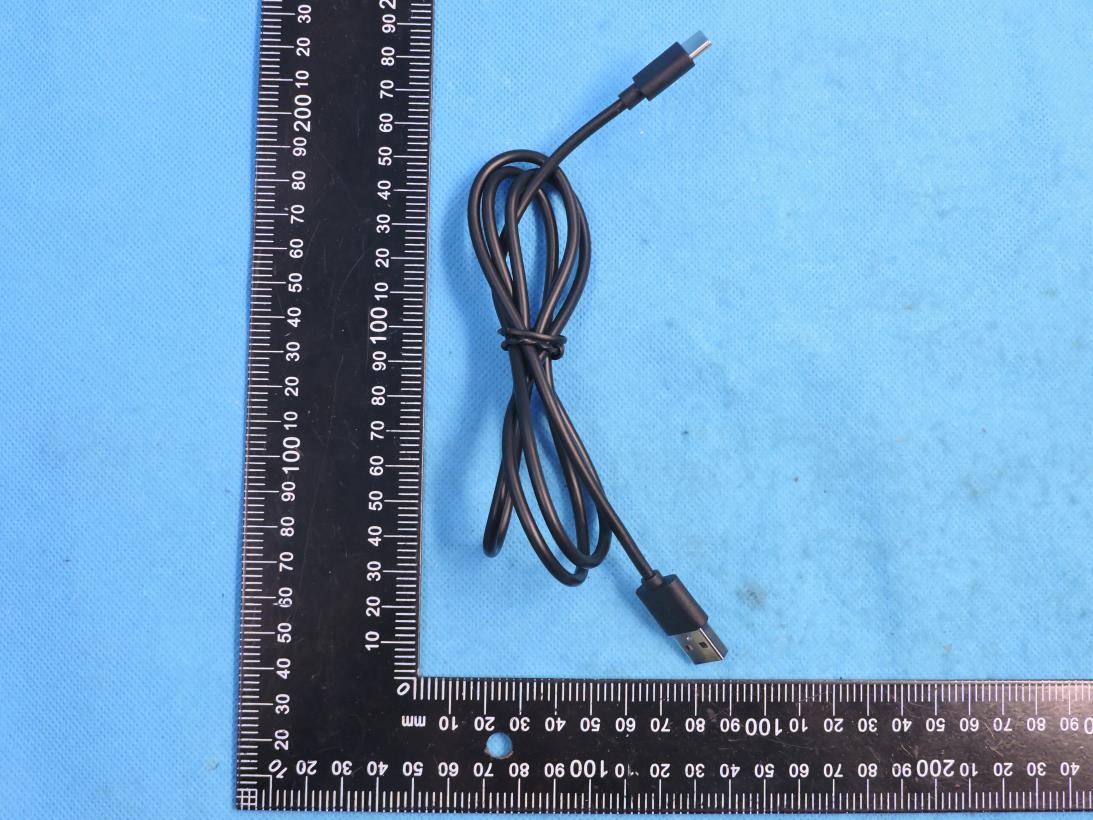

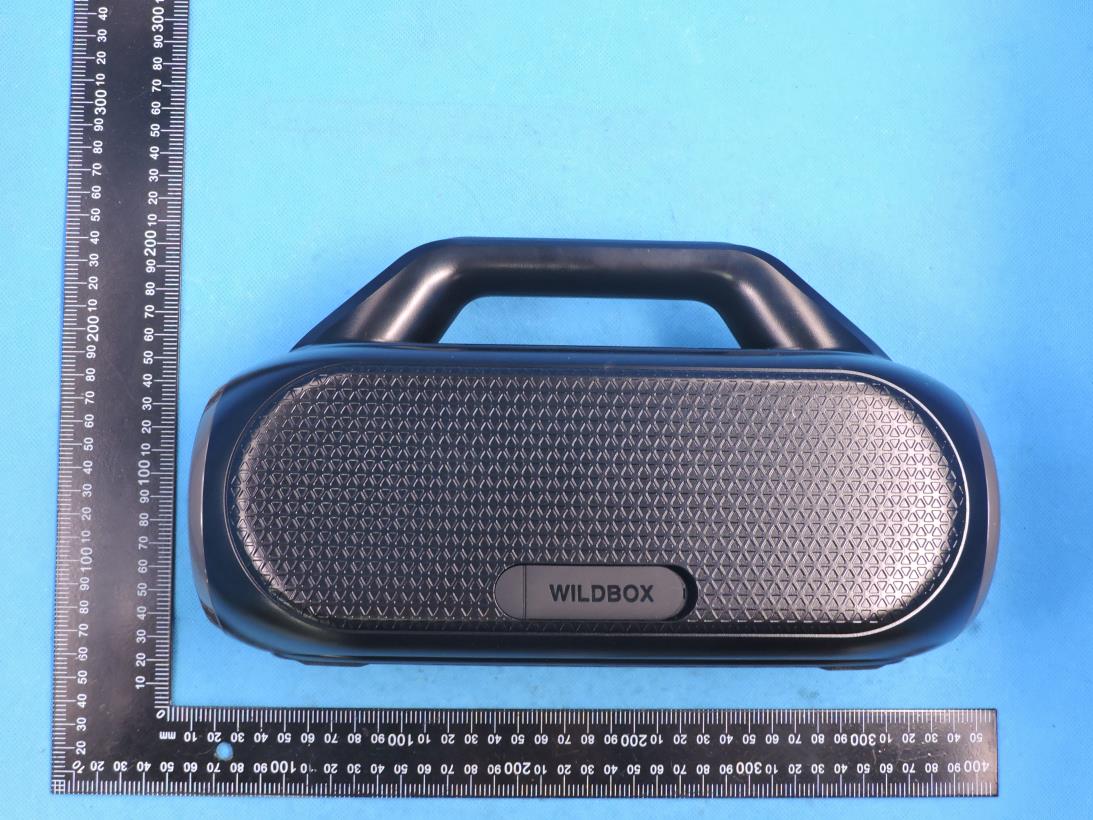

Page 1 of 4 Report No.: STS2110103 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: WildBox Photo 1 Photo 2 Photo 3 Page 2 of 4 Report No.: STS2110103 Photo 4 Page 3 of 4 Report No.: STS2110103 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2110103 Photo 7 Photo 8

FCC ID:2AXOX-WILDBOX

Page 1 of 7 Report No.: STS2110103 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: WildBox Photo 1 Photo 2 Photo 3 BT Antenna Page 2 of 7 Report No.: STS2110103 Photo 4 Page 3 of 7 Report No.: STS2110103 Photo 5 Photo 6 Page 4 of 7 Report No.: STS2110103 Photo 7 Photo 8 Page 5 of 7 Report No.: STS2110103 Photo 9 Photo 10 Page 6 of 7 Report No.: STS2110103 Photo 11 Photo 12 Page 7 of 7 Report No.: STS2110103 Photo 13 Photo 14

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2110103H02 Issued for Shenzhen See Me Here Electronic Co.,Ltd 1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Product Name: Wireless Speaker Brand Name: Model Name: WildBox Series Model: N/A FCC ID: 2AXOX-WILDBOX Test Standard: FCC 47CFR §2.1093 S T L A B S Page 2 of 9 Report No.: STS2110103H02 Test Report Certification Applicant’s Name ................. : Shenzhen See Me Here Electronic Co.,Ltd Address ................................. : 1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Manufacturer's Name .......... : Shenzhen See Me Here Electronic Co.,Ltd Address ................................. : 1st Floor ,2nd Floor ,3rd Floor ,5th Floor ,Building B ,TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community ,Hangcheng Street ,Bao'an district ,Shenzhen China Product Description Product Name ........................ : Wireless Speaker Brand Name ......................... : Model Name .......................... : ... : WildBox Series Model .......................... : N/A Standards ............................. : FCC 47CFR §2.1093 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 04 Jan. 2022 Date (s) of performance of tests ............. : 04 Jan. 2022 ~ 19 Jan. 2022 Date of Issue ........................................... : 19 Jan. 2022 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 9 Report No.: STS2110103H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1093 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2110103H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Jan. 2022 STS2110103H02 ALL Initial Issue Page 5 of 9 Report No.: STS2110103H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Speaker Brand Name Model Name WildBox Series Model N/A Model Difference N/A Product Description The EUT is Wireless Speaker Operation Frequency: 2402~2480 MHz Modulation Type: BT: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK BLE: GFSK Antenna gain: FPC Antenna Designation: 3.46dBi Rating Input: DC 5V-3A Output: DC 5V-1A Battery Rated Voltage: DC 7.4V Charge Limit Voltage: DC 8.4V Capacity:5000mA Hardware Version V1.5 Software Version V3.1 Page 6 of 9 Report No.: STS2110103H02 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 9 Report No.: STS2110103H02 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 8 of 9 Report No.: STS2110103H02 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 9 of 9 Report No.: STS2110103H02 2.3 TEST RESULT Maximum measured transmitter power. BT The Worst Case Mode frequency Maximum AV Output Power Tune up tolerance Max Tune up GHz dBm dBm dBm BT 2.480 6.96 7±1 8 BLE 2.480 4.45 4±1 5 Remark: The worst case gain of the antenna is 3.46dBi. 2.22dBi logarithmic terms convert to numeric result is nearly 2.22. Maximum Tune up Power (2480) = 6.310mW Maximum Tune up Power (2480) = 3.163mW [(BT power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 6.310/5*√2.480=1.987≤3.0 [(BLE …

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2110103W04 Issued for Shenzhen See Me Here Electronic Co.,Ltd 1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Product Name: Wireless Speaker Brand Name: Model Name: WildBox Series Model: N/A FCC ID: 2AXOX-WILDBOX Test Standard: FCC Part 15.247 S T L A B S Page 2 of 46 Report No.: STS2110103W04 TEST RESULT CERTIFICATION Applicant’s Name ..................: Shenzhen See Me Here Electronic Co.,Ltd Address ..................................: 1st Floor, 2nd Floor, 3rd Floor, 5th Floor, Building B, TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community, Hangcheng Street, Bao'an district, Shenzhen, China Manufacturer's Name ...........: Shenzhen See Me Here Electronic Co.,Ltd Address ..................................: 1st Floor ,2nd Floor ,3rd Floor ,5th Floor ,Building B ,TongFuYu Industrial Park, No.32 Hangkong Road, Sanwei Community ,Hangcheng Street ,Bao'an district ,Shenzhen China Product Description Product Name .........................: Wireless Speaker Brand Name ..........................: Model Name ...........................: WildBox Series Model ...........................: N/A Test Standards ......................: FCC Part15.247 Test Procedure .......................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 04 Jan. 2022 Date (s) of performance of tests ............. : 04 Jan. 2022 ~ 19 Jan. 2022 Date of Issue ........................................... : 19 Jan. 2022 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 46 Report No.: STS2110103W04 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 TEST PROCEDURE 16 3.3 TEST SETUP 16 3.4 EUT OPERATING CONDITIONS 16 3.5 TEST RESULTS 17 4. RADIATED EMISSION MEASUREMENT 19 4.1 RADIATED EMISSION LIMITS 19 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 5.1 LIMIT 31 5.2 TEST PROCEDURE 31 5.3 TEST SETUP 31 5.4 EUT OPERATION CONDITIONS 31 5.5 TEST RESULTS 32 6. POWER SPECTRAL DENSITY TEST 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 Page 4 of 46 Report No.: STS2110103W04 Table of Contents 6.3 TEST SETUP 36 6.4 EUT OPERATION CONDITIONS 36 6.5 TEST RESULTS 37 7. BANDWIDTH TEST 39 7.1 LIMIT 39 7.2 TEST PROCEDURE 39 7.3 TEST SETUP 39 7.4 EUT OPERATION CONDITIONS 39 7.5 TEST RESULTS 40 8. PEAK OUTPUT POWER TEST 42 8.1 LIMIT 42 8.2 TEST PROCEDURE 42 8.3 TEST SETUP 43 8.4 EUT OPERATION CONDITIONS 43 8.5 TEST RESULTS 44 9. ANTENNA REQUIREMENT 45 9.1 STANDARD REQUIREMENT 45 9.2 EUT ANTENNA 45 10. EUT TEST PHOTO 46 Page 5 of 46 Report No.: STS2110103W04 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 19 Jan. 2022 STS2110103W04 ALL Initial Issue Page 6 of 46 Report No.: STS2110103W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 46 Report No.: STS2110103W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 46 Report No.: STS21101…
