2AXR6-EL203EARBUDS

80 mm80 mm80 mm 120 mm SAFETY PRECAUTIONS Read these safety instructions before using your device and store them for possible future reference. • The device should not be exposed to dripping or splashingwater. • CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent. • The battery should not be exposed to excessive heat such as sunshine, fire or similar. • If the battery is worn, it must be removed from the product. • The battery must be disposed of safely. Always use the collection bins provided to protect the environment. • The battery cannot be replaced by the user. SPECIFICATIONS Model: EL203/ PO20111 Wireless Version: V 5.1 Wireless Range: 10meters Earbud Battery : 30mAh Charging Case Battery : 300mAh Play time: Upto 2-3 hours Charging time: approx 2 hour Standby time: 100 hours Accessories: 1 User Manual 1 Micro USB Charging Cable TURNING ON/ OFF/ PAIRING The earbuds will automatically power on after being taken out of the charging case. Simultaneous sound prompt "Boom" sound, (or press and hold two earbuds for 1.5 seconds, and the sound prompts "power on-Boom”). The red and blue lights flash alternately. To power earbuds OFF, put the earbuds into the charging case then close it (or press and hold both earbuds for 3 seconds) at the same time with the sound of "power off" when the earbud placed into charging case. The red led light is on, (or the red light flashes three times to shut down). The earbuds will automatically shut down within 5 minutes without connection. 1) When the two earbuds are taken out of the charging case, they will be automatically paired. The success sound "boom". 2) Turn on the wireless of the mobile phone, search for “EL203” then click connect. After the connection is successful, you will hear "connected" and the indicator light flashes blue every 5 seconds. 3) Turn off the wireless on the mobile phone or turn off the earbuds, you will hear "disconnected". 4) After the earbud is taken out of the charging case again, it will automatically turn on and connected with the mobile phone wireless. EL203 User Manual 1 Short Tab Play/ Pause/ Answer Call/End Call 2 Short Tabs Volume -Volume + 3 Short Tabs Previous track Next Track 1 Long Hold Power ON/OFF Power ON/OFF Function Sensor Call Function Decline a Call Long Hold to decline call Summon Voice Assistant Hold 5seconds Made in China This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In order to prevent conditions that can lead to overheating, please make sure that the wireless charging pad surface is free of all metal objects at all times, such as coins or paper clips. In addition, before charging, please remove anything metallic attached to the back of the phone, such as battery cases, ring holders, or plates used for mounting to magnetic phone holders. SAFETY WARNING Pour éviter les conditions pouvant entraîner une surchaue, veuillez-vous assurer que la surface du socle de recharge sans l est exempte de tout objet métallique, comme des pièces de monnaie ou des trombones. En outre, avant la charge, veuillez enlever quoi que ce soit métallique xé à l'arrière du téléphone, telles que des boîtiers de batterie, des porte-anneaux, ou des plaques utilisées pour le montage de supports de téléphone magnétiques. AVERTISSEMENT! In order to prevent conditions that can lead to overheating, please make sure that the wireless charging pad surface is free of all metal objects at all times, such as coins or paper clips. In addition, before charging, please remove anything metallic attached to the back of the phone, such as battery cases, ring holders, or plates used for mounting to magnetic phone holders. SAFETY WARNING Pour éviter les conditions pouvant entraîner une surchaue, veuillez-vous assurer que la surface du socle de recharge sans l est exempte de tout objet métallique, comme des pièces de monnaie ou des trombones. En outre, avant la charge, veuillez enlever quoi que ce soit métallique xé à l'arrière du téléphone, telles que des boîtiers de batterie, des porte-anneaux, ou des plaques utilisées pour le montage de supports de téléphone magnétiques. AVERTISSEMENT! CHARGING When the power of the earbuds is low, you will hear "please charge" and red indicator light flashes twice every 5 seconds. Put earbuds back into charging case. The LED on earbud is red while charging in the case, it will turn blue when the earbud is fully charged. When the battery of charging case is low, blue light flashes. Use the Micro USB charging cable to recharge the charging case, charging case battery indicator % will be flashing until it is 100% fully charged. Earbuds Function Sensor Function Sensor Left Earbud Right Earbud FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device …

Text truncated - open the document above for the full version.

Product: EARBUDS Model No.: EL203 FCC ID: 2AXR6-EL203 The device have left and right earphones ，the left and right earphones are electrically identical. <Signature>： Name：Mason Lapsker Applicant Company：STARLINE USA INC

May Fed e Auth 7345 Colu On o C, 1s Villa to ac that certi f defin labe For i beha for c ISLA <Sig n Name Title： Applic 13, 2021 eral Commu horization & 5 Oakland M umbia, Mary our behalf, I st Floor, Blo ge, Nansha ct as our age submitted d fication is so ned in the Fe l identical to instances w alf, I acknow certification, AND, NEW Y nature>： e：Mason L cant Compa unications C Evaluation D Mills Road land 21046 appoint She ock B, Jun X n District, S ent in the pr documents p ought. I also ederal Comm o that submit where our au wledge that still resides YORK 14072 Lapsker any：STAR ommission Division Author i enzhen Time Xiang Da Bui henzhen, C reparation of properly desc o certify that munications tted for appr uthorized ag all responsi with S T A 2 USA RLINE USA ity to Act as eway Testin ilding, Zhon hina (Name f this applica cribe the de each unit m s Commissio roval with th ent signs th ibility for com ARLINE U INC. s Agent ng Laborator gshan Park of Agent co ation for equ evice or syst manufactured on’s regulatio his applicatio he applicatio mplying with SA INC./ ries/ Zone C Road West ompany nam uipment cert em for which d, imported ons will hav on. on for certific h the terms 3036 ALT B C, 1st Floor, t, Tong Le me and addr tification. I c h equipme n or marketed ve affixed to cation on ou and conditio BLVD.,GRA Zone ress) ertify t d, as it a ur ons ND

May 13, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXR6-EL203 Product Name: EARBUDS Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Mason Lapsker Title： Applicant Company：STARLINE USA INC.

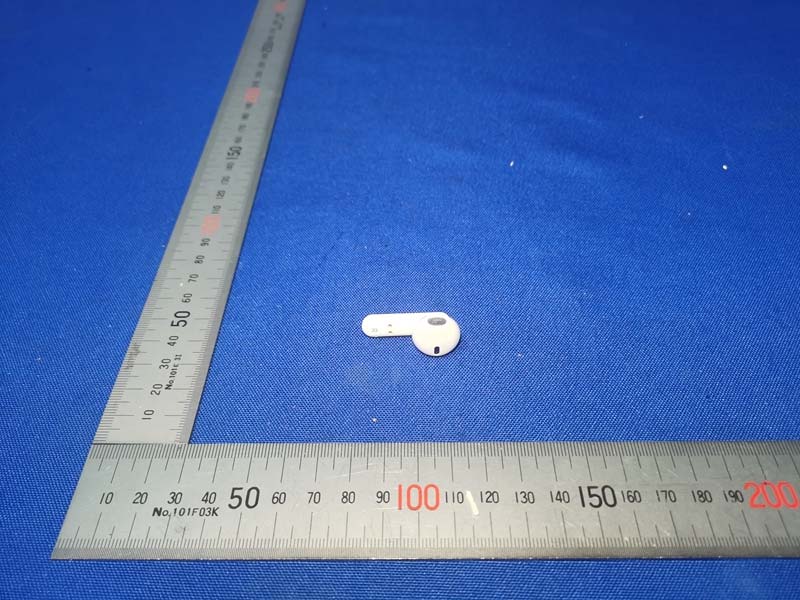

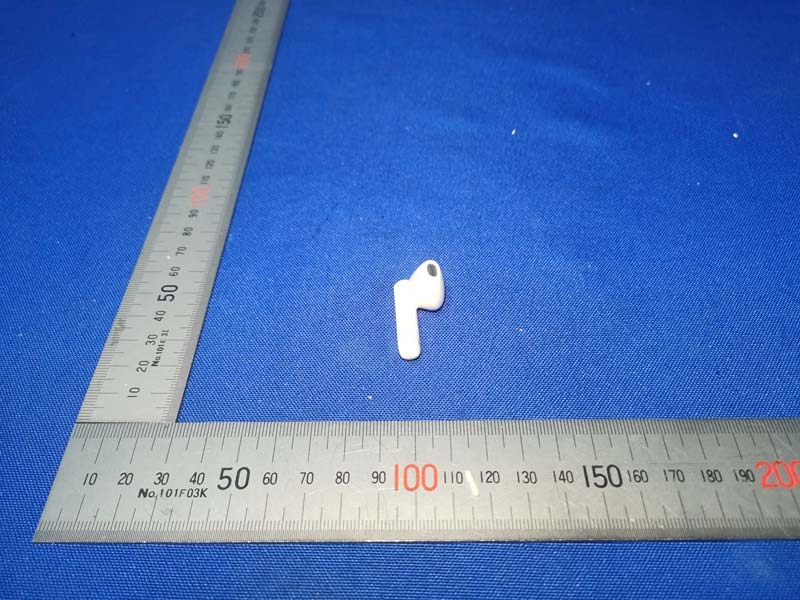

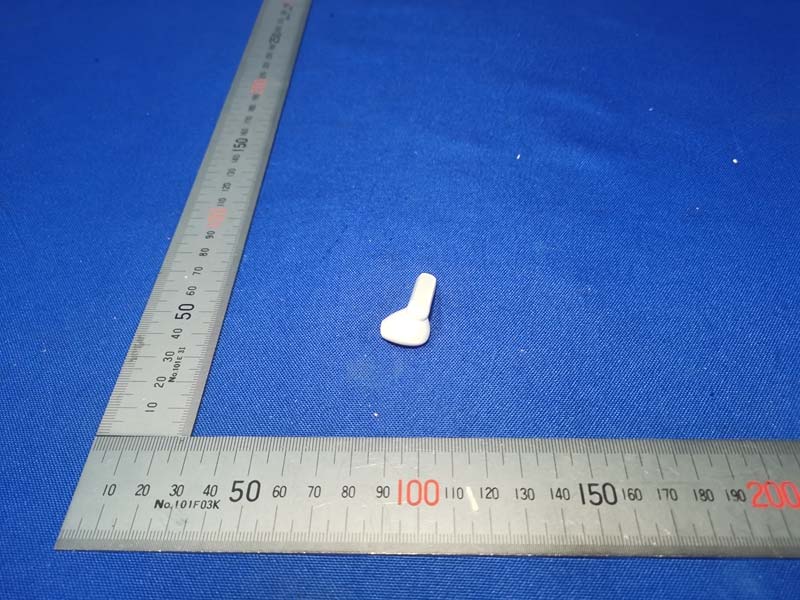

Outside V iew Left - Outside View Right - Outside View

69 mm 11 mm 7.5 mm 5 mm 58 mm Model/ Modèle: PO20111 Item / Numéro d'article: EL203 Input/ Entrée: DC5V Earbud Battery Capacity / Écouteurs batterie capacité: 30mAh Charging Box Battery Capacity / Boîte de charge batterie capacité: 300mAh Made in China / Fabriqué en Chine Model/ Modèle: PO20111 Item / Numéro d'article: EL203 Input/ Entrée: DC5V Earbud Battery Capacity / Écouteurs batterie capacité: 30mAh Charging Box Battery Capacity / Boîte de charge batterie capacité: 300mAh Made in China / Fabriqué en ChineFCC ID: 2AXR6-EL203 FCC ID: 2AXR6-EL203

Label Location

Left - Inside View Right - Outside View

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/ 20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 95.28dBuV/m @3m Ant gain = -0.58dBi ;so Ant numeric gain= 0.875 So pt={ [10 ( 95.28 /20) /10 6 x3] 2 /30x0.875}x1000 mW = 1.156 mW So (1.156 mW/5mm)x √ 2.402GHz = 0.36 <3 Then SAR evaluation is not required

Report No.: TW2104223E File reference No.: 2021-04-30 Applicant: STARLINE USA INC. Product: EARBUDS Model No.: EL203 Brand Name: N/A Test Standards: FCC Part 15.249 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10 &FCC Part 15 Subpart C, Paragraph 15.249 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: April 30, 2021 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2104223E Page 2 of 46 Date: 2021-04-30 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 Report No.: TW2104223E Page 3 of 46 Date: 2021-04-30 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ............................................................................................... 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty................................................................................................ 5 1.7 Test By......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results.................................................................................... 7 3.2 Test Standards................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test..................................................................... 8 5.1 Schematics of the Test....................................................................................... 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.......................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
