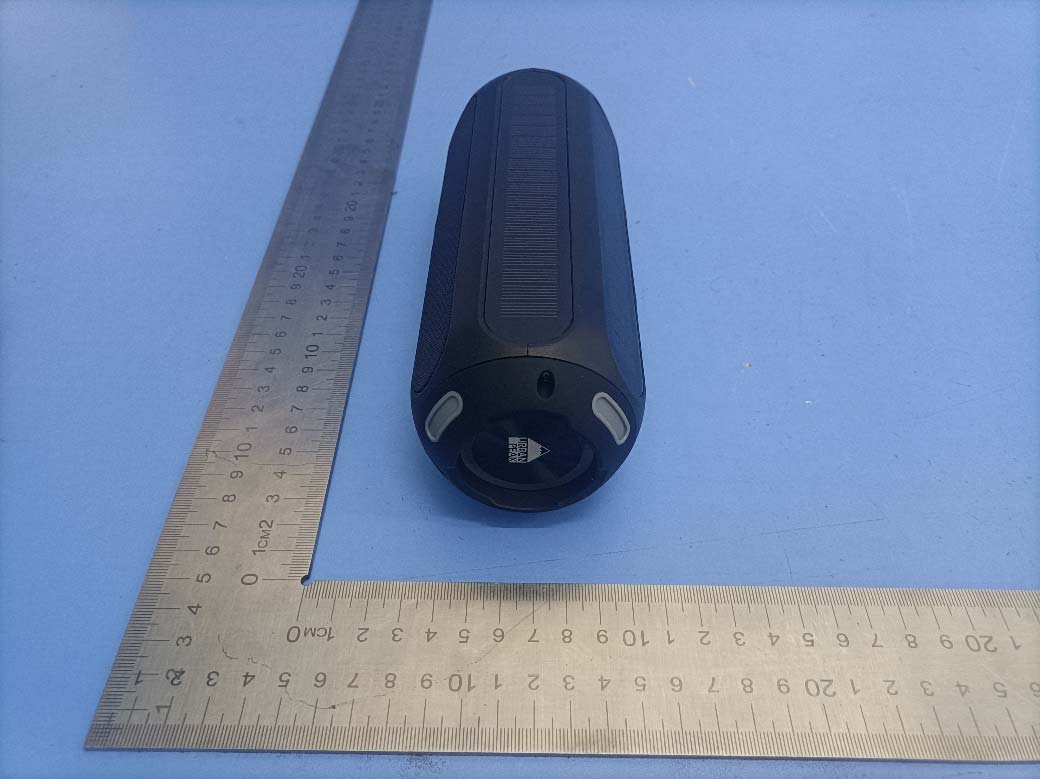

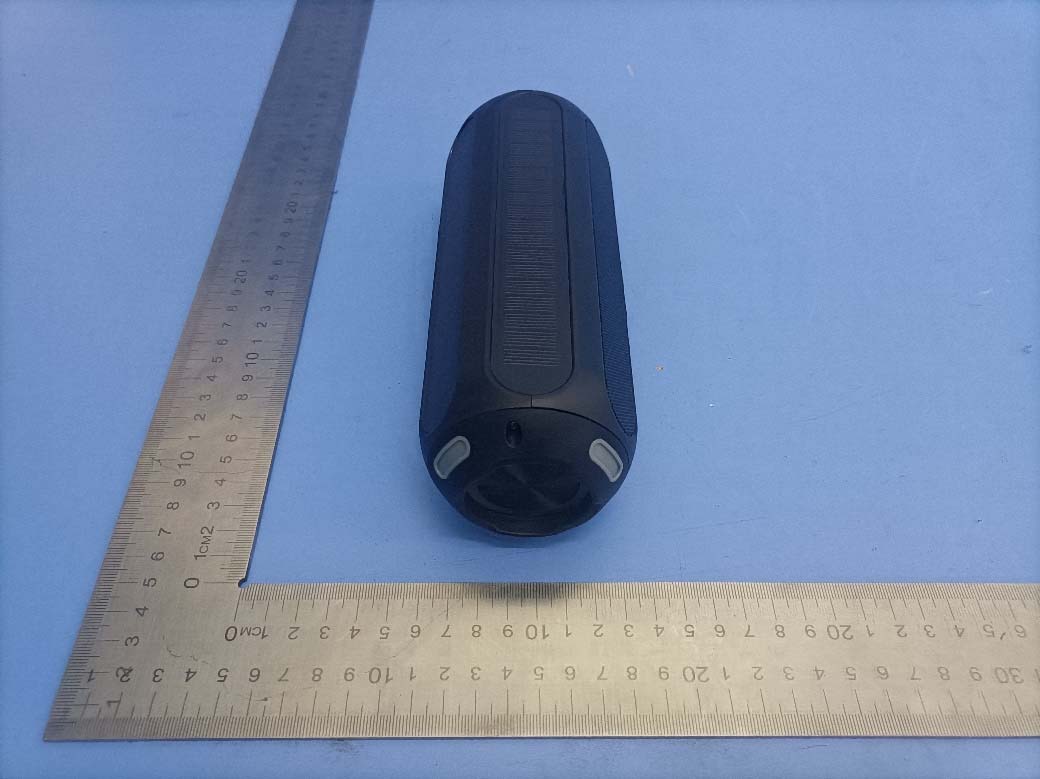

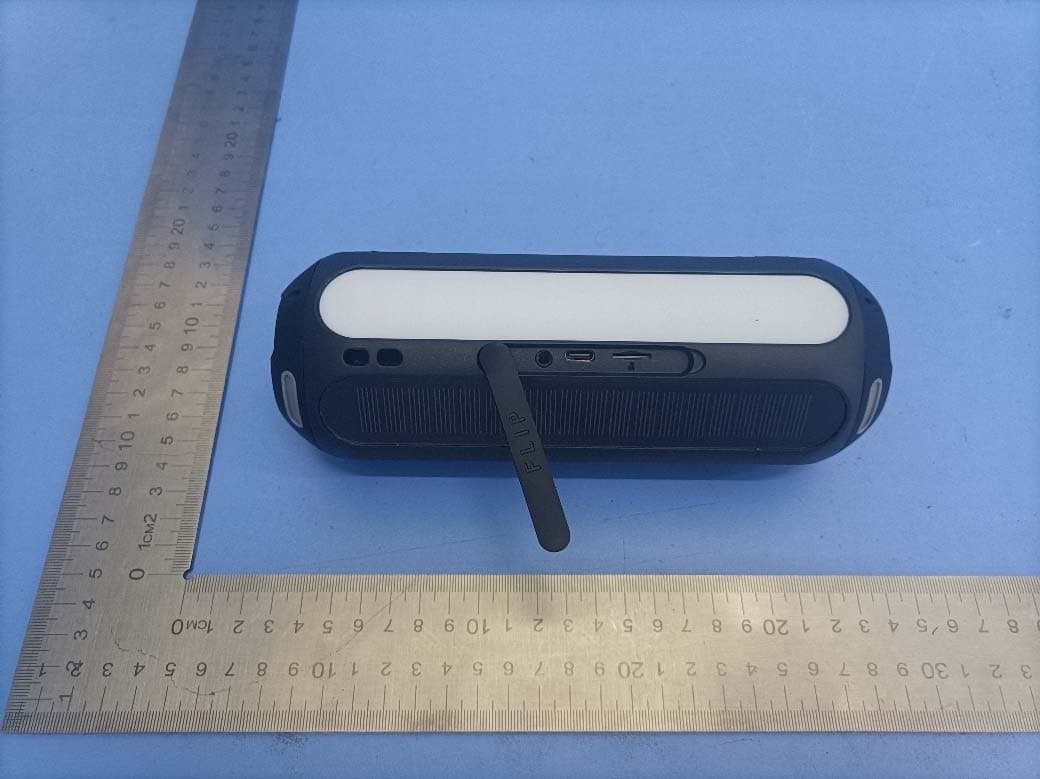

FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

FCC ID: 2AXR6-EL209 TB-RF-074-1.0 AppendixI Label FCC ID: 2AXR6-EL209 Model:EL209/ES-T69 PRO MAX FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Photo 7 Internal of EUT Photo 8 Appearance of PCB FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Antenna FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Photo 11 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202309-0047-2 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AXR6-EL209 1. Client Information Applicant : STARLINE USA INC Address : 3036 ALT BLVD, GRAND ISLAND, NY, 14072 USA Manufacturer : Shenzhen Eshine Interaction Technology Co.,Ltd Address : 4F, B2 FLAT, 4TH WEST ZONE,SHANGXUE TECHNOLOGY PARK, Bantian, Shenzhen, China 2. General Description of EUT EUT Name : Solar Bluetooth Speaker Model(s) No. : EL209/ES-T69 PRO MAX, ES-T80, ES-T81, ES-T82, ES-T83, ES-T60, ES-T61, ES-T62, ES-T63 ES-T65, ES-T68, ES-T69, ES-T69 SE, ES-T69 PRO, ES-T69 PRO MAX，ES-T85, ES-T86, ES-T89，ES-K01, ES-K02, ES-K05 Model Difference : All of these models are identical in the same PCB, layout, and circuit, the only difference being the model name and appearance color. Product Description : Operation Frequency: Bluetooth &LE 5.1: 2402MHz~2480MHz Number of Channel: Bluetooth &LE 5.1: 79/40 channels Antenna Gain: 0dBi PCB Antenna Modulation Type: GFSK, Pi/4-DQPSK, 8-DPSK(3Mbps) Bluetooth LE:1/2Mbps Bit Rate of Transmitter: 1/2/3Mbps Power Rating : Input: DC 5V/2A Li-ion Polymer Battery : 3.6V by 2500mAh Rechargeable Li-ion battery*2 Software Version : HJX2022049V05_ES-T69(Pro MAX)(1)(1).ufw Hardware Version : Input: DC 5V/2A Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202309-0047-2 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202309-0047-2 Page: 3 of 3 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.605 2±1 3 1.995 0.618 3.0 2.441 3.240 3±1 4 2.512 0.785 3.0 2.480 3.746 3±1 4 2.512 0.791 3.0 Bluetooth Mode (Pi/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.240 3±1 4 2.512 0.779 3.0 2.441 3.942 3±1 4 2.512 0.785 3.0 2.480 4.487 4±1 5 3.162 0.996 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.892 3±1 4 2.512 0.779 3.0 2.441 4.491 4±1 5 3.162 0.988 3.0 2.480 4.955 4±1 5 3.162 0.996 3.0 Bluetooth LE Mode(1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.605 2±1 3 1.995 0.618 3.0 2.440 3.240 3±1 4 2.512 0.785 3.0 2.480 3.746 3±1 4 2.512 0.791 3.0 Bluetooth LE Mode(2Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.587 2±1 3 1.995 0.618 3.0 2.440 3.271 3±1 4 2.512 0.785 3.0 2.480 3.752 3±1 4 2.512 0.791 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Bluetooth antenna sample BT Antenna Product Approval Time: April 2, 2023 I. Introduction of Antenna Our Bluetooth antenna is made directly on the PCB. The antenna is made of copper plating and tin spraying technology. The thickness of copper foil is H/HOZ, and the plate is made of FR-4 with a thickness of 1.2 mm.. 二、Antenna shape 1 1.Physical map: Third, the antenna parameters The working frequency of Bluetooth antenna is 2402-2480MHz, and resonance occurs in this frequency band. The following table shows the main parameters of the antenna. Bluetooth built-in antenna Frequency(MHz) 2402 ~ 2480 MHz VSWR ≤ 1.92 Impedance 50 Ohm Nominal Return Loss -1dB Max Radiation Omni-directional Gain (Peak) 0 dBi Polarization Linear, Vertical Admitted Power 2W Connector Tin 2 Fourth, the antenna gain test report Spectrum Detector: PK Test Date : June 8, 2013 Test By: Andy Temperature : 28°C Test Result: PASS Humidity : 55 % Modulation: GFSK Maximum gain value Frequency VNA Separation Read Separation Limit (MHz) E Total. dB(dB) 2400MHz 0 2410MHz-0.502625 2420MHz-0.772879 2430MHz-0.955555 2440MHz-1.23072 2450MHz-1.94066 2460MHz-1.90725 2470MHz-2.01968 2480MHz-2.30721 2490MHz-2.28333 2500MHz-2.8728 3 Direction diagram: PHI 0 degrees PHI 90 degrees 4 THETA 90 degrees Standing wave ratio diagram: 5

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 1 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Solar Bluetooth Speaker Test Model: EL209/ES-T69 PRO MAX Sample ID: HC-C-202309-0047-01-01-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC 7.4V Test Engineer: Zhangchenxi Note: For a more detailed features description, please refer to the report TBR-C-202309-0047-3 The report only show the worst case data. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2440 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2480 Ant1 85.2 0.7 0.47 NVNT BLE 2Mbps 2402 Ant1 43.2 3.65 0.93 NVNT BLE 2Mbps 2440 Ant1 43.2 3.65 0.93 NVNT BLE 2Mbps 2480 Ant1 42.8 3.69 0.93 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 2 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 3 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 4 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 5 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 2.605 30 Pass NVNT BLE 1Mbps 2440 Ant1 3.240 30 Pass NVNT BLE 1Mbps 2480 Ant1 3.746 30 Pass NVNT BLE 2Mbps 2402 Ant1 2.587 30 Pass NVNT BLE 2Mbps 2440 Ant1 3.271 30 Pass NVNT BLE 2Mbps 2480 Ant1 3.752 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 6 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 7 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 8 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 9 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.73 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.74 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.71 0.5 Pass NVNT BLE 2Mbps 2402 Ant1 1.12 0.5 Pass NVNT BLE 2Mbps 2440 Ant1 1.11 0.5 Pass NVNT BLE 2Mbps 2480 Ant1 1.25 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 10 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 11 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 12 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 2Mbps 2440MHz Ant1 -6dB Bandwidth NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 13 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.092 NVNT BLE 1Mbps 2440 Ant1 1.12 NVNT BLE 1Mbps 2480 Ant1 1.178 NVNT BLE 2Mbps 2402 Ant1 2.074 NVNT BLE 2Mbps 2440 Ant1 2.089 NVNT BLE 2Mbps 2480 Ant1 2.079 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202309-0047-3 Page: 14 of 38 FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Test Graphs OBW…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202309-0047-3 Page: 1 of 36 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2AXR6-EL209 Report No. : TBR-C-202309-0047-3 Applicant : STARLINE USA INC Equipment Under Test (EUT) EUT Name : Solar Bluetooth Speaker Model No. : EL209/ES-T69 PRO MAX Series Model No. : ES-T80, ES-T81, ES-T82, ES-T83, ES-T60, ES-T61, ES-T62, ES-T63 ES-T65, ES-T68, ES-T69, ES-T69 SE, ES-T69 PRO, ES-T69 PRO MAX，ES-T85, ES-T86, ES-T89，ES-K01, ES-K02, ES-K05 Brand Name : ---- Sample ID : HC-C-202309-0047-01-01-1# & HC-C-202309-0047-01-01-2# Receipt Date : 2023-09-20 Test Date : 2023-09-20 to 2023-10-13 Issue Date : 2023-10-16 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202309-0047-3 Page: 2 of 36 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 7 1.4 Description of Support Units .............................................................................................. 8 1.5 Description of Test Mode .................................................................................................... 8 1.6 Description of Test Software Setting ................................................................................ 9 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility ......................................................................................................................... 10 2. TEST SUMMARY ..................................................................................................................... 11 3. TEST SOFTWARE ................................................................................................................... 11 4. TEST EQUIPMENT .................................................................................................................. 12 5. CONDUCTED EMISSION ....................................................................................................... 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data ............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit .................................................................................................... 15 6.2 Test Setup ........................................................................................................................... 16 6.3 Test Procedure ................................................................................................................... 17 6.4 Deviation From Test Standard ......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data ............................................................................................................................. 18 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 19 7.1 Test Standard and Limit .................................................................................................... 19 7.2 Test Setup ........................................................................................................................... 19 7.3 Test Procedure ................................................................................................................... 20 Report No.: TBR-C-202309-0047-3 Page: 3 of 36 TB-RF-074-1.0 7.4 Deviation From Test Standard ......................................................................................... 21 7.5 EUT Operating Mode ........................................................................................................ 21 7.6 Test Data ............................................................................................................................. 21 8. BANDWID…

Text truncated - open the document above for the full version.

FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2AXR6-EL209 TB-RF-074-1.0 Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Conducted Emission -----END OF REPORT-----
