2AXT8-AT2201Atuvos Tag

: 71x71mm 128g Product Overview Factory Reset The ATUVOS TAG (AT2101) is a Find My network accessory helping you quickly find things you are looking for. The Apple Find My network provides an easy, secure way to locate compatible personal items on a map using the Find My app on your iPhone, iPad, iPod touch, Apple Watch, or Mac. Simply pair your ATUVOS TAG with the Apple Find My app to view it right alongside your other items. If your item ever goes missing, you can put it in Lost Mode to display a message and contact information for anyone who might find it. The Find My network is encrypted and anonymous, so no one else, not even Apple or Atuvos, can view its location. The ATUVOS TAG uses Bluetooth low energy technology (BLE) and a replaceable battery (CR2032), which gives you up to 1 year of battery life. Setup is quick and easy. Make your life easier today. * To use the Apple Find My app or the Find Items app on Apple Watch to locate this item, the latest version of iOS, iPadOS, macOS, or watchOS is recommended. Long press and hold the button for about 10 seconds until the buzzer beeps: Two long beeps separated by 7 seconds, followed by two short beeps. The device is now in pairing mode. All connection data will be cleared. You must remove the accessory from the app and then add it back. Button What’s In The BoxKey Features ATUVOS TAG Built-in Battery (CR2032) User Manual RangeUp to 400ft (120m) NFC tap for Lost Mode Voice Control with Siri Loud Ring Water Resistant Replaceable battery Privacy is built in Compact design Specification Firmware Update Battery Replacement Battery: CR2032, DC 3V Operation Temperature: 0-40 Firware Update: OTA (Find My App) Wireless Network: Bluetooth Operating frequency: 2402~2480MHz Max. transmit power: 8dBm Quick Start Guide 1.Update to the latest iOS or iPadOS. Turn on Bluetooth in Control Center or in Settings > Bluetooth 2.Pull tab when ready to use. Hold near device and open the Find My app. 3. Tap +, then tap Add Other Item and follow the onscreen instructions. To ensure the best possible experience with ATUVOS TAG, we strongly recommend that you update the firmware whenever updates are available: 1. Open the Find My app and select the item. 2. There will be a "Update available" whenever the update is available. Tap it then select "Update" to begin ATUVOS TAG has a replaceable CR2032 battery that will last up to 1 year. When the battery runs out you can replace it in 3 steps. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’sauthority to operate the equipment. FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. IC The licensed transmitter/receiver contained in this device is compliant with Innovation, Science and Economic Development Canada's RNC for licensed radio devices.The operation is permitted under two conditions: 1.The device must not cause interference; 2.The device must accept any radio interference, even if the interference is likely to compromise its operation. RF exhibition statement: The equipment complies with the IC radiation exposure limit established for an uncontrolled environment.This equipment must be installed and used with a minimum distance of 5 mm between the radiator and your body. CE Statement Hereby, Comet Innovation Limited declares that this device is in compliance withthe essential requirements and other relevant provisions of Directive 2014/53/EU. Technical description: Frequency Range: Bluetooth: 2402 - 2480 MHz Transmit Power: Bluetooth: 8 dBm EIRP suivantes : 1.L’appareil ne doit pas produire de brouillage; 1.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Déclaration d'exposition RF: L'équipement est conforme à la limite d'exposition aux radiations de la IC établie pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 5 mm entre le radiateur et votre corps. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for . Close the battery cover by aligning the top hole on both lids. . Use a paperclip to remove battery and then Replace a new one, placing the battery positive side up. Warning: ATUVOS TAG c…

Text truncated - open the document above for the full version.

FelionTechnologiesCompanyLimited AgentAuthorization Company:FelionTechnologiesCompanyLimited Address:304,3/F,FuxingOfficeBuilding,No.6BinglangRoad,FubaoCommunity, FutianDistrict,Shenzhen,China ProductName:AtuvosTag ModelNumber(s):AT2201 ProductDescription:AtuvosTag WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:Jul.07,2022 Name:TinaHe Title:PM Company:FelionTechnologiesCompanyLimited

FelionTechnologiesCompanyLimited 304,3/F,FuxingOfficeBuilding,No.6BinglangRoad,FubaoCommunity,FutianDistrict, Shenzhen,China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:Jul.07,2022 Subject;RequestforConfidentiality FCCID:2AXT8-AT2201 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:TinaHe Title:PM

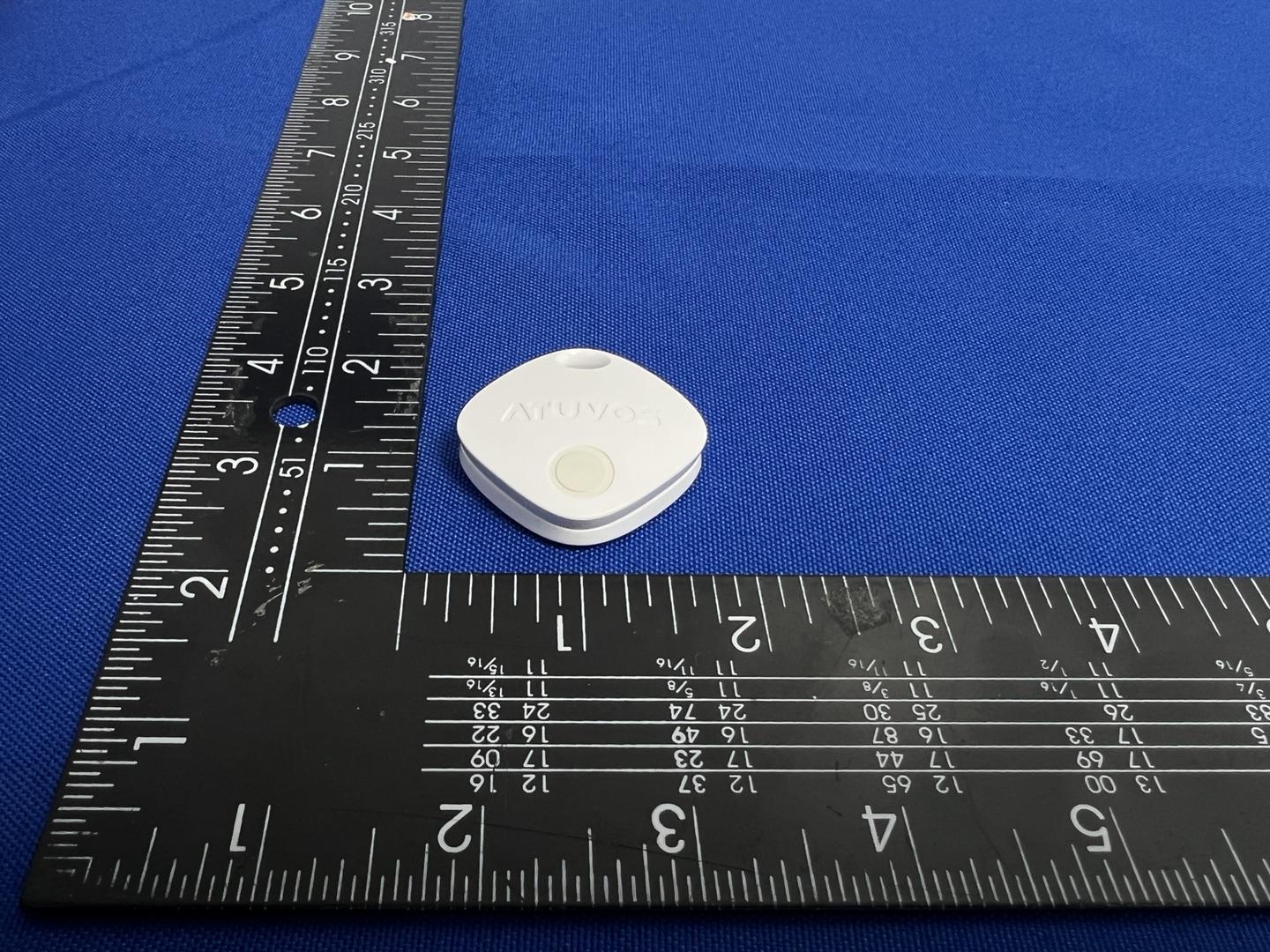

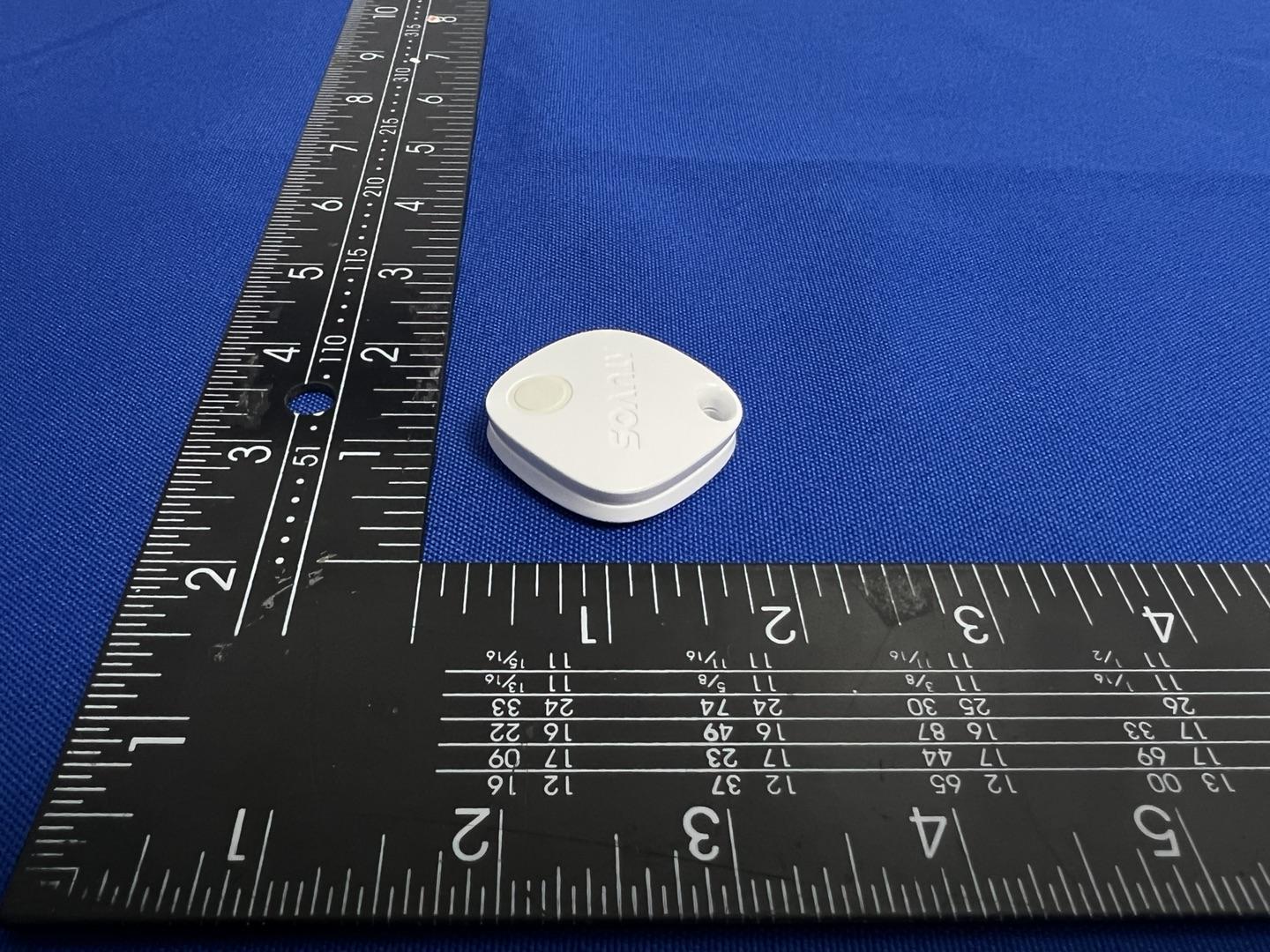

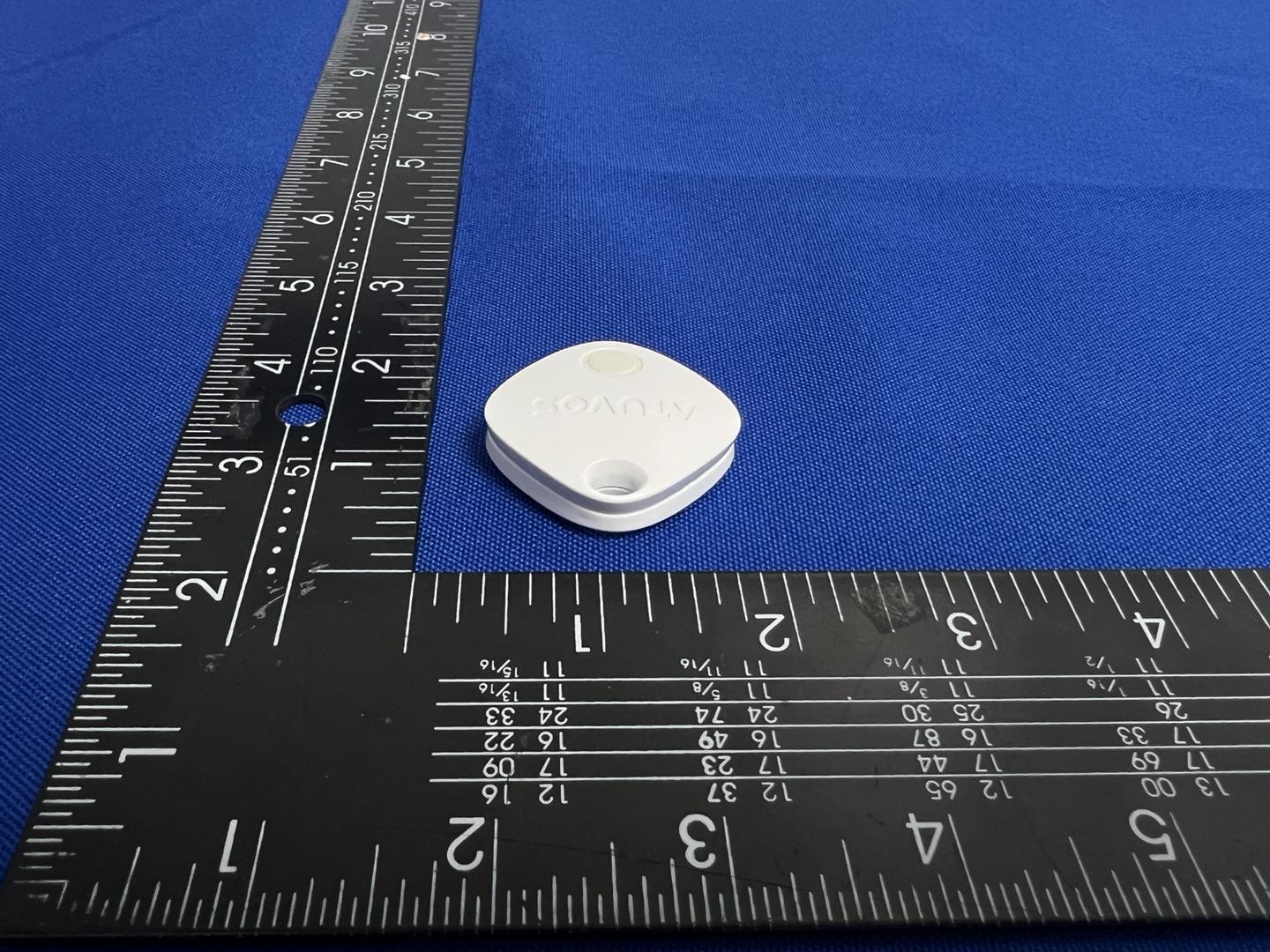

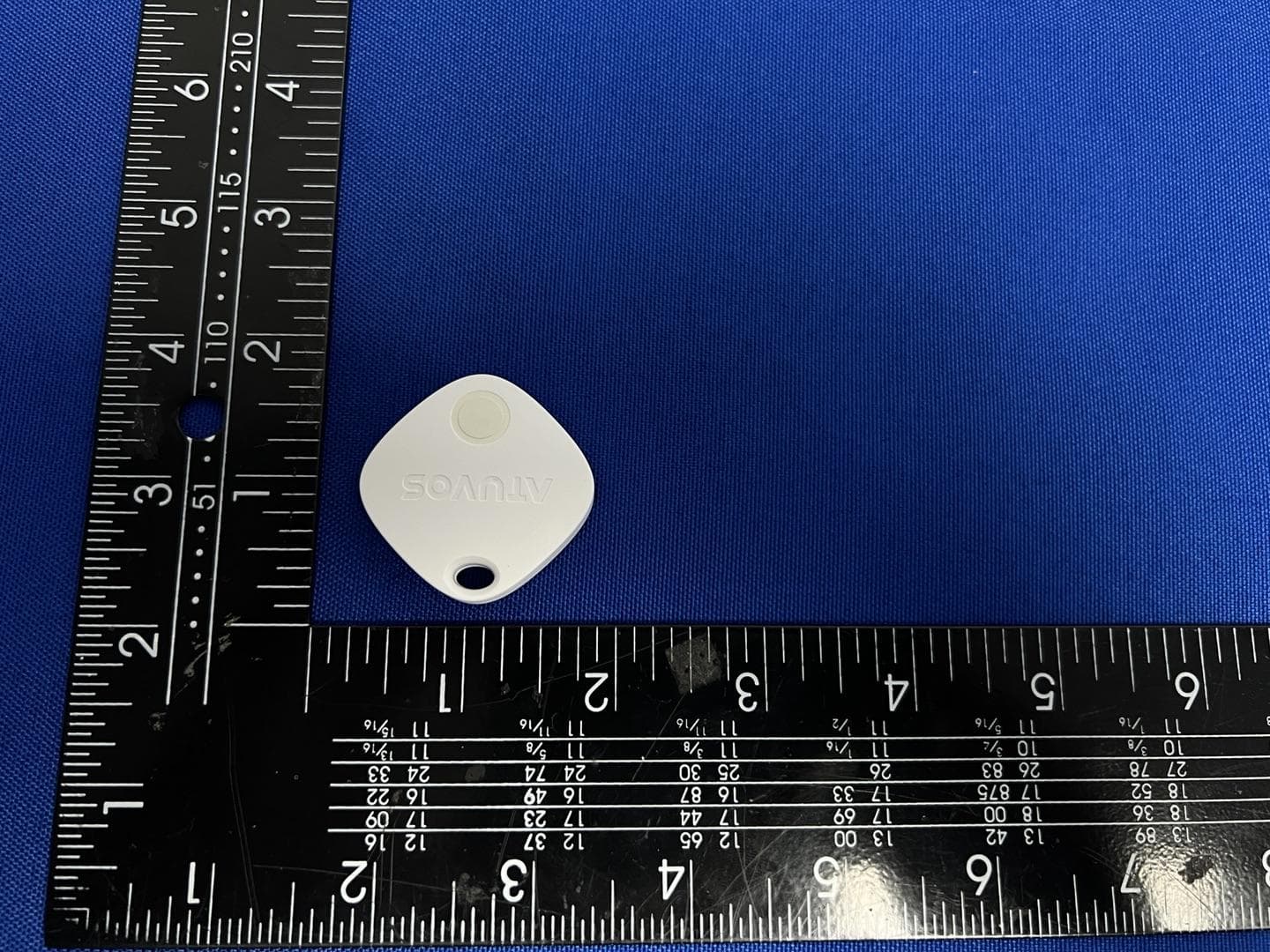

FCCID:2AXT8-AT2201Page 1 of 3 IC:26783-AT2201 ExternalPhotosofEUT FCCID:2AXT8-AT2201Page 2 of 3 IC:26783-AT2201 FCCID:2AXT8-AT2201Page 3 of 3 IC:26783-AT2201

FCC ID: 2AXT8-AT2201 Page 1 of 1 Report No.: CTL2206071054-WF FCC-ID Label Information 1. Label location: Atuvos Tag Model: AT2201 FCC ID: 2AXT8-AT2201

FCCID:2AXT8-AT2201Page 1 of 4 IC:26783-AT2201 InternalPhotosofEUT FCCID:2AXT8-AT2201Page 2 of 4 IC:26783-AT2201 FCCID:2AXT8-AT2201Page 3 of 4 IC:26783-AT2201 Antenna FCCID:2AXT8-AT2201Page 4 of 4 IC:26783-AT2201

FCCID:2AXT8-AT2201Page1of1ReportNo.:CTL2206071054-WF RFExposureevaluation 2AXT8-AT2201 Accordingto447498D01GeneralRFExposureGuidancev06The1-gand10-gSARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances≤50mmare determinedby:[(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison ForBluetoothlowEnergy pt= 3.21 dBm= 2.09 mWat 2440 MHz So(2.09mW/5mm)x√2.440GHz=0.6542<3 ThenSARevaluationisnotrequired/

IC: 26783-AT2201 Page 1 of 30 FCC ID: 2AXT8-AT2201 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 100.000 100.000 100.00 0.00 0.00 2440 100.000 100.000 100.00 0.00 0.00 2480 100.000 100.000 100.00 0.00 0.00 2M SISO 2402 100.000 100.000 100.00 0.00 0.00 2440 100.000 100.000 100.00 0.00 0.00 2480 100.000 100.000 100.00 0.00 0.00 IC: 26783-AT2201 Page 2 of 30 FCC ID: 2AXT8-AT2201 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 3 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 4 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 5 of 30 FCC ID: 2AXT8-AT2201 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 1M SISO 2402 1 1.037 Pass 2440 1 1.037 Pass 2480 1 1.035 Pass 2M SISO 2402 1 2.061 Pass 2440 1 2.063 Pass 2480 1 2.061 Pass IC: 26783-AT2201 Page 6 of 30 FCC ID: 2AXT8-AT2201 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 7 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 8 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 9 of 30 FCC ID: 2AXT8-AT2201 2.2 6dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.679 >=0.5 Pass 2440 1 0.683 >=0.5 Pass 2480 1 0.674 >=0.5 Pass 2M SISO 2402 1 1.160 >=0.5 Pass 2440 1 1.162 >=0.5 Pass 2480 1 1.155 >=0.5 Pass IC: 26783-AT2201 Page 10 of 30 FCC ID: 2AXT8-AT2201 2.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 11 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 12 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 13 of 30 FCC ID: 2AXT8-AT2201 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 2.65 <=30 Pass 2440 3.19 <=30 Pass 2480 2.88 <=30 Pass 2M SISO 2402 2.69 <=30 Pass 2440 3.21 <=30 Pass 2480 2.91 <=30 Pass Note1: Antenna Gain: Ant1: 1.05dBi; IC: 26783-AT2201 Page 14 of 30 FCC ID: 2AXT8-AT2201 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 15 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 16 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 17 of 30 FCC ID: 2AXT8-AT2201 4. Maximum Power Spectral Density 4.1 PSD 4.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -11.66 <=8 Pass 2440 -11.07 <=8 Pass 2480 -11.35 <=8 Pass 2M SISO 2402 -14.44 <=8 Pass 2440 -13.87 <=8 Pass 2480 -14.71 <=8 Pass Note1: Antenna Gain: Ant1: 1.05dBi; IC: 26783-AT2201 Page 18 of 30 FCC ID: 2AXT8-AT2201 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 19 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 20 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 21 of 30 FCC ID: 2AXT8-AT2201 5. Unwanted Emissions InStandard Non-restricted Frequency Bands 5.1 Ref 5.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 2.21 2440 1 2.74 2480 1 2.44 2M SISO 2402 1 2.12 2440 1 2.62 2480 1 2.33 Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Note2: RBW = 1MHz was used during the pre-test. The final test will be performed at RBW=100kHz while the margin is less than 3dB. IC: 26783-AT2201 Page 22 of 30 FCC ID: 2AXT8-AT2201 5.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 23 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 24 of 30 FCC ID: 2AXT8-AT2201 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 25 of 30 FCC ID: 2AXT8-AT2201 5.2 CSE 5.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 2.74 -17.26 Pass 2440 1 2.74 -17.26 Pass 2480 1 2.74 -17.26 Pass 2M SISO 2402 1 2.62 -17.38 Pass 2440 1 2.62 -17.38 Pass 2480 1 2.62 -17.38 Pass Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Note2: RBW = 1MHz was used during the pre-test. The final test will be performed at RBW=100kHz while the margin is less than 3dB. IC: 26783-AT2201 Page 26 of 30 FCC ID: 2AXT8-AT2201 5.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 27 of 30 FCC ID: 2AXT8-AT2201 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV IC: 26783-AT2201 Page 28 of 30 FCC ID: 2AXT8-AT2201 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV IC: 26783-AT2201 Page 29 of 30 FCC ID: 2AXT8-AT2201 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV IC: 26783-AT2201 Page 30 of 30 FCC ID: 2AXT8-AT2201 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2206071054-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Atuvos Tag Model/Type reference ................ : AT2201 List Model(s) ............................... : N/A Trade Mark .................................. : VOCOLINC FCC ID ......................................... : 2AXT8-AT2201 Applicant’s name ....................... : Felion Technologies Company Limited Address of applicant ................. : 304,3/F, Fuxing Office Building, No.6 Binglang Road, Fubao Community, Futian District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : June. 16 2022 Date of Test Date ........................ : June. 16 2022- June. 29 2022 Date of Issue .............................. : June. 30 2022 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL2206071054-WF TEST REPORT Test Report No. : CTL2206071054-WF June. 30 2022 Date of issue Equipment under Test : Atuvos Tag Sample No : CTL220607105-1-S001 Model /Type : AT2201 Listed Models : N/A Applicant : Felion Technologies Company Limited Address : 304,3/F, Fuxing Office Building, No.6 Binglang Road, Fubao Community, Futian District, Shenzhen, China Manufacturer : Felion Technologies Company Limited Address : 304,3/F, Fuxing Office Building, No.6 Binglang Road, Fubao Community, Futian District, Shenzhen, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 32 Report No.: CTL2206071054-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2022-06-30 CTL2206071054-WF Tracy Qi V1.0 Page 4 of 32 Report No.: CTL2206071054-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 20 3.4. POWER …

Text truncated - open the document above for the full version.

FCCID:2AXT8-AT2201Page 1 of 1 IC:26783-AT2201 TestSetupPhotosoftheEUT
